Product Description

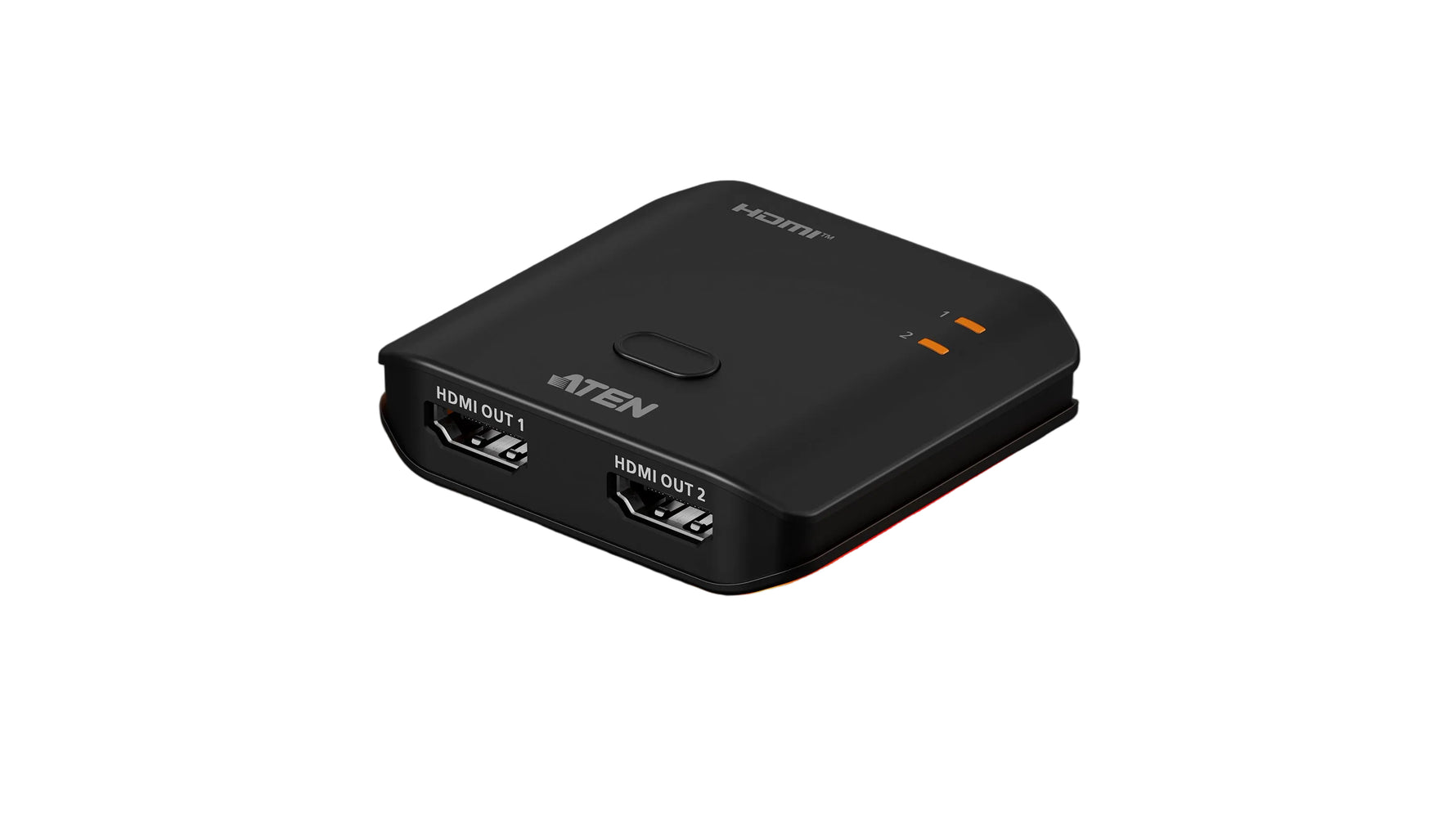

The ATEN VS4812 is a compact 2-port True 4K HDMI splitter designed for home entertainment systems, mirrored dual-display workstations and professional audiovisual installations.

It distributes the audio and video signal from one compatible HDMI source to two HDMI displays simultaneously. Compatible source devices can include laptops, desktop computers, game consoles, media players, set-top boxes and Blu-ray or DVD players.

The splitter supports True 4K resolutions up to 3840 × 2160 at 60Hz with 4:4:4 chroma sampling. It also supports HDR10+, 3D formats, Deep Color and HDCP 2.2 for use with compatible source equipment, displays, content and HDMI cables.

ATEN EDID Sync technology automatically optimises the output resolution according to the connected displays, helping to reduce compatibility and display start-up issues.

Compatible audio formats include LPCM 7.1, Dolby Digital and DTS-HD Master Audio. A front-panel pushbutton allows HDMI output 2 to be enabled or disabled without disconnecting the display.

The VS4812 is an HDMI splitter and not an HDMI switch. It mirrors the same HDMI source across both connected displays and does not provide separate content to each display.

Key Features

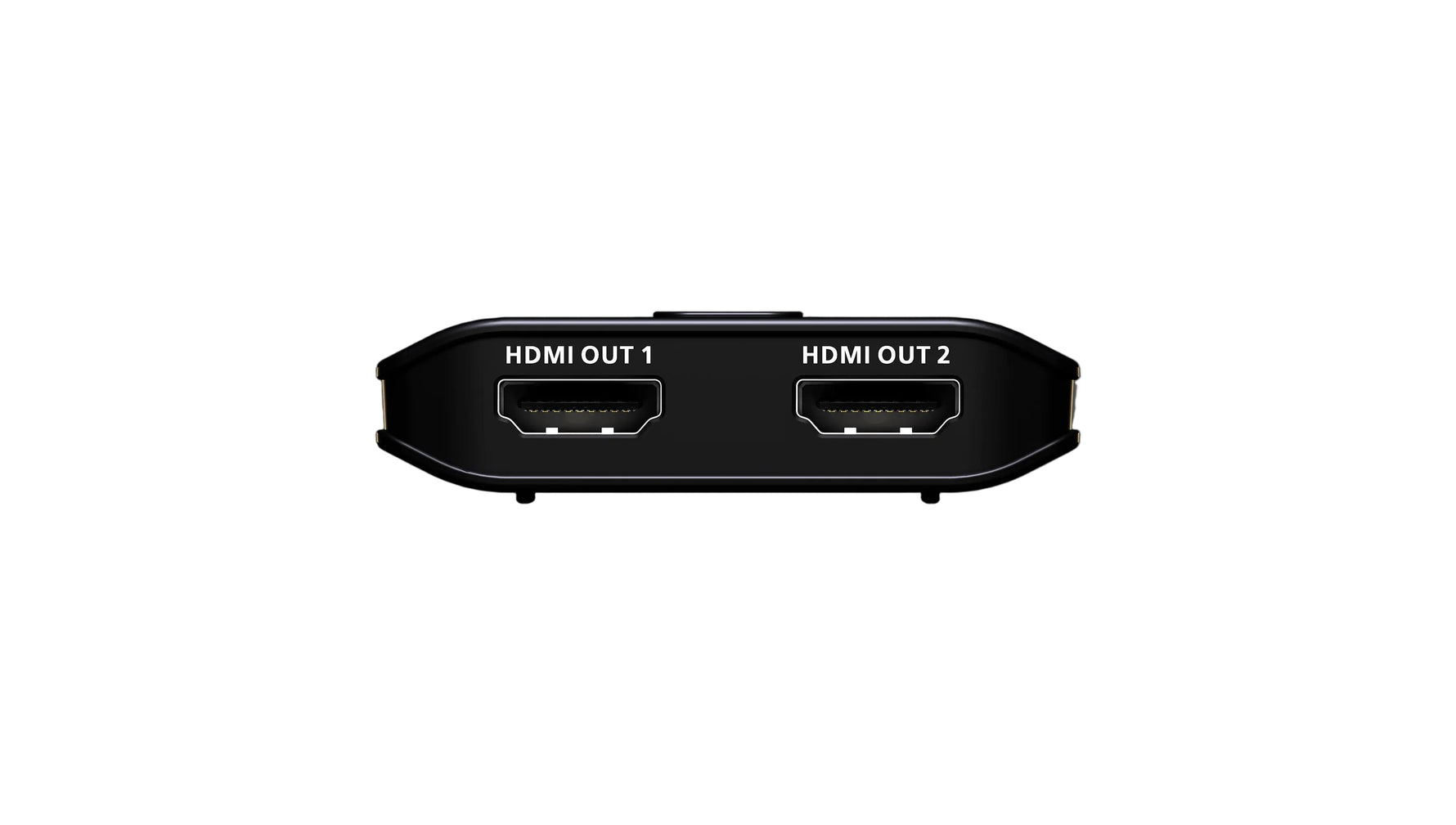

• Distributes one HDMI source to two HDMI displays simultaneously
• Supports True 4K resolutions up to 3840 × 2160 at 60Hz with 4:4:4 chroma
• Supports a maximum data rate of 18Gbps
• Supports a maximum pixel clock of 600MHz
• EDID Sync technology automatically optimises connected display resolutions
• Supports HDR10+
• Supports HDMI 3D formats
• Supports Deep Color
• HDCP 2.2 compatible
• Supports LPCM 7.1 audio
• Supports Dolby Digital audio
• Supports DTS-HD Master Audio
• Front-panel pushbutton enables or disables HDMI output 2

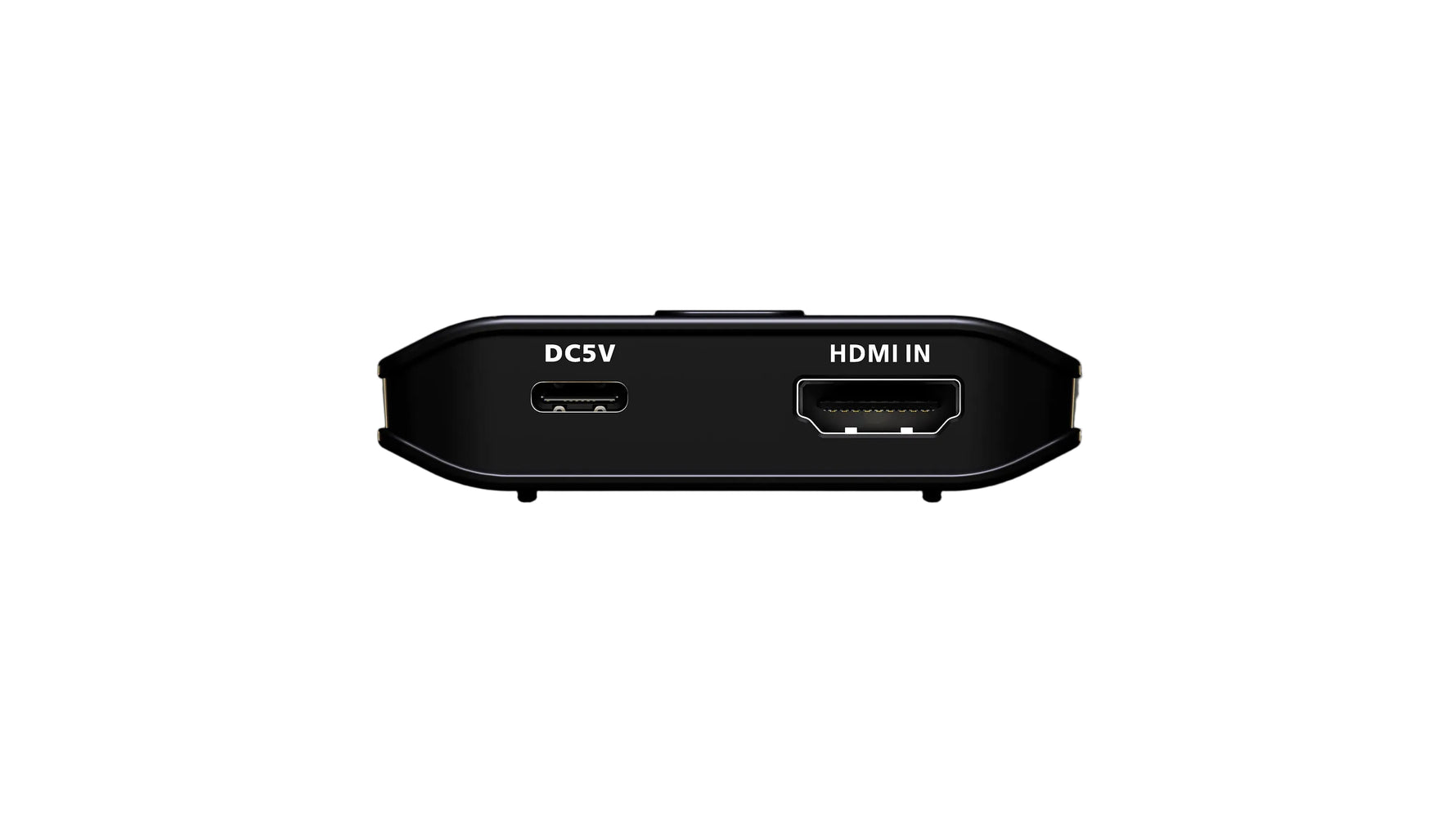

• USB-C power input
• Compact plastic housing
• Integrated orange port and power indicator lighting
• Suitable for home entertainment, workstations and professional AV installations

Specifications

Compatibility

Compatible with HDMI source devices such as:

• Laptops
• Desktop computers
• Game consoles
• Media players
• TV boxes and set-top boxes
• Blu-ray players
• DVD players
• Compatible AV receivers

Compatible display devices include:

• Monitors
• Televisions
• Projectors
• Professional AV displays

The connected HDMI source, displays and cables must support the required resolution, refresh rate, HDR format and HDCP version.

For True 4K output at 3840 × 2160 at 60Hz with 4:4:4 chroma, compatible HDMI source equipment, HDMI displays and suitable HDMI cables are required.

The VS4812 mirrors the same HDMI source across both connected displays. It does not display different content on each screen and does not switch between multiple HDMI source devices.

A compatible 5V/1A USB power adapter is required and is not included.

What’s in the Box

• 1 × ATEN VS4812 2-Port True 4K HDMI Splitter
• 1 × USB Type-C to Type-A Power Cable, 1m

Warranty

ATEN Limited Manufacturer Warranty

Sustainability

The compact design uses a lightweight plastic enclosure and USB power input. The product can support the continued use of existing HDMI source and display equipment in compatible mirrored dual-display installations.
