Product Description

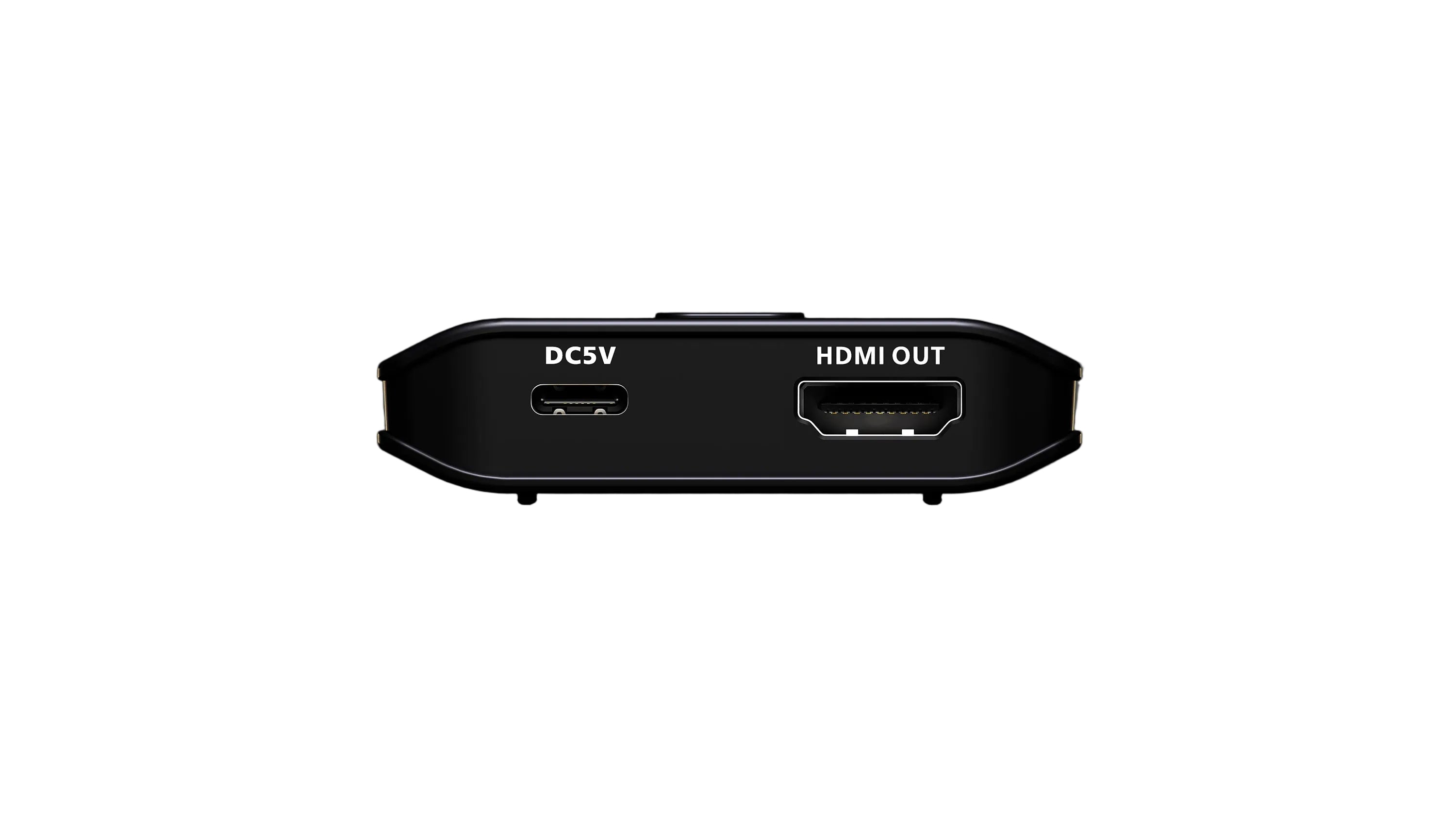

The ATEN VS5821 is a compact 2-port 8K HDMI switch designed for gaming systems, premium home entertainment, professional studios, meeting rooms and commercial audiovisual installations.

It allows two compatible HDMI source devices to connect to one HDMI display. Compatible sources can include laptops, desktop computers, game consoles, media players, TV boxes and Blu-ray or DVD players.

The VS5821 supports resolutions up to 7680 × 4320 at 60Hz with 4:2:0 chroma and 3840 × 2160 at 120Hz, with a maximum HDMI bandwidth of 48Gbps.

ATEN RapidSync technology provides fast synchronisation when switching between the connected HDMI sources. The required source is selected manually using the pushbutton on the top of the unit.

Support for HDR10+, Variable Refresh Rate and Auto Low Latency Mode allows compatible gaming and entertainment equipment to deliver detailed visuals with responsive performance. The switch also supports HDMI 3D formats, Deep Color and HDCP 2.3.

Compatible multichannel audio formats include LPCM 7.1, Dolby Digital and DTS-HD Master Audio.

The VS5821 is an HDMI switch and not an HDMI splitter. It connects two HDMI sources to one display and does not distribute one HDMI source across multiple displays.

Key Features

• Connects two HDMI source devices to one HDMI display
• Supports resolutions up to 7680 × 4320 at 60Hz with 4:2:0 chroma
• Supports resolutions up to 3840 × 2160 at 120Hz
• Supports a maximum HDMI bandwidth of 48Gbps
• ATEN RapidSync technology supports fast source synchronisation
• Manual source selection using the on-device pushbutton
• Supports HDR10+
• Supports Variable Refresh Rate
• Supports Auto Low Latency Mode
• Supports HDMI 3D formats
• Supports Deep Color
• HDCP 2.3 compatible
• Supports LPCM 7.1 audio
• Supports Dolby Digital audio
• Supports DTS-HD Master Audio
• Selected-port LED indicators
• USB-C power input
• Compact and lightweight enclosure
• Suitable for gaming and home entertainment
• Suitable for meeting rooms, studios and professional AV installations

Specifications

Compatibility

Compatible with HDMI source devices such as:

• Laptops
• Desktop computers
• Game consoles
• Media players
• TV boxes and set-top boxes
• Blu-ray players
• DVD players

Compatible HDMI display devices include:

• Gaming monitors
• Computer monitors
• Televisions
• Projectors
• Professional AV displays

The connected HDMI source devices, display and HDMI cables must support the required resolution, refresh rate, HDR format, HDMI features and HDCP version.

For 8K output at 60Hz, 8K output at 30Hz or 4K output at 120Hz, compatible HDMI source equipment, a compatible display and suitable 28AWG HDMI cables of up to 1.5 metres are required on both the input and output sides.

For 4K output at 60Hz, HDMI cable lengths of up to 3 metres are supported on the input and output sides when used with compatible equipment.

Actual performance depends on the connected HDMI source devices, display, HDMI cables, resolution, refresh rate and HDMI features supported by each device.

Sources must be selected manually using the pushbutton on the unit. Automatic source switching is not supported.

The VS5821 connects two HDMI sources to one display. It does not distribute one HDMI source across multiple displays.

ARC and eARC are not supported.

A compatible 5V/1A USB power adapter is required and is not included.

What’s in the Box

• 1 × ATEN VS5821 2-Port 8K HDMI Switch
• 1 × USB Type-C to Type-A Power Cable, 1m

USB power adapter and HDMI cables are not included.

Warranty

ATEN Limited Manufacturer Warranty

Sustainability

The ATEN VS5821 allows two HDMI source devices to share one compatible display, reducing the need for separate displays or repeated cable reconnection. Its compact enclosure also requires minimal installation space in compatible entertainment and professional AV environments.

Product Description

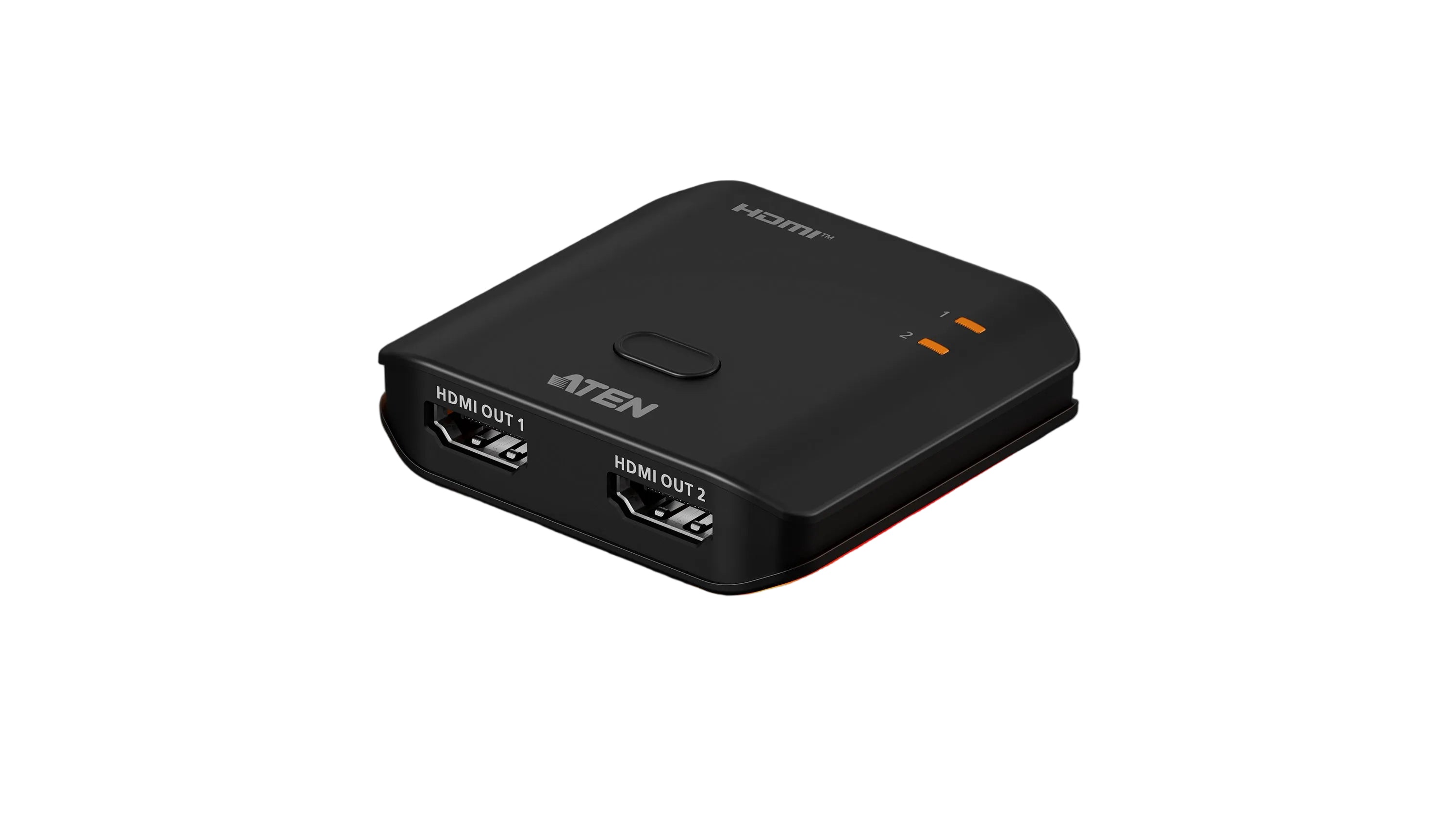

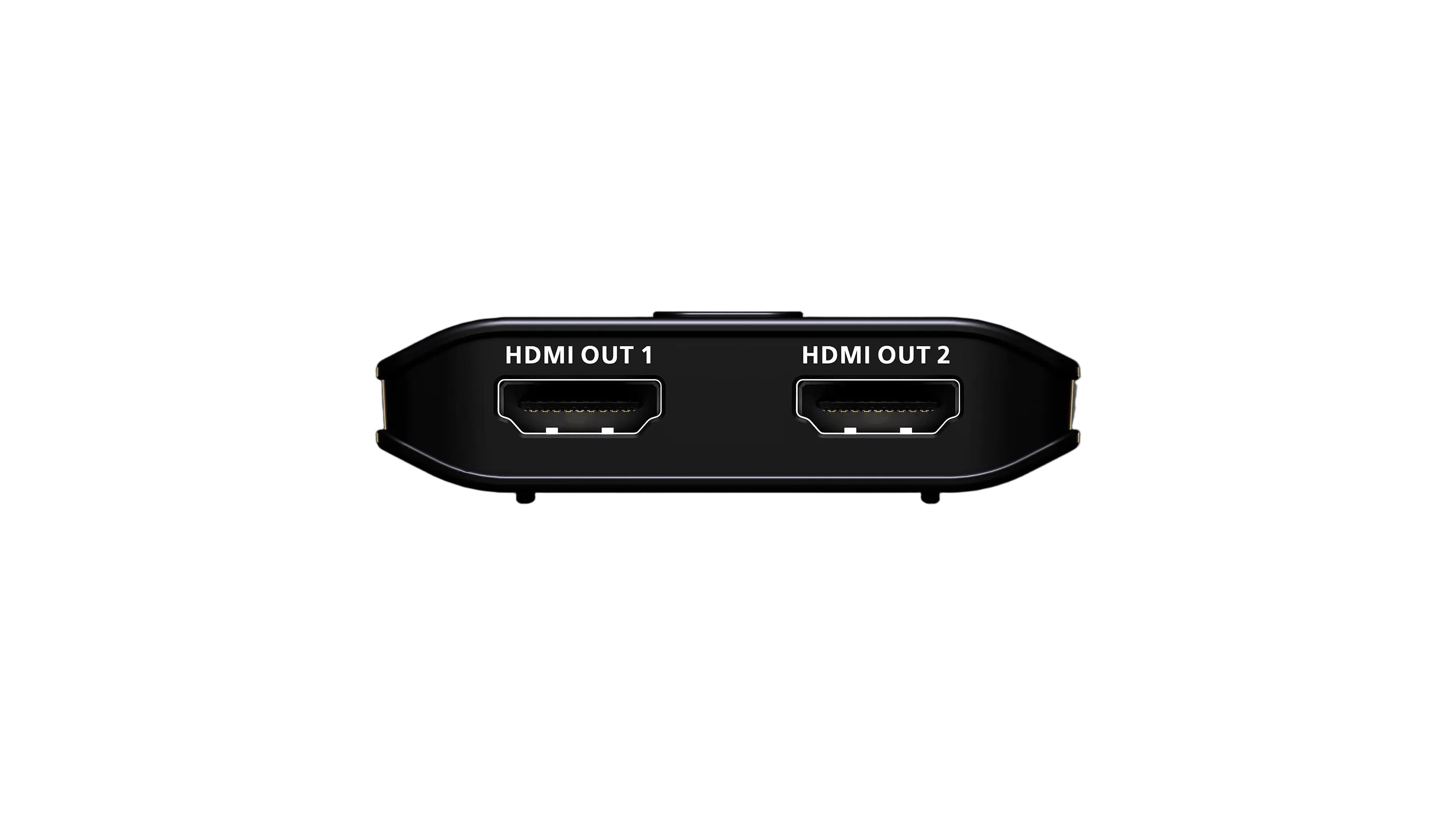

The ATEN VS5812 is a compact 2-port 8K HDMI splitter designed for gaming systems, premium home entertainment, professional studios, meeting rooms and commercial audiovisual installations.

It distributes the same audio and video signal from one compatible HDMI source to two HDMI displays simultaneously. Compatible sources can include laptops, desktop computers, game consoles, media players and set-top boxes.

The VS5812 supports resolutions up to 7680 × 4320 at 60Hz with 4:2:0 chroma and 3840 × 2160 at 120Hz, with a maximum HDMI bandwidth of 48Gbps.

Support for HDR10+, Variable Refresh Rate and Auto Low Latency Mode allows compatible gaming and entertainment equipment to deliver detailed visuals with responsive performance. The splitter also supports HDMI 3D formats, Deep Color and HDCP 2.3.

ATEN EDID Sync technology helps optimise the output resolution across the connected displays and reduce compatibility or start-up issues.

Compatible multichannel audio formats include LPCM 7.1, Dolby Digital and DTS-HD Master Audio. A front-panel pushbutton allows HDMI output 2 to be enabled or disabled without disconnecting the display.

The VS5812 is an HDMI splitter and not an HDMI switch. It mirrors the same HDMI source across both displays and does not provide separate content to each display.

Key Features

• Distributes one HDMI source to two HDMI displays simultaneously
• Supports resolutions up to 7680 × 4320 at 60Hz with 4:2:0 chroma
• Supports resolutions up to 3840 × 2160 at 120Hz
• Supports a maximum HDMI bandwidth of 48Gbps
• Supports HDR10+
• Supports Variable Refresh Rate
• Supports Auto Low Latency Mode
• Supports HDMI 3D formats
• Supports Deep Color
• HDCP 2.3 compatible
• EDID Sync technology helps manage connected display resolutions
• Supports LPCM 7.1 audio
• Supports Dolby Digital audio
• Supports DTS-HD Master Audio
• Front-panel pushbutton enables or disables HDMI output 2
• USB-C power input
• Integrated orange port and power indicator lighting
• Compact and lightweight design
• Suitable for gaming and premium home entertainment
• Suitable for meeting rooms, studios and professional AV installations

Specifications

Compatibility

Compatible with HDMI source devices such as:

• Laptops
• Desktop computers
• Game consoles
• Media players
• TV boxes and set-top boxes
• Blu-ray players
• DVD players
• Compatible AV receivers

Compatible display devices include:

• Gaming monitors
• Computer monitors
• Televisions
• Projectors
• Professional AV displays

The connected HDMI source, displays and cables must support the required resolution, refresh rate, HDR format, HDMI features and HDCP version.

For 8K output at 60Hz or 4K output at 120Hz, compatible HDMI source equipment, displays and suitable 28AWG HDMI cables of up to 1.5 metres are required on both the input and output sides.

For 4K output at 60Hz, HDMI cable lengths of up to 3 metres are supported on the input and output sides when used with compatible equipment.

Actual performance depends on the source device, displays, HDMI cables, resolution, refresh rate and HDMI features supported by each connected device.

The VS5812 mirrors the same HDMI source across both connected displays. It does not display separate content on each screen and does not switch between multiple HDMI source devices.

ARC and eARC are not supported.

A compatible 5V/1A USB power adapter is required and is not included.

What’s in the Box

• 1 × ATEN VS5812 2-Port 8K HDMI Splitter
• 1 × USB Type-C to Type-A Power Cable, 1m

USB power adapter and HDMI cables are not included.

Warranty

ATEN Limited Manufacturer Warranty

Sustainability

The ATEN VS5812 allows one HDMI source to supply two compatible displays without requiring a separate source device for each screen. This can help reduce equipment requirements and installation complexity in compatible home entertainment, gaming and professional AV environments.

Product Description

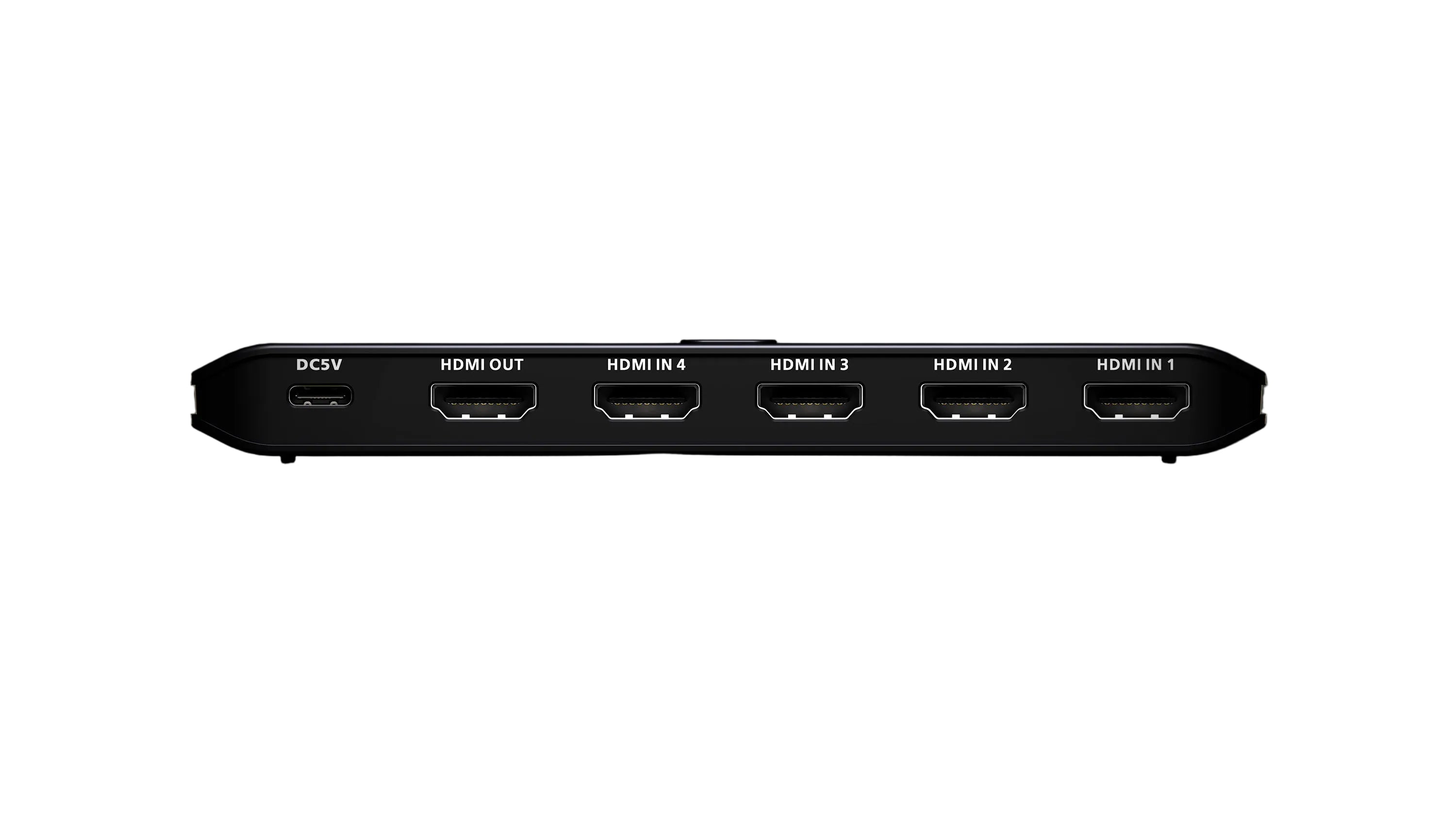

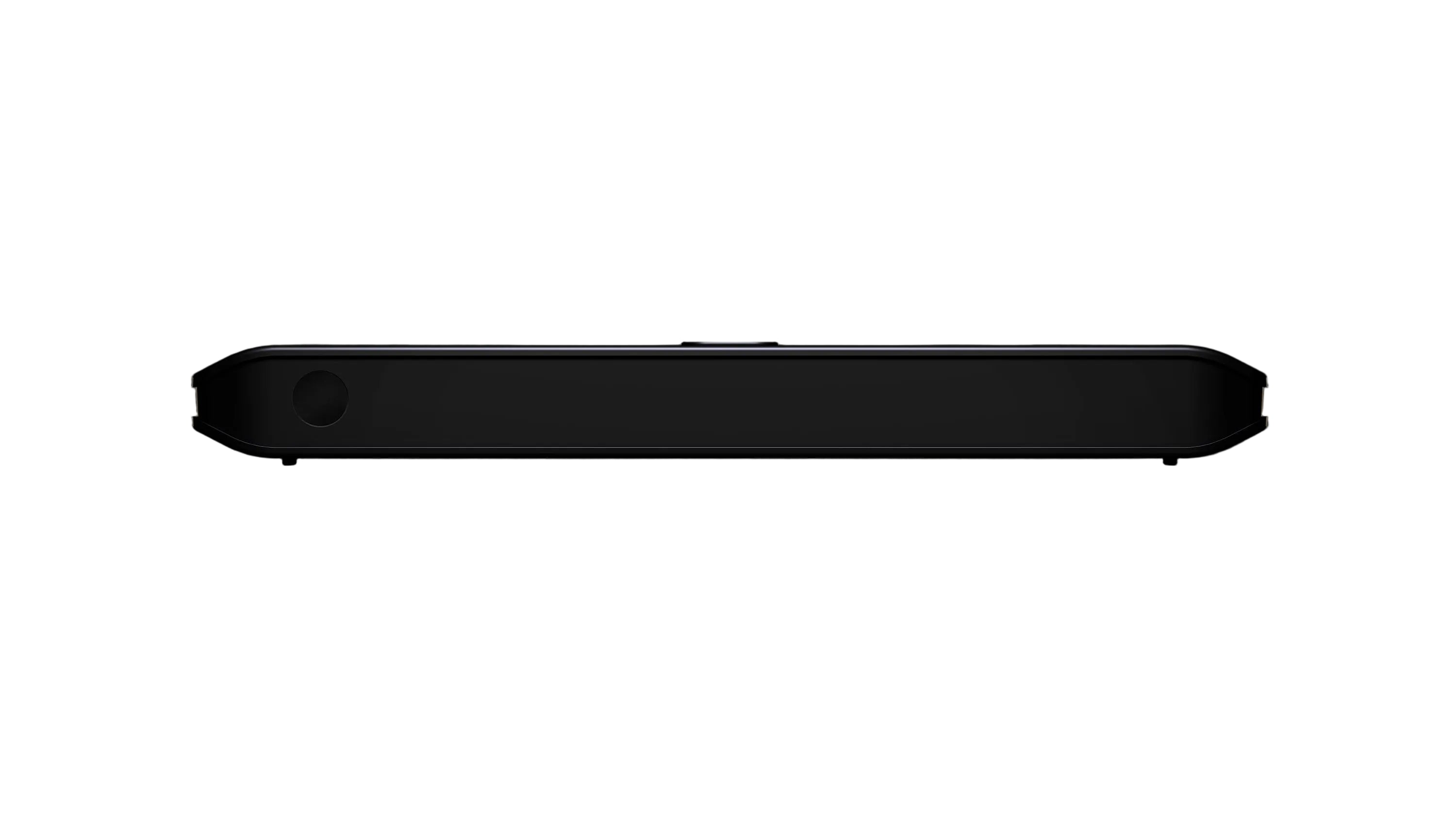

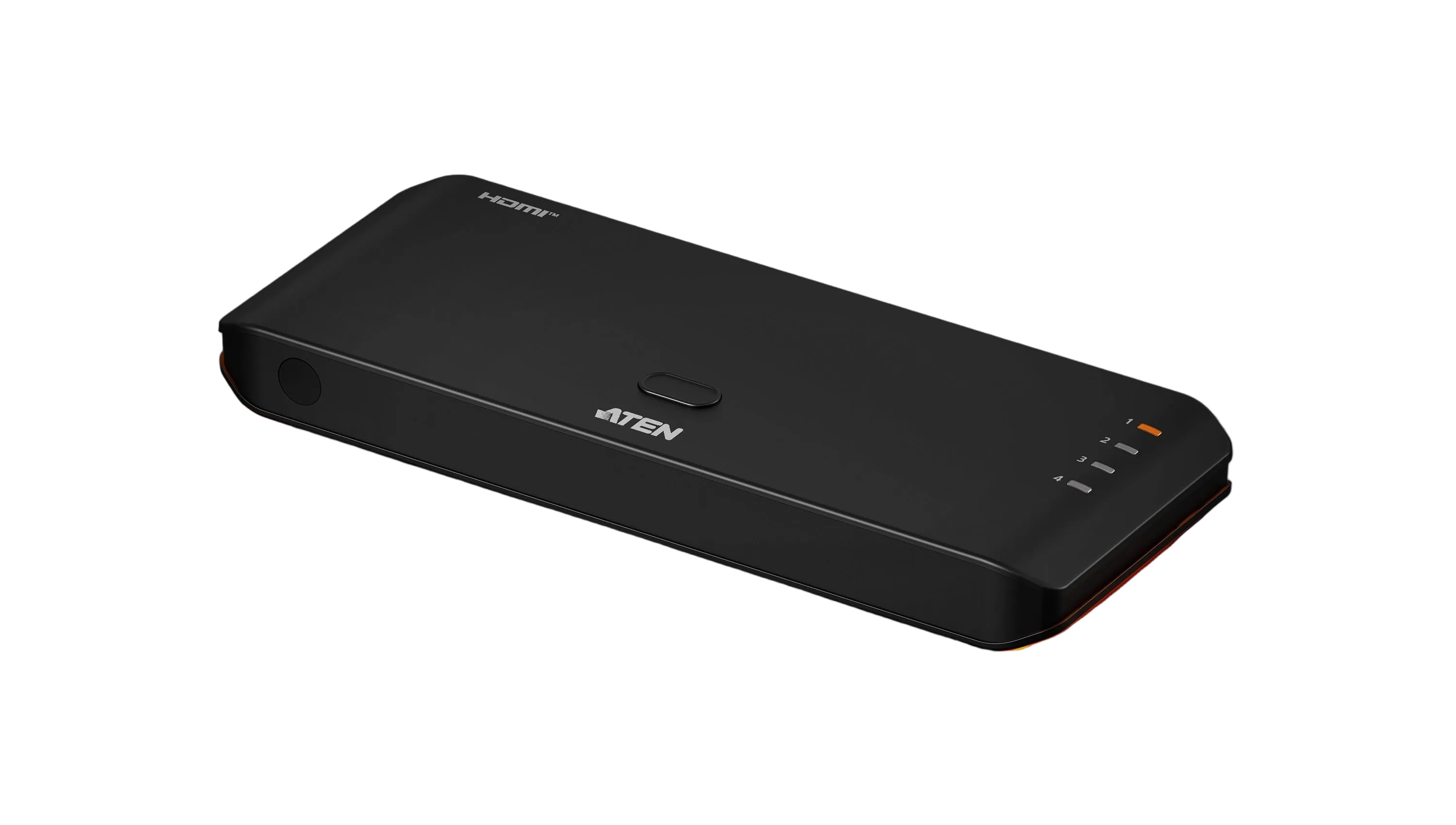

The ATEN VS4841 is a compact 4-port True 4K HDMI switch designed for home entertainment systems, gaming setups, meeting rooms, presentations and professional audiovisual installations.

It allows up to four compatible HDMI source devices to connect to one HDMI display. Compatible source devices can include laptops, desktop computers, game consoles, media players, TV boxes and Blu-ray or DVD players.

The VS4841 supports True 4K resolutions up to 3840 × 2160 at 60Hz with 4:4:4 chroma sampling, with a maximum HDMI bandwidth of 18Gbps and a maximum pixel clock of 600MHz.

ATEN RapidSync technology supports fast synchronisation when switching between connected HDMI sources. Users can select the required source using the pushbutton on the unit or the included infrared remote control.

The switch also supports auto plug-in detection, which automatically switches to the most recently connected HDMI source.

Support for HDR10+, HDMI 3D formats, Deep Color and HDCP 2.2 allows the switch to work with compatible modern entertainment and audiovisual equipment.

Compatible multichannel audio formats include LPCM 7.1, Dolby Digital and DTS-HD Master Audio.

The VS4841 is an HDMI switch and not an HDMI splitter. It connects multiple HDMI sources to one display and does not distribute one HDMI source across multiple displays.

Key Features

• Connects up to four HDMI source devices to one HDMI display
• Supports True 4K resolutions up to 3840 × 2160 at 60Hz with 4:4:4 chroma
• Supports a maximum HDMI bandwidth of 18Gbps
• Supports a maximum pixel clock of 600MHz
• ATEN RapidSync technology supports fast source synchronisation
• Source selection using the built-in pushbutton
• Includes an infrared remote control for source selection
• Auto plug-in detection selects the most recently connected HDMI source
• Supports HDR10+
• Supports HDMI 3D formats
• Supports Deep Color
• HDCP 2.2 compatible
• Supports LPCM 7.1 audio
• Supports Dolby Digital audio
• Supports DTS-HD Master Audio
• Selected-port LED indicators
• USB-C power input
• Compact and lightweight enclosure
• Suitable for gaming and home entertainment
• Suitable for presentations, meeting rooms and professional AV installations

Specifications

Compatibility

Compatible with HDMI source devices such as:

• Laptops
• Desktop computers
• Game consoles
• Media players
• TV boxes and set-top boxes
• Blu-ray players
• DVD players

Compatible HDMI display devices include:

• Gaming monitors
• Computer monitors
• Televisions
• Projectors
• Professional AV displays

The connected HDMI source devices, display and HDMI cables must support the required resolution, refresh rate, HDR format, HDMI features and HDCP version.

For True 4K output at 3840 × 2160 at 60Hz with 4:4:4 chroma, compatible HDMI source equipment, a compatible display and suitable HDMI cables are required.

The maximum supported HDMI input and output cable distance is up to 3 metres when transmitting 3840 × 2160 at 60Hz with 4:4:4 chroma.

Actual performance depends on the connected source device, display, HDMI cables, resolution, refresh rate and HDMI features supported by each device.

The VS4841 connects up to four HDMI source devices to one HDMI display. It does not distribute one HDMI source across multiple displays.

A compatible 5V/1A USB power adapter is required and is not included.

What’s in the Box

• 1 × ATEN VS4841 4-Port True 4K HDMI Switch
• 1 × IR Remote Controller
• 1 × USB Type-C to Type-A Power Cable, 1m

USB power adapter and HDMI cables are not included.

Warranty

ATEN Limited Manufacturer Warranty

Sustainability

The ATEN VS4841 allows up to four HDMI source devices to share one compatible display, helping reduce the need for separate displays and repeated cable reconnection. Its compact enclosure also requires minimal installation space in compatible entertainment and professional AV environments.

Product Description

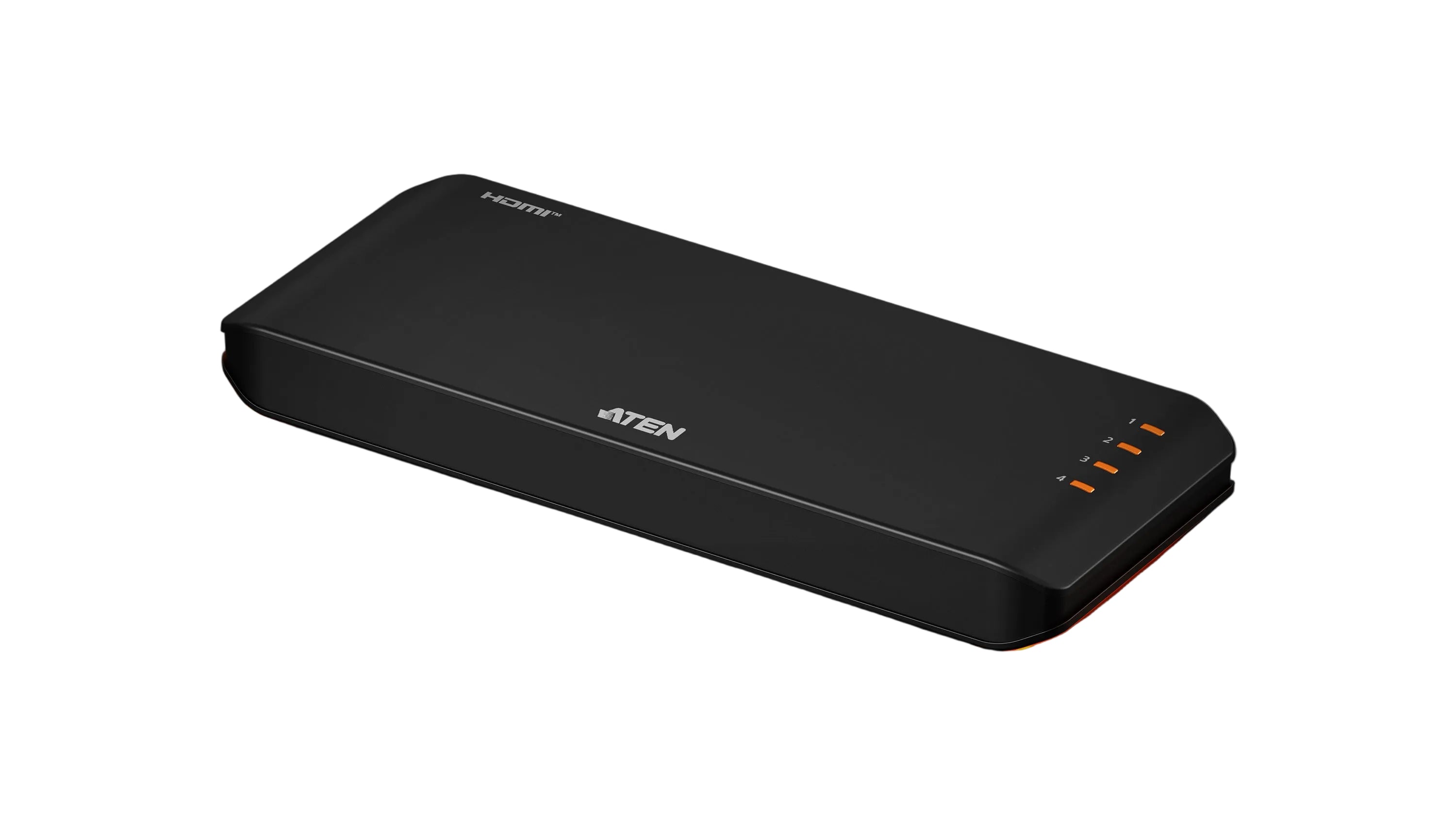

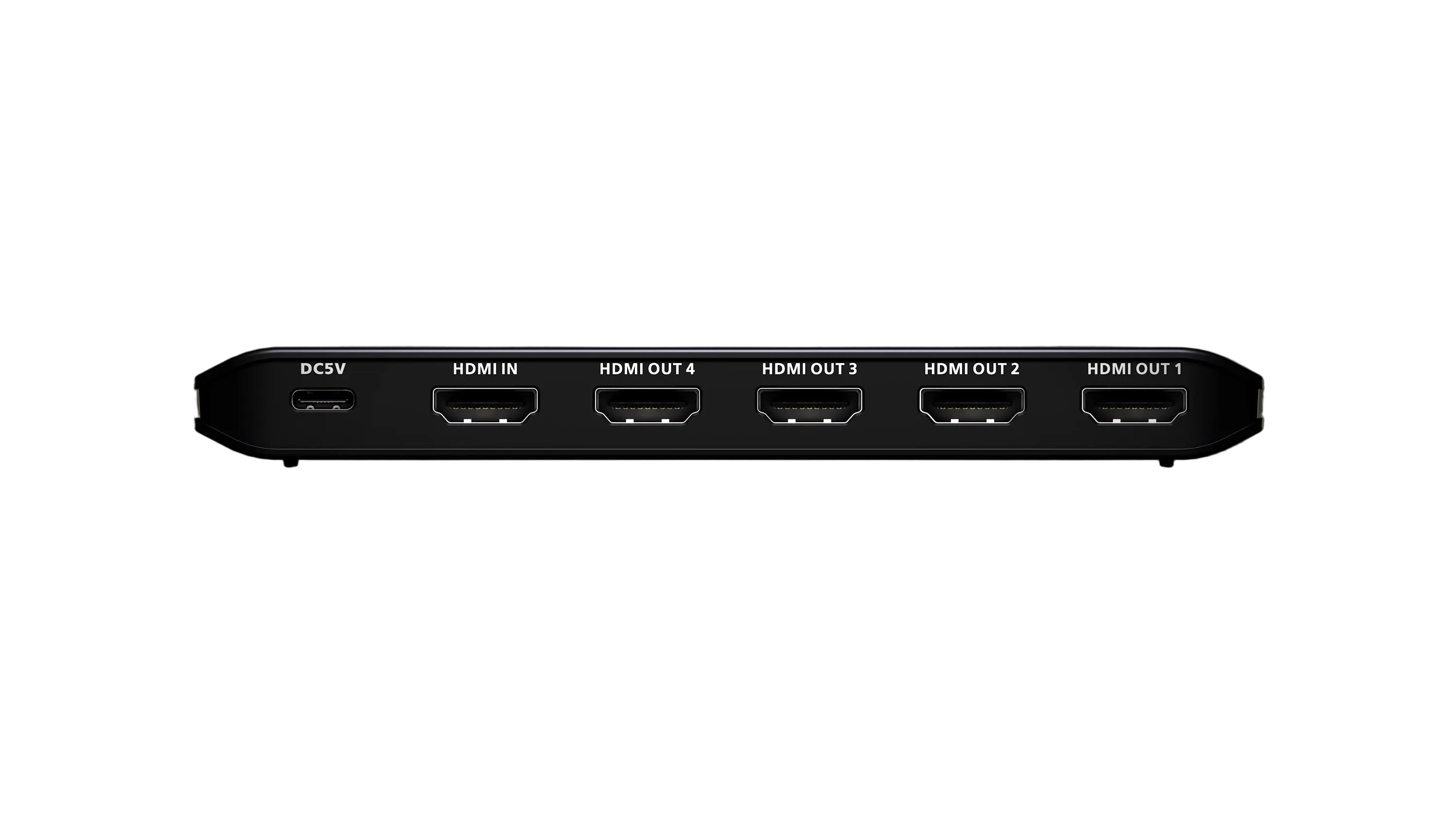

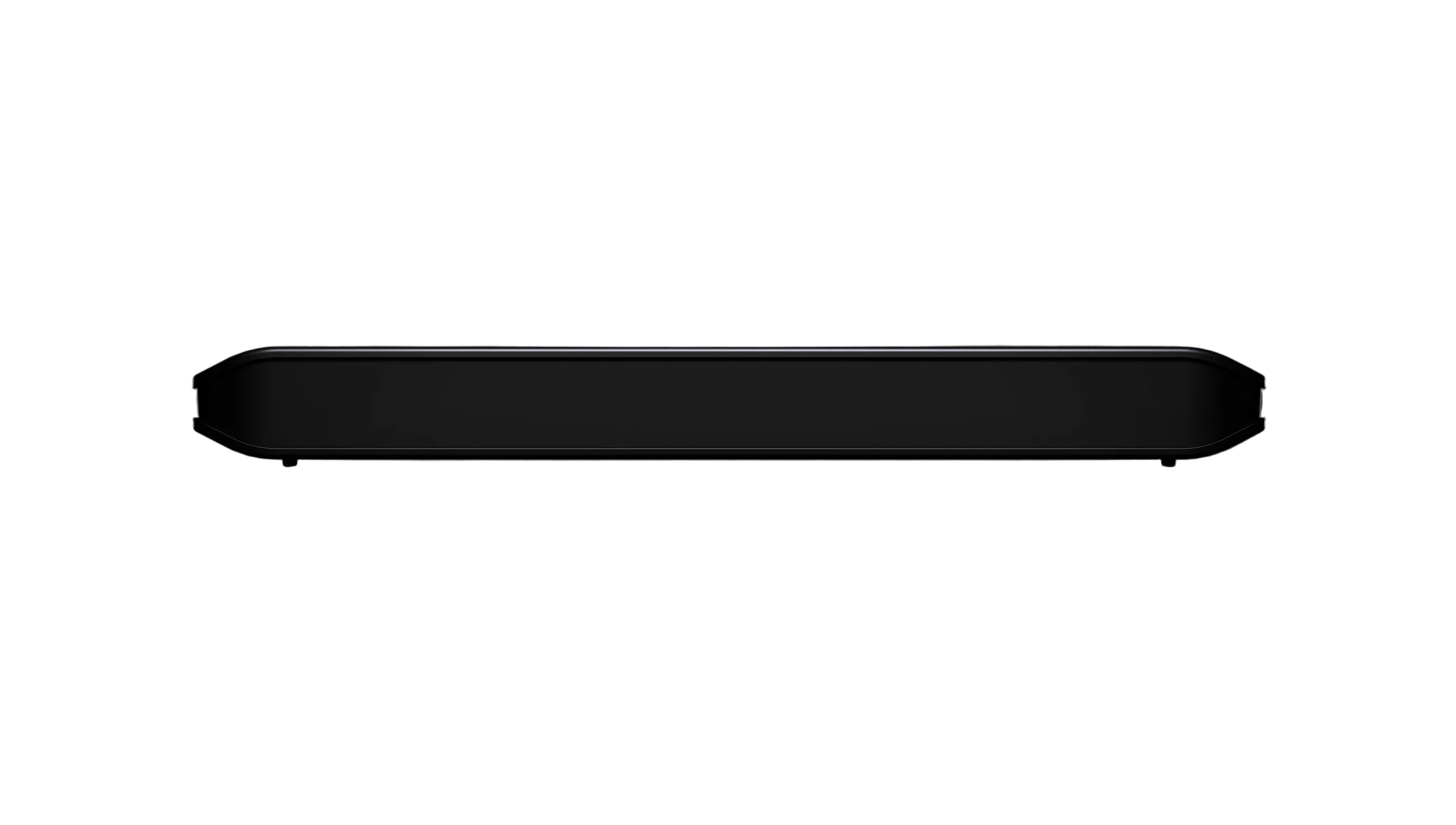

The ATEN VS4814 is a compact 4-port True 4K HDMI splitter designed for digital signage, commercial displays, boardrooms, classrooms, home entertainment systems and professional audiovisual installations.

It distributes the same audio and video signal from one compatible HDMI source to four HDMI displays simultaneously. Compatible source devices can include laptops, desktop computers, game consoles, media players, set-top boxes and Blu-ray or DVD players.

The splitter supports True 4K resolutions up to 3840 × 2160 at 60Hz with 4:4:4 chroma sampling. It also supports HDR10+, 3D formats, Deep Color and HDCP 2.2 for use with compatible source equipment, displays, content and HDMI cables.

ATEN EDID Sync technology automatically optimises the output resolution according to the connected displays, helping to reduce compatibility and display start-up issues.

Compatible audio formats include LPCM 7.1, Dolby Digital and DTS-HD Master Audio, allowing the HDMI signal to carry supported multichannel audio to compatible displays and audio equipment.

The VS4814 is an HDMI splitter and not an HDMI switch. It mirrors the same HDMI source across all four connected displays and does not provide separate content to each display.

Key Features

• Distributes one HDMI source to four HDMI displays simultaneously
• Supports True 4K resolutions up to 3840 × 2160 at 60Hz with 4:4:4 chroma
• Supports a maximum data rate of 18Gbps
• Supports a maximum pixel clock of 600MHz
• EDID Sync technology automatically optimises connected display resolutions
• Supports HDR10+
• Supports HDMI 3D formats
• Supports Deep Color
• HDCP 2.2 compatible
• Supports LPCM 7.1 audio
• Supports Dolby Digital audio
• Supports DTS-HD Master Audio
• USB-C power input
• Compact and lightweight design
• Integrated orange port and power indicator lighting
• Suitable for digital signage and commercial display installations
• Suitable for classrooms, boardrooms and training facilities
• Suitable for home entertainment and professional AV installations

Specifications

Compatibility

Compatible with HDMI source devices such as:

• Laptops
• Desktop computers
• Game consoles
• Media players
• TV boxes and set-top boxes
• Blu-ray players
• DVD players
• Compatible AV receivers

Compatible display devices include:

• Monitors
• Televisions
• Projectors
• Digital signage displays
• Commercial displays
• Professional AV displays

The connected HDMI source, displays and cables must support the required resolution, refresh rate, HDR format and HDCP version.

For True 4K output at 3840 × 2160 at 60Hz with 4:4:4 chroma, compatible HDMI source equipment, HDMI displays and suitable HDMI cables are required.

The maximum supported HDMI input and output cable distance is up to 3 metres when transmitting 3840 × 2160 at 60Hz with 4:4:4 chroma.

The VS4814 mirrors the same HDMI source across all four connected displays. It does not display different content on each screen and does not switch between multiple HDMI source devices.

A compatible 5V/1A USB power adapter is required and is not included.

What’s in the Box

• 1 × ATEN VS4814 4-Port True 4K HDMI Splitter
• 1 × USB Type-C to Type-A Power Cable, 1m

Warranty

ATEN Limited Manufacturer Warranty

Sustainability

The ATEN VS4814 can distribute one HDMI source to four displays without requiring separate source devices for each screen. This can help reduce equipment requirements, power use and cable complexity in compatible digital signage, education and professional AV installations.

Product Description

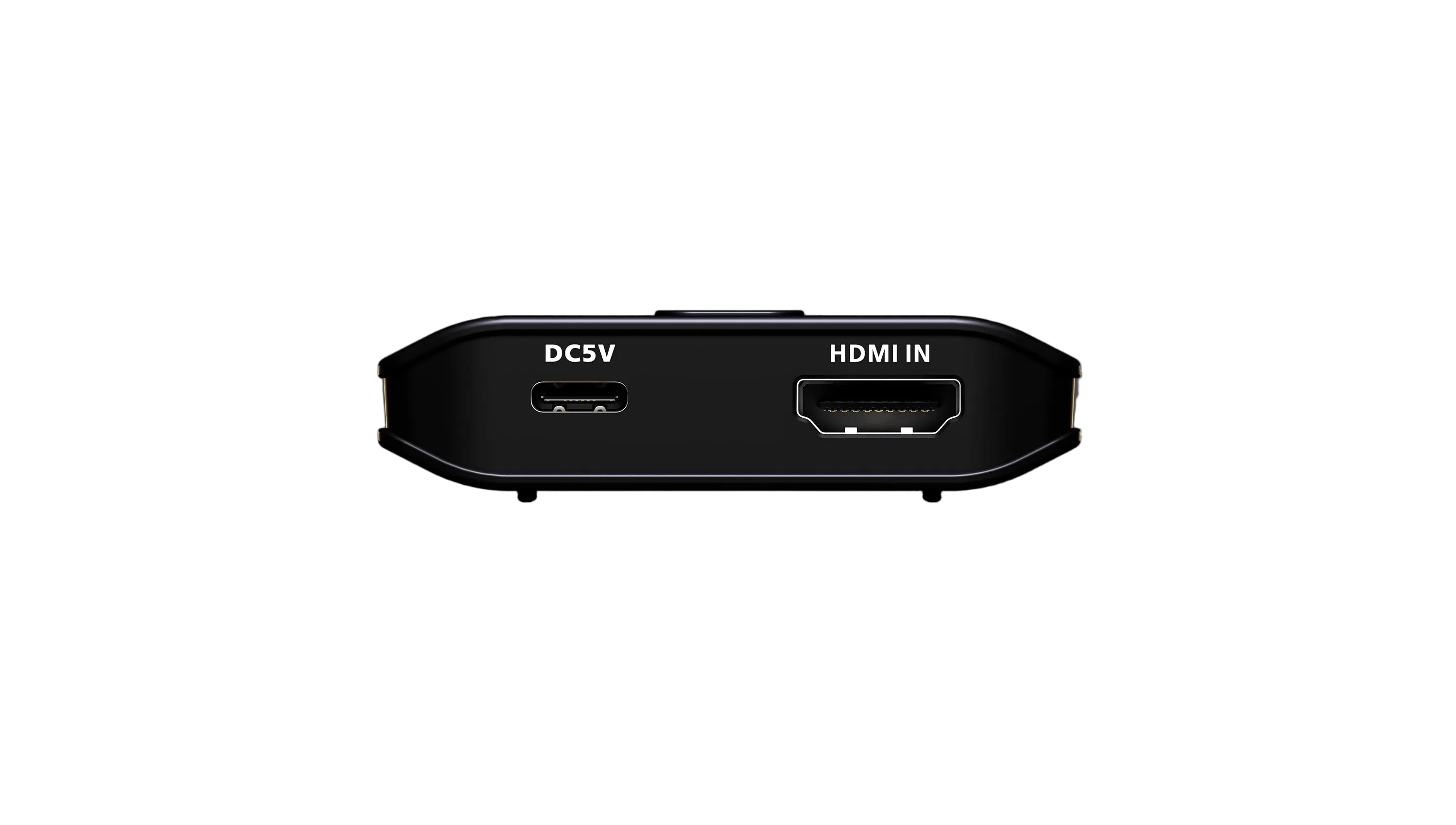

The ATEN VS4812 is a compact 2-port True 4K HDMI splitter designed for home entertainment systems, mirrored dual-display workstations and professional audiovisual installations.

It distributes the audio and video signal from one compatible HDMI source to two HDMI displays simultaneously. Compatible source devices can include laptops, desktop computers, game consoles, media players, set-top boxes and Blu-ray or DVD players.

The splitter supports True 4K resolutions up to 3840 × 2160 at 60Hz with 4:4:4 chroma sampling. It also supports HDR10+, 3D formats, Deep Color and HDCP 2.2 for use with compatible source equipment, displays, content and HDMI cables.

ATEN EDID Sync technology automatically optimises the output resolution according to the connected displays, helping to reduce compatibility and display start-up issues.

Compatible audio formats include LPCM 7.1, Dolby Digital and DTS-HD Master Audio. A front-panel pushbutton allows HDMI output 2 to be enabled or disabled without disconnecting the display.

The VS4812 is an HDMI splitter and not an HDMI switch. It mirrors the same HDMI source across both connected displays and does not provide separate content to each display.

Key Features

• Distributes one HDMI source to two HDMI displays simultaneously
• Supports True 4K resolutions up to 3840 × 2160 at 60Hz with 4:4:4 chroma
• Supports a maximum data rate of 18Gbps
• Supports a maximum pixel clock of 600MHz
• EDID Sync technology automatically optimises connected display resolutions
• Supports HDR10+
• Supports HDMI 3D formats
• Supports Deep Color
• HDCP 2.2 compatible
• Supports LPCM 7.1 audio
• Supports Dolby Digital audio
• Supports DTS-HD Master Audio
• Front-panel pushbutton enables or disables HDMI output 2
• USB-C power input
• Compact plastic housing
• Integrated orange port and power indicator lighting
• Suitable for home entertainment, workstations and professional AV installations

Specifications

Compatibility

Compatible with HDMI source devices such as:

• Laptops
• Desktop computers
• Game consoles
• Media players
• TV boxes and set-top boxes
• Blu-ray players
• DVD players
• Compatible AV receivers

Compatible display devices include:

• Monitors
• Televisions
• Projectors
• Professional AV displays

The connected HDMI source, displays and cables must support the required resolution, refresh rate, HDR format and HDCP version.

For True 4K output at 3840 × 2160 at 60Hz with 4:4:4 chroma, compatible HDMI source equipment, HDMI displays and suitable HDMI cables are required.

The VS4812 mirrors the same HDMI source across both connected displays. It does not display different content on each screen and does not switch between multiple HDMI source devices.

A compatible 5V/1A USB power adapter is required and is not included.

What’s in the Box

• 1 × ATEN VS4812 2-Port True 4K HDMI Splitter
• 1 × USB Type-C to Type-A Power Cable, 1m

Warranty

ATEN Limited Manufacturer Warranty

Sustainability

The compact design uses a lightweight plastic enclosure and USB power input. The product can support the continued use of existing HDMI source and display equipment in compatible mirrored dual-display installations.

Product Description

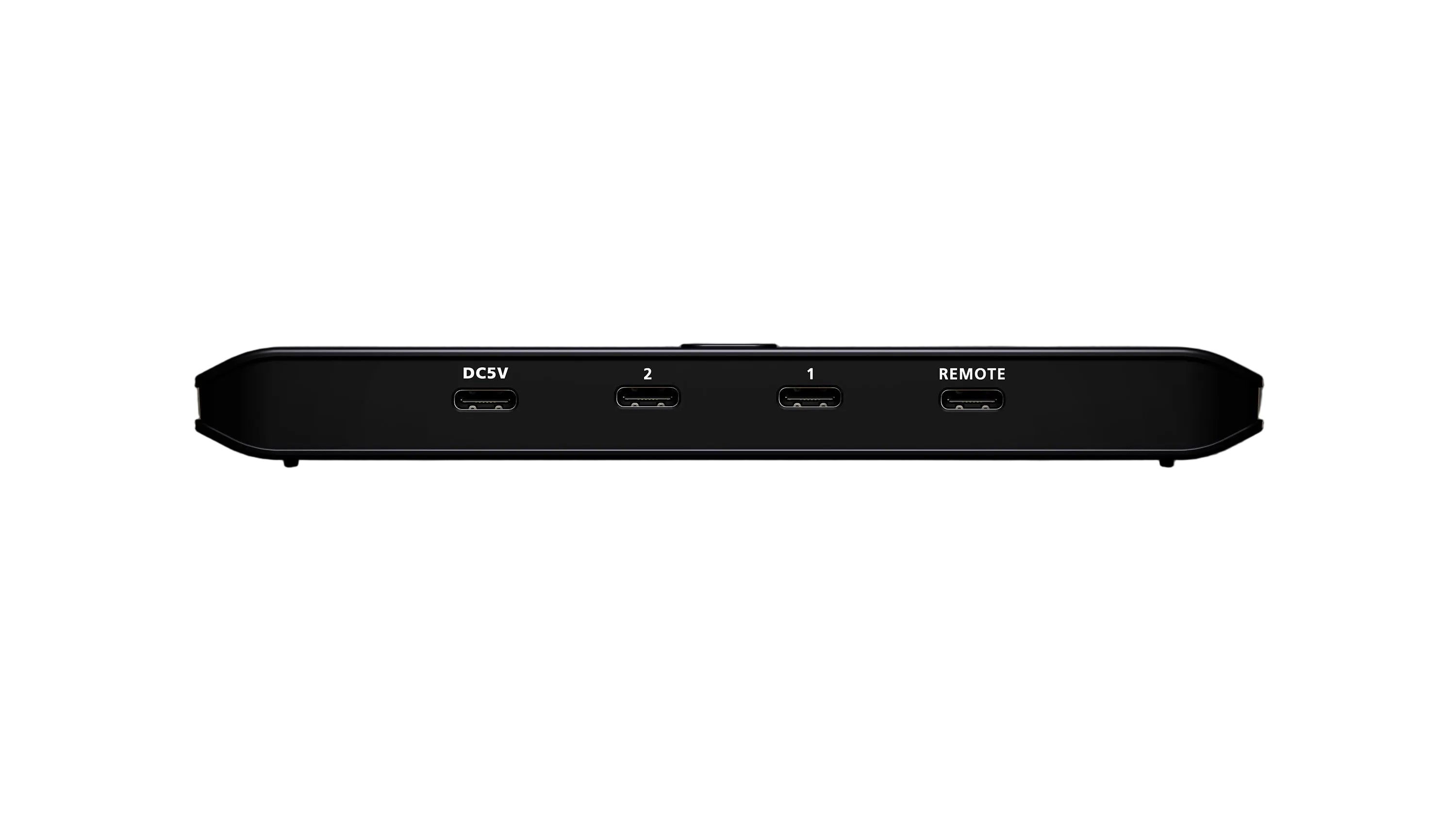

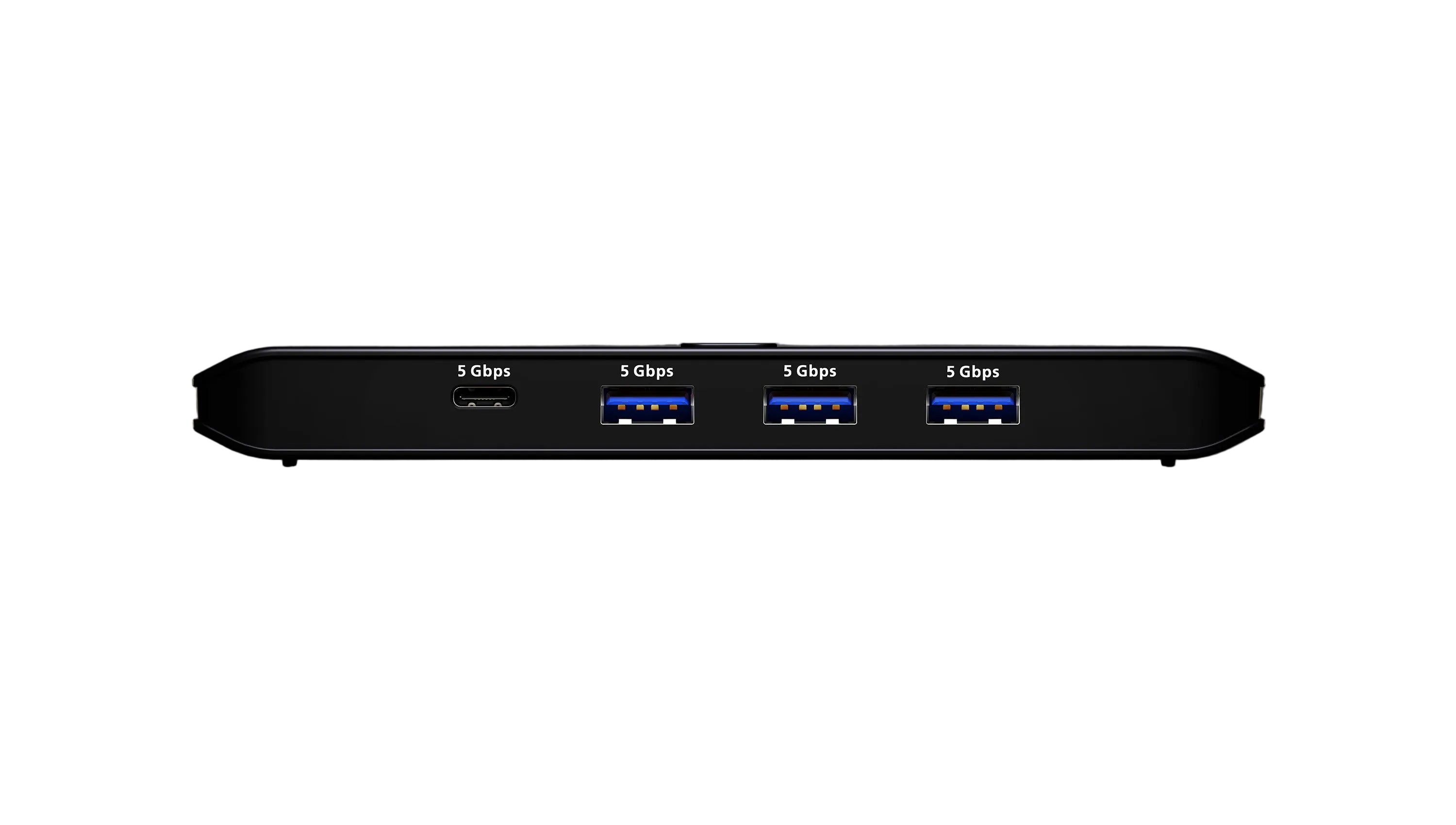

The ATEN US5324 is a compact USB peripheral sharing switch designed for dual-computer workstations, shared office desks, home offices and professional IT environments.

It allows one computer with a USB Type-A connection and one computer with a USB Type-C connection to share up to four compatible USB peripherals.

The peripheral connections include three USB Type-A ports and one USB Type-C port. Compatible devices can include keyboards, mice, printers, scanners, USB headsets, cameras, flash drives and external storage devices.

The US5324 supports USB 3.2 Gen 1 data transfer speeds of up to 5Gbps, allowing compatible host devices and peripherals to transfer data efficiently.

ATEN InstaSync technology supports fast switching of USB control between the two connected host devices. The active host can be selected using either the built-in pushbutton or the included wired remote port selector.

Plug-and-play operation allows the switch to work with compatible Windows, macOS and Linux systems without requiring additional drivers or software. Its hot-pluggable design allows compatible host devices and peripherals to be connected or removed without shutting down the switch.

The US5324 is bus-powered through the connected host device. A compatible 5V/1A USB power adapter can be connected to the optional USB-C power input when additional power is required by the connected peripherals.

Only one connected host device can control the shared USB peripherals at a time.

Key Features

• Allows two host devices to share up to four USB peripherals
• Supports one USB Type-A host connection
• Supports one USB Type-C host connection
• Includes three USB Type-A peripheral ports
• Includes one USB Type-C peripheral port
• Supports USB 3.2 Gen 1
• Supports data transfer speeds of up to 5Gbps
• ATEN InstaSync technology supports fast host switching
• Built-in pushbutton provides one-button host selection
• Includes a wired remote port selector
• Orange LED indicators show the selected host
• Plug-and-play operation
• No additional drivers or software required
• Hot-pluggable design
• Compatible with Windows, macOS and Linux
• Bus-powered operation
• Optional USB-C power input for peripherals requiring additional power
• Includes USB Type-C to Type-A and Type-C to Type-C host cables
• Compact plastic enclosure
• Suitable for dual-computer and shared office workstations
• Suitable for home office and professional IT environments

Specifications

Compatibility

Compatible host devices include:

• Desktop computers with USB Type-A ports
• Desktop computers with USB Type-C data ports
• Laptops with USB Type-A ports
• Laptops with USB Type-C data ports
• Compatible tablets with USB Type-C data support
• Compatible Windows computers
• Compatible macOS computers
• Compatible Linux computers

Compatible USB peripherals can include:

• Keyboards
• Mice
• Printers
• Scanners
• USB headsets
• USB cameras and webcams
• USB flash drives
• External storage devices
• Other compatible USB Type-A or USB Type-C peripherals

One host device must have a compatible USB Type-A data port, while the other must have a compatible USB Type-C data port.

Only one connected host device can control the shared USB peripherals at a time. The active host can be selected using the built-in pushbutton or included remote port selector.

Data transfer speeds depend on the connected host devices, peripherals, cables and operating environment. All connected equipment must support USB 3.2 Gen 1 to achieve transfer speeds of up to 5Gbps.

Peripheral performance may be limited by the slowest USB standard supported by the connected host, peripheral or cable.

Some peripherals with higher power requirements may require a compatible 5V/1A USB power adapter connected to the optional USB-C power input. The USB power adapter is not included.

The USB Type-C connections support compatible USB data devices. The US5324 does not provide video output, DisplayPort Alt Mode, Thunderbolt connectivity or USB Power Delivery charging.

What’s in the Box

• 1 × ATEN US5324 2 x 4 USB 3.2 Gen 1 Sharing Switch
• 1 × USB 3.2 Gen 1 Type-C to Type-A Cable, 1.5m
• 1 × USB 3.2 Gen 1 Type-C to Type-C Cable, 1.5m
• 1 × Remote Port Selector, 1m

USB power adapter and peripheral cables are not included unless specified above.

Warranty

ATEN Limited Manufacturer Warranty

Sustainability

The ATEN US5324 allows two host devices to share the same compatible USB peripherals, helping reduce the need for duplicate keyboards, mice, printers, storage devices and other equipment in shared workspaces.

Product Description

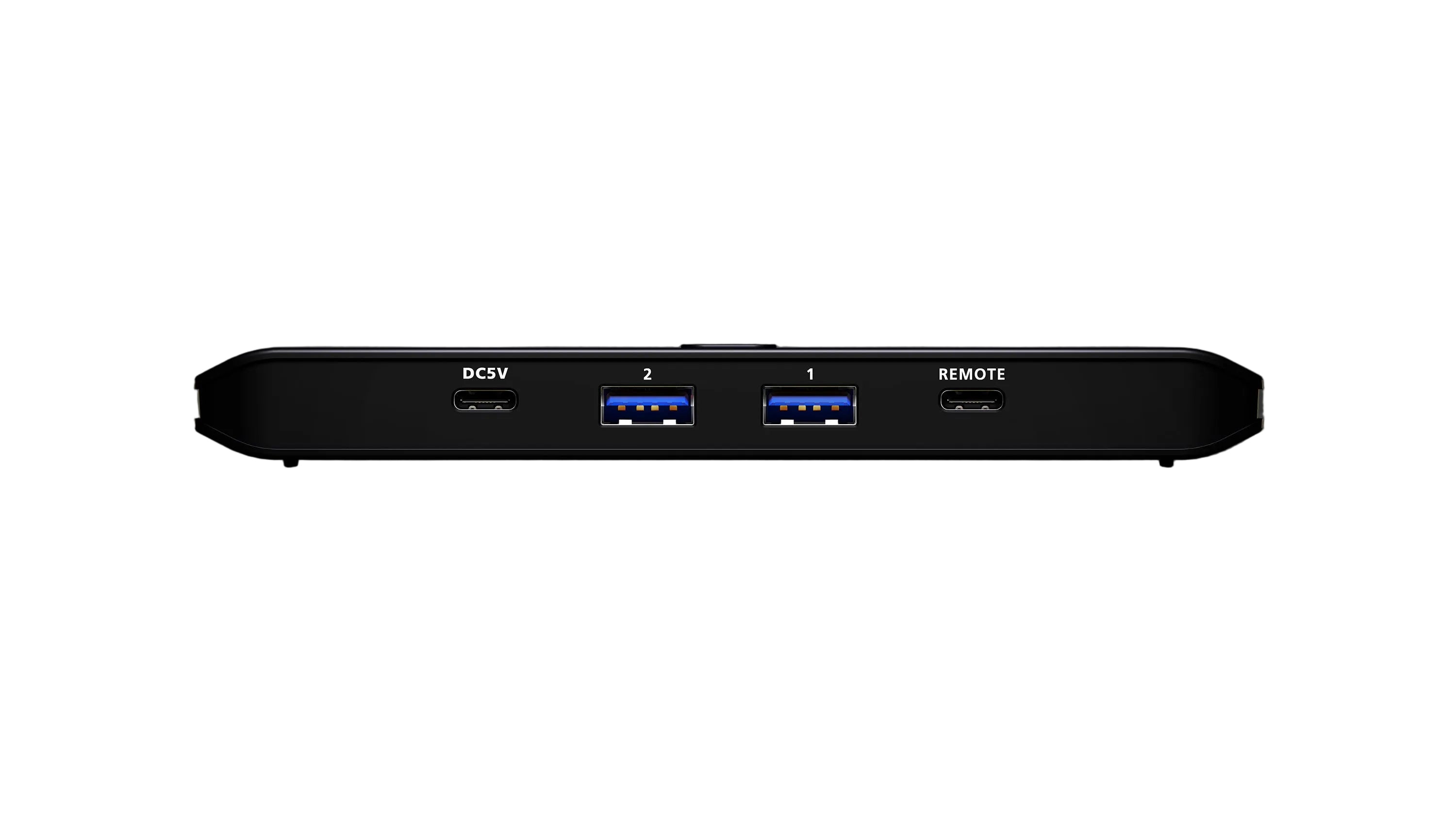

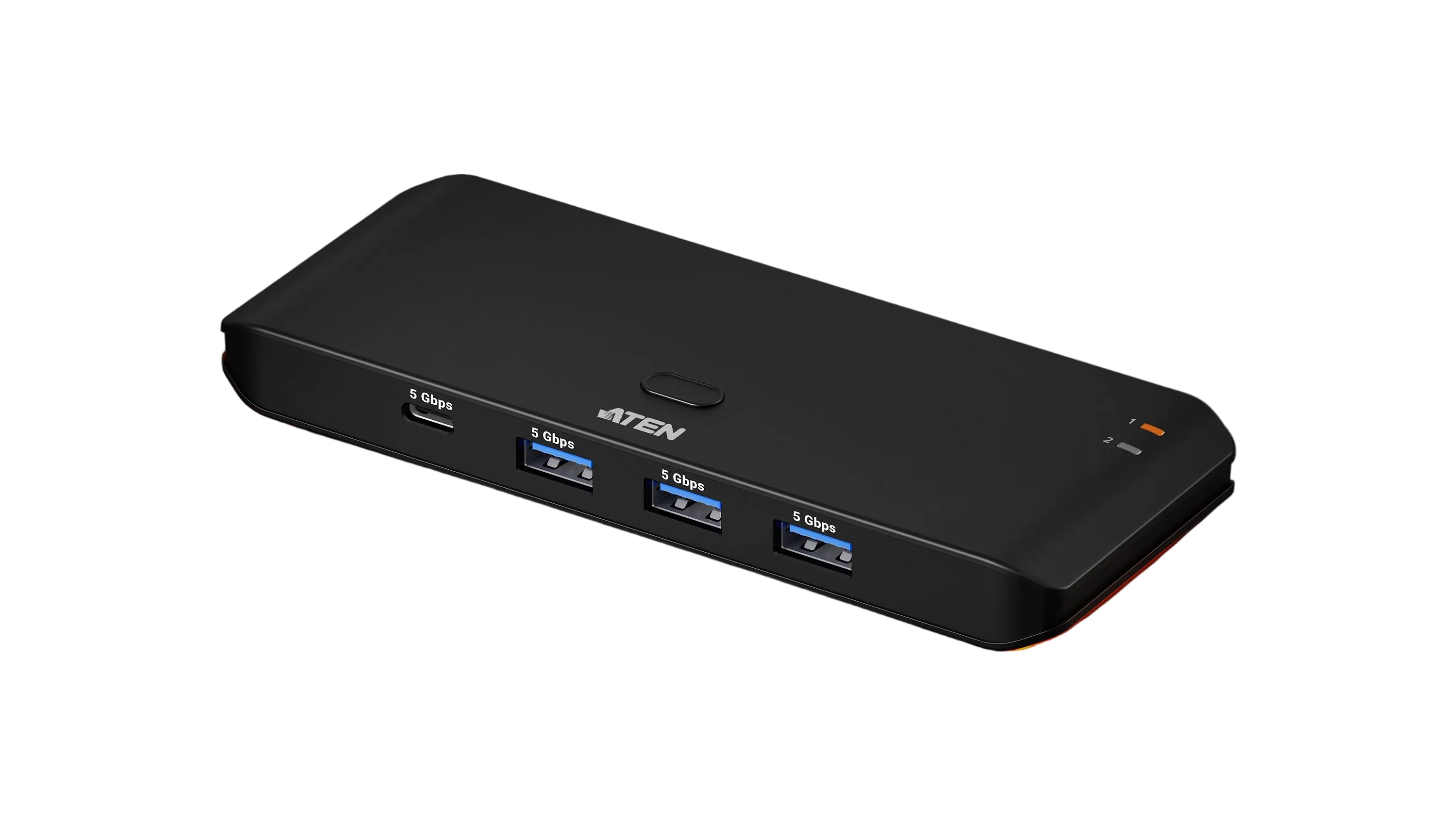

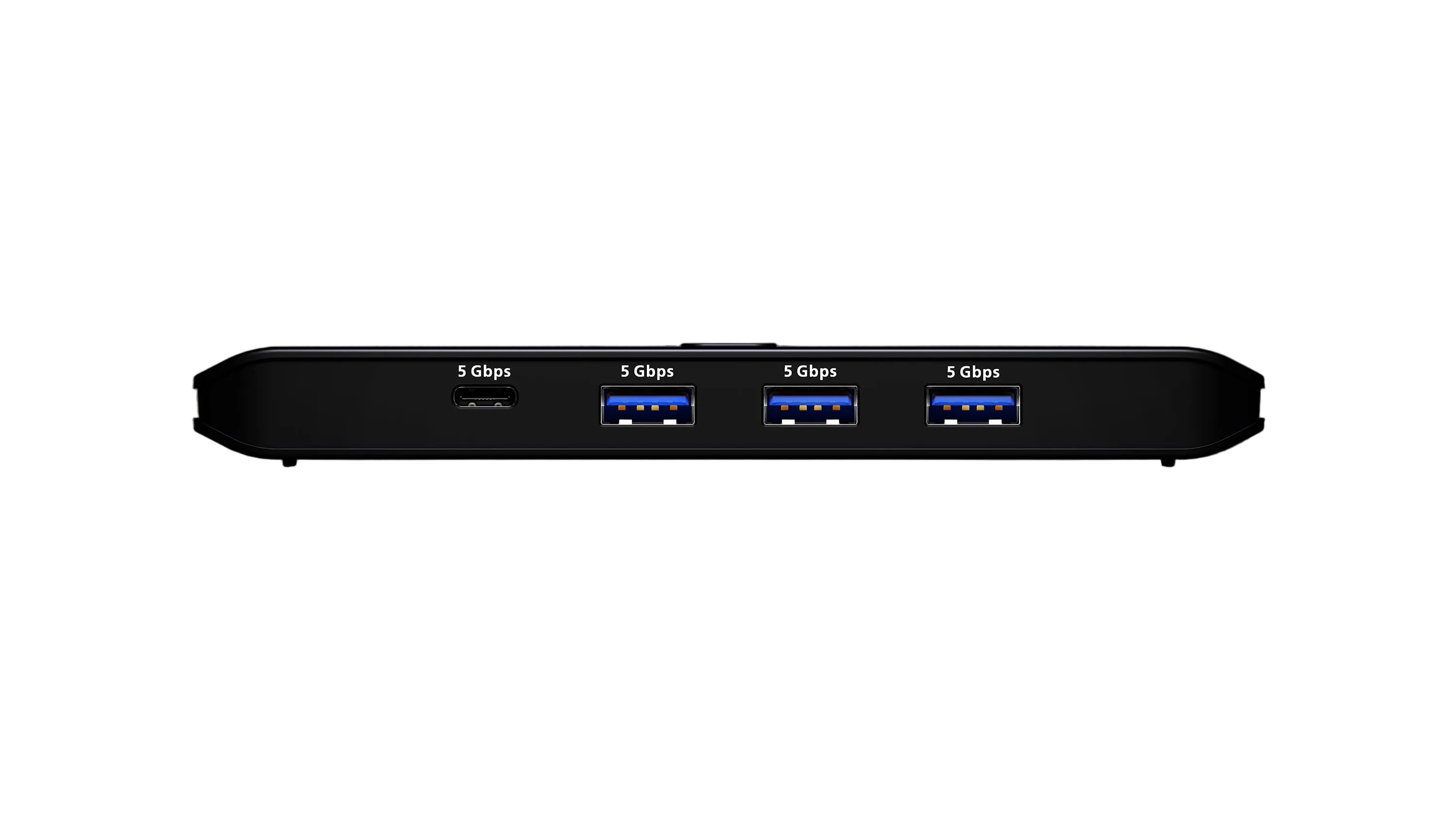

The ATEN US4324 is a compact USB peripheral sharing switch designed for dual-computer workstations, shared office desks, home offices and IT support environments.

It allows up to four USB peripherals to be shared between two computers equipped with compatible USB Type-A connections. The shared peripheral connections include three USB Type-A ports and one USB Type-C port.

Compatible peripherals can include keyboards, mice, printers, scanners, USB headsets, cameras, flash drives and external storage devices.

The US4324 supports USB 3.2 Gen 1 data transfer speeds of up to 5Gbps, allowing compatible computers and USB devices to transfer data efficiently.

ATEN InstaSync technology supports fast switching of USB control between the two connected computers. The active computer can be selected using either the built-in pushbutton or the included wired remote port selector.

Plug-and-play operation allows the switch to work with compatible Windows, macOS and Linux systems without requiring additional drivers or software. Its hot-pluggable design allows compatible computers and peripherals to be connected or removed without shutting down the switch.

The unit normally receives power through its connection to a host computer. A compatible 5V/1A USB power adapter can be connected to the optional USB-C power input when additional power is required by the connected peripherals.

Only one connected computer can control the shared USB peripherals at a time.

Key Features

• Allows two computers to share up to four USB peripherals
• Includes two USB Type-A computer connections
• Includes three USB Type-A peripheral ports
• Includes one USB Type-C peripheral port
• Supports USB 3.2 Gen 1
• Supports data transfer speeds of up to 5Gbps
• ATEN InstaSync technology supports fast host switching
• Built-in pushbutton provides one-button computer selection
• Includes a wired remote port selector
• Orange LED indicators show the selected computer
• Plug-and-play operation
• No additional drivers or software required
• Hot-pluggable design
• Compatible with Windows, macOS and Linux
• Optional USB-C power input for peripherals requiring additional power
• Includes two USB Type-A to Type-A host cables
• Compact plastic enclosure
• Suitable for home offices and shared workstations
• Suitable for dual-computer and IT support environments

Specifications

Compatibility

Compatible host devices include:

• Desktop computers with USB Type-A ports
• Laptops with USB Type-A ports
• Compatible Windows computers
• Compatible macOS computers
• Compatible Linux computers

Compatible USB peripherals can include:

• Keyboards
• Mice
• Printers
• Scanners
• USB headsets
• USB cameras and webcams
• USB flash drives
• External storage devices
• Other compatible USB Type-A or USB Type-C peripherals

Both computers must have compatible USB Type-A connections.

Only one connected computer can control the shared USB peripherals at a time. The active computer can be selected using the built-in pushbutton or included remote port selector.

Data transfer speeds depend on the connected computers, peripherals, cables and operating environment. All connected equipment must support USB 3.2 Gen 1 to achieve transfer speeds of up to 5Gbps.

Peripheral performance may be limited by the slowest USB standard supported by the connected computer, peripheral or cable.

Some peripherals with higher power requirements may require a compatible 5V/1A USB power adapter connected to the optional USB-C power input. The USB power adapter is not included.

The USB Type-C peripheral port supports compatible USB data devices. It does not provide video output, DisplayPort Alt Mode, Thunderbolt connectivity or USB Power Delivery charging.

What’s in the Box

• 1 × ATEN US4324 2 x 4 USB 3.2 Gen 1 Sharing Switch
• 2 × USB 3.2 Gen 1 Type-A to Type-A Cables, 1.5m Each
• 1 × Remote Port Selector

USB power adapter and peripheral cables are not included unless specified above.

Warranty

ATEN Limited Manufacturer Warranty

Sustainability

The ATEN US4324 allows two computers to share the same compatible USB peripherals, helping reduce the need for duplicate keyboards, mice, printers, storage devices and other equipment in shared workspaces.

Product Description

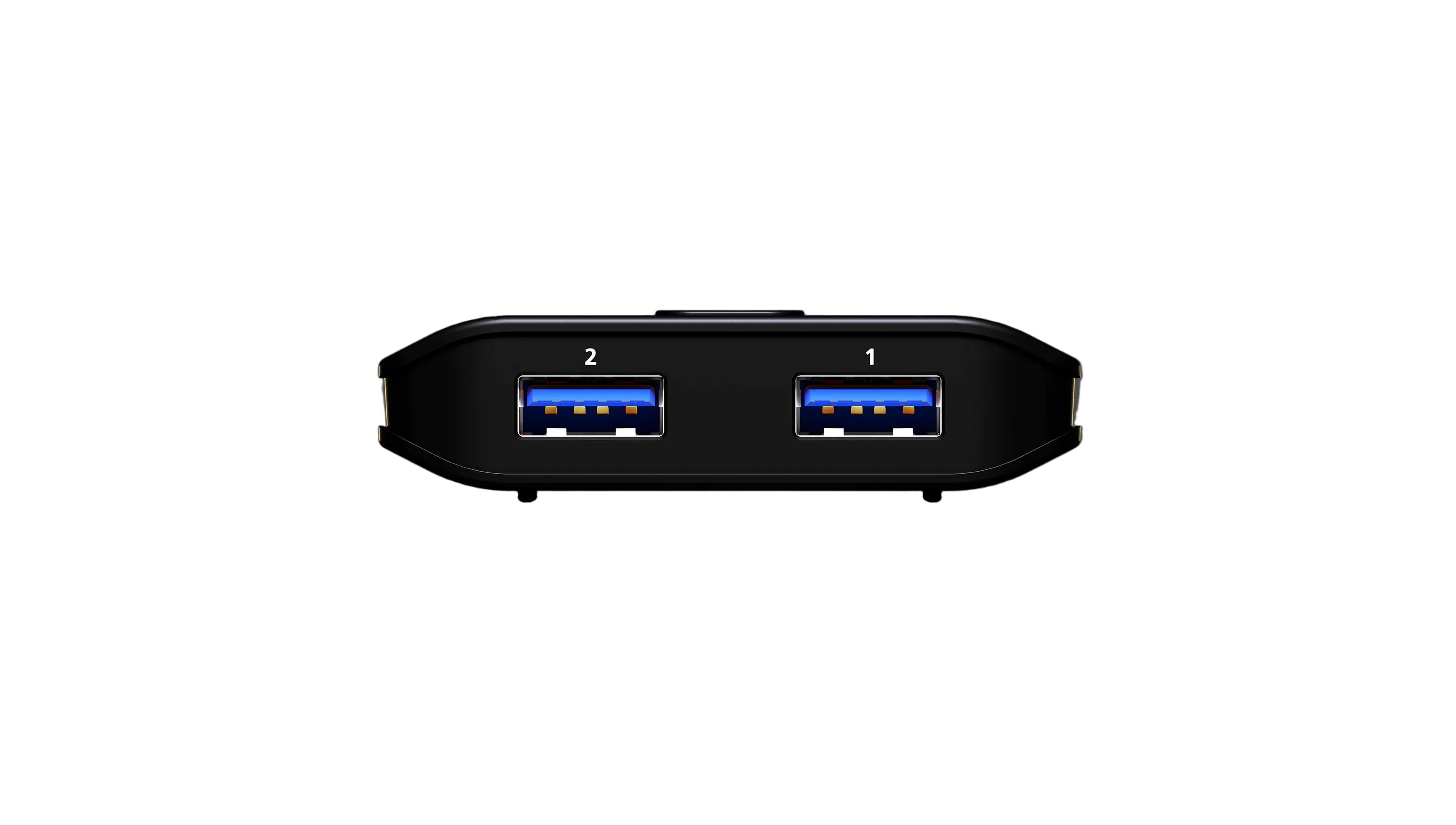

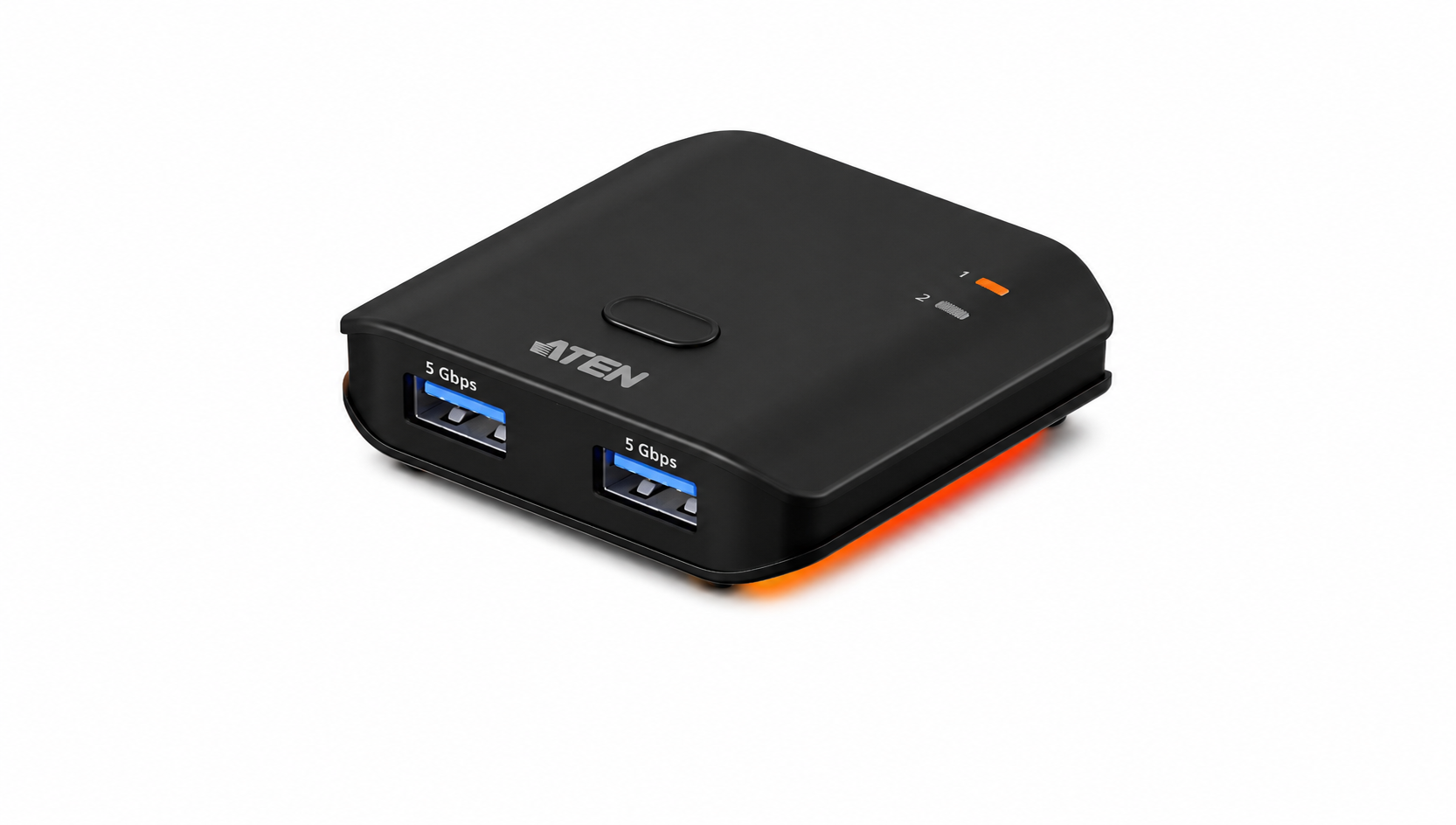

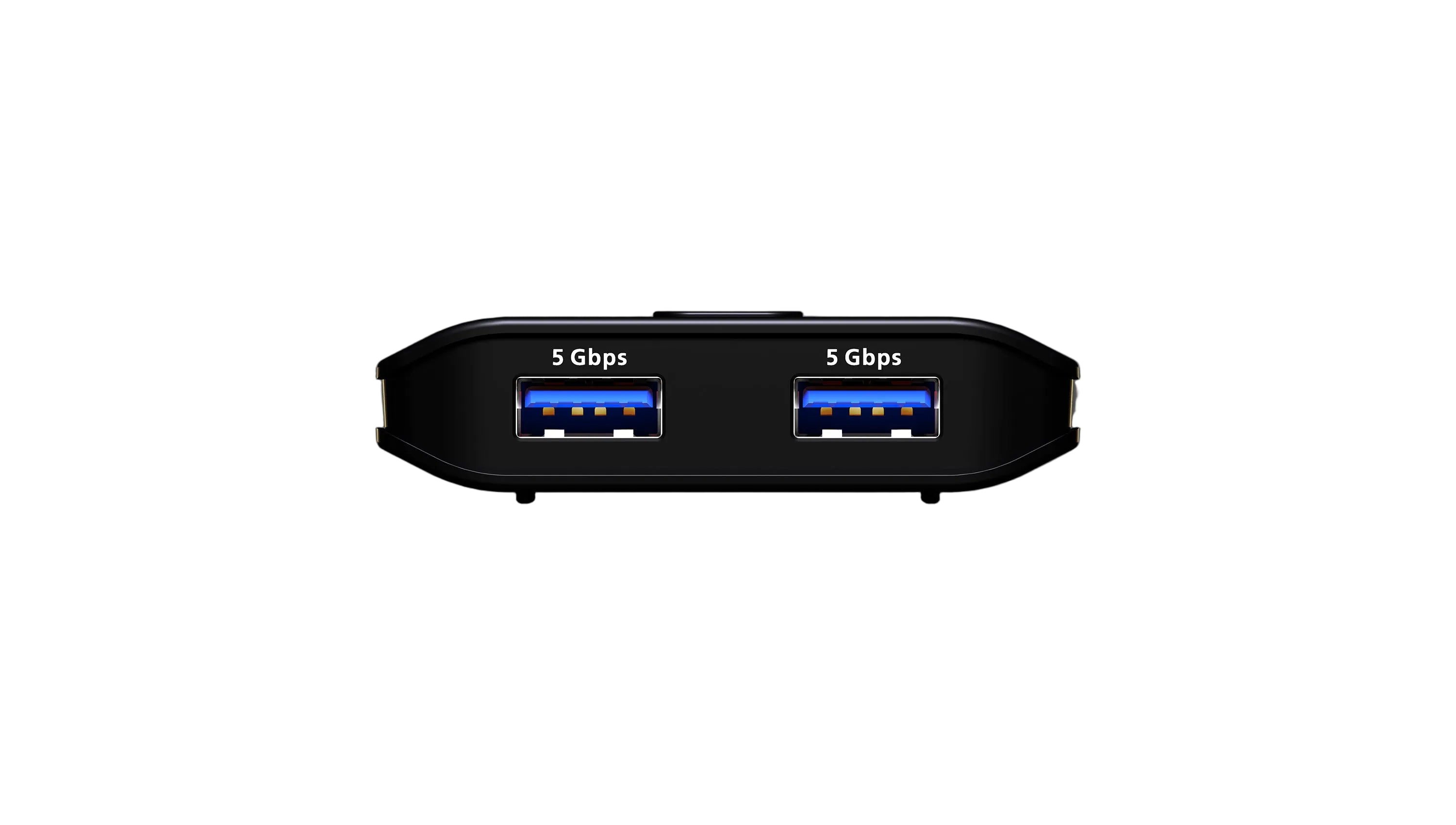

The ATEN US4322 is a compact USB peripheral sharing switch designed for dual-computer workstations, shared office desks, home offices, gaming setups and IT support environments.

It allows up to two USB Type-A peripherals to be shared between two computers equipped with compatible USB Type-A connections. Suitable peripherals can include a keyboard, mouse, printer, USB headset, camera, scanner, USB flash drive or external storage device.

The US4322 supports USB 3.2 Gen 1 data transfer speeds of up to 5Gbps, allowing users to transfer files and access compatible high-speed USB devices efficiently.

ATEN InstaSync technology provides fast switching of USB control between the two connected computers. The active computer is selected using the built-in pushbutton on the unit, while orange LED indicators show which computer currently controls the shared peripherals.

Plug-and-play operation allows the switch to work with compatible Windows, macOS and Linux systems without requiring additional drivers or software. Its hot-pluggable design allows compatible computers and peripherals to be connected or removed without shutting down the switch.

Only one connected computer can control the shared USB peripherals at a time.

Key Features

• Allows two computers to share up to two USB peripherals
• Includes two USB Type-A computer connections
• Includes two USB Type-A peripheral ports
• Supports USB 3.2 Gen 1
• Supports data transfer speeds of up to 5Gbps
• ATEN InstaSync technology supports fast USB control switching
• Built-in pushbutton provides one-button computer selection
• Orange LED indicators show the selected computer
• Plug-and-play operation
• No additional drivers or software required
• Hot-pluggable design
• Compatible with Windows, macOS and Linux
• Includes two USB Type-A to Type-A host cables
• Compact and lightweight plastic enclosure
• Integrated accent lighting
• Suitable for home offices and shared workstations
• Suitable for gaming and dual-computer setups
• Suitable for IT support and professional computer environments

Specifications

Compatibility

Compatible host devices include:

• Desktop computers with USB Type-A ports
• Laptops with USB Type-A ports
• Compatible Windows computers
• Compatible macOS computers
• Compatible Linux computers

Compatible USB peripherals can include:

• Keyboards
• Mice
• Printers
• Scanners
• USB headsets
• USB cameras
• USB flash drives
• External storage devices
• Other compatible USB peripherals

Both computers must have compatible USB Type-A connections.

Only one connected computer can control the shared USB peripherals at a time. The active computer is selected using the pushbutton on the unit.

Data transfer speeds depend on the connected computers, USB peripherals, cables and operating environment. All connected equipment must support USB 3.2 Gen 1 to achieve transfer speeds of up to 5Gbps.

Peripheral performance may be limited by the slowest USB standard supported by the connected computer, peripheral or cable.

The US4322 is designed for USB peripheral and data sharing. It does not provide video output, network connectivity or USB Power Delivery charging.

What’s in the Box

• 1 × ATEN US4322 2 x 2 USB 3.2 Gen 1 Sharing Switch
• 2 × USB 3.2 Gen 1 Type-A to Type-A Cables, 1.5m Each

Peripheral cables and USB devices are not included unless specified above.

Warranty

ATEN Limited Manufacturer Warranty

Sustainability

The ATEN US4322 allows two computers to share the same compatible USB peripherals, helping reduce the need for duplicate keyboards, mice, storage devices and other equipment in shared workspaces.

Product Description

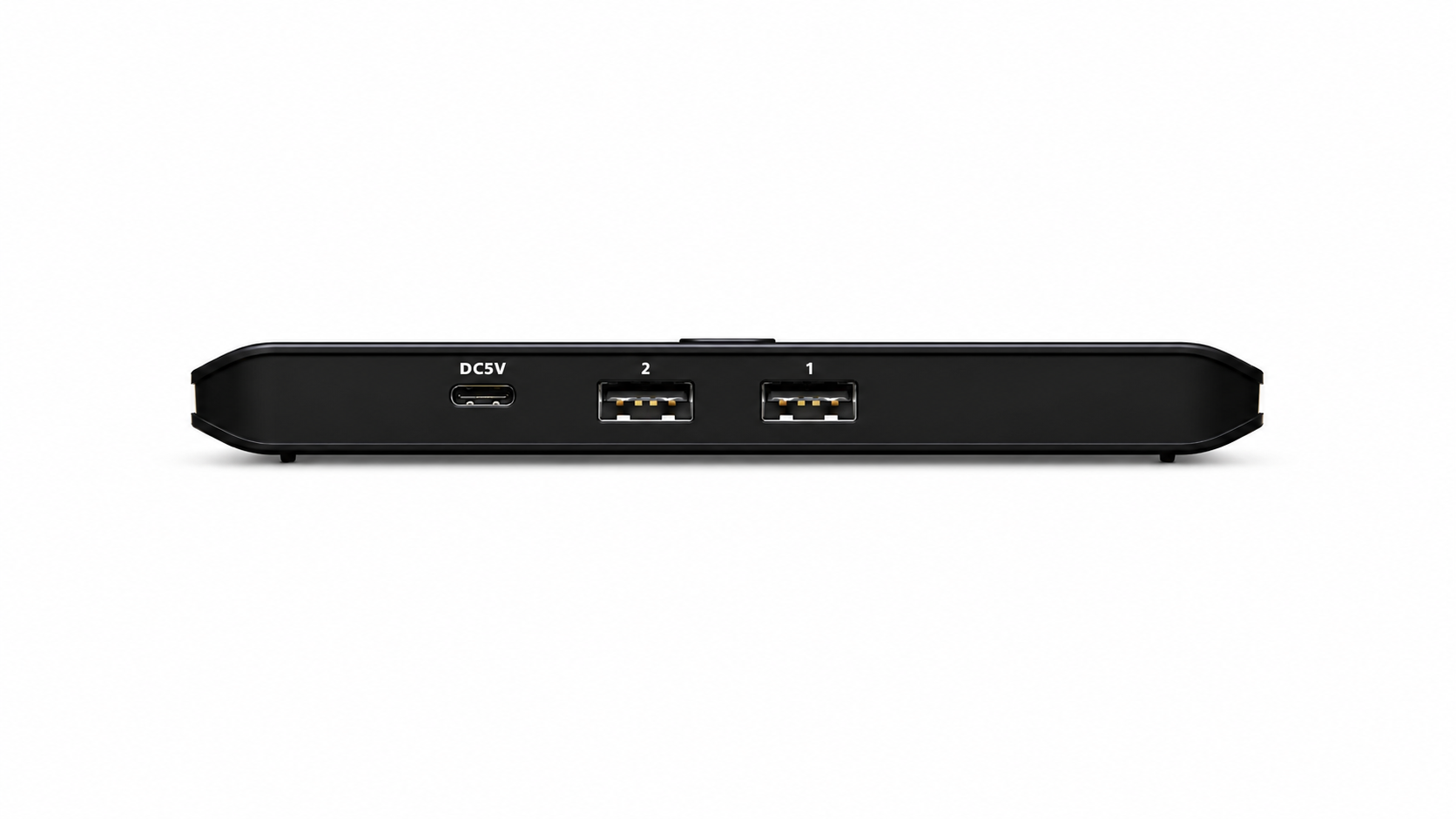

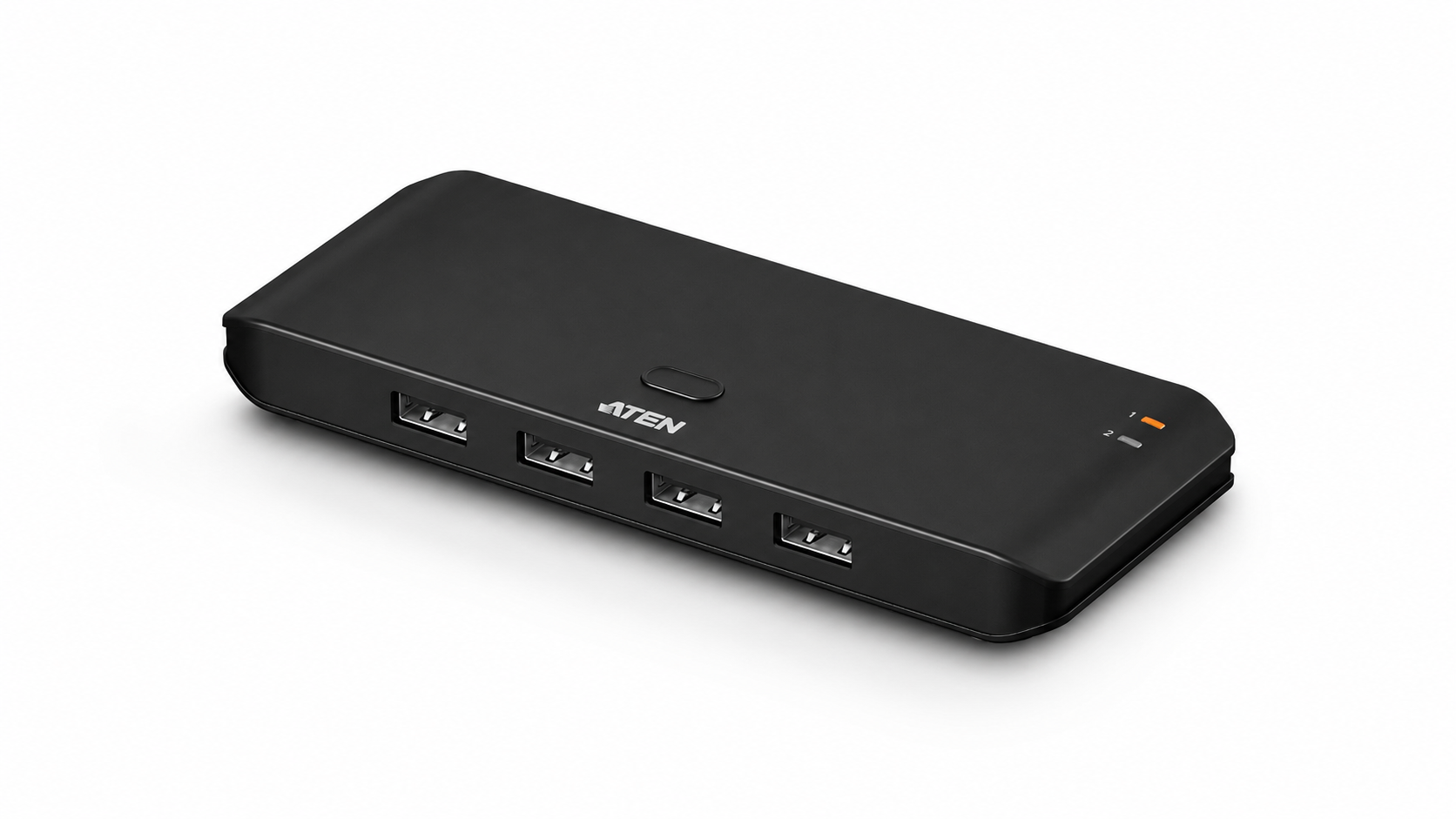

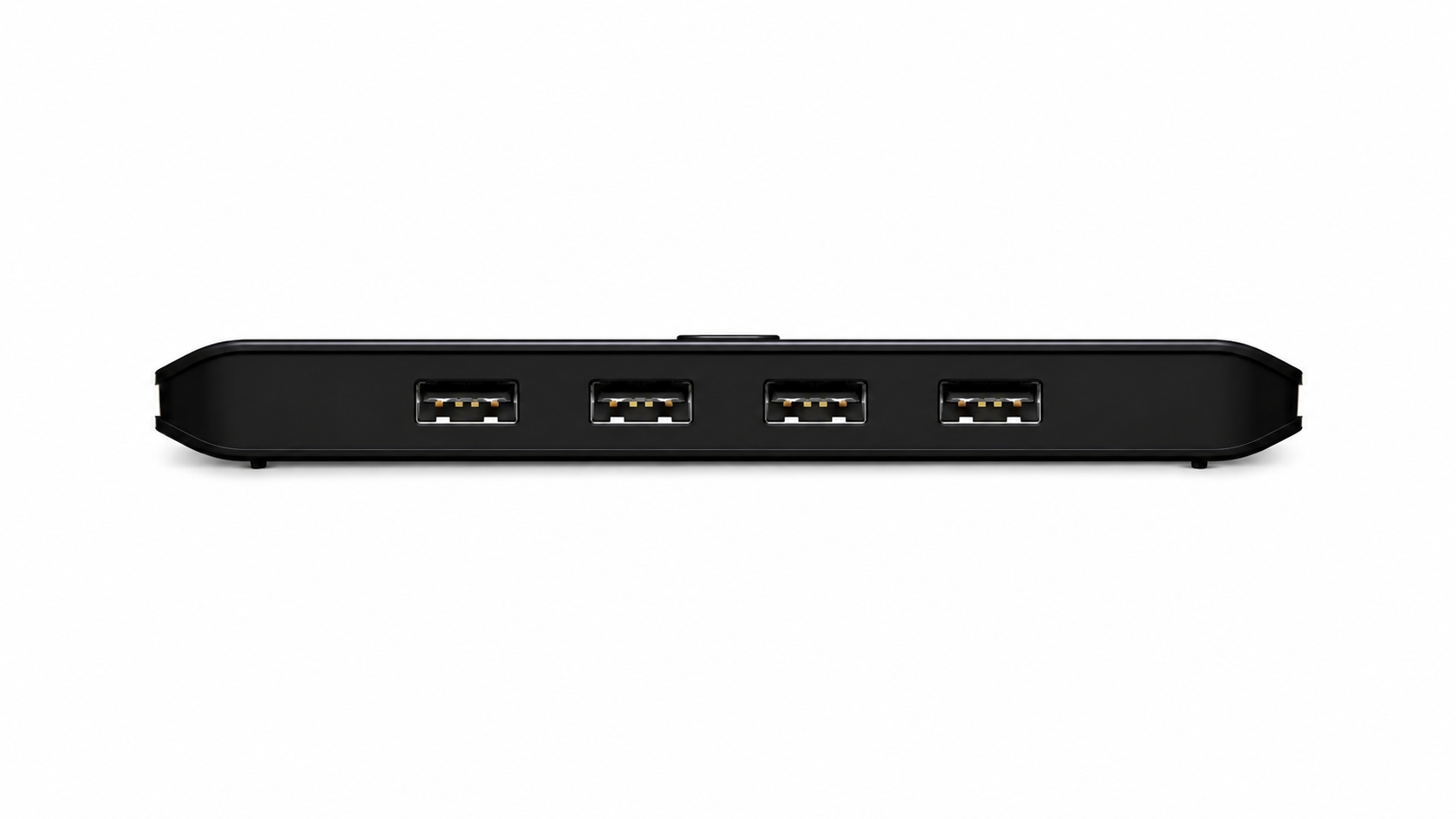

The ATEN US4224 is a compact USB peripheral sharing switch designed for home offices, shared workstations and professional environments where two computers need access to the same USB devices.

It allows up to four USB Type-A peripherals to be shared between two computers equipped with compatible USB Type-A connections. Suitable peripherals can include a keyboard, mouse, printer, USB headset, camera, scanner or USB storage device.

The US4224 supports USB 2.0 data transfer speeds of up to 480Mbps. ATEN InstaSync technology provides fast switching of USB control between the two connected computers, helping users move between systems without repeatedly disconnecting and reconnecting peripheral cables.

The active computer is selected using the built-in pushbutton on the unit. Orange LED indicators show which connected computer currently has control of the shared peripherals.

Plug-and-play operation allows the switch to work with compatible Windows, macOS and Linux systems without requiring additional drivers or software. The hot-pluggable design allows compatible computers and peripherals to be connected or removed without shutting down the switch.

The unit normally receives power through its connection to a host computer. A compatible 5V/1A USB power adapter can be connected to the USB-C DC input when additional power is required by connected peripherals.

Only one connected computer can control the shared USB peripherals at a time.

Key Features

• Allows two computers to share up to four USB peripherals
• Includes two USB Type-A computer connections
• Includes four USB Type-A peripheral ports
• Supports USB 2.0 data transfer speeds of up to 480Mbps
• ATEN InstaSync technology supports fast USB control switching
• Built-in pushbutton provides one-button computer selection
• Orange LED indicators show the selected computer
• Plug-and-play operation
• No additional drivers or software required
• Hot-pluggable design
• Compatible with Windows, macOS and Linux
• Optional USB-C DC input for peripherals requiring additional power
• Compact plastic enclosure
• Integrated accent lighting
• Suitable for home offices and shared workstations
• Suitable for professional and commercial computer environments

Specifications

Compatibility

Compatible host devices include:

• Desktop computers with USB Type-A ports
• Laptops with USB Type-A ports
• Compatible Windows computers
• Compatible macOS computers
• Compatible Linux computers

Compatible USB peripherals can include:

• Keyboards
• Mice
• Printers
• Scanners
• USB headsets
• USB cameras
• USB flash drives
• Compatible external storage devices
• Other compatible USB 2.0 peripherals

Both computers must have compatible USB Type-A connections.

Only one connected computer can control the shared USB peripherals at a time. The active computer is selected using the pushbutton on the unit.

The US4224 supports USB 2.0 transfer speeds of up to 480Mbps. It does not provide USB 3.2 Gen 1 transfer speeds.

Peripheral performance may be limited to the USB 2.0 standard, even when a connected peripheral supports a faster USB version.

Some peripherals with higher power requirements may require a compatible 5V/1A USB power adapter connected to the USB-C DC input. The USB power adapter is not included.

The US4224 is designed for USB peripheral sharing. It does not provide video output, network connectivity or USB Power Delivery charging.

What’s in the Box

• 1 × ATEN US4224 2 x 4 USB 2.0 Sharing Switch
• 2 × USB 2.0 Type-A to Type-A Cables, 1.5m Each

USB power adapter and peripheral cables are not included unless specified above.

Warranty

ATEN Limited Manufacturer Warranty

Sustainability

The ATEN US4224 allows two computers to share the same keyboard, mouse, printer and other compatible USB peripherals. This can reduce the need for duplicate equipment and repeated cable replacement in shared home and professional workspaces.
