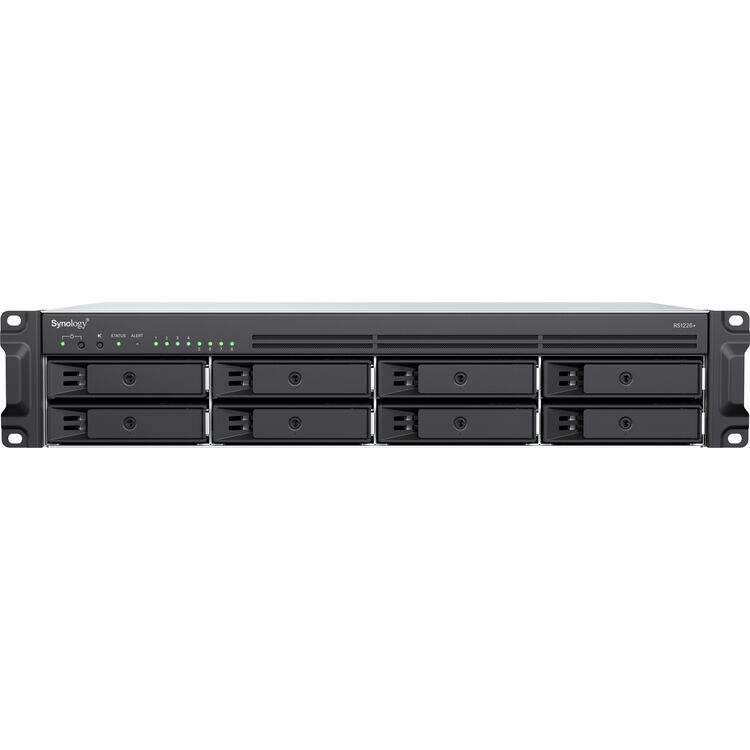

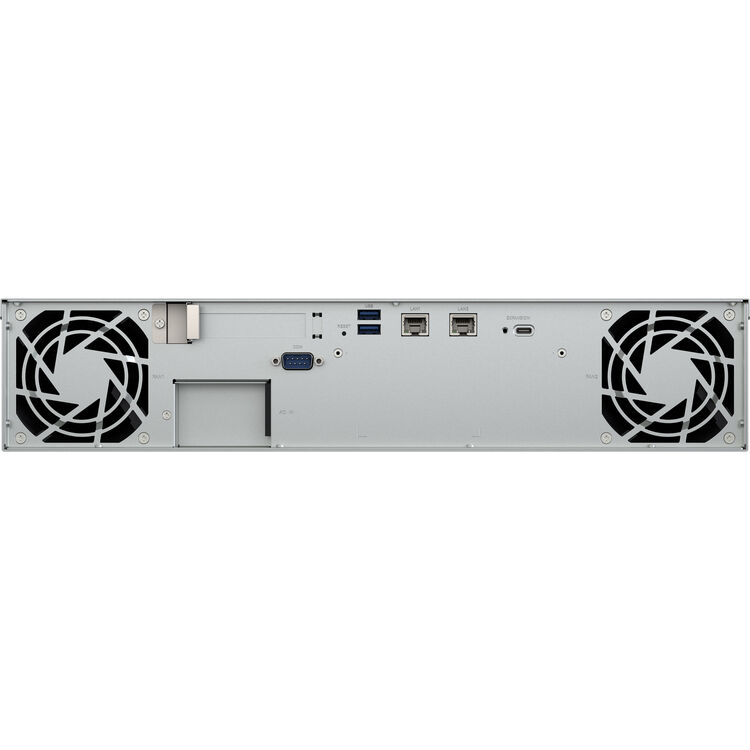

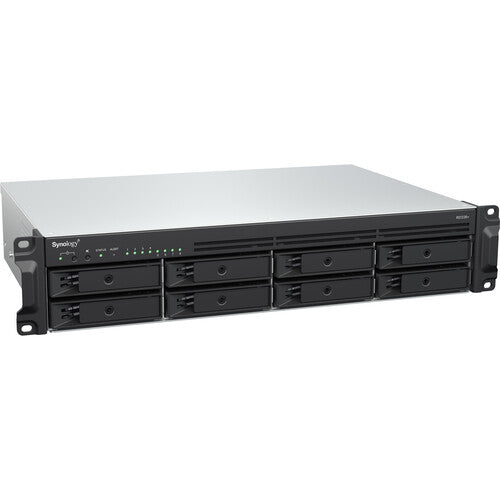

Synology RS1226+ 8-Bay 2U Rackmount NAS

At a Glance

• 8-bay 2U rackmount NAS for branch offices and growing businesses
• AMD Ryzen 4-core / 8-thread processor
• 4GB DDR4 ECC memory, expandable to 32GB
• Dual 2.5GbE networking built in
• Two integrated M.2 NVMe slots for SSD cache
• Optional 10GbE or 25GbE networking
• Expandable from 8 to 12 drive bays
• Short-depth 306.6mm chassis
• 3-Year Synology Hardware Warranty

Important: Storage drives, M.2 SSDs and rack rails are not included.

Short Description

The Synology RS1226+ is a compact 8-bay 2U rackmount NAS designed for growing businesses, branch offices and edge environments that need reliable centralised storage without a full-depth server chassis.

With ECC memory, dual 2.5GbE, built-in M.2 NVMe cache slots, optional 10/25GbE and expansion to 12 drive bays, it provides a flexible platform for business files, backup, collaboration and surveillance.

Why Choose This Synology

Serious Storage in a Short-Depth Chassis

At only 306.6mm deep, the RS1226+ is particularly useful for network closets, branch offices and space-constrained rack installations.

Dual 2.5GbE Built In

Two 2.5GbE ports provide faster-than-Gigabit connectivity and support Link Aggregation for supported load balancing and network failover configurations.

Built-In M.2 NVMe Cache

Two dedicated M.2 2280 NVMe slots allow compatible SSDs to accelerate frequently accessed data without occupying the front drive bays or PCIe slot.

Upgrade to 10GbE or 25GbE

The PCIe Gen3 x8 expansion slot supports compatible Synology 10GbE and 25GbE network cards when higher bandwidth is required.

Expand to 12 Drive Bays

Add one compatible RX426 expansion unit to increase total storage capacity from eight to twelve drive bays.

Best For

• Branch offices
• Small and medium businesses
• Centralised business files
• Backup and recovery
• Team file sharing
• Edge storage
• Multi-site synchronisation
• Surveillance
• Compact rack installations
• Businesses planning future 10/25GbE networking

Product Description

The Synology RackStation RS1226+ is an 8-bay 2U business NAS designed for reliable storage in environments where rack depth and upgrade flexibility matter.

It is powered by an AMD Ryzen V1500B processor with 4 cores and 8 threads running at 2.2GHz.

The system includes 4GB DDR4 ECC memory and supports expansion to 32GB using compatible Synology memory modules.

Eight hot-swappable main bays support compatible 3.5-inch SATA HDDs and 2.5-inch SATA SSDs. Two integrated M.2 2280 NVMe slots support compatible Synology SSDs for read/write cache acceleration.

Dual 2.5GbE RJ-45 ports provide fast built-in connectivity, while a PCIe Gen3 x8 slot with an x4 link supports compatible 10GbE and 25GbE network cards.

One RX426 expansion unit increases total drive capacity from eight to twelve bays.

The RS1226+ also supports direct installation in compatible 2-post 19-inch racks or supported Synology rail kits for 4-post installations.

Synology DSM provides integrated tools for file management, backup, synchronisation, business collaboration, snapshots and surveillance.

Storage drives are sold separately.

Key Features

• 8-bay 2U rackmount NAS
• AMD Ryzen V1500B processor
• 4GB DDR4 ECC memory
• Expandable to 32GB
• Dual 2.5GbE networking
• Two M.2 NVMe SSD cache slots
• PCIe Gen3 expansion
• Optional 10GbE and 25GbE
• Expandable to 12 drive bays
• Short-depth 306.6mm chassis
• Synology High Availability support
• Synology Hybrid RAID
• Btrfs / ext4
• 3-year warranty

What Do I Need With This NAS?

Required

• Compatible storage drives

Optional Upgrades

• Additional ECC memory
• M.2 NVMe SSDs for cache
• RX426 expansion unit
• 10GbE or 25GbE network card
• RKS-02 or RKM114 rail kit
• Additional Surveillance Station licences

Compatible Storage

Plus Series 3.5-inch SATA HDD

• HAT3300-4T
• HAT3300-6T
• HAT3320-8T
• HAT3310-12T
• HAT3310-16T
• HAT3320-20T

Enterprise 3.5-inch SATA HDD

• HAT5320-4T
• HAT5320-8T
• HAT5300-12T
• HAT5310-16T
• HAT5320-20T
• HAT5320-24T

Enterprise 2.5-inch SATA SSD

• SAT5221-480G
• SAT5221-960G
• SAT5221-1920G
• SAT5221-3840G
• SAT5210-7000G

Enterprise M.2 NVMe SSD

• SNV3410-400G
• SNV5420-400G
• SNV5420-800G
• SNV5420-1600G

Compatibility Note: Drive and firmware compatibility is exact-model specific. Confirm the selected drive against Synology's current RS1226+ Compatibility List before purchase.

Compatible Upgrades & Accessories

Memory

• D4ES04-4G
• D4ES03-8G
• D4ES03-16G

Maximum system memory: 32GB

Expand Storage

• RX426 Expansion Unit

Expands the system from 8 to 12 drive bays.

Expand Networking

• E25G30-F2 – 25GbE
• E10G30-F2 – 10GbE
• E10G30-T2 – 10GbE
• E10G30-T1 – 10GbE

Rack Installation

• RKS-02 Sliding Rail Kit
• RKM114 Mounted Rail Kit
• Supported direct 2-post 19-inch mounting

Surveillance Station

The RS1226+ includes 2 Surveillance Station device licences.

It supports up to 40 IP cameras at 1080p under Synology's specified test configurations.

Additional cameras require additional Surveillance Station device licences.

Specifications

What’s in the Box

• Synology RS1226+ Main Unit × 1
• Accessory Pack × 1
• AC Power Cord × 1
• C13 to C14 Power Cord × 1

Not Included: Storage drives, M.2 SSDs, expansion unit, network cards and optional rail kits.

Warranty

3-Year Synology Hardware Warranty

Sustainability

• RoHS Compliant
