Synology RX426 4-Bay RackStation Expansion Unit

At a Glance

• Adds 4 additional drive bays to compatible 26-series RackStation systems
• Compatible with RS826+, RS826RP+, RS1226+ and RS1226RP+
• Supports compatible 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Hot-swappable storage
• Plug-and-play expansion through USB Type-C
• Managed directly through Synology DSM
• Compact 1U short-depth design
• Supports 2-post or compatible 4-post rack installations
• 3-Year Synology Hardware Warranty

Important: The RX426 is an expansion unit and cannot operate as a standalone NAS. Storage drives and optional rack rails are sold separately.

Short Description

The Synology RX426 is a compact 4-bay 1U expansion unit designed to add additional storage capacity to compatible 26-series Synology RackStation systems.

It integrates directly with Synology DSM, supports hot-swappable drives and allows businesses to increase storage without replacing their existing host NAS.

Why Choose This Synology

Add Four More Drive Bays

The RX426 increases the storage capacity of a compatible RackStation by four additional bays, extending the useful life of the host system.

Simple Plug-and-Play Expansion

A USB Type-C expansion connection links the RX426 directly to the compatible RackStation for straightforward deployment.

Manage Everything Through DSM

Storage installed in the RX426 is managed directly through Synology Storage Manager, keeping administration within the same interface as the host NAS.

Compact Rack-Friendly Design

At only 290mm deep without server ears, the RX426 is well suited to space-constrained edge and branch-office installations.

Flexible Rack Installation

The RX426 supports compatible RKS-02 and RKM114 rail kits as well as direct mounting in supported 2-post 19-inch racks.

Best For

• Expanding RS826+ storage
• Expanding RS826RP+ storage
• Expanding RS1226+ storage
• Expanding RS1226RP+ storage
• Branch and remote office storage
• Business backup capacity
• Compact rack installations
• Businesses wanting to extend existing RackStation capacity

Product Description

The Synology RX426 is a four-bay 1U expansion unit designed specifically for compatible 26-series RackStation systems.

It supports compatible 3.5-inch SATA HDDs and 2.5-inch SATA SSDs in four hot-swappable drive bays.

The expansion unit connects to its host RackStation using a USB Type-C expansion cable. Once connected, the installed storage is managed directly through Synology DSM Storage Manager.

The RX426 can be used to add additional capacity without replacing the existing NAS or interrupting normal system services.

Its short-depth 1U design makes it particularly useful in smaller network cabinets, edge environments and branch offices.

The RX426 requires a compatible Synology RackStation. It cannot function as a standalone NAS.

Key Features

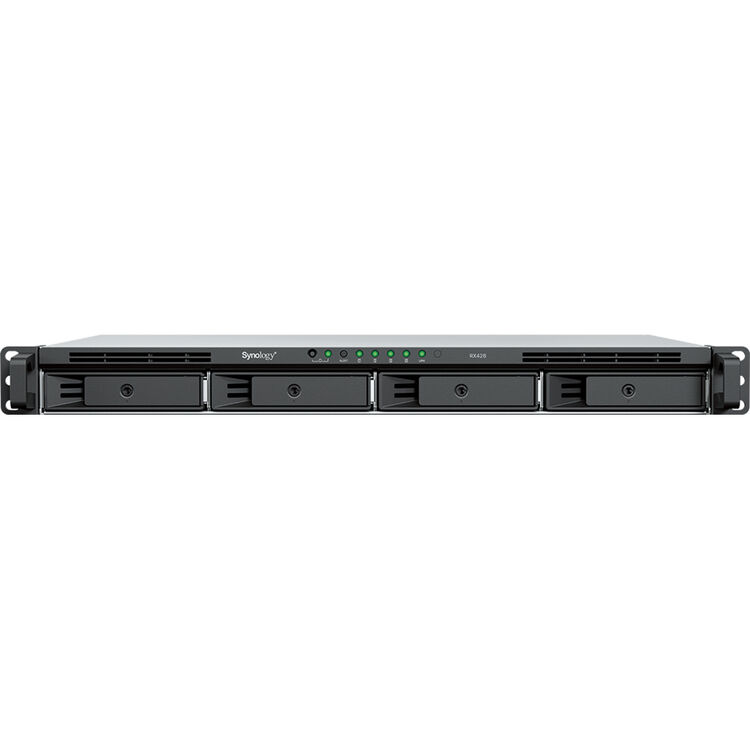

• 4-bay RackStation expansion unit
• 1U short-depth rackmount design
• Supports compatible 3.5-inch SATA HDDs
• Supports compatible 2.5-inch SATA SSDs
• Hot-swappable drive bays

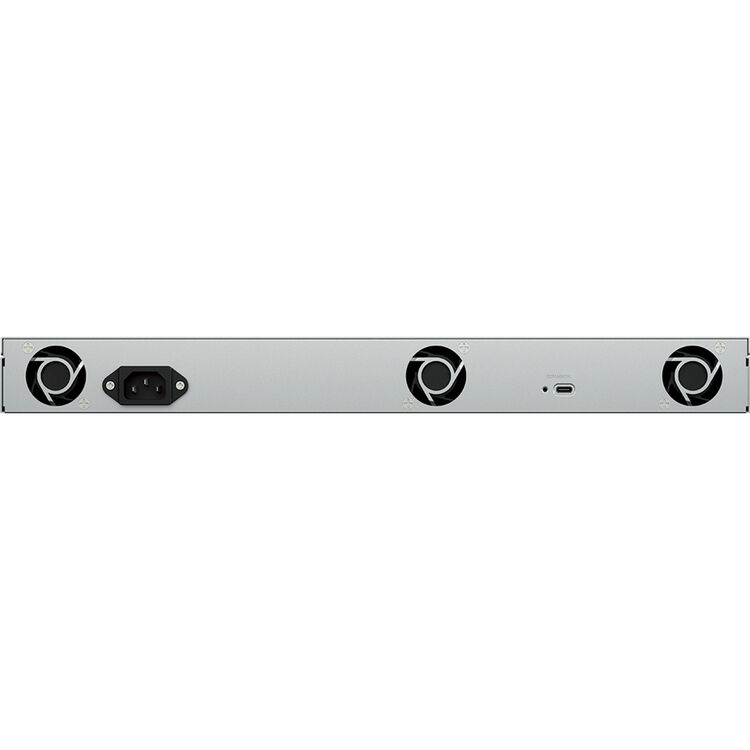

• USB Type-C expansion connection
• DSM Storage Manager integration
• Online storage expansion
• RKS-02 rail support
• RKM114 rail support
• Direct 2-post mounting support
• 3-year warranty

What Do I Need With This Expansion Unit?

Required

• Compatible Synology RackStation
• Compatible storage drives

Optional

• RKS-02 Sliding Rail Kit
• RKM114 Mounted Rail Kit

Compatible Synology Systems

Synology currently lists the RX426 as compatible with:

26 Series

• RS826+
• RS826RP+
• RS1226+
• RS1226RP+

Compatibility Note: Synology recommends keeping storage volumes physically within the same NAS or expansion unit for better performance rather than creating a volume that spans both units.

Compatible Storage

Synology currently lists the following official storage families for RX426:

3.5-inch SATA HDD

• Synology HAT5300 Enterprise Series
• Synology HAT3300 Plus Series

2.5-inch SATA SSD

• Synology SAT5200 Enterprise Series

Compatibility Note: Drive support remains exact-model specific. Confirm the selected drive against Synology's current RX426 Compatibility List before purchase.

Compatible Upgrades & Accessories

Rack Installation

• RKS-02 Sliding Rail Kit
• RKM114 Mounted Rail Kit

The RX426 can also be directly installed in a supported 2-post 19-inch rack.

Specifications

What’s in the Box

• Synology RX426 Main Unit × 1
• USB Type-C Expansion Cable × 1
• Accessory Pack × 1
• AC Power Cord × 1

Not Included: Storage drives and optional rail kits.

Warranty

3-Year Synology Hardware Warranty

Sustainability

• RoHS Compliant
