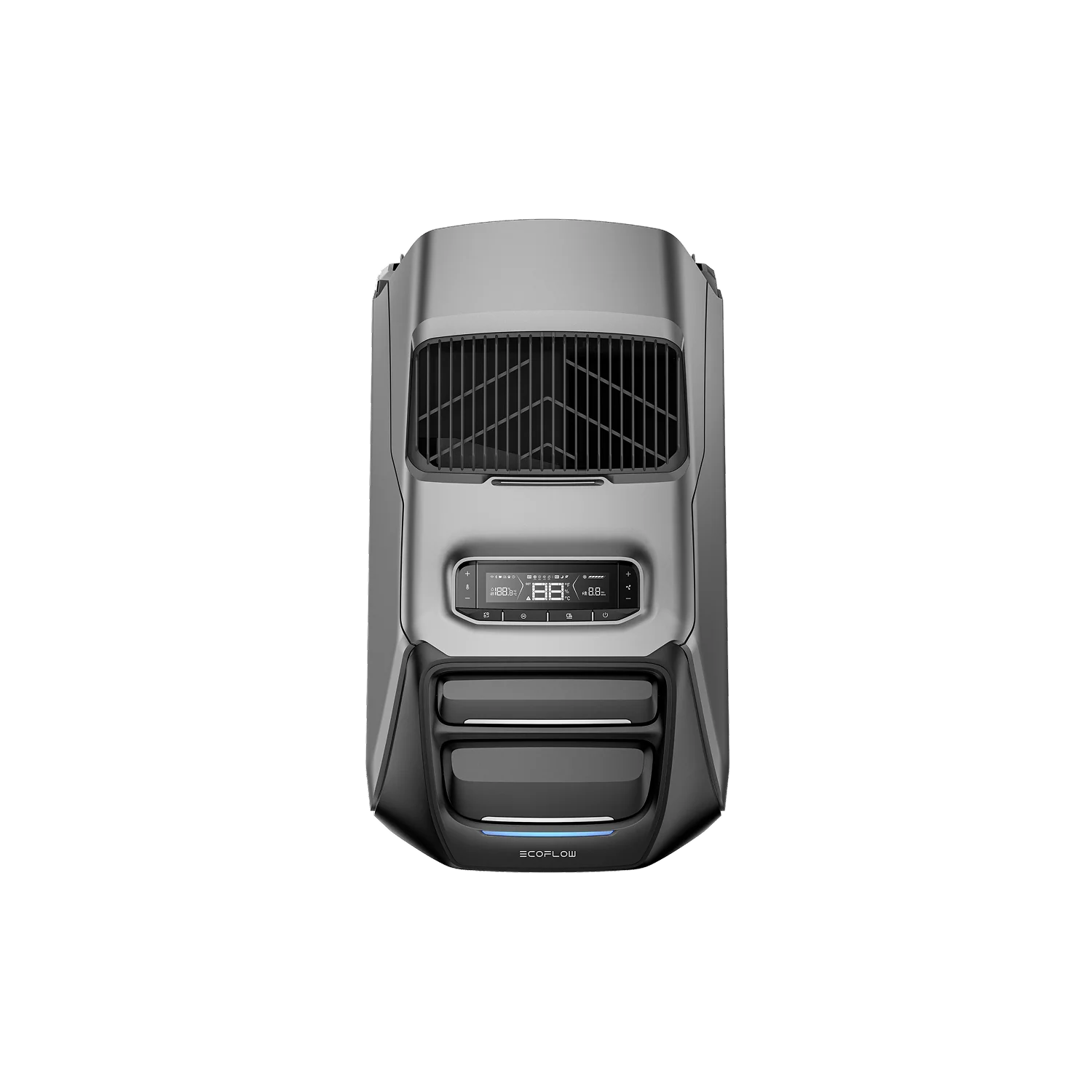

EcoFlow WAVE 3 6100/6800 BTU Portable Air Conditioner and Heater

The EcoFlow WAVE 3 is a portable air conditioner and heater with 6100 BTU cooling, 6800 BTU heating, smart app control and flexible AC or battery-powered operation for caravans, camping, compact rooms and mobile workspaces.

Product Description

The EcoFlow WAVE 3 Portable Air Conditioner provides portable cooling and heating for caravans, camper vans, tents, cabins, compact rooms, mobile workspaces and temporary off-grid environments.

It delivers 6100 BTU of cooling capacity and 6800 BTU of heating capacity, allowing the unit to provide year-round climate control without requiring permanent installation.

Under EcoFlow’s specified test conditions, the WAVE 3 can reduce the temperature by up to 8°C in approximately 15 minutes or increase the temperature by up to 9°C in approximately 15 minutes.

The adjustable temperature range of 16°C to 30°C allows the unit to provide cooling or heating according to the selected operating mode and environmental conditions.

Five operating functions are available, including Cooling, Heating, Fan, Automatic and Dehumidification.

Automatic Function adjusts operation according to the selected temperature and surrounding conditions, while Sleep Mode reduces noise to approximately 44dB under suitable operating conditions.

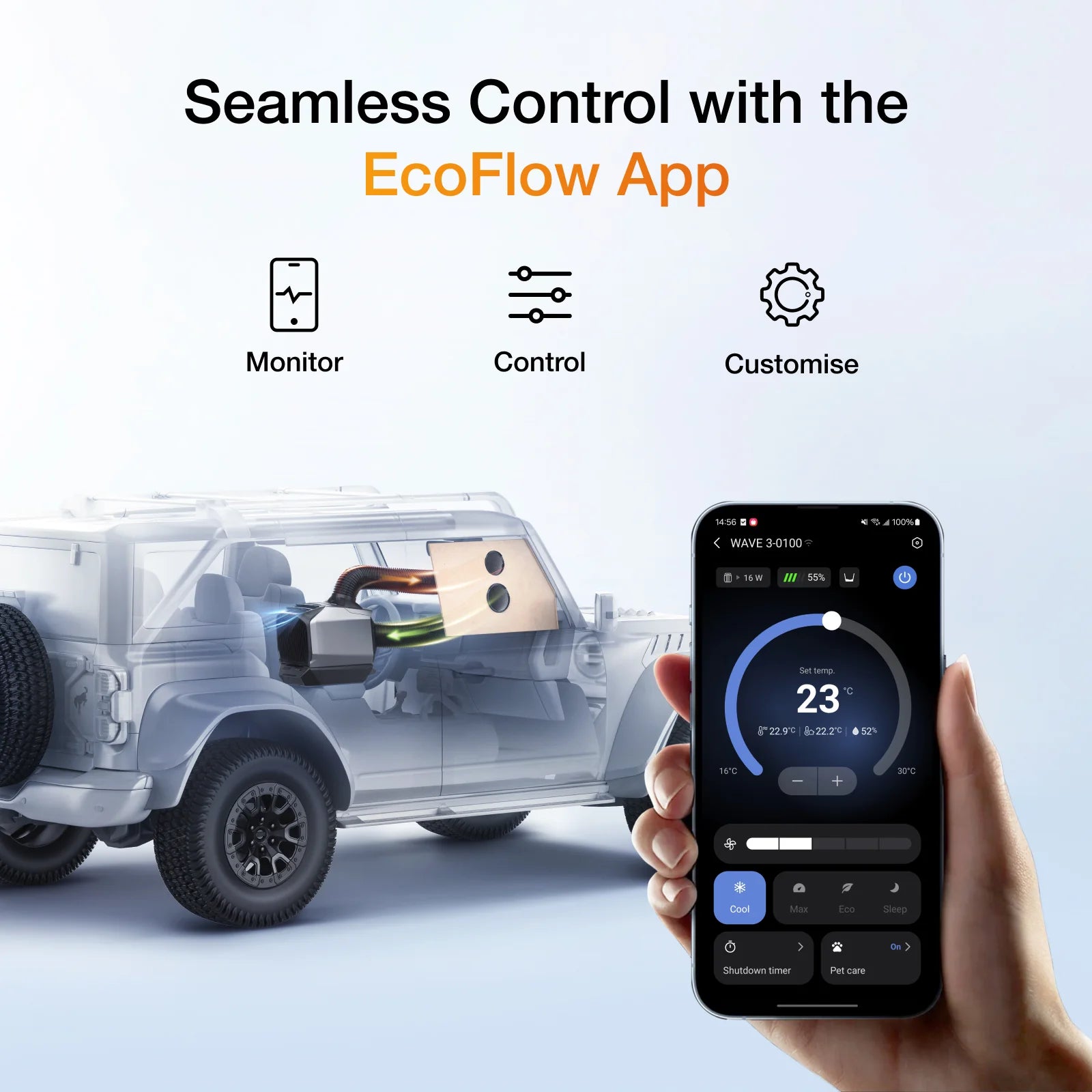

The EcoFlow App provides remote control through Wi-Fi or Bluetooth. Supported functions include temperature adjustment, operating-mode selection, fan-speed control, scheduled shutdown, battery monitoring and water-drain notifications.

The Pet Care function allows a temperature threshold to be configured through the EcoFlow App. When the selected threshold is exceeded, the WAVE 3 can begin cooling and send an app notification.

The included insulated exhaust duct and three adapter covers support different installation arrangements in tents, vehicles, caravans, cabins and compact rooms.

The WAVE 3 can operate directly from a compatible AC wall outlet. Cordless operation requires a separately sold EcoFlow WAVE 3 Add-On Battery, compatible WAVE 2 Add-On Battery or supported EcoFlow portable power station.

The WAVE 3 does not contain an internal battery. Add-On Batteries, portable power stations, solar panels and other power accessories are sold separately unless specifically included in a bundle.

Key Features

• 6100 BTU cooling capacity
• 6800 BTU heating capacity
• 1800W cooling capacity
• 2000W heating capacity
• Temperature setting range from 16°C to 30°C
• Reduces temperature by up to 8°C in approximately 15 minutes
• Increases temperature by up to 9°C in approximately 15 minutes
• Cooling function
• Heating function
• Fan function
• Automatic temperature-management function
• Dehumidification function
• Sleep Mode with noise from approximately 44dB
• Pet Care temperature-monitoring function
• Water-level and drainage alerts
• Maximum airflow of approximately 330m³ per hour
• EcoFlow App monitoring and control
• Wi-Fi connectivity
• Bluetooth connectivity
• Supports 2.4GHz and 5GHz Wi-Fi
• Compatible with the EcoFlow WAVE 3 Add-On Battery
• Compatible with the EcoFlow WAVE 2 Add-On Battery
• Supports approximately 2 to 8 hours of cordless operation with a compatible Add-On Battery
• Supports selected EcoFlow portable power stations
• Supports compatible XT150 power connections
• Includes an insulated exhaust duct
• Includes three exhaust duct adapter covers
• Includes a drain pipe
• IPX4 water-resistance rating
• Compact portable construction
• Approximately 15.6kg net weight
• Suitable for caravans and camper vans
• Suitable for camping and overlanding
• Suitable for cabins and compact rooms
• Suitable for mobile and temporary workspaces
• Does not contain an internal battery

Specifications

Compatibility

The EcoFlow WAVE 3 can be powered using:

• A compatible AC wall outlet
• EcoFlow WAVE 3 Add-On Battery
• EcoFlow WAVE 2 Add-On Battery
• Selected EcoFlow portable power stations
• A supported XT150 connection
• Compatible model-specific cables or adapters

The WAVE 3 does not contain an internal battery.

Cordless or off-grid operation requires a separately sold compatible Add-On Battery, portable power station or supported external power source.

When connected to the EcoFlow WAVE 3 Add-On Battery, the system may provide approximately two to eight hours of portable cooling or heating.

Actual runtime depends on:

• Selected cooling or heating mode
• Target temperature
• Fan speed
• Eco Mode settings
• Outdoor temperature
• Size of the conditioned space
• Insulation
• Direct sunlight
• Door and window openings
• Exhaust-duct installation
• Battery condition
• Operating demand

The EcoFlow WAVE 2 Add-On Battery is compatible with the WAVE 3 without requiring a firmware update.

Compatibility with EcoFlow portable power stations depends on:

• Available output power
• Connection-port type
• XT150 port availability
• Required cable or adapter
• Portable power station capacity
• Battery charge level
• Current firmware

Correct exhaust-duct installation is required for effective cooling and heating.

In Cooling Mode, warm exhaust air must be directed outside the area being cooled.

In Heating Mode, cold exhaust air must be directed outside the area being heated.

Poor duct installation, air leakage or recirculation of exhaust air can significantly reduce performance.

EcoFlow’s rapid cooling and heating results were measured in a controlled space of approximately 10m³. Actual performance varies according to room size, insulation, outdoor temperature, humidity, sunlight and airflow.

Pet Care is an additional monitoring function and does not replace responsible supervision, reliable ventilation, suitable backup power or proper animal-care precautions.

The WAVE 3 carries an IPX4 splash-resistance rating. It is not waterproof and must not be submerged, left in heavy rain, operated in standing water or cleaned with high-pressure water.

The unit uses flammable R290 refrigerant. Refrigerant servicing must only be completed by an appropriately qualified technician.

Before moving or storing the WAVE 3:

• Switch the unit off
• Disconnect all power sources
• Drain accumulated water
• Disconnect the exhaust duct
• Keep the unit upright
• Avoid tilting or overturning the unit
• Store it in a dry, ventilated location

What’s in the Box

• 1 × EcoFlow WAVE 3 Portable Air Conditioner
• 1 × Insulated Exhaust Duct
• 1 × Exhaust Duct Adapter Cover A
• 1 × Exhaust Duct Adapter Cover B
• 1 × Exhaust Duct Adapter Cover C
• 1 × Drain Pipe
• 1 × Cable Winder
• 1 × Duct Size Template
• 1 × Quick Start Guide
• 1 × Safety Instructions
• 1 × Warranty Card

The EcoFlow WAVE 3 Add-On Battery, WAVE 2 Add-On Battery, portable power station, solar panels, Alternator Charger and other accessories are sold separately unless specifically included in a bundle.

Warranty

Two-Year EcoFlow Limited Manufacturer Warranty

Sustainability

The EcoFlow WAVE 3 combines portable cooling, heating, fan circulation and dehumidification functions in one reusable appliance.

Its compatibility with EcoFlow Add-On Batteries and selected portable power stations allows it to operate away from mains electricity. Compatible battery systems may also be recharged using supported solar or vehicle-charging equipment.

The portable design allows the unit to be moved between different compact spaces without requiring a separate permanently installed air-conditioning system in each location.
