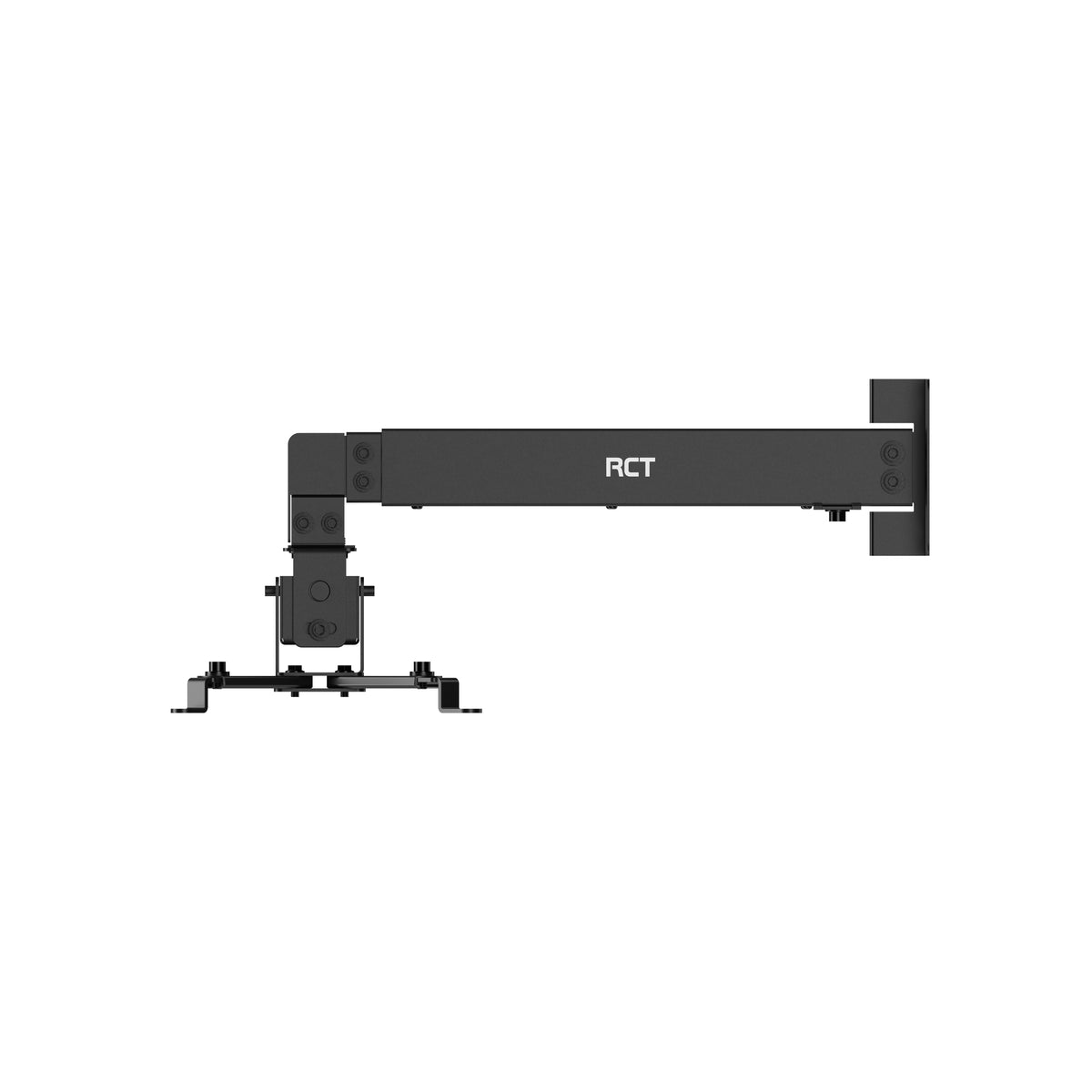

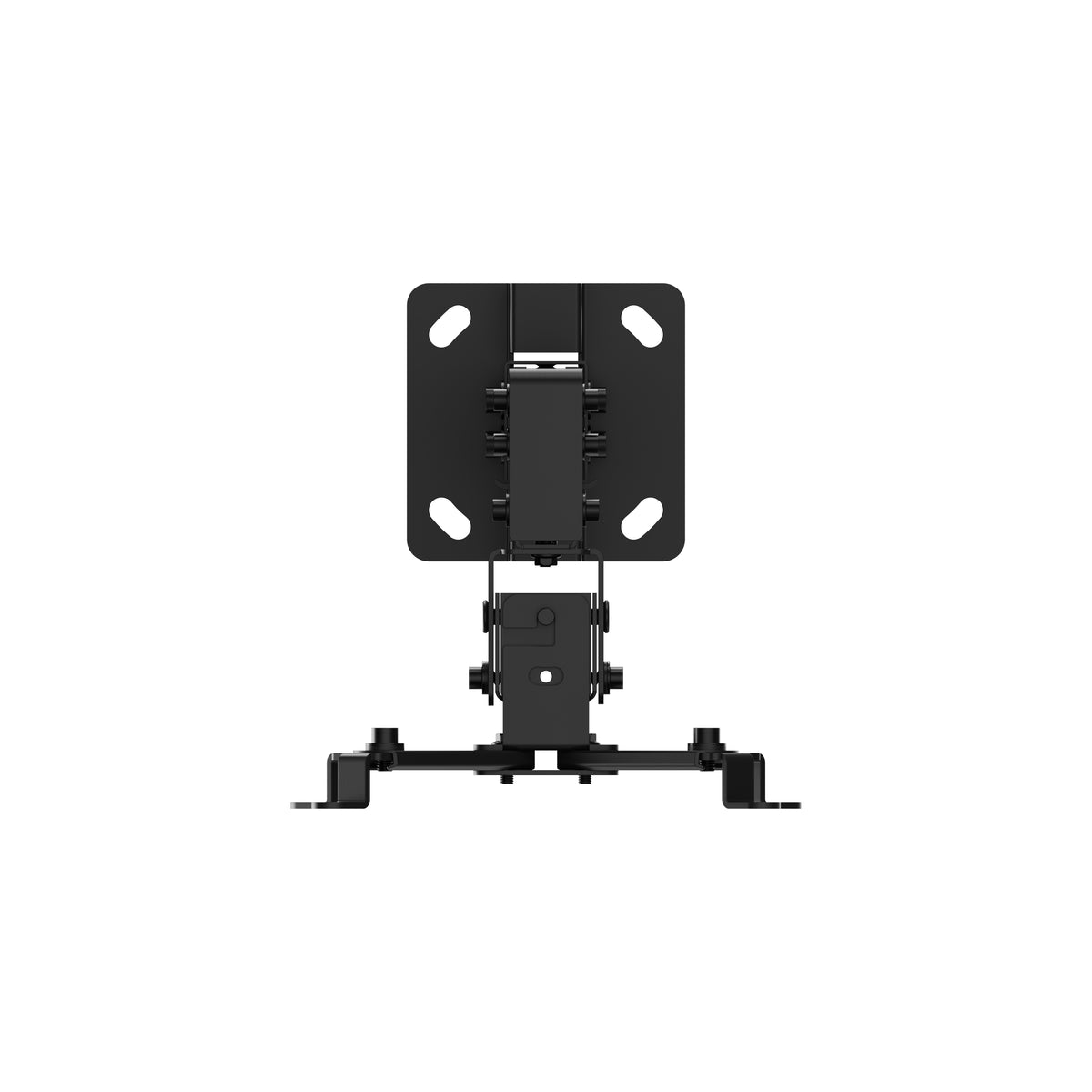

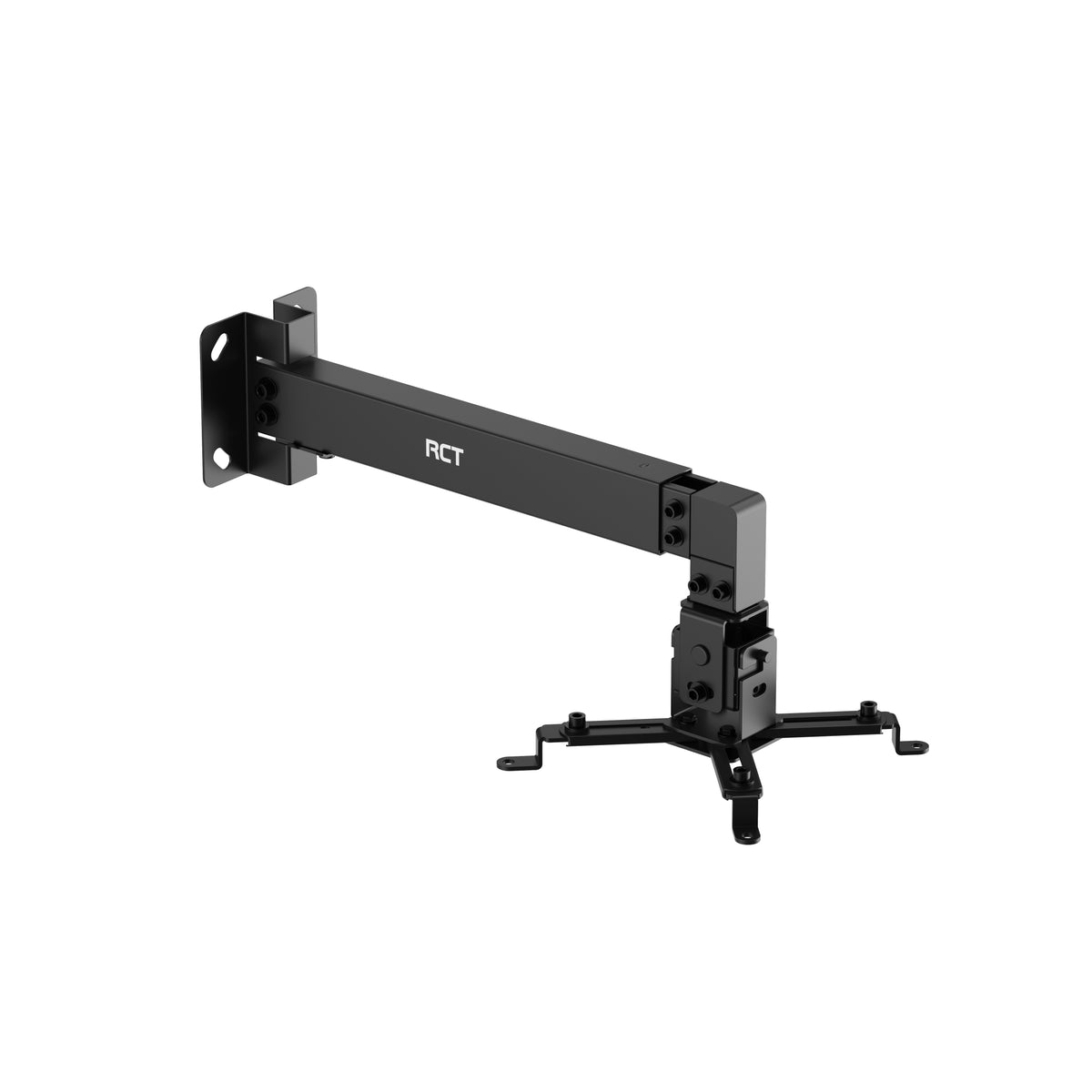

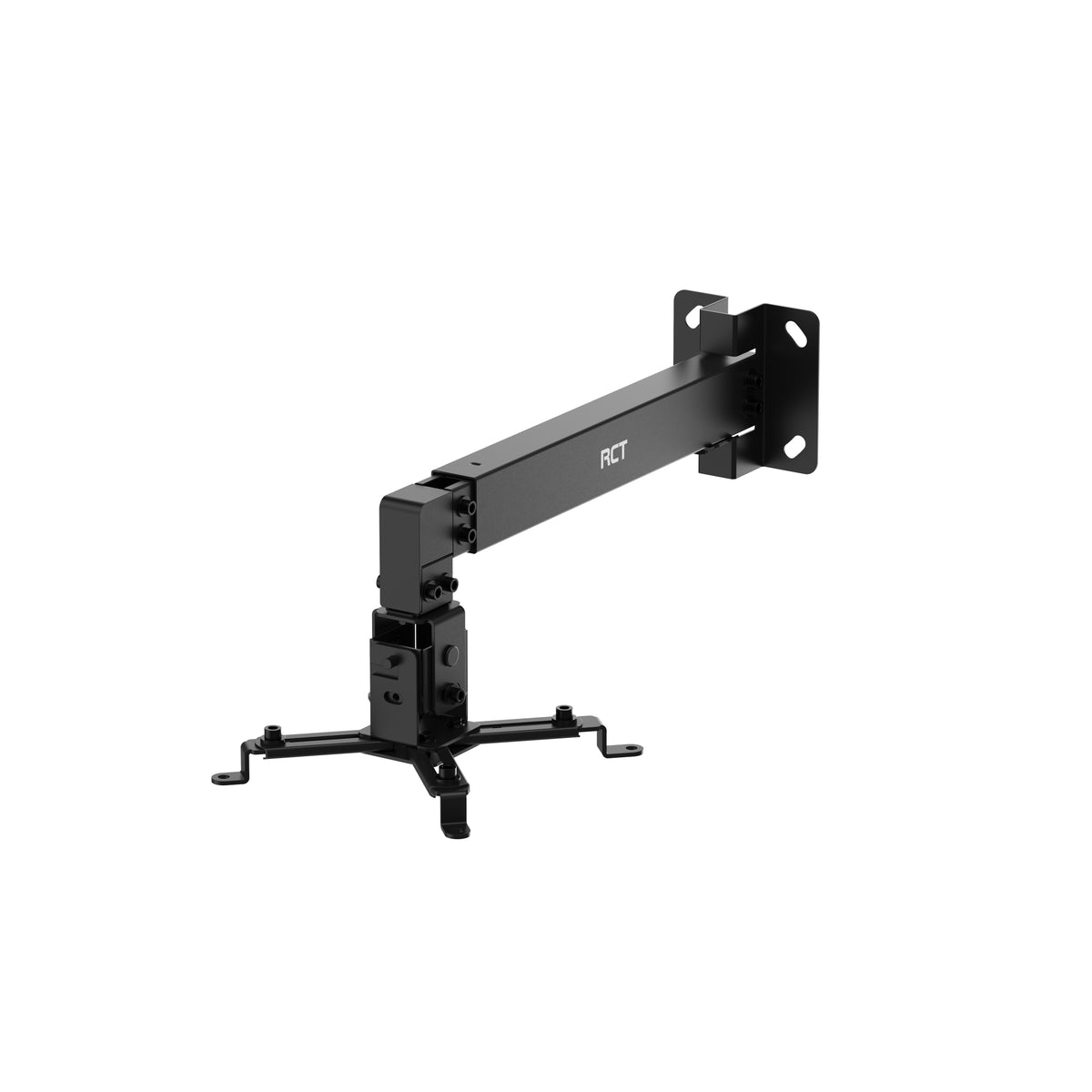

RCT BRK-PRO-2 Short-Throw Projector Wall Mount - 20kg

At a Glance

The RCT BRK-PRO-2 is an adjustable short-throw projector wall mount designed to support compatible projectors weighing up to 20kg.

Its steel construction, four adjustable projector arms, 365–600mm extension range, integrated cable management and quick-release mounting system provide a flexible installation solution for classrooms, meeting rooms, training facilities and home entertainment environments.

Short Description

The RCT BRK-PRO-2 is a steel short-throw projector wall mount supporting compatible projectors weighing up to 20kg.

It provides a 225–316mm projector mounting range, adjustable 365–600mm wall extension, ±15-degree tilt, ±8-degree swivel and integrated cable management.

Why Choose This RCT Projector Mount

The BRK-PRO-2 provides an adjustable wall-mounting solution for short-throw projectors that need to be positioned at a specific distance from the projection surface.

Its telescopic mounting arm extends from 365mm to 600mm, helping the installer position a compatible projector according to its required throw distance.

Four adjustable mounting arms accommodate a range of compatible projector mounting-point layouts, while the quick-release connector allows the projector assembly to be removed for servicing without dismantling the complete wall arm.

Recommended Use Cases

• Classrooms
• Training rooms
• Boardrooms
• Meeting rooms
• Lecture facilities
• Educational environments
• Business presentations
• Short-throw projection installations
• Home entertainment rooms
• Interactive projection systems
• Permanent wall-mounted projector installations

Product Description

The RCT BRK-PRO-2 is a solid-steel wall mount designed for compatible short-throw projectors weighing up to 20kg.

Its four adjustable support arms provide a projector mounting range of 225–316mm, allowing the mounting plate to accommodate a variety of compatible projector mounting-point arrangements.

The telescopic arm provides an adjustable extension range of 365–600mm, allowing the projector’s distance from the wall to be configured according to the projector’s throw requirements and the required image size.

Once installed, the projector position can be refined using a tilt range of +15° to -15° and a swivel range of +8° to -8°.

A quick-release connection between the projector assembly and wall arm allows the projector to be removed for servicing or maintenance. This reduces the need to dismantle the complete wall-mount structure.

Integrated cable management allows compatible power and signal cables to be routed through the mounting arm for a cleaner installation.

The mount is manufactured from steel with a matte-black powder-coated finish and is designed for installation on a suitable solid wall.

Key Features

• Short-throw projector wall mount
• Supports compatible projectors weighing up to 20kg
• Strong steel construction
• Matte-black powder-coated finish
• Four adjustable projector support arms
• 225–316mm mounting range
• Adjustable 365–600mm wall extension
• +15° to -15° tilt adjustment
• +8° to -8° swivel adjustment
• Quick-release projector connector
• Easier projector removal for maintenance
• Integrated cable-management channel
• Adjustable projector alignment
• Designed for solid-wall installation
• Installation hardware included
• Instruction manual included

Specifications

Adjustable Wall Extension

The telescopic wall arm provides an extension range of:

• Minimum extension: 365mm
• Maximum extension: 600mm

The extension should be configured according to the projector’s required throw distance, screen dimensions and installation position.

The correct distance varies between projector models and required image sizes. The projector manufacturer’s installation specifications should therefore be checked before drilling or permanently mounting the bracket.

Projector Position Adjustment

After installation, the BRK-PRO-2 provides:

• Tilt adjustment: +15° to -15°
• Swivel adjustment: +8° to -8°

These adjustments allow the installer to refine the projector’s alignment with the projection surface.

The projector should be properly secured and supported while adjustments are made.

Quick-Release Projector Mount

The projector mounting assembly connects to the wall arm through a quick-release mechanism.

This allows the projector assembly to be detached for maintenance or servicing without removing the complete wall-mounted arm.

Always support the projector securely before releasing the mounting assembly.

Cable Management

Compatible projector cables can be routed through the mounting arm to help create a cleaner installation.

Before completing the installation, ensure that:

• Power and signal cables are long enough for the selected extension
• Cables are not pinched inside the arm
• Sufficient cable slack is available for adjustment
• Connectors are not placed under excessive strain
• Ventilation openings on the projector remain unobstructed

Compatibility

The RCT BRK-PRO-2 is suitable for compatible short-throw projectors that meet all the following requirements:

• Projector weight does not exceed 20kg
• Mounting-point arrangement fits within the 225–316mm mounting range
• Projector mounting screws match the supported hardware
• The required wall distance falls within the 365–600mm extension range
• The installation wall is structurally suitable for the combined weight
• The projector’s ventilation openings remain unobstructed
• The projector’s required throw distance is suitable for the intended screen size

Compatibility should be confirmed using the projector’s mounting-hole dimensions, weight and installation instructions before mounting.

Installation Requirements

The BRK-PRO-2 is designed for installation on a structurally suitable solid wall.

Installation requires appropriate tools and accurate measurement of the projector’s required throw distance and image position.

Before installation:

• Confirm that the wall can support the combined load
• Check for hidden electrical wiring, plumbing and other services
• Confirm the projector’s required throw distance
• Verify the projector mounting-hole arrangement
• Confirm that the supplied screws are suitable for the projector
• Check the required screw depth to avoid damaging the projector
• Ensure that all components are present and undamaged

Professional installation is recommended.

Installation and Safety Notes

• Do not exceed the maximum supported weight of 20kg
• Do not install the mount on an unsuitable or damaged wall
• Use the correct wall anchors for the supporting wall material
• Do not mount directly to unsupported plasterboard or drywall
• Confirm that all screws and fasteners are securely tightened
• Do not overtighten screws fitted into the projector
• Use only the correct screw diameter and insertion depth
• Keep cables away from sharp edges and moving adjustment points
• Ensure the projector is adequately ventilated
• Keep the product and unused installation hardware away from children
• Inspect the bracket and fasteners periodically
• Check that the bracket remains secure at least once every three months

Incorrect installation may result in equipment damage or personal injury.

What’s in the Box

• RCT BRK-PRO-2 Projector Wall-Mount Assembly
• Telescopic Extension Arm
• Wall-Mounting Plate
• Projector Mounting Assembly
• Four Adjustable Projector Arms
• Quick-Release Components
• Projector Mounting Screws
• Washers and Spacers
• Wall-Mounting Screws
• Wall Anchors
• Allen Keys
• Cable-Management Components
• Installation Manual

Warranty

12-Month Limited Warranty

Warranty coverage does not include damage caused by incorrect installation, overloading, unsuitable mounting surfaces, misuse, unauthorised modification or failure to follow the installation instructions.
