Synology

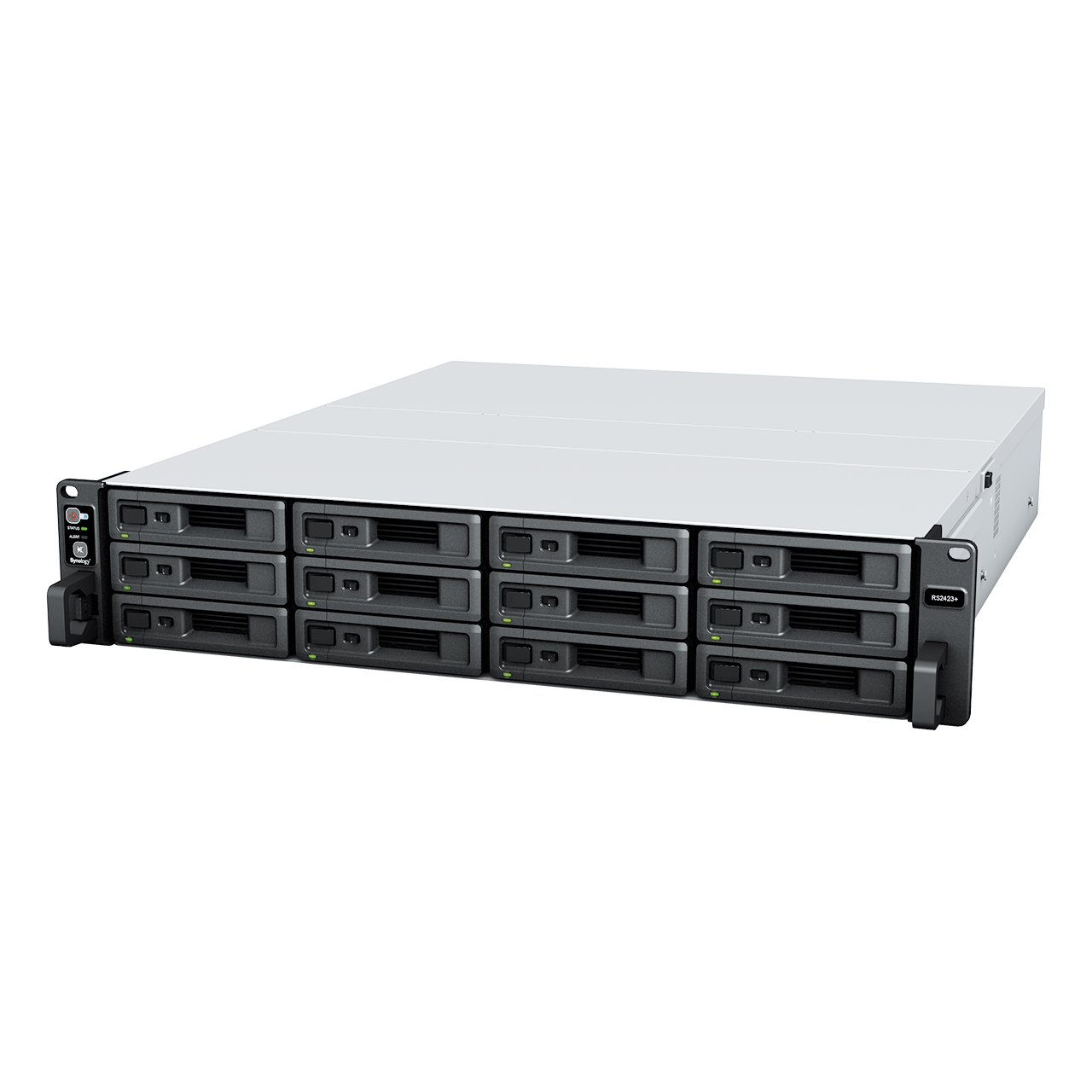

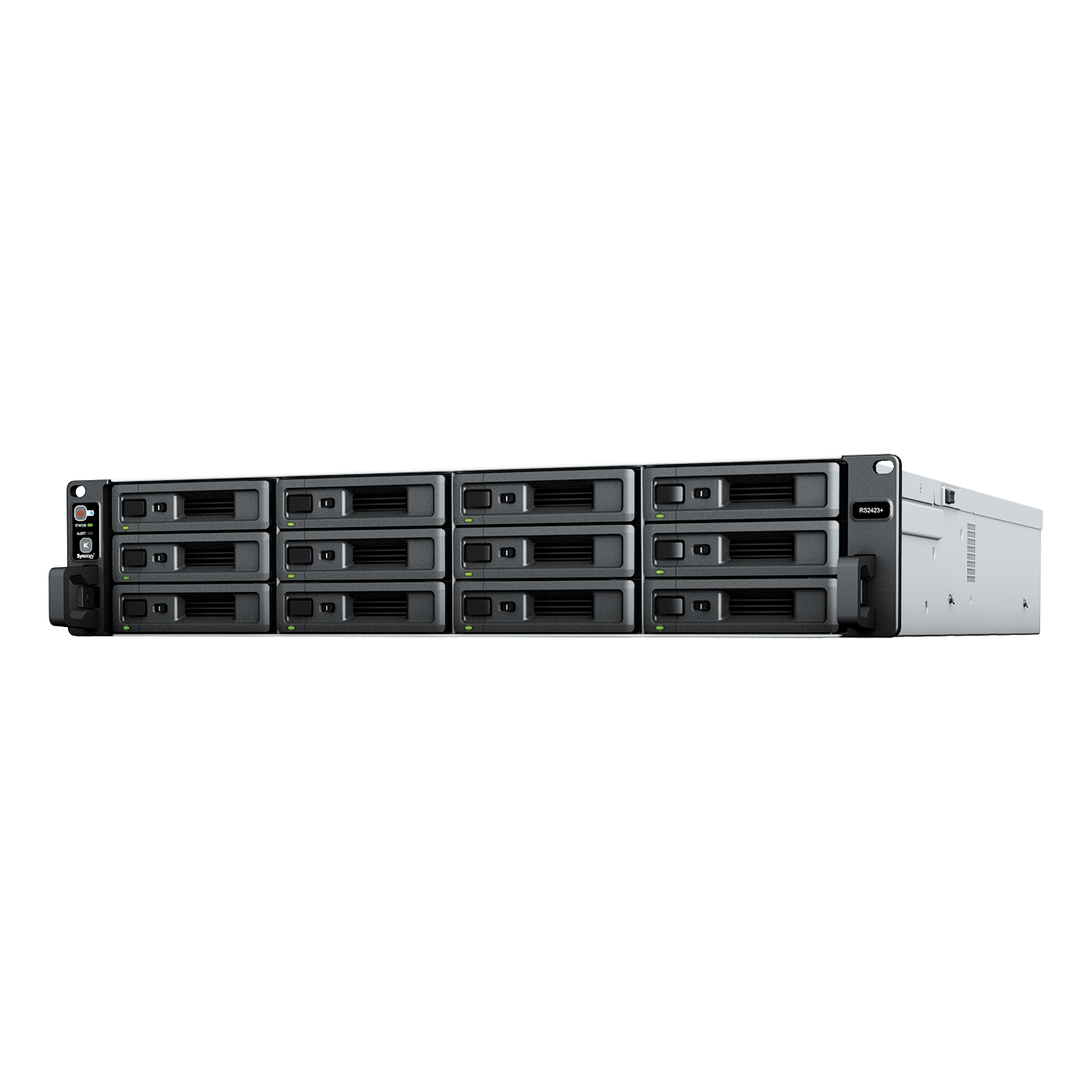

Synology RackStation RS2423+ 12-Bay 2U Rackmount NAS
Estimated delivery between August 10 and August 14.
The Synology RackStation RS2423+ is a scalable 12-bay 2U rackmount NAS with an AMD Ryzen processor, 8GB ECC memory, built-in 10GbE, PCIe expansion and support for up to 24 drives.
Product Description
The Synology RS2423+ is designed for centralised business storage, backup, collaboration, private-cloud access, virtualisation and surveillance.
It features an AMD Ryzen V1780B quad-core processor, 8GB DDR4 ECC memory expandable to 32GB and twelve hot-swappable SATA drive bays.
One built-in 10GbE port and two 1GbE ports provide high-speed connectivity, Link Aggregation and network failover. A PCIe Gen3 expansion slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapters and combined network and storage adapters.
The RS2423+ delivers sequential performance of over 3,500MB/s read and 1,700MB/s write under Synology test conditions. Storage capacity can be expanded to 24 drives with an optional RX1223RP Expansion Unit.
Storage drives, memory upgrades, expansion units, PCIe cards and rack rail kits are not included.
Key Features
- Scalable 12-bay 2U rackmount NAS
- AMD Ryzen V1780B processor
- Four CPU cores and eight threads
- 3.35GHz base and up to 3.6GHz turbo frequency
- Hardware encryption engine
- 8GB DDR4 ECC UDIMM memory
- Memory expandable to 32GB
- Twelve hot-swappable SATA drive bays
- Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
- Expandable to 24 drives with one RX1223RP
- One built-in 10GbE RJ-45 port
- Two built-in 1GbE RJ-45 ports
- Link Aggregation and network failover support
- Two USB 3.2 Gen 1 ports
- Mini-SAS HD expansion port
- PCIe Gen3 expansion slot
- Supports selected 10GbE and 25GbE network cards
- Supports selected M.2 NVMe adapter cards
- Over 3,500MB/s read and 1,700MB/s write
- Supports Synology Hybrid RAID
- Supports RAID 0, 1, 5, 6 and 10
- Supports Btrfs and ext4
- Supports Synology High Availability
- Includes two Surveillance Station device licences
- Supports up to 75 compatible IP cameras
- Three-year Synology hardware warranty
Recommended Use Cases
- Small and medium business storage
- Centralised file sharing
- Computer, server and virtual-machine backup
- Private-cloud file access
- Business collaboration
- Virtualisation and iSCSI storage
- Creative and media storage
- High-speed 10GbE environments
- SSD cache deployments
- IP camera surveillance
- Expandable archive storage
- Business continuity and data protection
Specifications
| FIELD | DETAILS |
|---|---|
| Product Code | RS2423+ |
| Form Factor | 2U Rackmount |
| CPU Model | AMD Ryzen V1780B |
| CPU Architecture | 64-bit |
| CPU Cores / Threads | 4 Cores / 8 Threads |
| CPU Frequency | 3.35GHz Base / 3.6GHz Turbo |
| Hardware Encryption Engine | Supported |
| System Memory | 8GB DDR4 ECC UDIMM |
| Pre-Installed Memory | 1 × 8GB |
| Memory Slots | 2 |
| Maximum Memory Capacity | 32GB |
| Drive Bays | 12 |
| Maximum Drive Bays | 24 with 1 × Synology RX1223RP |
| Compatible Drives | 3.5-Inch SATA HDD or 2.5-Inch SATA SSD |
| Hot-Swappable Drives | Supported |
| 10GbE Network Ports | 1 × RJ-45 |
| 1GbE Network Ports | 2 × RJ-45 |
| USB Ports | 2 × USB 3.2 Gen 1 |
| Expansion Port | 1 × Mini-SAS HD |
| Supported Expansion Unit | Synology RX1223RP |
| PCIe Expansion | 1 × Gen3 x8 Slot with x4 Link |
| Sequential Performance | Over 3,500MB/s Read and 1,700MB/s Write |
| Supported RAID Types | Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 |
| Maximum Single Volume Size | 108TB or Up to 200TB with 32GB Memory |
| Maximum Internal Volumes | 64 |
| Internal File Systems | Btrfs and ext4 |
| SSD Read/Write Cache | Supported |
| Synology High Availability | Supported |
| Surveillance Licences | 2 Included |
| Maximum IP Cameras | Up to 75, Depending on Configuration |
| Rack Support | 4-Post 19-Inch Rack |
| Compatible Rail Kit | Synology RKS-02 |
| System Fans | 3 × 60mm |
| Fan Modes | Full-Speed, Cool and Quiet |
| Noise Level | 52.3dB(A) |
| Power Supply | Single 500W Internal Power Supply |
| Power Consumption | 119.95W Access / 46.21W HDD Hibernation |
| Dimensions | 88 × 482 × 552mm |
| Weight | 11.5kg |
| Operating Temperature | 0°C to 35°C |
| Operating System | Synology DiskStation Manager |
| Drives Included | No |
Compatibility Note
Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS2423+ before ordering.
The RS2423+ supports one optional RX1223RP Expansion Unit, increasing the total number of supported drive bays from twelve to twenty-four.
Compatible memory options include the Synology D4EU02-8G and D4EU02-16G. When two memory modules are installed, both modules must be identical and use the same model number.
The PCIe slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and M.2 adapters.
The RS2423+ does not include built-in M.2 slots. NVMe SSD caching requires a compatible Synology M.2 adapter card or combined network and M.2 adapter.
A maximum single volume size above 108TB requires 32GB of installed memory and a supported storage configuration.
Installation in a compatible 4-post rack requires an optional Synology RKS-02 sliding rail kit.
The RS2423+ includes a single power supply and does not provide the redundant power configuration of the RS2423RP+II.
Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.
What’s in the Box
- Synology RackStation RS2423+ main unit
- Accessory pack
- AC power cord
- Quick Installation Guide
Storage drives, memory upgrades, RX1223RP Expansion Unit, PCIe cards, M.2 SSDs and rack rail kits are not included.
Warranty
Three-year Synology hardware warranty.
Eligible units may qualify for extension to five years with Synology EW202.
Sustainability
- RoHS compliant
- HDD hibernation mode
- Scheduled power-on and power-off support
- Expandable memory, storage and networking may help extend the system’s useful operating life
