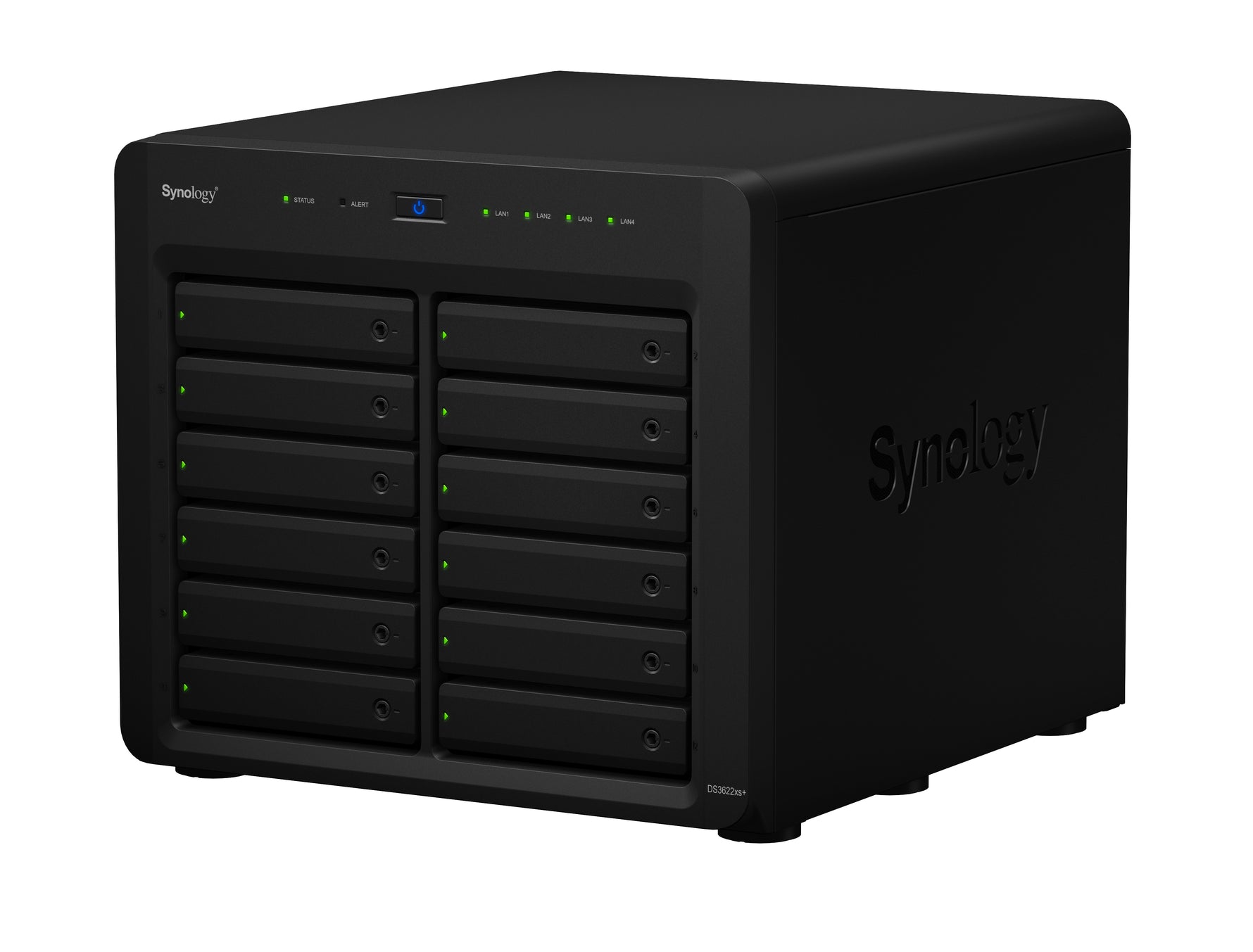

Synology DiskStation DS3622xs+ 12-Bay xs+ Series NAS

The Synology DiskStation DS3622xs+ is a high-performance 12-bay[object Object],[object Object],[object Object],[object Object] desktop NAS with an Intel Xeon processor, 16GB ECC memory, dual 10GbE networking, out-of-band management and expansion support for up to 36 drives.

Product Description

The Synology DiskStation DS3622xs+ is a powerful and scalable 12-bay network attached storage system designed for demanding business storage, backup, virtualisation, surveillance and professional media workflows.

It is powered by an Intel Xeon D-1531 six-core processor with a 2.2GHz base frequency and turbo speeds of up to 2.7GHz.

The system includes 16GB of DDR4 ECC SODIMM memory, installed as two 8GB modules, and supports expansion to a maximum of 48GB using compatible Synology memory modules.

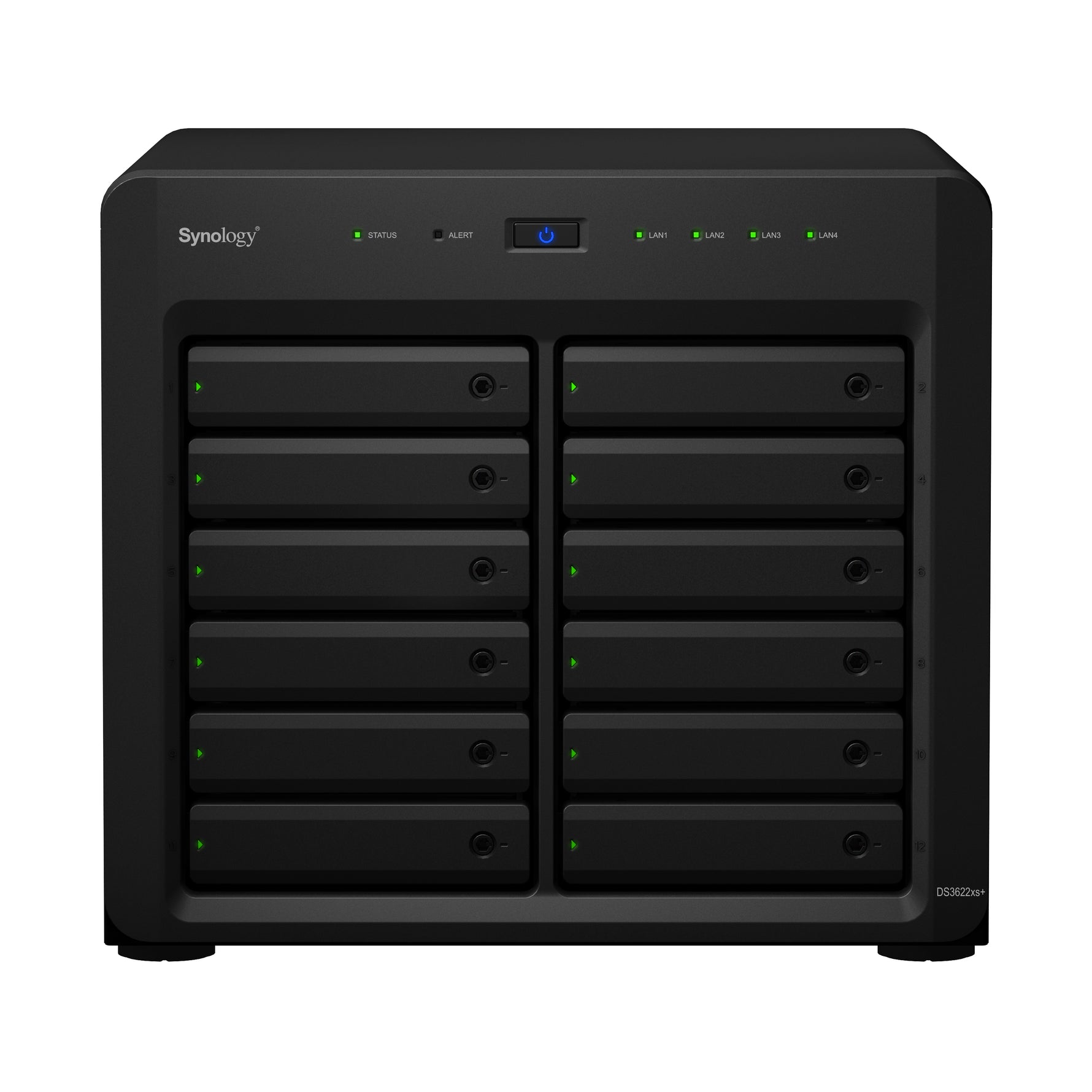

Twelve hot-swappable drive bays support compatible 3.5-inch SATA hard drives, 2.5-inch SATA hard drives and 2.5-inch SATA solid-state drives.

Storage capacity can be expanded from twelve to thirty-six drives by connecting up to two optional Synology DX1222 Expansion Units.

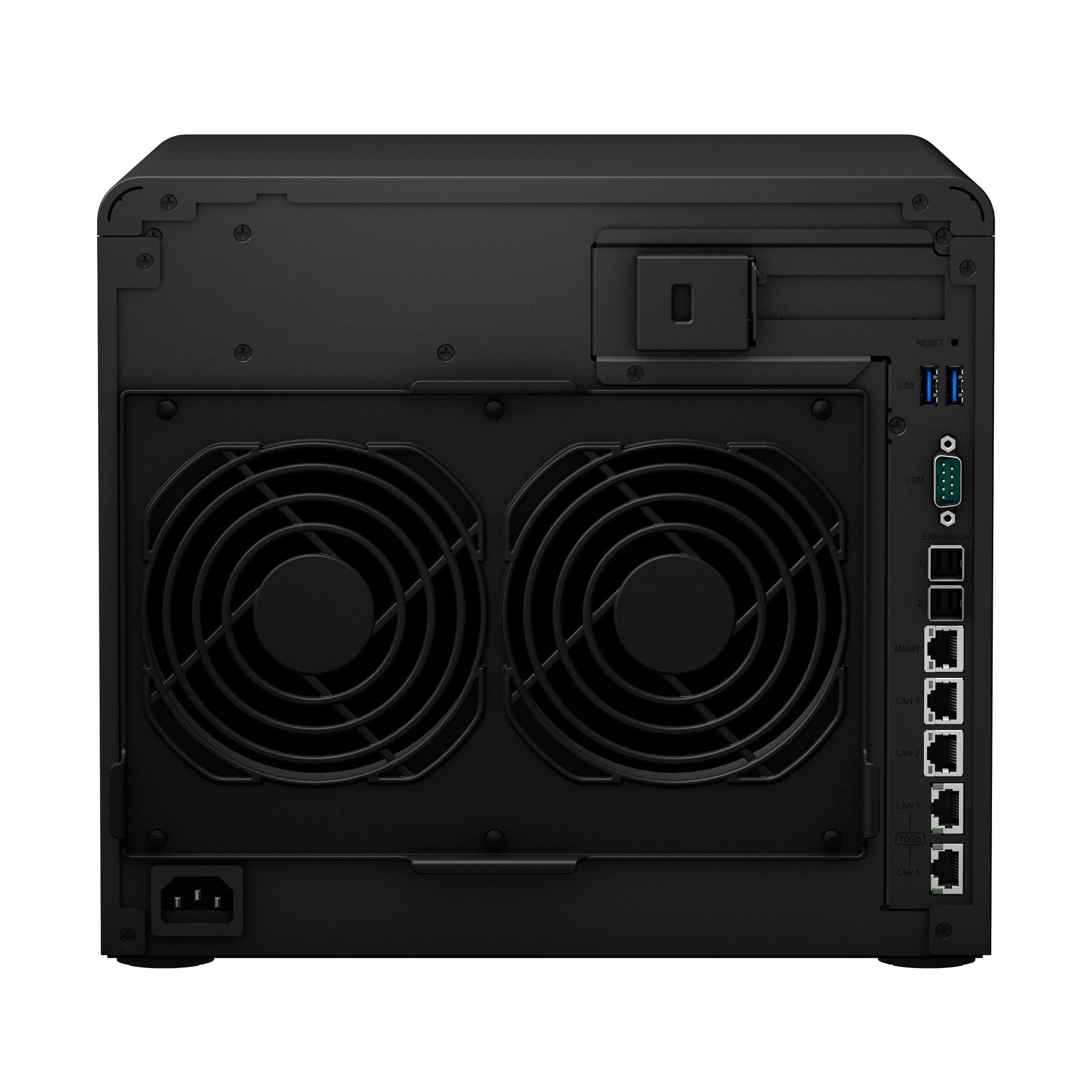

The DS3622xs+ includes two built-in 10GbE RJ-45 ports, two Gigabit Ethernet ports and a dedicated out-of-band management port.

Dual 10GbE connectivity provides high-speed network access without requiring an additional network card. The separate management port supports selected remote monitoring and troubleshooting functions.

A PCIe Gen3 x8 expansion slot supports selected Synology 10GbE and 25GbE network cards, Fibre Channel adapters and M.2 NVMe SSD adapter cards.

The DS3622xs+ does not include built-in M.2 slots. NVMe SSD caching requires a compatible M2D20 or E10M20-T1 adapter card and supported M.2 NVMe SSDs.

Synology lists performance of more than 4,600MB/s sequential read, 2,500MB/s sequential write and 320,000 4K random read IOPS in supported test configurations.

The system supports RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10. Synology Hybrid RAID is not listed as supported.

Synology DiskStation Manager provides tools for file sharing, backup, snapshots, collaboration, virtualisation, iSCSI, Fibre Channel and surveillance management.

Surveillance Station includes two default device licences and supports up to 90 compatible IP cameras, depending on the recording configuration and other active workloads.

The DS3622xs+ is supplied without storage drives, memory upgrades, expansion units, M.2 SSDs or optional PCIe cards.

Key Features

• High-performance 12-bay desktop NAS
• Intel Xeon D-1531 processor
• Six CPU cores
• 2.2GHz base frequency
• Up to 2.7GHz turbo frequency
• Hardware encryption engine
• 16GB DDR4 ECC SODIMM memory
• Four memory slots
• Memory expandable up to 48GB
• Twelve hot-swappable SATA drive bays
• Supports 3.5-inch SATA hard drives
• Supports 2.5-inch SATA hard drives and solid-state drives
• Expandable to 36 drives with two DX1222 units
• Two built-in 10GbE RJ-45 ports
• Two built-in Gigabit Ethernet ports
• Dedicated out-of-band management port
• PCIe Gen3 x8 expansion slot
• Supports selected 10GbE and 25GbE cards
• Supports compatible Fibre Channel adapters
• Supports optional M.2 NVMe SSD caching
• More than 4,600MB/s sequential read performance
• More than 2,500MB/s sequential write performance
• More than 320,000 4K random read IOPS
• Supports RAID F1
• Supports RAID 0, 1, 5, 6 and 10
• Supports Btrfs and ext4
• Supports Synology Drive and Synology Office
• Supports Active Backup Suite and Hyper Backup
• Supports Virtual Machine Manager
• Supports Synology High Availability
• Includes two Surveillance Station licences
• Supports up to 90 compatible IP cameras
• Five-year limited hardware warranty
• Storage drives sold separately

Recommended Use Cases

• Enterprise file storage
• Centralised business data management
• Computer and server backup
• Virtual-machine backup
• Large shared document libraries
• Video-production storage
• Creative and media workflows
• Database storage
• Virtualisation platforms
• iSCSI storage
• Fibre Channel storage
• Built-in 10GbE networks
• Optional 25GbE networks
• SSD cache configurations
• Surveillance recording
• Synology High Availability
• Business continuity and data protection
• Expandable archive storage

Specifications

Compatibility Note

Please confirm that all storage drives, memory modules, expansion units and PCIe cards are officially compatible with the Synology DS3622xs+ before ordering.

The DS3622xs+ supports:

• Up to twelve compatible internal SATA drives
• Up to two Synology DX1222 Expansion Units
• Synology D4ES03-8G and D4ES03-16G memory modules
• Synology M2D20 M.2 NVMe SSD Adapter Card
• Synology E10M20-T1 10GbE and M.2 Adapter Card
• Selected Synology 10GbE and 25GbE network cards
• Selected compatible Fibre Channel adapters

The DS3622xs+ has one PCIe expansion slot, so only one compatible PCIe card can be installed at a time.

M.2 NVMe SSDs installed through a compatible adapter are intended for supported SSD-cache configurations. M.2 storage pools are not listed as supported.

The maximum 48GB memory configuration uses two 8GB modules and two 16GB modules. Follow Synology’s official memory-population instructions.

The front drive bays support hot-swapping when permitted by the current RAID and storage-pool condition.

A maximum single volume size above 108TB requires at least 32GB of installed memory and a supported storage configuration.

The available storage capacity will be lower than the total manufacturer-rated drive capacity because of RAID, formatting, system partitions and file-system data.

Actual performance depends on the installed drives, RAID configuration, network equipment, memory, PCIe hardware, client devices and active applications.

RAID helps protect against selected drive failures but does not replace an independent backup.

What’s in the Box

• 1 × Synology DiskStation DS3622xs+ Main Unit
• 1 × Accessory Pack
• 1 × AC Power Cord
• 2 × RJ-45 LAN Cables
• 1 × Quick Installation Guide

Storage drives, memory upgrades, DX1222 Expansion Units, PCIe cards and M.2 SSDs are not included.

Warranty

Five-Year Synology Limited Hardware Warranty

Sustainability

The Synology DS3622xs+ is RoHS compliant and supports memory, network, cache and storage expansion, allowing the system to adapt to changing requirements without replacing the complete appliance.
