Synology E25G30-F2 Dual-Port 25GbE SFP28 Network Card

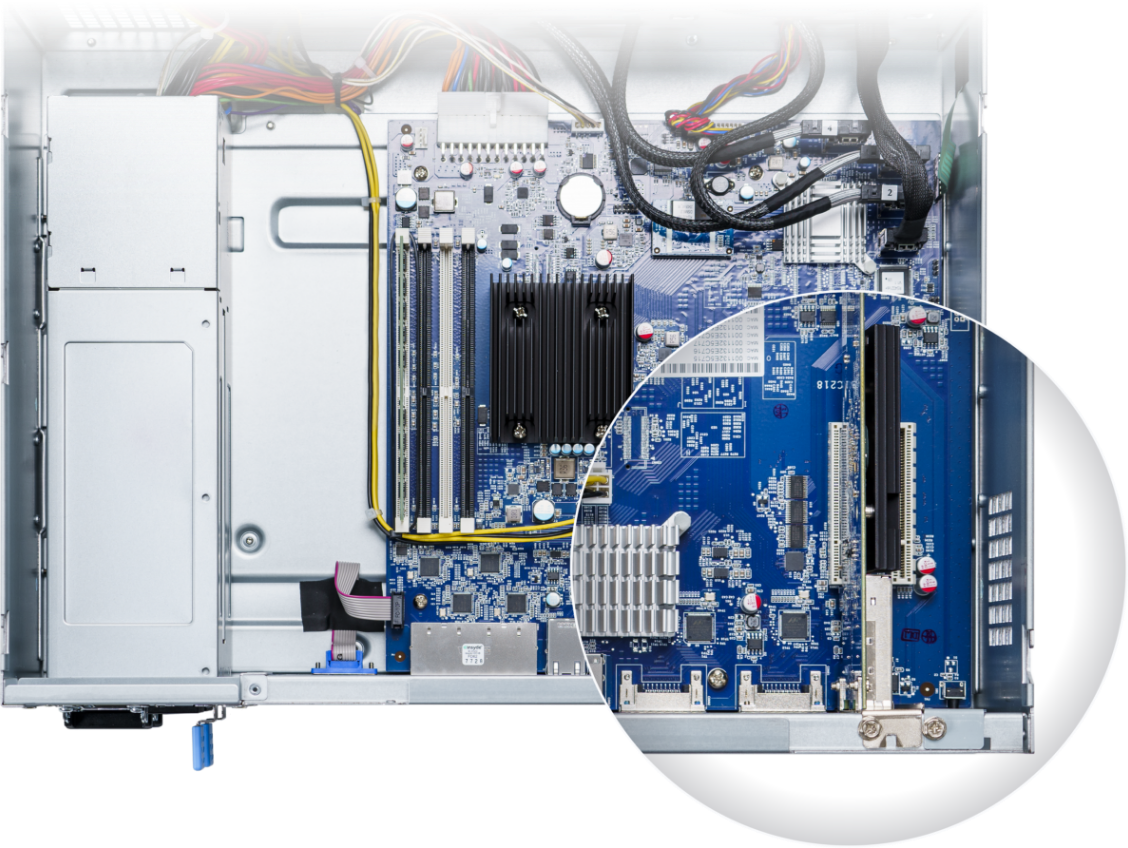

Synology E25G30-F2 Network Adapter

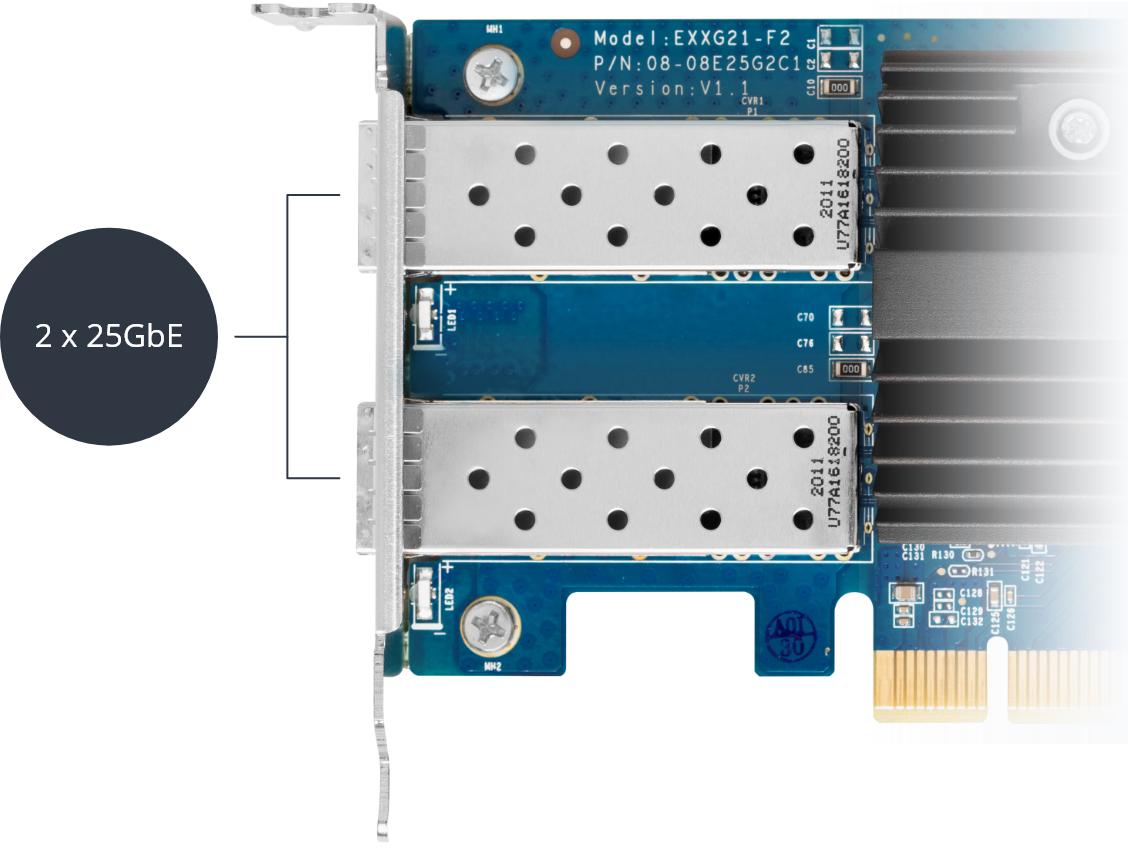

Synology E25G30-F2 Dual-Port 25GbE SFP28 Network Card - image 3
Synology E25G30-F2 Dual-Port 25GbE SFP28 Network Card - image 4
Synology E25G30-F2 Dual-Port 25GbE SFP28 Network Card - image 5
Synology E25G30-F2 Dual-Port 25GbE SFP28 Network Card - image 6

Synology

Synology E25G30-F2 Dual-Port 25GbE SFP28 Network Adapter

SKU: Synology E25G30-F2
Barcode: 4711174725052
R 10,299.00 R 10,999.00
-6%
In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between August 10 and August 14.

In stock and ready to ship
Synology E25G30-F2 Dual-Port 25GbE SFP28 Network Adapter
R 10,299.00 R 10,999.00
R 10,299.00 R 10,999.00

The Synology E25G30-F2 is a dual-port 25GbE SFP28 network adapter with PCIe 3.0 x8 connectivity, Link Aggregation and support for optical transceivers and direct attach copper cables.

Product Description

The Synology E25G30-F2 adds high-speed 25GbE or 10GbE connectivity to compatible Synology systems.

Its two SFP28 ports support compatible short-range and long-range optical transceivers and direct attach copper cables.

Both ports can be combined using Link Aggregation to provide up to 50Gbps of total bandwidth, load balancing and port failover.

Network-offloading technologies help reduce processing overhead during demanding file transfers, backup, virtualisation and multi-user workloads.

SFP28 transceivers, direct attach cables and network equipment are not included.

Key Features

  • Dual-port 25GbE SFP28 network adapter
  • Two 25GbE or 10GbE network ports
  • PCIe 3.0 x8 host interface
  • Up to 25Gbps per port
  • Up to 50Gbps combined Link Aggregation bandwidth
  • Supports optical SR transceivers
  • Supports optical LR transceivers
  • Supports direct attach copper cables
  • Link Aggregation support
  • Network load balancing and port failover
  • Supports 1.5KB to 9KB jumbo frames
  • TCP and UDP checksum offload
  • TCP Segmentation Offload
  • Large Receive Offload
  • Receive and Transmit Side Scaling
  • Generic Segmentation Offload
  • SR-IOV support
  • Low-profile and full-height bracket support
  • Five-year Synology hardware warranty

Recommended Use Cases

  • High-speed business storage
  • Large file transfers
  • Server and endpoint backup
  • Virtualisation and iSCSI storage
  • Multi-user storage environments
  • Creative and media workflows
  • Fibre-based enterprise networks
  • Network failover configurations
  • Link Aggregation deployments
  • Direct attach high-speed connections

Specifications

FIELD DETAILS
Product Code E25G30-F2
Host Interface PCIe 3.0 x8
Network Ports 2 × 25GbE / 10GbE
Connector Type SFP28
Data Transfer Rate 25Gbps or 10Gbps per Port
Combined Link Aggregation Bandwidth Up to 50Gbps
Network Operation Mode Full Duplex
IEEE Standards IEEE 802.3ad, IEEE 802.3ae and IEEE 802.3by
Supported Media Optical SR, Optical LR and Direct Attach Copper
Jumbo Frame Support 1.5KB to 9KB
Link Aggregation Supported
Port Failover Supported
Load Balancing Supported
TCP Segmentation Offload Supported
Receive Side Scaling Supported
Transmit Side Scaling Supported
Generic Segmentation Offload Supported
Large Receive Offload Supported
TCP/UDP Checksum Offload Supported
SR-IOV Supported
Bracket Support Low Profile and Full Height
Dimensions 69 × 168 × 17.3mm
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Relative Humidity 5% to 95% RH

Compatibility Note

Confirm that the intended Synology system, DSM version, SFP28 transceivers and cables are compatible with the E25G30-F2 before ordering.

Compatible systems include selected Synology PAS, FlashStation, HD, SA, UC, DP, RackStation and DiskStation models with a suitable PCIe expansion slot.

Selected compatible models include:

  • RS2825RP+ and DS1825+
  • RS2423RP+II, RS2423RP+, RS2423+ and DS1823xs+
  • RS822RP+, RS822+, DS3622xs+ and DS2422+
  • RS4021xs+, RS3621xs+, RS3621RPxs and RS1221-series models
  • Selected FS, SA, HD, UC and DP-series systems

DSM 7.1.1-42962 Update 5 or later is required. Systems using selected AMD Ryzen V1000 processors require DSM 7.2.1-69057 or later.

Both network ports must use the same link speed. Mixed 25GbE and 10GbE operation across the two ports is not supported.

The E25G30-F2 uses SFP28 connectors and does not provide built-in RJ-45 Ethernet ports.

The complete network path, including the switch, transceivers, cables, client adapter and storage system, must support the selected speed.

Link Aggregation increases combined bandwidth across compatible connections but does not increase the maximum speed of one individual transfer.

What’s in the Box

  • Synology E25G30-F2 network adapter
  • Low-profile mounting bracket
  • Full-height mounting bracket
  • Quick Installation Guide

SFP28 transceivers and direct attach cables are not included.

Warranty

Five-year Synology hardware warranty.

Sustainability

  • Allows compatible Synology systems to be upgraded without replacing the host system
  • Supports optical and direct attach connectivity for different network distances
  • Replaceable transceivers and cables can be selected according to infrastructure requirements
  • Long five-year warranty supports an extended operating life
