Synology

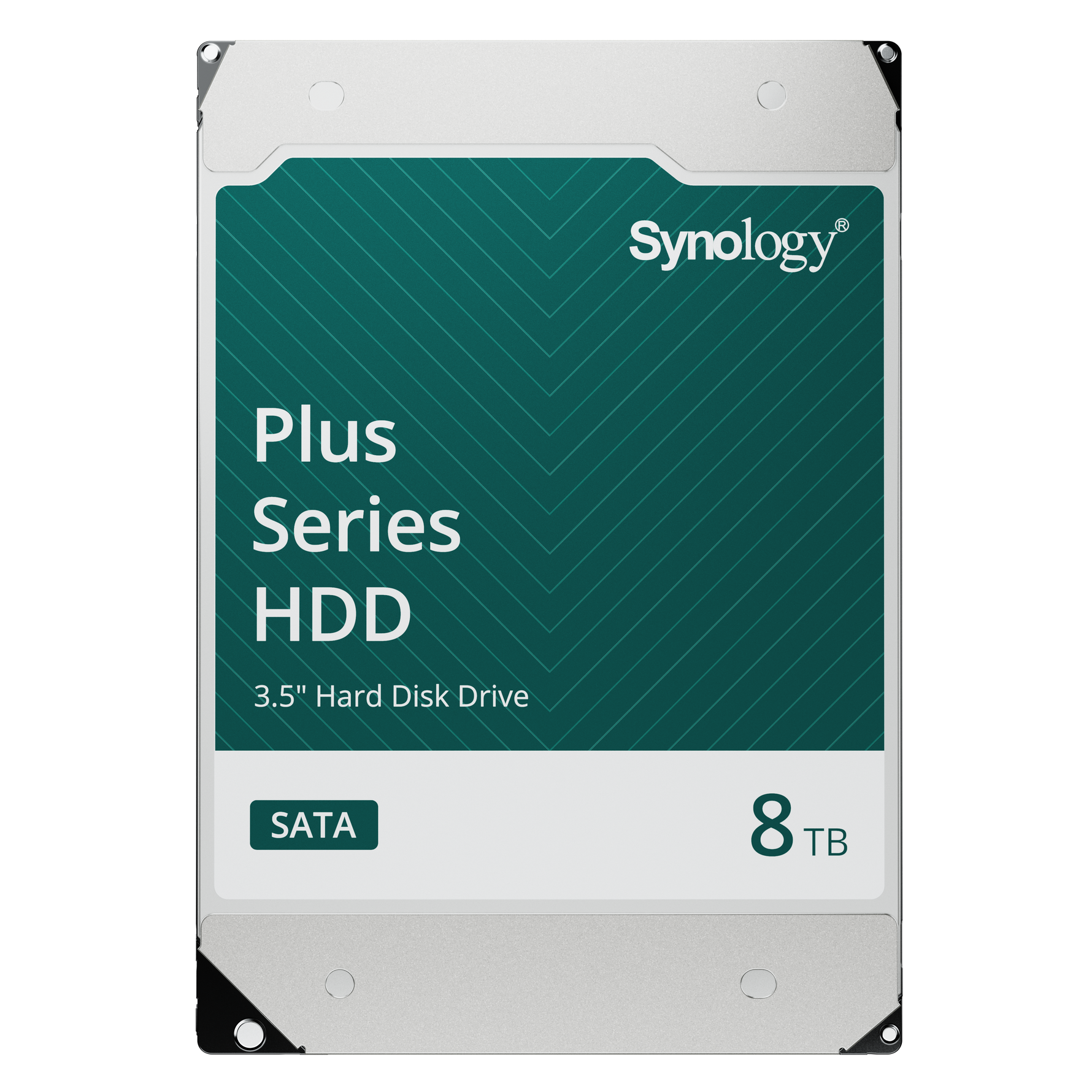

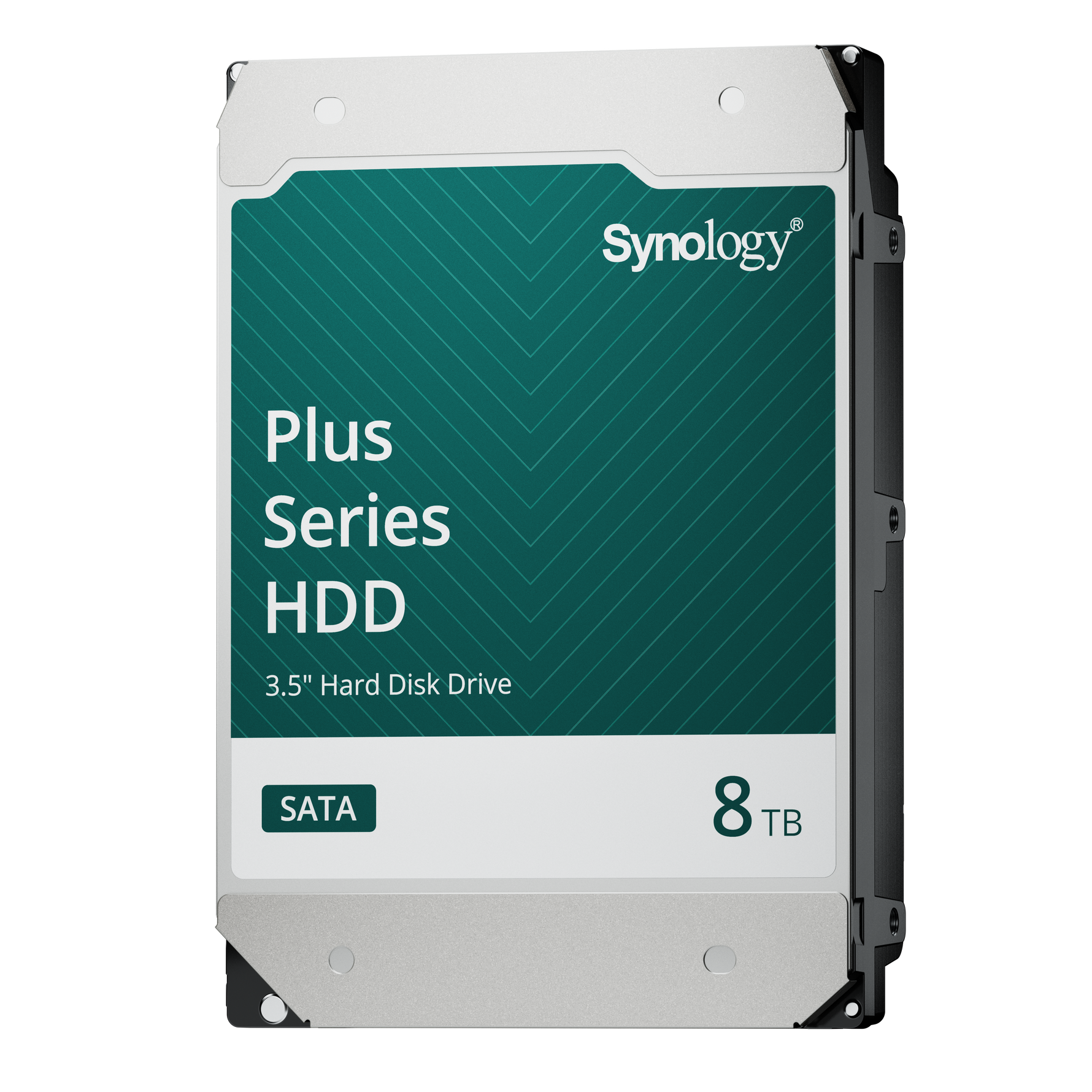

Synology HAT3320-8T 8TB Plus Series 3.5-Inch SATA HDD
Estimated delivery between August 10 and August 14.
The Synology HAT3320-8T is an 8TB Plus Series 3.5-inch SATA hard drive designed for reliable 24/7 storage in compatible Synology systems, featuring CMR technology, a helium-sealed design, 7,200 RPM speed, 512MB cache and sustained transfer speeds of up to 281MB/s.
Product Description
The Synology HAT3320-8T 8TB Plus Series Hard Drive is designed for reliable storage, backup, file sharing and multi-user data workloads in compatible Synology systems.
Built for continuous 24/7 operation, the drive uses Conventional Magnetic Recording technology to provide consistent write performance in supported RAID arrays and storage pools.
Its helium-sealed design helps support efficient operation, reduced internal resistance and dependable performance in compatible Synology storage environments.
The HAT3320-8T features a SATA 6Gb/s interface, 7,200 RPM rotational speed, 512MB cache and a typical maximum sustained data-transfer speed of up to 281MB/s.
With a 300TB per year workload rating and a 1,200,000-hour MTBF rating, the drive is suited to demanding home, small-office and business storage workloads.
Synology Plus Series drives undergo more than 500,000 cumulative hours of compatibility and stress testing. Compatible firmware updates can also be installed directly through Synology DiskStation Manager without removing the drive or using third-party firmware tools.
This product is an internal 3.5-inch SATA hard drive. A Synology NAS enclosure is not included.
Key Features
• Official Synology Plus Series hard drive
• 8TB storage capacity
• Designed for compatible Synology systems
• Suitable for continuous 24/7 operation
• 3.5-inch hard-drive form factor
• SATA 6Gb/s interface
• Conventional Magnetic Recording technology
• Helium-sealed drive design
• 512e sector format
• 7,200 RPM rotational speed
• 512MB cache
• Up to 281MB/s typical sustained transfer speed
• 300TB per year workload rating
• 1,200,000-hour MTBF rating
• More than 500,000 cumulative hours of Synology testing
• Firmware updates through Synology DSM
• Suitable for compatible RAID configurations
• Three-year limited hardware warranty
Recommended Uses
• Compatible Synology NAS systems
• Home and small-office storage
• Centralised file storage
• Computer and server backup
• Shared business data
• Personal cloud storage
• Media and document libraries
• Multi-user file access
• Compatible RAID configurations
• Storage-pool expansion
• Continuous NAS storage workloads
• Archive and surveillance storage
Specifications
| FIELD | DETAILS |
|---|---|
| Product Name | Synology HAT3320-8T |
| Product Code | HAT3320-8T |
| Product Series | Synology Plus Series |
| Product Type | Internal NAS Hard Drive |
| Capacity | 8TB |
| Form Factor | 3.5-Inch |
| Interface | SATA 6Gb/s |
| Sector Size | 512e |
| Drive Design | Helium-Sealed |
| Recording Technology | Conventional Magnetic Recording |
| Rotational Speed | 7,200 RPM |
| Cache | 512MB |
| Maximum Sustained Transfer Speed | Up to 281MB/s Typical |
| Mean Time Between Failures | 1,200,000 Hours |
| Workload Rating | 300TB per Year Data Written and Read |
| Active-Idle Power Consumption | 5.74W Typical |
| Random Read/Write Power Consumption | 9.07W Typical |
| Supply Voltage | 12V ±10% / 5V +10% / -7% |
| Operating Temperature | 5°C to 60°C |
| Non-Operating Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 90% RH, Non-Condensing |
| Non-Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Shock | 686m/s² for 2ms |
| Non-Operating Shock | 2,450m/s² for 2ms |
| Idle Acoustics | 34dB Typical |
| Seek Acoustics | 35dB Typical |
| Dimensions | 26.1 × 101.85 × 147mm |
| Weight | Approximately 755g |
| Certifications | CE, RCM, BSMI, KC, UKCA, UL, TÜV and ICES |
| Environmental Compliance | RoHS |
| Warranty | Three Years |
Compatibility Note
Please confirm that the Synology HAT3320-8T is officially compatible with your exact Synology NAS or storage system before ordering.
Compatibility may vary according to the Synology system model, hardware revision, supported drive list and installed DSM version.
The HAT3320-8T is an internal 3.5-inch SATA hard drive and requires a compatible SATA drive bay.
It is not an external USB hard drive, portable storage device, solid-state drive or complete NAS system.
The available capacity displayed by Synology DSM will be lower than the stated 8TB capacity because of storage calculations, formatting, system partitions, RAID configuration and other system requirements.
Actual transfer performance depends on the Synology system, RAID configuration, network connection, workload, other installed drives and active DSM applications.
MTBF is a statistical reliability measurement and is not a guarantee or estimate of the operating life of an individual hard drive.
RAID helps protect against selected drive failures but does not replace an independent backup.
Installation Guidance
Before installation:
• Confirm compatibility with the Synology system
• Back up important existing data
• Use suitable anti-static precautions
• Handle the drive by its sides
• Secure the drive correctly in the drive tray
• Follow the Synology hardware-installation guide
After installation:
• Confirm the drive is detected in DSM
• Check the drive-health status
• Apply supported firmware updates
• Configure or expand the storage pool
• Allow initialisation or repair operations to complete
• Maintain an independent backup
Do not remove the drive during RAID repair, storage-pool expansion, data scrubbing, firmware updates or other critical storage operations.
What’s in the Box
• 1 × Synology HAT3320-8T 8TB Plus Series 3.5-Inch SATA Hard Drive
A Synology NAS enclosure is not included.
Warranty
Three-Year Synology Limited Hardware Warranty
Sustainability
The Synology HAT3320-8T is RoHS compliant.
Compatible firmware updates can be managed through Synology DSM without removing the drive or connecting it to separate firmware equipment.
The drive should be recycled through an appropriate electronic-waste recycling facility at the end of its usable life.
