Synology

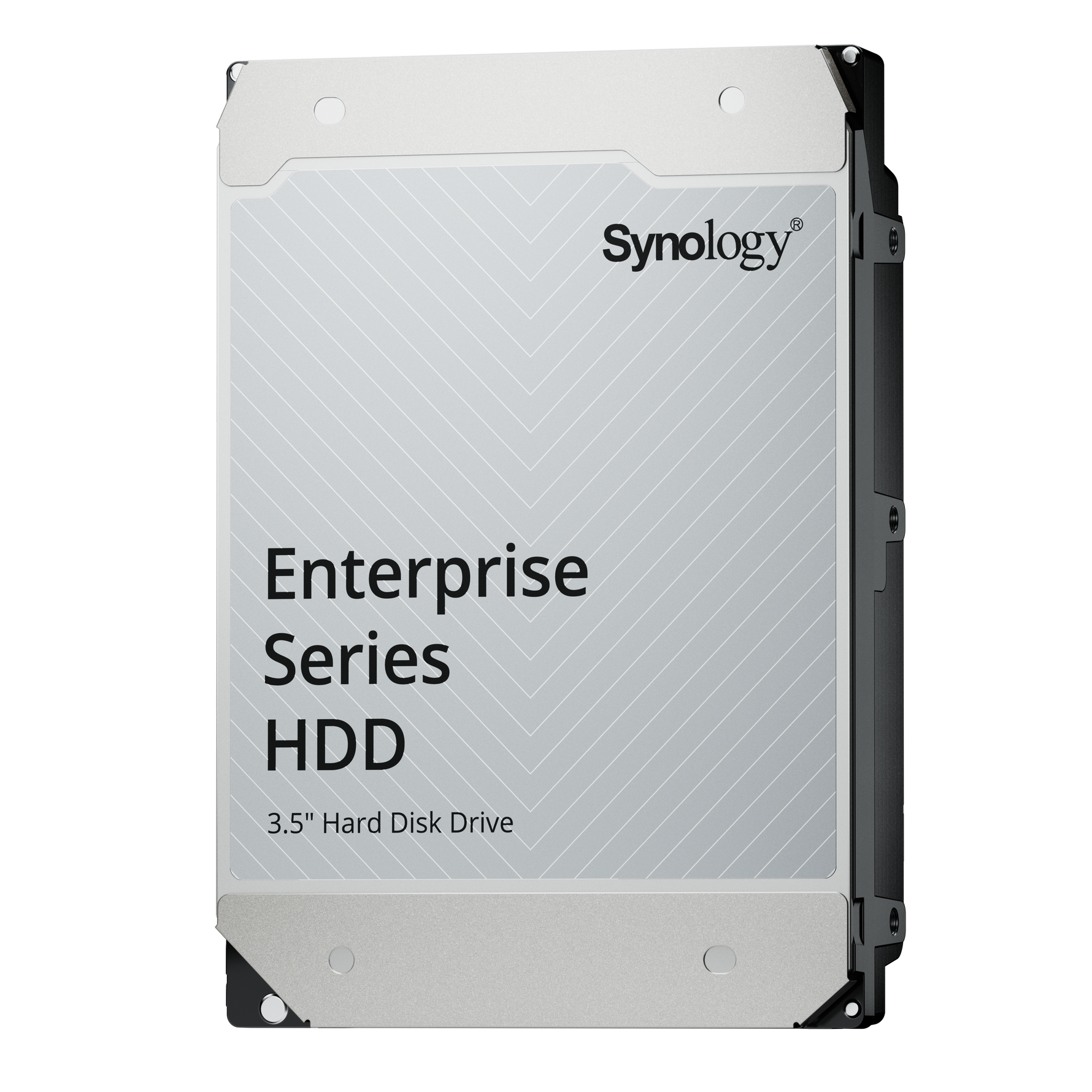

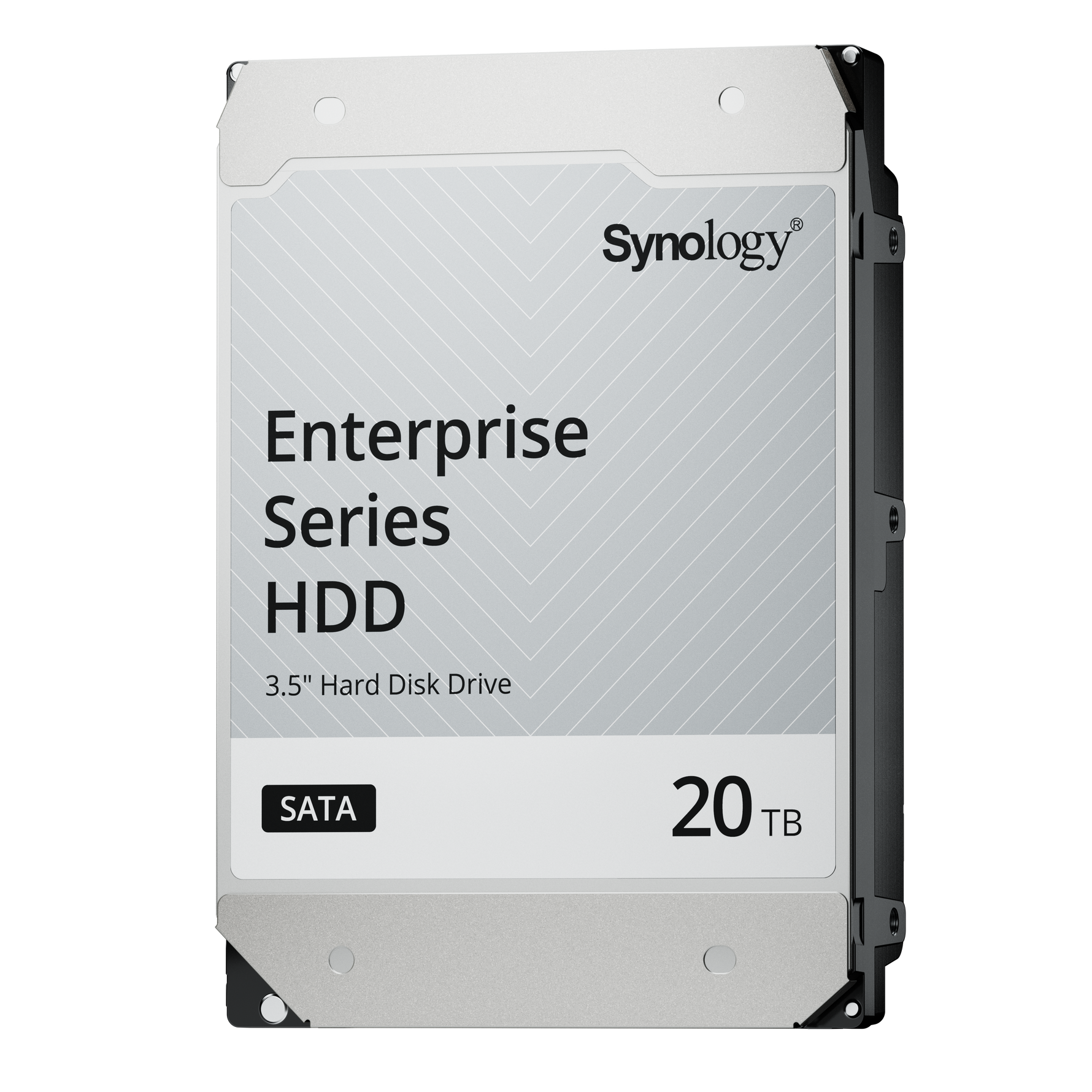

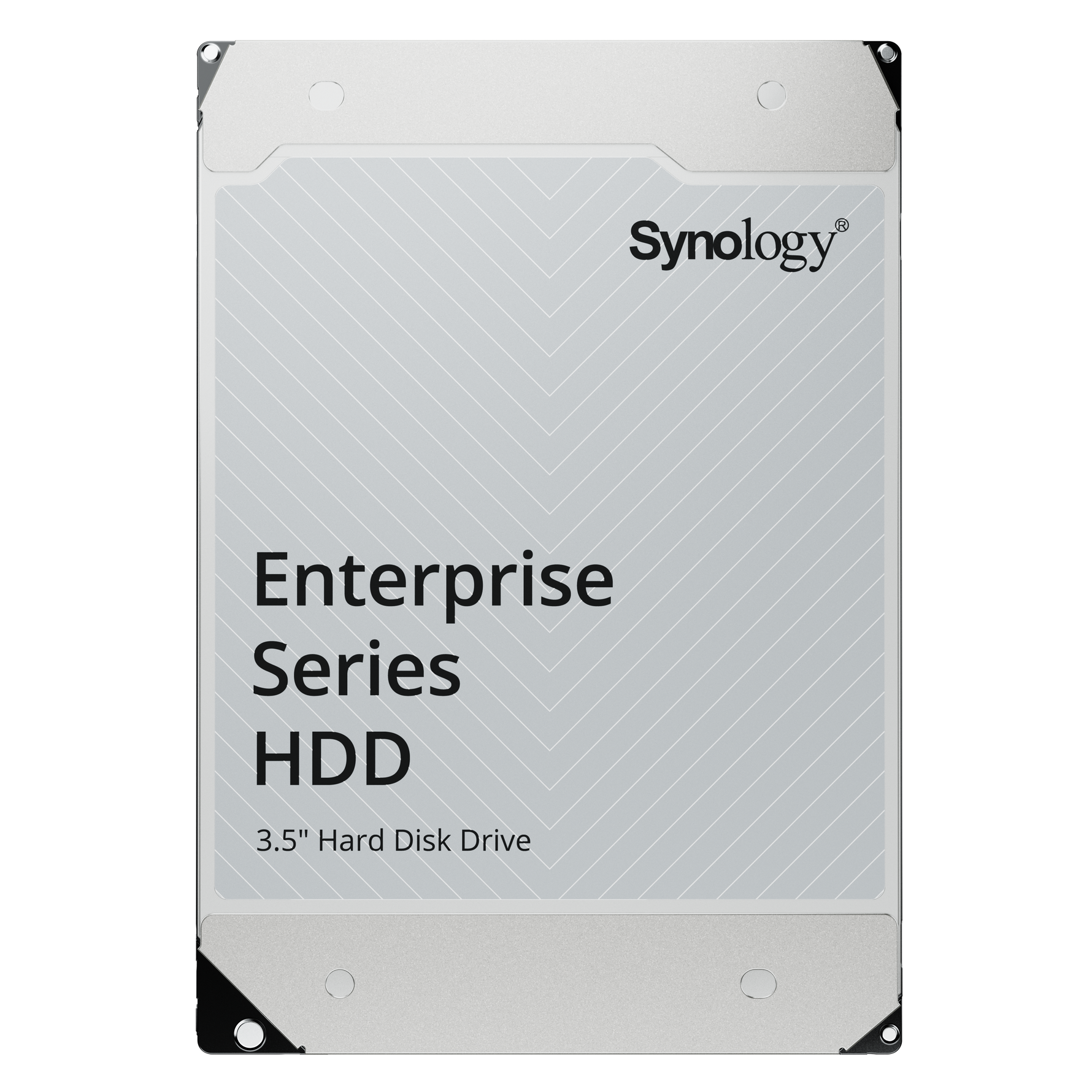

Synology HAT5310-20T 20TB Enterprise 3.5-Inch SATA HDD
Estimated delivery between August 10 and August 14.
The Synology HAT5310-20T is a 20TB Enterprise Series 3.5-inch SATA hard drive designed for demanding 24/7 storage in compatible Synology systems, featuring a helium-sealed CMR design, 7,200 RPM speed, 512MB buffer and sustained transfer speeds of up to 281MB/s.
Product Description
The Synology HAT5310-20T 20TB Enterprise Series Hard Drive is engineered for high-capacity storage, business backup and demanding multi-user workloads in compatible Synology systems.
Built for continuous 24/7 operation, the drive uses Conventional Magnetic Recording technology to provide consistent write performance in supported RAID arrays and storage pools.
Its helium-sealed construction supports efficient and dependable operation in high-capacity storage environments.
The HAT5310-20T features a SATA 6Gb/s interface, 7,200 RPM rotational speed, 512MB buffer and a typical maximum sustained data-transfer speed of up to 281MB/s.
With a 550TB per year workload rating and a 2,500,000-hour MTBF rating, the drive is suitable for enterprise file servers, large-scale backups, surveillance recording and demanding business storage environments.
Persistent Write Cache technology helps reduce the risk of data corruption during unexpected power loss.
Synology Enterprise Series drives undergo more than 500,000 cumulative hours of compatibility and stress testing. Compatible firmware updates can also be installed directly through Synology DiskStation Manager without removing the drive or using separate firmware tools.
This product is an internal 3.5-inch SATA hard drive. A Synology NAS or storage enclosure is not included.
Key Features
• Official Synology Enterprise Series hard drive
• 20TB storage capacity
• Designed for compatible Synology systems
• Suitable for demanding 24/7 storage workloads
• 3.5-inch hard-drive form factor
• SATA 6Gb/s interface
• Conventional Magnetic Recording technology
• Helium-sealed drive design
• 512e sector format
• 7,200 RPM rotational speed
• 512MB buffer
• Up to 281MB/s typical sustained transfer speed
• 550TB per year workload rating
• 2,500,000-hour MTBF rating
• Persistent Write Cache technology
• More than 500,000 cumulative hours of Synology testing
• Firmware updates through Synology DSM
• Suitable for compatible RAID configurations
• Five-year limited hardware warranty
Recommended Uses
• Compatible Synology NAS and storage systems
• Enterprise file storage
• High-capacity NAS deployments
• Centralised business data storage
• Enterprise file servers
• Server and endpoint backup
• Large-scale backup environments
• Archive and long-term storage
• Video-surveillance recording
• Multimedia post-production
• Media and project storage
• High-volume multi-user workloads
• Compatible RAID configurations
• Storage-pool expansion
• Business continuity and data protection
Specifications
| FIELD | DETAILS |
|---|---|
| Product Name | Synology HAT5310-20T |
| Product Code | HAT5310-20T |
| Product Series | Synology Enterprise Series |
| Product Type | Internal Enterprise NAS Hard Drive |
| Capacity | 20TB |
| Form Factor | 3.5-Inch |
| Interface | SATA 6Gb/s |
| Sector Size | 512e |
| Drive Design | Helium-Sealed |
| Recording Technology | Conventional Magnetic Recording |
| Rotational Speed | 7,200 RPM |
| Buffer Size | 512MB |
| Maximum Sustained Transfer Speed | Up to 281MB/s Typical |
| Mean Time Between Failures | 2,500,000 Hours |
| Workload Rating | 550TB Transferred per Year |
| Persistent Write Cache | Supported |
| Active-Idle Power Consumption | 4.38W Typical |
| Random Read/Write Power Consumption | 8.11W Typical |
| Supply Voltage | 12V ±10% / 5V +10% / -7% |
| Operating Temperature | 5°C to 60°C |
| Non-Operating Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 90% RH, Non-Condensing |
| Non-Operating Humidity | 5% to 95% RH, Non-Condensing |
| Dimensions | 26.1 × 101.85 × 147mm |
| Weight | Approximately 720g |
| Certifications | CE, RCM, BSMI, KC, UL, TÜV, ICES and UKCA |
| Environmental Compliance | RoHS |
| Warranty | Five Years |
Compatibility Note
Please confirm that the Synology HAT5310-20T is officially compatible with your exact Synology DiskStation, RackStation or storage system before ordering.
Compatibility may vary according to the Synology system model, hardware revision, supported drive list, drive firmware and installed DSM version.
The Synology system must specifically support 20TB drives.
The HAT5310-20T is an internal 3.5-inch SATA hard drive and requires a compatible SATA drive bay.
It is not an external USB hard drive, portable storage device, solid-state drive or complete NAS system.
The available capacity displayed by Synology DSM will be lower than the stated 20TB capacity because of storage calculations, formatting, system partitions, RAID configuration and other system requirements.
Actual transfer performance depends on the Synology system, RAID configuration, network connection, workload, other installed drives and active DSM applications.
MTBF is a statistical reliability measurement and is not a guarantee or estimate of the operating life of an individual hard drive.
RAID helps protect against selected drive failures but does not replace an independent backup.
What’s in the Box
• 1 × Synology HAT5310-20T 20TB Enterprise Series 3.5-Inch SATA Hard Drive
A Synology NAS or storage system is not included.
Warranty
Five-Year Synology Limited Hardware Warranty
Sustainability
The Synology HAT5310-20T is RoHS compliant.
Compatible firmware updates can be managed through Synology DSM without removing the drive or connecting it to separate firmware equipment.
The drive should be recycled through an appropriate electronic-waste recycling facility at the end of its usable life.
