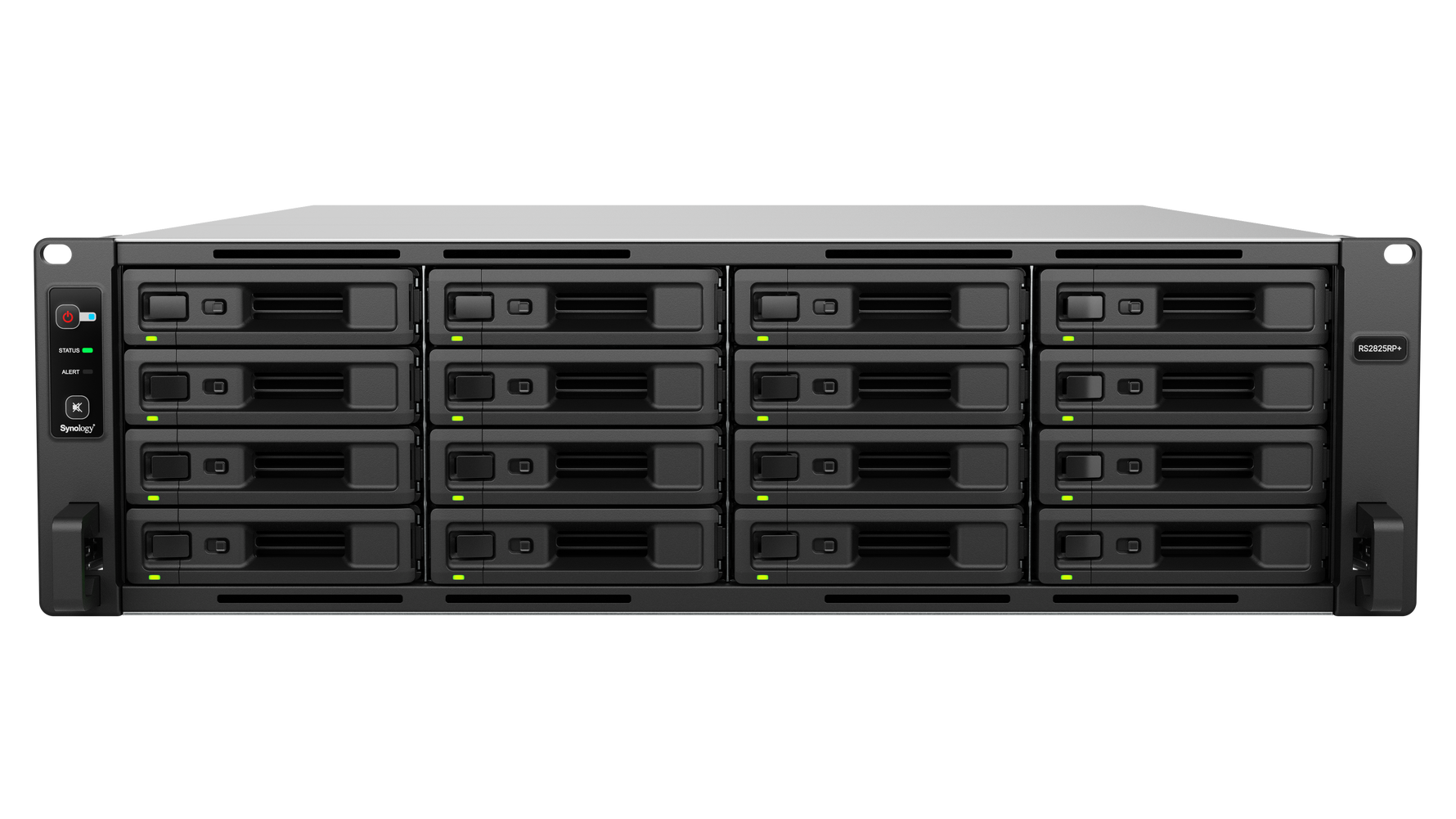

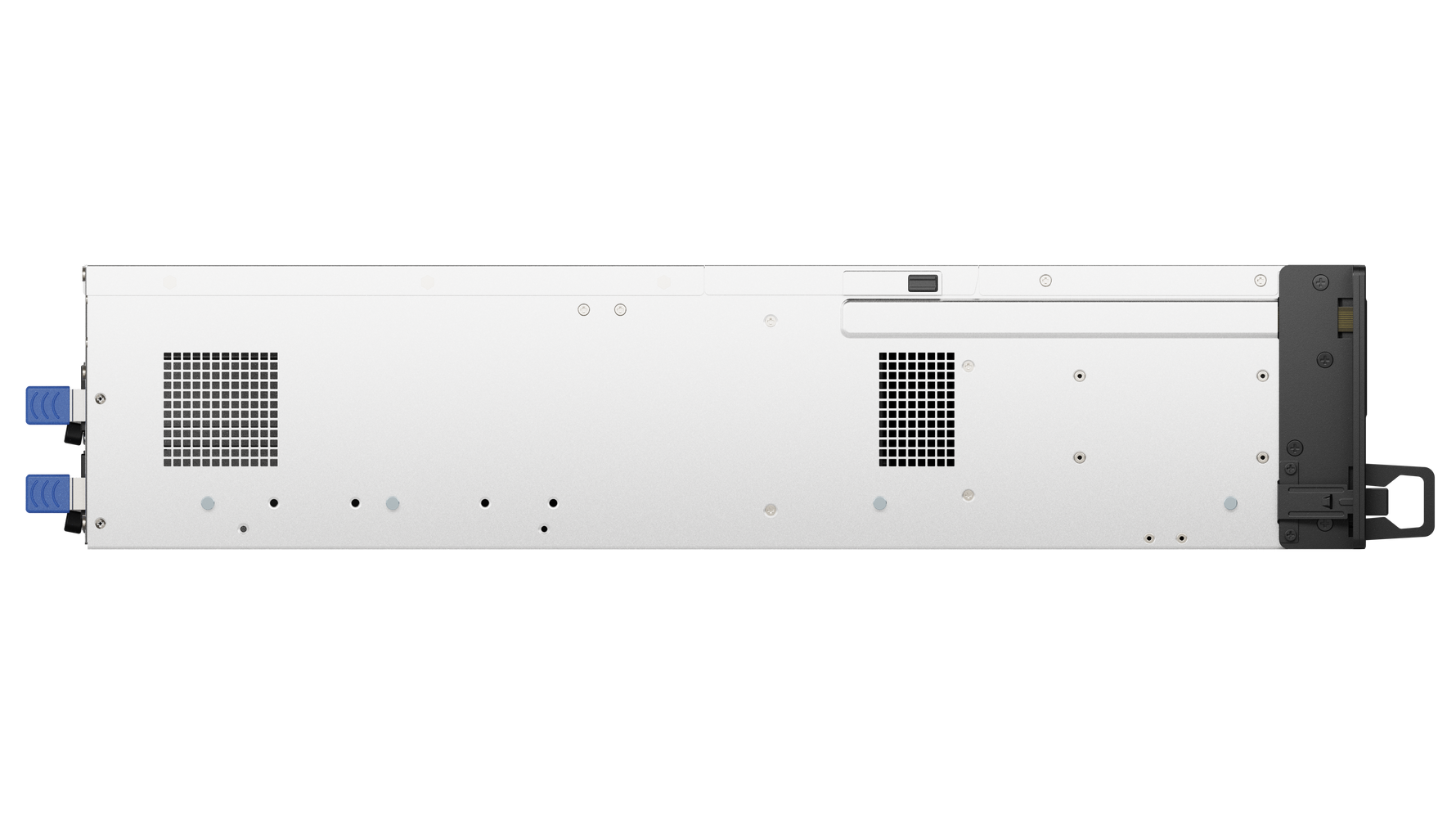

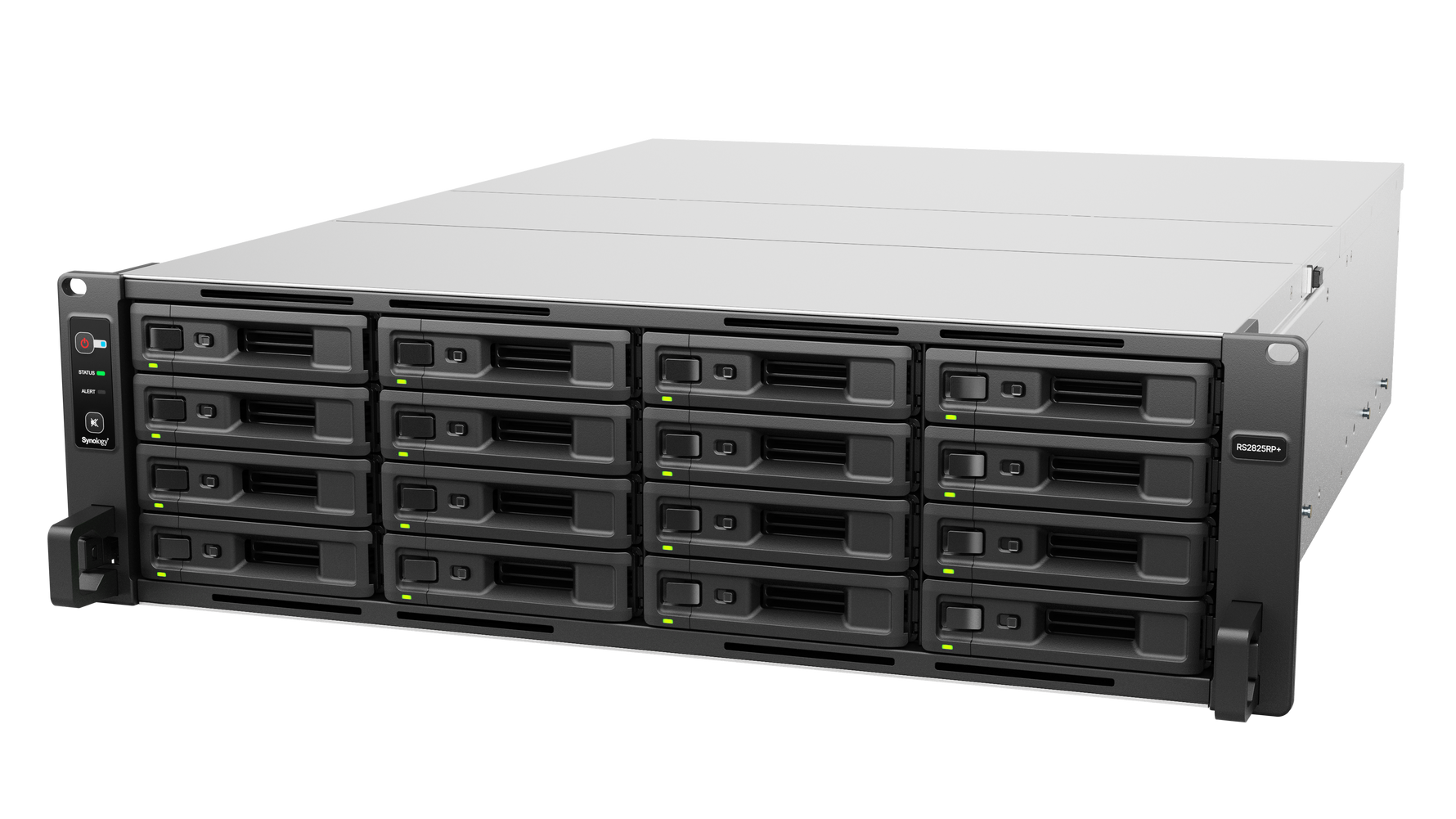

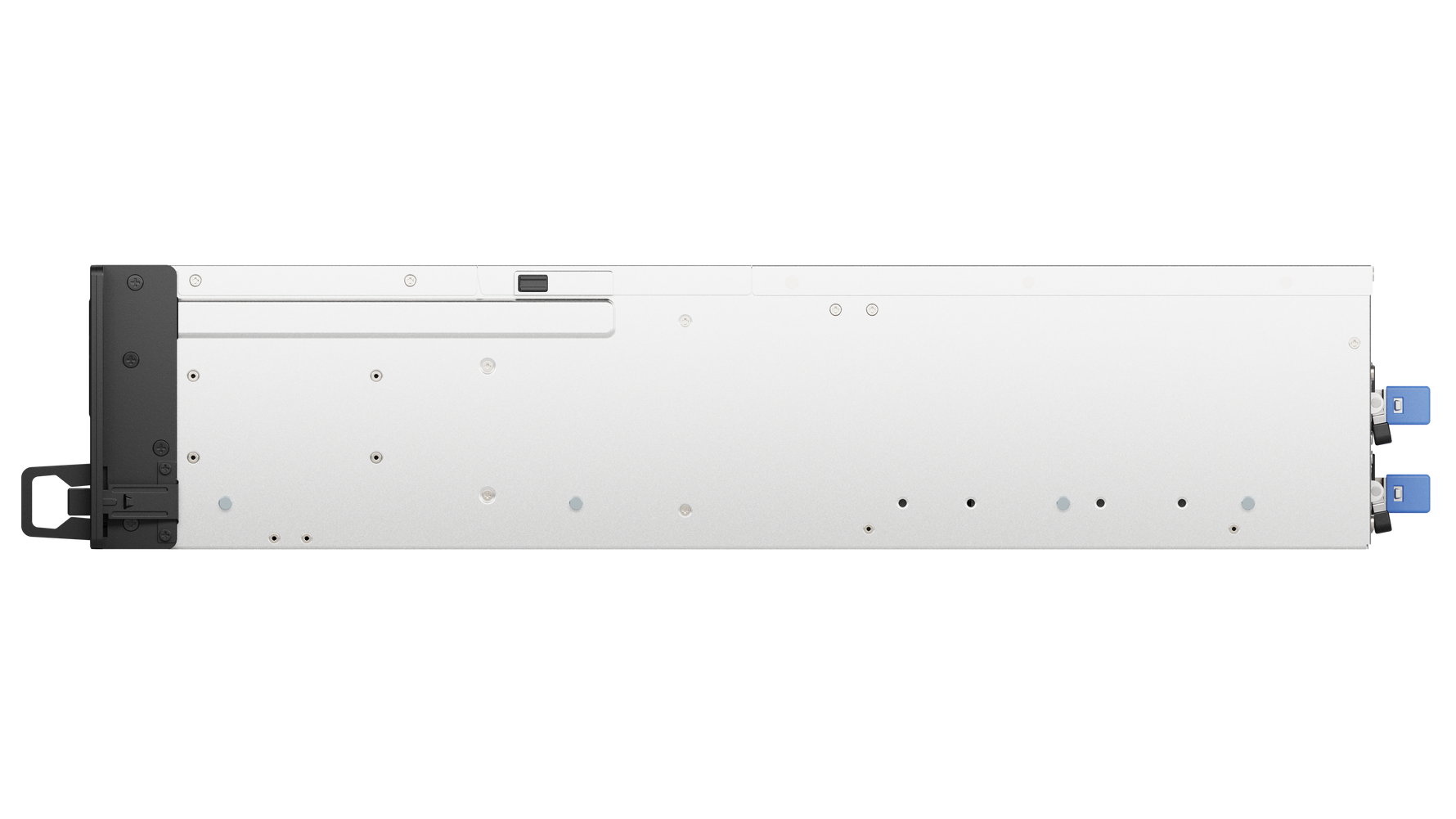

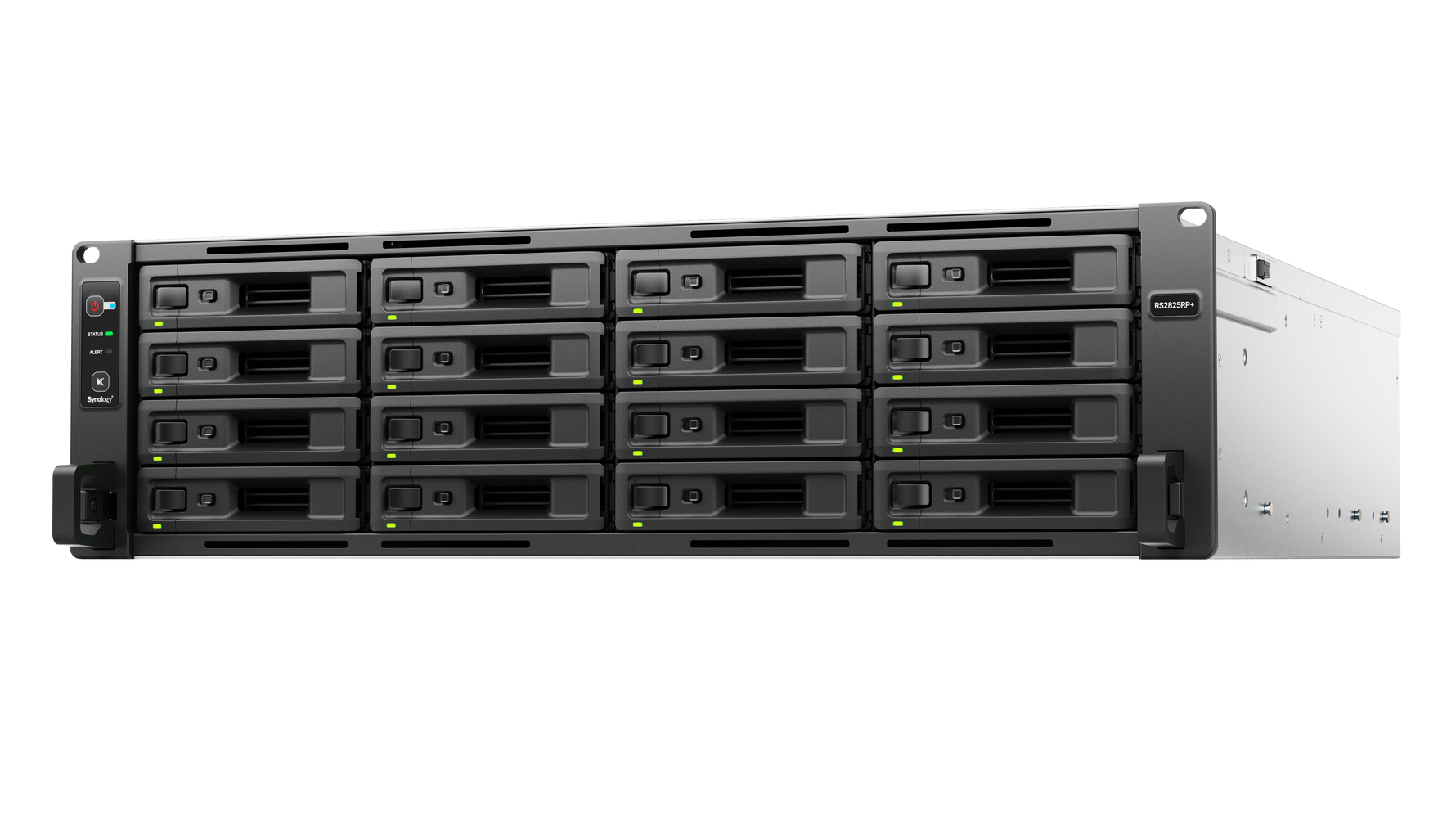

Synology RackStation RS2825RP+ 16-Bay 3U Rackmount NAS
Estimated delivery between August 10 and August 14.
The Synology RackStation RS2825RP+ is a scalable 16-bay 3U rackmount NAS with an AMD Ryzen processor, 8GB ECC memory, built-in 10GbE, redundant power and expansion support for up to 28 drives.
Product Description
The Synology RS2825RP+ is designed for centralised business storage, backup, collaboration, private-cloud access, virtualisation and surveillance.
It features an AMD Ryzen V1780B quad-core processor, 8GB DDR4 ECC memory expandable to 32GB and sixteen hot-swappable SATA drive bays.
One built-in 10GbE port and two 1GbE ports provide high-speed connectivity, network failover and load balancing. A PCIe Gen3 expansion slot supports selected Synology network and M.2 SSD adapter cards.
The RS2825RP+ delivers sequential performance of up to 3,519MB/s read and 1,790MB/s write. Capacity can be expanded to 28 drives with an optional RX1225RP Expansion Unit.
Redundant power supplies help maintain operation if one power supply fails.
Storage drives, memory upgrades, expansion units, PCIe cards, M.2 SSDs and rack rails are not included.
Key Features
- Scalable 16-bay 3U rackmount NAS
- AMD Ryzen V1780B processor
- Four CPU cores and eight threads
- 3.35GHz base and up to 3.6GHz turbo frequency
- Hardware encryption engine
- 8GB DDR4 ECC UDIMM memory
- Memory expandable to 32GB
- Sixteen hot-swappable SATA drive bays
- Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
- Expandable to 28 drives with one RX1225RP

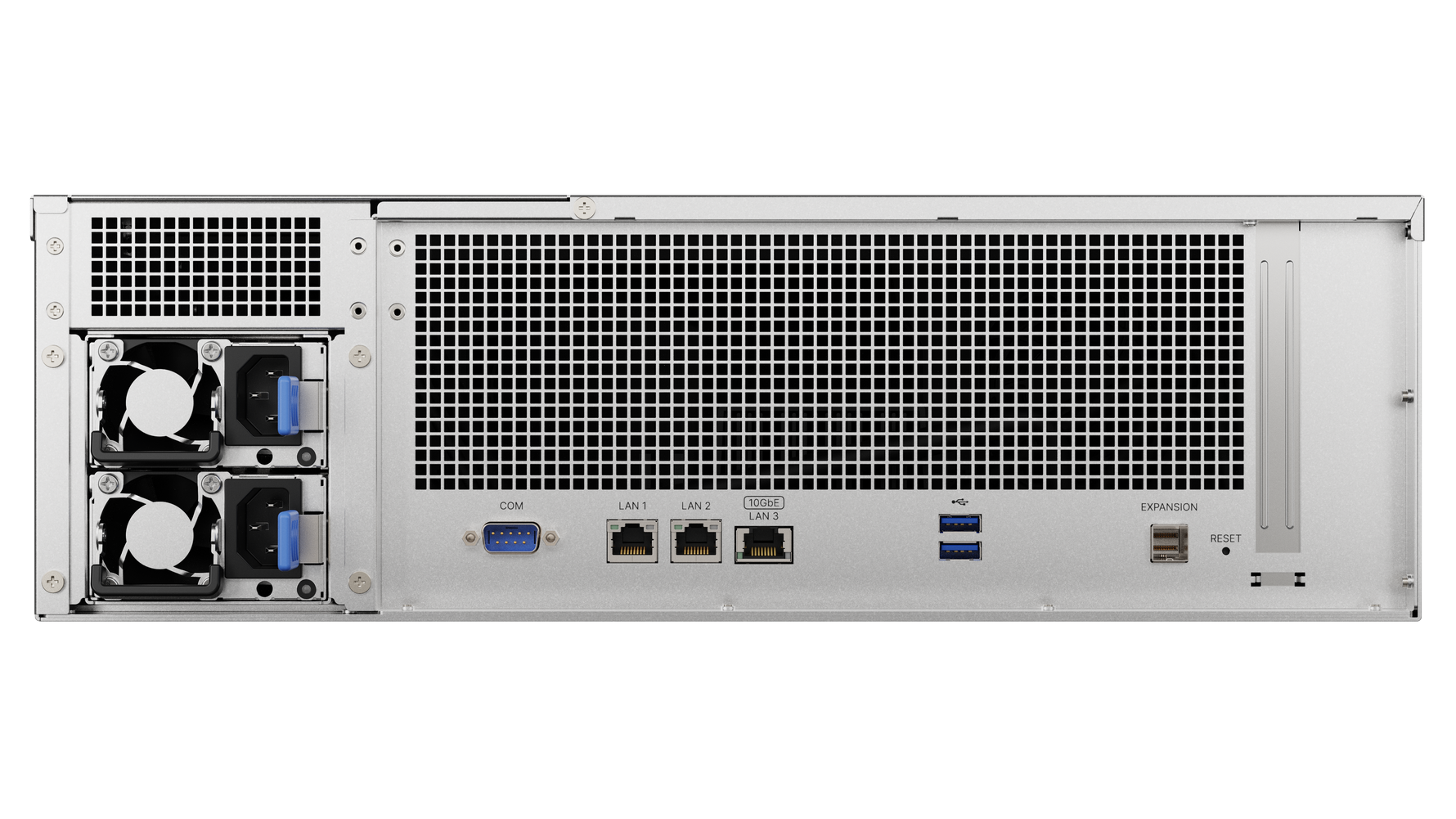

- One built-in 10GbE RJ-45 port
- Two built-in 1GbE RJ-45 ports
- Network failover and load-balancing support
- Redundant power supply system
- Two USB 3.2 Gen 1 ports
- Mini-SAS HD expansion port
- PCIe Gen3 expansion slot
- Supports selected 10GbE and 25GbE network cards
- Supports selected M.2 NVMe adapter cards
- Up to 3,519MB/s read and 1,790MB/s write
- Supports Synology Hybrid RAID
- Supports RAID 0, 1, 5, 6 and 10
- Supports Btrfs internal volumes
- Supports Synology High Availability
- Includes two Surveillance Station device licences
- Supports up to 90 compatible IP cameras
- Three-year Synology hardware warranty
Recommended Use Cases
- Centralised business storage
- Small and medium business environments
- Computer, server and virtual-machine backup
- Private-cloud file access
- Multi-site file synchronisation
- Business collaboration
- Virtualisation and iSCSI storage
- High-speed 10GbE environments
- SSD cache deployments
- IP camera surveillance
- Business continuity and disaster recovery
- Expandable archive storage
Specifications
| FIELD | DETAILS |
|---|---|
| Product Code | RS2825RP+ |
| Form Factor | 3U Rackmount |
| CPU Model | AMD Ryzen V1780B |
| CPU Architecture | 64-bit |
| CPU Cores / Threads | 4 Cores / 8 Threads |
| CPU Frequency | 3.35GHz Base / 3.6GHz Turbo |
| Hardware Encryption Engine | Supported |
| System Memory | 8GB DDR4 ECC UDIMM |
| Pre-Installed Memory | 1 × 8GB |
| Memory Slots | 2 |
| Maximum Memory Capacity | 32GB |
| Drive Bays | 16 |
| Maximum Drive Bays | 28 with 1 × Synology RX1225RP |
| Compatible Drives | 3.5-Inch SATA HDD or 2.5-Inch SATA SSD |
| Hot-Swappable Drives | Supported |
| 10GbE Network Ports | 1 × RJ-45 |
| 1GbE Network Ports | 2 × RJ-45 |
| USB Ports | 2 × USB 3.2 Gen 1 |
| Expansion Port | 1 × Mini-SAS HD |
| Supported Expansion Unit | Synology RX1225RP |
| PCIe Expansion | 1 × Gen3 x8 Slot with x4 Link |
| Sequential Performance | Up to 3,519MB/s Read and 1,790MB/s Write |
| Supported RAID Types | Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 |
| Maximum Single Volume Size | 108TB or Up to 200TB with 32GB Memory |
| Maximum Internal Volumes | 32 |
| Internal File System | Btrfs |
| SSD Read/Write Cache | Supported |
| Synology High Availability | Supported |
| Surveillance Licences | 2 Included |
| Maximum IP Cameras | Up to 90, Depending on Configuration |
| Rack Support | 4-Post 19-Inch Rack |
| Compatible Rail Kit | Synology RKS-02 |
| System Fans | 3 × 80mm |
| Fan Modes | Full-Speed, Cool and Quiet |
| Noise Level | 49.6dB(A) |
| Power Supply | Redundant 550W Power Supply System |
| Power Consumption | 134.48W Access / 50.81W HDD Hibernation |
| Dimensions | 132.3 × 482 × 656.5mm |
| Weight | 17.3kg |
| Operating Temperature | 0°C to 35°C |
| Operating System | Synology DiskStation Manager |
| Drives Included | No |
Compatibility Note
Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS2825RP+ before ordering.
Compatible drives are mandatory for DSM installation and should be selected from Synology’s current compatibility list.
The RS2825RP+ supports one optional RX1225RP Expansion Unit, increasing the total number of drive bays from sixteen to twenty-eight.
Compatible memory upgrades include Synology D4EU02-8G and D4EU02-16G modules. When both memory slots are populated, the modules must be identical and use the same model number.
The PCIe slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and M.2 adapters.
The RS2825RP+ does not include built-in M.2 slots. NVMe SSD caching requires a compatible Synology adapter card and supported M.2 SSDs.
A maximum single volume size above 108TB requires 32GB of installed memory and a supported storage configuration.
Installation in a compatible 4-post rack requires an optional Synology RKS-02 sliding rail kit.
Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.
What’s in the Box
- Synology RackStation RS2825RP+ main unit
- Accessory pack
- 2 × AC power cords
Storage drives, memory upgrades, RX1225RP Expansion Unit, PCIe cards, M.2 SSDs and rack rail kits are not included.
Warranty
Three-year Synology hardware warranty.
Eligible units may qualify for extension to five years with Synology EW202.
Sustainability
- RoHS compliant
- HDD hibernation mode
- Scheduled power-on and power-off support
- Replaceable system fans and power supply modules
- Expandable memory, storage and networking may help extend the system’s useful operating life
