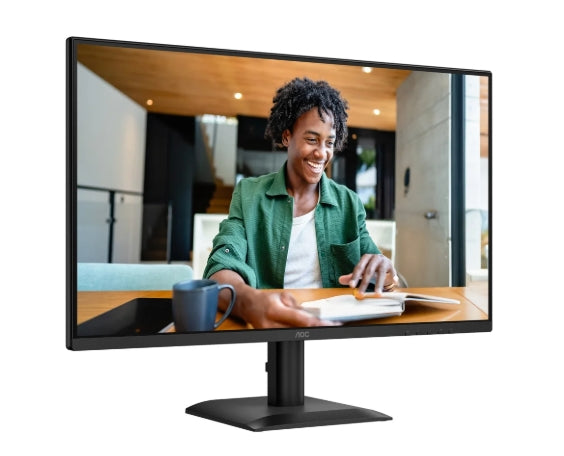

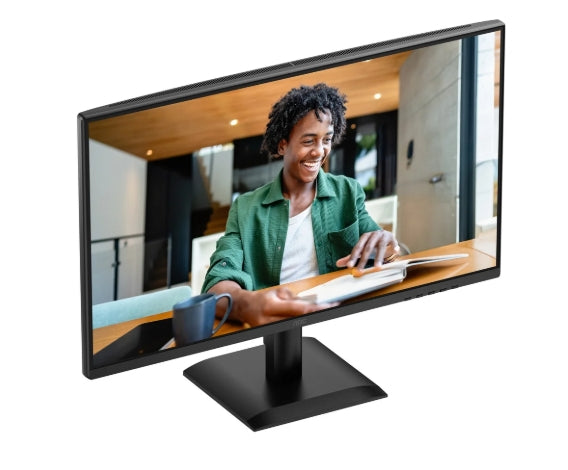

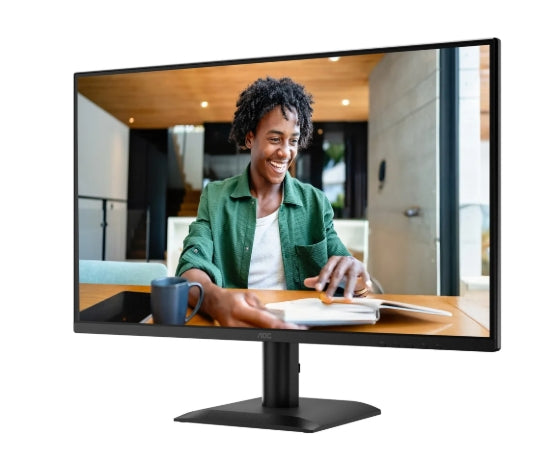

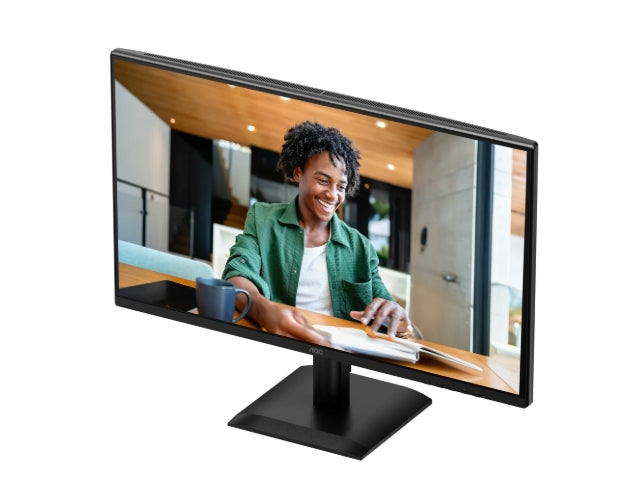

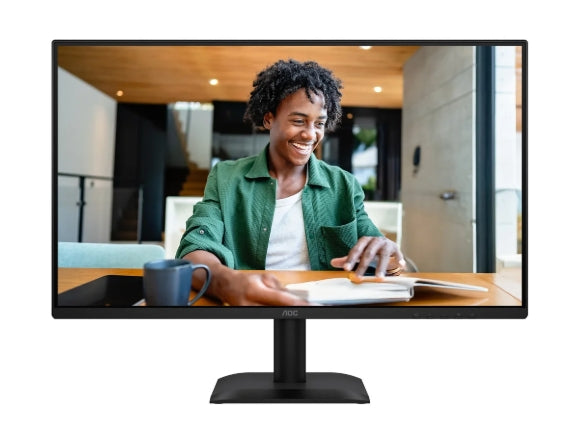

AOC 24E40L 23.8-Inch Full HD IPS Monitor - 144Hz 0.5ms Adaptive Sync HDR10
AOC 24E40L 23.8-Inch Full HD IPS Monitor - 144Hz 0.5ms Adaptive Sync HDR10
The AOC 24E40L is a 23.8-inch Full HD IPS monitor featuring a 144Hz refresh rate, 0.5ms MPRT and Adaptive Sync technology. It also includes HDR10, circular-polarisation technology, Flicker-Free operation and Anti-Blue Light technology.
Product Description
The AOC 24E40L combines smooth 144Hz performance, IPS viewing quality and eye-comfort technologies in a compact 23.8-inch display.
Its Full HD IPS panel provides a 1920 × 1080 resolution, 300cd/m² typical brightness and wide 178-degree horizontal and vertical viewing angles.
The display supports a refresh rate of up to 144Hz through HDMI and DisplayPort. This provides smoother cursor movement, scrolling, video and gaming than a conventional 60Hz monitor.
Adaptive Sync technology helps synchronise the display refresh rate with compatible graphics hardware to reduce visible tearing, stuttering and judder. A 0.5ms MPRT mode helps reduce perceived motion blur during fast-moving games and video.
HDR10 support enhances compatible content with a broader range of colour and contrast. AOC Clear Vision can upscale supported standard-definition content for improved clarity.
The monitor uses circular-polarisation technology designed to produce a more diffused light output and reduce glare. AOC Flicker-Free and Anti-Blue Light technologies provide additional viewing-comfort options.
HDMI 1.4 and DisplayPort 1.2 inputs provide connectivity for compatible computers and other display sources. The ultra-narrow bezel design is suitable for multi-monitor configurations.
Key Features
• 23.8-inch Full HD display
• 1920 × 1080 resolution
• IPS panel technology
• 144Hz refresh rate
• 4ms grey-to-grey response time
• 0.5ms MPRT response mode
• Adaptive Sync technology
• HDR10 support
• Circular-polarisation technology
• Low Blue Light technology
• 300cd/m² typical brightness
• 1500:1 typical contrast ratio
• 20 million:1 dynamic contrast ratio
• Wide 178-degree viewing angles
• 16.7 million display colours
• Wide colour-gamut coverage
• Delta E below 2 in sRGB mode
• Ultra-narrow bezel design
• Anti-glare screen treatment
• AOC Flicker-Free technology
• AOC Anti-Blue Light technology
• AOC Clear Vision image enhancement
• HDMI 1.4 input
• DisplayPort 1.2 input
• 3.5mm audio output
• 100mm × 100mm VESA mounting support
Specifications
| FIELD | DETAILS |
|---|---|
| Product Code | AOC-24E40L |
| Model | 24E40L |
| Product Type | Full HD IPS Monitor |
| Screen Size | 23.8 inches |
| Display Type | Flat |
| Panel Type | IPS LCD |
| Backlight Type | WLED |
| Panel Treatment | Anti-glare |
| Panel Haze | 25% |
| Resolution | 1920 × 1080 Full HD |
| Aspect Ratio | 16:9 |
| Maximum Refresh Rate | 144Hz |
| Optimum Resolution | 1920 × 1080 at 144Hz through HDMI or DisplayPort |
| Response Time | 4ms GtG / 0.5ms MPRT |
| Typical Brightness | 300cd/m² |
| Static Contrast Ratio | 1500:1 |
| Dynamic Contrast Ratio | 20 Million:1 |
| HDR Support | HDR10 |
| Viewing Angle | 178° horizontal / 178° vertical |
| Display Colours | 16.7 million |
| Colour Gamut | NTSC 101% CIE 1976 / sRGB 112% CIE 1931 |
| Colour Accuracy | Delta E below 2 in sRGB mode |
| Pixel Pitch | 0.2745mm × 0.2745mm |
| Effective Viewing Area | 527.04mm × 296.46mm |
| Adaptive Sync | Yes |
| Circular Polarisation | Yes |
| Flicker-Free Technology | Yes |
| Anti-Blue Light | Yes |
| Clear Vision | Yes |
| HDMI | 1 × HDMI 1.4 |
| DisplayPort | 1 × DisplayPort 1.2 |
| Audio Output | 1 × 3.5mm audio output |
| USB Hub | No |
| Built-In Speakers | No |
| VESA Mount | 100mm × 100mm |
| VESA Screw Specification | M4 × 10 |
| Tilt Adjustment | -5° to 23° |
| Power Supply | Internal |
| Power Input | 100V to 240V AC, 50Hz / 60Hz |
| Typical Power Consumption | 16W |
| Standby Power Consumption | 0.3W |
| Off-Mode Power Consumption | 0.3W |
| Dimensions Without Stand | 544mm × 321mm × 51mm |
| Dimensions With Stand | 544mm × 422.5mm × 175mm |
| Packaging Dimensions | 615mm × 420mm × 124mm |
| Weight Without Stand | 2.66kg |
| Weight With Stand | 2.97kg |
| Gross Packaged Weight | 4.91kg |
| Colour | Black |
| Regulatory Approvals | CE, FCC, RoHS, TÜV Circular Polarisation and TÜV Low Blue Light |
| Warranty | Three-Year Limited Warranty |
Sustainability
• FSC Mix-certified packaging
• More than 80% recycled carton packaging
• 85% post-consumer recycled plastic used in applicable components
What’s in the Box
• 1 × AOC 24E40L Monitor
• 1 × Monitor stand and base
• 1 × 1.8m HDMI cable
• 1 × Power cable
• Product documentation
Warranty
Three-Year AOC Limited Warranty
