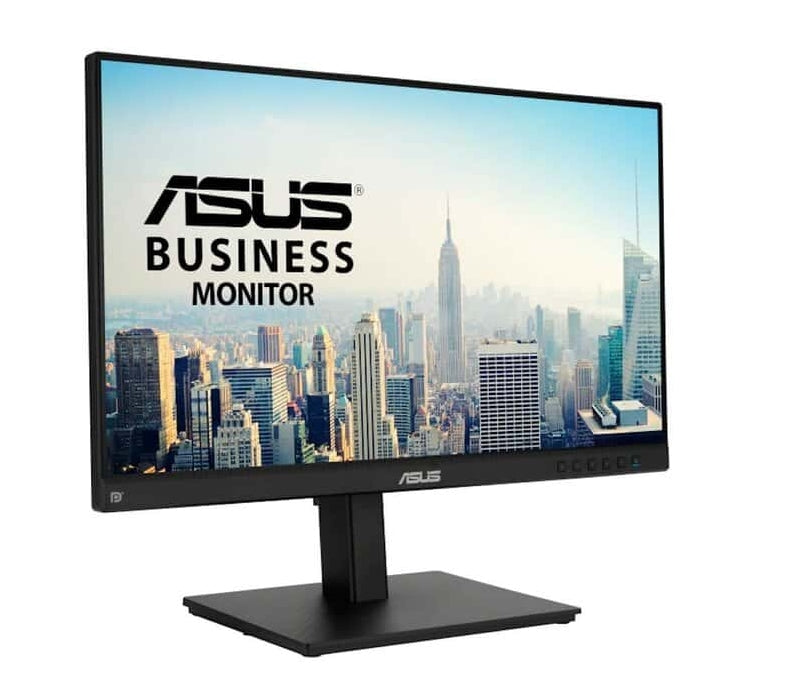

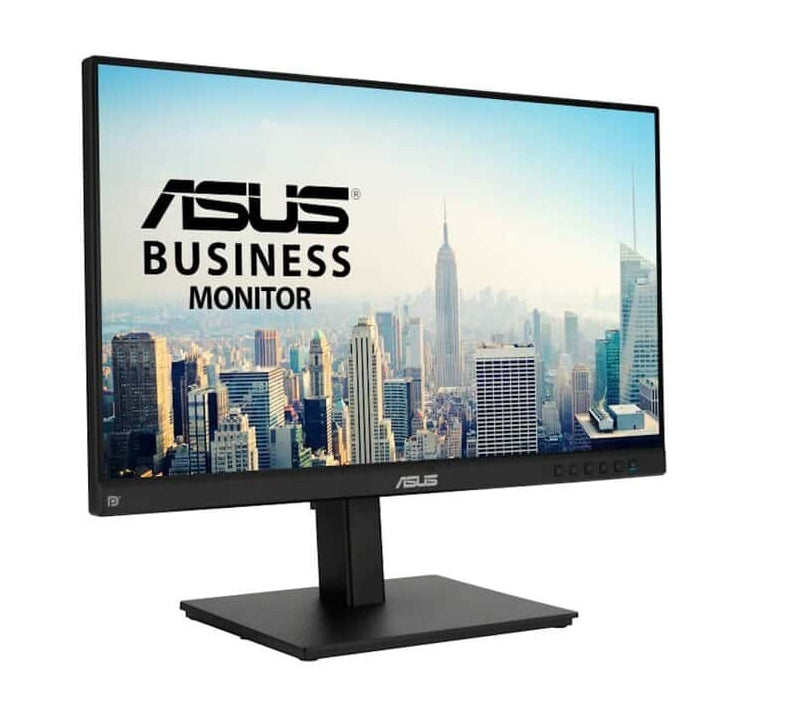

ASUS BE24ECSBT 23.8" Full HD USB-C Touch Monitor

At a Glance

• 23.8-inch Full HD IPS display
• Projective capacitive 10-point touch
• Touch support for Windows, Chrome and Linux
• Single-point touch support for macOS
• USB-C video, data and up to 80W Power Delivery
• DisplayPort input and MST output
• DisplayPort daisy-chain support
• Three-port USB-A hub
• Built-in stereo speakers
• Ambient-light sensor with automatic brightness adjustment
• Fully adjustable ergonomic stand
• 100 x 100mm VESA mounting

Short Description

The ASUS BE24ECSBT is a 23.8-inch Full HD IPS touchscreen business monitor featuring projective capacitive 10-point touch, USB-C with up to 80W Power Delivery, DisplayPort daisy-chain support and a three-port USB hub.

Its fully adjustable stand, built-in speakers, ambient-light sensor and ASUS Eye Care Plus technologies make it suitable for offices, education, healthcare, retail and interactive commercial applications.

Why Choose This ASUS

The BE24ECSBT combines display, touch, connectivity and notebook charging in one professional monitor.

A compatible notebook can connect through USB-C for video, data, touch input and up to 80W Power Delivery, helping simplify the desktop setup.

The DisplayPort MST output supports compatible daisy-chained monitor installations, while the integrated three-port USB-A hub provides connectivity for keyboards, mice, storage and other supported peripherals.

Its 10-point touch capability, portrait orientation and highly adjustable stand make it particularly useful for interactive workstations, reception areas, education, healthcare and specialist business applications.

Best For

• Business and office workstations
• Interactive business applications
• Education and training
• Healthcare environments
• Retail and point-of-service applications
• Reception and information desks
• Touch-enabled Windows workstations
• USB-C notebook users
• Multi-monitor installations
• Portrait-oriented applications

Product Description

The ASUS BE24ECSBT is a professional multi-touch monitor designed for interactive office, education, healthcare, retail and commercial environments.

Its 23.8-inch frameless IPS panel provides a 1920 x 1080 Full HD resolution, refresh rates of up to 75Hz and wide 178-degree horizontal and vertical viewing angles.

Projective capacitive technology supports up to 10 simultaneous touch points on compatible Windows, Chrome and Linux systems. Compatible macOS systems support single-point touch operation.

The full-featured USB-C port supports DisplayPort Alternate Mode, USB data, touch-signal transmission and up to 80W Power Delivery through one compatible cable.

Connectivity also includes one HDMI 1.4 input, one DisplayPort 1.4 input, one DisplayPort 1.4 MST output and three USB-A 3.2 Gen 1 downstream ports.

The DisplayPort output enables compatible daisy-chained monitor installations. Built-in 2 x 2W stereo speakers provide convenient audio for meetings, presentations, training and multimedia.

The ergonomic stand provides 130mm height adjustment together with extensive tilt, swivel and pivot movement. An ambient-light sensor supports automatic brightness adjustment according to surrounding lighting conditions.

A 100 x 100mm VESA mounting pattern supports compatible monitor arms and wall mounts.

Key Features

• 23.8-inch Full HD IPS display
• 1920 x 1080 resolution
• Frameless panel design
• Anti-glare display surface
• Projective capacitive 10-point touch
• Up to 75Hz refresh rate
• 5ms GtG response time
• 300cd/m² typical brightness
• 1000:1 typical contrast ratio
• 100% sRGB colour coverage
• Wide 178-degree viewing angles
• Multi-touch support for Windows, Chrome and Linux
• Single-point touch support for macOS
• USB-C with DisplayPort Alternate Mode
• USB-C Power Delivery up to 80W
• DisplayPort 1.4 input
• DisplayPort 1.4 MST output
• DisplayPort daisy-chain support
• HDMI 1.4 input
• 3 x USB-A 3.2 Gen 1 ports
• 3.5mm earphone output
• Built-in 2 x 2W speakers
• Ambient-light sensor
• Automatic brightness adjustment
• ASUS Eye Care Plus
• ASUS Flicker-Free technology
• ASUS Low Blue Light technology
• 130mm height adjustment
• Tilt, swivel and pivot adjustment
• Portrait orientation support
• 100 x 100mm VESA mounting
• Kensington security-lock slot

Specifications

Display and Image Quality

The 23.8-inch IPS panel provides:

• 1920 x 1080 Full HD resolution
• Up to 75Hz refresh rate
• 300cd/m² typical brightness
• 1000:1 typical contrast ratio
• 100% sRGB colour coverage
• 178-degree horizontal and vertical viewing angles
• Anti-glare display surface

ASUS display features include:

• ASUS Splendid
• ASUS Trace Free
• Four colour-temperature modes
• ASUS QuickFit
• Document mode
• Letter mode
• Photo mode
• Alignment-grid mode

Touch Functionality

The BE24ECSBT uses projective capacitive touch technology.

Operating-system touch support includes:

• Windows: Up to 10 simultaneous touch points
• Chrome: Up to 10 simultaneous touch points
• Linux: Up to 10 simultaneous touch points
• macOS: Single-point touch

Supported gestures and touch functions depend on the connected computer, operating system and application.

A USB data connection between the monitor and computer is required for touch-signal transmission.

USB-C Connectivity

The USB-C connection supports:

• DisplayPort Alternate Mode video
• USB data at up to 5Gbps
• Touch-signal transmission
• Audio transmission
• Access to the USB-A hub
• Up to 80W Power Delivery

The connected USB-C device must support DisplayPort Alternate Mode for video output.

Charging performance depends on the connected device’s USB Power Delivery support and power requirements.

Using Touch With HDMI or DisplayPort

When USB-C is used for video, the same connection can carry video, USB data and the touch signal.

When HDMI or DisplayPort is used for video, the monitor’s USB-C upstream port must also be connected to a USB port on the computer using a compatible USB data cable.

Without the USB data connection, the monitor can display the HDMI or DisplayPort video signal, but touch input and access to the monitor’s USB-A hub will not be available.

DisplayPort Daisy Chain

The DisplayPort MST output supports compatible daisy-chained monitor installations.

DisplayPort daisy chaining requires:

• A source device that supports DisplayPort Multi-Stream Transport
• Compatible displays and DisplayPort cables
• Supported graphics hardware
• Compatible operating-system support

Available resolution and refresh rate may be reduced when multiple monitors are connected in sequence.

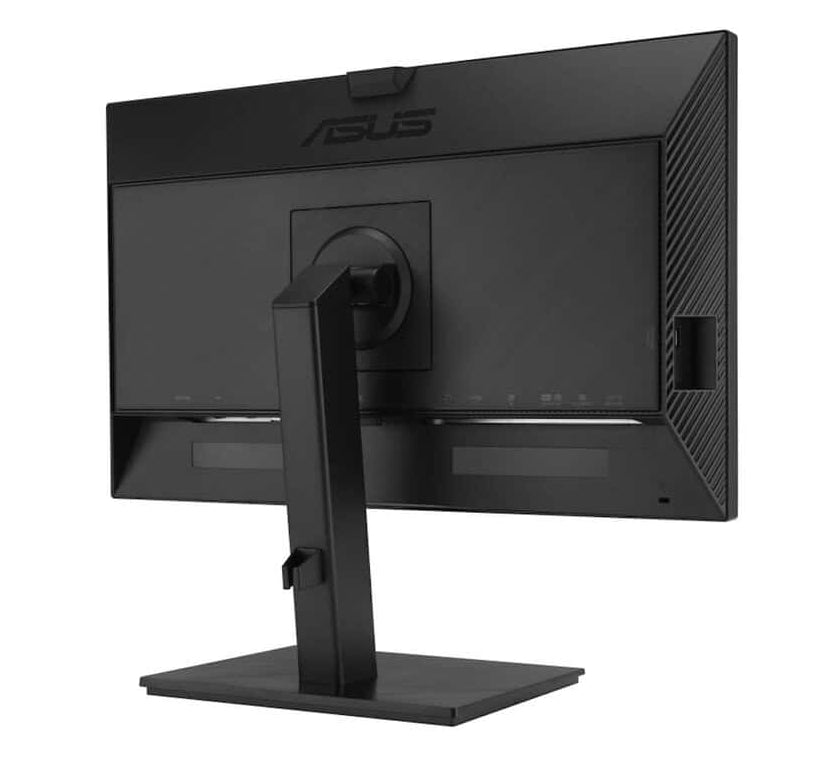

Ergonomics

The adjustable stand supports:

• Height: 0mm to 130mm
• Tilt: -5° to 35°
• Swivel: -180° to 180°
• Pivot: -90° to 90°
• VESA Mount: 100 x 100mm

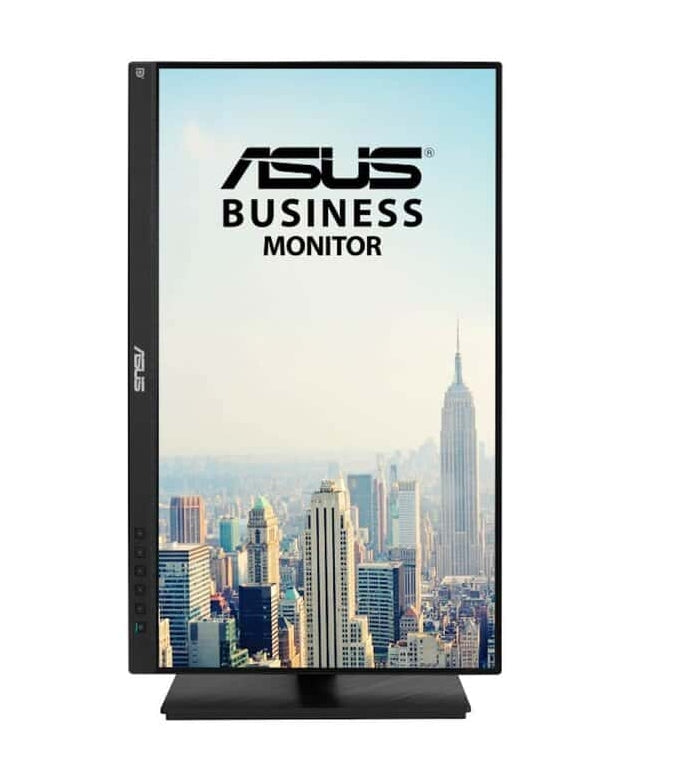

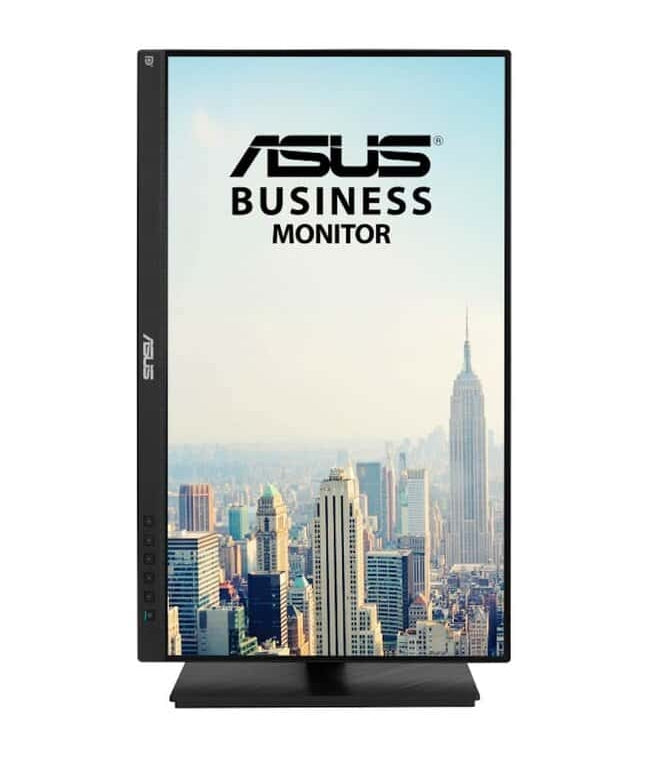

Pivot support allows the display to be rotated into portrait orientation for compatible applications.

ASUS Eye Care Plus

The BE24ECSBT includes:

• ASUS Eye Care Plus
• ASUS Flicker-Free technology
• ASUS Low Blue Light technology
• Ambient-light sensor
• Automatic brightness adjustment

These features are designed to support more comfortable viewing during extended use.

Compatibility

USB-C video requires a computer or device that supports DisplayPort Alternate Mode over USB-C.

Touch functionality requires a USB data connection between the monitor and computer.

Up to 10-point touch is available on compatible Windows, Chrome and Linux systems. Compatible macOS systems support single-point touch.

USB-C Power Delivery depends on the connected device’s charging requirements and supported USB Power Delivery profiles.

Please check that your computer, operating system, USB connection and software support the required video, touch, charging and multi-monitor functionality.

What’s in the Box

• ASUS BE24ECSBT Touch Monitor
• Quick-release monitor stand
• USB-C cable
• HDMI cable
• Power cable
• Quick-start guide
• Warranty card

Warranty

Three-Year ASUS Monitor Warranty

Sustainability and Certifications

The ASUS BE24ECSBT carries the following certifications:

• TÜV Low Blue Light
• TÜV Flicker-Free
• TCO Certified
• EPEAT Silver
• ENERGY STAR

The hard power switch supports 0W power consumption when the monitor is switched off.
