ASUS ExpertCenter P500 SFF P500SV Core 5 8GB 512GB Windows 11 Home Desktop

At a Glance

The ASUS ExpertCenter P500 SFF P500SV-C58512G0W is a compact business desktop powered by an Intel Core 5 Processor 210H, 8GB DDR5 memory and a fast 512GB PCIe 4.0 NVMe SSD.

Its compact 8.6-litre chassis includes Windows 11 Home, Wi-Fi 6, Gigabit Ethernet, HDMI, DisplayPort, USB-C and business-focused security.

Expandable memory, dual M.2 storage connectors, a 3.5-inch drive bay and PCIe expansion provide flexibility for growing business requirements.

Short Description

The ASUS ExpertCenter P500 SFF P500SV-C58512G0W is a compact 8.6-litre desktop featuring an Intel Core 5 Processor 210H, 8GB DDR5 memory and a 512GB PCIe 4.0 NVMe SSD.

Windows 11 Home, Wi-Fi 6, Gigabit Ethernet, TPM 2.0 security and versatile expansion options make it suitable for office, administration, education and everyday business use.

Why Choose This ASUS

The ExpertCenter P500 SFF provides practical business performance and expansion in a compact chassis that fits easily into offices, reception areas and commercial workspaces.

Its Intel Core 5 Processor 210H provides eight cores and 12 threads for responsive productivity, administration, web applications and multitasking.

Two DDR5 SO-DIMM slots support up to 64GB of memory, while two M.2 storage connectors, a 3.5-inch drive bay and PCIe expansion provide room for future upgrades.

A wired USB keyboard, wired USB optical mouse and 3.5-inch HDD assembly kit are included.

Recommended Use Cases

• Business workstations

• Home offices

• Administration and finance

• Reception workstations

• Retail environments

• Small and medium businesses

• Educational institutions

• Microsoft 365 applications

• Web-based business platforms

• General productivity

• Corporate desktop deployments

• Point-of-sale back-office systems

Product Description

The ASUS ExpertCenter P500 SFF P500SV-C58512G0W combines responsive everyday performance, versatile connectivity and practical expandability in a compact 8.6-litre small form factor chassis.

It is powered by the Intel Core 5 Processor 210H, featuring eight cores, 12 threads, a 12MB cache and speeds of up to 4.8GHz.

This configuration includes 8GB DDR5 SO-DIMM memory and a 512GB M.2 2280 PCIe 4.0 NVMe SSD, providing fast system startup and responsive application performance.

The system provides two DDR5 SO-DIMM slots and supports up to 64GB of total memory. Storage expansion options include two M.2 2280 connectors, a 3.5-inch drive bay and two SATA 6.0Gbps ports.

Integrated Intel Graphics support compatible monitors through HDMI 1.4 and DisplayPort 1.4.

Front connectivity includes USB-C, two USB-A ports and a combination audio jack. Rear connectivity includes four USB-A ports, Gigabit Ethernet, HDMI, DisplayPort and separate audio connections.

Wi-Fi 6 and Bluetooth 5.4 provide wireless connectivity, while Gigabit Ethernet supports stable wired networking.

Security features include a discrete TPM 2.0 module, HDD user password protection and a Kensington Security Slot.

Key Features

• Intel Core 5 Processor 210H

• Eight processor cores

• 12 processor threads

• Speeds up to 4.8GHz

• 12MB processor cache

• 8GB DDR5 SO-DIMM memory

• Supports up to 64GB memory

• Two DDR5 SO-DIMM slots

• 512GB PCIe 4.0 NVMe SSD

• Two M.2 2280 storage connectors

• 3.5-inch drive bay

• Two SATA 6.0Gbps ports

• PCIe 4.0 expansion

• Integrated Intel Graphics

• Windows 11 Home

• Wi-Fi 6

• Bluetooth 5.4

• Gigabit Ethernet

• HDMI 1.4

• DisplayPort 1.4

• USB 3.2 Gen 1 Type-C

• USB 3.2 Gen 1 Type-A

• High Definition 7.1-channel audio

• Discrete TPM 2.0

• Kensington Security Slot

• HDD user password protection

• 180W 80 Plus Bronze power supply

• Compact 8.6-litre chassis

• Wired USB keyboard included

• Wired USB optical mouse included

• 3.5-inch HDD assembly kit included

• Three-year on-site next business day service

Specifications

Performance

The Intel Core 5 Processor 210H provides:

• Eight processor cores

• 12 processor threads

• 12MB cache

• Speeds up to 4.8GHz

This processor is suitable for office applications, web-based platforms, administration, communication and everyday business multitasking.

Memory and Storage Expansion

The ExpertCenter P500 SFF provides:

• Two DDR5 SO-DIMM slots

• Support for up to 64GB total memory

• Two M.2 2280 PCIe storage connectors

• One 3.5-inch drive bay

• Two SATA 6.0Gbps ports

• One PCIe 4.0 x16 slot operating at PCIe 4.0 x8

Compatible upgrade components must match the system’s supported memory, storage and expansion specifications.

Connectivity

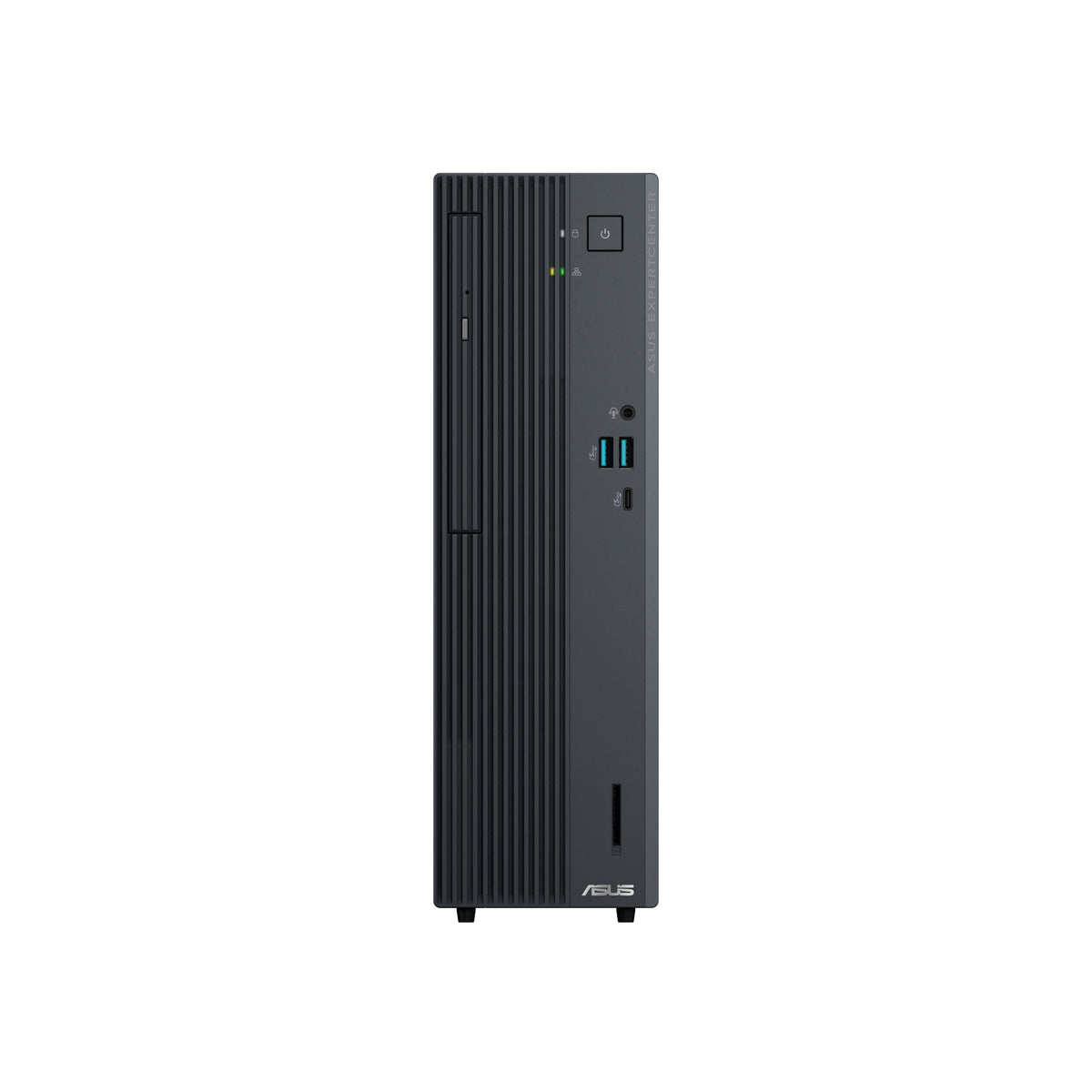

Front connections include:

• 1 × USB 3.2 Gen 1 Type-C

• 2 × USB 3.2 Gen 1 Type-A

• 1 × 3.5mm combination audio jack

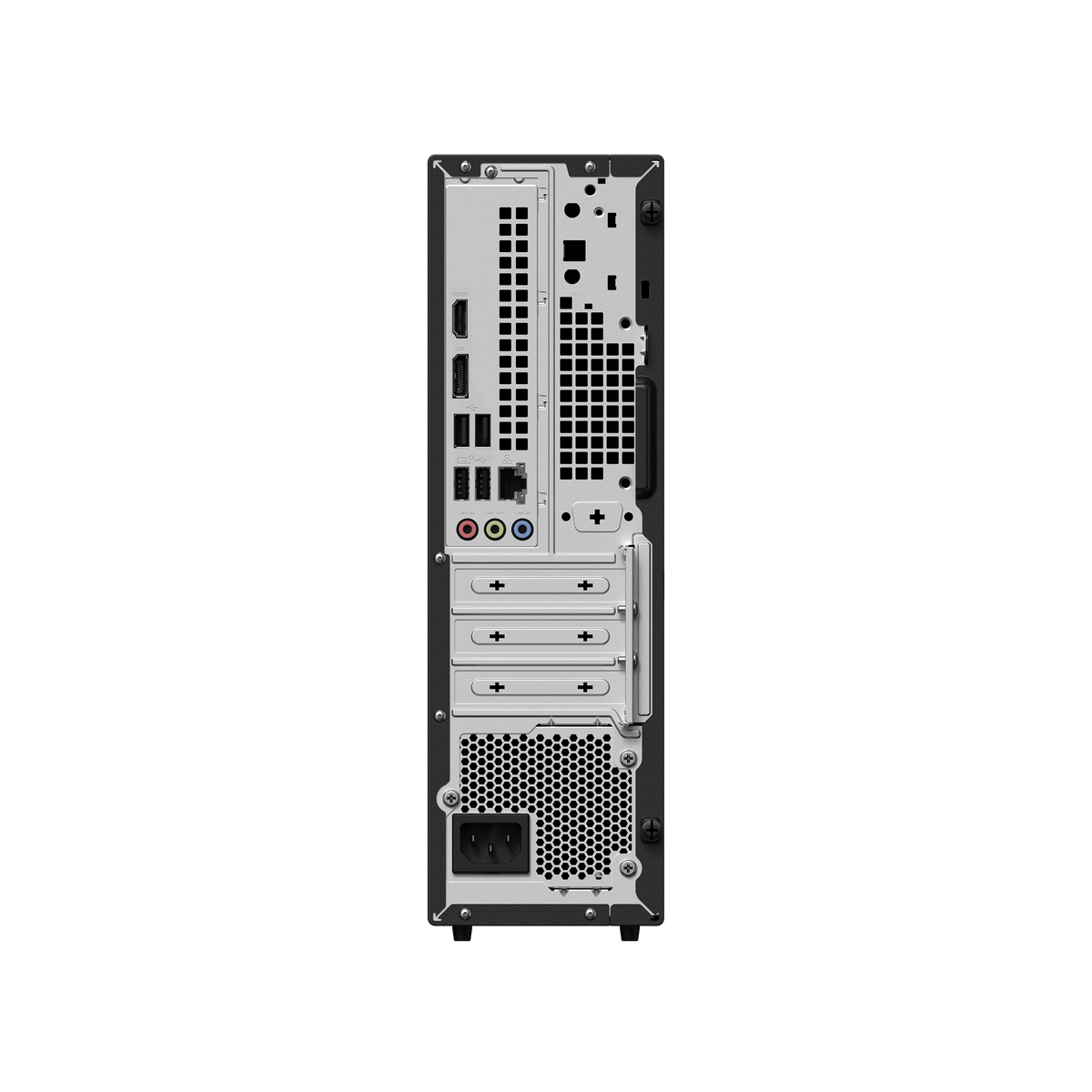

Rear connections include:

• 4 × USB 2.0 Type-A

• 1 × HDMI 1.4

• 1 × DisplayPort 1.4

• 1 × RJ45 Gigabit Ethernet

• Microphone input

• Line output

• Line input

• Kensington Security Slot

Wireless connectivity includes:

• Wi-Fi 6

• Bluetooth 5.4

Display Support

The integrated Intel Graphics support compatible business monitors through:

• HDMI 1.4

• DisplayPort 1.4

Supported resolutions and refresh rates depend on the connected display, cable and selected system settings.

Security

Business security features include:

• Discrete TPM 2.0

• HDD user password protection

• Kensington Security Slot

• Windows 11 security features

Compatibility

The ASUS ExpertCenter P500 SFF supports compatible monitors and peripherals through HDMI, DisplayPort, USB Type-A and USB Type-C connectivity.

Memory upgrades must use compatible DDR5 SO-DIMM modules. The system supports up to 64GB of total memory across two SO-DIMM slots.

Storage upgrades must use compatible M.2 2280 PCIe SSDs or supported 3.5-inch SATA drives.

PCIe expansion cards must be compatible with the available PCIe 4.0 x16 slot, its PCIe 4.0 x8 operating mode, the chassis dimensions and the 180W power supply.

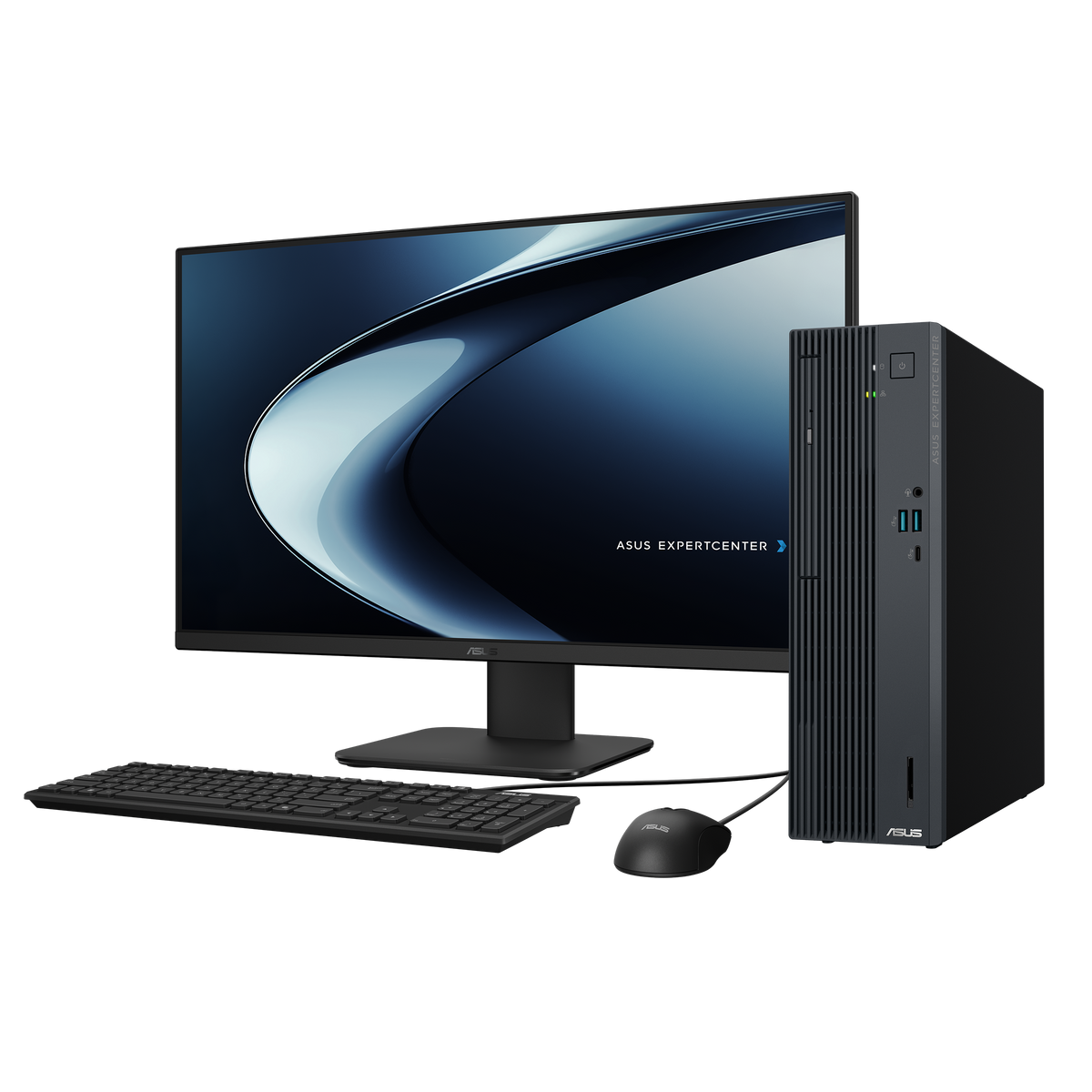

What’s in the Box

• ASUS ExpertCenter P500 SFF Desktop PC

• Wired USB keyboard

• Wired USB optical mouse

• 3.5-inch HDD assembly kit

Warranty

Three-Year ASUS On-Site Service (Next Business Day)

Sustainability

The ASUS ExpertCenter P500 SFF carries the following environmental certifications and compliance listings:

• EPEAT Silver

• ENERGY STAR 9.0

• REACH

• RoHS

The gray configuration uses 65% post-consumer recycled plastic in the front bezel and I/O bezel.
