ASUS ExpertCenter P500SV Core 5 210H 8GB 512GB SFF Desktop

At a Glance

The ASUS ExpertCenter P500SV-C58512G1X is a compact business desktop powered by the Intel Core 5 Processor 210H, 8GB DDR5 memory and a fast 512GB PCIe 4.0 NVMe SSD.

Its space-saving 8.6-litre chassis, Windows 11 Pro operating system, Wi-Fi 6, Gigabit Ethernet and flexible expansion options make it a practical choice for offices, reception areas, retail environments and commercial deployments.

Short Description

The ASUS ExpertCenter P500SV is an 8.6-litre small form factor business desktop featuring an Intel Core 5 Processor 210H, 8GB DDR5 memory, a 512GB PCIe 4.0 NVMe SSD and Windows 11 Pro.

It includes Wi-Fi 6, Bluetooth 5.4, Gigabit Ethernet, HDMI, DisplayPort, USB-C and TPM 2.0 security, together with a wired USB keyboard and optical mouse.

Why Choose This ASUS

The ExpertCenter P500SV provides dependable business performance in a compact chassis that occupies less workspace than a conventional desktop tower.

Its Intel Core 5 Processor 210H combines 8 cores and 12 threads with speeds of up to 4.8GHz, providing responsive performance for productivity applications, business platforms, administration and everyday multitasking.

The system supports up to 64GB DDR5 memory and provides M.2, SATA and PCIe expansion options, allowing the desktop to adapt to changing business requirements.

Windows 11 Pro, discrete TPM 2.0 and physical security features make it suitable for professional and managed business environments.

Recommended Use Cases

• Business and office workstations

• Administration and finance

• Reception workstations

• Retail and commercial environments

• Point-of-sale back-office systems

• Microsoft 365 applications

• Web-based business platforms

• Educational environments

• Small and medium businesses

• Corporate desktop deployments

• Remote and hybrid work

• General professional productivity

Product Description

The ASUS ExpertCenter P500 SFF P500SV-C58512G1X delivers business-focused performance, connectivity and expandability in a compact 8.6-litre small form factor chassis.

It is powered by the Intel Core 5 Processor 210H, featuring 8 cores, 12 threads, 12MB cache and speeds of up to 4.8GHz. This provides responsive performance for office applications, accounting platforms, administration, web-based business systems and everyday multitasking.

The desktop includes 8GB DDR5 SO-DIMM memory and provides two DDR5 SO-DIMM slots with support for up to 64GB total system memory.

A 512GB M.2 2280 NVMe PCIe 4.0 SSD provides fast startup, application loading and file access. The chassis also provides two M.2 2280 storage connectors, two SATA 6Gbps ports and a 3.5-inch drive bay for compatible storage upgrades.

Integrated Intel Graphics support compatible monitors through HDMI 1.4 and DisplayPort 1.4 connections.

Front connectivity includes USB-C, USB-A and a combination audio jack. Rear connectivity includes four USB-A ports, Gigabit Ethernet, HDMI, DisplayPort and separate audio connections.

Dual-band Wi-Fi 6 and Bluetooth 5.4 provide wireless connectivity, while Gigabit Ethernet supports reliable wired business networking.

Security features include a discrete TPM 2.0 module, HDD user-password protection and a Kensington Security Slot.

The ExpertCenter P500SV is supplied with Windows 11 Pro, a wired USB keyboard and a wired optical mouse.

Key Features

• Intel Core 5 Processor 210H

• 8 processor cores

• 12 processing threads

• Speeds up to 4.8GHz

• 12MB processor cache

• Integrated Intel Graphics

• 8GB DDR5 SO-DIMM memory

• Two DDR5 SO-DIMM slots

• Up to 64GB supported memory

• 512GB M.2 2280 NVMe PCIe 4.0 SSD

• Two M.2 2280 storage connectors

• One 3.5-inch drive bay

• Two SATA 6Gbps ports

• PCIe 4.0 expansion

• Windows 11 Pro

• Dual-band Wi-Fi 6

• Bluetooth 5.4

• Gigabit Ethernet

• HDMI 1.4

• DisplayPort 1.4

• Front USB-C connectivity

• Front and rear USB-A connectivity

• High Definition 7.1-channel audio

• Discrete TPM 2.0

• HDD user-password protection

• Kensington Security Slot

• 180W 80 Plus Bronze power supply

• Compact 8.6-litre chassis

• Air cooling

• Wired USB keyboard included

• Wired USB optical mouse included

• 3-year on-site next-business-day warranty

Specifications

Business Performance

The Intel Core 5 Processor 210H provides:

• 8 processor cores

• 12 processing threads

• 12MB cache

• 2.2GHz processor frequency

• Speeds up to 4.8GHz

This configuration is suitable for general business productivity, Microsoft 365 applications, administration, accounting platforms, web-based systems and everyday multitasking.

Memory and Storage

The ExpertCenter P500SV includes:

• 8GB DDR5 SO-DIMM memory

• Two DDR5 SO-DIMM slots

• Support for up to 64GB total system memory

• 512GB M.2 2280 NVMe PCIe 4.0 SSD

• Two M.2 2280 storage connectors

• One 3.5-inch drive bay

• Two SATA 6Gbps ports

The expansion connector totals include connectors used by the supplied configuration.

Connectivity

Front connections include:

• 1 x USB 3.2 Gen 1 Type-C

• 2 x USB 3.2 Gen 1 Type-A

• 1 x 3.5mm combination audio jack

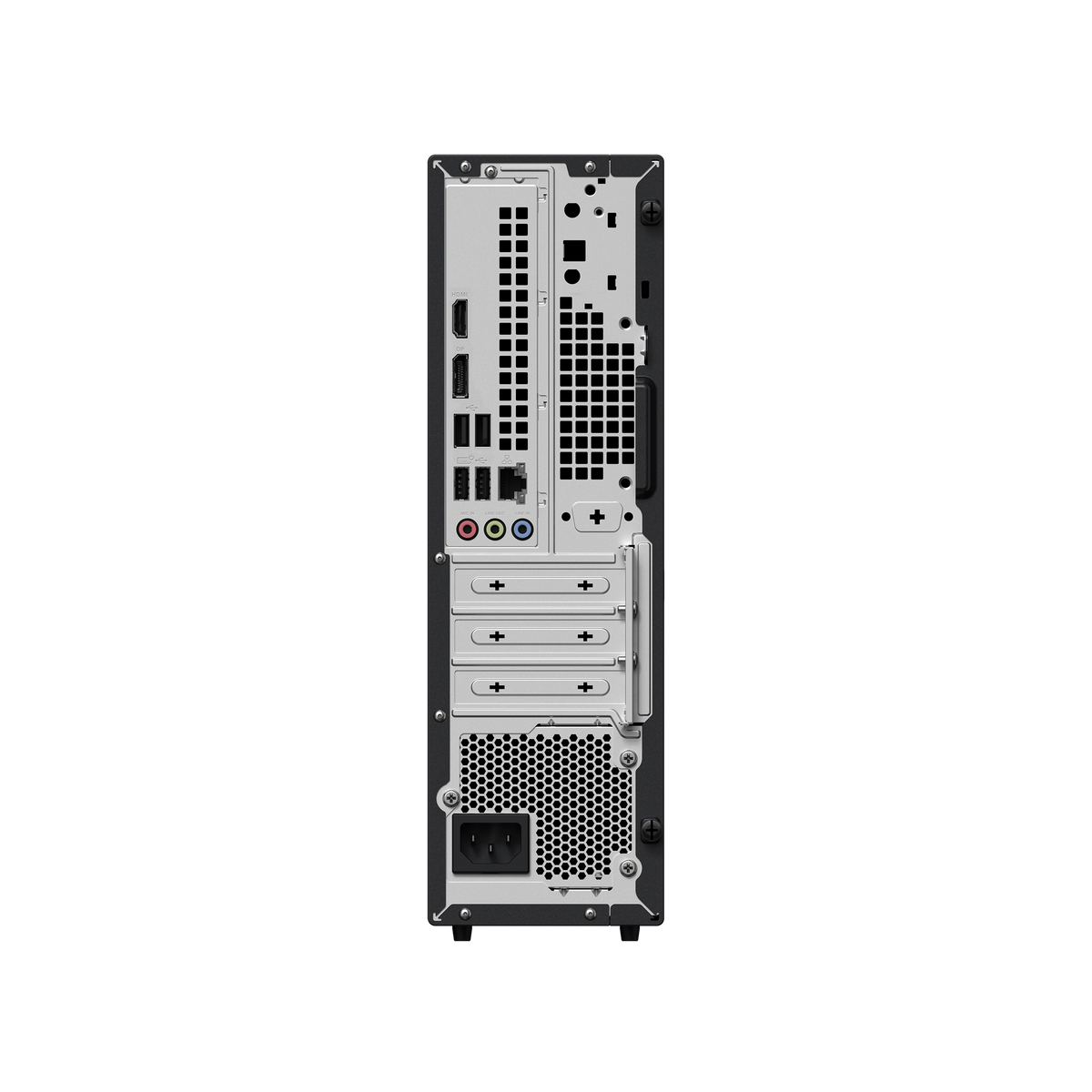

Rear connections include:

• 4 x USB 2.0 Type-A

• 1 x HDMI 1.4

• 1 x DisplayPort 1.4

• 1 x RJ45 Gigabit Ethernet

• Microphone input

• Line output

• Line input

• 1 x Kensington Security Slot

Wireless connectivity includes:

• Dual-band Wi-Fi 6

• Bluetooth 5.4

Security

Business security features include:

• Discrete TPM 2.0

• HDD user-password protection

• Kensington Security Slot

• Windows 11 Pro security and management features

Expansion and Upgrades

The P500SV platform provides:

• Two DDR5 SO-DIMM slots

• Memory support up to 64GB

• Two M.2 2280 storage connectors

• One 3.5-inch drive bay

• Two SATA 6Gbps ports

• One PCIe 4.0 x16 slot operating at PCIe 4.0 x8

• One M.2 connector for the wireless card

Compatibility

The ASUS ExpertCenter P500SV supports compatible business monitors and peripherals through HDMI, DisplayPort, USB-A and USB-C connectivity.

Compatible memory and storage upgrades must meet the following requirements:

• DDR5 SO-DIMM memory

• Maximum total memory capacity of 64GB

• M.2 2280 PCIe NVMe SSD storage

• Compatible 3.5-inch SATA storage devices

• Compatible PCIe expansion cards

The listed expansion connectors include connectors used by the supplied hardware.

Check the physical dimensions, interface and power requirements of upgrade components before installation.

Video output is provided through HDMI 1.4 and DisplayPort 1.4.

A monitor is not included.

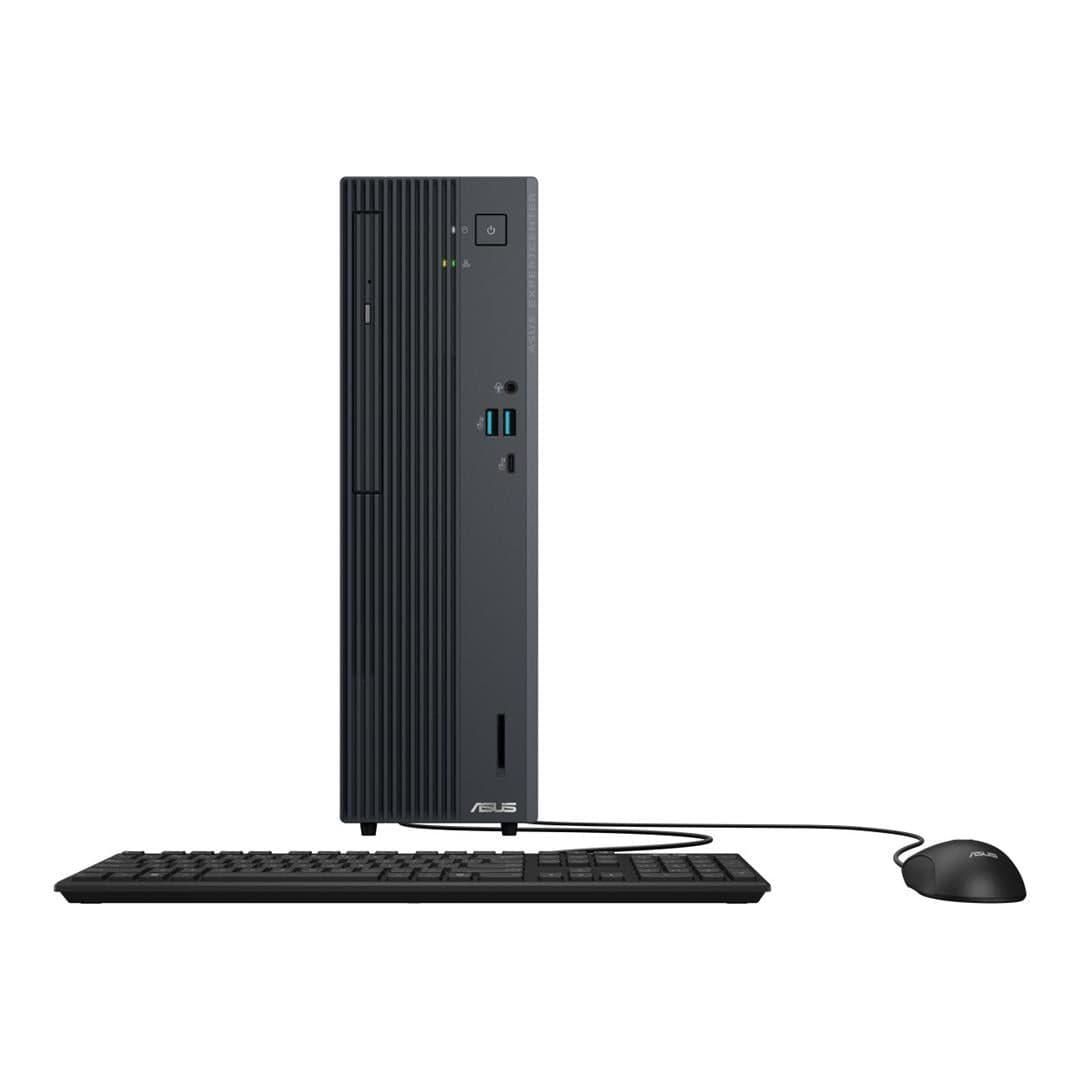

What’s in the Box

• ASUS ExpertCenter P500SV Small Form Factor Desktop PC

• Wired USB Keyboard

• Wired USB Optical Mouse

• 3.5-inch HDD Assembly Kit

Warranty

3-Year ASUS On-Site Next Business Day Warranty

Sustainability

The ASUS ExpertCenter P500SV carries the following environmental certifications and compliance listings:

• EPEAT Silver

• ENERGY STAR 9.0

• REACH

• RoHS

• Front bezel manufactured using 65% post-consumer recycled plastic

• I/O bezel manufactured using 65% post-consumer recycled plastic
