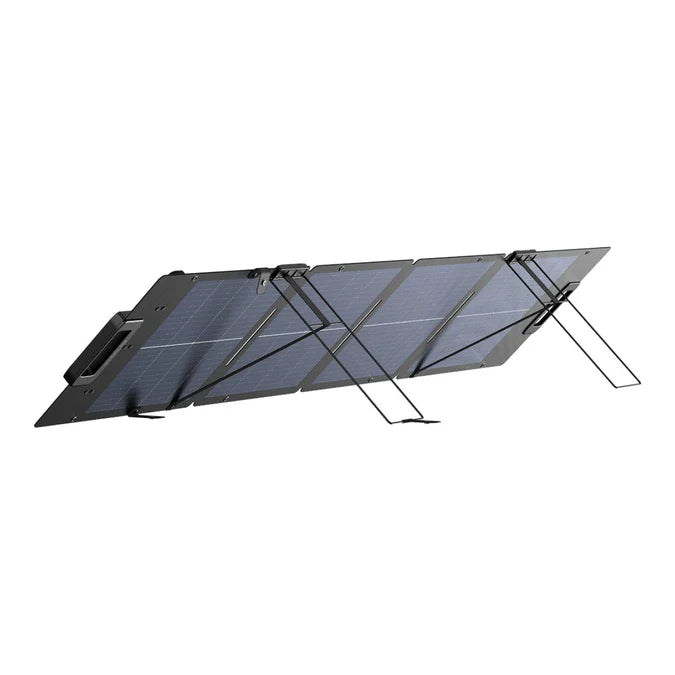

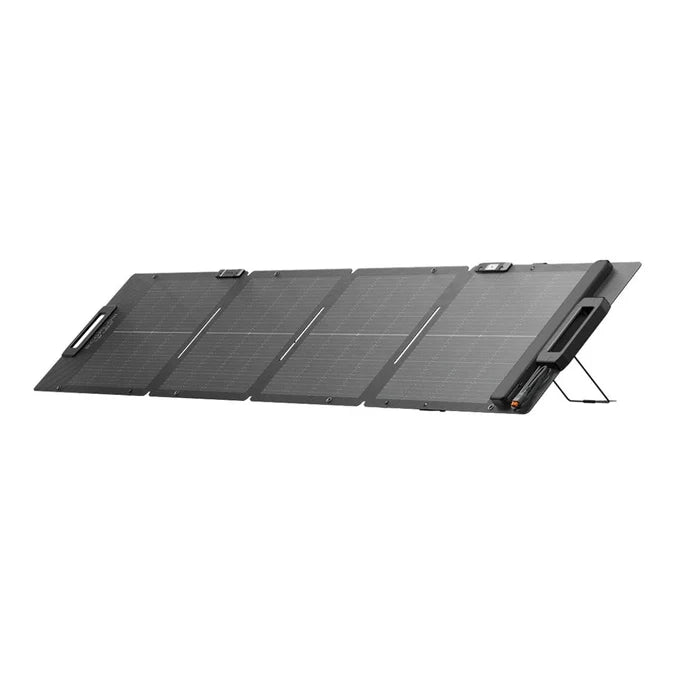

EcoFlow 110W Lightweight Portable Bifacial Solar Panel with Stand

The EcoFlow 110W Lightweight Portable Bifacial Solar Panel is a foldable solar charging solution designed for compatible EcoFlow portable power stations and supported solar-input devices.

Featuring N-Type TOPCon monocrystalline solar cells, up to 25% conversion efficiency, a bifacial design, an integrated 2.5m XT60I-F cable, an adjustable 30° to 60° support stand, an integrated solar angle guide, and IP68 water and dust resistance, the panel is suitable for camping, travel, RV use, emergency charging, and portable off-grid power setups.

The panel provides a rated output of 110W under STC conditions and can reach up to 122W under EcoFlow’s specified BNPI bifacial test conditions.

Key Features

• 110W lightweight portable solar panel
• Bifacial design captures direct sunlight from the front and ambient reflected light from the rear
• Rated output of 110W ±5W under STC conditions
• Output of up to 122W ±5W under BNPI test conditions
• N-Type TOPCon monocrystalline silicon cells
• Up to 25% solar conversion efficiency
• Built-in 2.5m XT60I-F cable
• Integrated folding support stand
• Adjustable stand angle from 30° to 60°
• Integrated solar angle guide helps improve panel positioning
• IP68-rated protection against water and dust
• Lightweight design at approximately 3.3kg ±0.3kg
• Foldable construction for easier transport and storage
• Suitable for camping, travel, RV use, backup charging, and off-grid applications
• Designed for compatible EcoFlow portable power stations and supported solar-input devices
• Backed by a 5-year limited warranty

Product Overview

The EcoFlow 110W Lightweight Portable Bifacial Solar Panel is designed to provide portable renewable charging for compatible power stations and solar-input devices.

Its bifacial design uses a primary front-facing solar surface together with a rear-facing surface that can capture reflected ambient light. Under EcoFlow’s specified BNPI test conditions, the panel can produce up to 122W ±5W, compared with its standard 110W ±5W STC rating.

The panel uses N-Type TOPCon monocrystalline solar cells and offers up to 25% conversion efficiency, helping convert available sunlight into usable charging power efficiently under suitable conditions.

A built-in 2.5m XT60I-F cable allows direct connection to compatible EcoFlow portable power stations without requiring a separate standard charging cable. Compatibility must still be confirmed against the voltage, current, connector, and solar-input limits of the connected device.

The integrated folding stand adjusts from 30° to 60°, allowing the panel angle to be changed according to the sun’s position and installation environment. An integrated solar angle guide helps users position the panel so sunlight reaches the surface more directly.

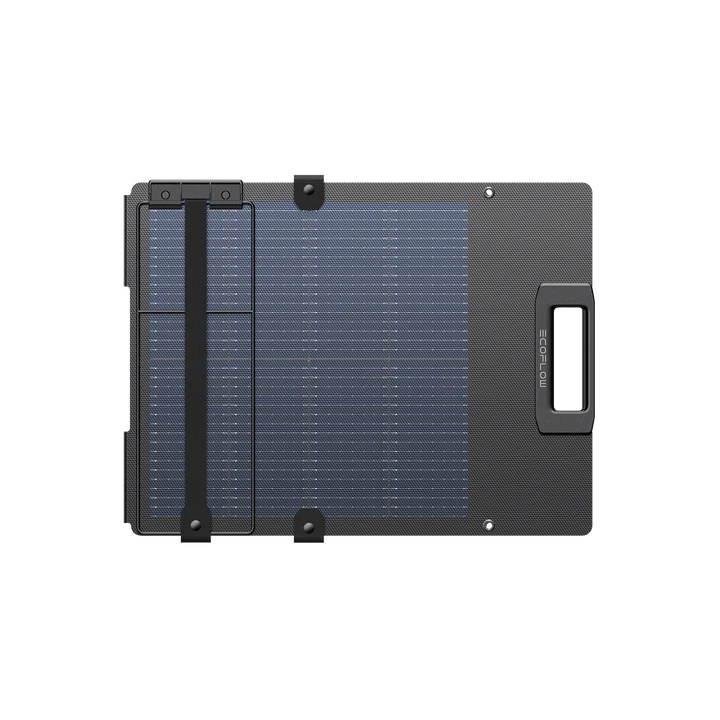

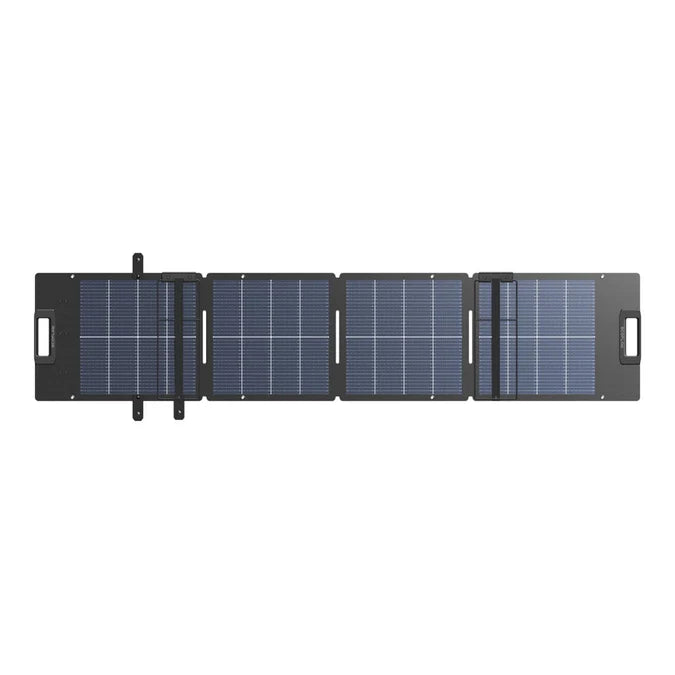

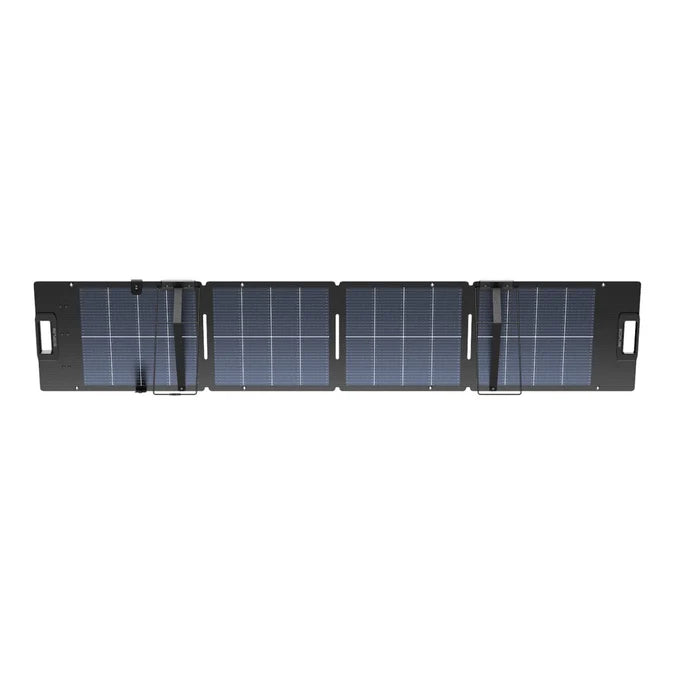

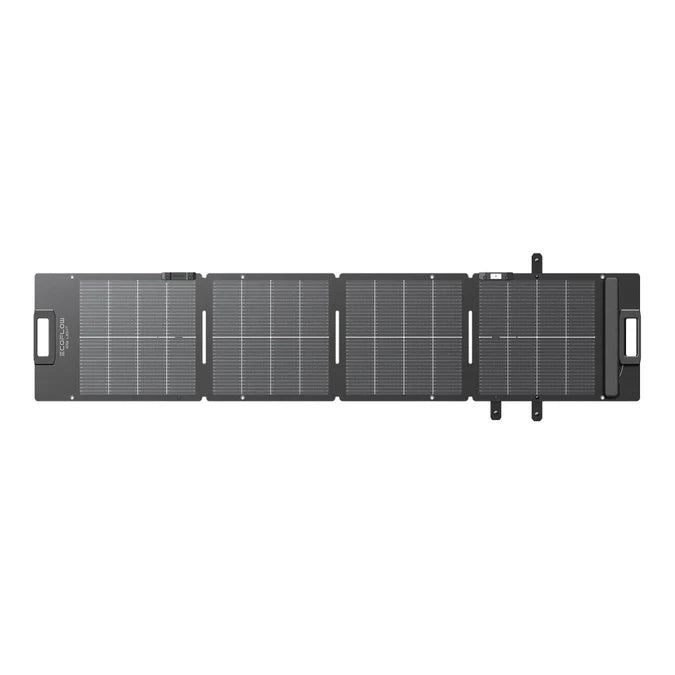

When unfolded, the panel measures approximately 1944mm × 413mm × 26mm. It folds down to approximately 544mm × 413mm × 36mm, making it easier to transport and store between uses.

With an IP68 rating, the panel is designed to resist water and dust during outdoor use. It remains a portable charging product and should be stored correctly when not in use.

Solar output varies according to sunlight intensity, panel angle, reflected rear-side light, cloud cover, temperature, shading, surface cleanliness, cable losses, and the connected power station’s charging limits.

Product Specifications

• Product Type: Portable Bifacial Solar Panel
• Rated Power under STC: 110W ±5W
• Bifacial Output under BNPI: Up to 122W ±5W
• Solar Cell Type: N-Type TOPCon monocrystalline silicon
• Conversion Efficiency: Up to 25%
• Connector Type: XT60I-F
• Cable Type: Integrated solar charging cable
• Cable Length: 2.5m
• Open-Circuit Voltage, Voc: 23.5V
• Voltage at Maximum Power, Vmp: 19.5V
• Short-Circuit Current under STC, Isc: 6.1A
• Current at Maximum Power under STC, Imp: 5.9A
• Short-Circuit Current under BNPI: 6.8A
• Current at Maximum Power under BNPI: 6.5A
• Stand Type: Integrated folding support stand
• Stand Adjustment: 30° to 60°
• Solar Angle Guide: Yes
• Water and Dust Resistance: IP68
• Weight: Approximately 3.3kg ±0.3kg
• Warranty: 5-year limited warranty

Dimensions

• Unfolded Dimensions: 1944mm × 413mm × 26mm
• Folded Dimensions: 544mm × 413mm × 36mm

Bifacial Output Information

The front surface captures direct sunlight, while the rear surface can capture reflected ambient light from the surrounding environment.

The panel is rated at 110W ±5W under Standard Test Conditions, STC.

Output of up to 122W ±5W applies under EcoFlow’s specified BNPI bifacial test conditions. This is not a guaranteed continuous real-world output.

Rear-side performance depends on factors such as:

• Surface reflectivity
• Height and angle of the panel
• Sunlight strength
• Rear-side shading
• Weather conditions
• Installation environment

Light-coloured or reflective surfaces may provide better rear-side energy capture than dark or non-reflective surfaces.

Compatibility

The panel is designed for compatible EcoFlow portable power stations and supported third-party solar charging devices that accept:

• The panel’s voltage and current range
• An XT60I-F connection or suitable compatible adapter
• Solar input from a panel rated at approximately 110W
• An open-circuit voltage of approximately 23.5V
• Current levels within the connected device’s solar-input limits

Important Compatibility Note

Please confirm your power station’s solar-input voltage, current, power, and connector requirements before ordering.

A matching connector does not automatically guarantee electrical compatibility.

Do not connect the panel if its open-circuit voltage, short-circuit current, or maximum output exceeds the limits specified by the connected power station or solar charge controller.

Charging performance may be restricted by the connected device even when the panel is capable of producing more power.

Solar Performance Note

Actual solar output will normally be lower than the maximum laboratory-rated output and will vary according to:

• Sunlight intensity
• Panel orientation and tilt angle
• Reflected light reaching the rear surface
• Cloud cover and weather conditions
• Time of day and season
• Temperature
• Partial shading
• Dust or dirt on the panel
• Cable and conversion losses
• Connected device charging limits

For improved performance, position the panel in direct sunlight and use the integrated angle guide to keep sunlight as close as possible to a 90° angle to the front surface.

Installation and Use Note

This product is intended primarily for temporary portable deployment.

For prolonged hanging, permanent outdoor mounting, or vehicle-mounted installation, EcoFlow recommends using a suitable rigid solar panel system.

The lightweight portable panel should not be permanently suspended, mounted to a moving vehicle, or installed as a long-term fixed panel unless specifically approved by EcoFlow.

Avoid folding, crushing, piercing, or placing heavy objects on the solar cells.

IP68 Protection Note

The IP68 rating provides protection against water and dust under specified test conditions.

The panel should still be handled as an electrical product:

• Keep connectors clean and dry before connection
• Do not connect wet or contaminated plugs
• Avoid prolonged unnecessary exposure to harsh conditions
• Allow the panel and connectors to dry fully before storage
• Do not use damaged cables, connectors, or panel surfaces

Recommended Use Cases

• Charging compatible EcoFlow portable power stations
• Camping and outdoor activities
• Caravan and RV travel
• Road trips
• Emergency backup charging
• Off-grid portable power setups
• Remote work locations
• Photography and content-creation equipment
• Outdoor events
• Temporary renewable charging installations

Performance and Reliability Features

• N-Type TOPCon technology supports high conversion efficiency
• Bifacial construction captures energy from direct and reflected light
• Up to 25% conversion efficiency supports efficient portable charging
• Integrated XT60I-F cable simplifies connection and storage
• Adjustable 30° to 60° stand supports different sunlight angles
• Integrated solar angle guide assists with panel positioning
• Foldable lightweight design supports transport and compact storage
• IP68 protection supports outdoor use in dusty and wet environments
• High-temperature-resistant design supports solar generation in demanding outdoor conditions
• 5-year limited warranty provides extended manufacturer support

What’s in the Box

• 1 × EcoFlow 110W Lightweight Portable Bifacial Solar Panel
• 1 × Quick Start Guide
• 1 × Safety Instructions

The support stand and 2.5m XT60I-F charging cable are integrated into the solar panel.
