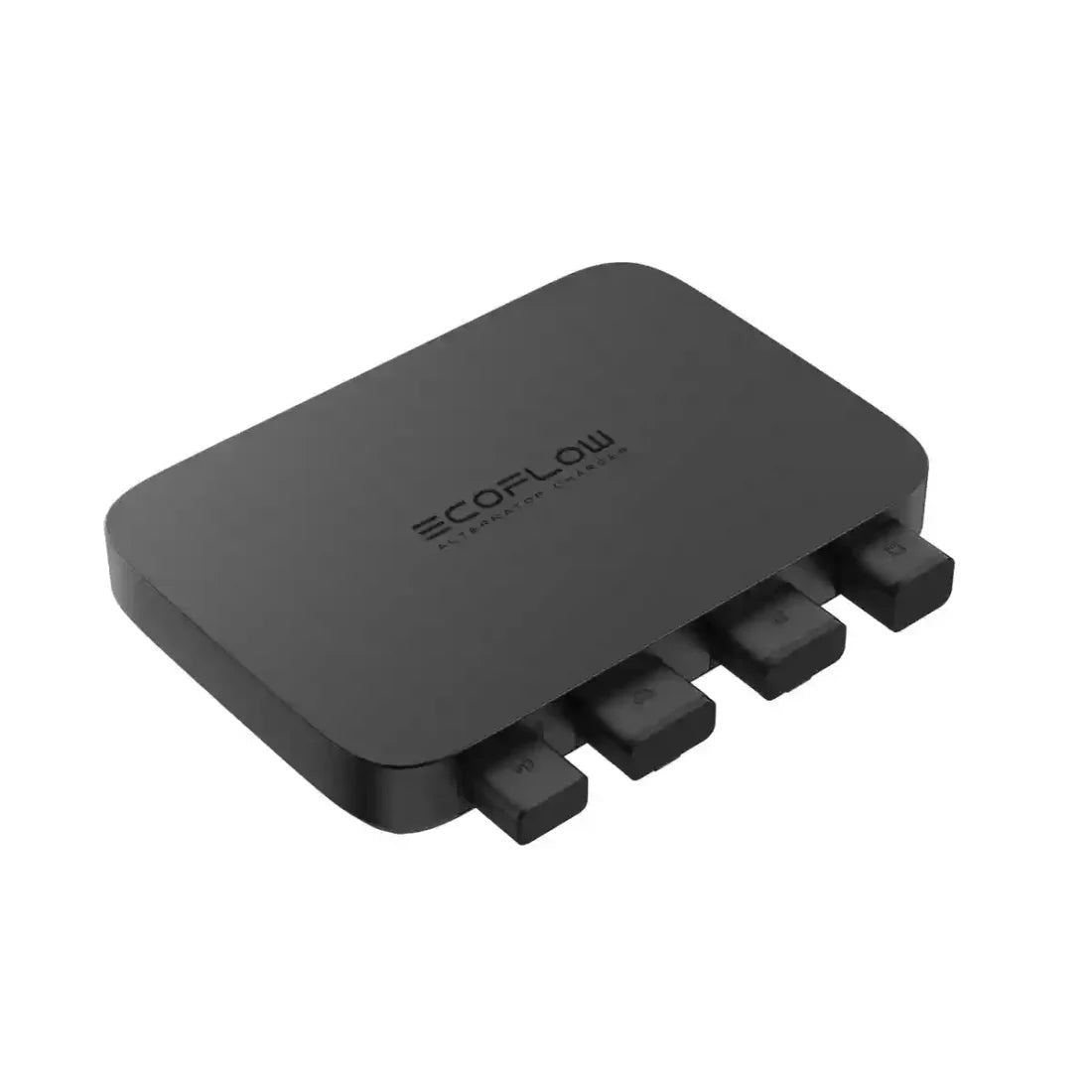

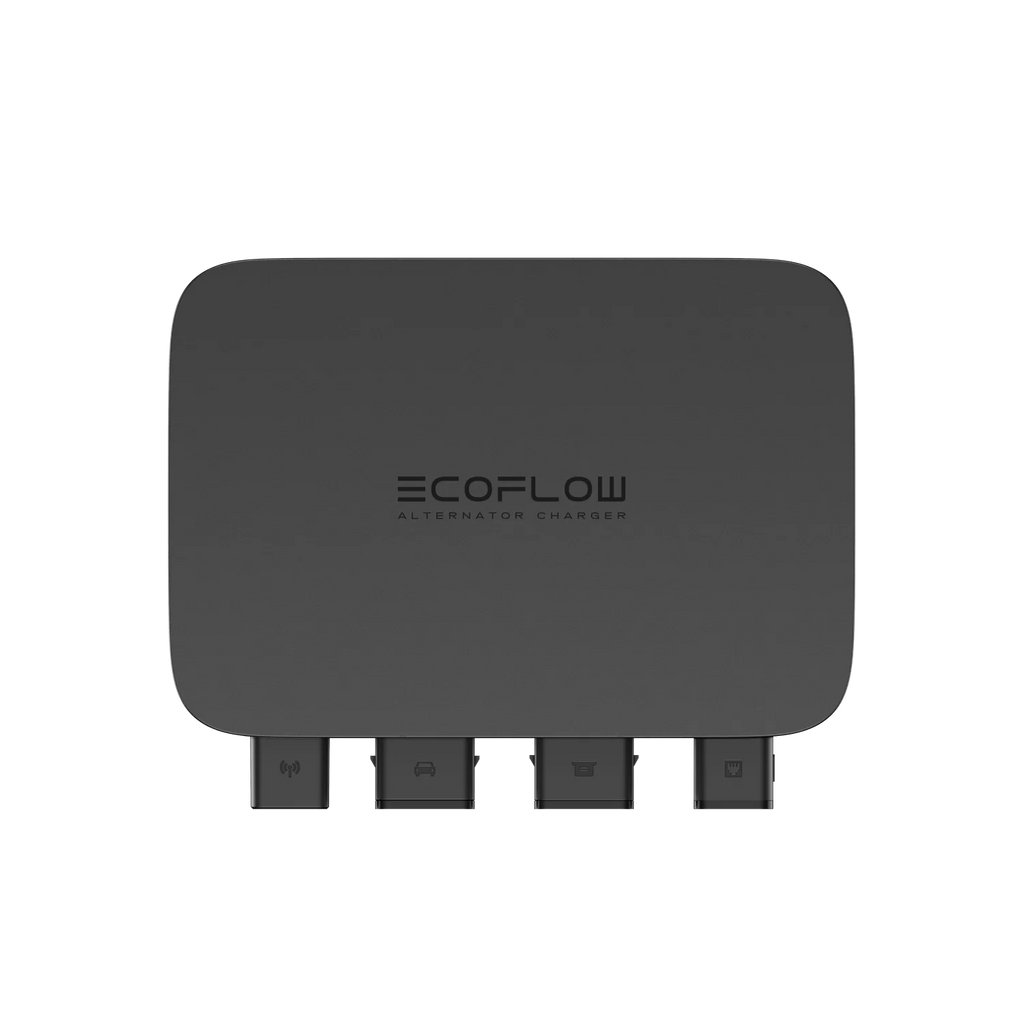

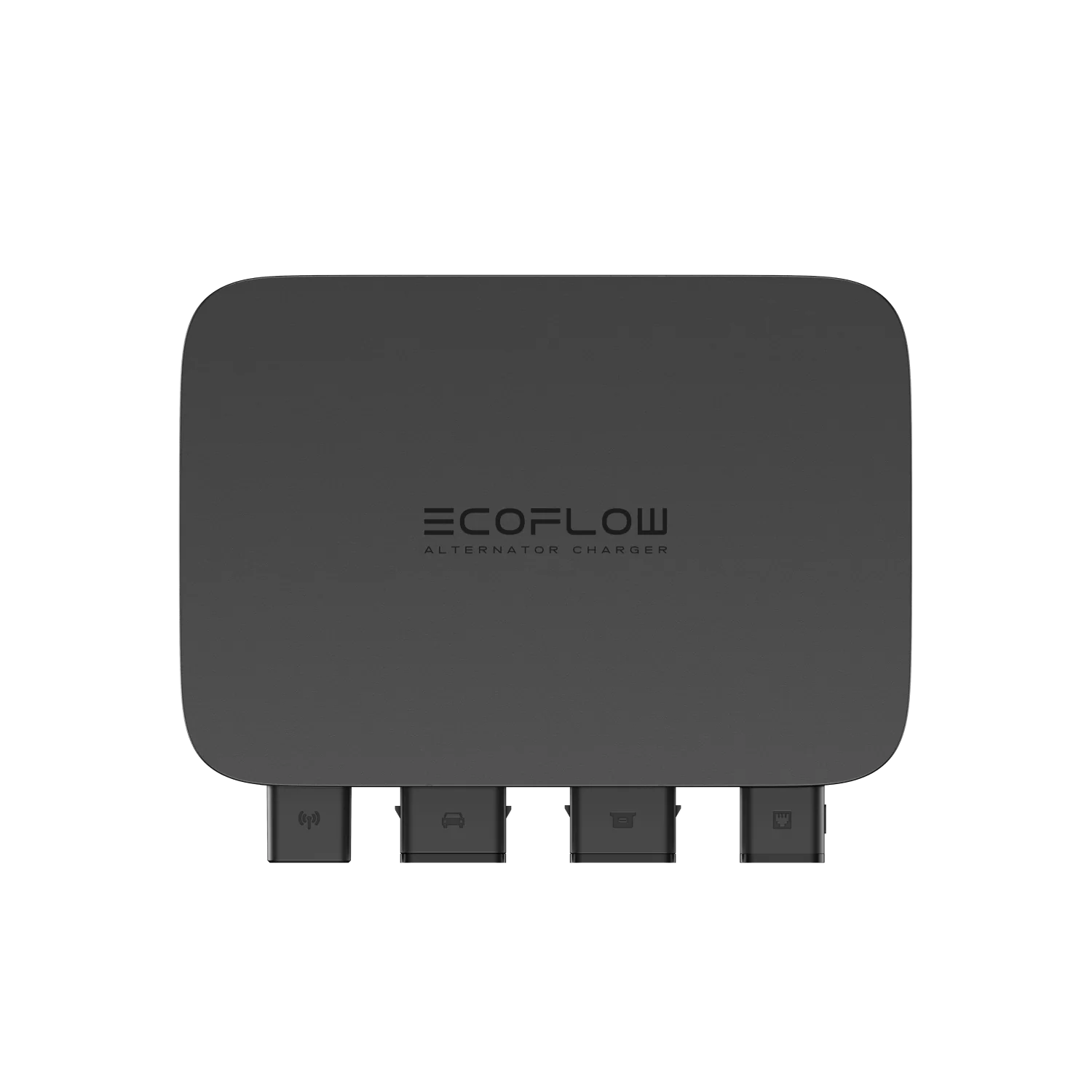

EcoFlow 800W Alternator Charger

The EcoFlow 800W Alternator Charger converts surplus electrical power generated by a compatible vehicle alternator into fast charging power for selected EcoFlow portable power stations.

Delivering up to 800W charging output, the charger can add approximately 1kWh of energy in around 1.3 hours under suitable vehicle and operating conditions.

It supports three operating modes, including portable power station charging, reverse charging of a compatible vehicle or RV battery, and lower-power battery maintenance.

Designed for compatible 12V and 24V vehicle electrical systems, it is suitable for overlanding, caravan travel, camping, remote work, mobile power systems and off-grid applications.

Key Features

• Up to 800W alternator charging output
• Adds approximately 1kWh in 1.3 hours under suitable conditions
• Up to eight times faster than traditional vehicle accessory-socket charging
• Three operating modes:
• Charging Mode
• Reverse Charging Mode
• Battery Maintenance Mode
• Suitable for compatible 12V and 24V vehicle systems
• Designed for selected EcoFlow DELTA Series products
• Includes a 5m vehicle input cable
• Includes a 1m XT150 output cable
• Wi-Fi and Bluetooth connectivity
• EcoFlow App monitoring and control
• Gallium Nitride power technology
• Reverse-polarity protection
• Overcurrent protection
• Short-circuit protection
• Overvoltage and undervoltage protection
• Vehicle starter-battery protection
• Suitable for selected SUVs, 4×4 vehicles, pickups, caravans, vans and RVs
• Backed by a 2-year limited warranty

Product Overview

The EcoFlow 800W Alternator Charger provides a fast and efficient way to charge a compatible EcoFlow portable power station while driving.

Traditional vehicle accessory sockets normally provide relatively low charging power. The EcoFlow Alternator Charger connects to the vehicle starter battery and uses surplus power generated by the alternator while the engine is running.

Its built-in DC-to-DC power converter regulates the available energy and can supply up to 800W to a compatible EcoFlow power station.

Under suitable operating conditions, the charger can add approximately 1kWh of stored energy in around 1.3 hours.

Actual charging output depends on the vehicle alternator’s available surplus capacity, vehicle voltage, engine speed, connected electrical systems, charger settings and the power station’s supported input limits.

The charger also provides reverse-charging and battery-maintenance functions. These modes allow a compatible EcoFlow power station to supply controlled power to a supported vehicle starter battery or RV house battery when the correct cables and compatible equipment are used.

Wi-Fi and Bluetooth connectivity allow users to monitor and manage selected functions through the EcoFlow App.

Three Operating Modes

Charging Mode

Charging Mode uses excess power generated by the vehicle alternator to charge a compatible EcoFlow portable power station while the engine is running.

• Input Voltage: 11V to 31V
• Maximum Input Current: 76A
• Output Voltage: 40V to 60V
• Maximum Output: 800W

Reverse Charging Mode

Reverse Charging Mode allows a compatible EcoFlow portable power station to supply power back to a supported vehicle starter battery or RV house battery.

• Input Voltage: 40V to 60V
• Maximum Input Current: 21A
• Output Voltage: 13.8V or 27.6V
• Maximum Output: 800W

Reverse charging may assist with restoring energy to a low vehicle or house battery.

The Alternator Charger should not be treated as a conventional direct-cranking jump starter.

Battery Maintenance Mode

Battery Maintenance Mode provides lower-power charging to help maintain the voltage of a compatible vehicle starter battery or RV house battery.

• Input Voltage: 40V to 60V
• Maximum Input Current: 3A
• Output Voltage: 13.8V or 27.6V
• Maximum Output: 100W

Product Specifications

• Product Name: EcoFlow 800W Alternator Charger
• Product Type: Vehicle DC-to-DC Alternator Charger
• Maximum Charging Output: 800W
• Vehicle System Compatibility: Compatible 12V and 24V systems
• Charging Input: 11V to 31V, 76A maximum
• Charging Output: 40V to 60V, 800W maximum
• Reverse-Charging Input: 40V to 60V, 21A maximum
• Reverse-Charging Output: 13.8V or 27.6V, 800W maximum
• Battery-Maintenance Input: 40V to 60V, 3A maximum
• Battery-Maintenance Output: 13.8V or 27.6V, 100W maximum
• Fuse Rating: 125A
• Wi-Fi: Supported
• Wi-Fi Frequency: 2412MHz to 2472MHz
• Bluetooth: Supported
• Bluetooth Frequency: 2402MHz to 2480MHz
• Net Weight: Approximately 2.3kg
• Dimensions: 242mm × 194mm × 35mm
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C
• Operating Humidity: Up to 95%
• Storage Humidity: Up to 95%
• Warranty: 2-year limited warranty

Direct XT150 Compatibility

The standard EcoFlow 800W Alternator Charger kit includes a 1m XT150 output cable.

It is designed for compatible EcoFlow products that include an XT150 extra-battery port.

Compatible products may include:

• EcoFlow DELTA 2
• EcoFlow DELTA 2 Smart Extra Battery
• EcoFlow DELTA 2 Max
• EcoFlow DELTA 2 Max Smart Extra Battery
• EcoFlow DELTA Max 2000
• EcoFlow DELTA Pro when used with the required separate adapter

Estimated Charging Times

Indicative charging times at full 800W output include:

• EcoFlow DELTA 2, 1024Wh: Approximately 1.3 hours
• DELTA 2 Smart Extra Battery, 1024Wh: Approximately 1.3 hours
• EcoFlow DELTA 2 Max, 2048Wh: Approximately 2.6 hours
• DELTA 2 Max Smart Extra Battery, 2048Wh: Approximately 2.6 hours
• EcoFlow DELTA Max 2000, 2016Wh: Approximately 2.6 hours
• EcoFlow DELTA Pro, 3600Wh: Approximately 4.8 hours

Charging times are estimates based on maximum output and suitable operating conditions.

Actual charging time may vary according to vehicle alternator capacity, vehicle electrical load, engine speed, temperature, cable installation, charging settings and the connected power station.

Important DELTA Pro Compatibility Note

The included XT150 output cable does not connect directly to the EcoFlow DELTA Pro.

Connecting the Alternator Charger to a DELTA Pro requires the separately sold:

EcoFlow DELTA Pro to Smart Generator Adapter

Confirm that the required adapter is included in any bundle before ordering.

Compatibility with Other EcoFlow Products

Some newer EcoFlow portable power stations may require a different model-specific output cable instead of the included XT150 cable.

Before ordering, confirm:

• The portable power station charging-port type
• Whether the power station supports alternator charging
• The required EcoFlow output cable or adapter
• The portable power station’s maximum accepted input
• Whether reverse charging is supported
• Whether battery-maintenance mode is supported

Products without a compatible XT150 port may require a separately sold cable or adapter.

Vehicle Compatibility

The EcoFlow 800W Alternator Charger is designed for suitable vehicles fitted with a compatible 12V or 24V starter-battery and alternator system.

Potential applications include:

• SUVs
• 4×4 vehicles
• Pickup trucks
• Vans
• Caravans
• Motorhomes
• RVs
• Overlanding vehicles
• Mobile work vehicles
• Vehicles with compatible auxiliary or house-battery systems

Petrol and diesel vehicles fitted with conventional alternators are generally the most suitable.

Some vehicles with smart alternators, advanced battery-management systems, hybrid systems or specialised electrical systems may produce reduced charging performance or require additional configuration.

Pure electric vehicles do not use a conventional engine-driven alternator and should not be assumed compatible.

Important Vehicle Compatibility Note

Before installation, confirm:

• Whether the vehicle uses a 12V or 24V electrical system
• Alternator type and rated output
• Available surplus alternator capacity
• Starter-battery type and condition
• Whether the vehicle uses a smart alternator
• Suitable cable-routing path
• Suitable mounting position
• Vehicle-manufacturer warranty requirements

The charger monitors vehicle voltage and normally begins charging only when suitable voltage conditions are detected.

Actual charging output may be lower than 800W if the alternator does not have sufficient surplus capacity.

Installation Requirements

The EcoFlow 800W Alternator Charger connects to the vehicle starter battery using the supplied fused input cable.

A typical installation includes:

• Connecting the supplied fuse cable to the vehicle input cable
• Connecting the fused positive cable to the vehicle starter battery
• Connecting the negative cable to an approved chassis ground or battery terminal
• Routing the input cable safely through the vehicle
• Connecting the vehicle input cable to the Alternator Charger
• Connecting the supplied XT150 output cable to the compatible EcoFlow product
• Securing the Alternator Charger in a suitable ventilated location

The charger should be installed away from:

• Excessive engine heat
• Exhaust systems
• Fuel lines
• Moving mechanical parts
• Sharp edges
• Areas where water may collect
• Airbags and vehicle safety systems
• Areas where luggage or equipment may damage the cables

Professional Installation Recommended

Professional installation by a competent vehicle electrician or installer is recommended.

Incorrect installation may result in:

• Cable overheating
• Electrical short circuits
• Blown fuses
• Damage to the vehicle electrical system
• Damage to the charger
• Damage to the connected power station
• Fire or personal injury
• Vehicle-warranty complications

Always follow the official EcoFlow installation instructions and the vehicle manufacturer’s electrical requirements.

Vehicle Warranty Note

Installation involves connecting directly to the vehicle starter battery and routing a high-current cable through the vehicle.

Before installation, confirm any warranty implications with the vehicle manufacturer, dealership or warranty provider.

Warranty conditions may differ between vehicle brands and installation providers.

EcoFlow App Control

The EcoFlow 800W Alternator Charger supports Wi-Fi and Bluetooth connectivity through the EcoFlow App.

Compatible app functions may include:

• Real-time charging-power monitoring
• Viewing input and output information
• Selecting supported charging modes
• Adjusting charging-power limits
• Monitoring operating status
• Viewing warnings and fault notifications
• Firmware updates
• Configuring selected starter-battery protection settings

Available functions may depend on the connected EcoFlow product, firmware version and EcoFlow App version.

Safety and Protection Features

The charger includes multiple electrical protection functions:

• Reverse-polarity protection
• Overcurrent protection
• Short-circuit protection
• Overvoltage protection
• Undervoltage protection
• Vehicle starter-battery protection
• Temperature monitoring
• Controlled DC-to-DC power conversion
• 125A fused battery connection

Gallium Nitride power technology supports efficient power conversion and thermal management.

Charging Performance Note

The stated 800W output is the maximum charging rate and is not guaranteed under every condition.

Actual charging performance depends on:

• Vehicle alternator capacity
• Available surplus alternator output
• Vehicle electrical load
• Engine speed
• Starter-battery voltage
• Smart-alternator behaviour
• Charger power settings
• Cable installation
• Ambient temperature
• Connected power station
• Power station battery temperature
• Power station battery level

Vehicle systems such as headlights, air conditioning, heated seats, entertainment equipment and other accessories may reduce the alternator power available for charging.

Recommended Use Cases

• 4×4 overlanding
• Caravan and RV travel
• Camping trips
• Mobile workstations
• Photography and production vehicles
• Remote work
• Emergency preparedness
• Charging between campsites
• Supporting portable refrigerators
• Extending off-grid travel time
• Mobile power systems
• Long-distance road trips
• Remote job sites
• Vehicle-based backup power systems

Performance and Reliability Features

• Up to 800W charging output supports rapid charging while driving
• Approximately 1kWh in 1.3 hours under suitable conditions
• Three operating modes support charging and battery maintenance
• 12V and 24V compatibility supports a wide range of suitable vehicles
• XT150 connection supports selected EcoFlow DELTA Series products
• Wi-Fi and Bluetooth control provide EcoFlow App monitoring
• Gallium Nitride technology supports efficient power conversion
• 125A fused connection supports high-current vehicle installation
• Multiple protection systems help protect the vehicle, charger and connected power station
• Included installation cables support compatible standard installations
• 2-year limited warranty provides manufacturer support

What’s in the Box

• 1 × EcoFlow 800W Alternator Charger
• 1 × Installation Board
• 1 × Cable Puller
• 1 × 5m Vehicle Input Cable
• 1 × 1m XT150 Output Cable
• 1 × Fuse Cable
• Mounting screws, nuts and installation hardware
• 1 × User Manual
• 1 × Warranty Card

The DELTA Pro to Smart Generator Adapter and other model-specific output cables are not included unless specifically stated as part of a bundle.

Warranty

The EcoFlow 800W Alternator Charger carries a 2-year limited warranty.

Warranty coverage is subject to:

• Valid proof of purchase
• Correct installation
• Use according to EcoFlow instructions
• No unauthorised modifications
• Use with suitable cables and accessories
• Compliance with EcoFlow’s official warranty conditions

Damage caused by incorrect wiring, unsuitable vehicle systems, reversed electrical connections, improper installation or unsupported accessories may not be covered.
