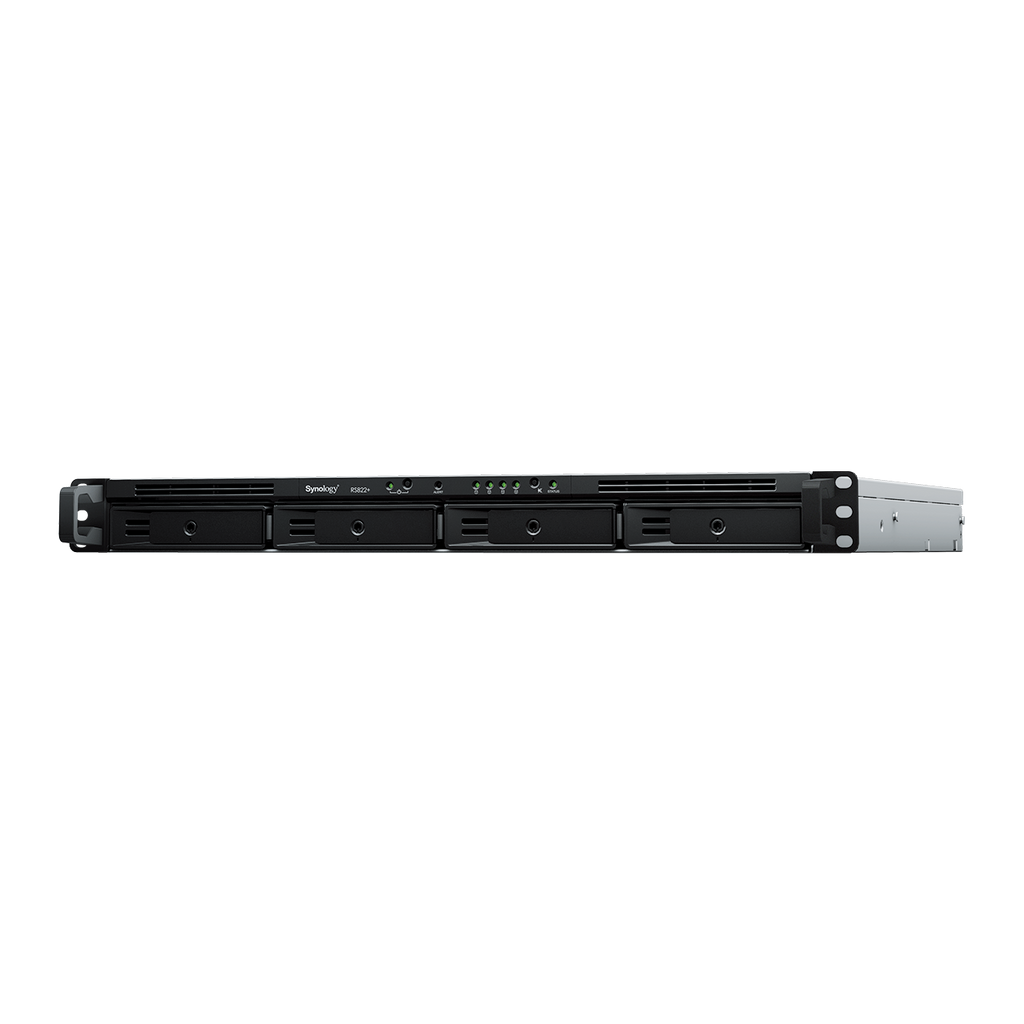

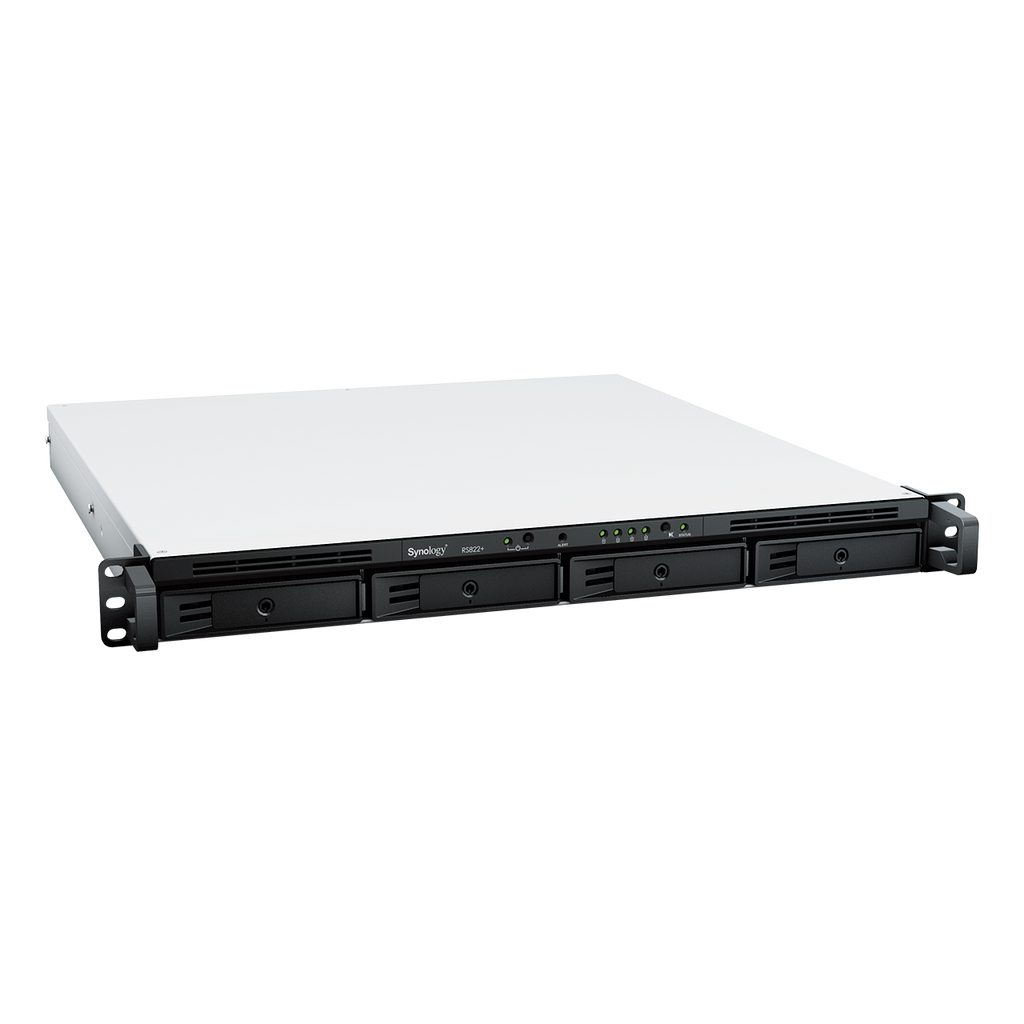

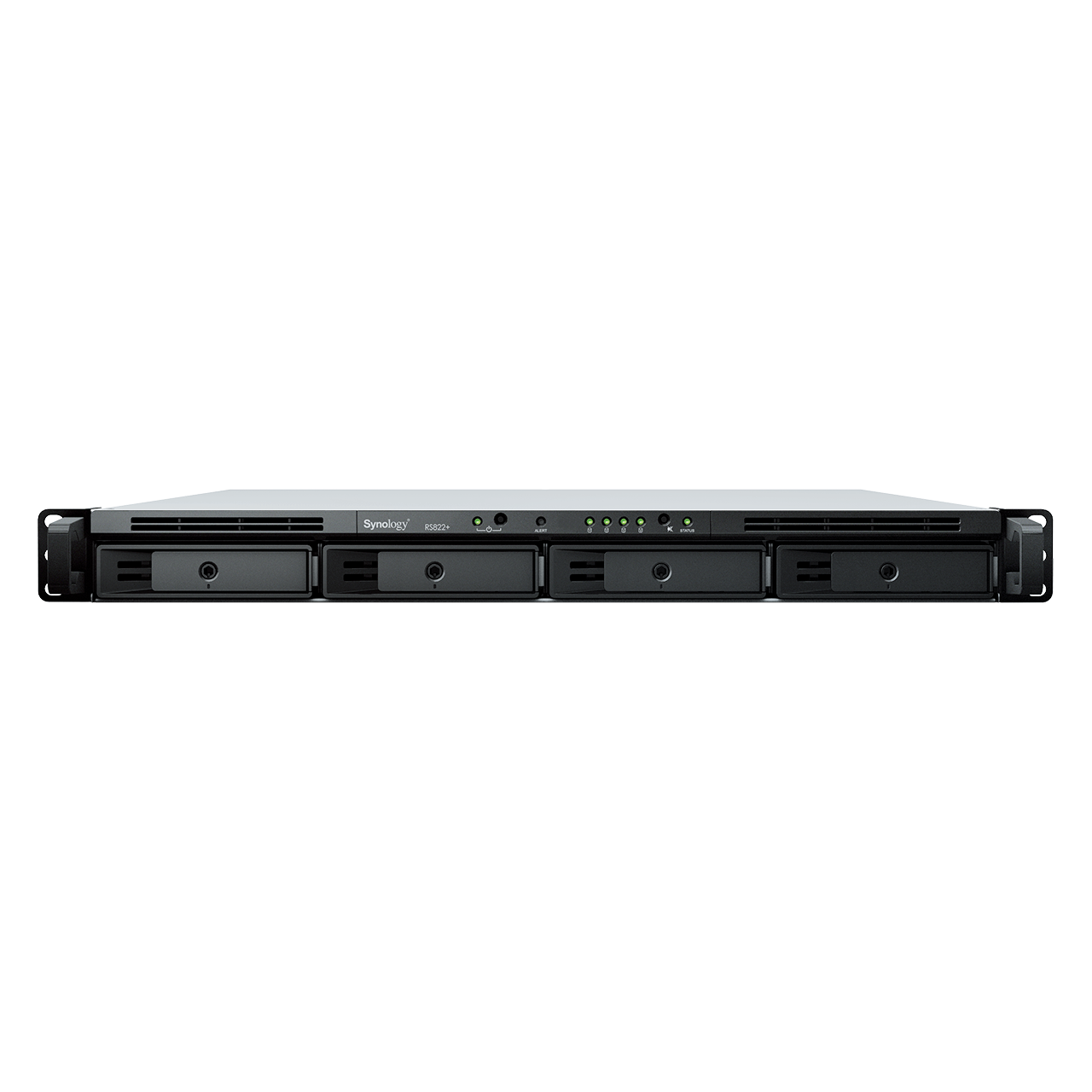

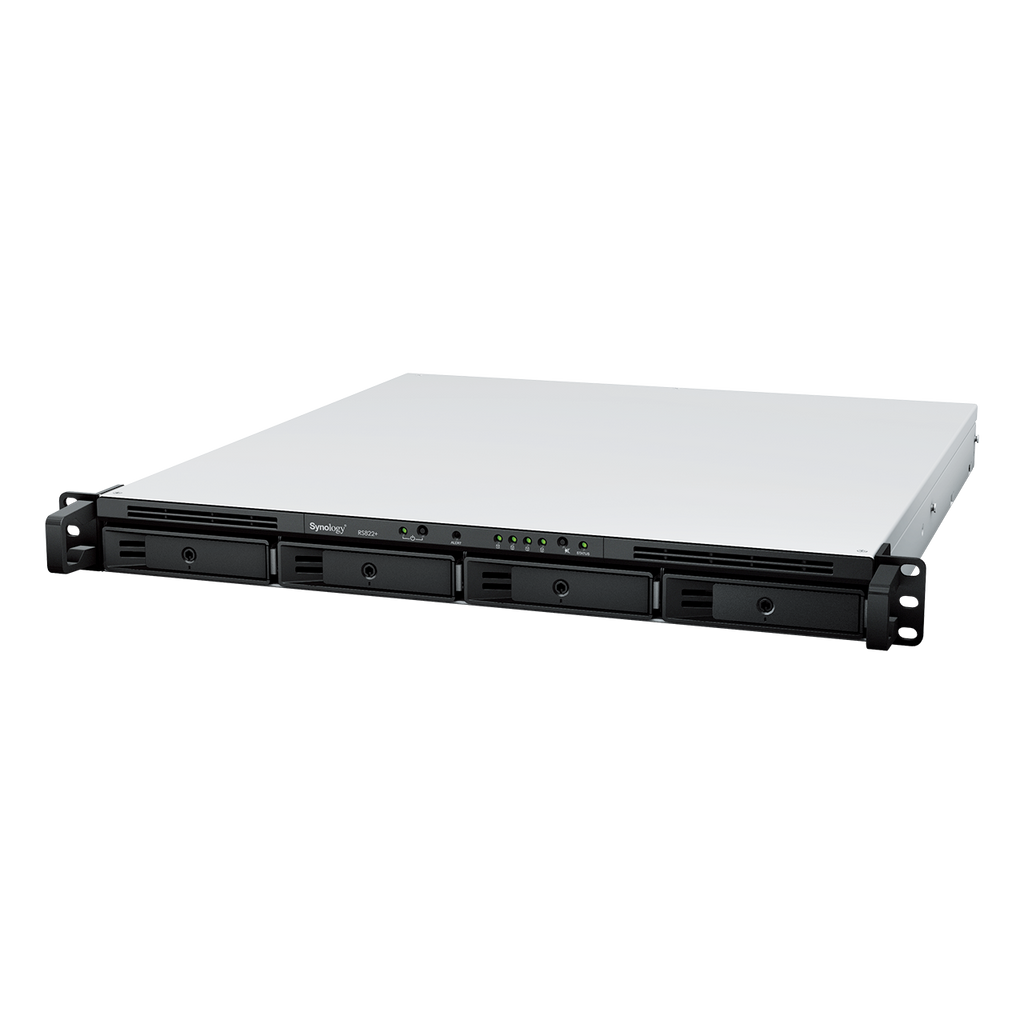

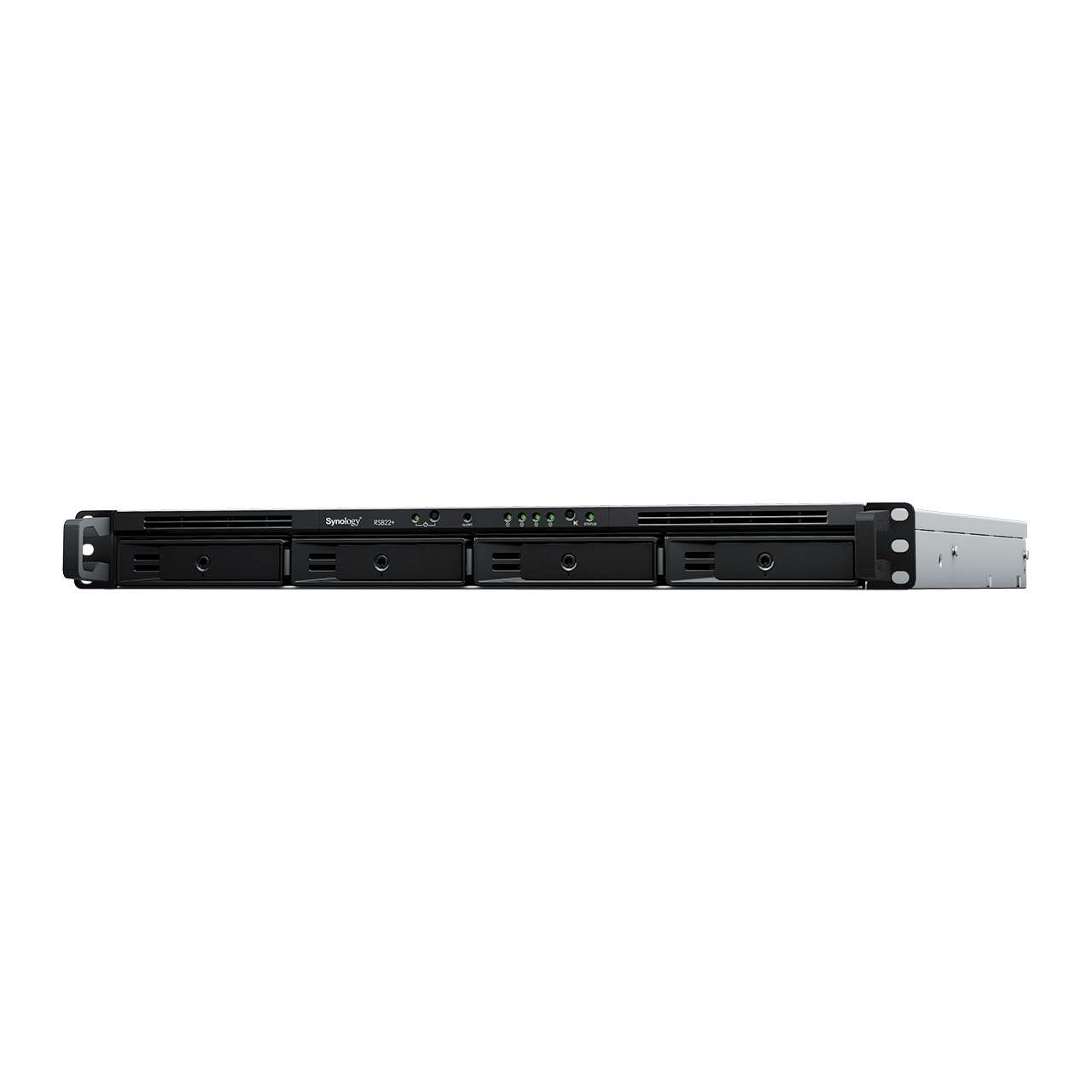

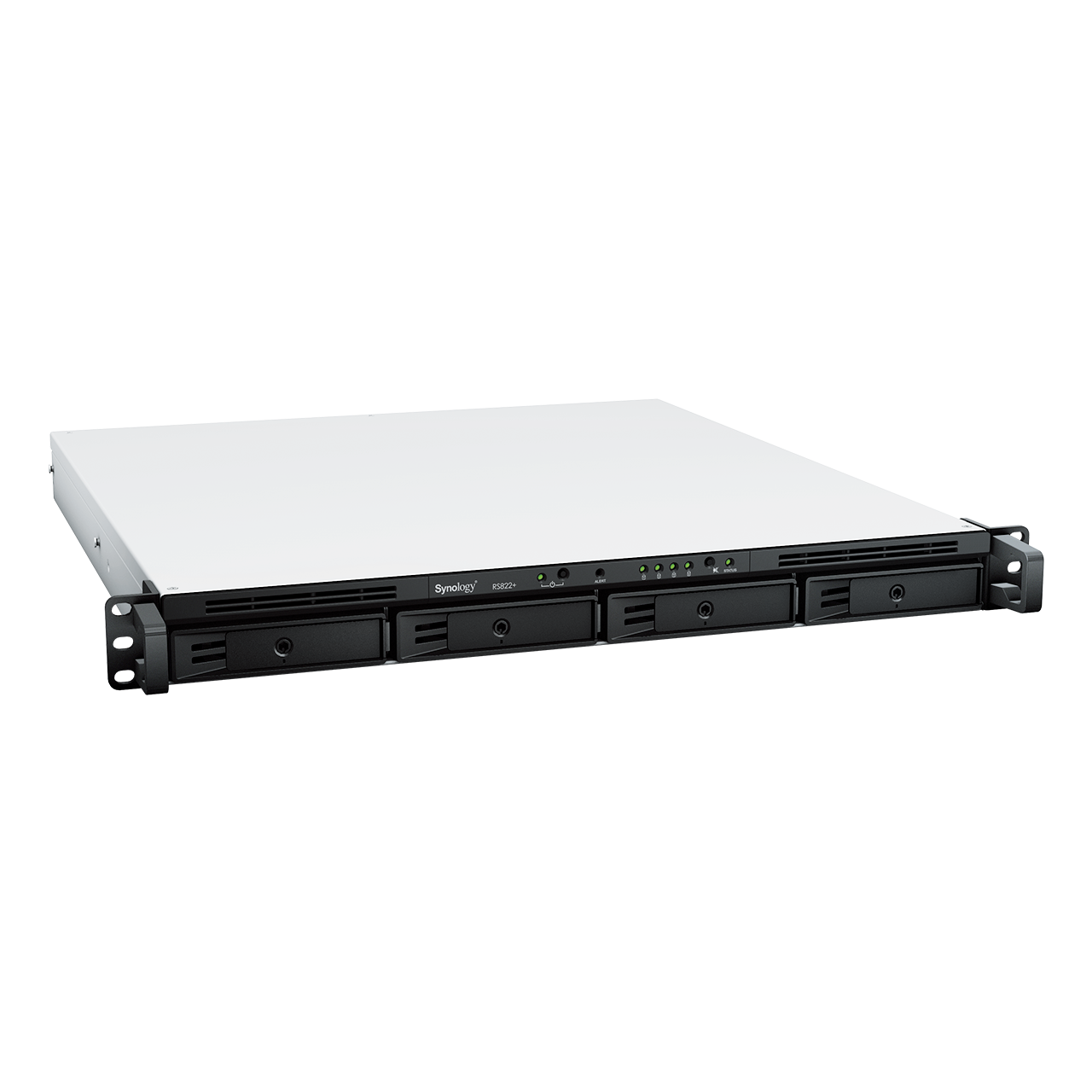

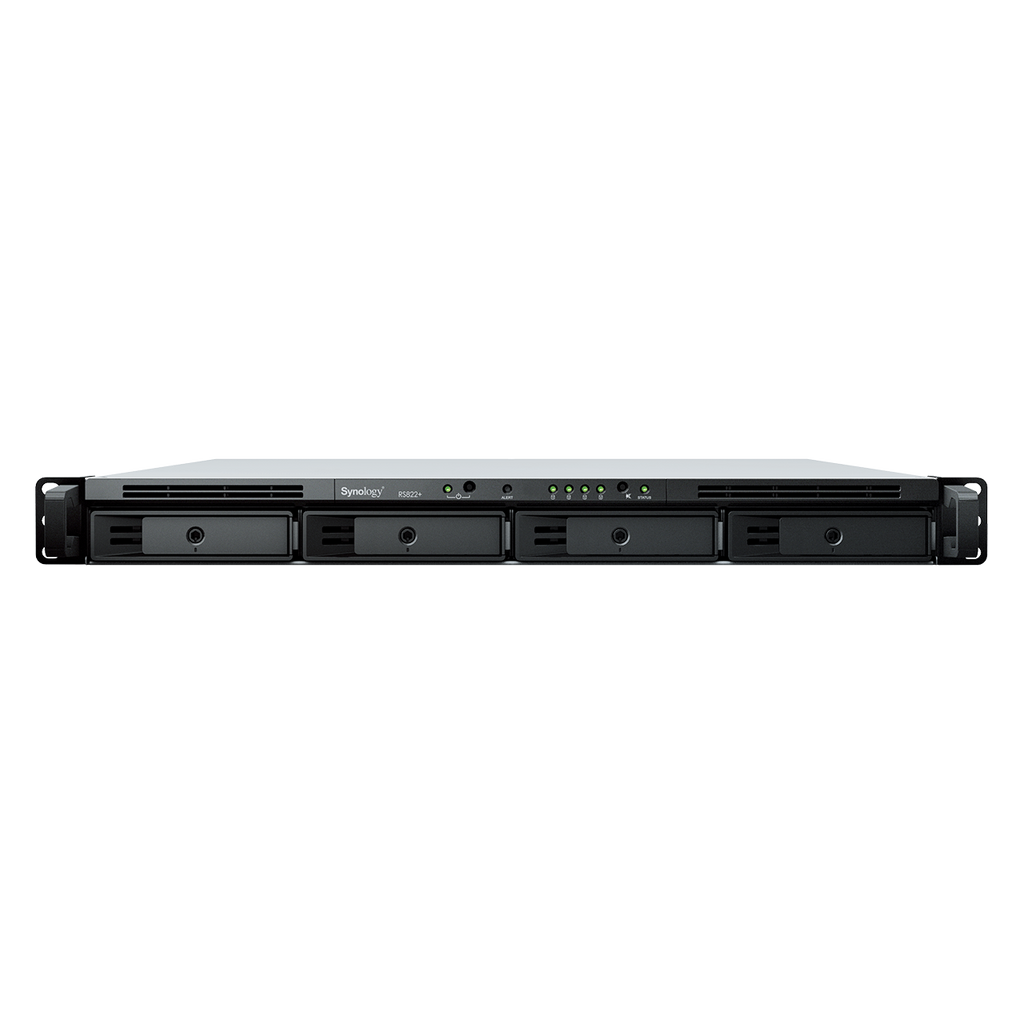

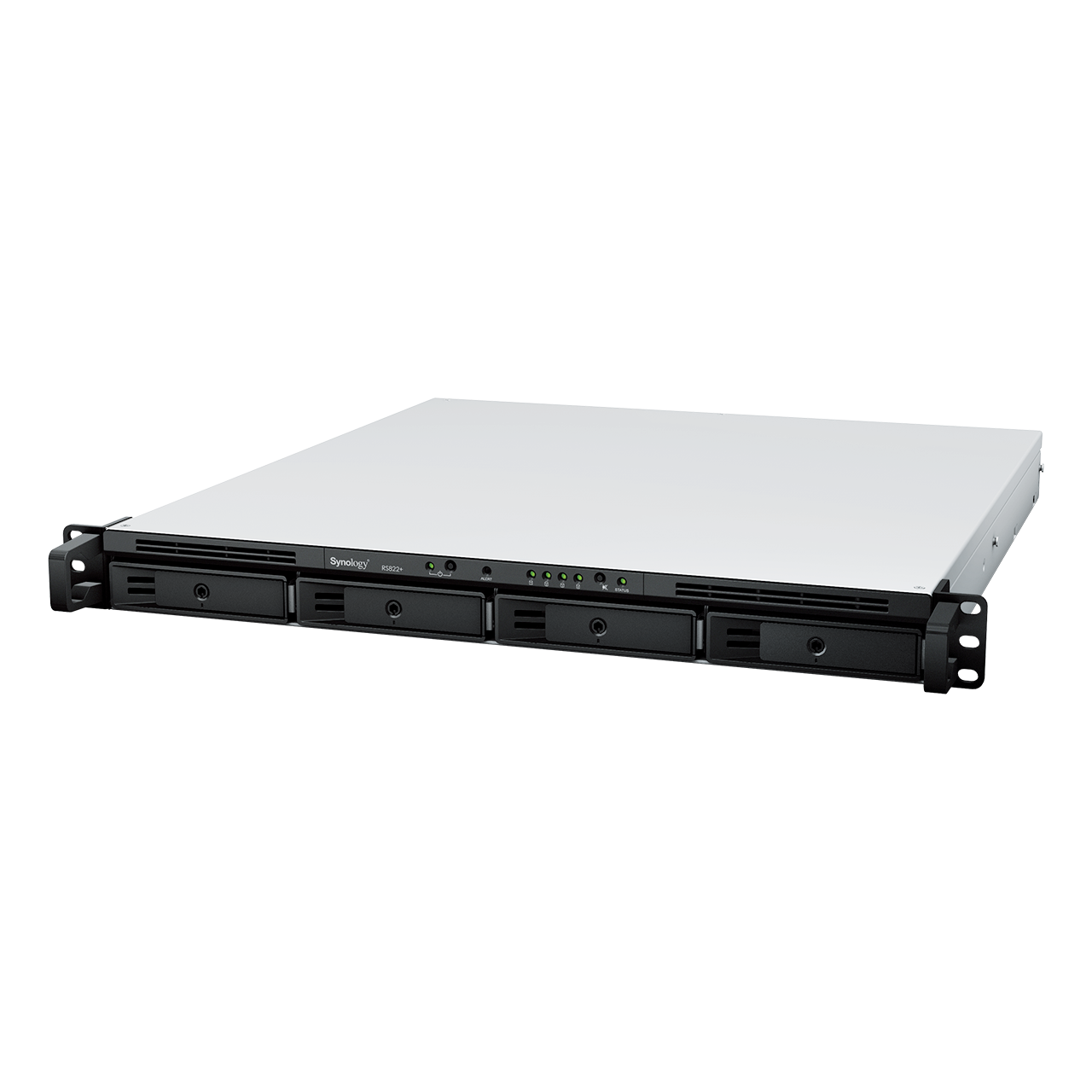

Synology RackStation RS822+ 4-Bay Rackmount NAS

The Synology RackStation RS822+ is a compact 4-bay 1U rackmount NAS designed for business file storage, backup, data protection, collaboration and surveillance. It features an AMD Ryzen V1500B processor, 2GB DDR4 ECC memory, four Gigabit Ethernet ports, PCIe expansion and support for up to eight drive bays with an optional RX418 Expansion Unit.

Product Description

The Synology RackStation RS822+ is a compact 4-bay 1U rackmount NAS designed for branch offices, small and medium-sized businesses and professional IT environments.

Powered by an AMD Ryzen V1500B processor with four cores, eight threads and a 2.2GHz frequency, the RS822+ provides dependable performance for centralised file storage, backup, data synchronisation, collaboration and surveillance workloads.

The system includes 2GB DDR4 ECC SODIMM memory, expandable to 32GB. ECC memory helps detect and correct certain types of memory errors, supporting data integrity during business-critical operations.

Four hot-swappable drive bays support compatible 3.5-inch SATA hard drives and 2.5-inch SATA solid-state drives. Storage capacity can be expanded to eight drive bays by connecting one Synology RX418 Expansion Unit, sold separately.

The RS822+ includes four Gigabit Ethernet ports that support Link Aggregation, network failover and load balancing. A PCIe 3.0 expansion slot supports compatible 10GbE, 25GbE, M.2 NVMe and combined network and SSD adapter cards.

Powered by Synology DiskStation Manager, the RS822+ provides integrated tools for file management, data protection, snapshots, collaboration, private cloud storage, virtualisation and video surveillance.

In Synology’s tested configuration, the RS822+ delivered sequential performance of more than 2,100MB/s read and 1,000MB/s write. Actual performance depends on the installed drives, network hardware, RAID configuration, memory and workload.

Please note: This is a diskless NAS. Hard drives, solid-state drives, rail kit, expansion unit and optional PCIe cards are sold separately.

Key Features

• 4-bay 1U rackmount NAS
• Designed for branch offices and business storage
• AMD Ryzen V1500B processor
• Four processor cores and eight threads
• 2.2GHz processor frequency
• Hardware encryption engine
• 2GB DDR4 ECC SODIMM memory
• Memory expandable up to 32GB
• Supports 3.5-inch SATA hard drives
• Supports 2.5-inch SATA solid-state drives
• Four hot-swappable drive bays
• Expandable to eight drive bays with one RX418
• Four Gigabit Ethernet ports
• Link Aggregation support
• Network failover and load balancing
• PCIe 3.0 expansion slot
• Optional 10GbE and 25GbE network upgrades
• Optional NVMe or SATA SSD caching
• Supports Synology High Availability
• Supports Btrfs and ext4 internal file systems
• Three-year hardware warranty

Specifications

• Brand: Synology
• Series: RackStation
• Model: RS822+
• Product Type: Rackmount Network Attached Storage
• Form Factor: 1U Rackmount
• Processor: AMD Ryzen V1500B
• Processor Architecture: 64-bit
• Processor Cores: 4
• Processor Threads: 8
• Processor Frequency: 2.2GHz
• Hardware Encryption Engine: Yes
• Installed Memory: 2GB DDR4 ECC SODIMM
• Memory Configuration: 1 × 2GB
• Memory Slots: 2
• Maximum Memory: 32GB, 2 × 16GB
• Drive Bays: 4
• Maximum Drive Bays: 8 with one RX418 Expansion Unit
• Compatible Drive Types: 3.5-inch SATA HDD and 2.5-inch SATA SSD
• Hot-Swappable Drives: Yes
• Operating System: Synology DiskStation Manager
• Internal File Systems: Btrfs and ext4
• Maximum Internal Volumes: 64
• Maximum Single Volume Size: 108TB
• SSD Read/Write Cache: Supported

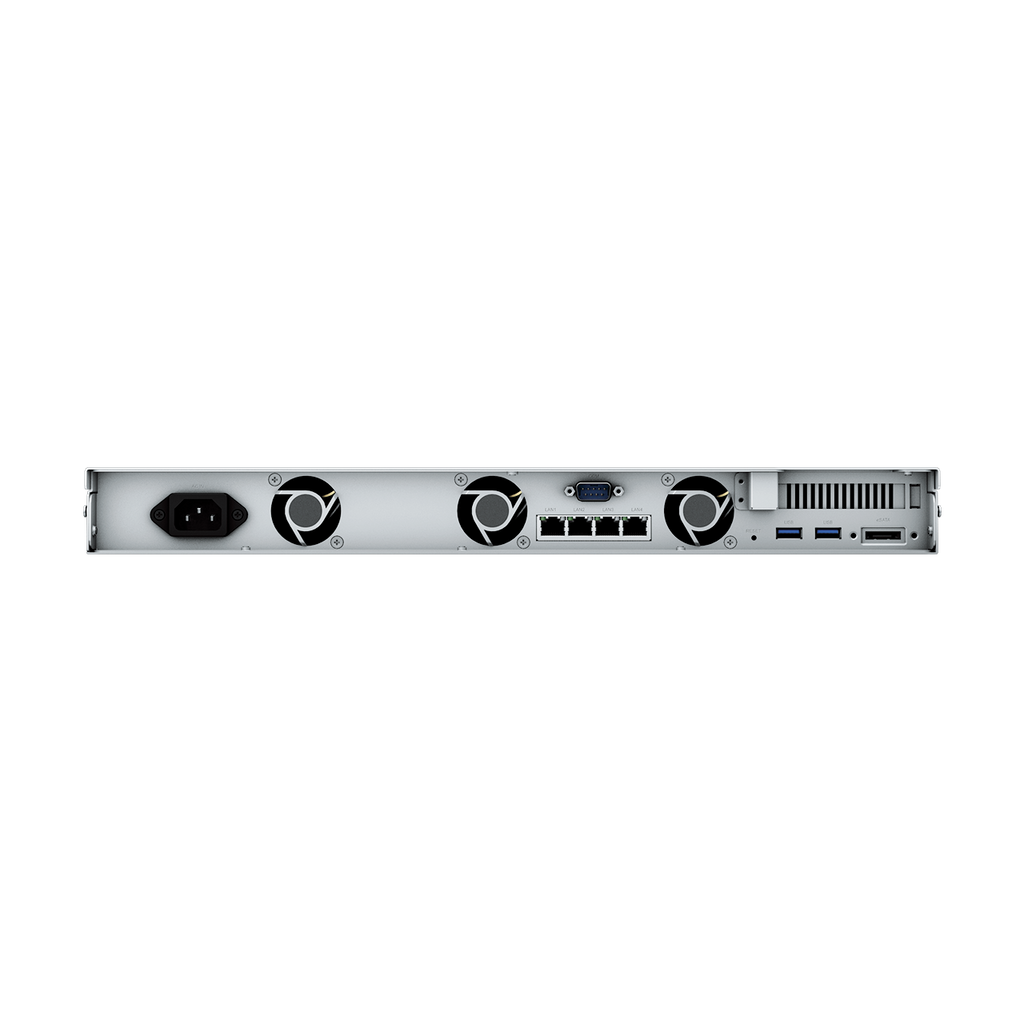

Network Connectivity

• Gigabit Ethernet Ports: 4 × RJ-45 1GbE
• Link Aggregation: Supported
• Network Failover: Supported
• Load Balancing: Supported
• Wake on LAN / WAN: Supported
• Maximum LAN Port MTU: 1,500 bytes

External Ports and Expansion

• USB Ports: 2 × USB 3.2 Gen 1
• Expansion Port: 1 × eSATA
• Supported Expansion Unit: Synology RX418
• PCIe Expansion: 1 × PCIe 3.0 x8 slot operating with an x4 link

Supported PCIe Expansion Options

• Compatible 10GbE network interface cards
• Compatible 25GbE network interface cards
• Compatible M.2 NVMe SSD adapter cards
• Compatible combined 10GbE and M.2 SSD adapter cards

All optional cards, SSDs and network accessories are sold separately and must be listed as compatible with the RS822+.

Supported RAID Types

• Synology Hybrid RAID
• Basic
• JBOD
• RAID 0
• RAID 1
• RAID 5
• RAID 6
• RAID 10

Available RAID types depend on the number of installed drives.

Supported File and Network Protocols

• SMB
• AFP
• NFS
• FTP
• WebDAV
• Rsync
• iSCSI
• HTTP
• HTTPS
• SNMP
• LDAP
• CalDAV

Performance

• Sequential Read: More than 2,100MB/s in Synology testing
• Sequential Write: More than 1,000MB/s in Synology testing

Published performance figures were achieved in Synology’s test environment with compatible high-speed network hardware and storage configurations.

Actual performance depends on the installed drives, RAID type, network interface, PCIe card, connected switch, client hardware, memory, workload and system settings.

Physical Specifications

• Chassis Type: 1U Rackmount
• Dimensions: 44 × 480 × 492.6mm
• Weight: 6.4kg
• Rack Support: Four-post 19-inch rack
• Compatible Rail Kits: Synology RKS-02 or RKM114, sold separately
• System Fans: 3 × 40mm fans
• Fan Modes: Full-Speed, Cool and Quiet
• Noise Level: 27.4dB(A)
• Power Supply: 150W
• Redundant Power Supply: No
• Power Input: 100V to 240V AC
• Power Frequency: 50/60Hz, single phase
• Power Consumption During Access: 47.69W
• Power Consumption During HDD Hibernation: 16.7W

Environmental Specifications

• Operating Temperature: 0°C to 35°C
• Storage Temperature: -20°C to 60°C
• Operating Humidity: 8% to 80% RH
• Storage Humidity: 5% to 95% RH
• Maximum Operating Altitude: 5,000m

Certifications

• FCC
• CE
• BSMI
• VCCI
• RCM
• UKCA
• EAC
• CCC
• KC
• UL
• RoHS compliant

Compatibility Note

Please check that your selected hard drives, solid-state drives, memory modules, expansion units, rail kits and PCIe cards are listed as compatible with the Synology RS822+ before ordering.

The RS822+ supports compatible 3.5-inch SATA hard drives and 2.5-inch SATA solid-state drives. Storage drives are not included.

Memory upgrades must use compatible Synology DDR4 ECC SODIMM modules. When two memory modules are installed, both modules must be identical and use the same model number.

The RS822+ can be expanded to eight drive bays using one Synology RX418 Expansion Unit.

The PCIe expansion slot supports selected Synology network and M.2 adapter cards. Compatibility depends on the exact adapter, DSM version and installed hardware.

The RS822+ includes four 1GbE ports. Optional 10GbE or 25GbE connectivity requires a compatible PCIe network card and suitable network infrastructure.

The RS822+ has a single 150W power supply. It does not include the redundant power-supply configuration found on the RS822RP+.

The Synology RKS-02 and RKM114 rail kits are sold separately.

Recommended Uses

• Centralised business file storage
• Branch office storage
• Endpoint and server backup
• Business data protection
• Private cloud storage
• Cross-site file synchronisation
• Team collaboration
• Virtual machine backup
• Video surveillance
• Multi-user document access
• Media and creative file storage
• RAID storage environments
• Network storage expansion

What’s in the Box

• 1 × Synology RackStation RS822+ Main Unit
• 1 × Accessory Pack
• 1 × AC Power Cord
• 1 × Quick Installation Guide

Hard drives, SSDs, rail kit, expansion unit and optional PCIe cards are not included.
