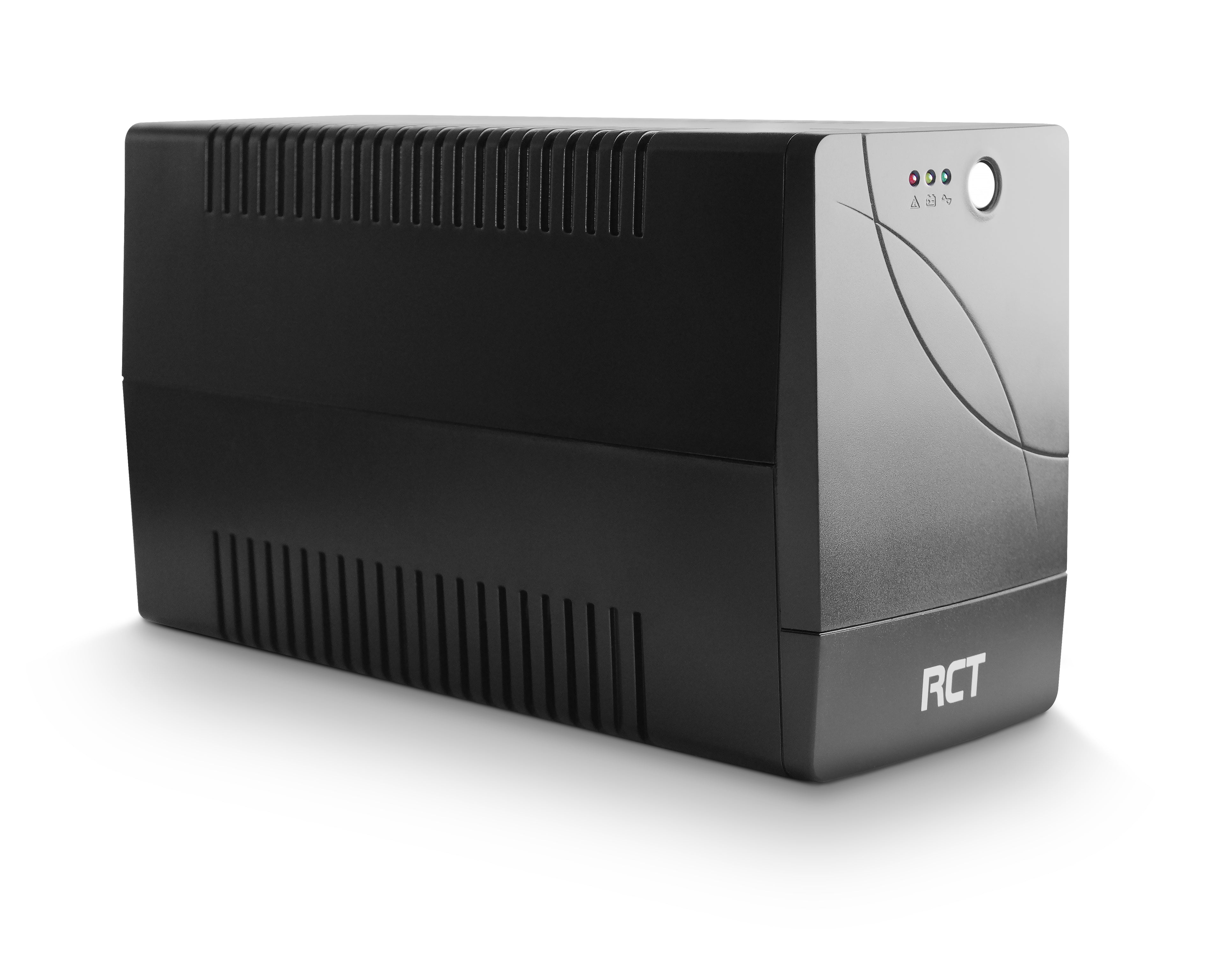

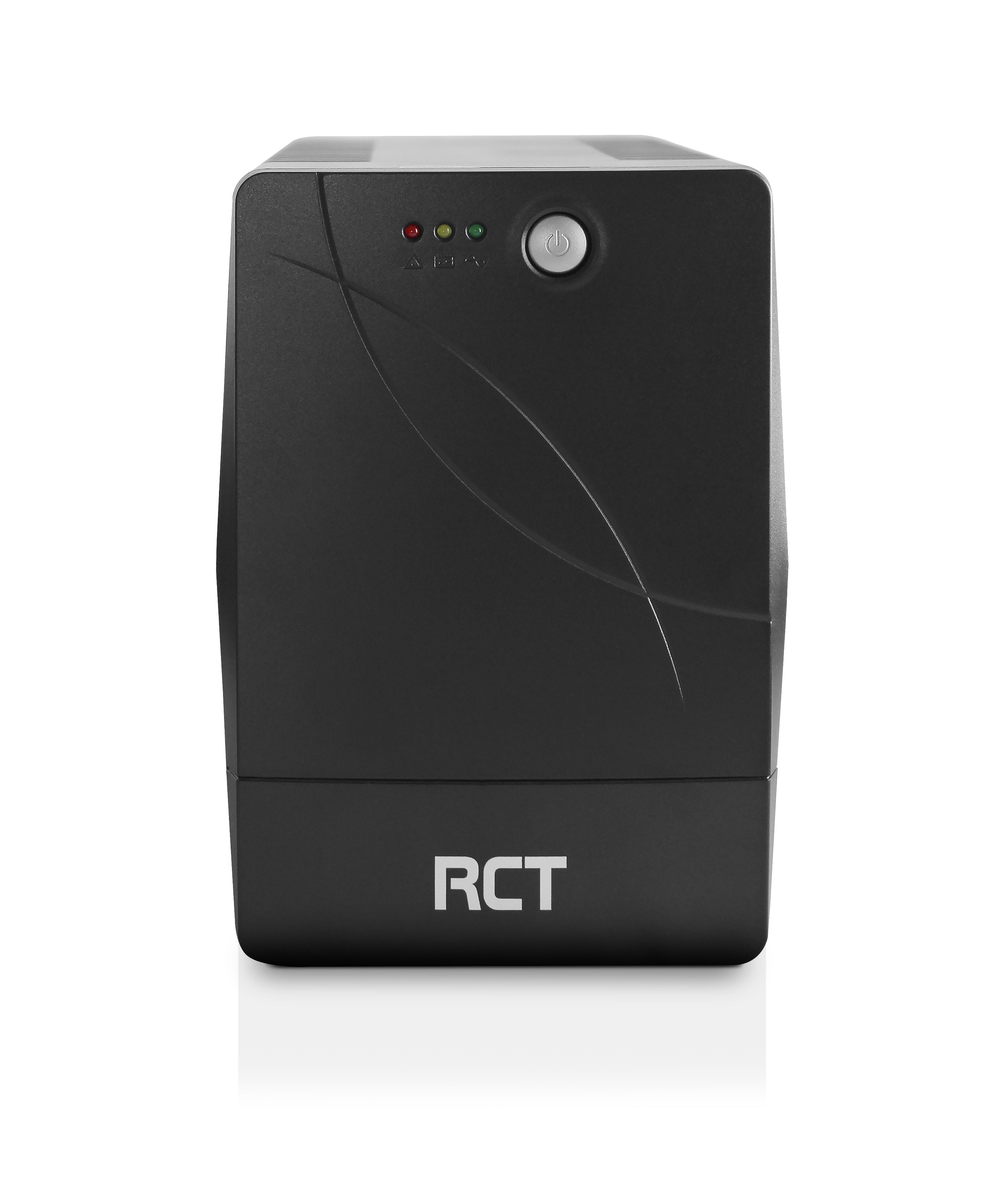

RCT 2000VA Line Interactive UPS with AVR 1200W Backup Power

The RCT 2000VA Line Interactive UPS provides high-capacity short-term backup power and voltage protection for offices, IT equipment, advanced workstations and security systems. It features Automatic Voltage Regulation, South African output sockets and a 2000VA / 1200W power capacity.

Product Description

The RCT 2000VA Line Interactive UPS is designed to provide high-capacity short-term backup power during load shedding, power outages and unstable electricity conditions.

It is suitable for offices, IT environments and advanced home workstations requiring support for multiple compatible devices or higher-wattage equipment.

Its line-interactive technology and Boost and Buck Automatic Voltage Regulation stabilise incoming voltage fluctuations without unnecessary switching to battery power. This assists with protecting connected equipment while helping to extend battery life.

The UPS has a rated power capacity of 2000VA / 1200W and uses a simulated sinewave output. It features microprocessor-controlled operation, a cold-start function, automatic restart when mains power returns and off-mode battery charging.

Two built-in 12V / 7Ah batteries provide backup power and can recharge to approximately 90% capacity within four to six hours. Protection features include overload, battery discharge and battery overcharge protection.

USB monitoring support, RJ-11/45 surge protection and South African output sockets make the unit suitable for office workstations, networking equipment, CCTV systems, servers and point-of-sale installations.

Important: This UPS is intended to provide short-term backup power and is not designed for continuous use. The total connected load must remain within the rated capacity.

Key Features

• 2000VA / 1200W high-capacity backup power
• Line-interactive UPS technology
• Boost and Buck Automatic Voltage Regulation
• Automatic voltage stabilisation
• Four to six-hour recharge time to approximately 90% capacity
• Microprocessor-controlled operation
• Cold-start function
• Automatic restart when mains power returns
• Off-mode battery charging
• Simulated sinewave output
• Two built-in 12V / 7Ah batteries
• USB monitoring support
• RJ-11/45 surge protection
• South African output sockets
• Overload protection
• Battery discharge protection
• Battery overcharge protection

Specifications

Product Type: Line Interactive UPS
Product Code: RCT-2000VAS
Barcode: 6009880447176
Power Capacity: 2000VA / 1200W
Technology: Line Interactive
Waveform: Simulated Sinewave

Input Specifications

Input Voltage: 220V / 230V / 240V AC
Input Voltage Range: 162V to 290V AC
Input Frequency: 50Hz / 60Hz with automatic sensing

Output Specifications

Output Voltage: 220V / 230V / 240V AC
Output Capacity: 2000VA / 1200W
Battery Mode Voltage Regulation: ±10%
Battery Mode Frequency: 50Hz / 60Hz ±1Hz
Transfer Time: 2ms to 6ms
Output Waveform: Simulated Sinewave

Battery Specifications

Battery Type: 12V / 7Ah
Battery Quantity: 2
Recharge Time: Approximately four to six hours to 90% capacity

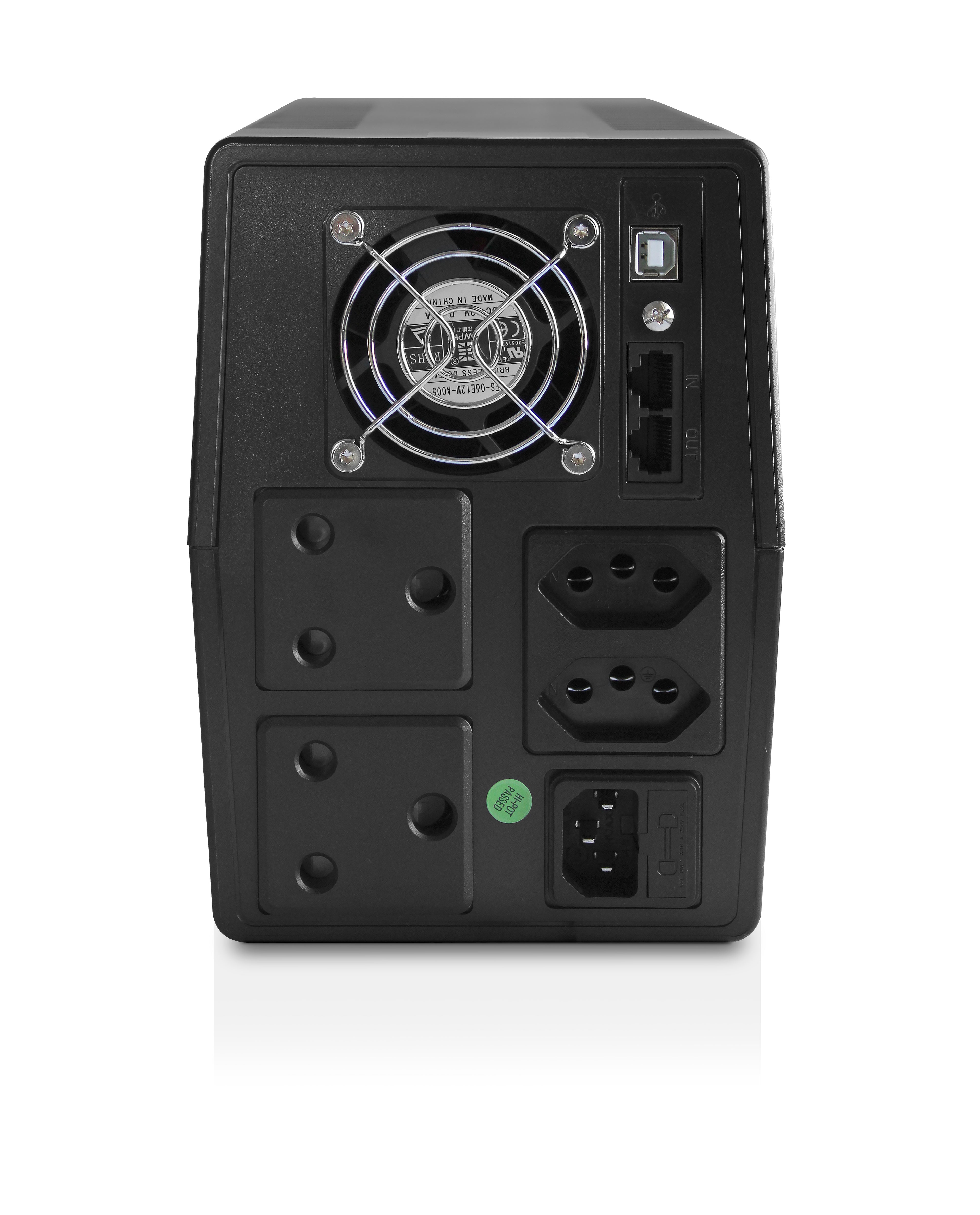

Ports and Connectivity

• USB monitoring port
• RJ-11/45 surge protection
• AC power input
• South African output sockets

Indicators and Alerts

AC Mode Indicator: Green light
Battery Mode Indicator: Flashing green light
Fault Indicator: Red light
Battery Mode Alarm: Sounds every 10 seconds
Low Battery Alarm: Sounds every one second
Overload Alarm: Sounds every 0.5 seconds

Recommended Applications

• Office workstations and multiple monitors
• Networking equipment and servers
• CCTV and security systems
• Point-of-sale systems
• IT environments

Dimensions and Weight

Dimensions: 320mm × 130mm × 182mm
Weight: 9.75kg

What’s in the Box

• 1 × RCT 2000VAS Line Interactive UPS
• 1 × Power cable
