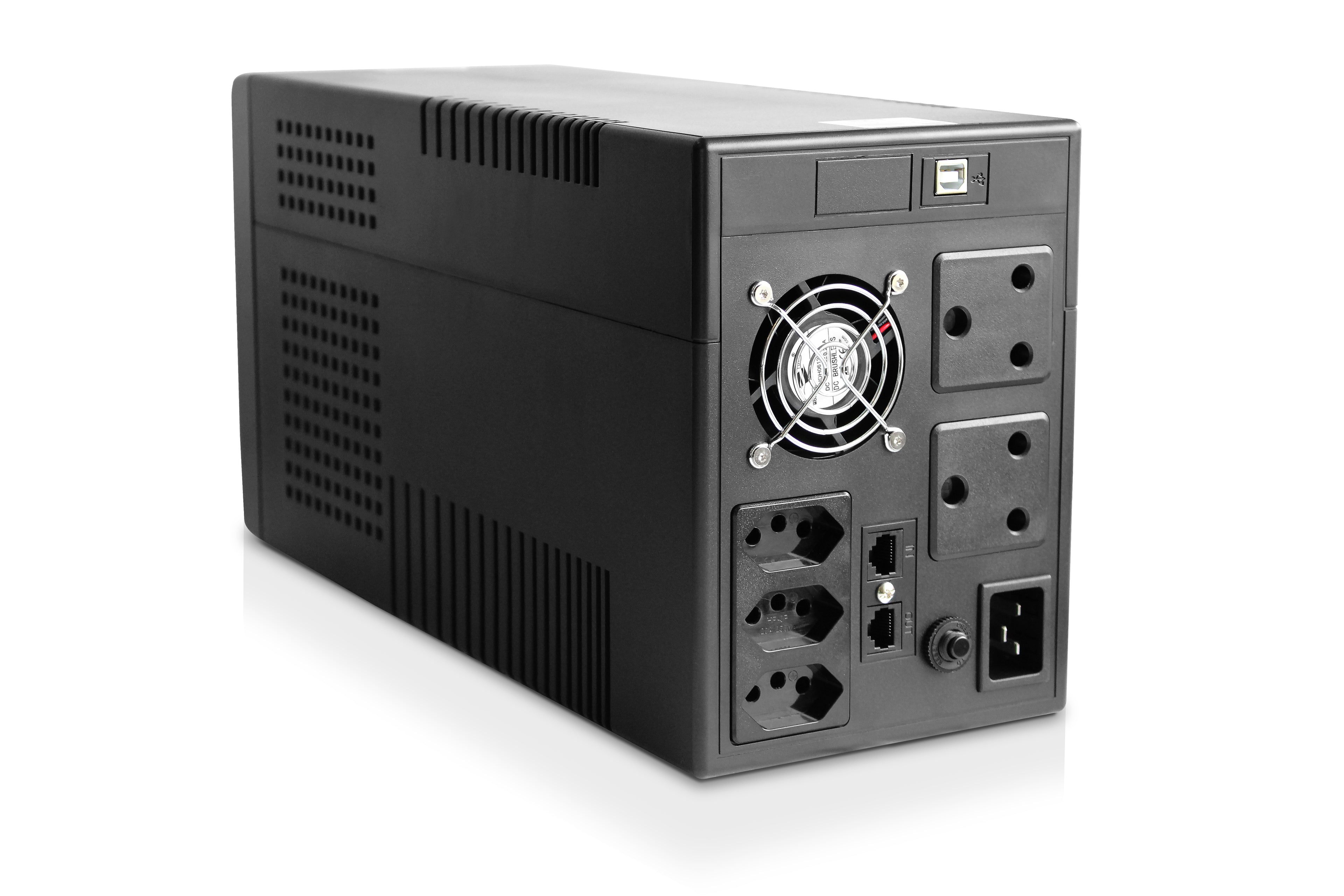

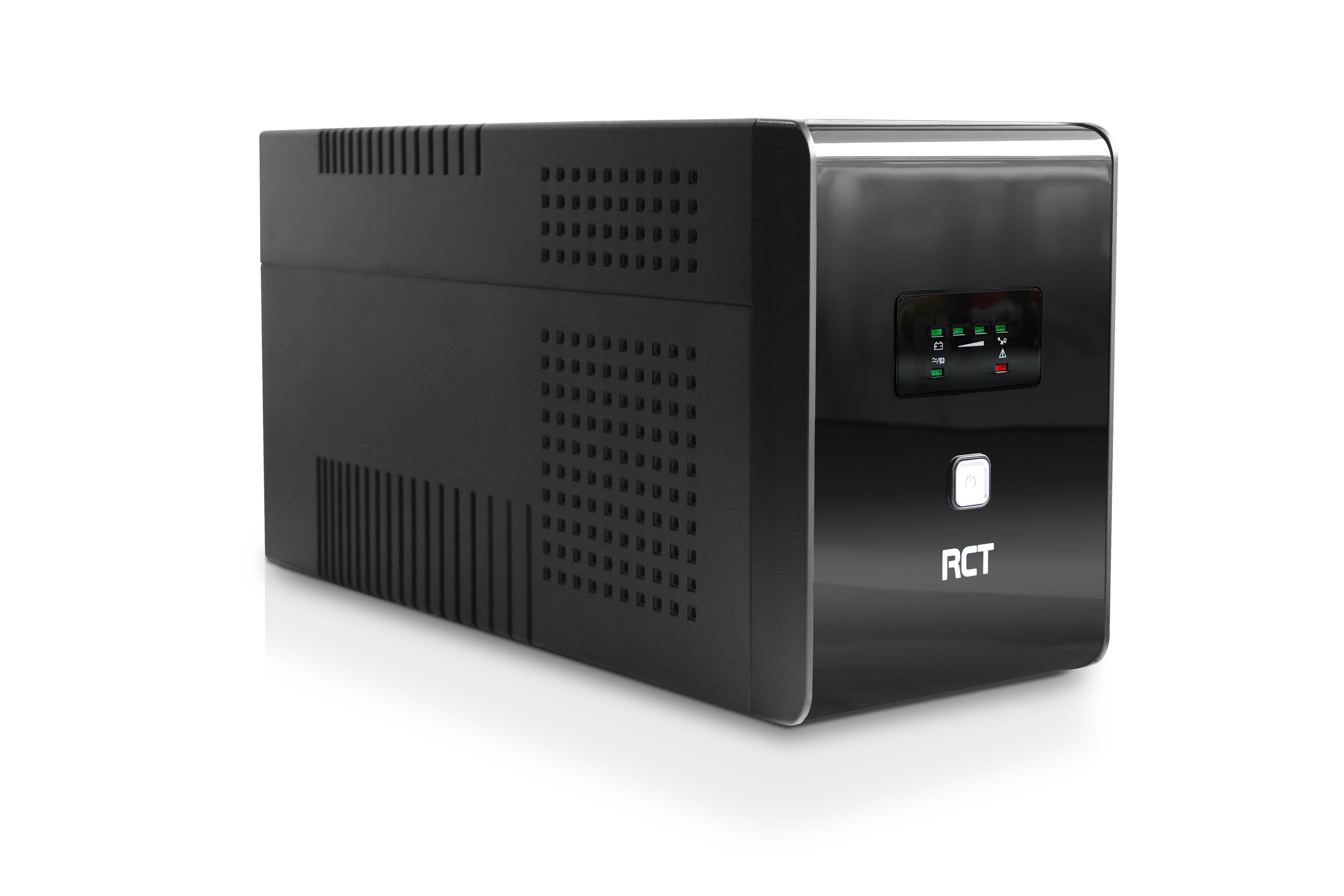

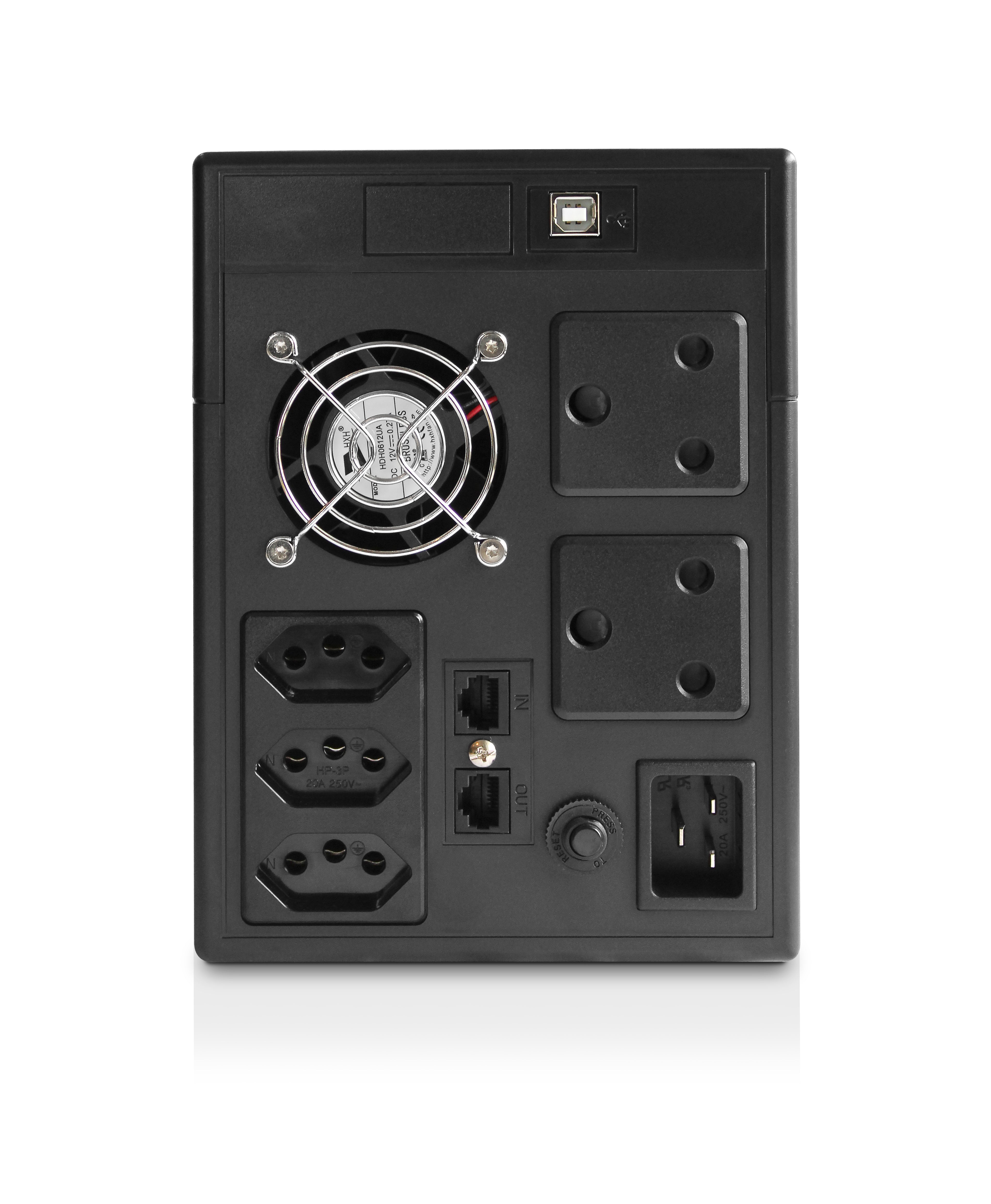

RCT 2400VA Line Interactive UPS with AVR 1440W Backup Power

The RCT 2400VA Line Interactive UPS provides high-capacity short-term backup power and voltage protection for office workstations, IT hardware, networking equipment and security systems. It features Automatic Voltage Regulation, monitoring support and a 2400VA / 1440W power capacity.

Product Description

The RCT 2400VA Line Interactive UPS is designed to provide high-capacity short-term backup power during load shedding, power outages and unstable electricity conditions.

It is suitable for offices, IT setups and advanced home workstations requiring support for multiple compatible devices or higher-wattage equipment.

Its line-interactive technology and Boost and Buck Automatic Voltage Regulation stabilise incoming voltage fluctuations without unnecessary switching to battery power. This assists with protecting connected equipment while helping to extend battery lifespan.

The UPS has a rated power capacity of 2400VA / 1440W and uses a simulated sinewave output. It features microprocessor-controlled operation, a cold-start function, automatic restart when mains power returns and off-mode battery charging.

Two built-in 12V / 9Ah batteries provide backup power and can recharge to approximately 90% capacity within four to six hours.

The unit supports built-in monitoring software and includes a USB monitoring port, RJ-11/45 surge protection and South African output sockets. Its operating noise level is rated at less than 40dB.

Important: This UPS is intended to provide short-term backup power and is not designed for continuous use. The total connected load must remain within the rated capacity.

Key Features

• 2400VA / 1440W high-capacity backup power
• Line-interactive UPS technology
• Boost and Buck Automatic Voltage Regulation
• Automatic voltage stabilisation
• Four to six-hour recharge time to approximately 90% capacity
• Microprocessor-controlled operation
• Cold-start function
• Automatic restart when mains power returns
• Off-mode battery charging
• Built-in monitoring software support
• Quiet operation of less than 40dB
• Simulated sinewave output
• Two built-in 12V / 9Ah batteries
• USB monitoring support
• RJ-11/45 surge protection
• South African output sockets

Specifications

Product Type: Line Interactive UPS
Product Code: RCT-2400VAS
Barcode: 6009711020370
Power Capacity: 2400VA / 1440W
Technology: Line Interactive
Waveform: Simulated Sinewave
Noise Level: Less than 40dB

Input Specifications

Input Voltage: 220V / 230V / 240V AC
Input Voltage Range: 162V to 290V AC
Input Frequency: 50Hz / 60Hz with automatic sensing

Output Specifications

Output Voltage: 220V / 230V / 240V AC
Output Capacity: 2400VA / 1440W
Battery Mode Voltage Regulation: ±10%
Battery Mode Frequency: 50Hz / 60Hz ±1Hz
Transfer Time: 2ms to 6ms, 10ms maximum
Output Waveform: Simulated Sinewave

Battery Specifications

Battery Type: 12V / 9Ah
Battery Quantity: 2
Recharge Time: Approximately four to six hours to 90% capacity

Ports and Connectivity

• USB monitoring port
• RJ-11/45 surge protection
• AC power input
• South African output sockets

Indicators and Alerts

AC Mode Indicator: LED with load-level indicators
Battery Mode Indicator: Flashing LED with battery-level indicators
Fault Indicator: Red LED
Battery Mode Alarm: Sounds every 10 seconds
Low Battery Alarm: Sounds every one second
Overload Alarm: Sounds every 0.5 seconds

Recommended Applications

• Office workstations and multi-monitor setups
• Networking equipment and IT hardware
• CCTV and security systems
• Point-of-sale systems
• High-demand home-office setups

Dimensions and Weight

Dimensions: 397mm × 146mm × 205mm
Weight: 13.5kg

What’s in the Box

• 1 × RCT 2400VAS Line Interactive UPS
• 1 × Power cable
