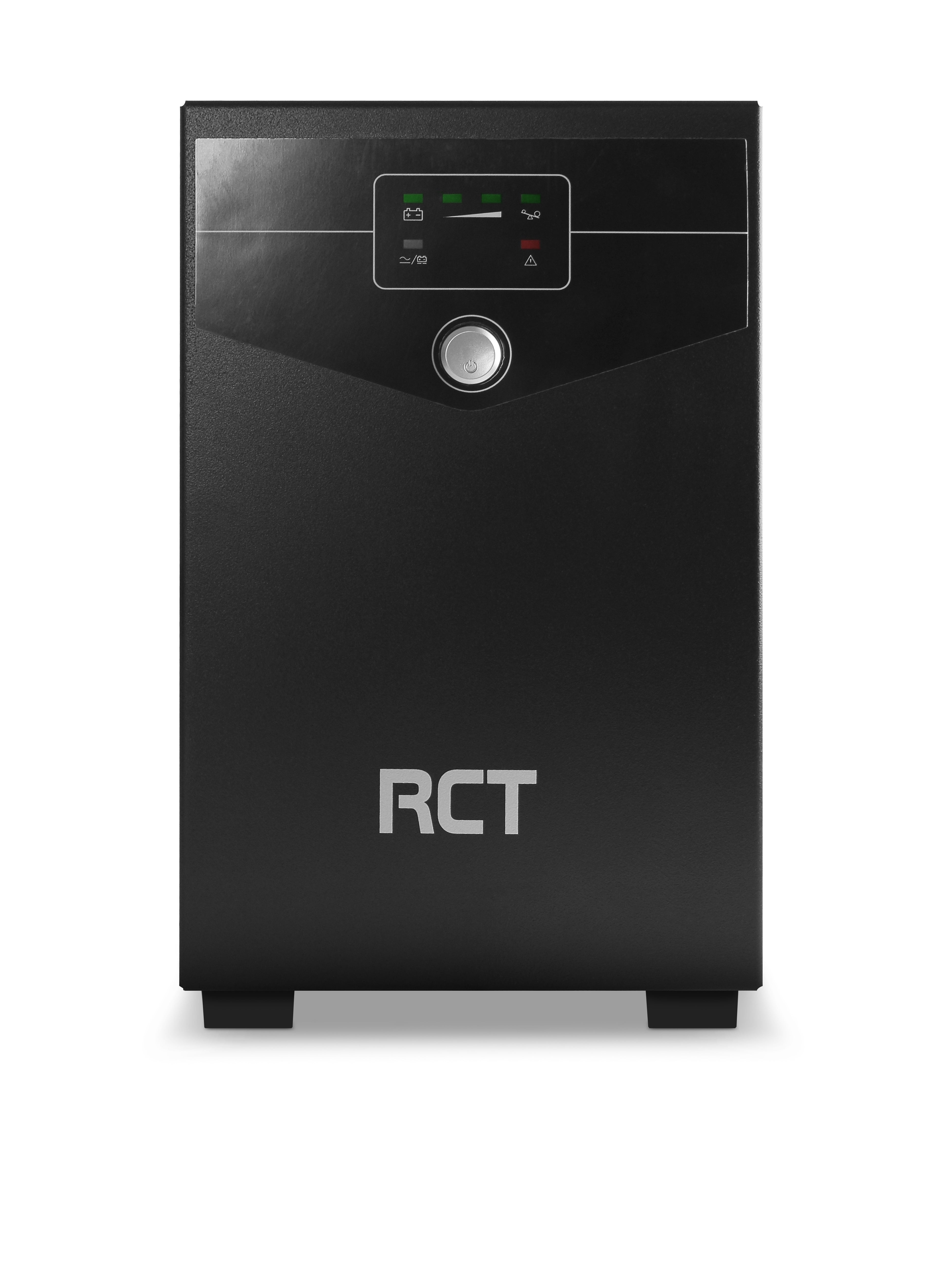

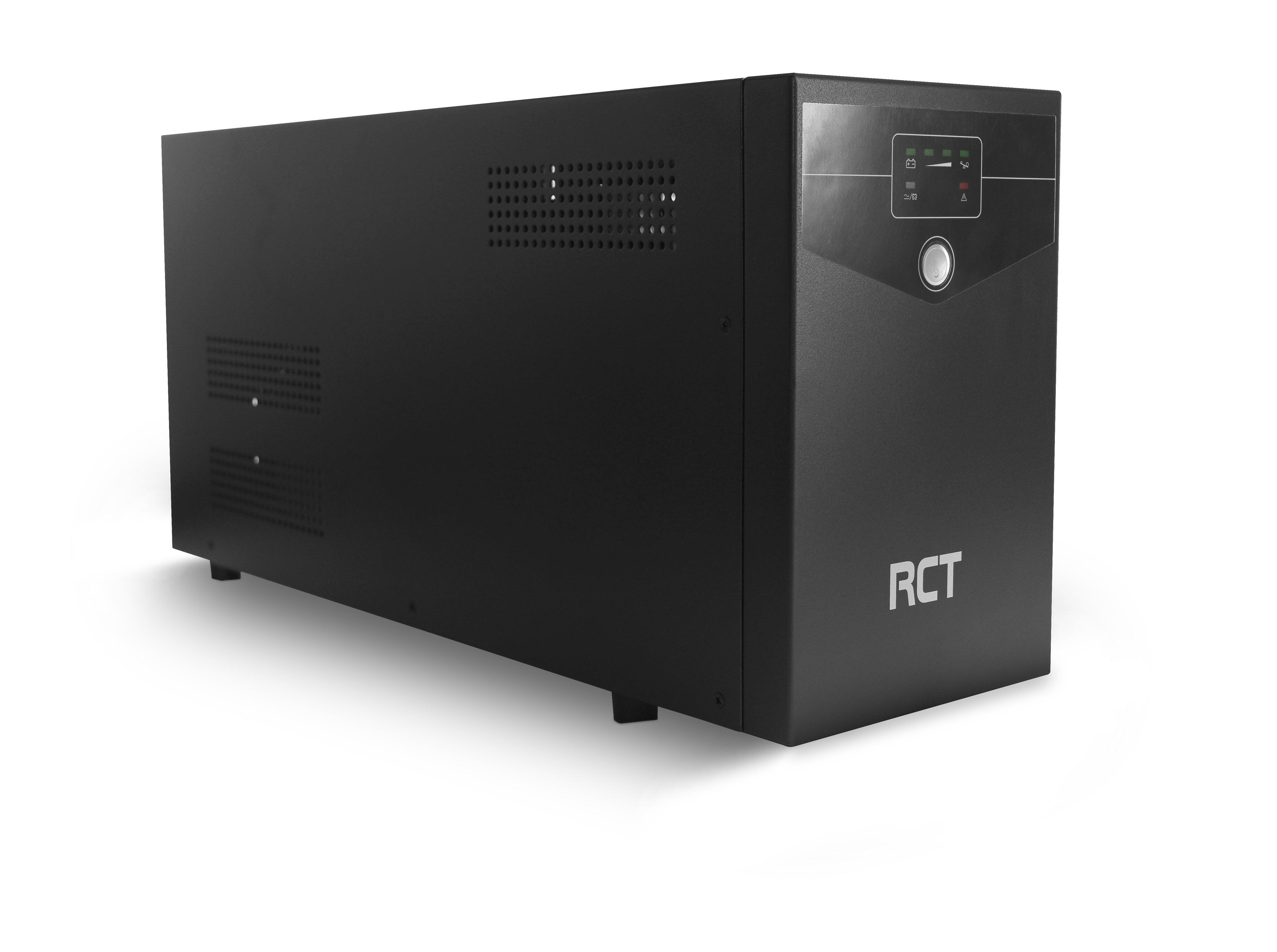

RCT 3000VA Line Interactive UPS with AVR 1800W Backup Power

The RCT 3000VA Line Interactive UPS provides high-capacity short-term backup power and voltage protection for office equipment, IT infrastructure and high-demand business or home environments. It features Automatic Voltage Regulation, four internal batteries and a 3000VA / 1800W power capacity.

Product Description

The RCT 3000VA Line Interactive UPS is designed to provide high-capacity short-term backup power during load shedding, power outages and unstable electricity conditions.

It is suitable for offices, IT setups and high-demand home or business environments requiring support for multiple compatible devices or higher-wattage equipment.

Its line-interactive technology and Boost and Buck Automatic Voltage Regulation stabilise incoming voltage fluctuations without unnecessary switching to battery power. This assists with protecting connected equipment while helping to extend battery lifespan.

The UPS has a rated power capacity of 3000VA / 1800W and uses a simulated sinewave output. It features microprocessor-controlled operation, automatic restart when mains power returns, off-mode charging and a cold-start function that allows the unit to power on without mains electricity.

Four built-in 12V / 9Ah batteries provide backup power and can recharge to approximately 90% capacity in around six hours. The unit operates at a noise level below 40dB.

Protection features include overload, battery discharge and battery overcharge protection. Connectivity includes USB monitoring support, RJ-45 surge protection, an AC input, circuit breaker and South African output sockets.

Important: This UPS is intended to provide short-term backup power and is not designed for continuous use. The total connected load must remain within the rated capacity.

Key Features

• 3000VA / 1800W high-capacity backup power
• Line-interactive UPS technology
• Boost and Buck Automatic Voltage Regulation
• Automatic voltage stabilisation
• Microprocessor-controlled operation
• Automatic restart when mains power returns
• Off-mode battery charging
• Cold-start function for operation without mains power
• Approximately six-hour recharge time to 90% capacity
• Quiet operation of less than 40dB
• Simulated sinewave output
• Four built-in 12V / 9Ah batteries
• USB monitoring support
• RJ-45 surge protection
• Built-in circuit breaker
• South African output sockets
• Overload protection
• Battery discharge protection
• Battery overcharge protection

Specifications

Product Type: Line Interactive UPS
Product Code: RCT-3000VAS
Barcode: 6009881185503
Power Capacity: 3000VA / 1800W
Technology: Line Interactive
Waveform: Simulated Sinewave
Noise Level: Less than 40dB

Input Specifications

Input Voltage Range: 85V to 145V AC / 170V to 280V AC
Input Frequency: 50Hz / 60Hz with automatic sensing

Output Specifications

Output Voltage: 220V / 230V / 240V AC
Output Capacity: 3000VA / 1800W
Battery Mode Voltage Regulation: ±10%
Battery Mode Frequency: 50Hz / 60Hz ±1Hz
Transfer Time: 2ms to 6ms
Output Waveform: Simulated Sinewave

Battery Specifications

Battery Type: 12V / 9Ah
Battery Quantity: 4
Recharge Time: Approximately six hours to 90% capacity

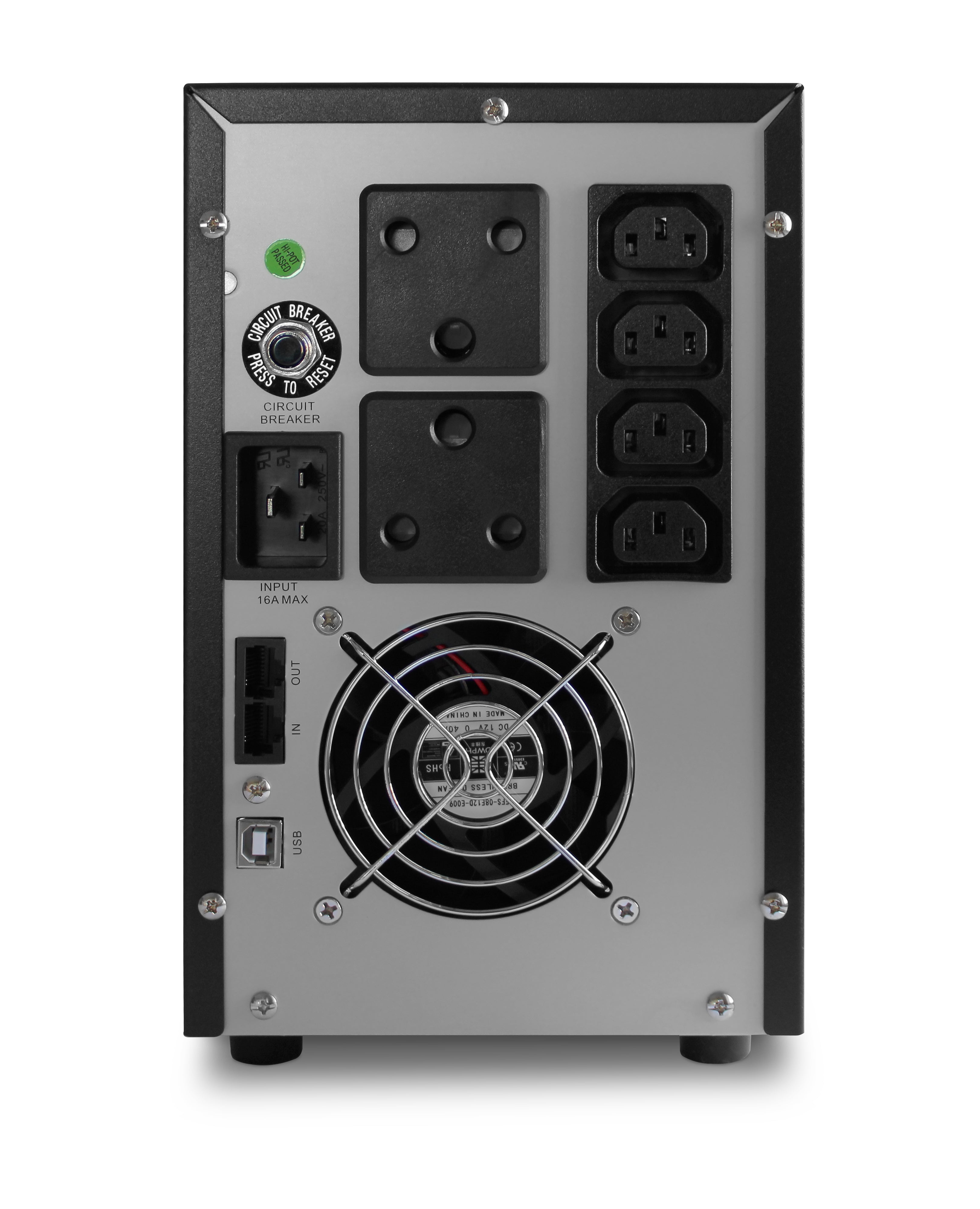

Ports and Connectivity

• USB monitoring port
• RJ-45 surge protection
• AC power input
• Circuit breaker
• South African output sockets

Indicators and Alerts

AC Mode Indicator: Green light
Battery Mode Indicator: Flashing green light
Fault Indicator: Red light
Battery Mode Alarm: Sounds every 10 seconds
Low Battery Alarm: Sounds every 10 seconds
Overload Alarm: Sounds every 0.5 seconds
Fault Alarm: Continuous sound

Recommended Applications

• Office workstations and multi-device setups
• Networking equipment and IT infrastructure
• CCTV and security systems
• Point-of-sale systems
• High-demand home or business backup applications

Dimensions and Weight

Dimensions: 465mm × 150mm × 250mm
Weight: 22.5kg

What’s in the Box

• 1 × RCT 3000VAS Line Interactive UPS
• 1 × Power cable
