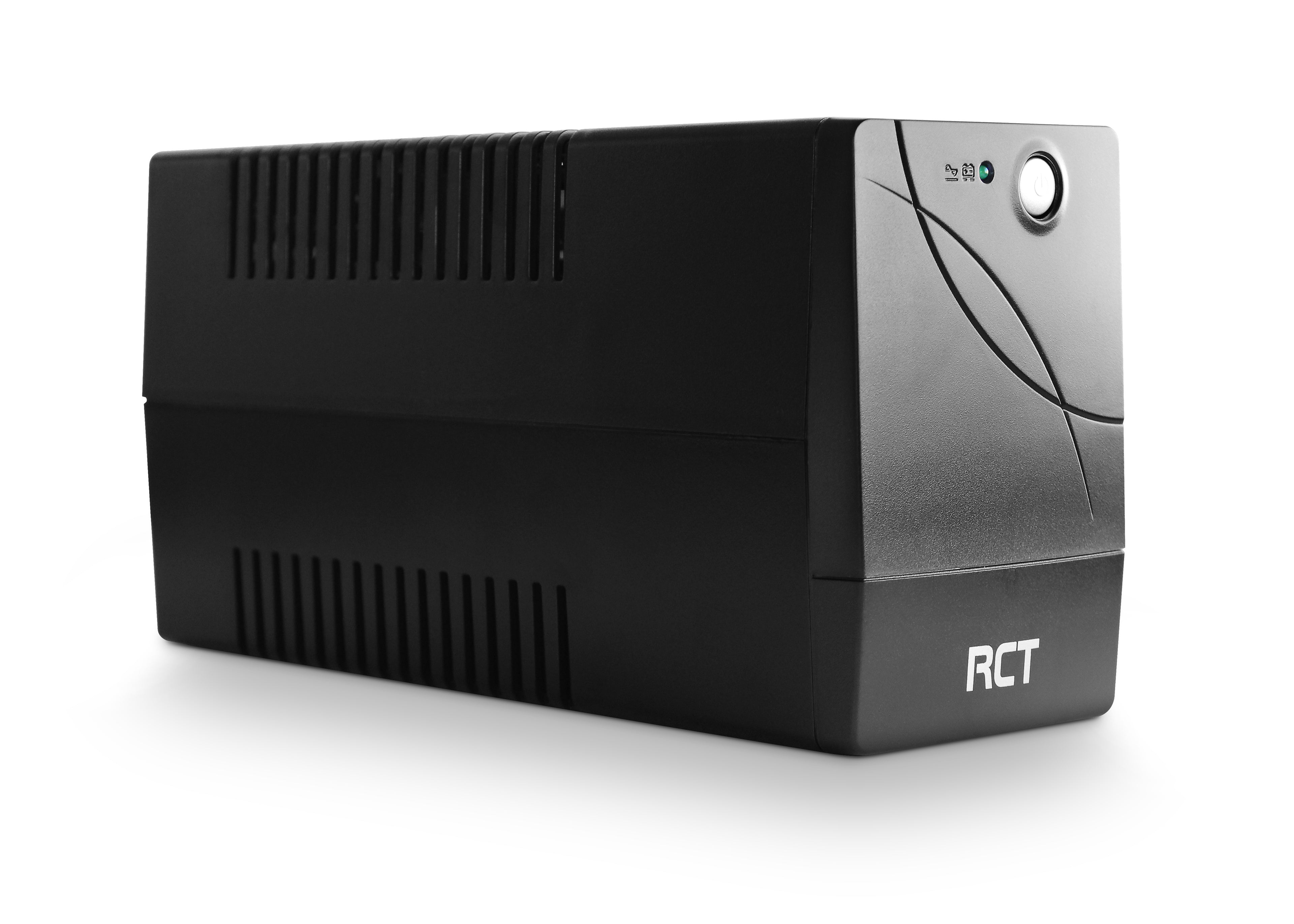

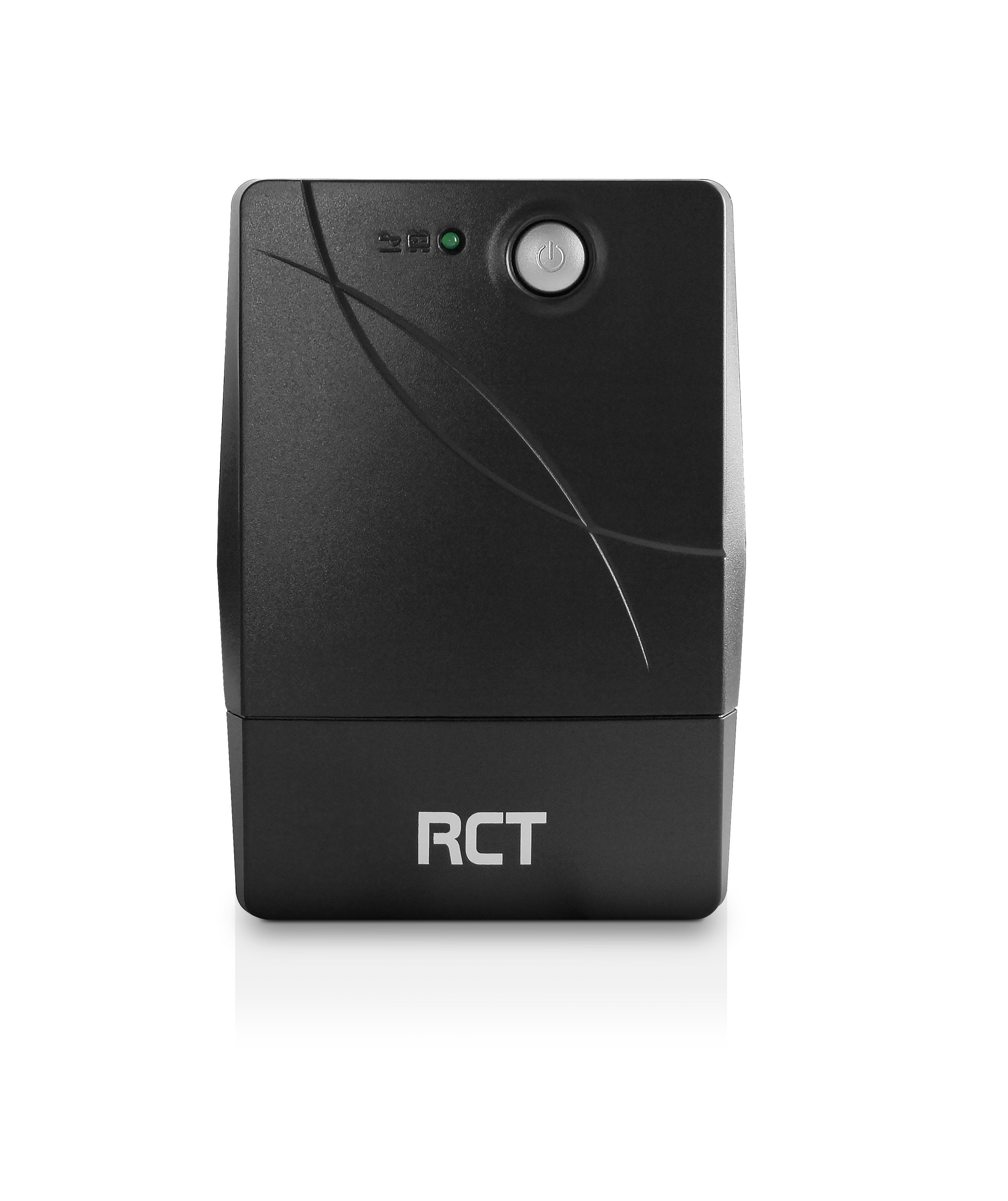

RCT 850VA Line Interactive UPS with AVR 480W Backup Power

The RCT 850VA Line Interactive UPS provides dependable short-term backup power and voltage protection for essential home and small-office equipment. It features Automatic Voltage Regulation, fast battery recharging, South African plug sockets and an 850VA / 480W power capacity.

Product Description

The RCT 850VA Line Interactive UPS is designed to provide dependable short-term backup power during load shedding, power outages and unstable electricity conditions.

With a higher capacity than entry-level models, it is suitable for supporting multiple compatible devices such as routers, desktop computers, monitors and security systems.

Its line-interactive technology and Boost and Buck Automatic Voltage Regulation help stabilise incoming voltage fluctuations without continuously switching to battery power. This assists with protecting connected equipment while helping to extend battery life.

The UPS has a rated power capacity of 850VA / 480W and uses a simulated sinewave output. It features microprocessor-controlled operation, a cold-start function, automatic restart when mains power returns and off-mode battery charging.

The built-in 12V / 7Ah battery can recharge to approximately 90% capacity within four to six hours. Protection features include overload, battery discharge and battery overcharge protection.

Its compact design, South African output sockets, USB monitoring support and RJ-11 surge protection make it suitable for home and small-office environments.

Important: This UPS is intended to provide short-term backup power and is not designed for continuous use. The total connected load must remain within the rated capacity.

Key Features

• 850VA / 480W backup power capacity
• Line-interactive UPS technology
• Boost and Buck Automatic Voltage Regulation
• Automatic voltage stabilisation
• Four to six-hour recharge time to approximately 90% capacity
• Microprocessor-controlled operation
• Cold-start function for operation without mains power
• Automatic restart when mains power returns
• Off-mode battery charging
• Simulated sinewave output
• USB monitoring support
• RJ-11 surge protection
• South African output sockets
• Overload protection
• Battery discharge protection
• Battery overcharge protection
• Suitable for home and small-office equipment

Specifications

Product Type: Line Interactive UPS
Product Code: RCT-850VAS
Barcode: 6009880447152
Power Capacity: 850VA / 480W
Technology: Line Interactive
Waveform: Simulated Sinewave

Input Specifications

Input Voltage: 220V / 230V / 240V AC
Input Voltage Range: 162V to 290V AC
Input Frequency: 50Hz / 60Hz with automatic sensing

Output Specifications

Output Voltage: 220V / 230V / 240V AC
Output Capacity: 850VA / 480W
Battery Mode Voltage Regulation: ±10%
Battery Mode Frequency: 50Hz / 60Hz ±1Hz
Transfer Time: 2ms to 6ms
Output Waveform: Simulated Sinewave

Battery Specifications

Battery Type: 12V / 7Ah
Battery Quantity: 1
Recharge Time: Approximately four to six hours to 90% capacity

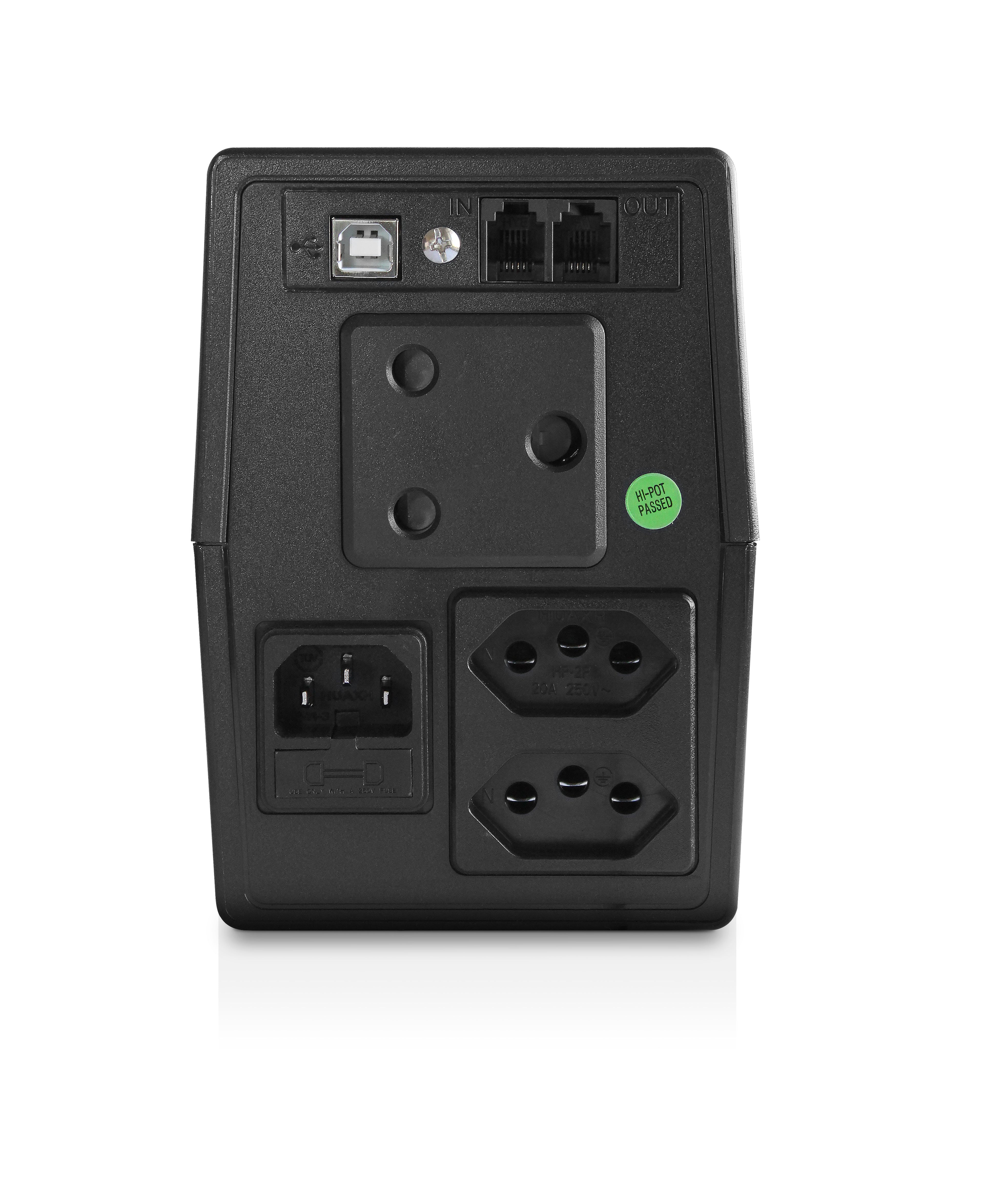

Ports and Connectivity

• USB monitoring port
• RJ-11 surge protection
• AC power input
• South African output sockets

Indicators and Alerts

AC Mode Indicator: Green light
Battery Mode Indicator: Flashing green light
Battery Mode Alarm: Sounds every 10 seconds
Low Battery Alarm: Sounds every one second
Overload Alarm: Sounds every 0.5 seconds

Recommended Applications

• Routers and Wi-Fi systems
• Desktop computers and monitors
• CCTV and security systems
• Point-of-sale equipment
• Small-office setups requiring higher load capacity

Dimensions and Weight

Dimensions: 279mm × 101mm × 142mm
Weight: 4.6kg

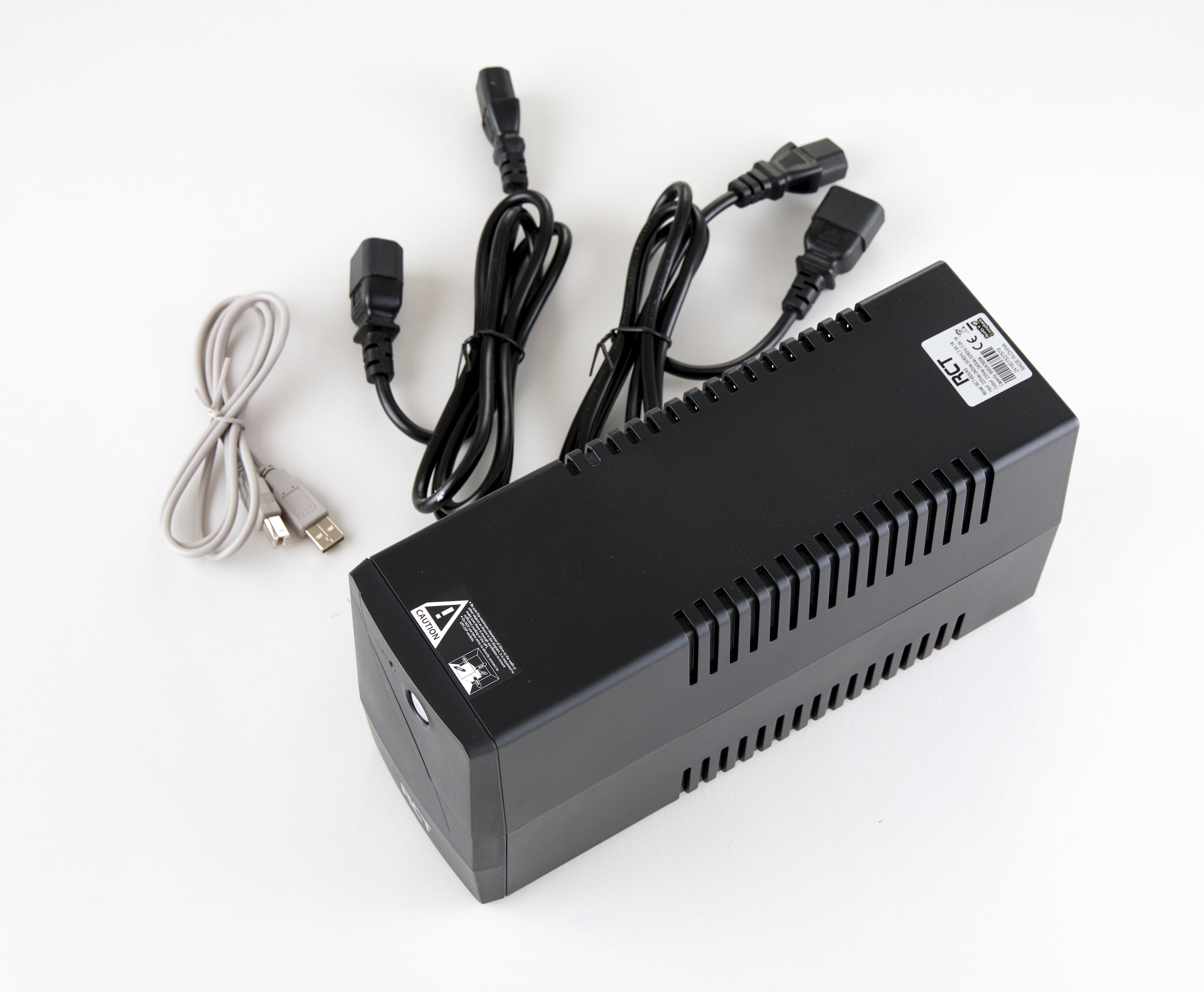

What’s in the Box

• 1 × RCT 850VAS Line Interactive UPS
• 1 × Power cable
