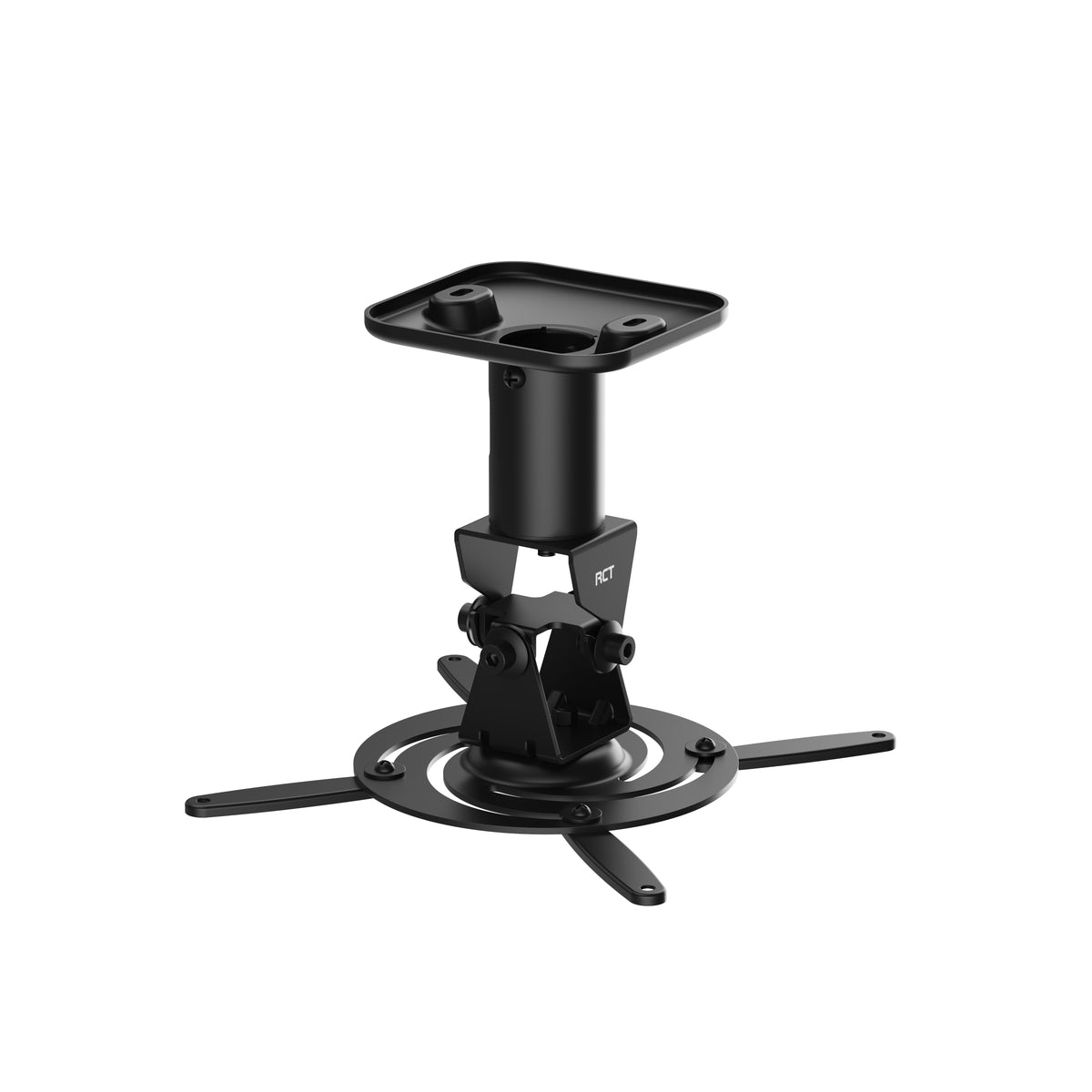

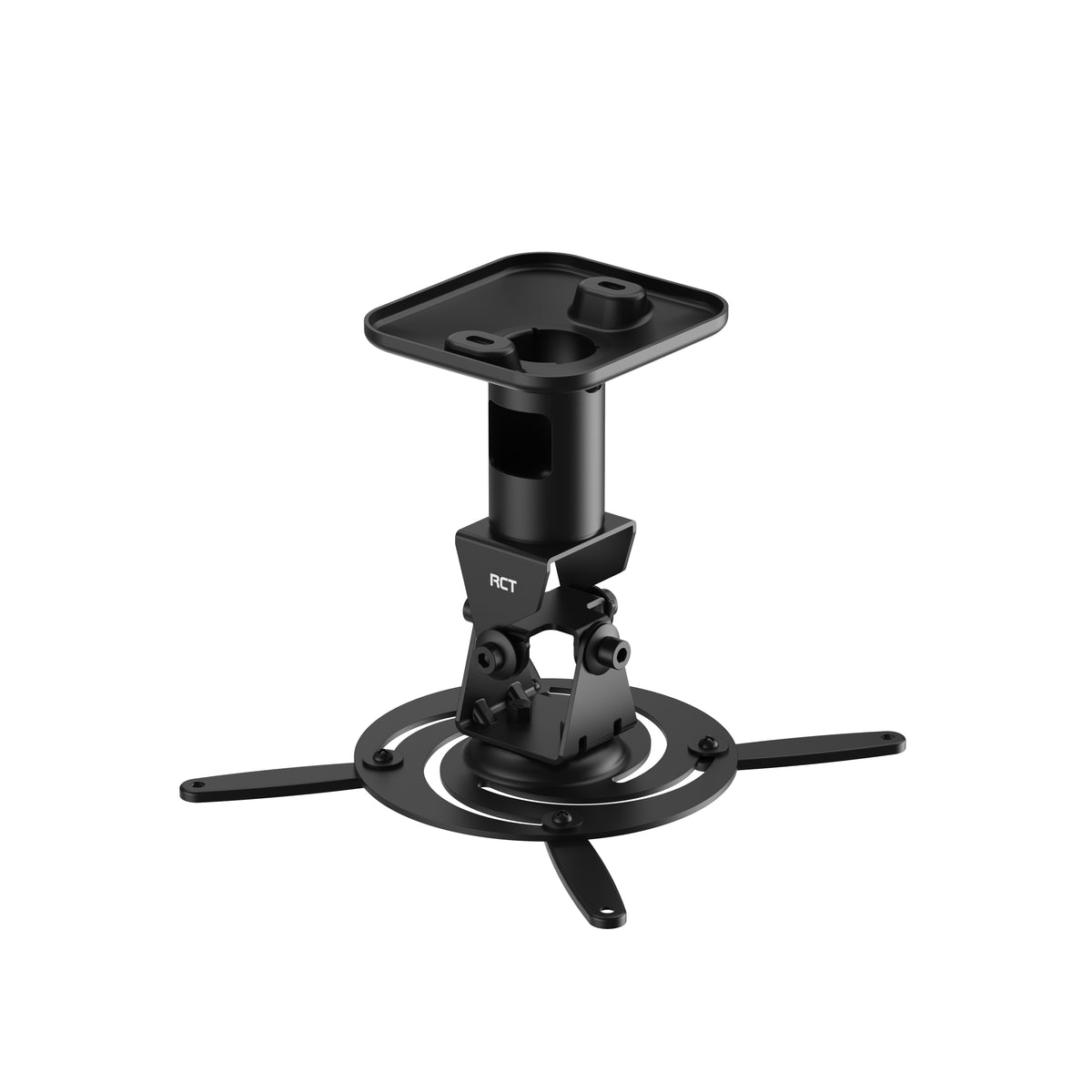

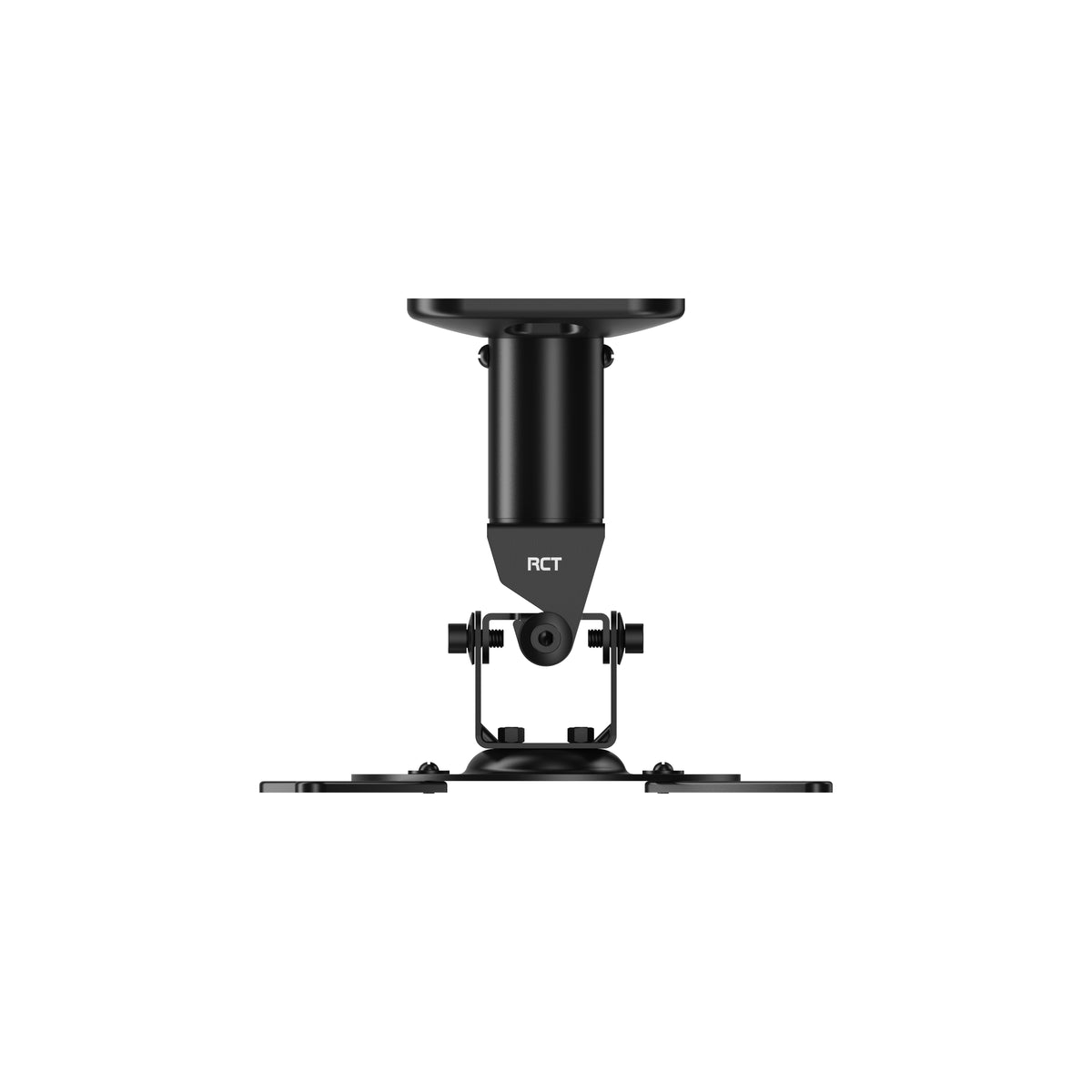

RCT BRK-PRO-1 Steel Projector Ceiling Mount - Up to 15kg

At a Glance

The RCT BRK-PRO-1 is a steel ceiling mount designed for compatible projectors weighing up to 15kg.

Its four adjustable mounting arms provide a 180–310mm mounting range, while ±25° tilt, ±25° swivel and full 360° rotation support accurate projector alignment.

Integrated cable management and a matte-black powder-coated finish provide a clean installation for boardrooms, classrooms, offices and home-cinema environments.

Short Description

The RCT BRK-PRO-1 is a universal steel projector ceiling mount supporting compatible projectors weighing up to 15kg.

It features adjustable 180–310mm mounting arms, ±25° tilt and swivel, 360° rotation, a 215mm extension and integrated cable management.

Why Choose This RCT Projector Mount

The BRK-PRO-1 provides a secure overhead mounting solution for compatible projectors, helping keep the projector away from desks, shelves and other working surfaces.

Its four adjustable mounting arms accommodate a range of compatible projector mounting-hole layouts. Tilt, swivel and rotation adjustment make it easier to align the projected image with the screen.

The integrated cable-routing opening helps keep power and display cables organised for a cleaner installation.

Recommended Use Cases

• Business boardrooms
• Meeting rooms
• Training facilities
• Classrooms
• Lecture rooms
• Home-cinema installations
• Conference rooms
• Presentation spaces
• Hospitality environments
• Churches and community halls
• Permanent projector installations

Product Description

The RCT BRK-PRO-1 Steel Projector Ceiling Mount is designed for compatible projectors weighing up to 15kg.

Four adjustable mounting arms provide a mounting range from 180mm to 310mm, allowing the bracket to accommodate a variety of compatible projector mounting-hole positions.

The mount provides tilt adjustment from -25° to +25°, swivel adjustment from -25° to +25°, and rotation from -180° to +180°. These adjustments help align the projected image with the screen after installation.

The BRK-PRO-1 has a 215mm extension and includes integrated cable management to route compatible power, video and control cables through the mount.

The steel construction and matte-black powder-coated finish provide a durable and professional appearance.

Installation hardware is supplied for suitable wooden ceiling joists and solid concrete ceilings. Professional installation is recommended to ensure that the ceiling structure and mounting hardware can safely support the combined weight of the projector and bracket.

Key Features

• Universal projector ceiling mount
• Supports compatible projectors up to 15kg
• Steel construction
• Matte-black powder-coated finish
• Four adjustable projector mounting arms
• 180–310mm mounting range
• Tilt adjustment from -25° to +25°
• Swivel adjustment from -25° to +25°
• Full 360° rotation
• 215mm extension
• Integrated cable management
• Suitable for solid concrete ceilings
• Suitable for compatible wooden ceiling joists
• Hanging-hook design assists installation and removal
• Multiple projector mounting screws included
• Installation manual included

Specifications

Projector Adjustment

The installed projector can be adjusted to assist with image alignment:

• Tilt: -25° to +25°
• Swivel: -25° to +25°
• Rotation: -180° to +180°

Loosen the relevant adjustment fasteners, position the projector and retighten all fasteners securely.

Projector image geometry and final alignment may still require adjustment through the projector’s own lens shift, zoom, keystone or digital correction controls where available.

Mounting Compatibility

Please confirm all the following before ordering:

• The projector weighs no more than 15kg.
• The projector has suitable threaded mounting points.
• The mounting-point layout falls within the supported 180–310mm range.
• The supplied M4, M5 or M6 mounting screws are compatible with the projector.
• The screw length is suitable for the projector’s mounting-hole depth.
• The ceiling is solid concrete or contains a suitable structural wooden joist.
• The ceiling structure can support the combined weight of the mount, projector and cables.
• Connected cables are long enough for the required installation and adjustment.

The universal design does not guarantee compatibility with every projector. Please check the projector’s mounting-hole layout, mounting-screw requirements and weight before ordering.

Ceiling Installation

The BRK-PRO-1 includes hardware for installation on:

• Suitable wooden ceiling joists
• Solid concrete ceilings

Professional installation is recommended.

Do not install the mount directly onto an unsupported suspended, decorative or false-ceiling panel.

A suitable structural mounting point must be used when the visible ceiling surface is not load-bearing.

Installation and Safety Notes

Do not exceed the maximum supported projector weight of 15kg.

Use suitable safety equipment and installation tools.

Confirm the location of electrical wiring, plumbing and other concealed services before drilling.

Ensure that all mounting screws and adjustment fasteners are tightened securely.

Do not use the mount if any component is damaged or missing.

Check the installation and fasteners regularly and retighten them when necessary.

Keep projector ventilation openings unobstructed after installation.

Cable Management

Compatible power, video and control cables can be routed through the mount’s integrated cable-management opening.

Allow sufficient cable length for the required tilt, swivel and rotation adjustment without placing tension on the projector connections.

What’s in the Box

• RCT BRK-PRO-1 ceiling mounting assembly
• Universal projector mounting plate
• 4 × Adjustable projector mounting arms
• Projector mounting screws
• Mounting washers
• Concrete ceiling anchors
• Ceiling mounting screws
• Allen key
• Installation manual

Warranty

One-Year Limited Warranty
