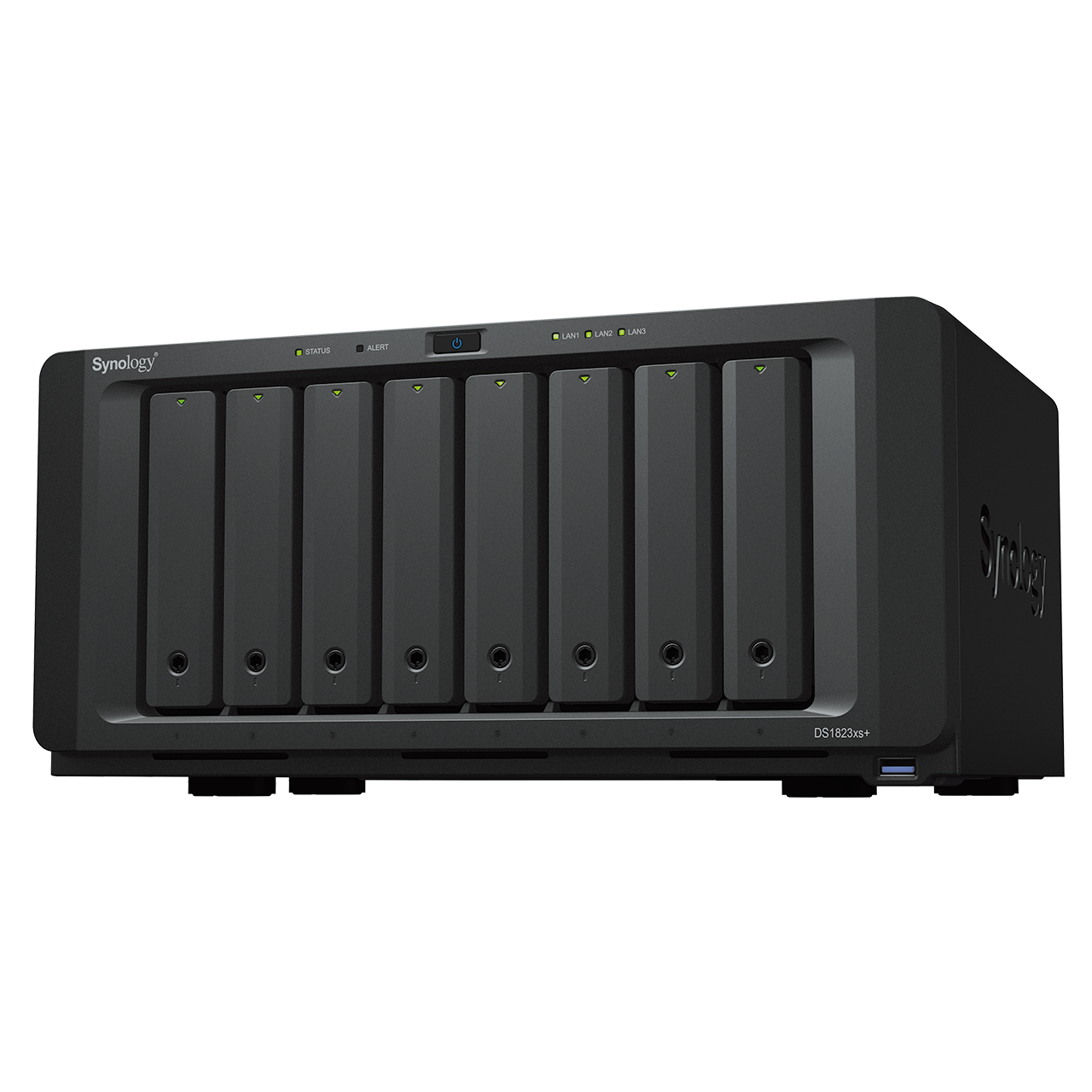

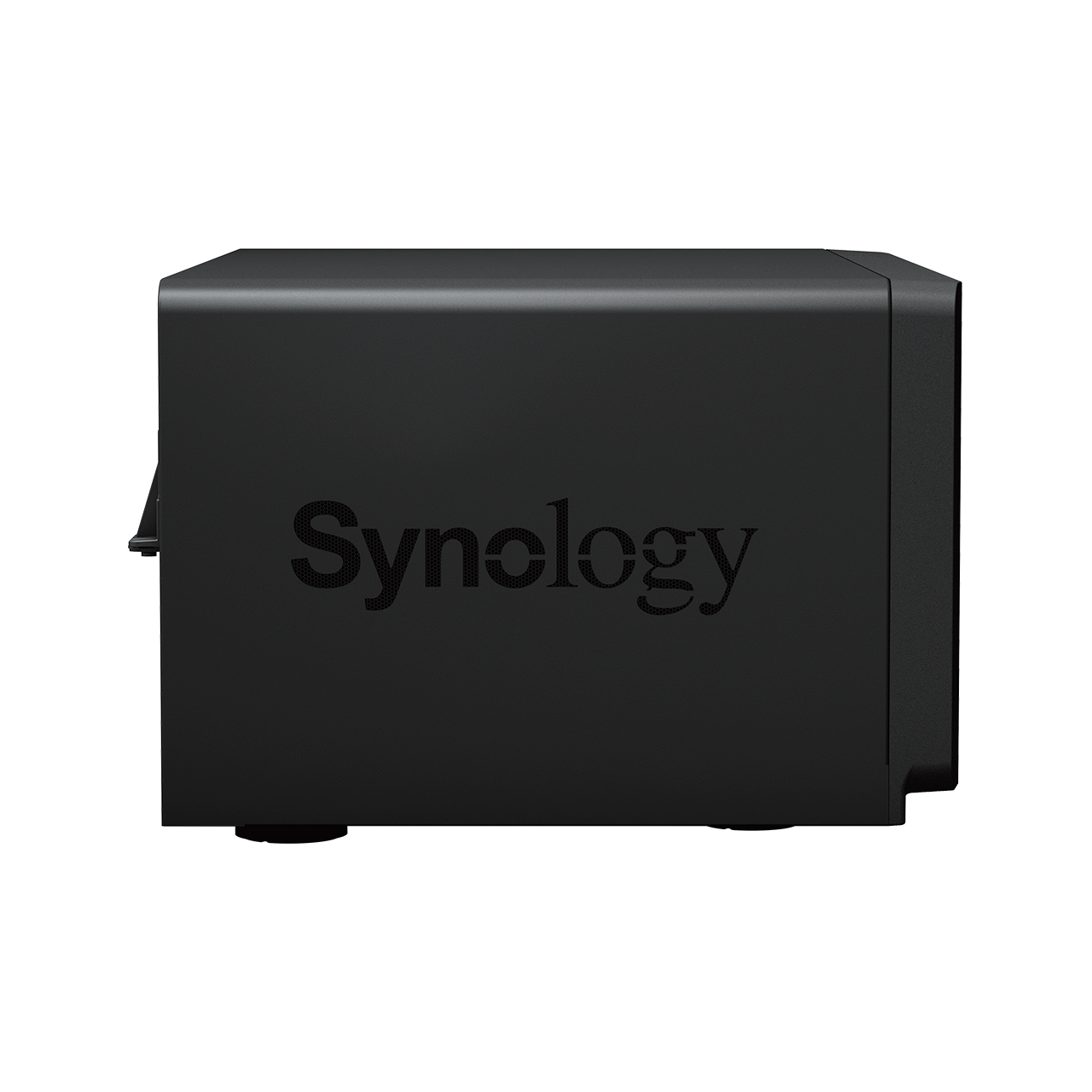

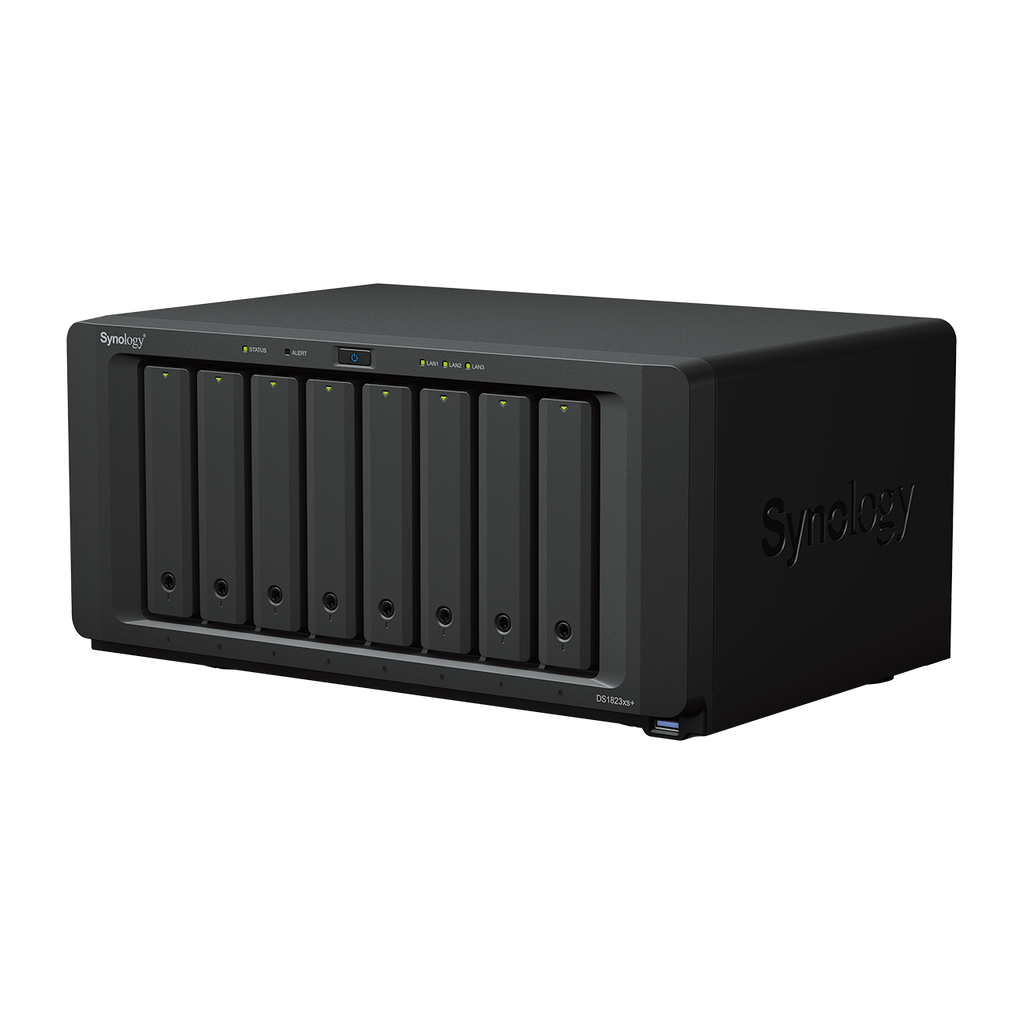

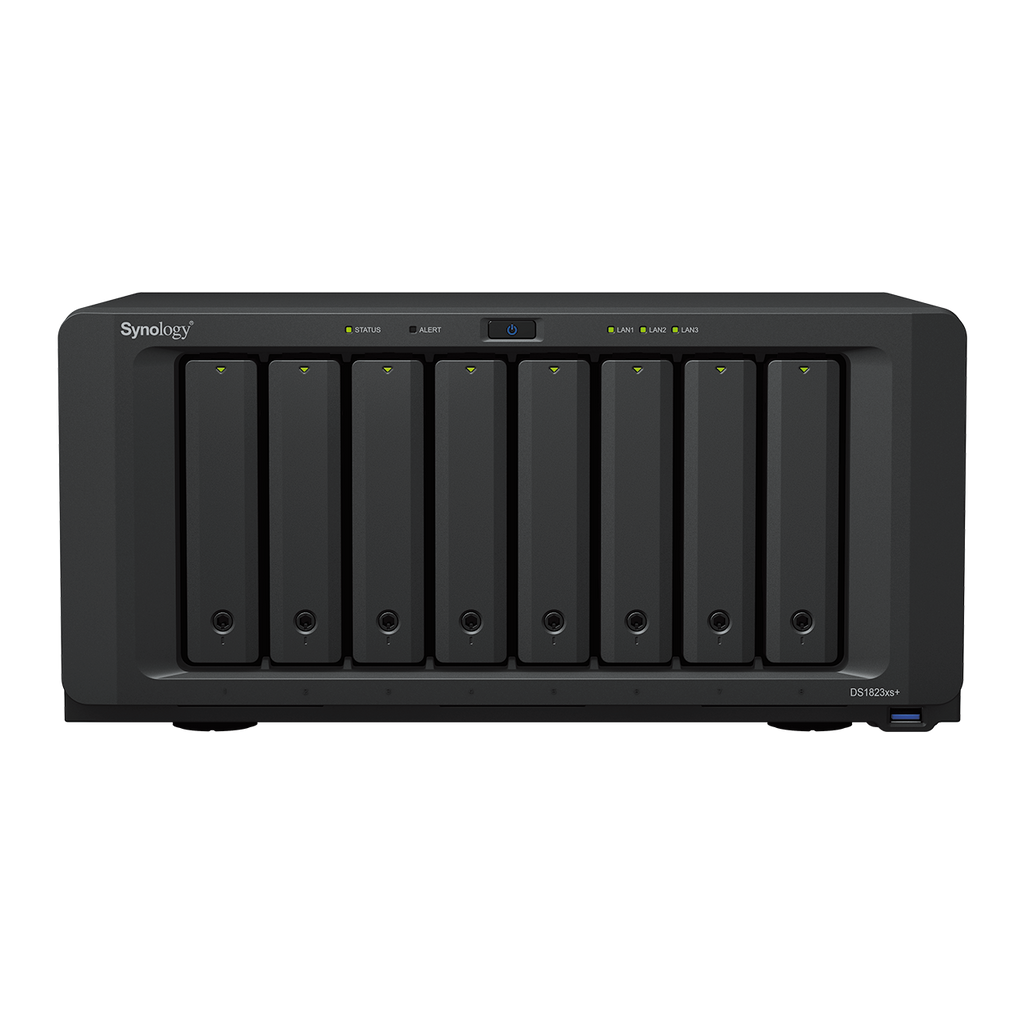

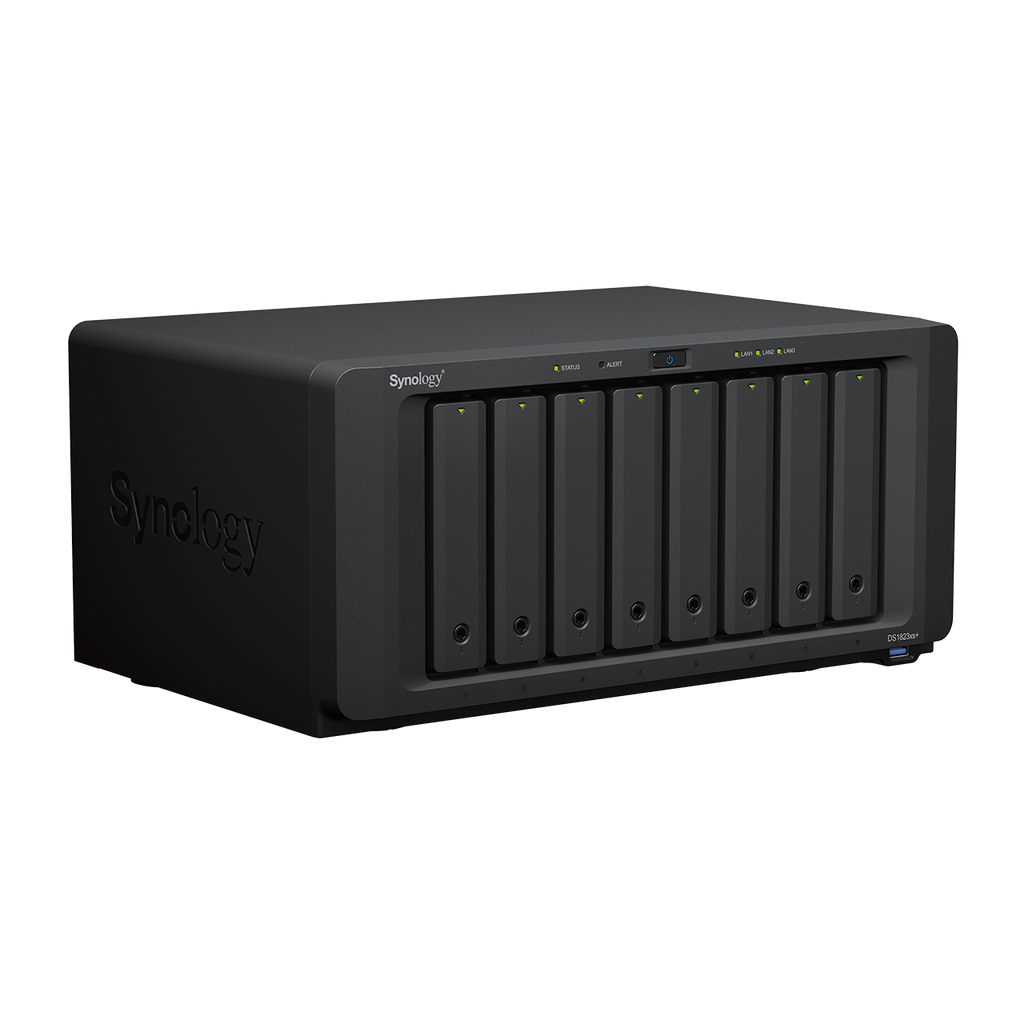

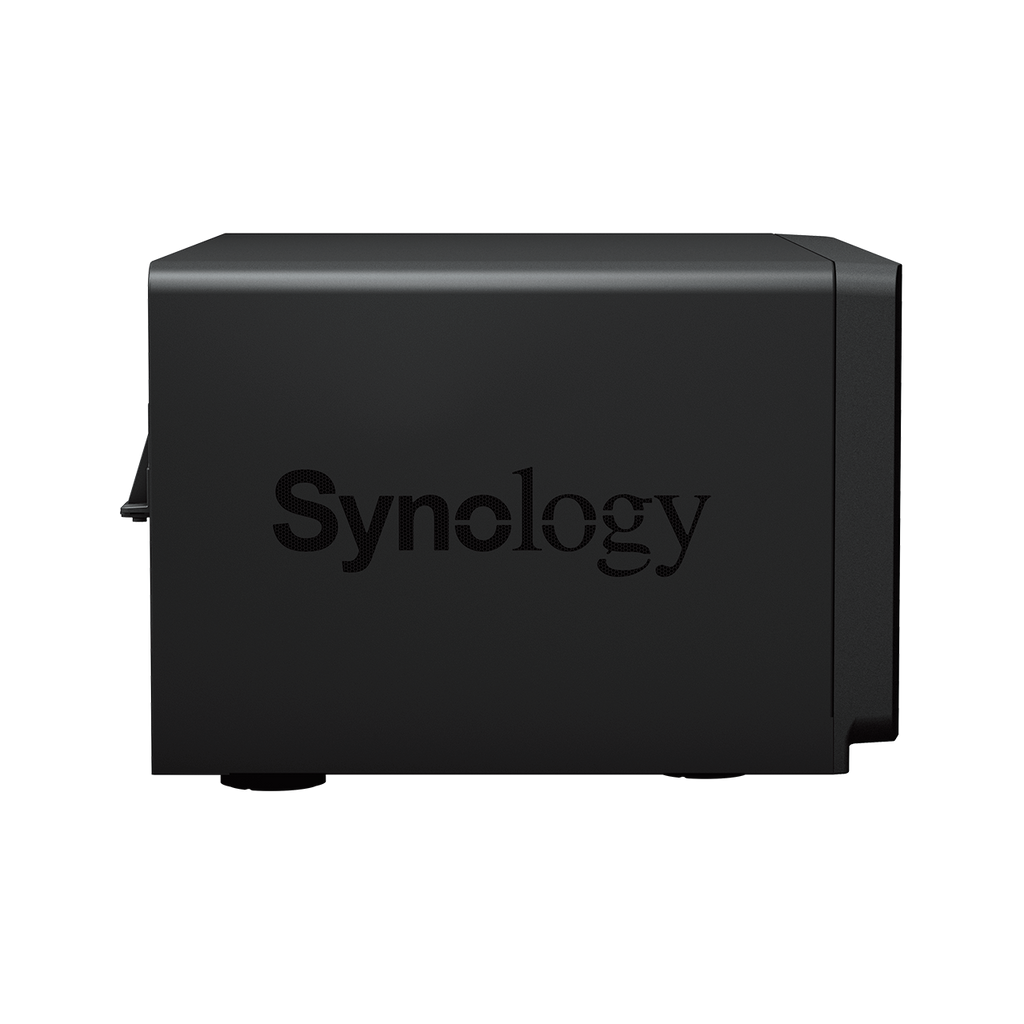

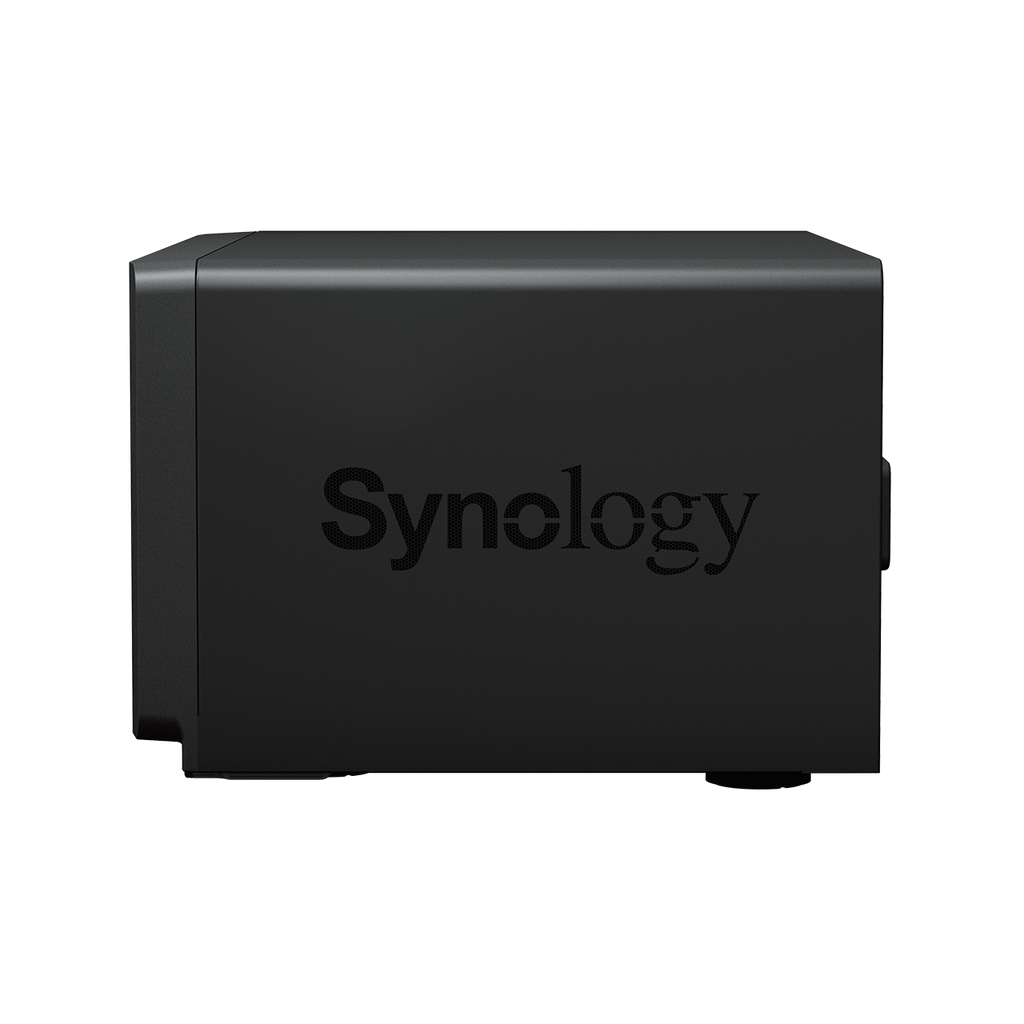

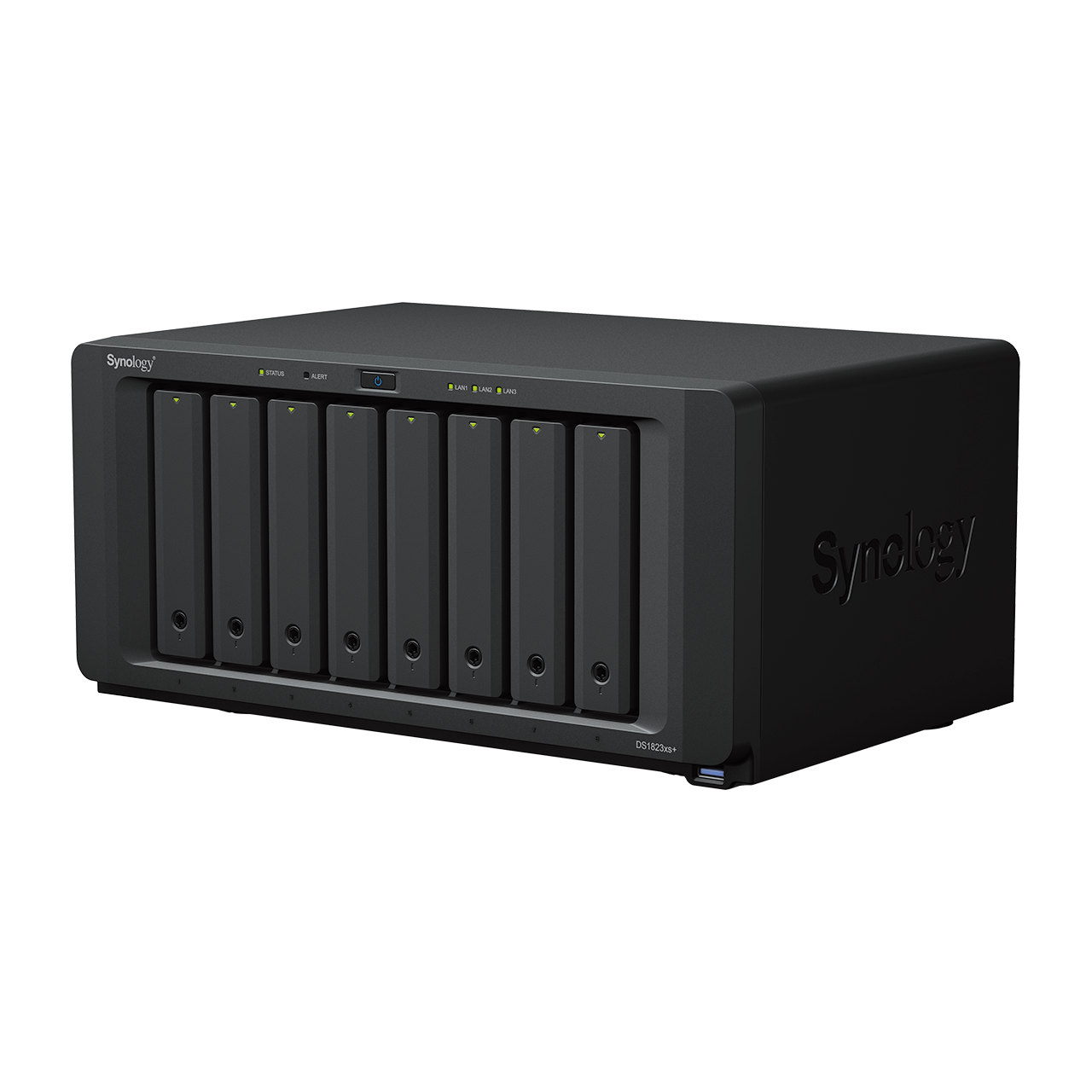

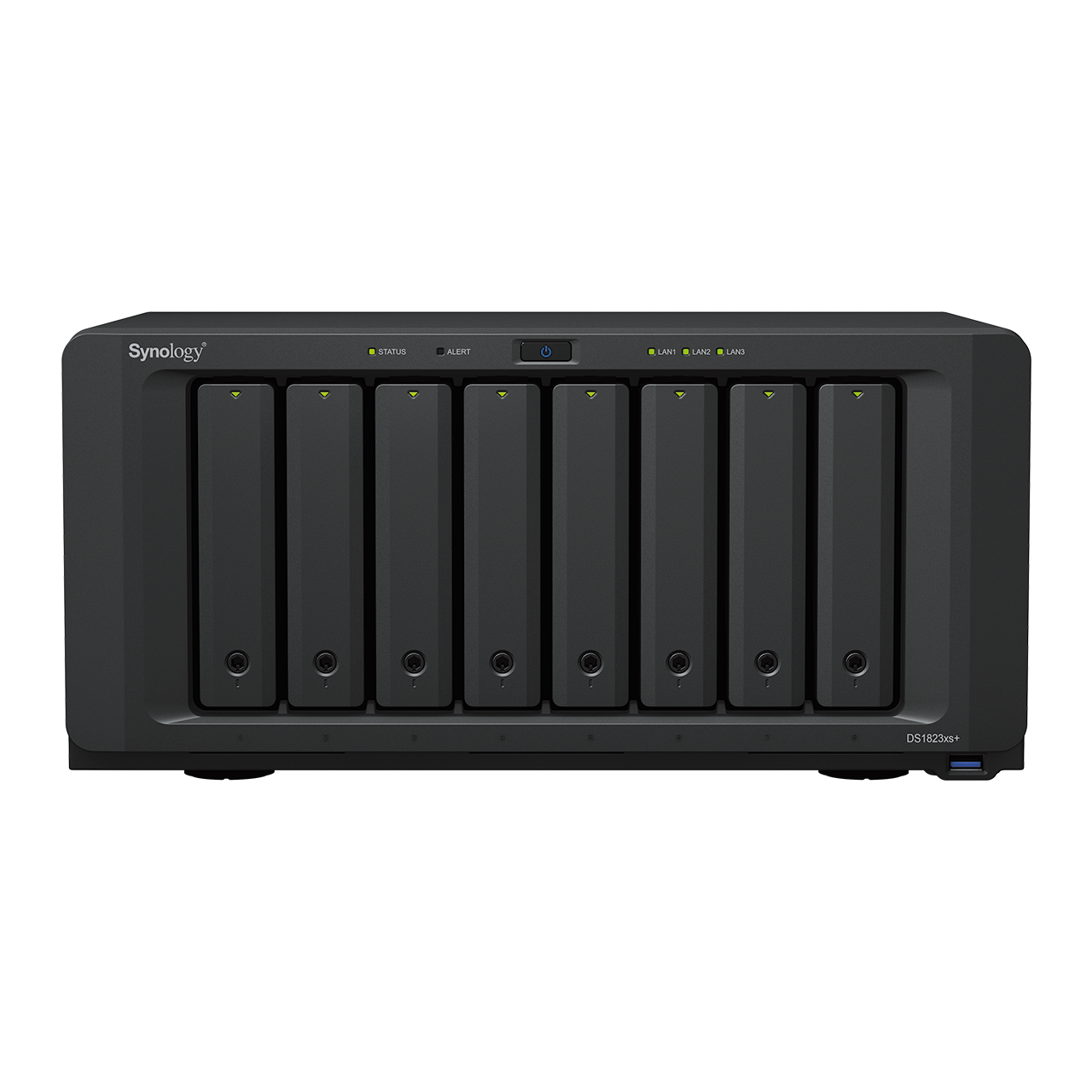

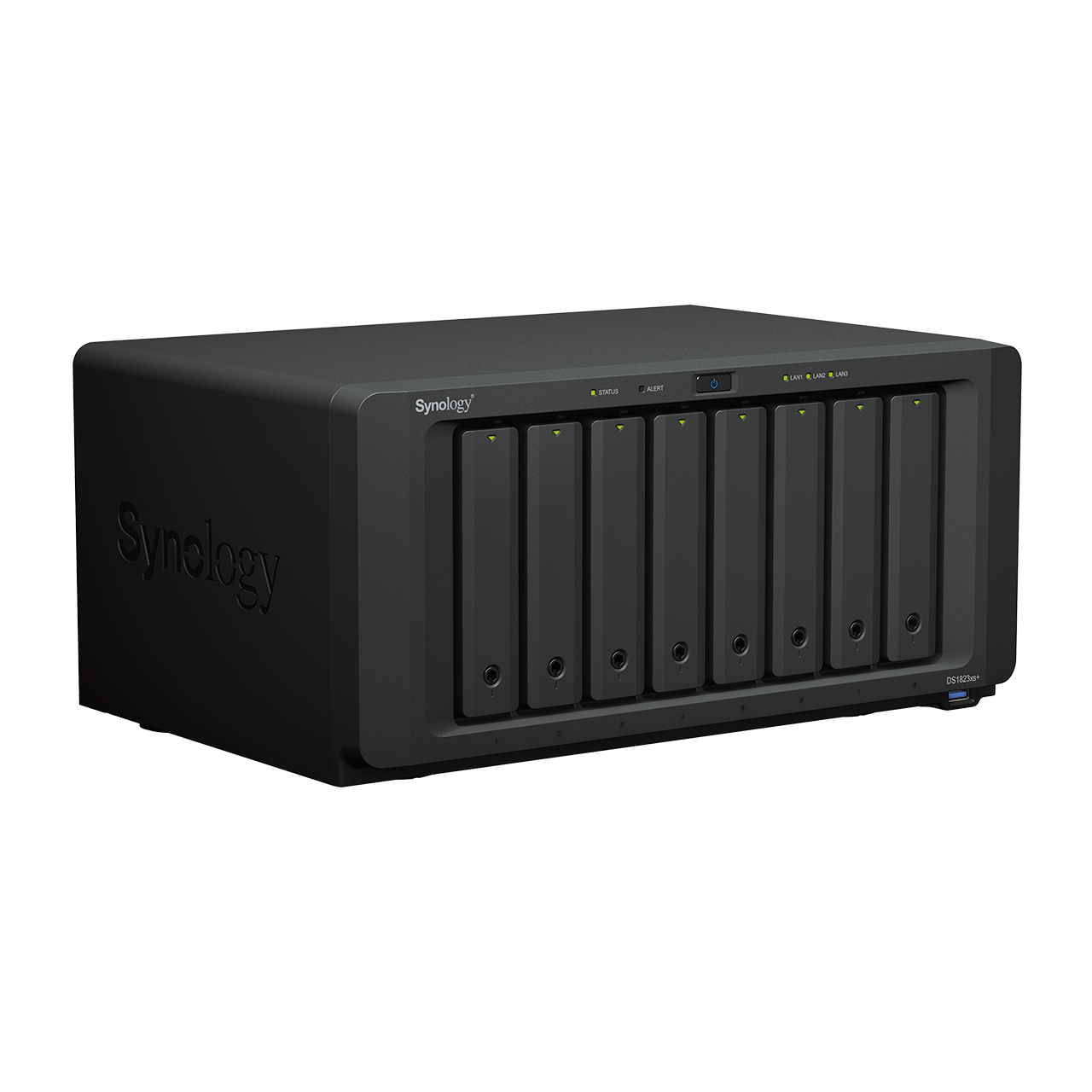

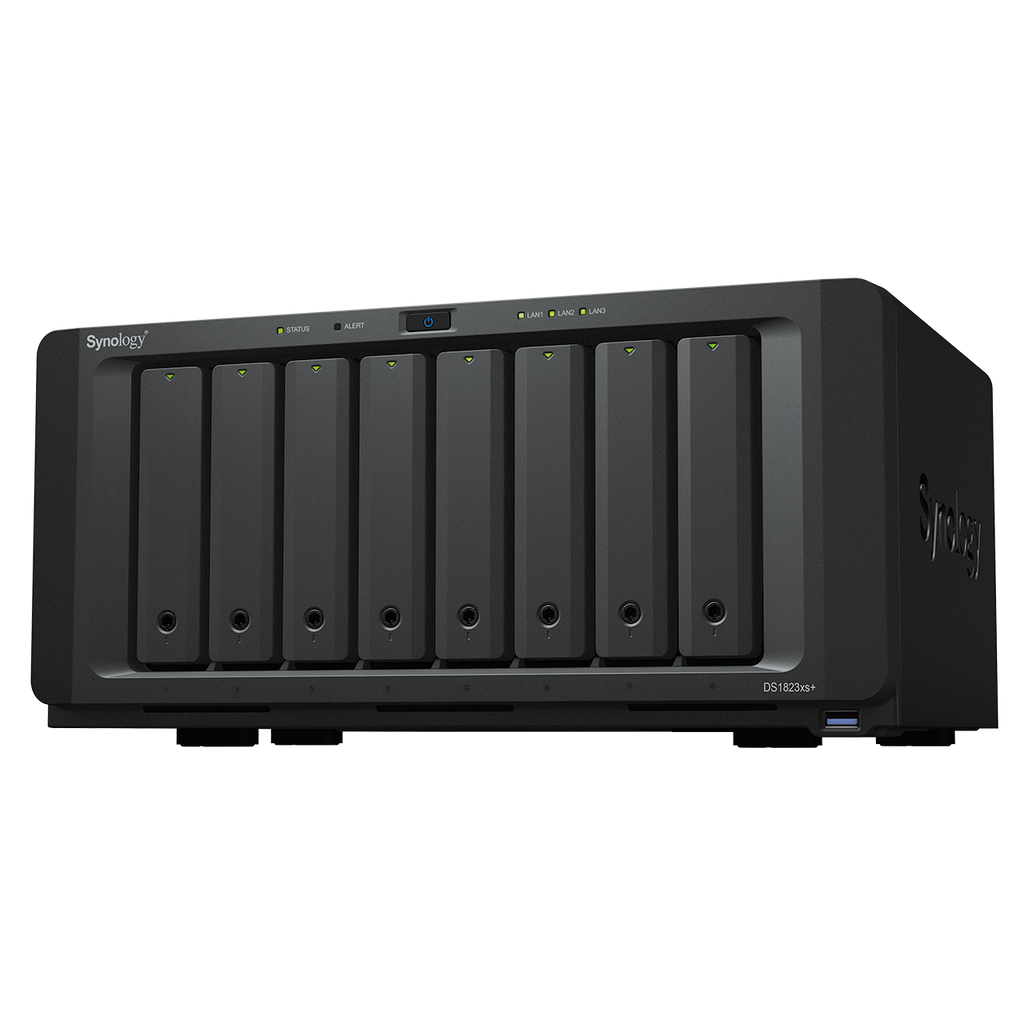

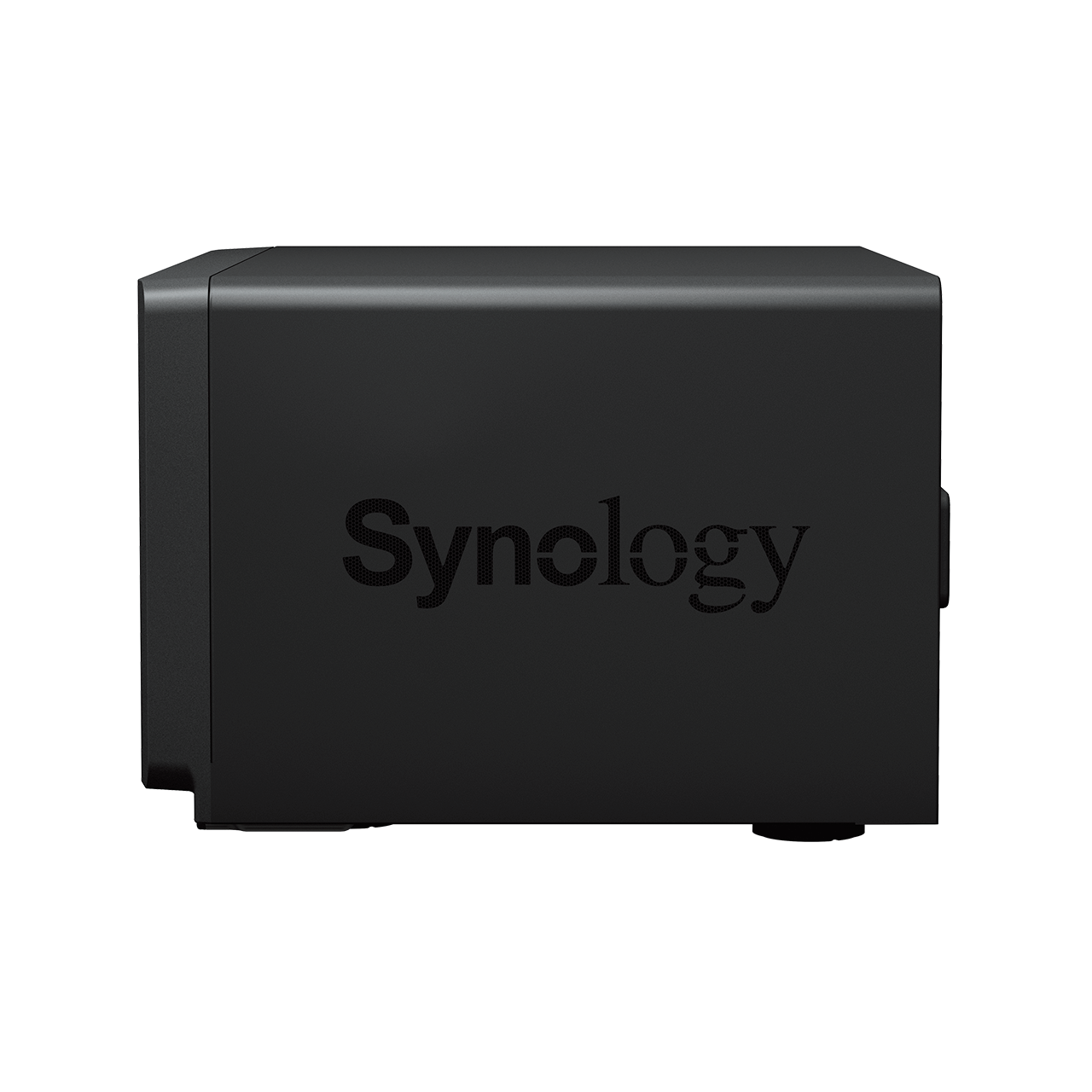

Synology DiskStation DS1823xs+ 8-Bay Desktop NAS

The Synology DiskStation DS1823xs+ is a high-performance 8-bay desktop NAS designed for centralized file storage, backup, business workflows, virtualization support, surveillance storage, and scalable data management.

With an AMD Ryzen V1780B processor, 8GB DDR4 ECC memory, support for up to 32GB memory, 2 x 1GbE LAN ports, 1 x 10GbE LAN port, 1 x out-of-band management LAN port, 3 x USB 3.2 Gen 1 ports, 2 x M.2 NVMe SSD slots, expansion support up to 18 drive bays with two DX517 expansion units, and compatibility with 3.5" SATA HDDs, 2.5" SATA SSDs, and M.2 2280 NVMe SSDs, the DS1823xs+ is built for demanding professional and business storage environments.

Product Overview

The Synology DiskStation DS1823xs+ is designed for customers who need a powerful and scalable 8-bay NAS solution for centralized file storage, backup, collaboration, virtualization support, surveillance, and business data workflows.

With eight drive bays as standard and expansion support for up to eighteen drive bays when paired with two compatible DX517 expansion units, the DS1823xs+ gives users strong storage flexibility as capacity requirements grow.

Powered by an AMD Ryzen V1780B 4-core / 8-thread processor with 3.35GHz base frequency and 3.6GHz turbo frequency, plus 8GB DDR4 ECC SODIMM memory, the DS1823xs+ supports Synology DSM features for storage management, file services, backup, Synology Drive, Synology Photos, Surveillance Station, Synology High Availability, Virtual Machine Manager, and supported business applications.

Key Features

• 8-bay Synology xs+ Series desktop NAS
• AMD Ryzen V1780B processor
• 4-core / 8-thread CPU
• 3.35GHz base and 3.6GHz turbo CPU frequency
• 8GB DDR4 ECC SODIMM system memory
• Maximum memory capacity of 32GB with compatible memory expansion
• Hardware encryption engine
• Supports 3.5" SATA HDDs
• Supports 2.5" SATA SSDs
• Supports M.2 2280 NVMe SSDs
• 2 x M.2 NVMe SSD slots
• Supports M.2 SSD storage pools
• Supports SSD read/write cache
• Supports SSD TRIM
• Hot-swappable drive support for main drive bays
• Expands up to 18 drive bays with two DX517 expansion units

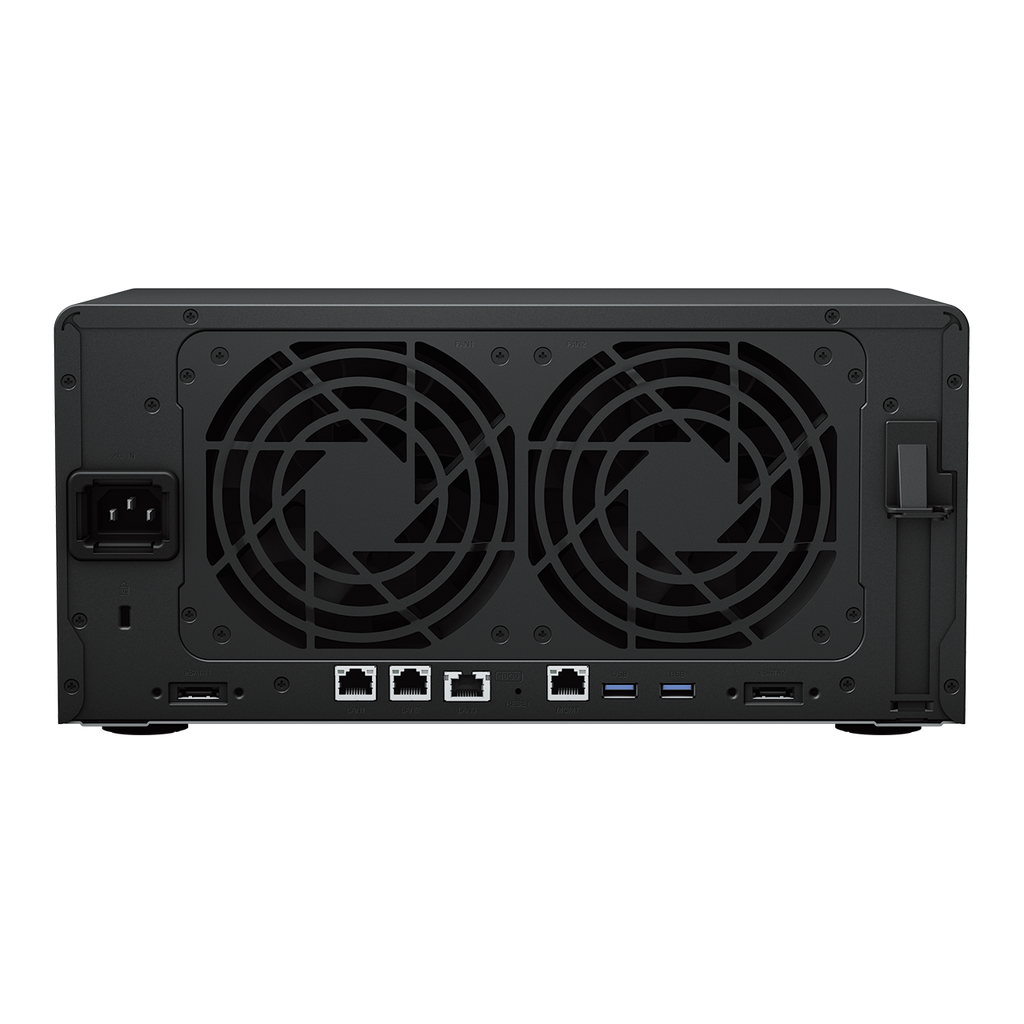

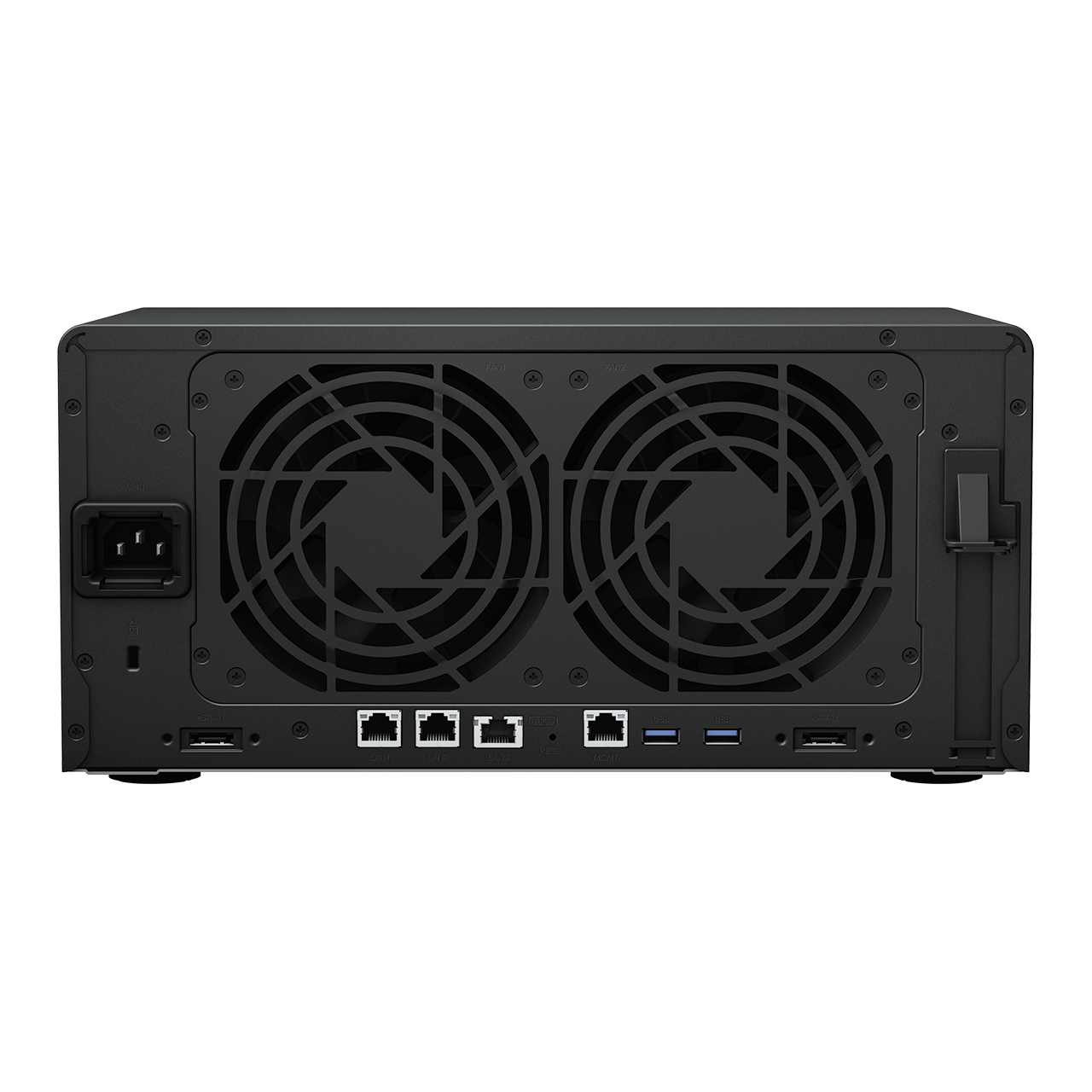

• 2 x RJ-45 1GbE LAN ports
• 1 x RJ-45 10GbE LAN port
• 1 x out-of-band management LAN port
• 3 x USB 3.2 Gen 1 ports
• 2 x eSATA expansion ports
• PCIe Gen3 x8 slot with x4 link
• Supports RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
• Supports RAID Group
• Supports RAID migration from Basic to RAID 1, Basic to RAID 5, RAID 1 to RAID 5, and RAID 5 to RAID 6
• Maximum single volume size of 108TB, or up to 200TB with 32GB memory
• Compact 166mm x 343mm x 243mm desktop design
• Backed by a 5-year hardware warranty

Recommended Use Cases

• Business file storage
• Professional file sharing
• Centralized document backup
• Business backup workflows
• Synology Drive file access and synchronization
• Synology Office collaboration
• Synology Photos management
• Surveillance storage
• Virtual Machine Manager workloads
• iSCSI and Fibre Channel storage workflows
• Shared folder snapshots
• M.2 NVMe storage pools
• SSD cache deployments
• High-performance 10GbE network storage
• Scalable storage expansion with DX517
• 10GbE or 25GbE network upgrade with compatible network interface card
• RAID F1, RAID 5, RAID 6, or RAID 10 storage configurations
• Business continuity and data protection workflows

Specifications

• Brand: Synology
• Model: DS1823xs+
• Product Type: 8-Bay xs+ Series Desktop NAS
• CPU Model: AMD Ryzen V1780B
• CPU Quantity: 1
• CPU Cores: 4
• CPU Threads: 8
• CPU Architecture: 64-bit
• CPU Frequency: 3.35GHz base / 3.6GHz turbo
• Hardware Encryption Engine: Yes
• System Memory: 8GB DDR4 ECC SODIMM
• Pre-installed Memory: 8GB x 1
• Total Memory Slots: 2
• Maximum Memory Capacity: 32GB
• Drive Bays: 8
• Maximum Drive Bays with Expansion Unit: 18 with DX517 x2
• M.2 Drive Slots: 2 x NVMe
• Compatible Drive Type: 3.5" SATA HDD
• Compatible Drive Type: 2.5" SATA SSD
• Compatible Drive Type: M.2 2280 NVMe SSD
• Hot Swappable Drive: Yes for main drive bays
• LAN Port: 2 x RJ-45 1GbE
• LAN Port: 1 x RJ-45 10GbE
• Out-of-Band Management LAN Port: 1
• USB Ports: 3 x USB 3.2 Gen 1
• Expansion Ports: 2
• Expansion Port Type: eSATA
• PCIe Expansion: 1 x Gen3 x8 slot with x4 link
• Size: 166mm x 343mm x 243mm
• Weight: 6.2kg
• System Fan: 120mm x 120mm x 2
• Easy Replacement System Fan: Yes
• Fan Speed Modes: Full-Speed Mode, Cool Mode, Quiet Mode
• Adjustable Front LED Indicators: Yes
• Power Recovery: Yes
• Scheduled Power On / Off: Yes
• Wake on LAN / WAN: Yes
• Noise Level: 23.6 dB(A)
• Power Supply Unit: 250W
• AC Input Power Voltage: 100V to 240V AC
• Power Frequency: 50/60Hz, Single Phase
• Power Consumption: 87.93W during access
• Power Consumption: 28.37W during HDD hibernation
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Operating Humidity: 8% to 80% RH
• Storage Humidity: 5% to 95% RH
• Certification: FCC, CE, BSMI, VCCI, RCM, EAC, CCC, KC, BIS
• Environment: RoHS Compliant
• Warranty: 5-Year Hardware Warranty

Performance and Reliability Features

• 8-bay xs+ Series NAS designed for demanding professional and business storage workflows
• AMD Ryzen V1780B 4-core / 8-thread processor for supported DSM business workloads
• 8GB DDR4 ECC SODIMM memory for enhanced data integrity
• Supports memory expansion up to 32GB using compatible Synology memory
• Hardware encryption engine support
• Supports 3.5" SATA HDDs and 2.5" SATA SSDs
• Supports M.2 2280 NVMe SSDs for storage pools or SSD cache
• M.2 SSD storage pool support with Synology-verified SSDs
• SSD read/write cache support
• SSD TRIM support
• Hot-swappable main drive bays for easier drive maintenance
• Expansion support up to 18 drive bays with compatible DX517 expansion units
• Built-in 10GbE LAN connectivity for high-speed network storage access
• Dual 1GbE LAN connectivity for additional network flexibility
• Out-of-band management LAN port for dedicated management access
• PCIe Gen3 x8 slot with x4 link for compatible network interface cards
• eSATA expansion ports for compatible expansion unit connections
• Supports Btrfs and ext4 file systems on internal drives
• Supports RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
• Supports RAID Group
• Supports RAID migration from Basic to RAID 1, Basic to RAID 5, RAID 1 to RAID 5, and RAID 5 to RAID 6
• Supports volume expansion with larger HDDs
• Supports volume expansion by adding a HDD for RAID F1, JBOD, RAID 5, and RAID 6
• Supports global hot spare for RAID F1, RAID 1, RAID 5, RAID 6, and RAID 10
• Supports DSM file services including SMB, AFP, NFS, FTP, WebDAV, and Rsync
• Supports iSCSI and Fibre Channel workflows
• Supports Synology High Availability
• Supports Synology Photos facial recognition and object recognition
• Supports Synology Drive for file access and synchronization
• Supports Synology Office collaboration workflows
• Supports Virtual Machine Manager with recommended virtual machine instances
• Includes 2 default Surveillance Station licenses
• 5-year warranty support

Compatibility Note

Please check that your selected hard drives, SSDs, M.2 NVMe SSDs, memory upgrades, network interface cards, and expansion units are compatible with the Synology DS1823xs+ before ordering.

This NAS supports 3.5" SATA HDDs, 2.5" SATA SSDs, and M.2 2280 NVMe SSDs. Storage drives, M.2 SSDs, memory upgrades, network interface cards, and expansion units are not included unless specifically stated by the seller.

For memory expansion, please use compatible Synology memory modules for optimum compatibility and reliability. For multi-module memory configurations, all modules must be identical and share the same model number.

Before ordering, please confirm:

• Your selected drives are compatible with the Synology DS1823xs+
• Your selected M.2 NVMe SSDs are compatible with the Synology DS1823xs+
• Your selected memory modules are compatible with the Synology DS1823xs+
• Your selected network interface card is compatible with the Synology DS1823xs+
• Your selected expansion units are compatible with the Synology DS1823xs+
• Your required storage capacity matches your intended use
• Your intended RAID, file system, backup, or storage setup
• Your network and device compatibility requirements
• Your intended DSM package and workload requirements
• Whether multiple drives are required for your intended RAID configuration

What’s in the Box

• Synology DS1823xs+ main unit x1
• Accessory pack x1
• AC power cord x1
• RJ-45 LAN cable x2
• Quick installation guide x1
