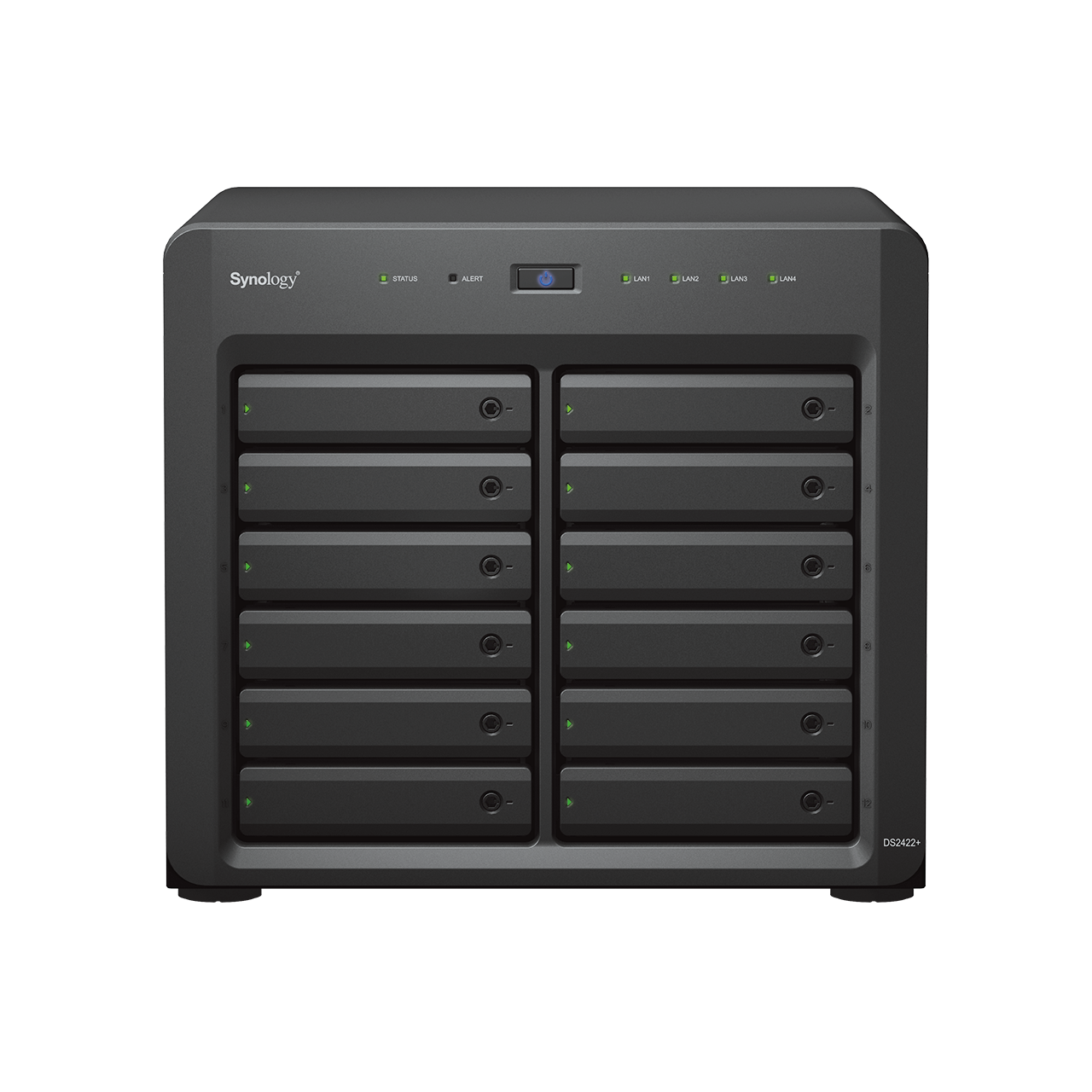

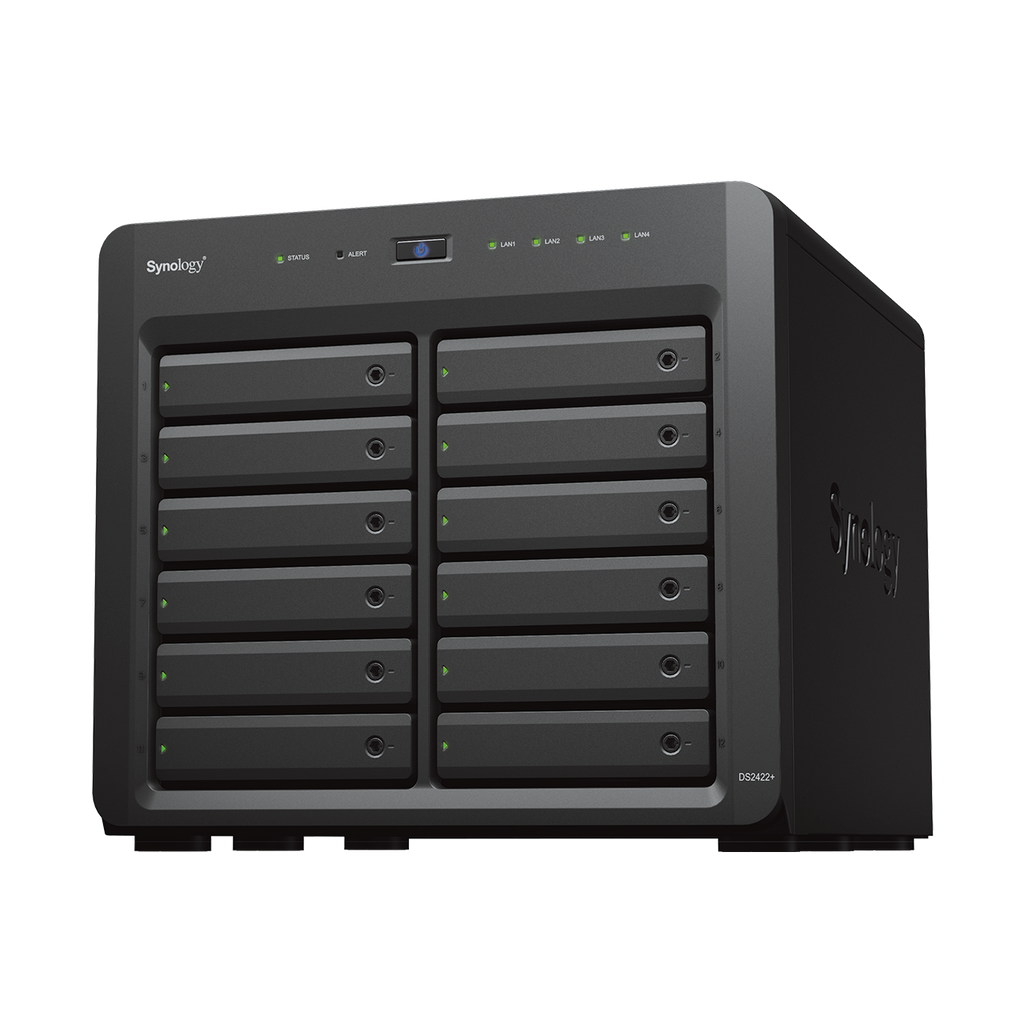

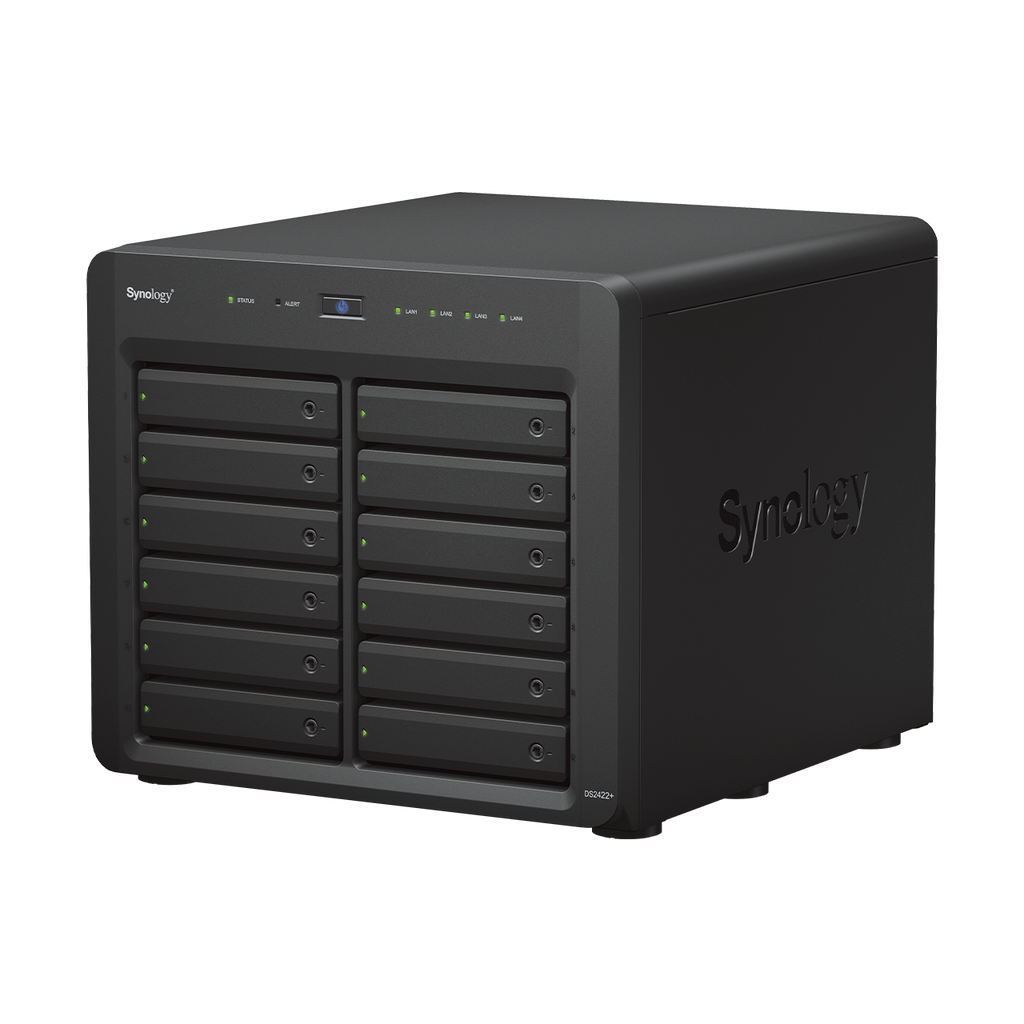

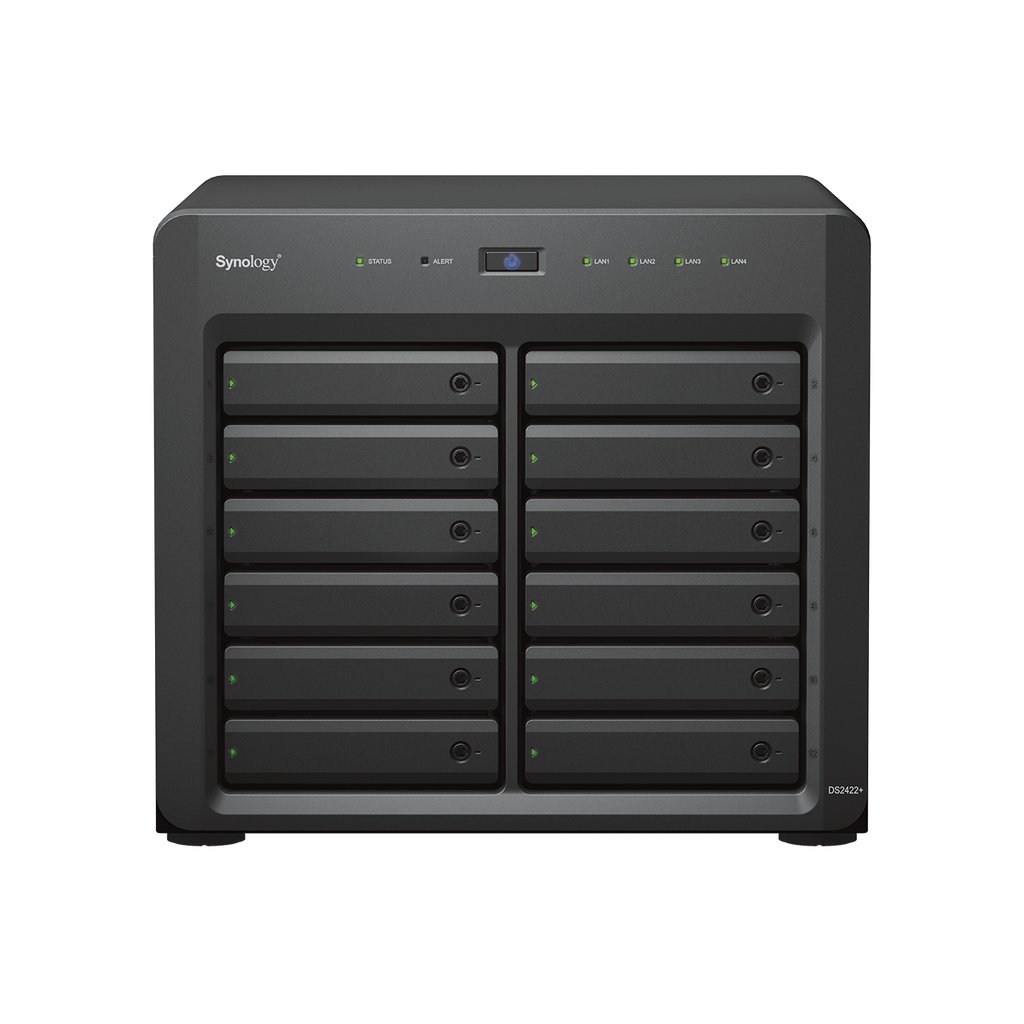

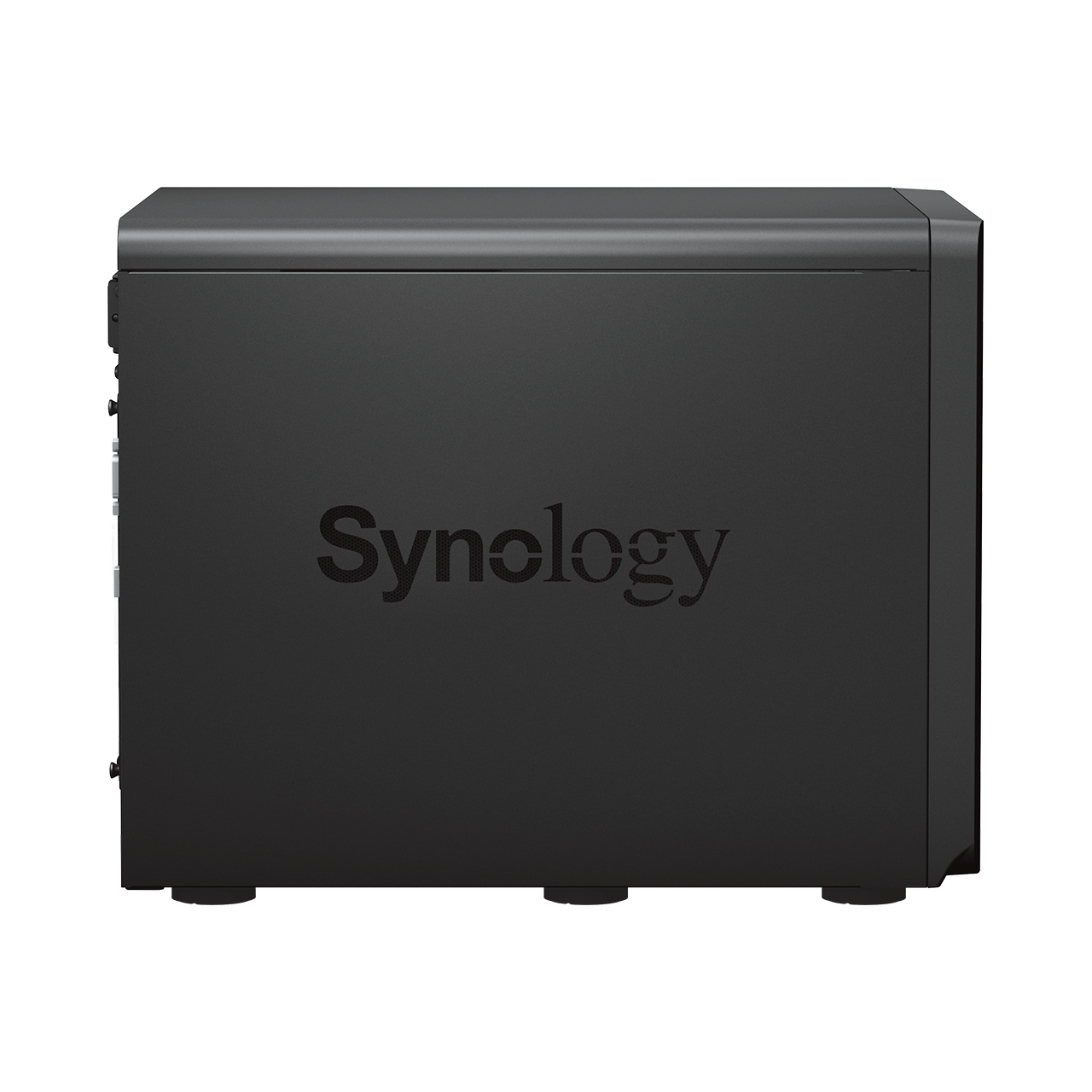

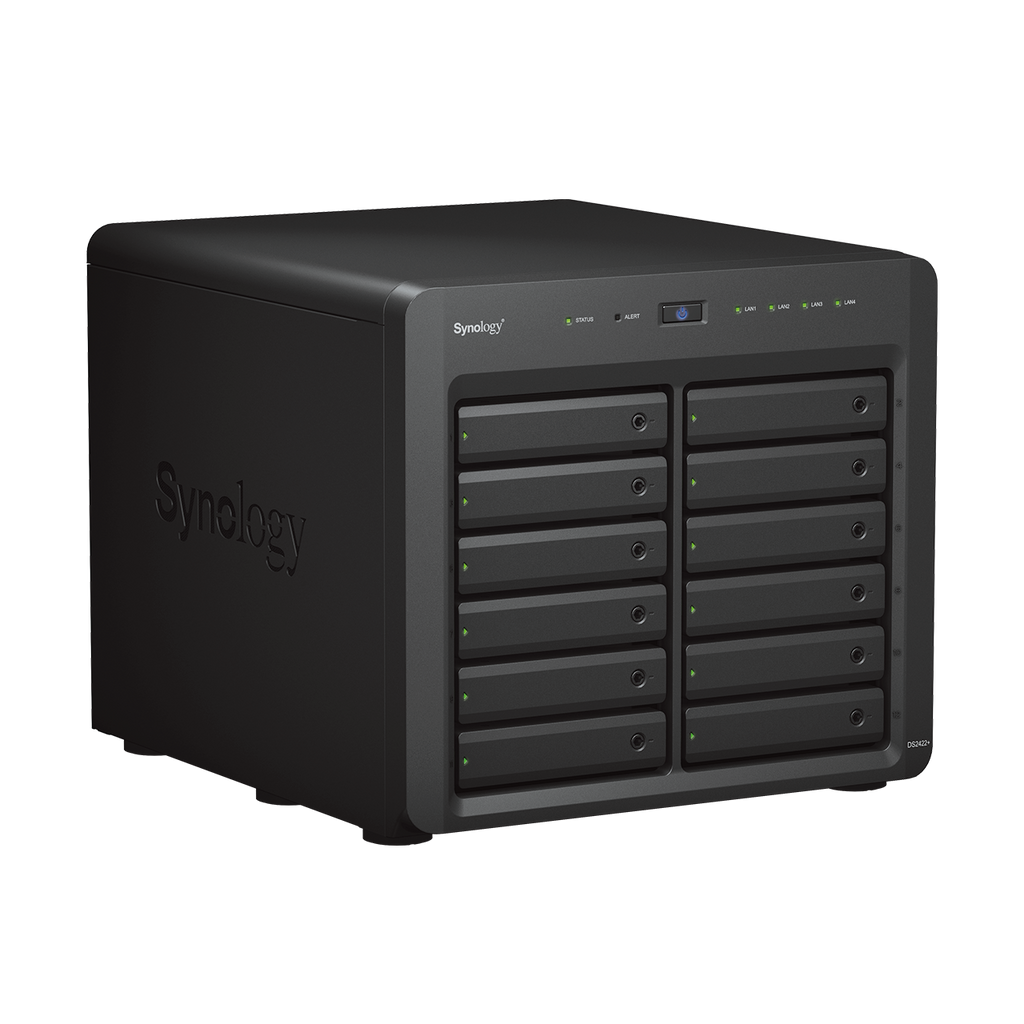

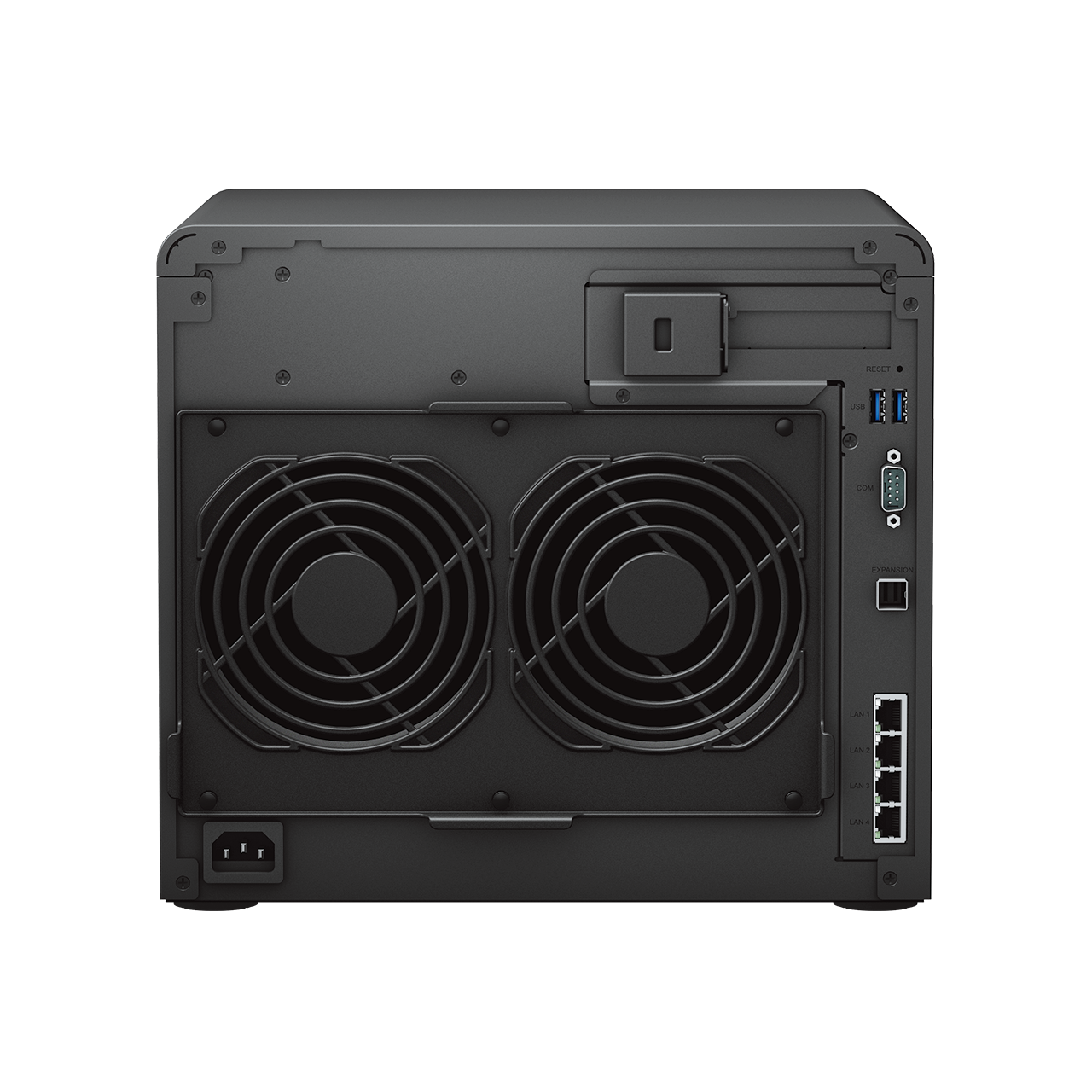

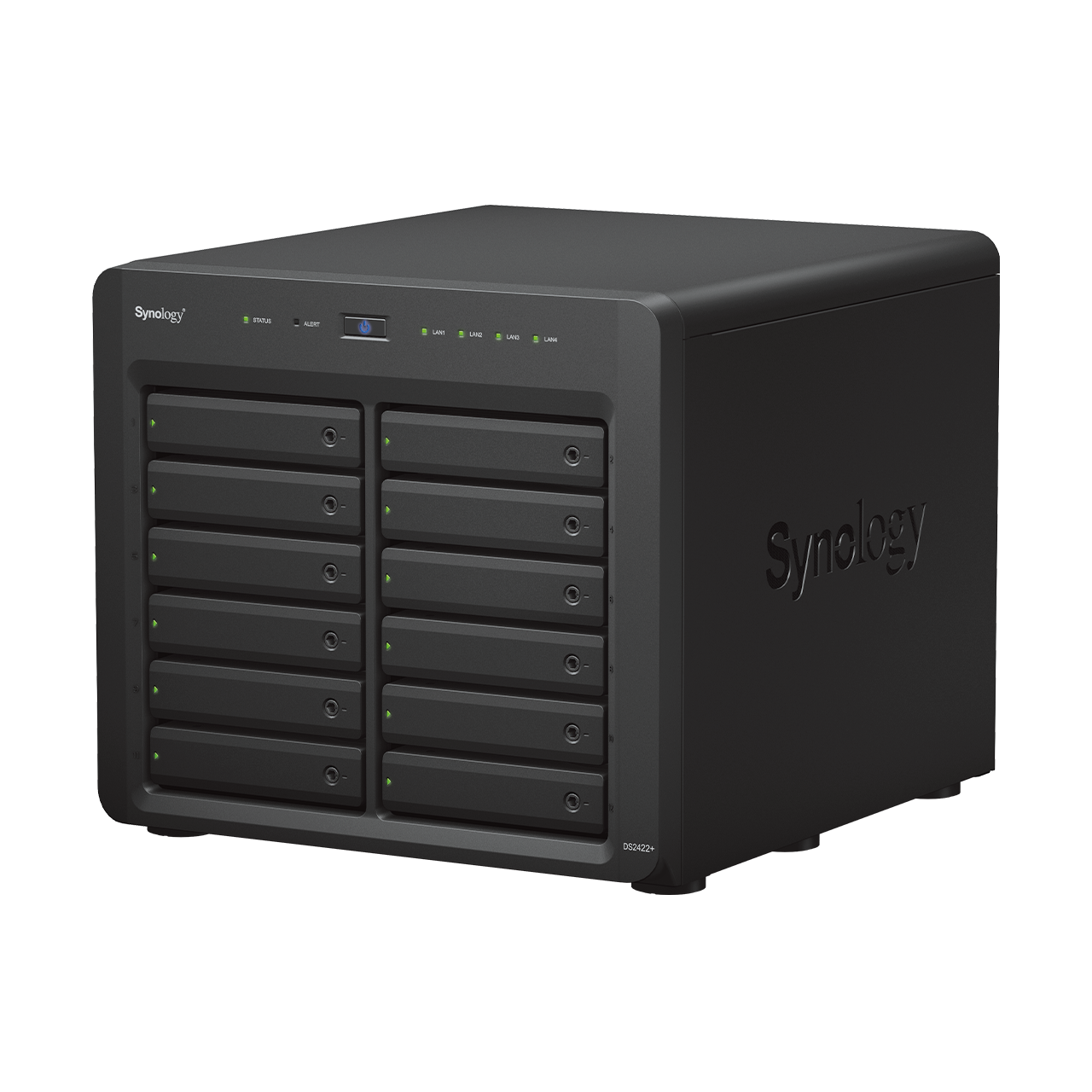

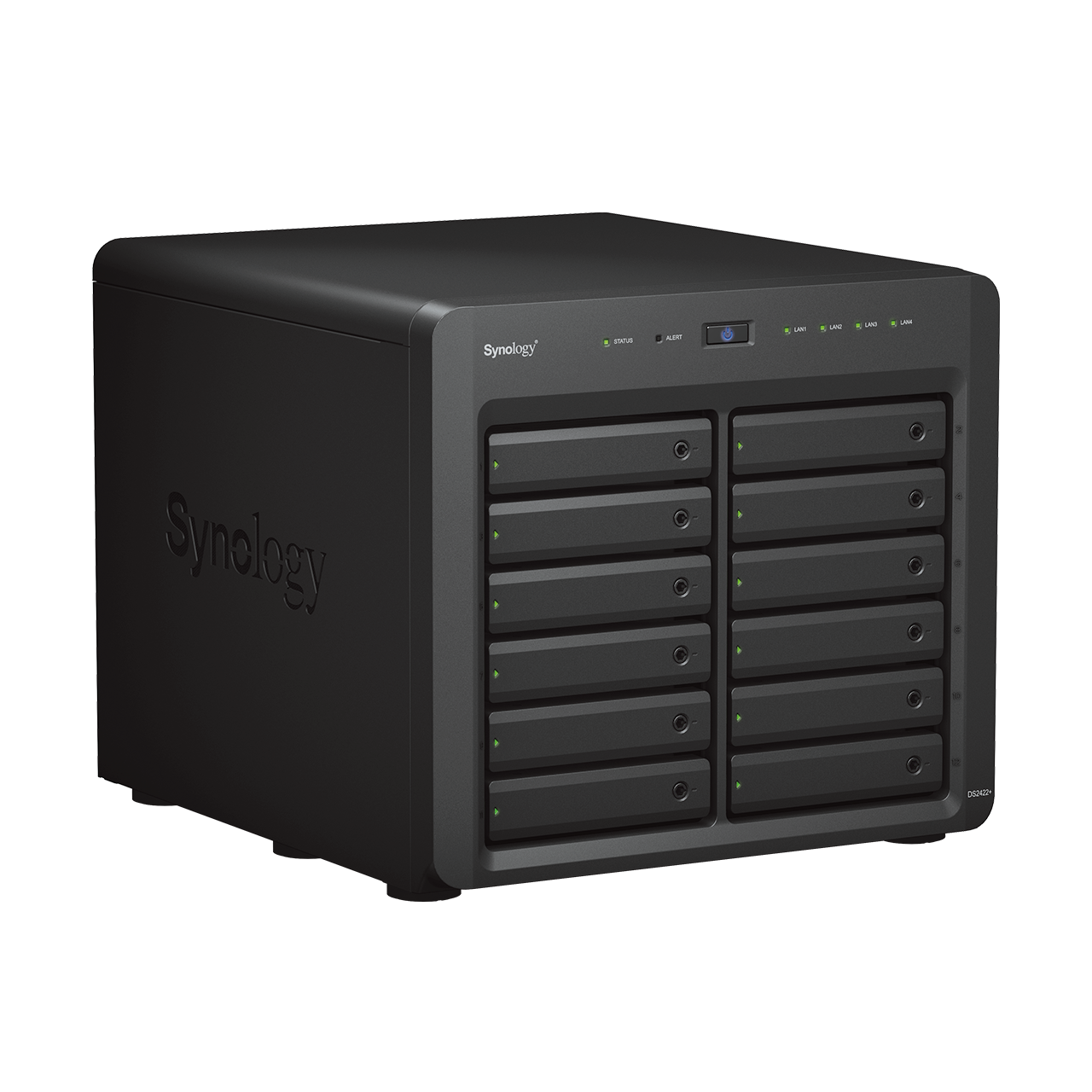

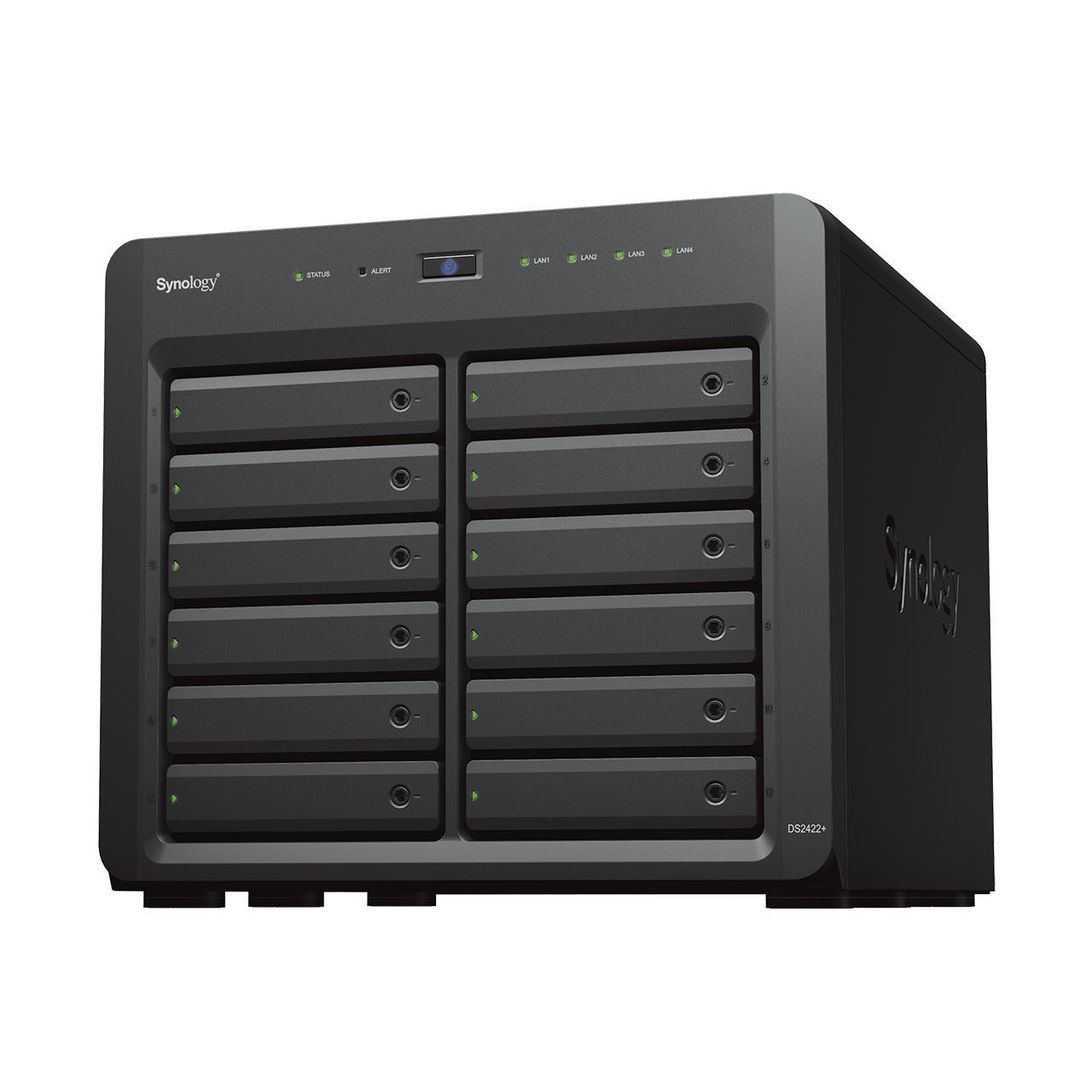

Synology DiskStation DS2422+ 12-Bay Desktop NAS

The Synology DiskStation DS2422+ is a high-capacity 12-bay Plus Series desktop NAS designed for centralized file storage, backup, business workflows, surveillance storage, collaboration, and scalable data management.

With an AMD Ryzen V1500B processor, 4GB DDR4 ECC memory, support for up to 32GB memory, 4 x 1GbE LAN ports, 2 x USB 3.2 Gen 1 ports, expansion support up to 24 drive bays with one DX1222 expansion unit, and compatibility with 3.5" SATA HDDs, 2.5" SATA HDDs, and 2.5" SATA SSDs, the DS2422+ is built for reliable business and professional storage.

Product Overview

The Synology DiskStation DS2422+ is designed for customers who need a scalable 12-bay NAS solution for centralized file storage, backup, collaboration, surveillance, and business data workflows.

With twelve drive bays as standard and expansion support for up to twenty-four drive bays when paired with a compatible DX1222 expansion unit, the DS2422+ gives users strong storage flexibility for growing capacity requirements.

Powered by an AMD Ryzen V1500B 4-core / 8-thread processor with 2.2GHz CPU frequency, plus 4GB DDR4 ECC SODIMM memory, the DS2422+ supports Synology DSM features for storage management, file services, backup, Synology Drive, Synology Photos, Surveillance Station, Synology High Availability, Virtual Machine Manager, and supported business applications.

Key Features

• 12-bay Synology Plus Series desktop NAS
• AMD Ryzen V1500B processor
• 4-core / 8-thread CPU
• 2.2GHz CPU frequency
• 4GB DDR4 ECC SODIMM system memory
• Maximum memory capacity of 32GB with compatible memory expansion
• Hardware encryption engine
• Supports 3.5" SATA HDDs
• Supports 2.5" SATA HDDs
• Supports 2.5" SATA SSDs
• Hot-swappable drive support
• Expands up to 24 drive bays with one DX1222 expansion unit
• 4 x RJ-45 1GbE LAN ports
• 2 x USB 3.2 Gen 1 ports
• 1 x Mini-SAS HD expansion port
• PCIe Gen3 x8 slot with x4 link
• Supports SSD read/write cache
• Supports SSD TRIM
• Supports Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
• Supports RAID migration from Basic to RAID 1, Basic to RAID 5, RAID 1 to RAID 5, and RAID 5 to RAID 6
• Maximum single volume size of 108TB
• 270mm x 300mm x 340mm desktop design
• Backed by a 3-year hardware warranty

Recommended Use Cases

• Business file storage
• Professional file sharing
• Centralized document backup
• Business backup workflows
• Synology Drive file access and synchronization
• Synology Office collaboration
• Synology Photos management
• Surveillance storage
• Virtual Machine Manager workloads
• iSCSI storage
• Shared folder snapshots
• SSD cache deployments
• Scalable storage expansion with DX1222
• 10GbE or 25GbE network upgrade with compatible network interface card
• High-capacity RAID storage configurations
• Business continuity and data protection workflows

Specifications

• Brand: Synology
• Model: DS2422+
• Product Type: 12-Bay Plus Series Desktop NAS
• CPU Model: AMD Ryzen V1500B
• CPU Quantity: 1
• CPU Cores: 4
• CPU Threads: 8
• CPU Architecture: 64-bit
• CPU Frequency: 2.2GHz
• Hardware Encryption Engine: Yes
• System Memory: 4GB DDR4 ECC SODIMM
• Pre-installed Memory: 4GB x 1
• Total Memory Slots: 2
• Maximum Memory Capacity: 32GB
• Drive Bays: 12
• Maximum Drive Bays with Expansion Unit: 24 with DX1222 x1
• Compatible Drive Type: 3.5" SATA HDD
• Compatible Drive Type: 2.5" SATA HDD
• Compatible Drive Type: 2.5" SATA SSD
• Hot Swappable Drive: Yes

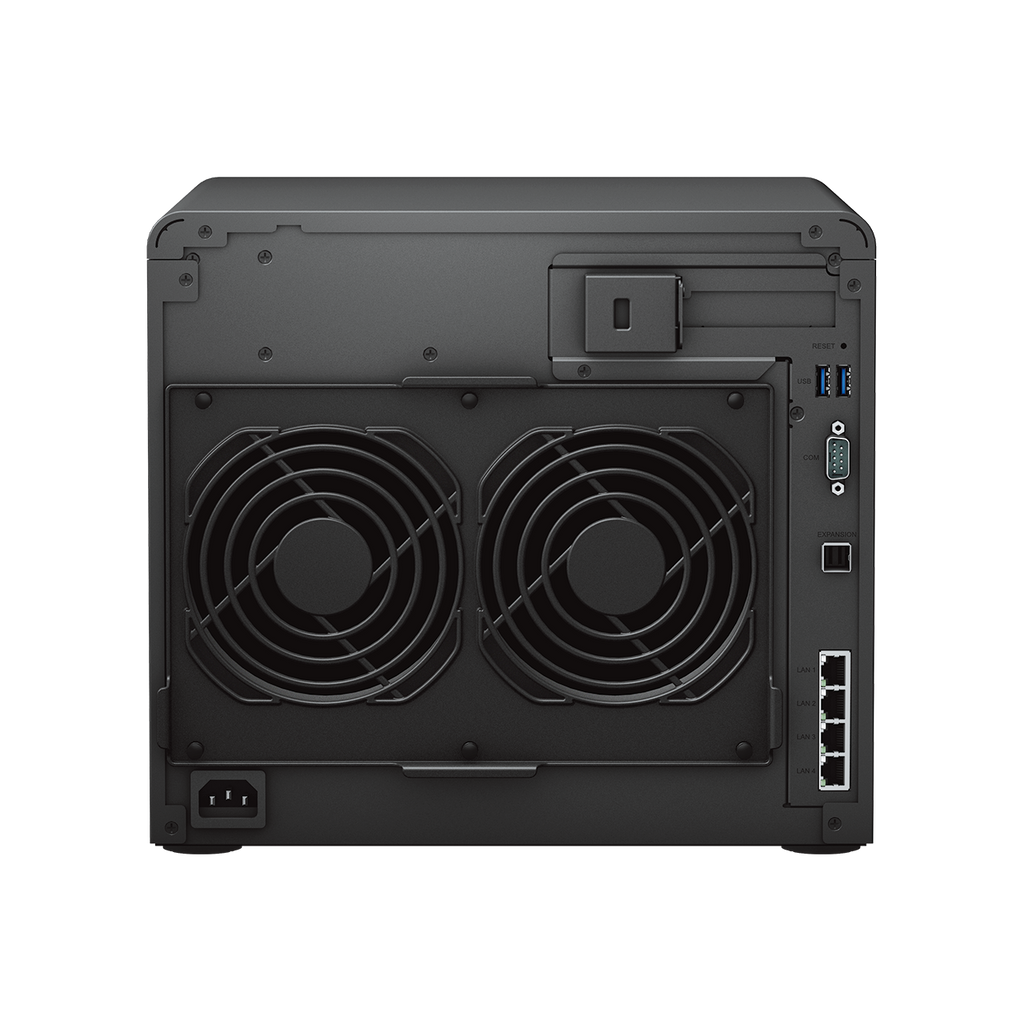

• LAN Port: 4 x RJ-45 1GbE
• USB Ports: 2 x USB 3.2 Gen 1
• Expansion Port: 1
• Expansion Port Type: Mini-SAS HD
• PCIe Expansion: 1 x Gen3 x8 slot with x4 link
• Size: 270mm x 300mm x 340mm
• Weight: 9.5kg
• System Fan: 120mm x 120mm x 2
• Easy Replacement System Fan: Yes
• Fan Speed Modes: Full-Speed Mode, Cool Mode, Quiet Mode
• Power Recovery: Yes
• Scheduled Power On / Off: Yes
• Wake on LAN / WAN: Yes
• Noise Level: 25 dB(A)
• Power Supply Unit / Adapter: 550W
• AC Input Power Voltage: 100V to 240V AC
• Power Frequency: 50/60Hz, Single Phase
• Power Consumption: 73.11W during access
• Power Consumption: 32.12W during HDD hibernation
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Operating Humidity: 8% to 80% RH
• Storage Humidity: 5% to 95% RH
• Certification: FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL
• Environment: RoHS Compliant
• Warranty: 3-Year Hardware Warranty

Performance and Reliability Features

• 12-bay Plus Series NAS designed for business and professional storage workflows
• AMD Ryzen V1500B 4-core / 8-thread processor for supported DSM business workloads
• 4GB DDR4 ECC SODIMM memory for enhanced data integrity
• Supports memory expansion up to 32GB using compatible Synology memory
• Hardware encryption engine support
• Supports 3.5" SATA HDDs, 2.5" SATA HDDs, and 2.5" SATA SSDs
• Hot-swappable drive support for easier drive maintenance
• Expansion support up to 24 drive bays with compatible DX1222 expansion unit
• Four 1GbE LAN ports for network connectivity
• PCIe Gen3 x8 slot with x4 link for compatible network interface cards or adapter cards
• Mini-SAS HD expansion port for compatible DX1222 expansion unit connection
• Supports SSD read/write cache
• Supports SSD TRIM with compatible SSDs
• Supports Btrfs and ext4 file systems on internal drives
• Supports Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
• Supports RAID migration from Basic to RAID 1, Basic to RAID 5, RAID 1 to RAID 5, and RAID 5 to RAID 6
• Supports volume expansion with larger HDDs
• Supports volume expansion by adding a HDD for Synology Hybrid RAID, JBOD, RAID 5, and RAID 6
• Supports global hot spare for Synology Hybrid RAID, RAID 1, RAID 5, RAID 6, and RAID 10
• Supports DSM file services including SMB, AFP, NFS, FTP, WebDAV, and Rsync
• Supports Synology High Availability
• Supports Synology Photos facial recognition and object recognition
• Supports Synology Drive for file access and synchronization
• Supports Synology Office collaboration workflows
• Supports Virtual Machine Manager with recommended virtual machine instances
• Includes 2 default Surveillance Station licenses
• 3-year warranty support

Compatibility Note

Please check that your selected hard drives, SSDs, memory upgrades, adapter cards, network interface cards, and expansion units are compatible with the Synology DS2422+ before ordering.

This NAS supports 3.5" SATA HDDs, 2.5" SATA HDDs, and 2.5" SATA SSDs. Storage drives, SSDs, memory upgrades, adapter cards, network interface cards, and expansion units are not included unless specifically stated by the seller.

For memory expansion, please use compatible Synology memory modules for optimum compatibility and reliability. For multi-module memory configurations, all modules must be identical and share the same model number.

Before ordering, please confirm:

• Your selected drives are compatible with the Synology DS2422+
• Your selected SSDs are compatible with the Synology DS2422+
• Your selected memory modules are compatible with the Synology DS2422+
• Your selected adapter card or network interface card is compatible with the Synology DS2422+
• Your selected expansion unit is compatible with the Synology DS2422+
• Your required storage capacity matches your intended use
• Your intended RAID, file system, backup, or storage setup
• Your network and device compatibility requirements
• Your intended DSM package and workload requirements
• Whether multiple drives are required for your intended RAID configuration

What’s in the Box

• Synology DS2422+ main unit x1
• Accessory pack x1
• AC power cord x1
• RJ-45 LAN cable x2
• Quick installation guide x1
