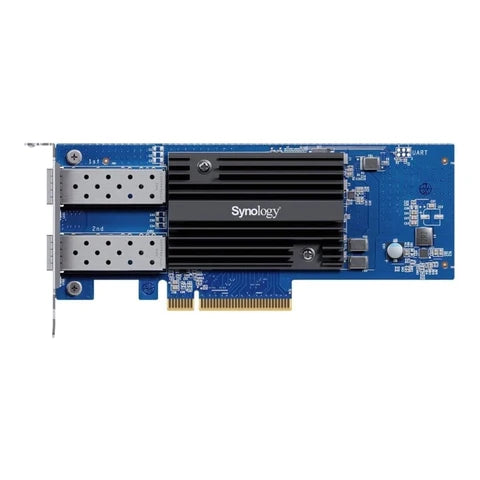

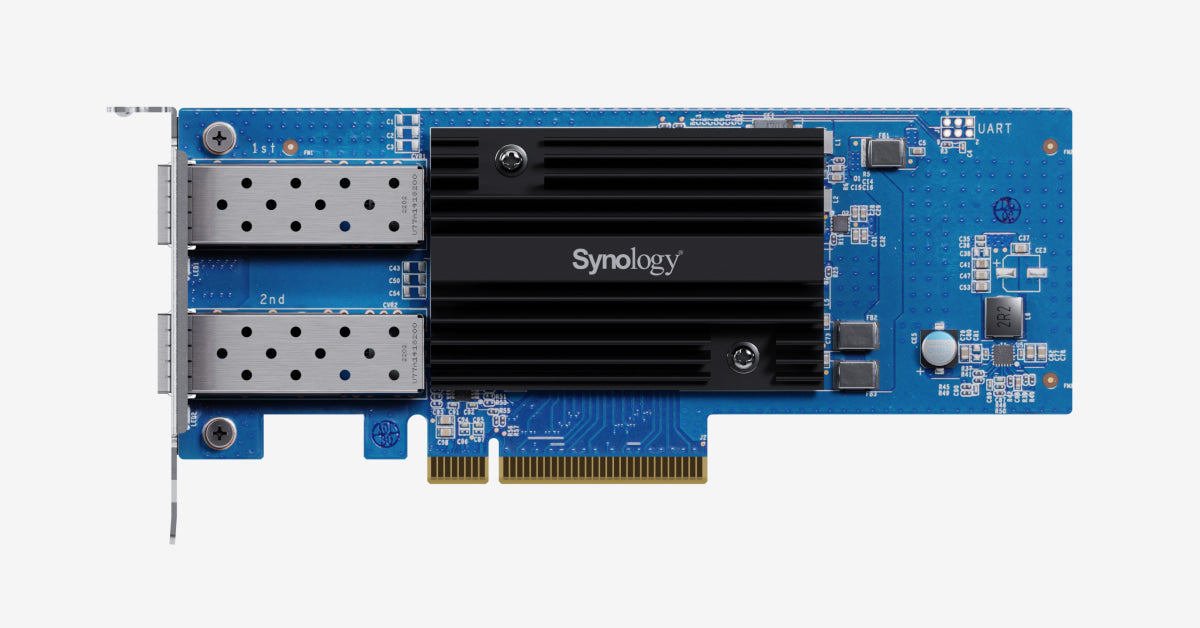

Synology E10G30-F2 Dual-Port 10GbE SFP+ Network Card
Synology E10G30-F2 Dual-Port 10GbE SFP+ Network Card - image 2

Synology

Synology E10G30-F2 Dual-Port 10GbE SFP+ Network Adapter

SKU: Synology E10G30-F2
Barcode: 4711174725045

R 6,699.00

In stock

Estimated delivery between September 15 and September 19.

  • Dispatch: orders are usually dispatched within 1–2 working days after payment is confirmed, with courier delivery normally 1–5 working days after dispatch.
  • Delivery cost: free standard delivery on orders of R2,000 or more within South Africa, otherwise R149 standard delivery, unless stated otherwise at checkout. Shipping policy
  • Warranty: a manufacturer, importer, distributor or supplier warranty may apply — terms differ by brand and product.
  • Returns: qualifying online orders may be cancelled within 7 days of receiving the goods, and defective goods may be returned for up to 6 months after delivery. Returns policy
  • Need help choosing? Call or WhatsApp 076 430 1138 or email sales@nexhive.net, Monday to Friday 08:00–17:00.
Synology E10G30-F2 Dual-Port 10GbE SFP+ Network Adapter

R 6,699.00

R 6,699.00

At a Glance

  • Dual-port 10GbE SFP+ network adapter
  • PCIe 3.0 x8 host interface
  • Up to 10Gbps per port
  • Up to 20Gbps aggregate throughput with Link Aggregation
  • Supports optical SR, optical LR and DAC connectivity
  • Supports port failover and load balancing
  • 1.5KB to 9KB Jumbo Frame support
  • Low-profile and full-height bracket support
  • 5-year Synology limited warranty

Short Description

The Synology E10G30-F2 is a dual-port 10GbE SFP+ network adapter designed to provide high-speed Ethernet connectivity for compatible Synology storage systems.

Why Choose This Synology

The E10G30-F2 provides a genuine Synology dual-port 10GbE upgrade for compatible NAS and storage systems.

Its two SFP+ interfaces can be combined using Link Aggregation for aggregate throughput of up to 20Gbps while also supporting port failover and load balancing.

Support for short-range optical, long-range optical and direct attach copper connectivity provides flexibility for different network infrastructures.

Best For

  • 10GbE business networks
  • Enterprise storage
  • High-speed file transfers
  • Backup infrastructure
  • Virtualisation
  • Shared business storage
  • Media production workflows
  • Link Aggregation
  • Network redundancy
  • Compatible Synology systems requiring SFP+ connectivity

Product Description

The Synology E10G30-F2 is a dual-port 10GbE SFP+ add-in card designed specifically for compatible Synology systems.

It uses a PCIe 3.0 x8 host interface and provides two 10Gbps Ethernet ports.

The two ports can be combined into a Link Aggregation Group for aggregate throughput of up to 20Gbps while supporting port failover and load balancing.

The E10G30-F2 supports optical short-range, optical long-range and direct attach copper connectivity.

Network-processing features include TCP Segmentation Offload, Receive Side Scaling, Generic Segmentation Offload, TCP/UDP Checksum Offload, Transmit Side Scaling, SR-IOV and Large Receive Offload.

Key Features

  • Dual 10GbE SFP+ Ports: Provides two 10Gbps interfaces.
  • PCIe 3.0 x8: High-bandwidth PCIe host connection.
  • Link Aggregation: Up to 20Gbps aggregate throughput.
  • Port Failover: Supports network redundancy.
  • Load Balancing: Supports distribution of traffic across aggregated connections.
  • Flexible Connectivity: Supports optical SR, optical LR and DAC connections.
  • Jumbo Frames: Supports 1.5KB to 9KB frames.
  • Network Offloading: Supports multiple network-processing offload technologies.
  • Low & Full Height: Supports both bracket formats.
  • 5-Year Warranty: Official Synology limited warranty.

Specifications

FIELD DETAILS
Product Code E10G30-F2
Host Bus Interface PCIe 3.0 x8
Network Ports 2
Network Interface SFP+
Data Transfer Rate 10Gbps
Maximum Rate Per Port 10Gbps
Maximum Aggregate Throughput Up to 20Gbps with Link Aggregation
Network Operation Mode Full Duplex
Jumbo Frame Support 1.5KB to 9KB
Bracket Height Low Profile and Full Height
Dimensions 69 × 168 × 17.3mm
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Relative Humidity 5% to 95% RH
Warranty 5 Years

Network Standards

  • IEEE 802.3ad Link Aggregation
  • IEEE 802.3ae 10Gbps Ethernet

Supported Network Features

  • TCP Segmentation Offload (TSO)
  • Receive Side Scaling (RSS)
  • Generic Segmentation Offload (GSO)
  • 1.5KB to 9KB Jumbo Frame
  • TCP/UDP Checksum Offload
  • Transmit Side Scaling (TSS)
  • SR-IOV
  • Large Receive Offload (LRO)

Compatibility

PAS Series

  • PAS7700

FS Series

  • FS6420
  • FS6400
  • FS3600
  • FS3420
  • FS3410
  • FS3400
  • FS2500

HD Series

  • HD6500

SA Series

  • SA6400
  • SA3610
  • SA3600
  • SA3410
  • SA3400D
  • SA3400
  • SA3200D

UC Series

  • UC3400
  • UC3200

DP Series

  • DP5200

26 Series

  • RS11626xs+
  • RS6426xs+
  • RS4826xs+
  • RS3626xs
  • RS1626xs+
  • RS1226RP+
  • RS1226+
  • RS826RP+
  • RS826+

25 Series

  • RS2825RP+
  • DS1825+
  • DS1825neo+

23 Series

  • RS2423RP+II
  • RS2423RP+
  • RS2423+
  • DS1823xs+

22 Series

  • RS822RP+
  • RS822+
  • DS3622xs+
  • DS2422+

21 Series

  • RS4021xs+
  • RS3621xs+
  • RS3621RPxs
  • RS2821RP+
  • RS2421RP+
  • RS2421+
  • RS1221RP+
  • RS1221+
  • DS1821+
  • DS1621xs+
  • DS1621+

20 Series

  • RS820RP+
  • RS820+

19 Series

  • RS1619xs+
  • DS2419+II
  • DS2419+
  • DS1819+

18 Series

  • RS3618xs
  • RS2818RP+
  • RS2418RP+
  • RS2418+

17 Series

  • RS4017xs+
  • RS3617xs+
  • RS3617RPxs
  • DS3617xs

DSM Requirement

DSM 7.1.1-42962 Update 5 or later is required.

What’s in the Box

Synology does not publish model-specific package contents for the E10G30-F2 on its official product information page.

Warranty

5-Year Synology Limited Warranty

Authenticity Guaranteed

We only sell authentic products from verified brand partners and retail partners globally.
