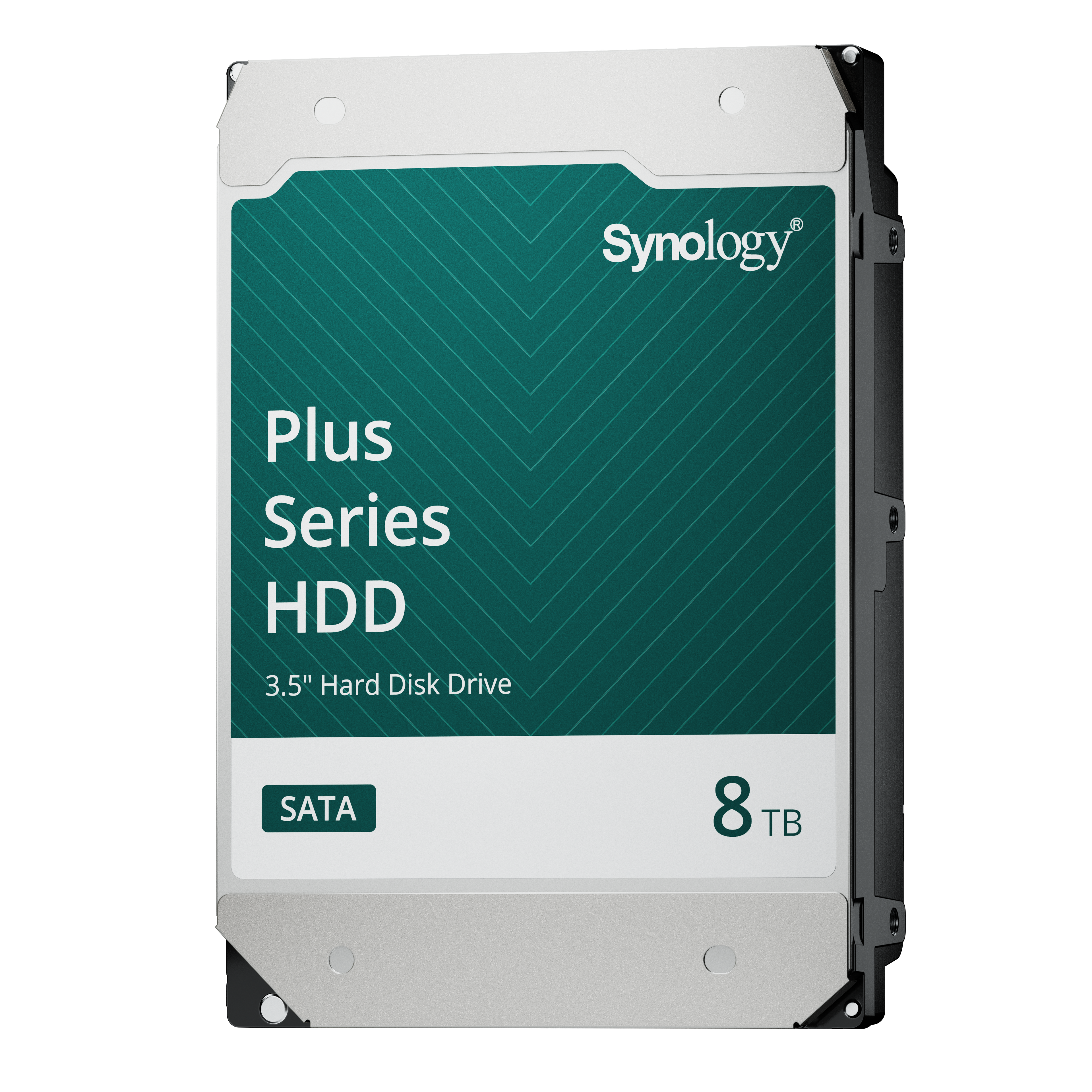

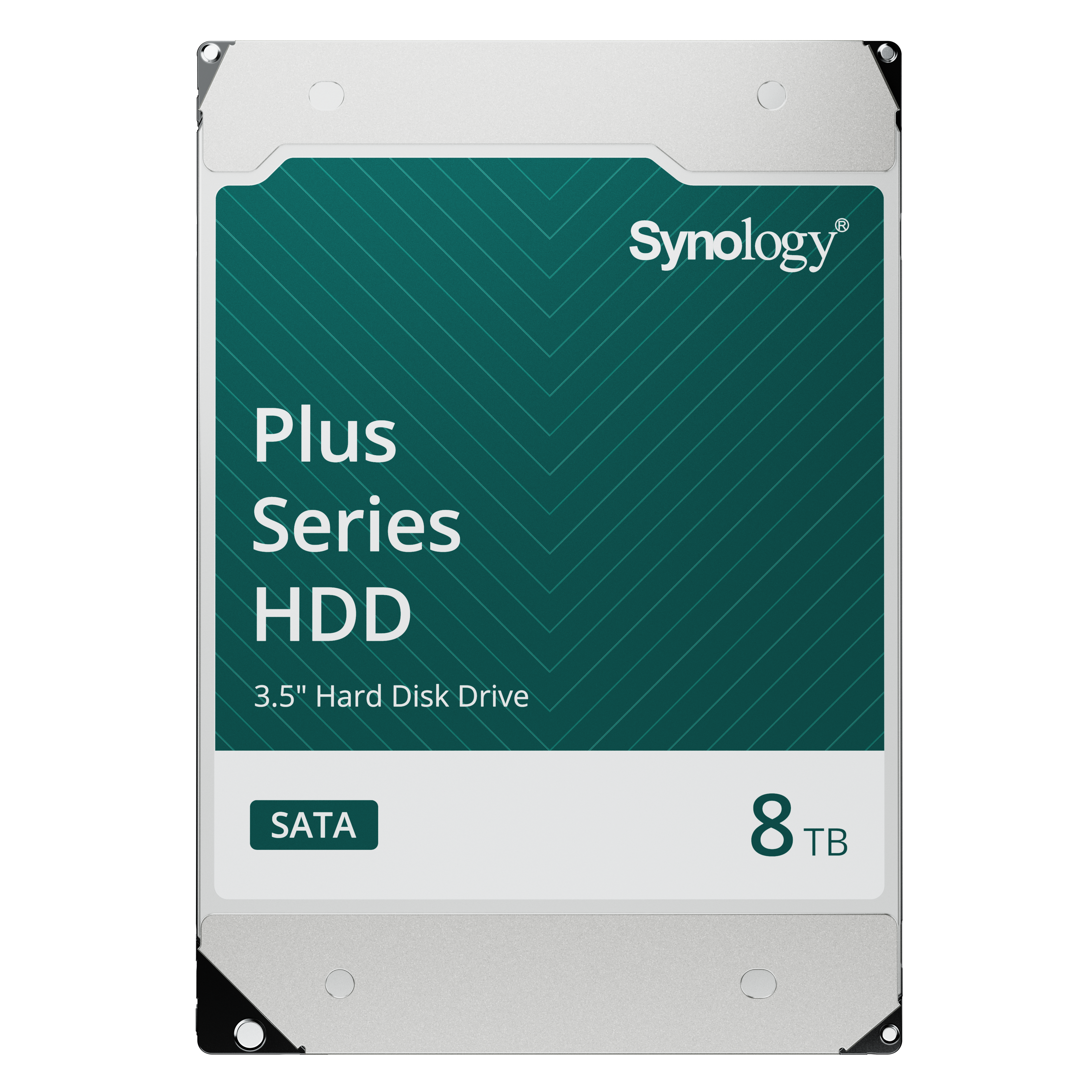

Synology HAT3320 8T. Capacity. 8 TB. Form Factor. 3.5''. Interface

The Synology HAT3320-8T is an 8TB Plus Series 3.5-inch SATA hard drive designed for reliable 24/7 storage in compatible Synology systems. It features CMR technology, a SATA 6Gb/s interface, 7,200 RPM rotational speed, 512MB cache and typical sustained transfer speeds of up to 281MB/s.

Product Description

The Synology HAT3320-8T 8TB Plus Series Hard Drive is designed for reliable storage, backup, file sharing and multi-user data workloads in compatible Synology NAS systems.

Built for continuous 24/7 operation, the drive uses Conventional Magnetic Recording technology to provide consistent write performance throughout its operating life. Its helium-sealed design supports efficient operation and dependable performance in compatible Synology storage environments.

The HAT3320-8T features a SATA 6Gb/s interface, 7,200 RPM rotational speed, 512MB cache and a typical maximum sustained data transfer speed of up to 281MB/s.

With a 300TB per year workload rating and a 1.2 million-hour MTBF rating, the drive is designed for demanding storage workloads in home, small office and business environments.

Synology Plus Series drives undergo more than 500,000 cumulative hours of compatibility and stress testing. Firmware updates can also be performed directly through Synology DiskStation Manager, helping simplify drive maintenance without requiring disk removal or third-party firmware tools.

Please note: This product is an internal 3.5-inch SATA hard drive. A Synology NAS enclosure is not included.

Key Features

• 8TB internal NAS hard drive
• Designed for compatible Synology NAS systems
• 3.5-inch hard drive form factor
• SATA 6Gb/s interface
• 7,200 RPM rotational speed
• 512MB cache
• Up to 281MB/s typical sustained data transfer speed
• Conventional Magnetic Recording technology
• Helium-sealed drive design
• Designed for reliable 24/7 storage operation
• 300TB per year workload rating
• 1.2 million-hour MTBF rating
• Synology Plus Series drives undergo more than 500,000 cumulative hours of testing
• Firmware updates supported through Synology DSM
• Suitable for storage, backup, file sharing and multi-user workloads
• Three-year limited warranty

Specifications

• Model: HAT3320-8T
• Product Type: Internal NAS Hard Drive
• Capacity: 8TB
• Form Factor: 3.5-inch
• Interface: SATA 6Gb/s
• Sector Size: 512e
• Drive Design: Helium-sealed
• Recording Technology: Conventional Magnetic Recording
• Rotational Speed: 7,200 RPM
• Cache: 512MB
• Maximum Sustained Data Transfer Speed: Up to 281MB/s typical
• Mean Time Between Failures: 1,200,000 hours
• Workload Rating: 300TB per year, data written and read
• Supply Voltage: 12V ±10% / 5V +10% to -7%
• Active Idle Power Consumption: 5.74W typical
• Average Operating Power: 9.07W
• Operating Temperature: 5°C to 60°C
• Non-operating Temperature: -40°C to 70°C
• Operating Humidity: 5% to 90% RH, non-condensing
• Non-operating Humidity: 5% to 95% RH, non-condensing
• Idle Acoustics: 34dB typical
• Seek Acoustics: 35dB typical
• Dimensions: 26.1 × 101.85 × 147mm
• Weight: 755g
• Certifications: CE, RCM, BSMI, KC, UKCA, UL, TUV, ICES and RoHS
• Warranty: Three-year limited warranty

Compatibility Note

Please confirm that the Synology HAT3320-8T is listed as compatible with your specific Synology NAS or storage system before ordering.

Compatibility may vary according to the Synology system model, hardware revision, supported drive list and installed DSM version.

This is an internal 3.5-inch SATA hard drive and requires a compatible SATA drive bay. It is not an external USB hard drive.

The available capacity displayed by your NAS or operating system will be lower than the stated 8TB capacity because of formatting, storage calculations, system files, RAID configuration and other system requirements.

Actual transfer performance depends on the Synology system, RAID configuration, network connection, workload, settings and other installed drives.

MTBF is a statistical reliability value and is not a guarantee or estimate of the operating life of an individual hard drive.

Recommended Uses

• Compatible Synology NAS systems
• Centralized file storage
• Home and small office backup
• Shared business data
• Personal cloud storage
• Media and document libraries
• RAID storage configurations
• Multi-user file access
• Continuous NAS storage workloads
• Synology storage capacity expansion

What’s in the Box

• 1 × Synology HAT3320-8T 8TB 3.5" SATA NAS Hard Drive
