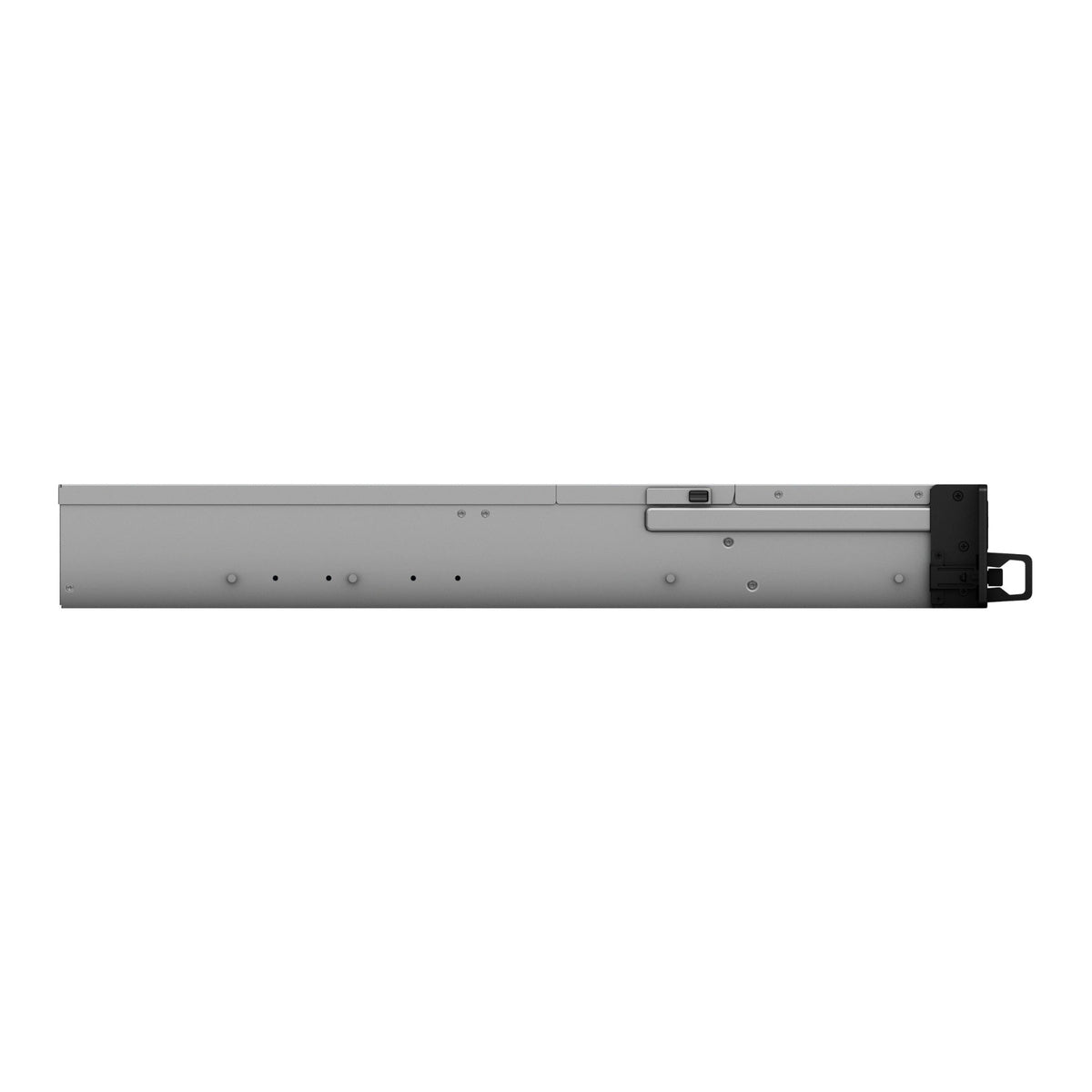

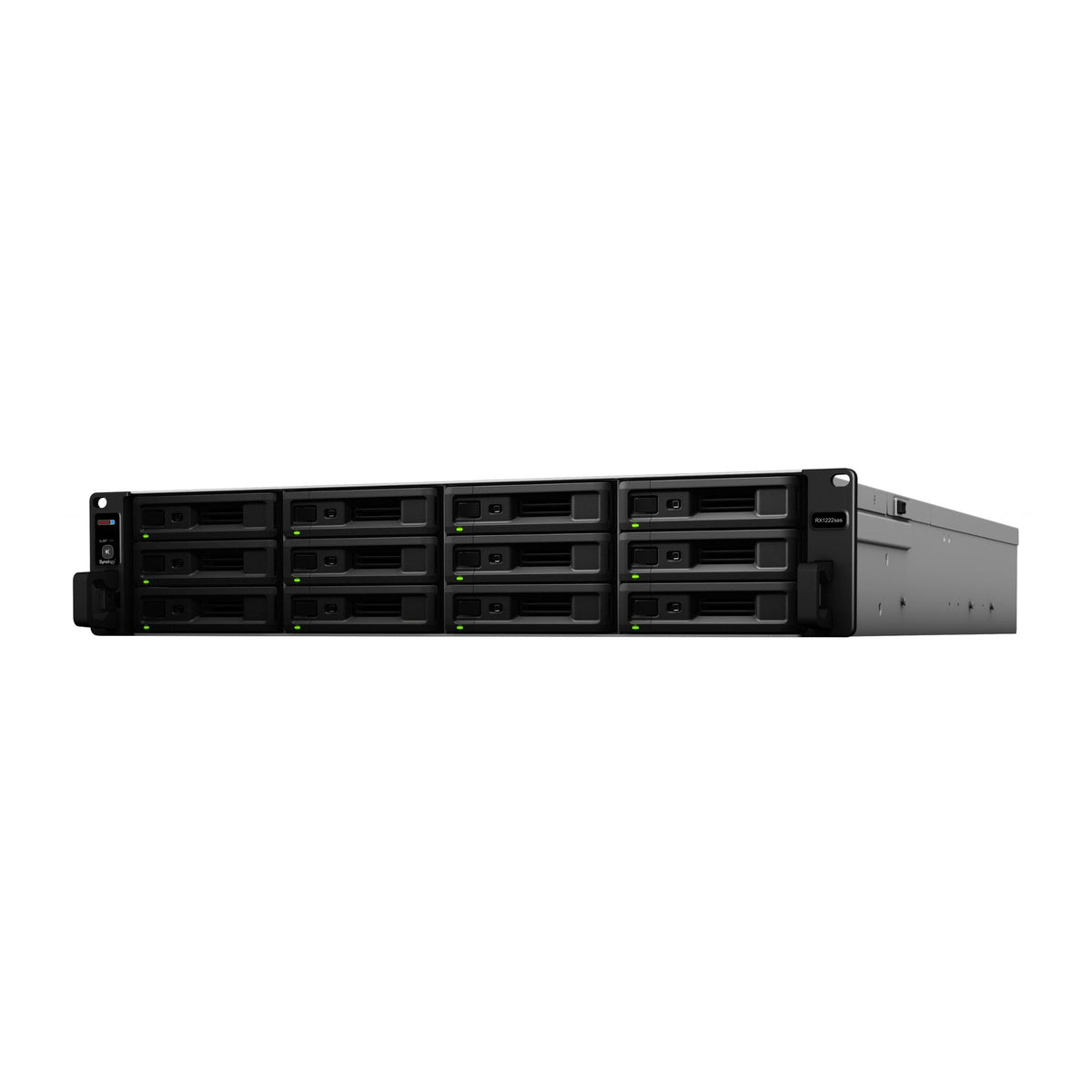

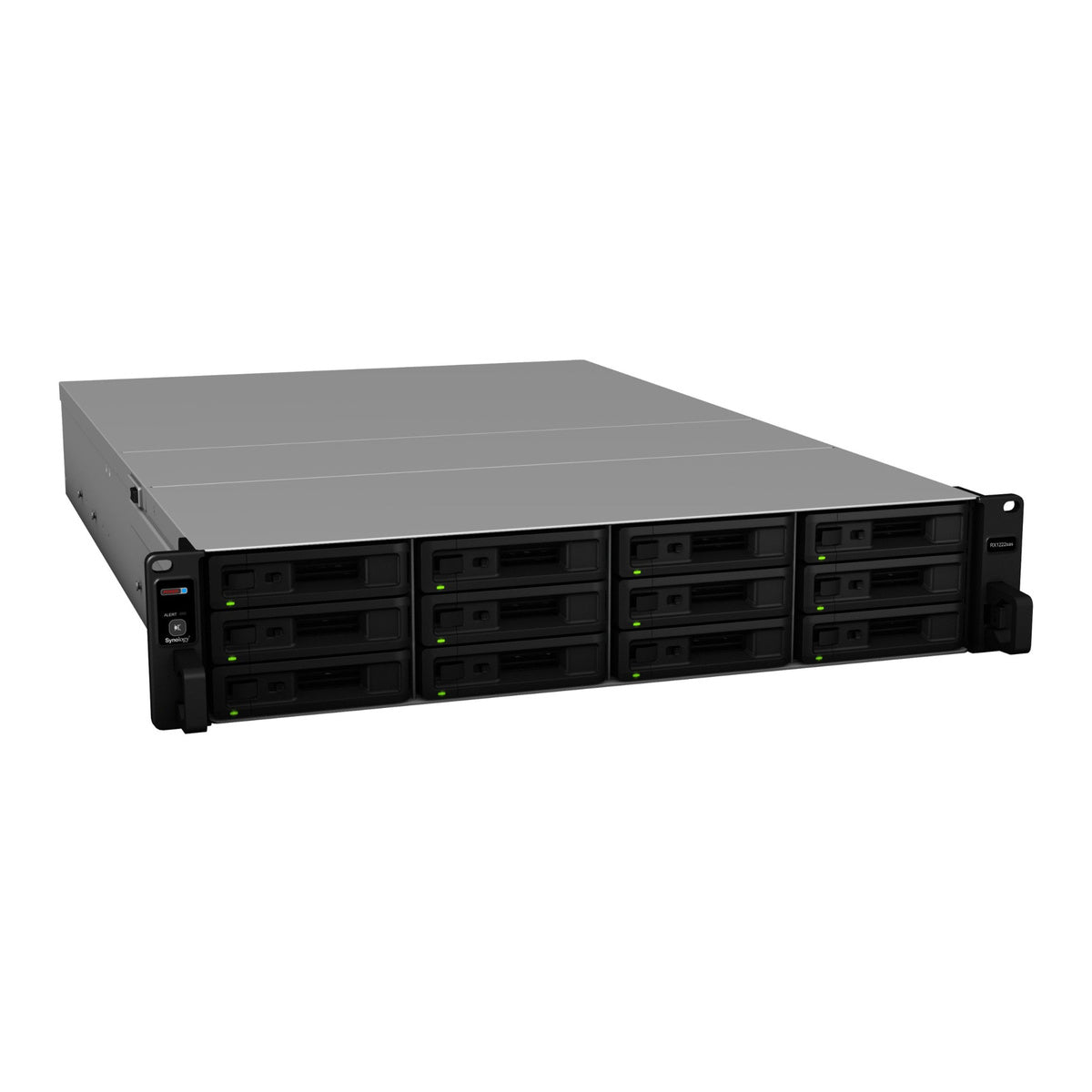

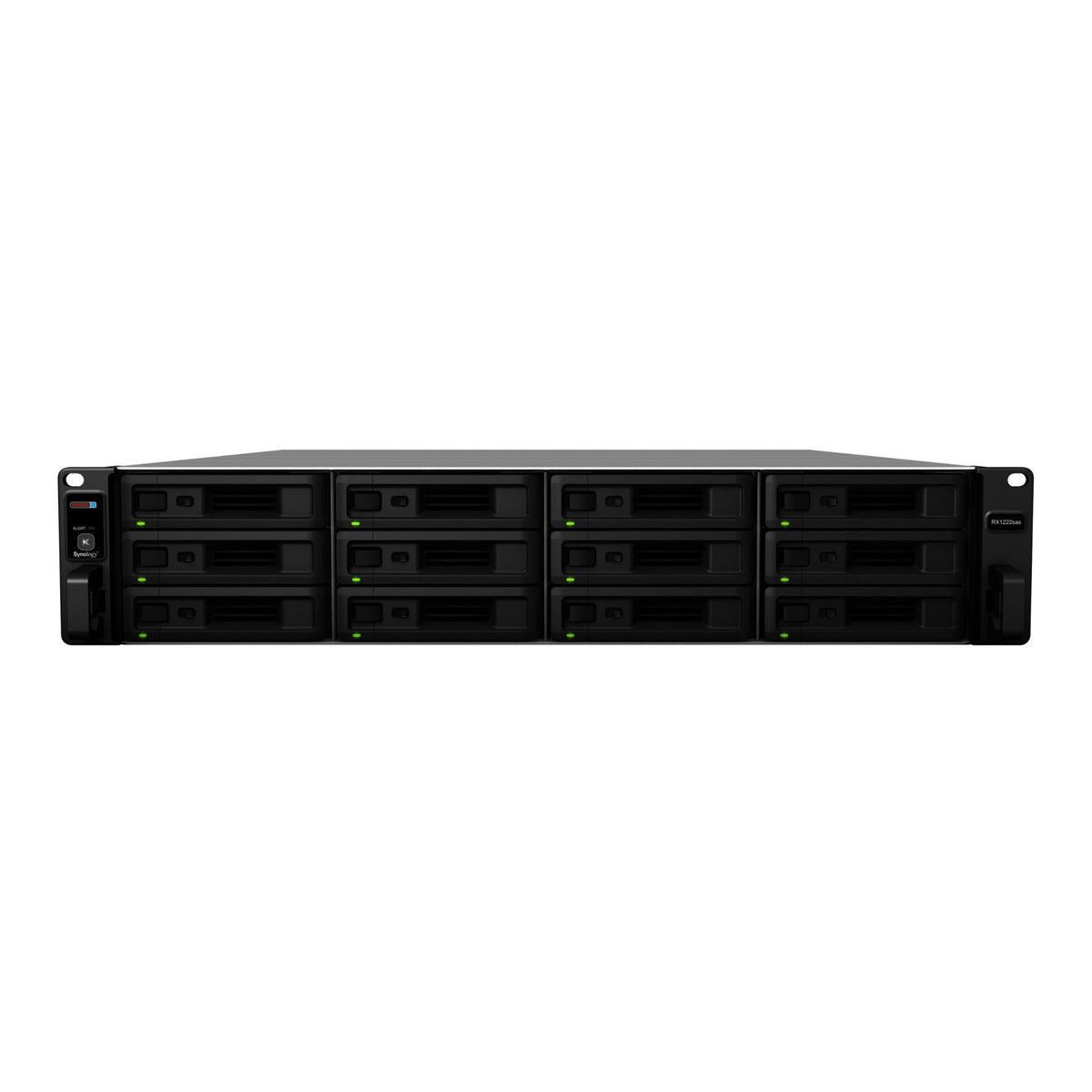

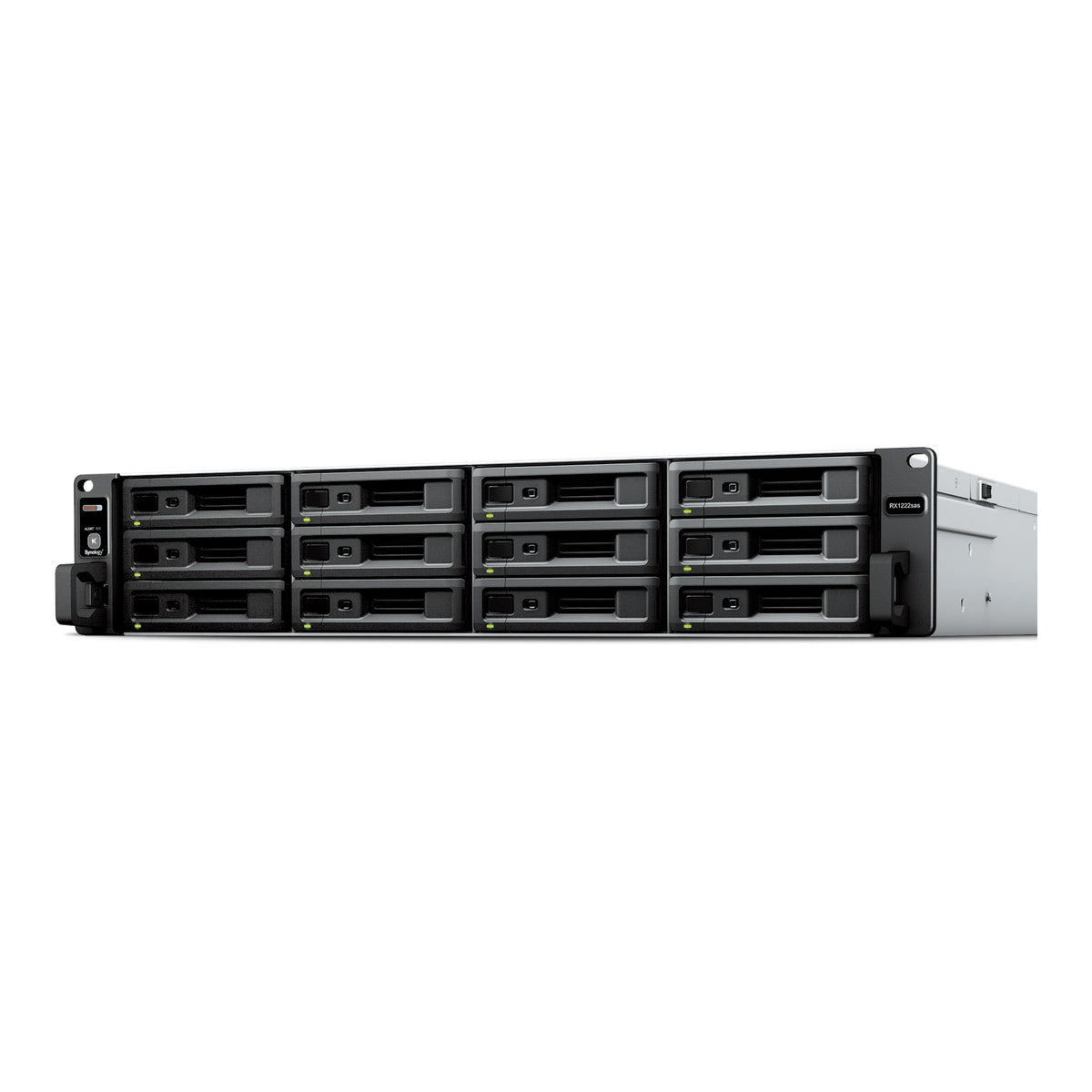

Synology RX1222sas 12-Bay SAS/SATA Expansion Unit

At a Glance

• Adds 12 additional drive bays to compatible Synology storage systems
• Supports compatible 3.5-inch SAS HDDs
• Supports compatible 3.5-inch SATA HDDs
• Supports compatible 2.5-inch SAS SSDs
• Supports compatible 2.5-inch SATA SSDs
• Hot-swappable drives, fans and power supplies
• Redundant 500W power supplies
• Online volume expansion through Synology DSM
• Up to 7 expansion units / 84 additional drives on supported deployments
• 5-Year Synology Hardware Warranty

Important: The RX1222sas is an expansion unit and cannot operate as a standalone NAS. A compatible Synology host system and compatible storage drives are required.

Short Description

The Synology RX1222sas is a 12-bay 2U expansion unit designed for compatible Synology SAS storage systems that need substantial additional capacity without replacing the existing host server.

With SAS and SATA drive support, redundant power, hot-swappable components and direct DSM management, it provides a scalable enterprise storage platform for large data sets, backup, virtualisation and other demanding business workloads.

Why Choose This Synology

Add Storage 12 Bays at a Time

Each RX1222sas adds twelve additional drive bays, allowing supported Synology systems to scale as storage requirements grow.

Supports SAS and SATA Storage

Unlike standard SATA-only expansion units, the RX1222sas supports compatible SAS and SATA storage, giving supported enterprise deployments greater storage flexibility.

Expand Without Interrupting Services

Synology DSM supports online volume expansion, allowing compatible volumes to grow without reformatting existing drives or taking normal storage services offline.

Designed for Service Continuity

Hot-swappable drive trays, system fans and power supplies help reduce the impact of hardware maintenance, while redundant PSUs protect against a single power-source failure.

Managed Directly Through DSM

The RX1222sas integrates with Synology Storage Manager, keeping expansion storage under the same management platform as the host system.

Best For

• Enterprise storage expansion
• Synology SA Series deployments
• Compatible FlashStation environments
• High-capacity business storage
• Virtualisation storage
• Large backup repositories
• Large shared data sets
• SAS storage environments
• Organisations requiring redundant power
• Businesses expecting significant storage growth

Product Description

The Synology RX1222sas is a 12-bay 2U rackmount expansion unit designed for compatible Synology SAS-based storage platforms.

It supports compatible 3.5-inch SAS HDDs, 3.5-inch SATA HDDs, 2.5-inch SAS SSDs and 2.5-inch SATA SSDs.

The expansion unit connects to its compatible host system using SAS expansion connectivity and is managed directly through Synology DSM Storage Manager.

Supported deployments can scale with multiple RX1222sas units. Synology specifies expansion of up to 84 additional drives using a maximum of seven RX1222sas units, depending on the host platform.

Hot-swappable drive bays, system fans and redundant 500W power supplies help minimise the impact of routine maintenance and hardware replacement.

Synology recommends keeping storage volumes physically within the same NAS or expansion unit for better performance rather than spanning a single volume across different physical units.

Storage drives are sold separately.

Key Features

• 12-bay 2U rackmount expansion unit
• Supports SAS and SATA storage
• Supports 3.5-inch and 2.5-inch drives
• Hot-swappable drives
• Hot-swappable system fans
• Hot-swappable power supplies
• Redundant 500W power supplies
• Online volume expansion
• Synology DSM Storage Manager integration
• SAS IN and SAS OUT connectivity
• RKS-02 rail-kit support
• 5-year Synology hardware warranty

What Do I Need With This Expansion Unit?

Required

• Compatible Synology host system
• Compatible storage drives
• Supported DSM version

The RX1222sas cannot operate independently.

DSM Requirement

Synology requires:

• DSM 6.2.4-25556 Update 3 or later for DSM 6.2 systems
• DSM 7.0.1-42218 Update 2 or later for DSM 7 systems

Compatible Synology Systems

Synology's current RX1222sas product information lists support for:

FlashStation

• FS6400
• FS3600
• FS3400

SA Series

• SA3610
• SA3600
• SA3410
• SA3400

Compatibility Note: Host compatibility and the maximum number of expansion units vary by system. Confirm the exact host model against Synology's current expansion-unit compatibility information before purchase.

Compatible Storage

Enterprise 3.5-inch SAS HDD

• Synology HAS5300 Series

Enterprise 3.5-inch SATA HDD

• Synology HAT5300 Series

Enterprise 2.5-inch SATA SSD

• Synology SAT5200 Series

The RX1222sas also supports compatible 2.5-inch SAS SSDs.

Compatibility Note: Drive compatibility may differ depending on the host system used with the RX1222sas. Always verify the exact drive model, firmware and host/expansion combination on Synology's current Compatibility List.

Compatible Upgrades & Accessories

Rack Installation

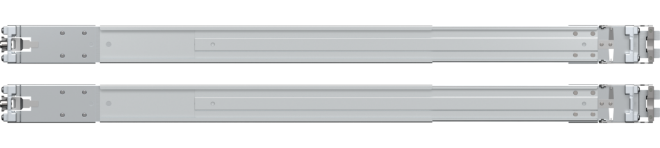

• RKS-02 Sliding Rail Kit

Rail kit sold separately.

Specifications

What’s in the Box

• Synology RX1222sas Main Unit × 1
• Accessory Pack × 1
• AC Power Cord × 2
• Mini-SAS HD Expansion Cable × 2
• Quick Installation Guide × 1

Not Included: Storage drives and RKS-02 rail kit.

Warranty

5-Year Synology Limited Hardware Warranty

Sustainability

• RoHS Compliant
