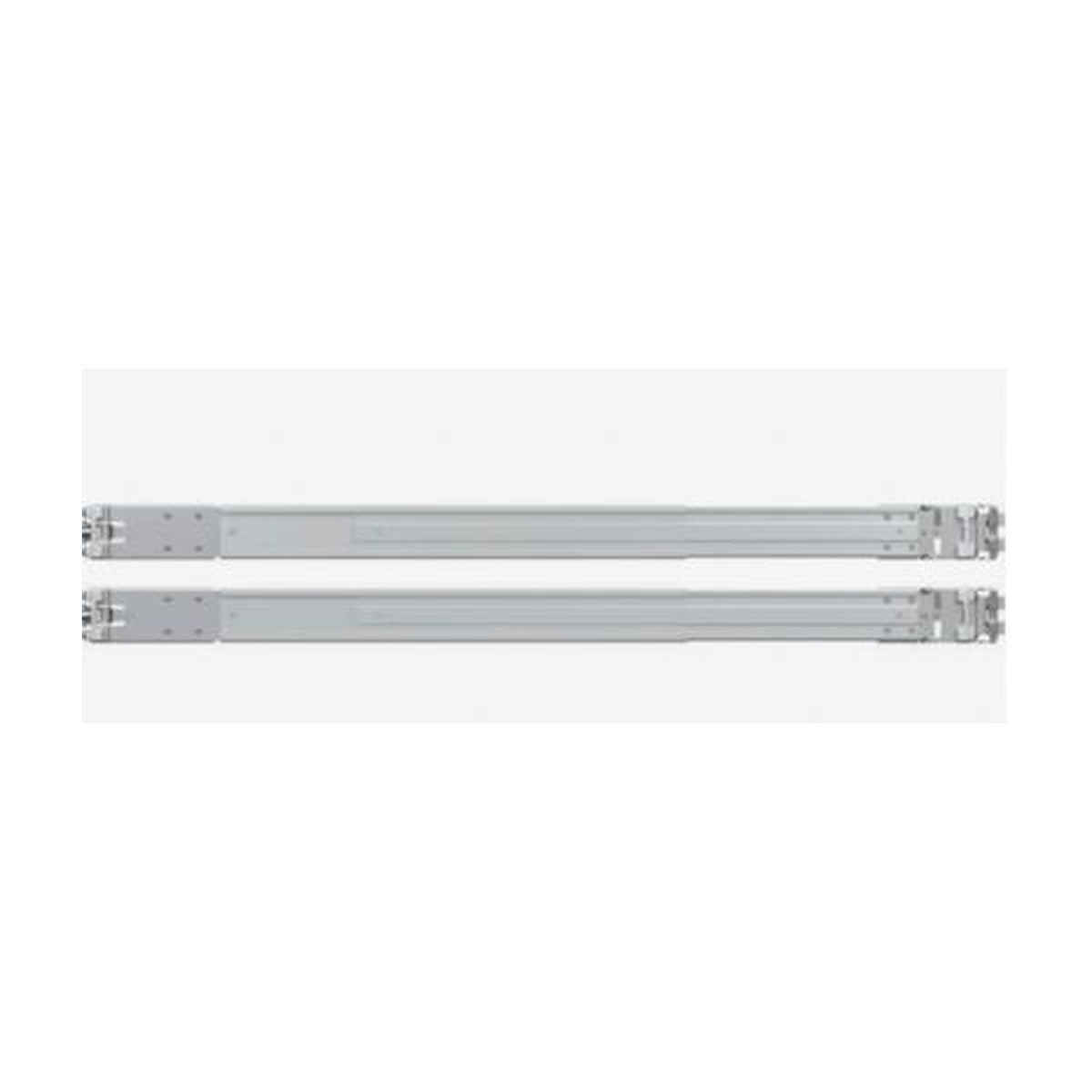

Synology RKS-02 Sliding Rail Kit for Rackmount Systems

At a Glance

• Official Synology sliding rail kit
• Designed for compatible Synology rackmount servers and expansion units
• Allows the installed system to slide out for easier maintenance access
• Designed for compatible 4-post 19-inch racks
• Supports rack mounting depths from 610mm to 890mm
• Supports compatible square-hole and round-hole racks
• Compatible with a wide range of current and previous Synology rackmount systems
• 1-Year Synology Limited Warranty

Important: RKS-02 compatibility is exact-model and rack-specific. Check both your Synology model and rack dimensions before ordering.

Short Description

The Synology RKS-02 is an official sliding rail kit designed to make installation and maintenance of compatible Synology rackmount systems easier.

Once installed in a compatible 4-post 19-inch rack, the rails allow the supported Synology server or expansion unit to slide forward for improved access during drive, component and system maintenance.

Why Choose This Synology

Designed Specifically for Synology Hardware

The RKS-02 is an official Synology accessory with compatibility published for specific RackStation, FlashStation, SA, UC, ActiveProtect and expansion-unit models.

Easier Maintenance Access

Sliding rails allow the installed system to be pulled forward from the rack, making routine maintenance considerably easier than working around a fixed rack installation.

Supports a Wide Range of Rack Depths

The RKS-02 supports compatible rack mounting depths between 610mm and 890mm, giving businesses flexibility across many standard 4-post rack installations.

Supports Square and Round Mounting Holes

The rail kit supports compatible square-hole and round-hole rack posts when Synology's minimum hole dimensions are met.

The Correct Rail for Many Synology Systems

RKS-02 remains Synology's compatible rail kit across a broad range of current and legacy rackmount products, including several of the current RS826, RS1226, RS3626, RS4826 and RS6426 systems.

Best For

• Server rooms
• Data cabinets
• Business rack installations
• Synology RackStation systems
• Synology expansion units
• FlashStation systems
• SA Series storage
• ActiveProtect appliances
• Environments where easy maintenance access is important

Product Description

The Synology RKS-02 is a sliding rail kit designed for compatible Synology rackmount servers and storage expansion systems installed in supported 4-post 19-inch racks.

Unlike fixed rack mounting, sliding rails allow the installed Synology system to move forward from the cabinet for easier access during installation and maintenance.

Synology specifies a supported rack mounting depth of 610mm to 890mm.

The rack must have a mount-post width of at least 450mm and a panel width of at least 480mm.

For square-hole racks, the mounting holes must measure at least 9.5 × 9.5mm. For round-hole racks, the mounting holes must be at least 7.1mm.

Compatibility is exact-model specific. The RKS-02 should only be purchased after confirming both the Synology system model and rack dimensions.

Key Features

• Official Synology sliding rail kit
• Designed for compatible rackmount systems
• Enables easier maintenance access
• Compatible with supported 4-post 19-inch racks
• 610–890mm supported rack mounting depth
• Supports compatible square-hole racks
• Supports compatible round-hole racks
• Broad RackStation and expansion-unit compatibility
• Tool-efficient rack access
• 1-year Synology limited warranty

What Do I Need With This Rail Kit?

Required

• Compatible Synology rackmount system
• Compatible 4-post 19-inch rack

Rack Requirements

Mount-post width:
450mm or greater

Panel width:
480mm or greater

Rack mounting depth:
610mm to 890mm

Square mounting holes:
At least 9.5 × 9.5mm

Round mounting holes:
At least 7.1mm

Compatible Synology Systems

Synology currently lists RKS-02 compatibility across multiple generations.

26 Series

• RS6426xs+
• RS4826xs+
• RS3626xs
• RS1226RP+
• RS1226+
• RS826RP+
• RS826+
• DVA7400
• PAX224
• RX426

25 Series

• RS2825RP+
• RX1225RP

23 Series

• RS2423RP+II
• RS2423RP+
• RS2423+
• RX1223RP

22 Series

• RS822RP+
• RS822+
• RS422+
• RX1222sas

21 Series

• RS4021xs+
• RS3621xs+
• RS3621RPxs
• RS2821RP+
• RS2421RP+
• RS2421+
• RS1221RP+
• RS1221+
• FX2421

Additional Current Synology Families

Synology also lists RKS-02 compatibility with selected:

• PAS Series
• FlashStation FS Series
• SA Series
• UC Series
• ActiveProtect DP Series
• Earlier RackStation and expansion-unit generations

Compatibility Note: RKS-02 compatibility is exact-model specific. Older supported models are also listed by Synology, but customers should confirm their exact system against Synology's current RKS-02 Compatibility List before purchase.

Important Exception

RS1626xs+ uses the RKS-04 rail kit and is not currently listed by Synology for RKS-02.

Specifications

What’s in the Box

• Synology Sliding Rail Kit × 1

Warranty

1-Year Synology Limited Warranty
