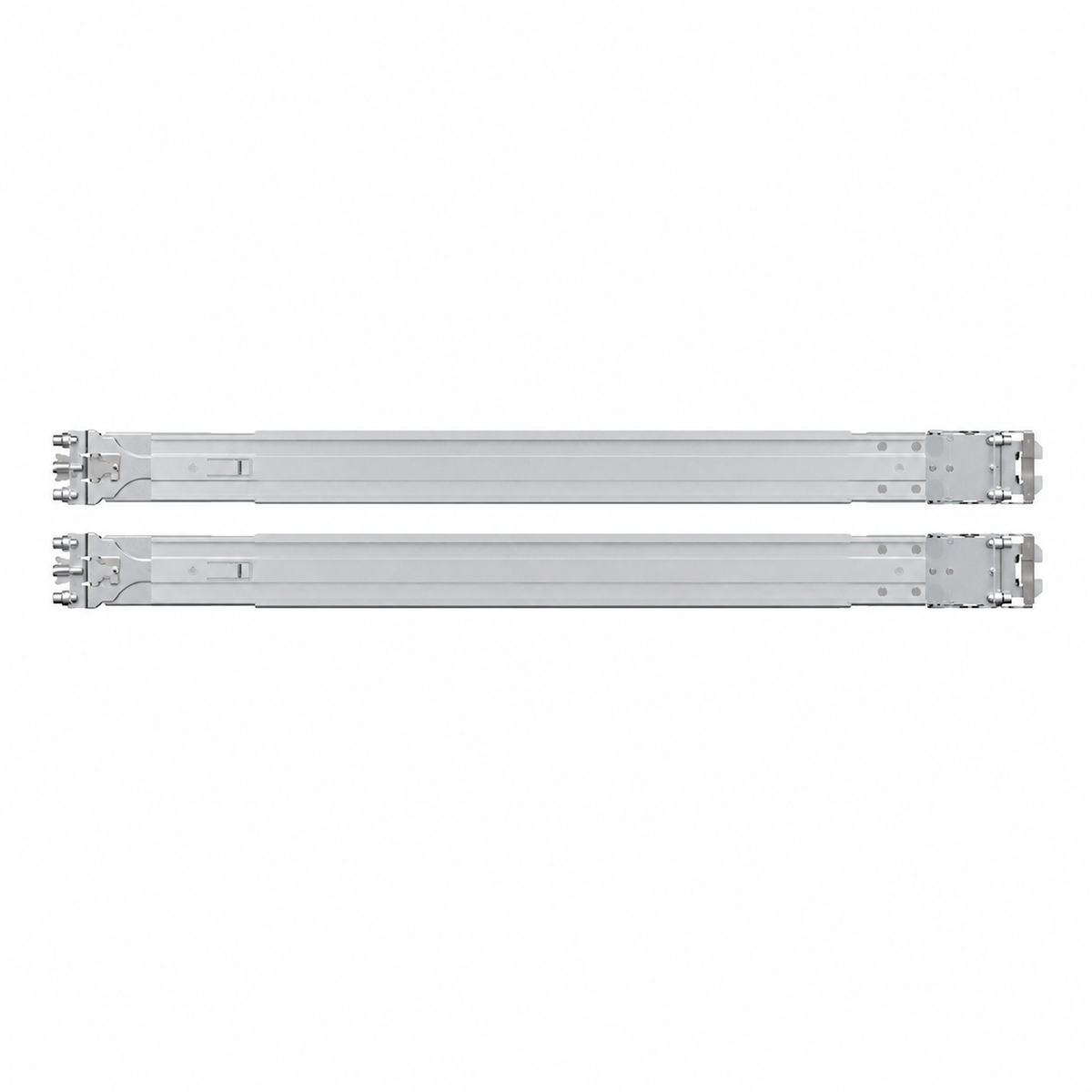

Synology RKS-04 Sliding Rail Kit for RS1626xs+

At a Glance

• Official Synology sliding rail kit
• Specifically compatible with the Synology RS1626xs+
• Designed for compatible 4-post 19-inch racks
• Supports rack mounting depths from 553mm to 834mm
• Allows easier access to the installed NAS for maintenance
• Supports compatible square-hole and round-hole racks
• 1-Year Synology Limited Warranty

Important: Synology currently lists the RS1626xs+ as the compatible system for RKS-04. Confirm rack dimensions before ordering.

Short Description

The Synology RKS-04 is the official sliding rail kit for installing the RS1626xs+ in a compatible 4-post 19-inch server rack.

Its sliding design allows the NAS to move forward from the cabinet for easier installation and maintenance while supporting a rack-depth range specifically suited to the RS1626xs+ platform.

Why Choose This Synology

The Official Rail Kit for RS1626xs+

Synology specifically lists the RS1626xs+ as compatible with RKS-04, removing the uncertainty of choosing a generic or incorrect rail system.

Easier Maintenance Access

The sliding mechanism allows the installed RS1626xs+ to move forward from the rack for easier servicing and hardware access.

Supports Shallower Rack Installations

RKS-04 supports rack mounting depths from 553mm to 834mm, giving it a shallower minimum mounting depth than RKS-02.

Supports Common Rack-Hole Types

Compatible installations can use supported square-hole or round-hole rack posts when Synology's minimum dimensions are met.

Purpose-Built for the RS1626xs+

The RKS-04 was designed for the physical installation requirements of Synology's compact RS1626xs+ enterprise RackStation.

Best For

• Synology RS1626xs+
• Business server rooms
• Data cabinets
• Enterprise storage installations
• 4-post 19-inch racks
• Environments requiring easier maintenance access

Product Description

The Synology RKS-04 is a sliding rail kit designed specifically for mounting the RS1626xs+ in a compatible 4-post 19-inch rack.

The sliding design allows administrators to pull the NAS forward from the rack for easier installation, inspection and maintenance.

Synology specifies a supported rack mounting depth of 553mm to 834mm.

The rack must provide a mount-post width of at least 450mm and a panel width of at least 480mm.

Square rack-mounting holes must measure at least 9.5 × 9.5mm, while round mounting holes must have a diameter of at least 7.1mm.

Because rack dimensions vary, both the NAS model and rack measurements should be checked before purchase.

Key Features

• Official Synology sliding rail kit
• Designed for RS1626xs+
• Sliding maintenance access
• Compatible with supported 4-post 19-inch racks
• 553–834mm rack-depth support
• Supports compatible square mounting holes
• Supports compatible round mounting holes
• 1-year Synology limited warranty

What Do I Need With This Rail Kit?

Required

• Synology RS1626xs+
• Compatible 4-post 19-inch rack

Rack Requirements

Mount-post width:
450mm or greater

Panel width:
480mm or greater

Rack mounting depth:
553mm to 834mm

Square mounting holes:
At least 9.5 × 9.5mm

Round mounting holes:
At least 7.1mm

Compatible Synology Systems

26 Series

• RS1626xs+

Synology currently lists RS1626xs+ as the compatible system for RKS-04.

Compatibility Note: Do not assume RKS-04 compatibility with other RackStation models simply because they use a 1U chassis. Rail compatibility depends on the exact Synology model and rack geometry.

Specifications

What’s in the Box

• Synology Sliding Rail Kit × 1

Warranty

1-Year Synology Limited Warranty
