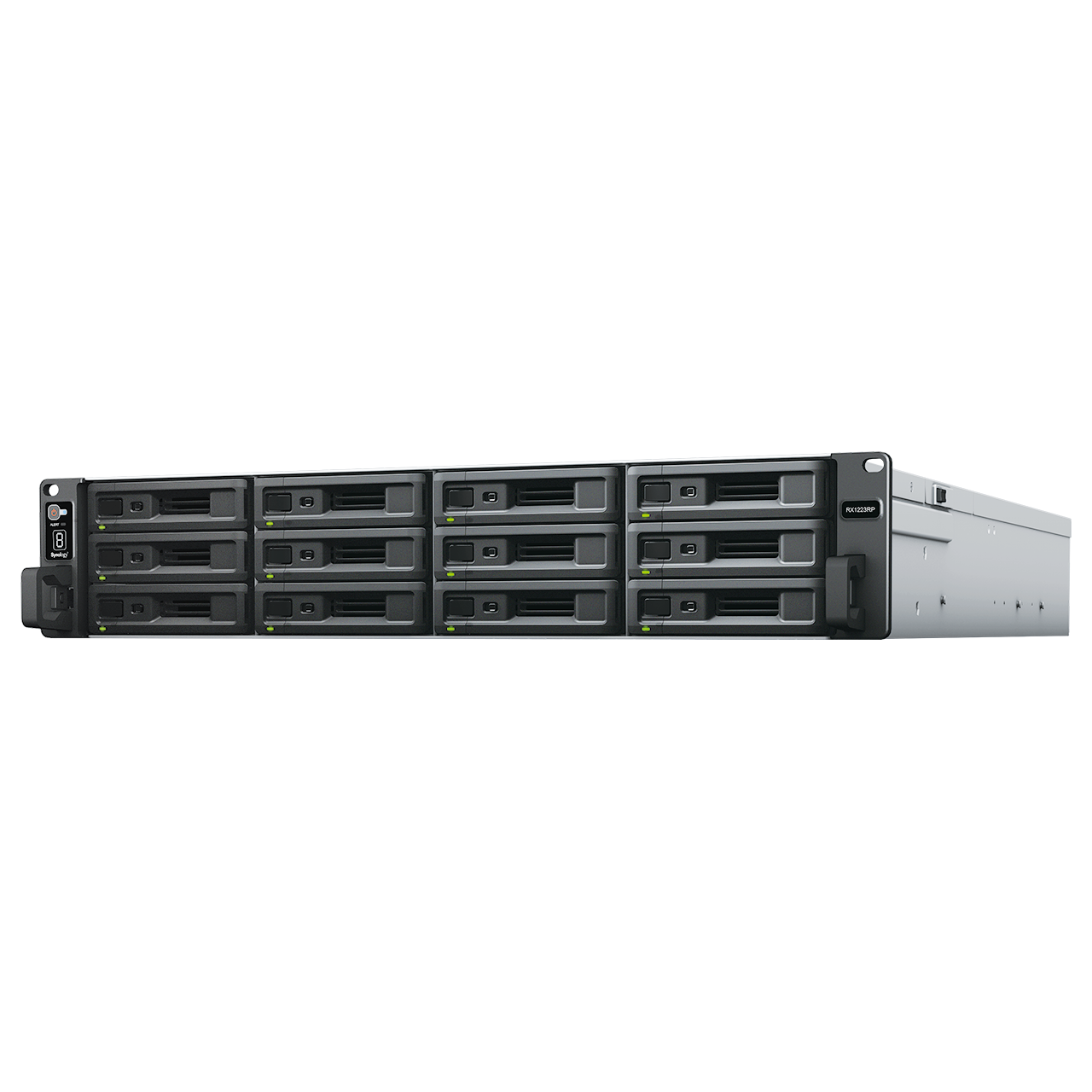

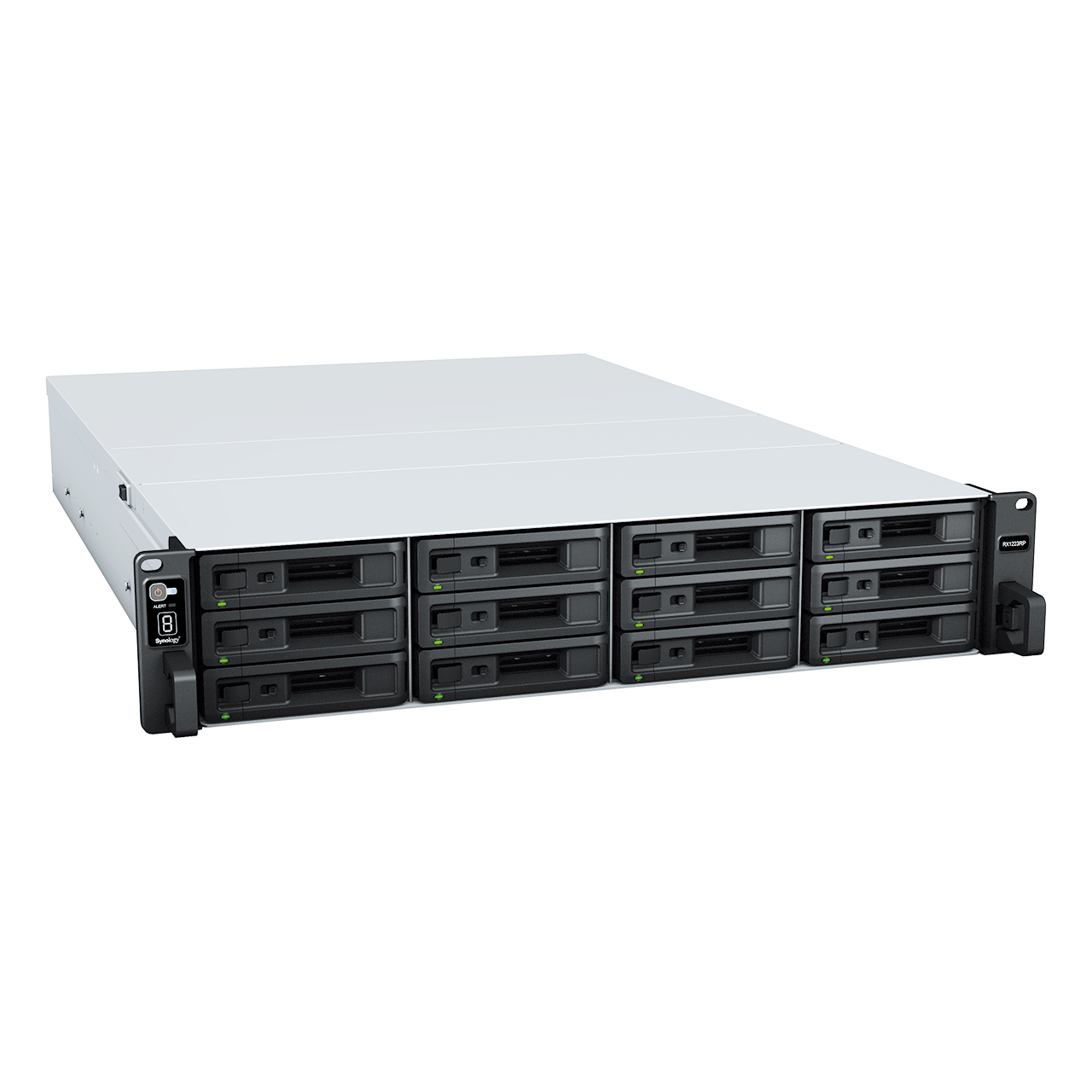

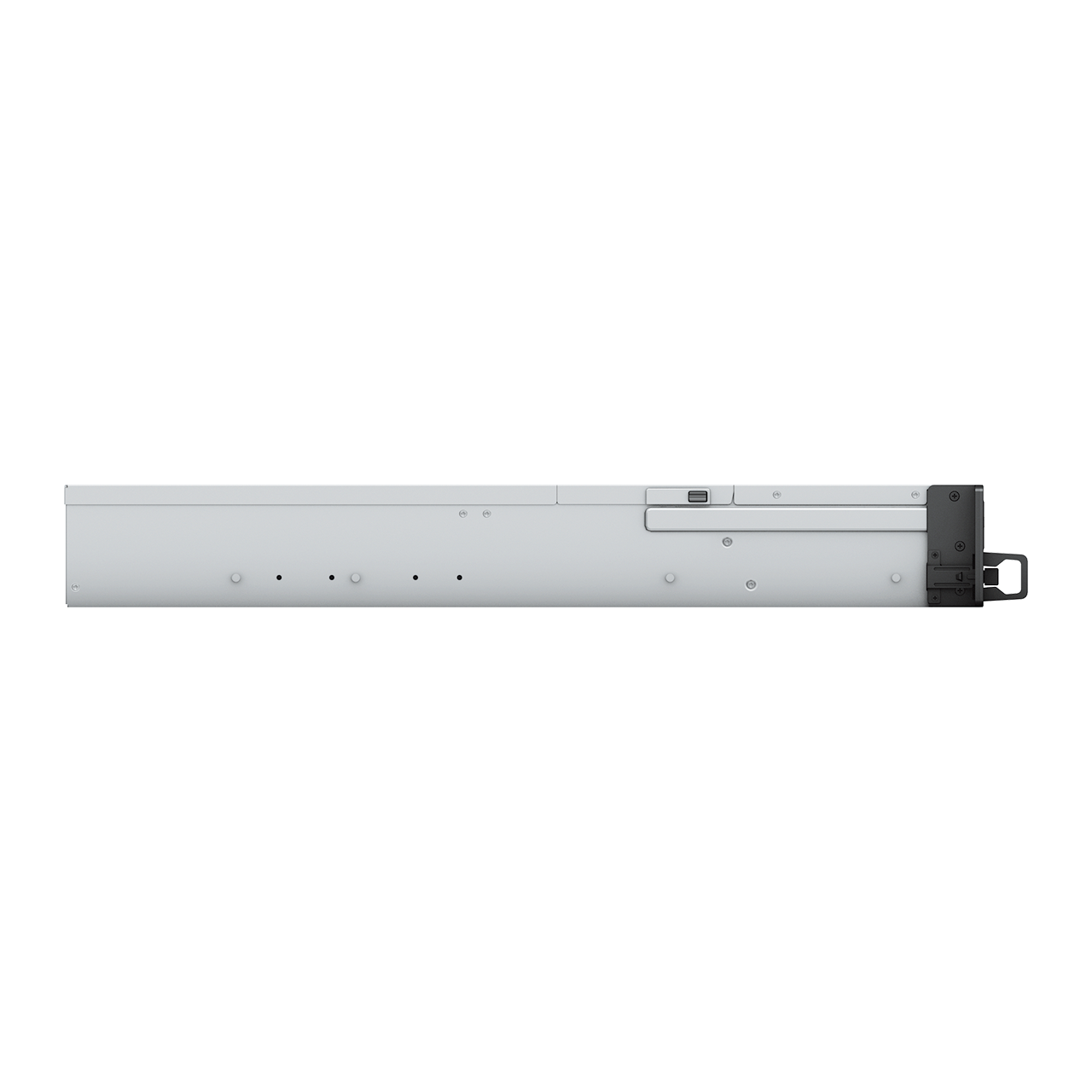

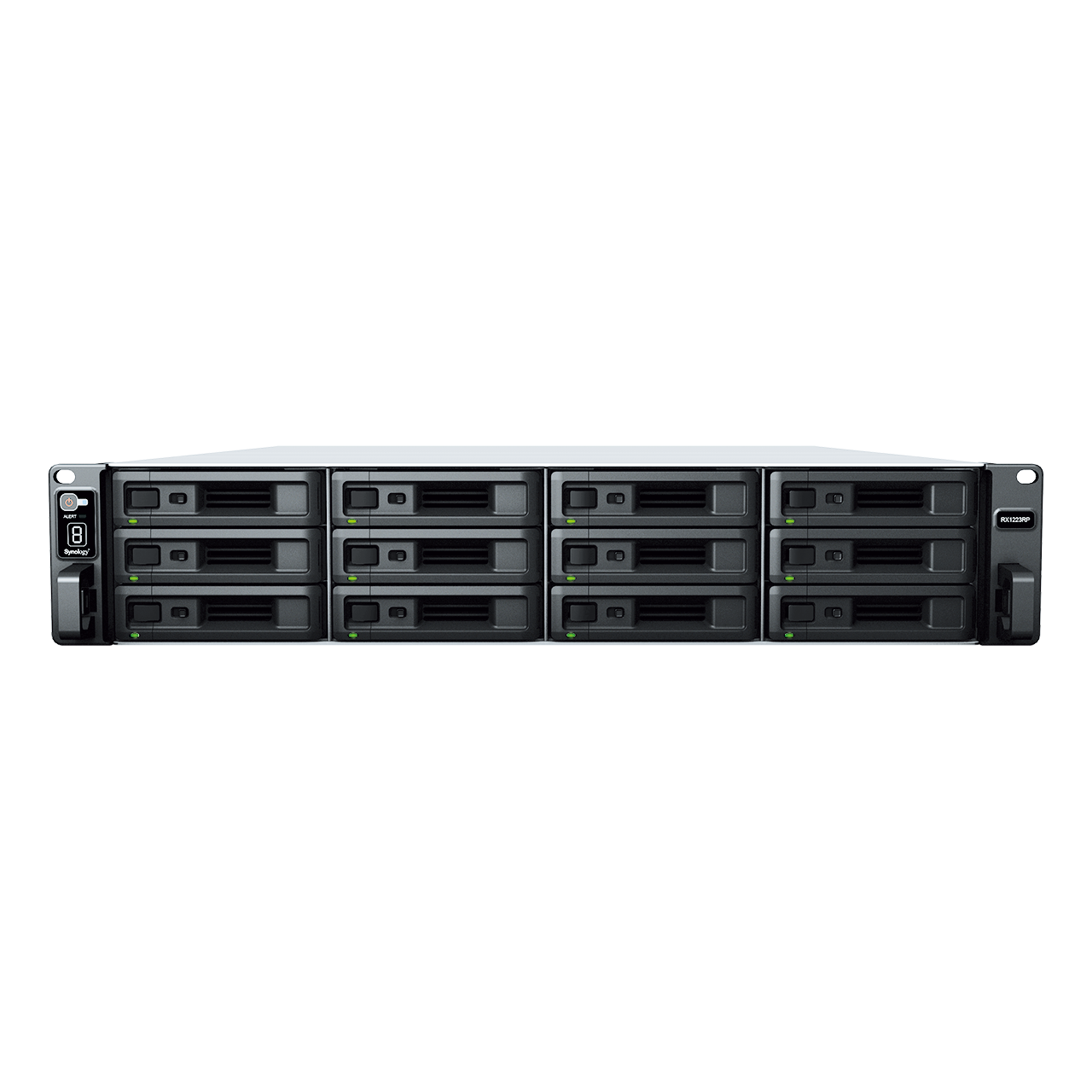

Synology RX1223RP 12-Bay Redundant Power Expansion Unit

At a Glance

• Adds 12 additional drive bays to compatible Synology systems
• Supports compatible 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Redundant power supplies for improved availability
• Hot-swappable drives
• Online storage expansion
• Managed directly through Synology DSM
• 2U rackmount design
• 5-Year Synology Hardware Warranty

Important: The RX1223RP is an expansion unit, not a standalone NAS. Storage drives and rack rails are sold separately.

Short Description

The Synology RX1223RP is a 12-bay rackmount expansion unit designed for compatible Synology storage systems that need significantly more capacity without replacing the host server.

With hot-swappable bays, online expansion and redundant power, it provides a business-focused route to increasing storage while maintaining availability.

Why Choose This Synology

Add 12 Bays at a Time

Each RX1223RP adds twelve additional SATA drive bays, making it well suited to organisations managing rapidly growing storage requirements.

Expand Without Interrupting Services

Synology's online storage expansion allows supported volumes to be expanded or new volumes created without shutting down normal host services.

Redundant Power for Better Availability

Dual power supplies help keep the expansion unit online if one PSU or power source fails.

Built for Easier Maintenance

Hot-swappable drive trays and replaceable system fans help reduce the impact of routine hardware maintenance.

Managed from the Host NAS

The RX1223RP integrates with Synology DSM, so storage management remains centralised rather than introducing another independent system.

Best For

• High-capacity business storage
• Compatible RS2423 Series RackStations
• Synology SA6400 environments
• Growing backup repositories
• Surveillance storage
• Large shared data sets
• Businesses requiring redundant power
• Enterprise storage expansion

Product Description

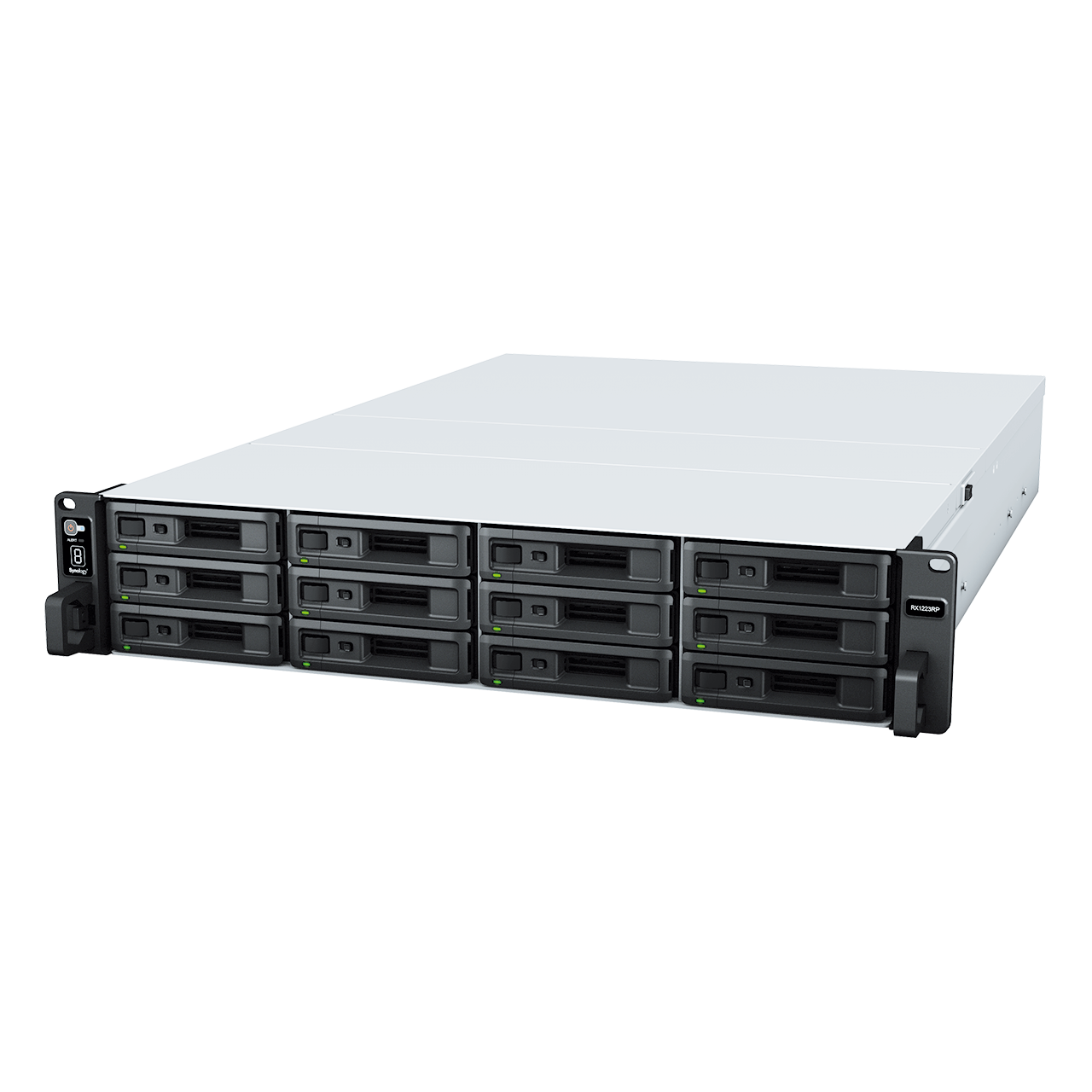

The Synology RX1223RP provides twelve additional drive bays for compatible Synology storage systems.

It supports compatible 3.5-inch SATA HDDs and 2.5-inch SATA SSDs, with hot-swappable bays allowing drive replacement without powering down the system.

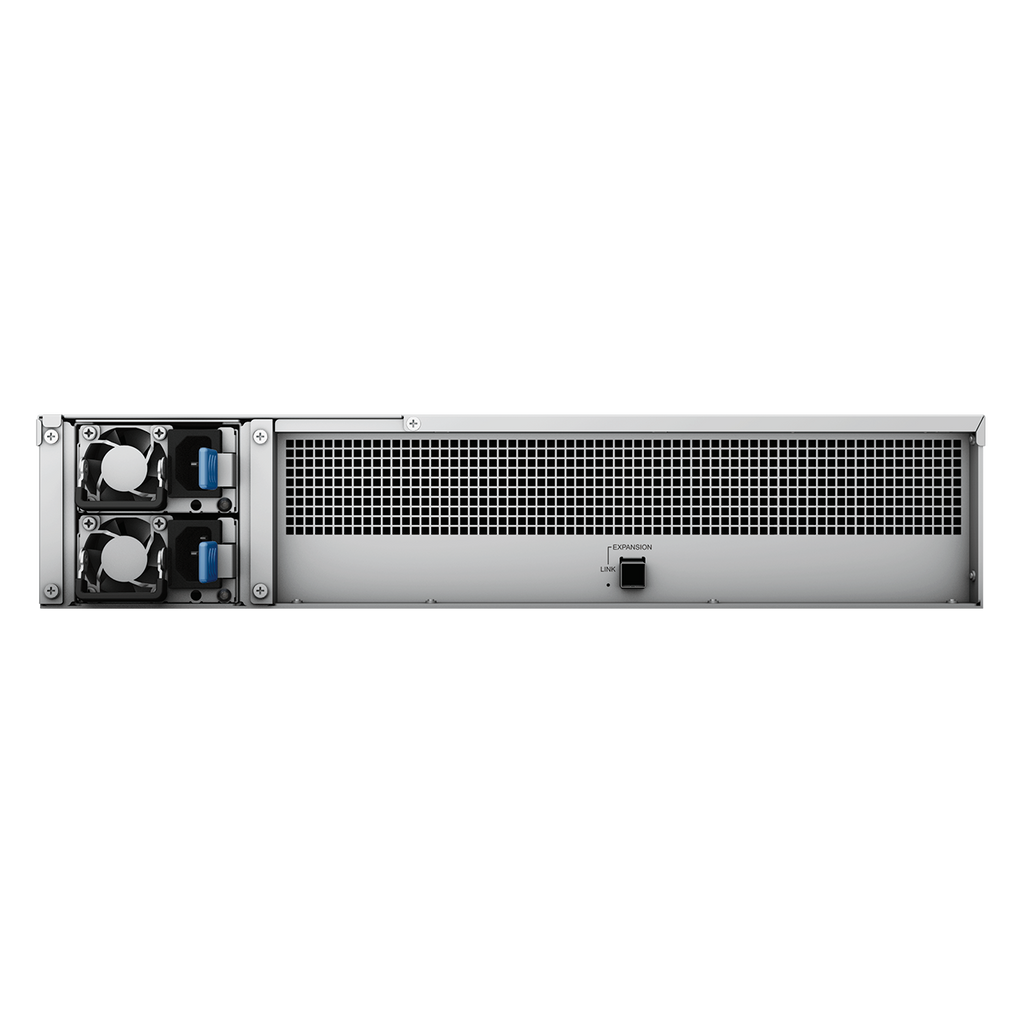

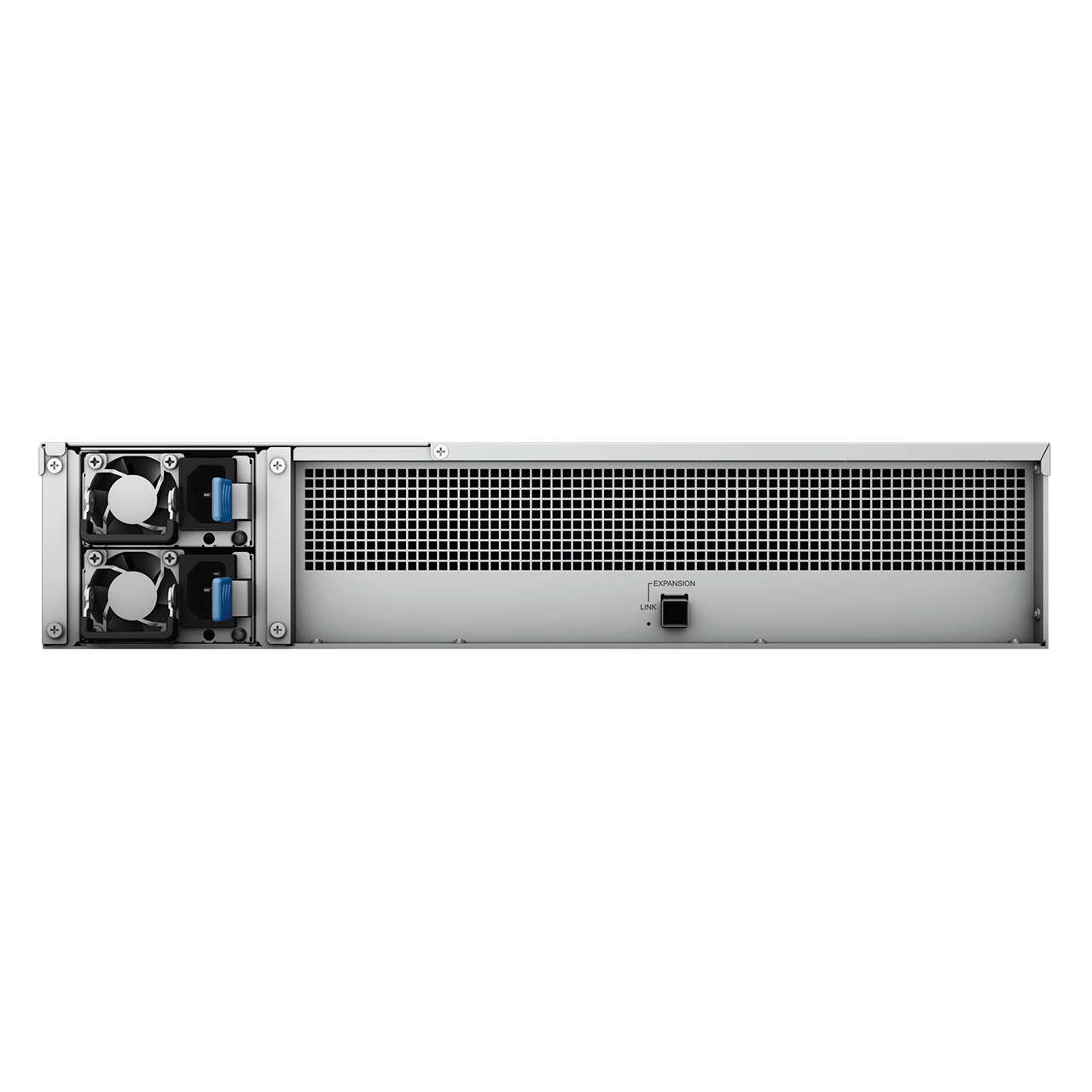

A Mini-SAS HD expansion connection links the unit to the compatible host system, while Synology DSM provides centralised RAID and storage management.

Redundant 550W power supplies help reduce the risk of storage interruption caused by a single PSU failure.

For supported high-capacity systems, multiple RX1223RP units can be deployed to create very large-scale storage configurations.

The RX1223RP requires a compatible Synology host system and compatible storage drives.

Key Features

• 12-bay rackmount expansion unit
• Supports 3.5-inch SATA HDDs
• Supports 2.5-inch SATA SSDs
• Hot-swappable drives
• Online storage expansion
• DSM RAID management
• Mini-SAS HD connection
• Redundant 550W power supplies
• RKS-02 rail-kit support
• 5-year warranty

What Do I Need With This Expansion Unit?

Required

• Compatible Synology host system
• Compatible storage drives

Optional

• RKS-02 sliding rail kit

Compatible Synology Systems

Synology currently lists:

• SA6400
• RS2423RP+II
• RS2423RP+
• RS2423+

The number of expansion units supported depends on the exact host system.

Compatible Storage

3.5-inch SATA HDD

• HAT5300 Enterprise Series
• HAT3300 Plus Series

2.5-inch SATA SSD

• SAT5200 Enterprise Series

Compatibility Note: Always confirm the exact drive and host-system configuration against Synology's current compatibility information before purchase.

Compatible Upgrades & Accessories

Rack Installation

• RKS-02 Sliding Rail Kit

Rail kit sold separately.

Specifications

What’s in the Box

• Synology RX1223RP Main Unit × 1
• Accessory Pack × 1
• AC Power Cord × 2
• Mini-SAS HD Expansion Cable × 1
• Quick Installation Guide × 1

Not Included: Storage drives and RKS-02 rail kit.

Warranty

5-Year Synology Limited Hardware Warranty

Sustainability

• RoHS Compliant
