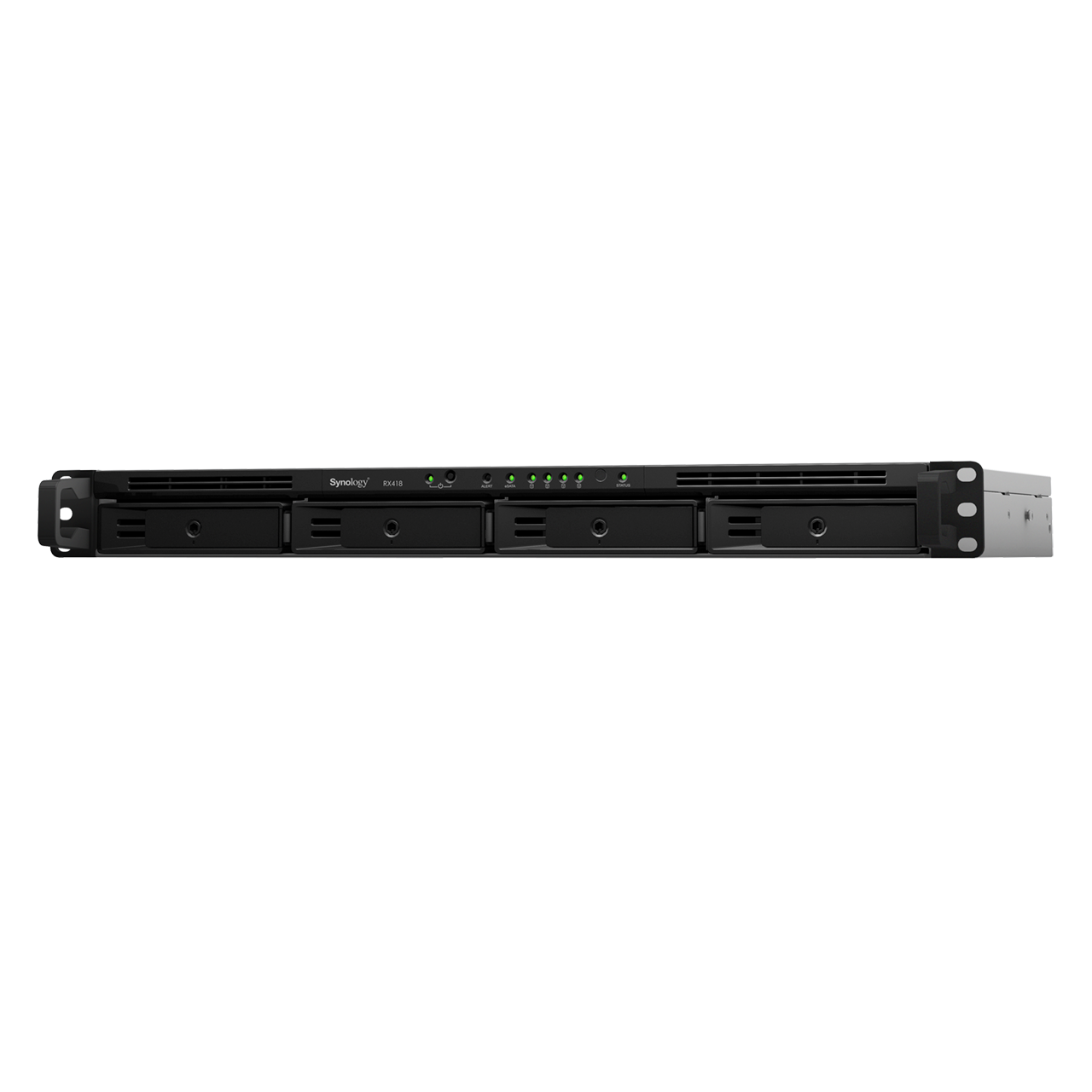

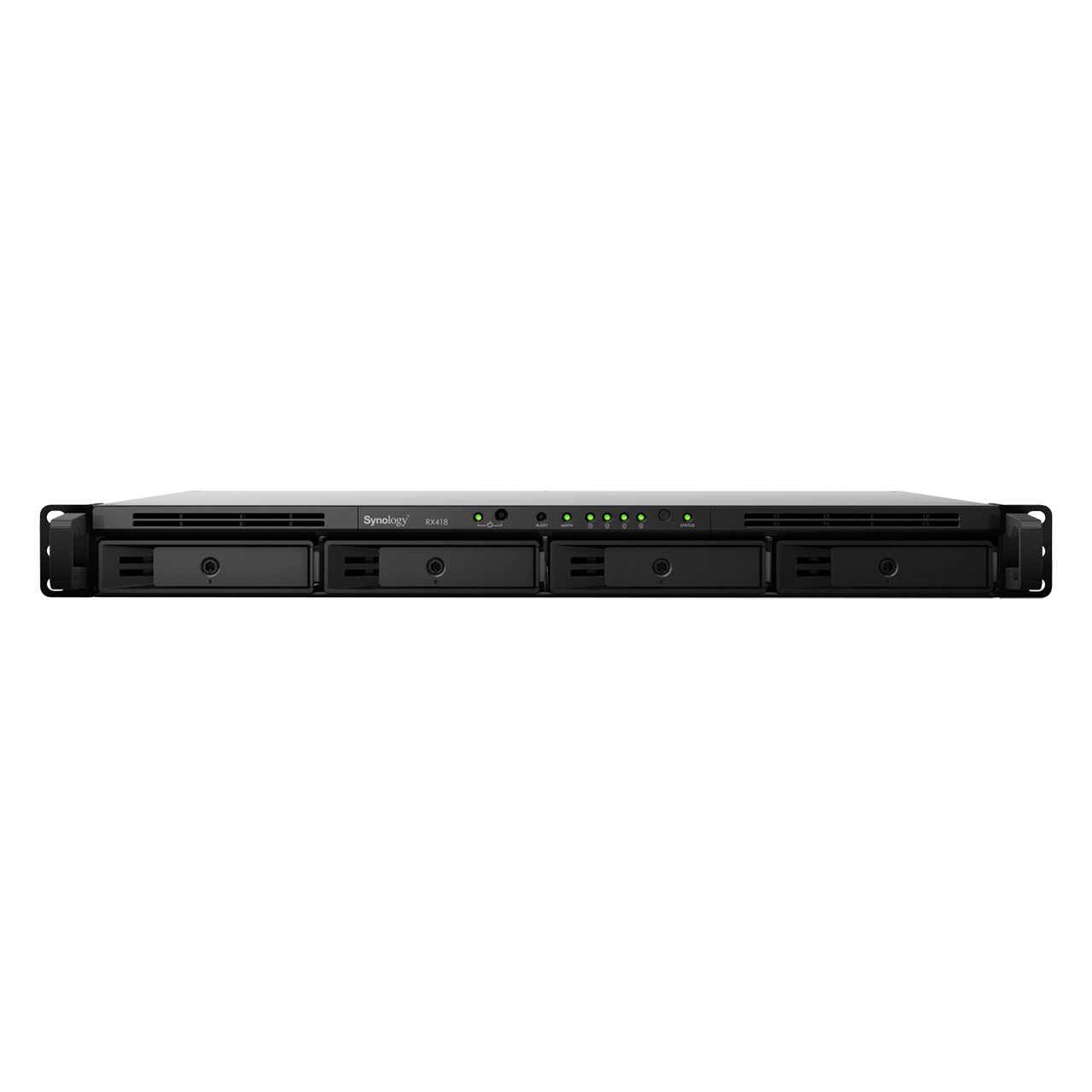

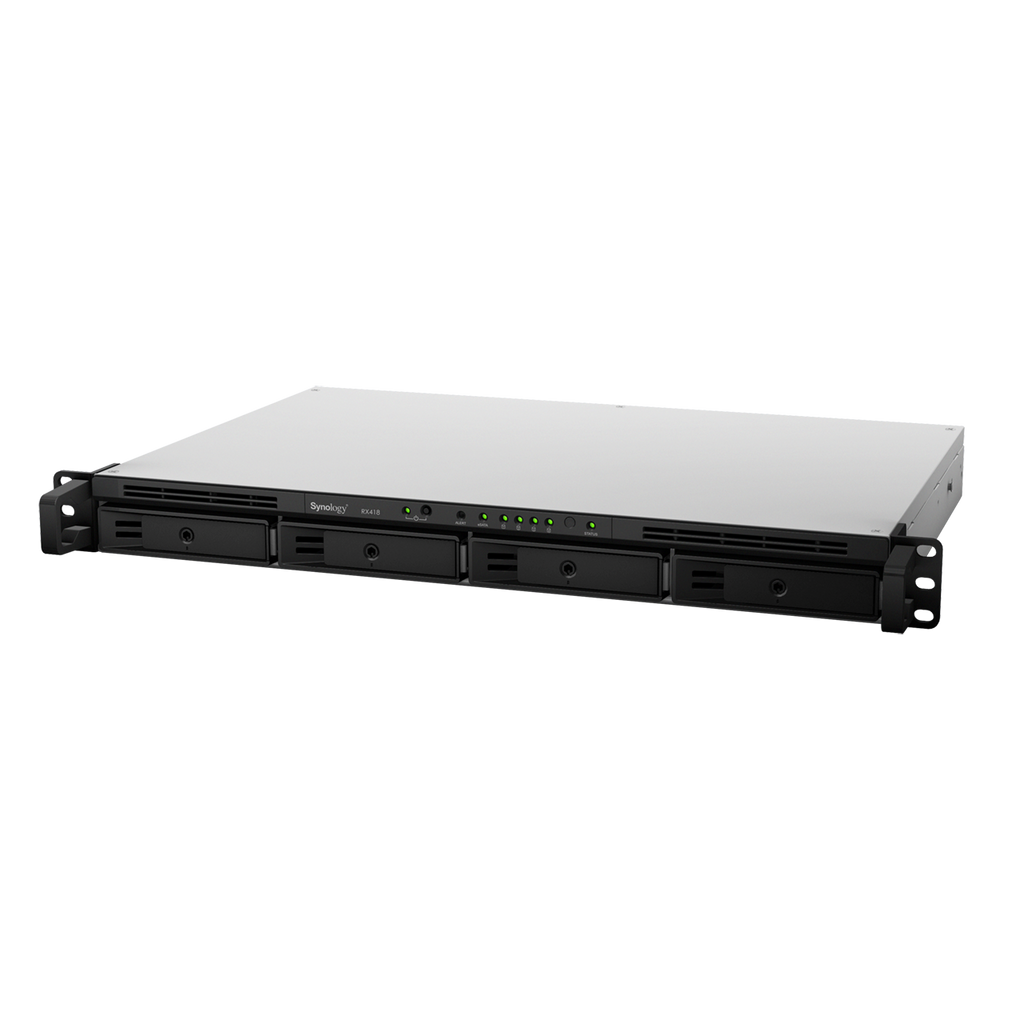

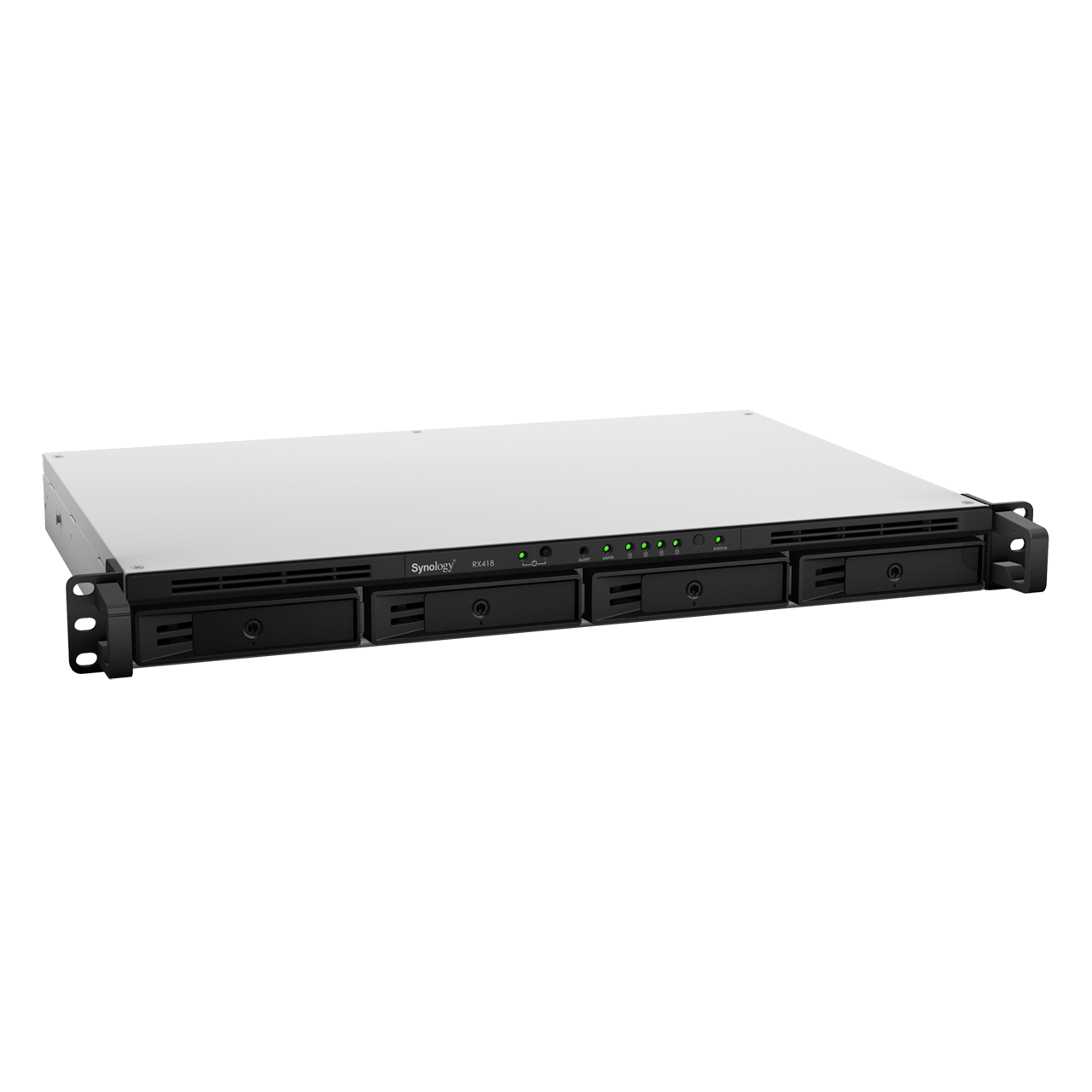

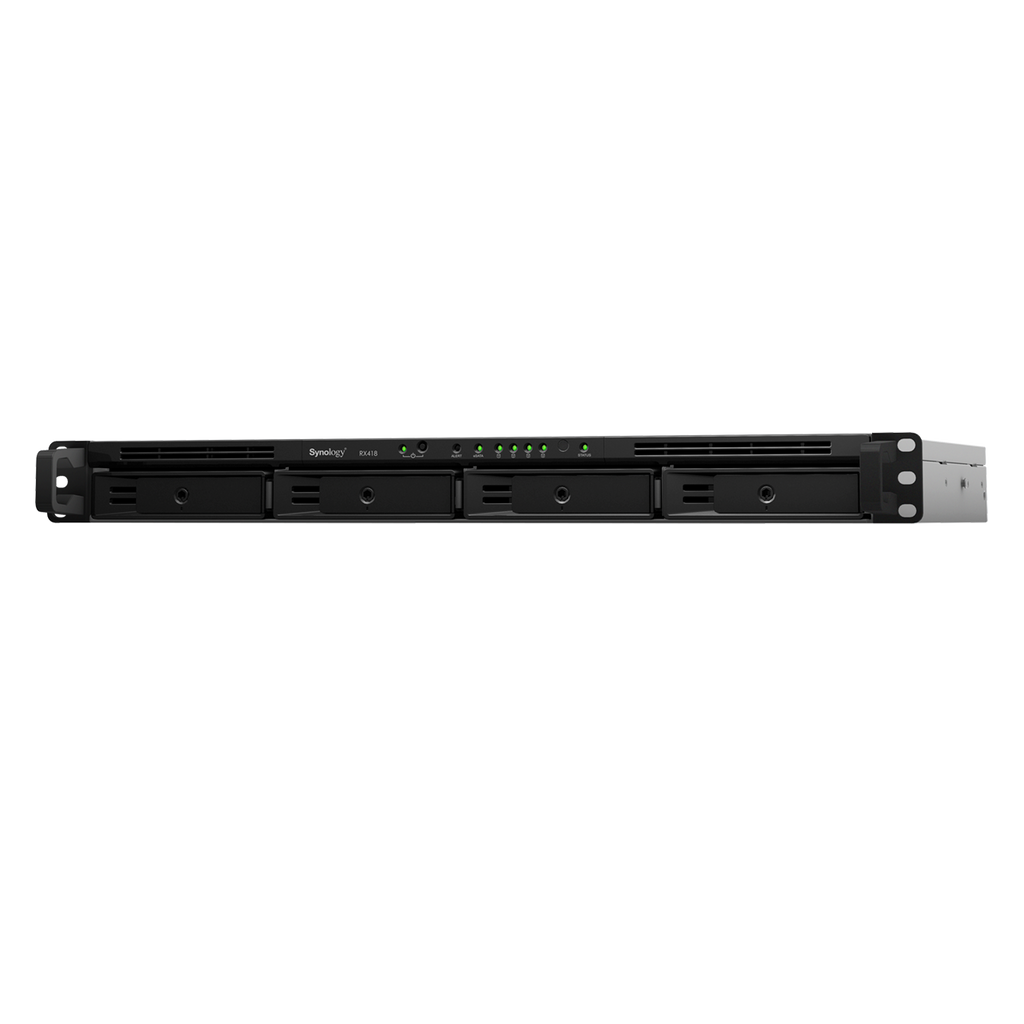

Synology RX418 4-Bay 1U RackStation Expansion Unit

At a Glance

• Adds 4 additional drive bays to compatible RackStation systems
• Compact 1U short-depth rackmount design
• Supports compatible 3.5-inch and 2.5-inch SATA drives
• Online storage expansion through Synology DSM
• Can also serve as a dedicated local backup destination
• Supports selected 2-post and 4-post rack installations
• 3-Year Synology Hardware Warranty

Important: The RX418 is an expansion unit and cannot operate as a standalone NAS. Storage drives and optional rack rails are sold separately.

Short Description

The Synology RX418 is a compact 4-bay 1U expansion unit designed to add additional storage capacity to compatible Synology RackStation systems.

Its short-depth chassis makes it particularly useful in space-constrained rack environments, while DSM integration allows the additional drives to be managed directly through the host NAS.

Why Choose This Synology

Add Four More Bays Without Replacing Your RackStation

The RX418 provides a simple route to additional storage when a compatible RackStation reaches its internal drive capacity.

Compact Rack-Friendly Design

Its short-depth chassis is designed for space-conscious installations and supports compatible 2-post and 4-post rack configurations.

Plug In and Manage Through DSM

Connect the RX418 to a compatible RackStation and manage the additional drives through Synology DSM without adding another independent storage-management system.

Expansion or Dedicated Backup

The additional bays can be used to expand storage or as a separate local backup destination.

Hot-Swappable Storage

Compatible drives can be replaced without shutting down the expansion unit and host system.

Best For

• Compatible Synology RackStation systems
• Small and medium businesses
• Branch offices
• Short-depth rack installations
• Growing rackmount storage
• Local backup storage
• Businesses wanting to extend an existing NAS investment

Product Description

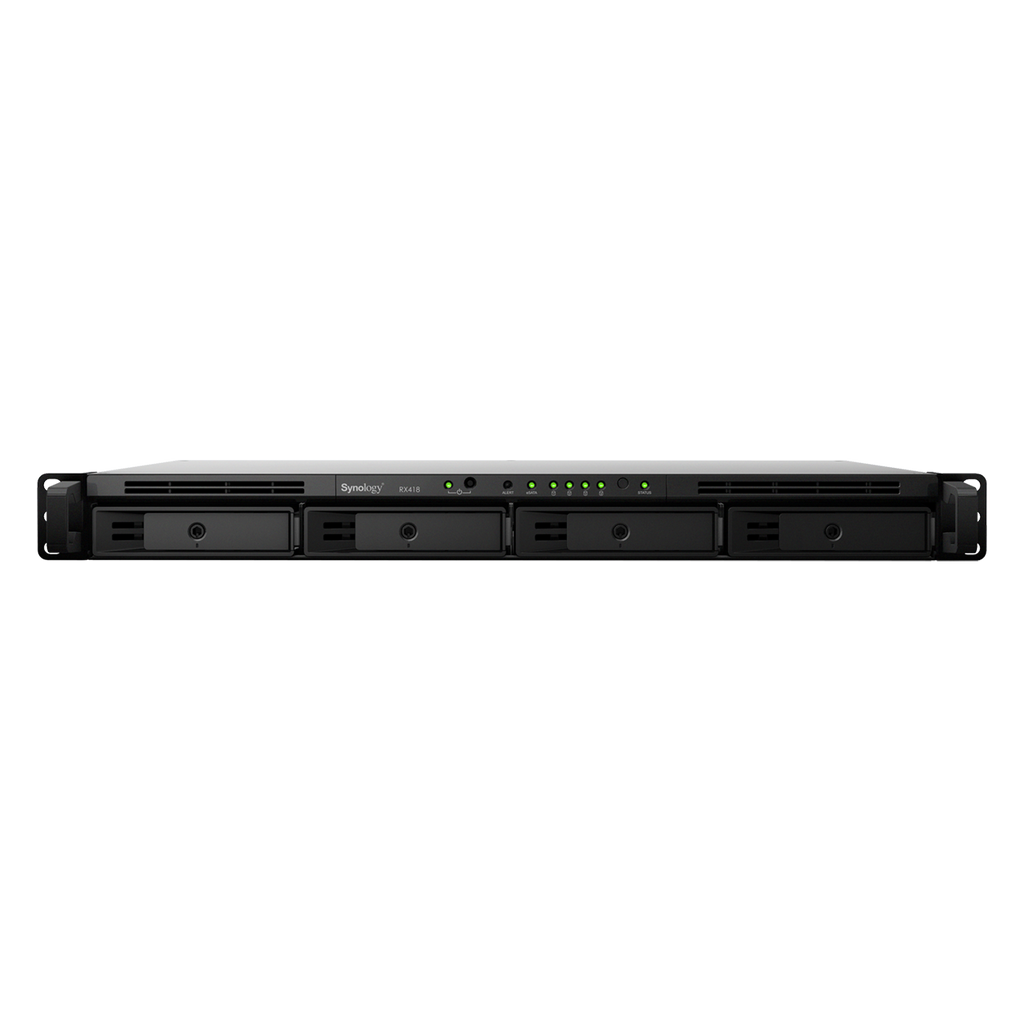

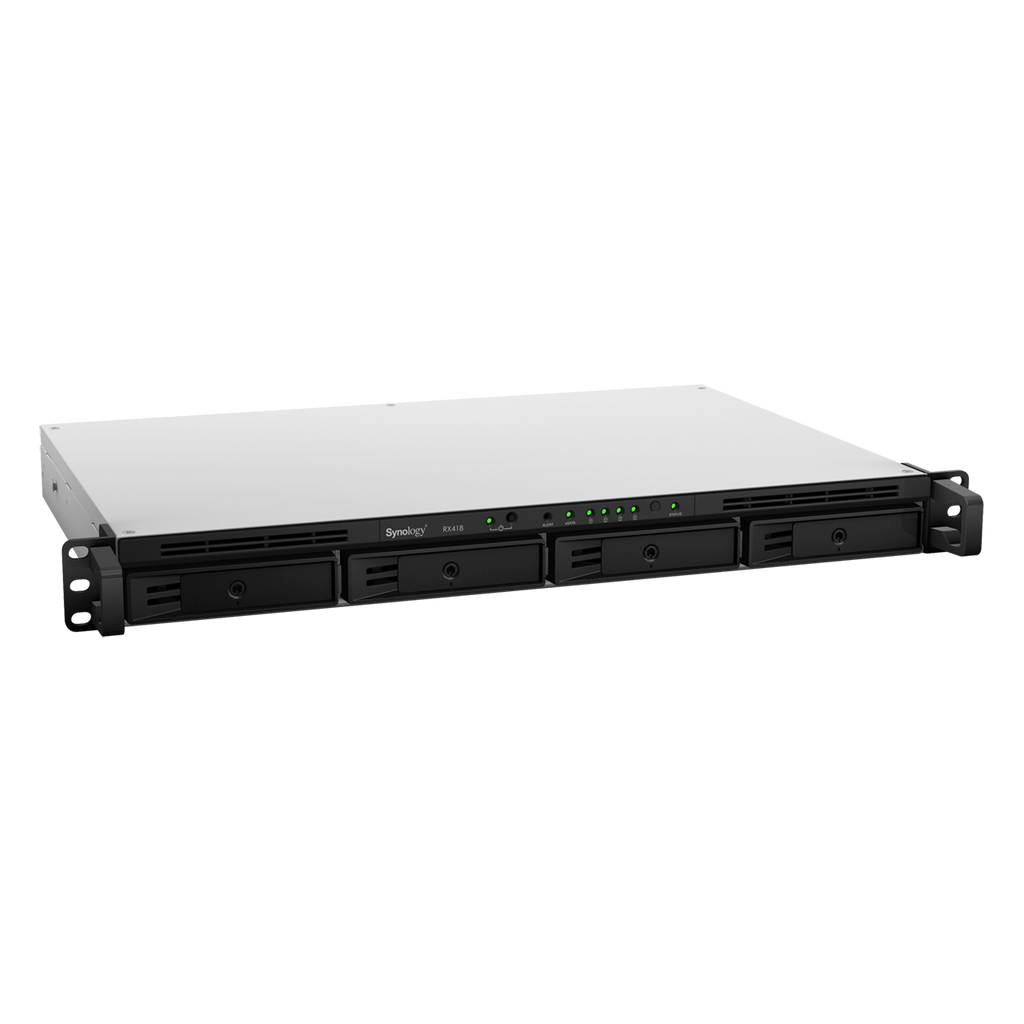

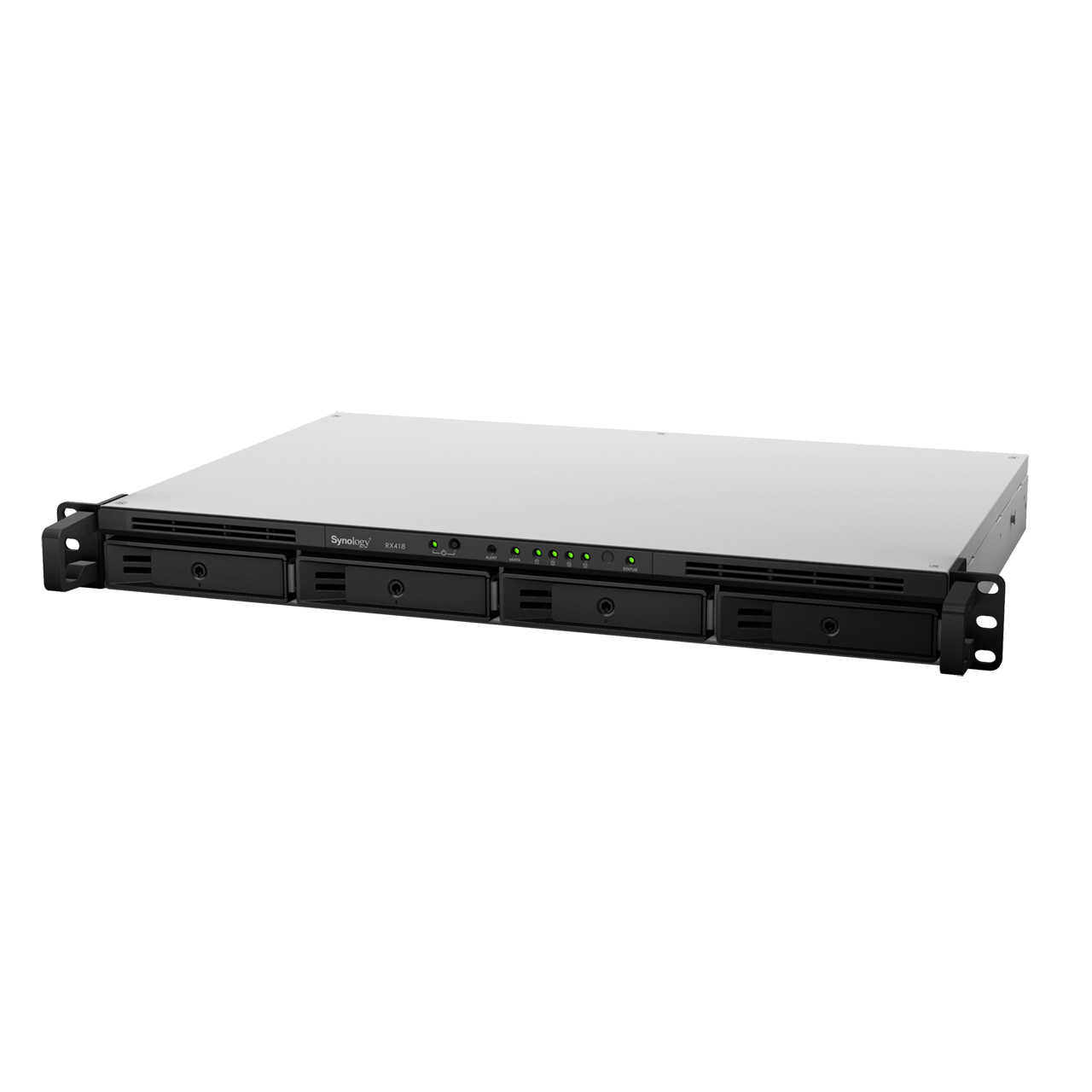

The Synology RX418 adds four drive bays to compatible 1U Synology RackStation systems.

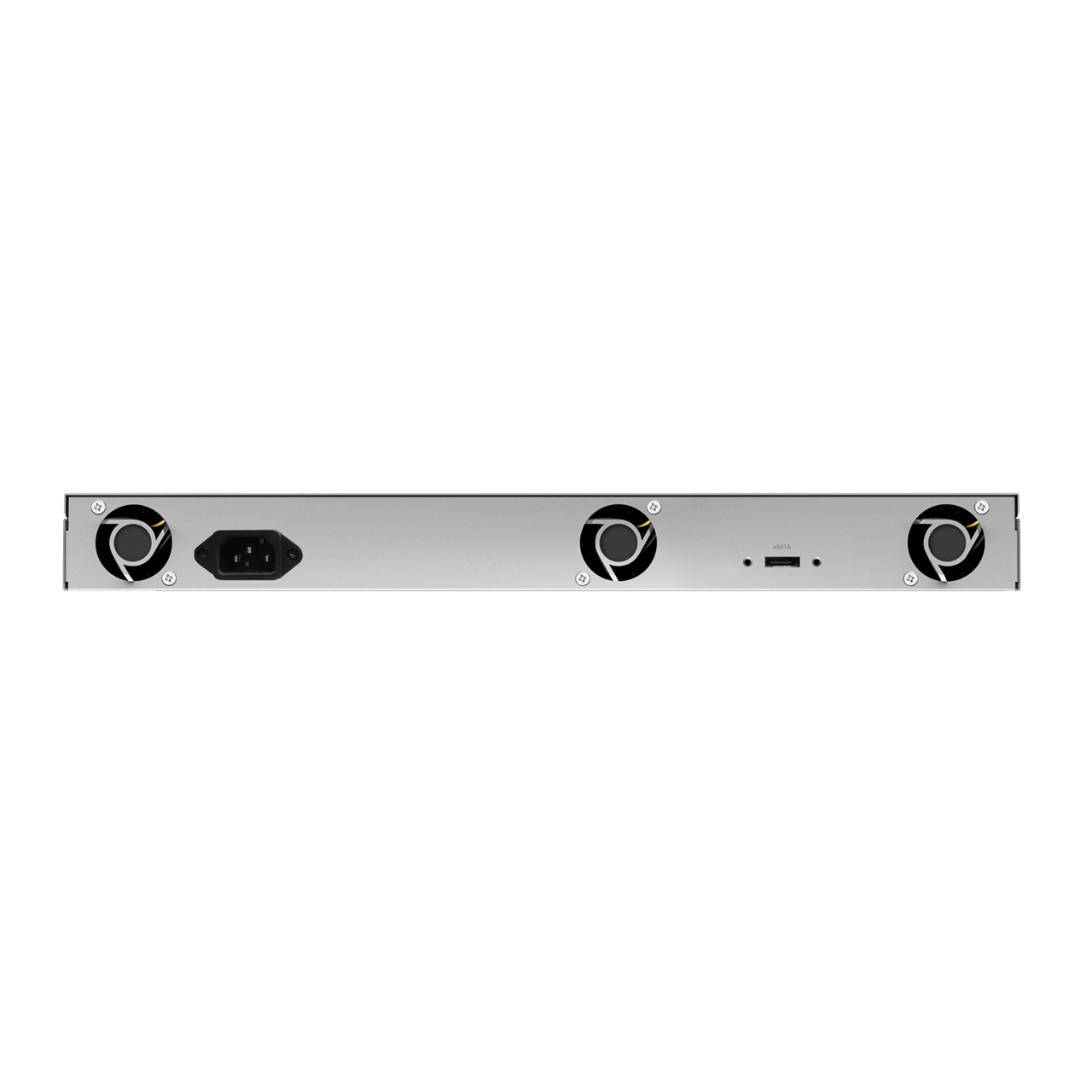

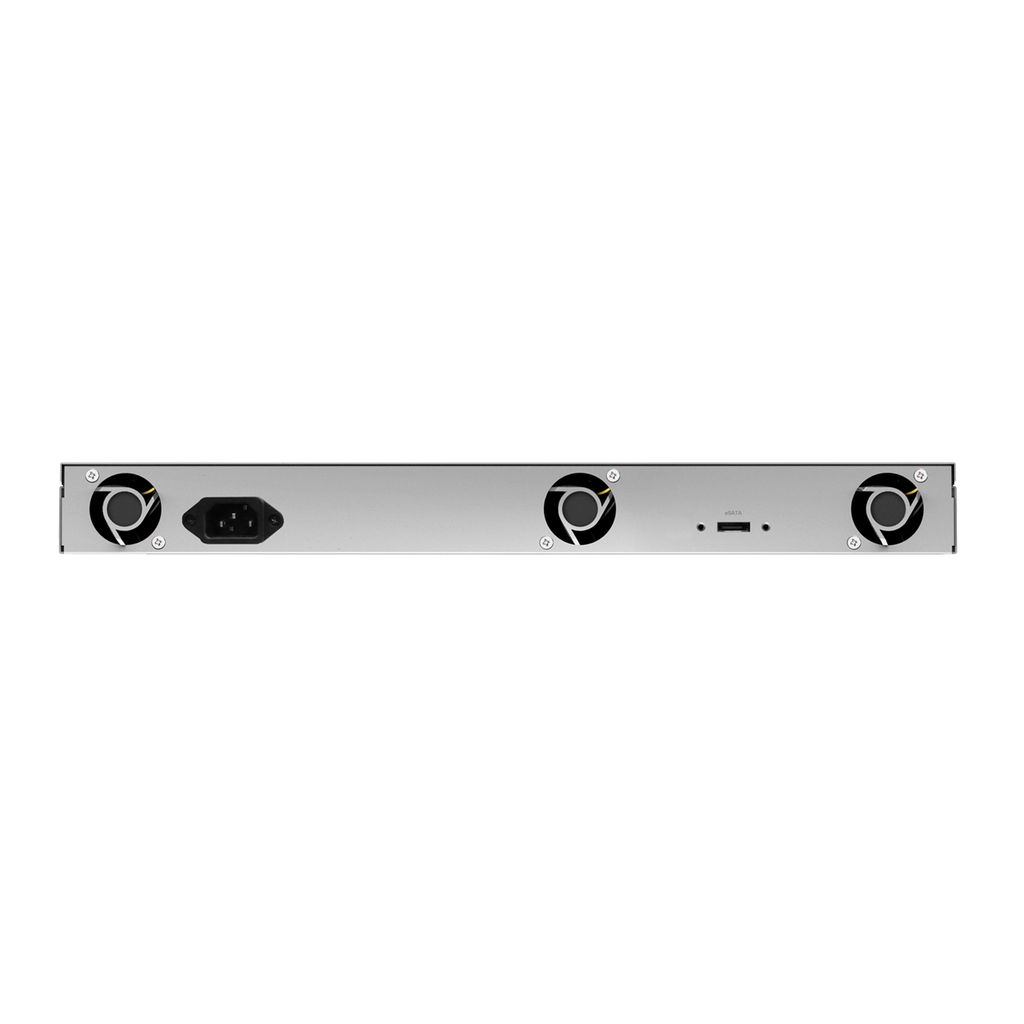

Its 1U chassis supports compatible 3.5-inch SATA HDDs, 2.5-inch SATA HDDs and 2.5-inch SATA SSDs. The RX418 connects to the host RackStation through eSATA and is managed directly through Synology DSM.

Online volume expansion allows supported storage configurations to grow without interrupting normal storage services.

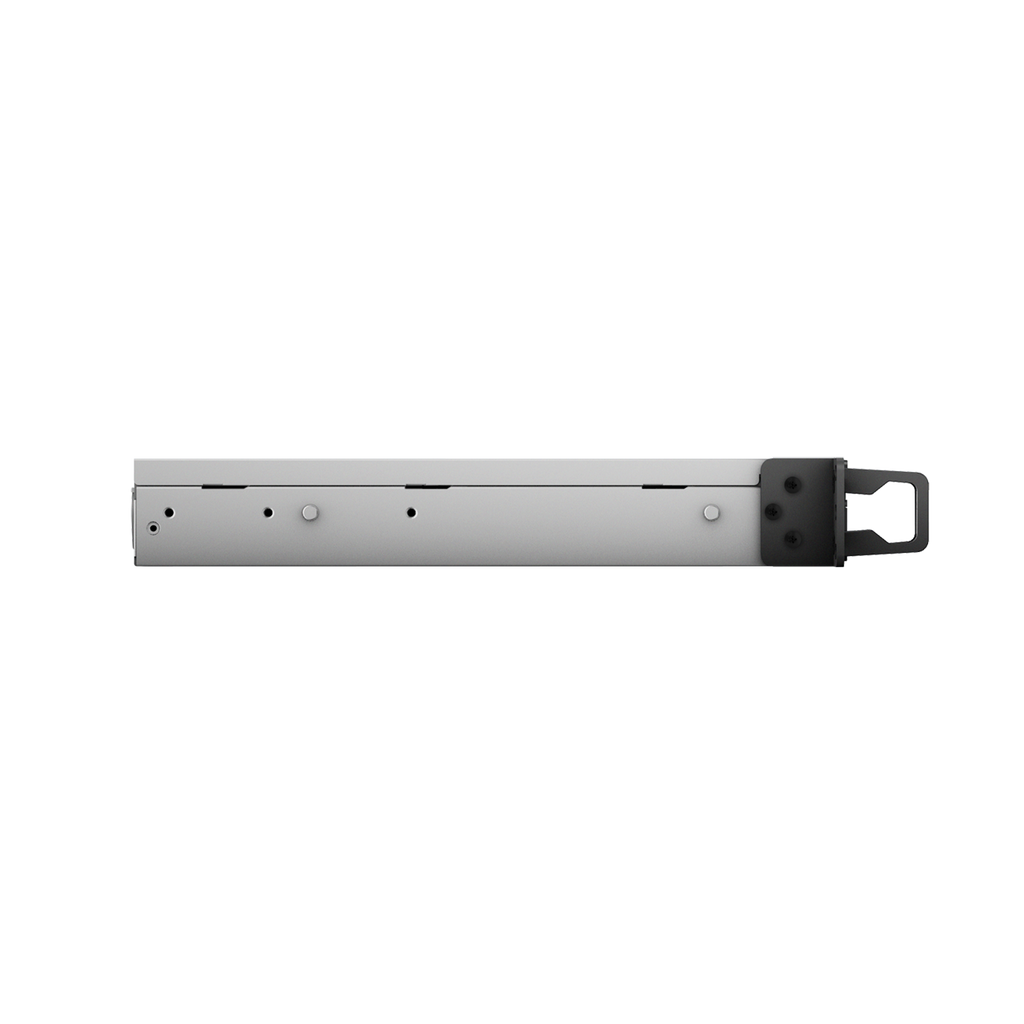

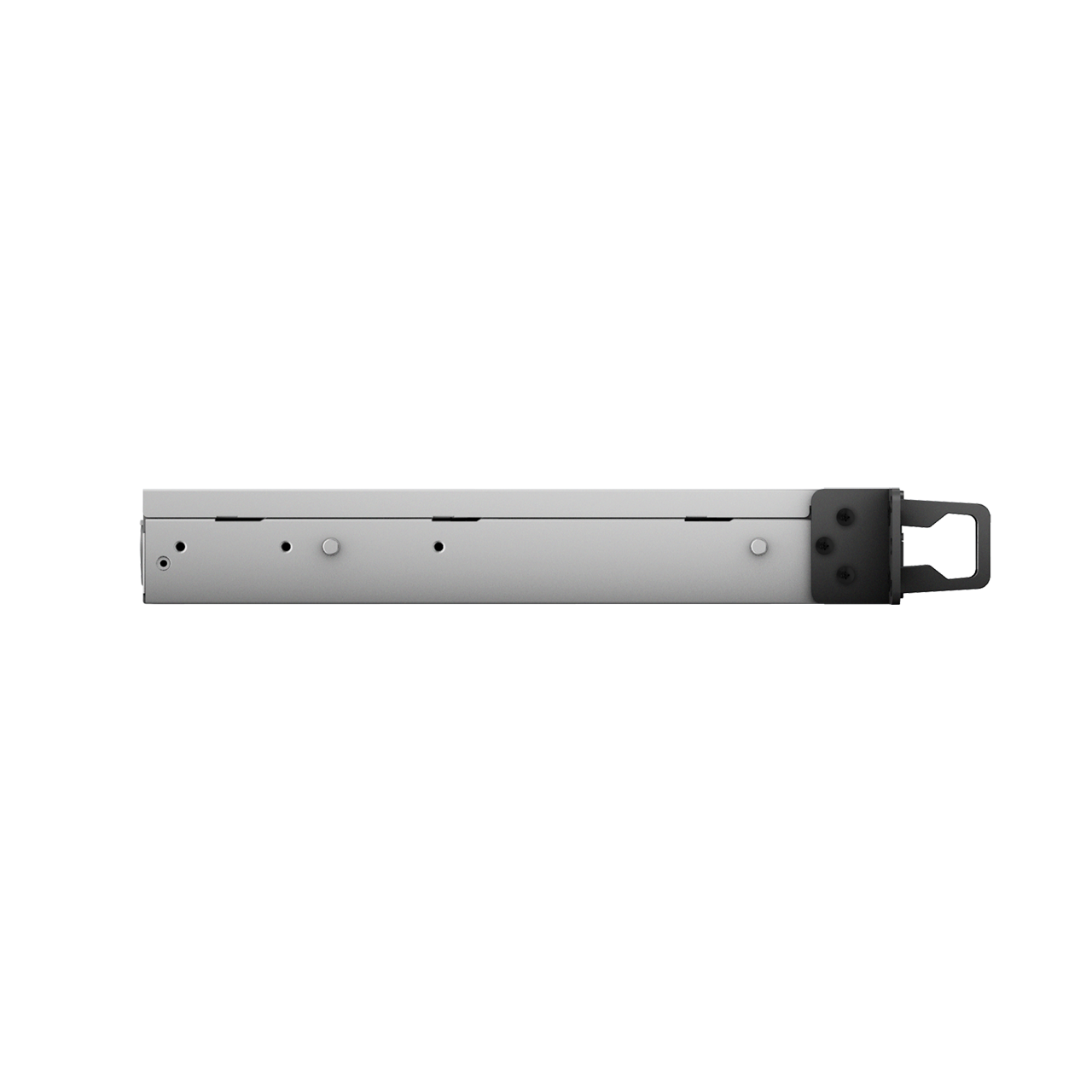

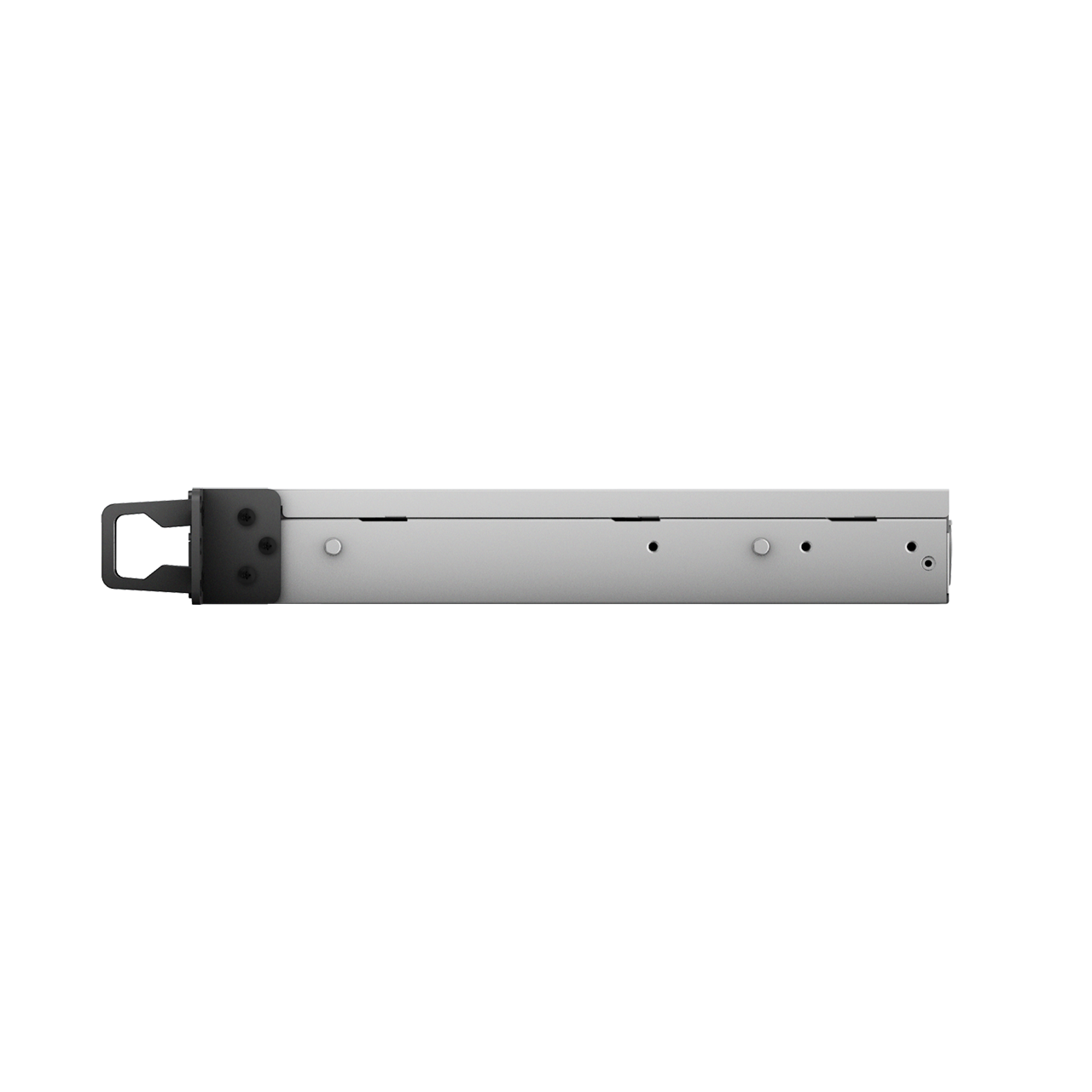

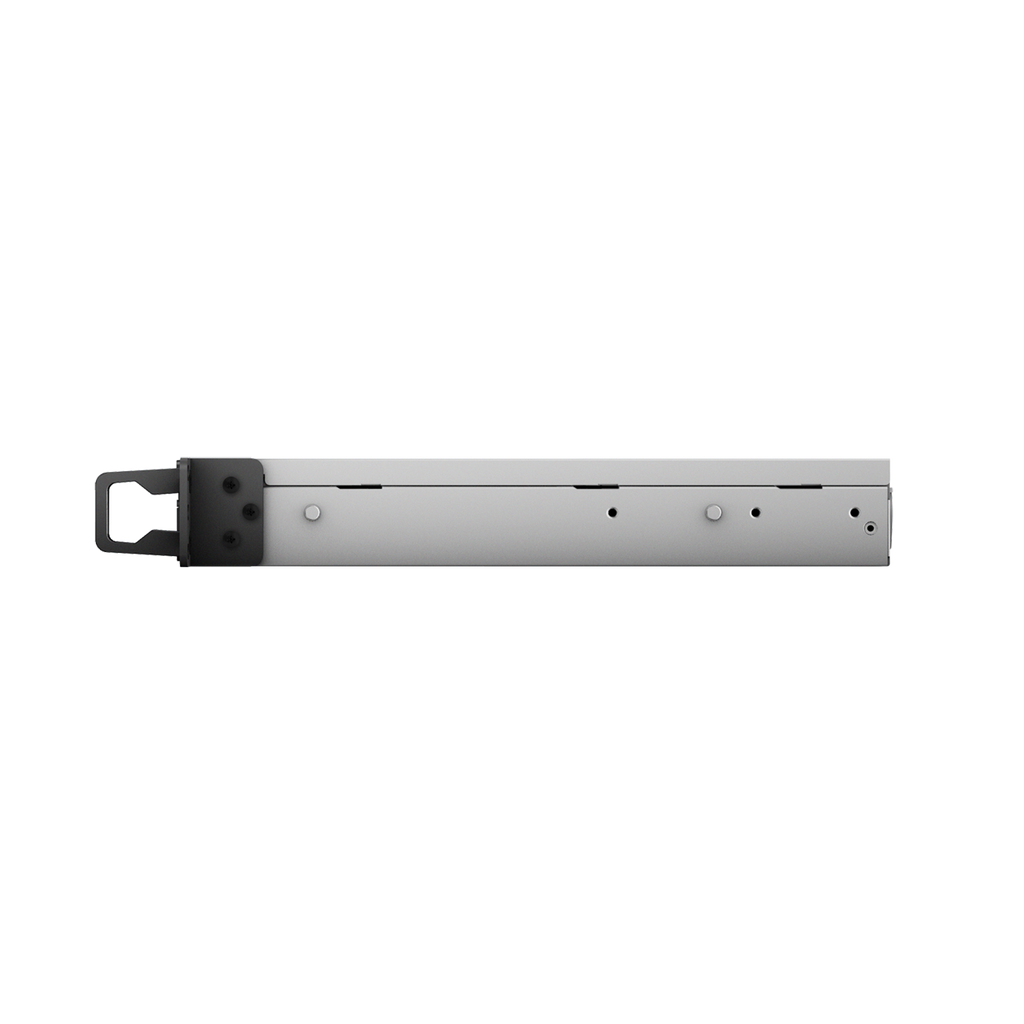

At only 290mm deep without server ears, the RX418 is particularly useful where conventional full-depth rack hardware may be difficult to deploy.

It supports compatible 4-post rack rails as well as direct mounting in supported 2-post 19-inch racks.

A compatible Synology RackStation and storage drives are required.

Key Features

• 4-bay 1U RackStation expansion unit
• Short-depth rackmount design
• Supports 3.5-inch SATA HDDs
• Supports 2.5-inch SATA HDDs and SSDs
• Hot-swappable drives
• Online volume expansion
• DSM-based RAID management
• eSATA connectivity
• 2-post direct mounting support
• 3-year warranty

What Do I Need With This Expansion Unit?

Required

• Compatible Synology RackStation
• Compatible storage drives

Optional

• RKS-02 sliding rail kit
• RKM114 mounted rail kit

Compatible Synology Systems

Synology currently lists:

22 Series

RS822RP+, RS822+

21 Series

RS1221RP+, RS1221+

20 Series

RS820RP+, RS820+

19 Series

RS1219+, RS819

18 Series

RS818RP+, RS818+

16 Series

RS816

15 Series

RS815RP+, RS815+, RS815

Single-unit volume creation only: RS217

Synology requires DSM 6.1.4-15217-3 or later for RX418 support.

Compatible Storage

3.5-inch SATA HDD

• HAT5300 Enterprise Series
• HAT3300 Plus Series

2.5-inch SATA SSD

• SAT5200 Enterprise Series

Exact drive compatibility must be confirmed against Synology's RX418 Compatibility List.

Compatible Upgrades & Accessories

Rack Installation

• RKS-02 Sliding Rail Kit
• RKM114 Mounted Rail Kit
• Supported direct 2-post 19-inch rack mounting

Specifications

What’s in the Box

• Synology RX418 Main Unit × 1
• User's Guide × 1
• Accessory Pack × 1
• AC Power Cord × 1
• eSATA Expansion Cable × 1

Not Included: Storage drives and optional rail kits.

Warranty

3-Year Synology Hardware Warranty

Sustainability

• RoHS Compliant
