The Synology RackStation RS6426xs+ is a scalable 16-bay 3U enterprise NAS with an Intel Xeon processor, 16GB ECC memory, dual 10GbE networking, redundant power and expansion support for up to 64 drives.

Product Description

The Synology RS6426xs+ is designed for enterprise storage, backup, collaboration, virtualisation, multi-site synchronisation and surveillance.

It features an Intel Xeon D-1739 eight-core processor, 16GB DDR4 ECC memory expandable to 96GB and sixteen hot-swappable SATA drive bays.

Dual 10GbE ports provide high-speed connectivity, Link Aggregation and network failover. Two PCIe 4.0 expansion slots support selected Synology network, Fibre Channel and M.2 NVMe adapter cards.

The RS6426xs+ delivers sequential performance of over 6,700MB/s read and 4,300MB/s write. Storage capacity can be expanded to 64 drives with four optional RX1225RP Expansion Units.

Storage drives, memory upgrades, expansion units, PCIe cards, M.2 SSDs and rack rails are not included.

Key Features

• Enterprise 16-bay 3U rackmount NAS
• Intel Xeon D-1739 processor
• Eight CPU cores and sixteen threads
• 3.0GHz base and up to 3.5GHz turbo frequency
• Hardware encryption engine
• 16GB DDR4 ECC RDIMM memory
• Memory expandable to 96GB
• Sixteen hot-swappable SATA drive bays
• Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Expandable to 64 drives with four RX1225RP units
• Dual built-in 10GbE RJ-45 ports
• Dedicated out-of-band management port
• Two PCIe 4.0 x8 expansion slots
• Supports selected 10GbE and 25GbE network cards
• Supports selected Fibre Channel adapters
• Supports optional M.2 NVMe SSD caching
• Over 6,700MB/s read and 4,300MB/s write
• Up to 165,000 random-write IOPS
• Redundant power supply system
• Supports RAID F1 and RAID 0, 1, 5, 6 and 10
• Supports Btrfs internal volumes
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Supports up to 285 compatible IP cameras
• Five-year Synology hardware warranty

Recommended Use Cases

• Enterprise file storage
• Server and virtual-machine backup
• Virtualisation and iSCSI storage
• Private-cloud collaboration
• Multi-site file synchronisation
• High-speed 10GbE environments
• Fibre Channel storage
• M.2 NVMe SSD caching
• Large surveillance deployments
• Business continuity and disaster recovery
• Petabyte-scale archive storage
• Large multi-user environments

Specifications

Compatibility Note

Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS6426xs+ before ordering.

Compatible Synology drives are required and should be selected from Synology’s current compatibility list.

The RS6426xs+ supports up to four optional RX1225RP Expansion Units, increasing the total number of drive bays from sixteen to sixty-four.

Memory expansion uses compatible Synology D4ER02-16G modules. All installed memory modules must be identical and use the same model number.

The RS6426xs+ does not include built-in M.2 slots. NVMe SSD caching requires a compatible Synology M2D20 or E10M20-T1 adapter card and supported M.2 SSDs.

The PCIe slots support selected Synology 10GbE and 25GbE network cards, Fibre Channel adapters and M.2 SSD adapter cards.

This model supports RAID F1 but does not support Synology Hybrid RAID.

Volumes larger than 108TB require additional memory. A 1PB volume requires at least 64GB of memory, RAID 6 and a supported storage configuration.

Installation in a compatible 4-post rack requires an optional Synology RKS-02 sliding rail kit.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS6426xs+ main unit
• Accessory pack
• 2 × C13 to C14 power cords
• Front cover

Storage drives, memory upgrades, RX1225RP Expansion Units, PCIe cards, M.2 SSDs and rack rails are not included.

Warranty

Five-year Synology hardware warranty.

Sustainability

• RoHS compliant
• HDD hibernation support
• Scheduled power-on and power-off support
• Replaceable system fans and redundant power supplies
• Expandable memory, storage and networking may extend the system’s useful operating life

The Synology RackStation RS822+ is a scalable 4-bay 1U rackmount NAS with an AMD Ryzen processor, expandable ECC memory, four 1GbE ports, PCIe expansion and support for up to eight drives.

Product Description

The Synology RS822+ is designed for centralised business storage, backup, collaboration, private-cloud access, virtualisation and surveillance.

It features an AMD Ryzen V1500B quad-core processor, 2GB DDR4 ECC memory expandable to 32GB and four hot-swappable SATA drive bays.

Four built-in 1GbE ports support Link Aggregation and network failover. A PCIe Gen3 expansion slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and storage adapters.

Storage capacity can be expanded to eight drives with an optional Synology RX418 Expansion Unit.

Storage drives, memory upgrades, expansion units, PCIe cards and rack rail kits are not included.

Key Features

• Compact 4-bay 1U rackmount NAS
• AMD Ryzen V1500B processor
• Four CPU cores and eight threads
• 2.2GHz operating frequency
• Hardware encryption engine
• 2GB DDR4 ECC SODIMM memory
• Memory expandable to 32GB
• Four hot-swappable SATA drive bays
• Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Expandable to eight drives with one RX418
• Four 1GbE RJ-45 network ports
• Link Aggregation and network failover support
• Two USB 3.2 Gen 1 ports
• One eSATA expansion port
• PCIe Gen3 expansion slot
• Supports selected 10GbE and 25GbE network cards
• Supports selected M.2 NVMe adapter cards
• Supports Synology Hybrid RAID
• Supports RAID 0, 1, 5, 6 and 10
• Supports Btrfs and ext4
• Supports Snapshot Replication
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Three-year Synology hardware warranty

Recommended Use Cases

• Small and medium business storage
• Branch-office storage
• Centralised file sharing
• Computer and server backup
• Private-cloud file access
• Business collaboration
• Virtual-machine and iSCSI storage
• Snapshot-based data protection
• SSD cache deployments
• IP camera surveillance
• Optional 10GbE or 25GbE networking
• Expandable rackmount storage

Specifications

Compatibility Note

Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS822+ before ordering.

The RS822+ supports one optional RX418 Expansion Unit, increasing the total number of supported drive bays from four to eight.

Compatible Synology memory options include selected D4ES02 and D4ES03 modules. When two memory modules are installed, both modules must be identical and use the same model number.

The PCIe slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and M.2 adapters.

Installation in a compatible 4-post rack requires an optional Synology RKM114 or RKS-02 rail kit.

The RS822+ has a single internal power supply and does not provide the redundant power configuration included with the RS822RP+.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS822+ main unit
• Accessory pack
• AC power cord
• Quick Installation Guide

Storage drives, memory upgrades, RX418 Expansion Unit, PCIe cards, M.2 SSDs and rack rail kits are not included.

Warranty

Three-year Synology hardware warranty.

Sustainability

• RoHS compliant
• HDD hibernation mode
• Scheduled power-on and power-off support
• Expandable memory, storage and networking may help extend the system’s useful operating life

The Synology RackStation RS822RP+ is a scalable 4-bay 1U rackmount NAS with an AMD Ryzen processor, expandable ECC memory, redundant power supplies, four 1GbE ports and support for up to eight drives.

Product Description

The Synology RS822RP+ is designed for centralised business storage, backup, collaboration, private-cloud access, virtualisation and surveillance.

It features an AMD Ryzen V1500B quad-core processor, 2GB DDR4 ECC memory expandable to 32GB and four hot-swappable SATA drive bays.

Four built-in 1GbE ports support Link Aggregation and network failover. A PCIe Gen3 expansion slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and storage adapters.

Storage capacity can be expanded to eight drives with an optional Synology RX418 Expansion Unit. Redundant power supplies help maintain operation if one power supply fails.

Storage drives, memory upgrades, expansion units, PCIe cards and rack rail kits are not included.

Key Features

• Compact 4-bay 1U rackmount NAS
• AMD Ryzen V1500B processor
• Four CPU cores and eight threads
• 2.2GHz operating frequency
• Hardware encryption engine
• 2GB DDR4 ECC SODIMM memory
• Memory expandable to 32GB
• Four hot-swappable SATA drive bays
• Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Expandable to eight drives with one RX418
• Four 1GbE RJ-45 network ports
• Link Aggregation and network failover support
• Redundant power supply system
• Two USB 3.2 Gen 1 ports
• One eSATA expansion port
• PCIe Gen3 expansion slot
• Supports selected 10GbE and 25GbE network cards
• Supports selected M.2 NVMe adapter cards
• Supports Synology Hybrid RAID
• Supports RAID 0, 1, 5, 6 and 10
• Supports Btrfs and ext4
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Supports up to 40 compatible IP cameras
• Three-year Synology hardware warranty

Recommended Use Cases

• Small and medium business storage
• Branch-office storage
• Centralised file sharing
• Computer and server backup
• Private-cloud file access
• Business collaboration
• Virtual-machine and iSCSI storage
• Snapshot-based data protection
• High-availability environments
• IP camera surveillance
• Optional 10GbE or 25GbE networking
• Expandable rackmount storage

Specifications

Compatibility Note

Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS822RP+ before ordering.

The RS822RP+ supports one optional RX418 Expansion Unit, increasing the total number of supported drive bays from four to eight.

Compatible Synology memory options include selected D4ES02 and D4ES03 modules. When two memory modules are installed, both modules must be identical and use the same model number.

The PCIe slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and M.2 adapters.

Installation in a compatible 4-post rack requires an optional Synology RKM114 or RKS-02 rail kit.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS822RP+ main unit
• Accessory pack
• 2 × AC power cords
• Quick Installation Guide

Storage drives, memory upgrades, RX418 Expansion Unit, PCIe cards, M.2 SSDs and rack rail kits are not included.

Warranty

Three-year Synology hardware warranty.

Sustainability

• RoHS compliant
• HDD hibernation mode
• Scheduled power-on and power-off support
• Expandable memory, storage and networking may help extend the system’s useful operating life

The Synology RKS-02 is a sliding rail kit designed to provide convenient maintenance access for compatible Synology rackmount servers and expansion units.

Product Description

The Synology RKS-02 allows compatible RackStation, FlashStation, SA, UC and expansion systems to slide forward from a supported rack for easier maintenance and hardware access.

It supports rack mounting depths from 610mm to 890mm and is compatible with supported square-hole and round-hole racks.

Compatibility depends on the exact Synology model and rack dimensions.

Key Features

• Official Synology sliding rail kit
• Designed for compatible Synology rackmount systems
• Provides easier maintenance access
• Supports rack depths from 610mm to 890mm
• Supports compatible square-hole racks
• Supports compatible round-hole racks
• Suitable for selected RackStation systems
• Suitable for selected expansion units
• Compatible with selected FlashStation, SA, UC and DP systems
• One-year Synology hardware warranty

Recommended Use Cases

• RackStation server installation
• Rackmount expansion-unit installation
• Data-centre equipment racks
• Business server rooms
• Easier rackmount system maintenance
• Hardware replacement and servicing
• Compatible square-hole racks
• Compatible round-hole racks

Specifications

Compatibility Note

Confirm that both the Synology system and rack are compatible with the RKS-02 before ordering.

Selected compatible models include:

• RS2825RP+ and RX1225RP
• RS2423RP+II, RS2423RP+, RS2423+ and RX1223RP
• RS822RP+, RS822+ and RS422+
• RS4021xs+, RS3621xs+ and RS3621RPxs
• RS1221RP+ and RS1221+
• RS2421RP+, RS2421+ and RS2821RP+
• RX1217, RX1217RP and RX418
• Selected FlashStation, SA, UC, DP and older RackStation systems

The rack must provide:

• Mount-post width of at least 450mm
• Panel width of at least 480mm
• Mounting depth between 610mm and 890mm
• Square mounting holes of at least 9.5 × 9.5mm or round holes of at least 7.1mm

Compatibility should be checked against Synology’s current list before installation.

What’s in the Box

• Synology RKS-02 sliding rail kit
• Mounting hardware
• Quick Installation Guide

Warranty

One-year Synology hardware warranty.

Sustainability

The sliding design provides easier access to compatible rackmount systems for maintenance and component replacement, which may help support longer-term system use.

The Synology RX1223RP is a 12-bay 2U rackmount expansion unit with hot-swappable SATA drive bays, Mini-SAS HD connectivity, redundant power supplies and online storage expansion through Synology DSM.

Product Description

The Synology RX1223RP provides additional storage capacity for compatible Synology RackStation and SA-series systems.

Its 12 hot-swappable drive bays support compatible 3.5-inch SATA hard drives and 2.5-inch SATA solid-state drives.

The expansion unit connects to a compatible host system through Mini-SAS HD and is managed through Synology DiskStation Manager. Existing volumes can be expanded, or additional storage pools and volumes can be created without interrupting supported services.

Redundant power supplies and replaceable system fans help maintain service availability in business environments.

Storage drives and the optional rack rail kit are not included.

Key Features

• 12-bay rackmount storage expansion unit
• 2U rackmount form factor
• Supports compatible Synology host systems
• Supports 3.5-inch SATA hard drives
• Supports 2.5-inch SATA solid-state drives
• Twelve hot-swappable drive bays
• Mini-SAS HD expansion connection
• Online storage expansion through Synology DSM
• Supports additional storage pools and volumes
• Redundant power supply system
• Four replaceable 80mm system fans
• Power operation synchronised with the host system
• Compatible with optional Synology RKS-02 rail kit
• Five-year Synology hardware warranty
• Storage drives sold separately

Recommended Use Cases

• Expanding compatible Synology RackStation storage
• Expanding Synology SA6400 storage
• Business archive storage
• Backup repository expansion
• Surveillance recording capacity
• Media and creative-project storage
• Large business data sets
• Additional storage pools and volumes
• High-capacity rackmount storage
• Environments requiring redundant power

Specifications

Compatibility Note

The RX1223RP is a storage expansion unit and cannot operate as a standalone NAS.

Confirm compatibility with the intended Synology host system before ordering. Synology currently lists the SA6400, RS2423RP+II, RS2423RP+ and RS2423+ as supported models.

The expansion unit connects to its host using the included Mini-SAS HD cable. The USB, eSATA and other expansion connections used by older Synology expansion units are not interchangeable with Mini-SAS HD.

Synology recommends creating storage volumes within the same NAS or expansion unit for better performance instead of spanning one volume across separate devices.

Installation in a compatible 4-post 19-inch rack requires an optional Synology RKS-02 sliding rail kit.

Available storage capacity will be lower than the combined manufacturer-rated drive capacity because of RAID, formatting, system partitions and file-system data.

What’s in the Box

• Synology RX1223RP expansion unit
• Accessory pack
• 2 × AC power cords
• Mini-SAS HD expansion cable
• Quick Installation Guide

Storage drives and the optional RKS-02 rail kit are not included.

Warranty

Five-year Synology hardware warranty.

Sustainability

• RoHS compliant
• HDD hibernation support
• Replaceable system fans and power supply modules
• Storage capacity can be expanded without replacing the compatible host system
• Power operation is synchronised with the connected Synology RackStation

The Synology RX418 is a compact 4-bay 1U rackmount expansion unit designed to add hot-swappable SATA storage capacity to compatible Synology RackStation systems through an eSATA connection.

Product Description

The Synology RX418 is a 4-bay rackmount expansion unit designed to increase the storage capacity of compatible Synology RackStation systems.

It provides four additional drive bays and supports compatible 3.5-inch SATA hard drives, 2.5-inch SATA hard drives and 2.5-inch SATA solid-state drives.

All four drive bays support hot-swapping when permitted by the connected RackStation, storage configuration and Synology DiskStation Manager status.

The RX418 connects to a compatible Synology RackStation through the supplied eSATA expansion cable.

Once connected, drives installed in the RX418 operate as part of the connected Synology storage environment and are managed through Synology DiskStation Manager.

No separate management software is required.

Depending on the connected RackStation model, the RX418 can be used to expand an existing compatible storage pool, create a separate storage pool or provide a dedicated local backup destination.

Selected compatible RackStation models support creating storage volumes across the main NAS and RX418.

For improved performance and easier storage management, Synology recommends creating volumes using drives physically located within the same NAS or expansion unit rather than spanning a volume across both devices.

The Synology RS217 supports volume creation within a single unit only and does not support volumes spanning the RackStation and RX418.

The RX418 is not a standalone NAS.

It does not include a processor, system memory, network interface, independent operating system or standalone DSM installation.

A compatible Synology RackStation is required for operation.

The RX418 supports synchronised power recovery with the connected RackStation.

When the connected RackStation powers on or recovers after a power interruption, the expansion unit can follow the host system’s supported power behaviour.

Its compact 1U rackmount chassis supports direct installation in a compatible 2-post 19-inch rack.

Installation in a compatible 4-post 19-inch rack is supported using a separately sold Synology RKM114 or RKS-02 rail kit.

The RX418 includes a 100W internal power supply and three 40mm system fans.

Storage drives and optional rack rails are not included.

Key Features

• Official Synology rackmount expansion unit
• Four additional SATA drive bays
• Compact 1U rackmount design
• Designed for compatible Synology RackStation systems
• Supports compatible 3.5-inch SATA hard drives
• Supports compatible 2.5-inch SATA hard drives
• Supports compatible 2.5-inch SATA solid-state drives
• Four hot-swappable drive bays
• RAID and storage management through Synology DSM
• One eSATA expansion port
• Supplied eSATA expansion cable
• Can expand compatible RackStation storage capacity
• Can provide a dedicated local backup destination
• Supports selected cross-unit volume configurations
• Supports single-unit volume configurations
• Synchronised power recovery with the connected RackStation
• Supports direct 2-post 19-inch rack mounting
• Supports compatible 4-post 19-inch rack installation
• Compatible with optional Synology RKM114 rail kit
• Compatible with optional Synology RKS-02 sliding rail kit
• 100W internal power supply
• Three 40mm system fans
• Approximately 25.1dB(A) rated noise level
• RoHS compliant
• Three-year limited hardware warranty
• Warranty extension options available where eligible
• Storage drives sold separately
• Rail kits sold separately
• Requires a compatible Synology RackStation

Recommended Use Cases

• Synology RackStation storage expansion
• Business file-storage expansion
• Additional backup storage
• Local backup destinations
• Archive storage
• Surveillance-recording expansion
• Media-library expansion
• Project-file storage
• Business document storage
• Additional RAID capacity
• Branch-office storage
• Rack-based storage environments
• Data-retention storage
• Secondary storage pools
• DSM-managed expansion storage
• Compatible volume expansion
• Storage-capacity growth without replacing the host RackStation
• Compact 2-post rack installations
• Standard 4-post rack installations

Specifications

Compatible Synology Models

The Synology RX418 is compatible only with selected Synology RackStation systems.

The supported storage-volume behaviour depends on the exact connected RackStation model.

Models Supporting Volumes Across Different Units

The following systems support creating compatible volumes across drives installed in the RackStation and RX418.

22 Series

• Synology RS822RP+
• Synology RS822+

21 Series

• Synology RS1221RP+
• Synology RS1221+

20 Series

• Synology RS820RP+
• Synology RS820+

19 Series

• Synology RS1219+
• Synology RS819

18 Series

• Synology RS818RP+
• Synology RS818+

16 Series

• Synology RS816

15 Series

• Synology RS815RP+
• Synology RS815+
• Synology RS815

Model Supporting Volumes on a Single Unit Only

• Synology RS217

The RS217 supports storage volumes located entirely within one physical unit.

A volume should therefore be created using drives located either in the RS217 or in the RX418 rather than spanning both devices.

Compatibility may change through DSM updates, product revisions and Synology support changes.

Confirm that the exact RackStation remains listed on Synology’s current RX418 compatibility information before ordering.

DSM Requirements

Synology lists the following minimum operating-system requirement:

• DSM 6.1.4-15217-3 or later

A newer DSM release may be required according to:

• Connected RackStation model
• Current product-support status
• Storage Manager requirements
• Drive compatibility
• Security updates
• Synology expansion-unit support

Update the compatible RackStation to a supported DSM version before connecting or configuring the RX418.

Important files and system configuration should be backed up before performing DSM, storage-pool or expansion-unit changes.

Storage and Volume Guidance

The RX418 adds four physical drive bays to a compatible Synology RackStation.

Depending on the host model and DSM configuration, the additional drives may be used for:

• Expanding a compatible existing storage pool
• Creating a separate storage pool
• Creating an independent volume
• Providing a local backup destination
• Adding archive capacity
• Increasing surveillance-recording capacity
• Adding compatible hot-spare drives

Supported options depend on:

• Connected RackStation model
• DSM version
• Existing storage-pool configuration
• RAID type
• Installed drive models
• Drive capacities
• Available storage space
• Volume location
• Current system health

Synology recommends creating storage volumes using drives physically located within the same NAS or expansion unit for improved performance.

A volume spanning the RackStation and RX418 depends on both physical devices and the eSATA connection remaining operational.

Failure, disconnection or power loss affecting either unit may interrupt access to a cross-unit volume.

Where practical, separate storage pools or volumes can provide simpler physical separation and management.

RAID and Backup Guidance

RAID configuration is controlled through the connected RackStation and Synology DiskStation Manager.

Available RAID options depend on:

• Connected RackStation model
• Number of installed drives
• Existing storage pool
• Drive capacities
• DSM version
• Supported RAID migration options

The RX418 does not provide independent RAID management without a compatible RackStation.

RAID can protect against selected drive failures but does not protect against every cause of data loss.

RAID does not replace an independent backup.

Important data should also be stored on another physical or remote destination, such as:

• Another Synology NAS
• A compatible USB storage device
• A supported remote server
• A compatible cloud backup service
• An off-site backup location

The RX418 can itself be used as a dedicated local backup destination when configured with a compatible RackStation.

A local backup stored in the same rack or physical location may not protect against theft, fire, water damage or site-wide electrical damage.

Drive Compatibility

The Synology RX418 supports up to four compatible:

• 3.5-inch SATA hard drives
• 2.5-inch SATA hard drives
• 2.5-inch SATA solid-state drives

Storage drives are sold separately.

Synology guarantees full functionality, reliability and performance only with Synology drives listed as compatible for the RX418 and connected RackStation.

Officially supported drive families may include selected models from the:

• Synology HAT5300 Enterprise Series
• Synology HAT3300 Plus Series
• Synology SAT5200 Enterprise SSD Series

Before ordering drives, confirm:

• Connected RackStation model
• RX418 compatibility
• Exact drive product code
• Drive capacity
• Drive firmware
• Intended RAID configuration
• Intended storage-pool configuration
• Current Synology validation status

A matching SATA connector and physical drive size do not automatically guarantee full compatibility.

Using non-validated drives may limit selected functionality, system support, reliability information or performance.

Actual usable storage capacity will be lower than the combined manufacturer-rated drive capacity because of formatting, RAID configuration, file-system data and DSM requirements.

Hot-Swap Guidance

The RX418 supports hot-swappable drives.

Hot-swapping does not mean that a drive can be removed without first checking the storage status.

Before removing a drive:

• Confirm the correct drive bay
• Check Storage Manager
• Confirm the drive has failed or is safe to remove
• Confirm the RAID configuration can tolerate removal
• Allow active repair, expansion or data-scrubbing tasks to finish where required
• Follow the connected RackStation’s drive-replacement procedure

Removing the wrong drive from a degraded RAID group may cause data loss.

Drives should not be removed during:

• RAID repair
• Storage-pool expansion
• Volume expansion
• Data scrubbing
• Active migration
• Firmware updates
• Other critical storage operations

eSATA Expansion Connection

The RX418 connects to the compatible RackStation through one eSATA expansion cable.

The required eSATA cable is included.

The expansion cable carries data between the RackStation and the RX418.

The RX418 also requires its own AC power connection.

Before connecting the expansion unit:

• Shut down the compatible RackStation where instructed
• Confirm the correct eSATA expansion port
• Use the supplied or officially supported expansion cable
• Insert both cable ends securely
• Connect the RX418 power cord
• Follow the host RackStation installation guide
• Confirm that the expansion unit is detected in DSM

Do not disconnect the eSATA cable while the RX418 is operating or while an active storage pool uses drives installed in the expansion unit.

Unexpected cable disconnection may interrupt storage access and may cause storage-pool degradation, file-system errors or data loss.

Power and Cooling

The RX418 includes a 100W internal power supply.

It supports an AC input range of 100V to 240V at 50/60Hz.

Synology lists power consumption of approximately:

• 23.26W during drive access
• 6.39W during HDD hibernation

These measurements were recorded under Synology’s specified test configuration and may differ from actual use.

Power consumption depends on:

• Installed drive quantity
• Drive models
• Drive activity
• Operating temperature
• DSM settings
• Fan operation
• Storage workload

Three 40mm system fans provide chassis cooling.

The rated noise level is approximately 25.1dB(A) under Synology’s specified test conditions.

Actual noise depends on:

• Installed drives
• Fan speed
• Rack acoustics
• Room temperature
• Drive activity
• Mounting structure
• Surrounding equipment

Rack Installation

The RX418 uses a compact 1U rackmount chassis.

Supported installation options include:

• Direct mounting in a compatible 2-post 19-inch rack
• Installation in a compatible 4-post 19-inch rack using a Synology RKM114 rail kit
• Installation in a compatible 4-post 19-inch rack using a Synology RKS-02 sliding rail kit

The RKM114 and RKS-02 rail kits are sold separately.

Before installation, confirm:

• Rack width
• Rack depth
• Rail-kit compatibility
• Available 1U rack space
• Rack load capacity
• Front and rear clearance
• Ventilation
• Cable-routing space
• Access to the power outlet
• Access to the host RackStation expansion port

The expansion unit should be installed in a stable rack that is properly secured against tipping.

For improved cable management, install the RX418 close enough to the host RackStation for the supplied eSATA cable to reach without tension.

Compatibility Note

The Synology RX418 is not universally compatible with every Synology RackStation or other Synology NAS.

Before ordering, confirm:

• Exact Synology RackStation model
• Current DSM version
• RX418 support
• Supported volume configuration
• Available eSATA expansion port
• Selected drive compatibility
• Intended RAID configuration
• Required storage capacity
• Rack type and available space
• Rail-kit requirements
• Power and cooling availability

Do not assume compatibility based only on:

• RackStation branding
• Presence of an eSATA port
• Similar chassis dimensions
• Product generation
• Number of drive bays

The RX418 cannot be connected through USB, Ethernet or a standard SATA drive connector.

It is not intended for use with ordinary desktop computers, third-party servers or unsupported NAS systems.

Installation Guidance

Before installing the RX418:

• Back up important data and configuration
• Confirm host RackStation compatibility
• Confirm the minimum DSM version
• Confirm drive compatibility
• Confirm the required rack hardware
• Shut down the connected RackStation where instructed
• Disconnect power before physical installation
• Use suitable anti-static precautions
• Install the RX418 securely in the rack
• Install compatible drives
• Connect the supplied eSATA cable
• Connect the supplied AC power cord
• Start the connected RackStation
• Confirm that the RX418 is detected in DSM

After installation:

• Open Synology Storage Manager
• Confirm all installed drives are detected
• Check drive health
• Configure or expand the intended storage pool
• Confirm the selected RAID type
• Confirm volume location
• Monitor the initialisation or expansion process
• Do not interrupt the system during storage operations

Professional installation is recommended where the connected RackStation contains business-critical data or forms part of an active production environment.

What’s in the Box

• 1 × Synology RX418 Main Unit
• 1 × User’s Guide
• 1 × Accessory Pack
• 1 × AC Power Cord
• 1 × eSATA Expansion Cable

Storage drives, Synology RackStation systems and rack rail kits are not included.

Warranty

Three-Year Synology Limited Hardware Warranty

The hardware warranty can be extended to five years using Synology EW201 or Extended Warranty Plus where the product, region and purchase qualify.

Sustainability

The Synology RX418 is RoHS compliant.

It allows compatible RackStation systems to increase storage capacity without replacing the complete NAS platform.

Drive hibernation support can reduce power consumption during periods of inactivity when configured through the connected RackStation.

Its support for replaceable storage drives and optional rack-mounting hardware allows the system to be expanded and maintained as storage requirements change.

The Synology SNV5420-800G is an 800GB Enterprise Series M.2 2280 NVMe SSD designed for demanding 24/7 caching workloads in compatible Synology systems, featuring PCIe 3.0 x4 connectivity, sustained read speeds of up to 3,000MB/s, power-loss protection and endurance rated above 1,400TBW.

Product Description

The Synology SNV5420-800G 800GB Enterprise Series M.2 NVMe SSD is designed to improve I/O responsiveness in compatible Synology NAS and SAN environments.

Built for demanding caching workloads in high-concurrency, 24/7 environments, the SNV5420-800G is suitable for supported systems used as high-performance file servers, database storage and virtualisation platforms.

The SSD uses an M.2 2280 form factor and NVMe PCIe 3.0 x4 interface. It provides sustained sequential read speeds of up to 3,000MB/s and sustained sequential write speeds of up to 1,000MB/s.

Sustained random performance reaches up to 400,000 4KB read IOPS and 70,000 4KB write IOPS under Synology’s specified test conditions.

End-to-end data protection helps safeguard data integrity throughout the transfer path. The built-in power-loss protection circuit uses dedicated capacitors to help write data in transit to NAND flash during an unexpected shutdown.

Integration with Synology DiskStation Manager provides drive-health monitoring, lifetime wear analytics, notifications and supported firmware updates through DSM.

With endurance rated above 1,400TBW, a 3,000,000-hour MTBF rating and a five-year limited warranty, the SNV5420-800G is designed for sustained enterprise caching workloads in compatible Synology systems.

Compatibility and permitted use depend on the specific Synology system. Confirm support for the SSD and the intended cache or storage-pool configuration before ordering.

Key Features

• Official Synology Enterprise Series NVMe SSD
• 800GB storage capacity
• Designed for compatible Synology NAS and SAN systems
• Designed for demanding 24/7 caching workloads
• M.2 2280 form factor
• NVMe PCIe 3.0 x4 interface
• Up to 3,000MB/s sustained sequential read speed
• Up to 1,000MB/s sustained sequential write speed
• Up to 400,000 sustained random read IOPS
• Up to 70,000 sustained random write IOPS
• Endurance rated above 1,400TBW
• 3,000,000-hour MTBF rating
• Built-in power-loss protection
• Dedicated power-loss protection capacitors
• End-to-end data protection
• Lifetime wear analytics through Synology DSM
• Drive-health notifications through DSM
• Firmware updates through Synology DSM
• Suitable for high-concurrency environments
• Five-year limited hardware warranty

Recommended Uses

• Compatible Synology SSD cache configurations
• High-performance file servers
• Database storage workloads
• Virtualisation environments
• High-concurrency business applications
• Frequently accessed data
• Latency-sensitive workloads
• Multi-user storage environments
• Compatible Synology NAS systems
• Compatible Synology SAN systems
• Continuous 24/7 caching workloads
• Systems requiring power-loss protection

Specifications

Performance Note

Published performance figures represent sustained, steady-state, single-drive results obtained in Synology’s testing environment.

Actual performance may vary depending on:

• Synology system model
• Processor and system memory
• DSM version
• Internal M.2 slot or adapter card
• Cache configuration
• Primary storage drives
• RAID configuration
• Workload type
• Queue depth
• Active applications
• Other hardware and software settings

The SNV5420-800G is designed primarily for sustained enterprise caching workloads rather than short consumer benchmark bursts.

Data Protection

End-to-end data protection helps safeguard data integrity across the complete transfer path.

The SNV5420-800G also includes a power-loss protection circuit with dedicated capacitors.

During an abnormal shutdown or power failure, the capacitors provide temporary power so that data in transit can be written safely to NAND flash.

The firmware is designed to support a proper restart when power is restored.

Power-loss protection reduces selected risks but does not replace:

• A suitable uninterruptible power supply
• Synology snapshots
• Independent backups
• Off-site data protection
• A tested disaster-recovery plan

DSM Integration

Synology DiskStation Manager can provide:

• Drive-health monitoring
• Lifetime wear analytics
• Remaining-life information
• Drive-health notifications
• Supported firmware updates
• Advance replacement planning

Lifetime analytics are supported on compatible systems running DSM 6.2.3-25426 or later.

Supported firmware updates through DSM require a compatible system and DSM version.

Compatibility Note

Please confirm that the Synology SNV5420-800G is officially compatible with your exact Synology NAS or SAN system before ordering.

The SSD may be supported through:

• A compatible built-in M.2 NVMe slot
• A compatible Synology E10M20-T1 adapter card
• A compatible Synology M2D20 adapter card
• A compatible Synology M2D18 adapter card

Compatibility depends on:

• Exact Synology system model
• Hardware revision
• DSM version
• Adapter-card compatibility
• SSD firmware
• Intended cache configuration
• Intended storage-pool configuration

Support for SSD caching or an M.2 storage pool is model-dependent.

A system that supports the SNV5420-800G for SSD caching does not necessarily support using it as an independent storage pool.

The SNV5420-800G is an M.2 2280 NVMe PCIe SSD.

It is not:

• A 2.5-inch SATA SSD
• A 3.5-inch SATA hard drive
• An external USB SSD
• A standard SATA M.2 SSD
• A complete storage system

Available capacity will be lower than the stated 800GB because of storage calculations, formatting, system use and cache configuration.

The five-year limited warranty provides coverage until the warranty period ends or the SSD reaches its rated endurance limit, whichever occurs first.

MTBF is a statistical reliability measurement and is not a guarantee or estimate of the operating life of an individual SSD.

What’s in the Box

• 1 × Synology SNV5420-800G 800GB Enterprise Series M.2 2280 NVMe SSD

A Synology NAS, adapter card, mounting screw and other installation accessories are not included unless specifically stated.

Warranty

Five-Year Synology Limited Hardware Warranty

Sustainability

The Synology SNV5420-800G is RoHS compliant.

Drive-health analytics and remaining-life notifications can help administrators plan replacements before the SSD reaches the end of its supported endurance.

The SSD should be recycled through an appropriate electronic-waste recycling facility at the end of its usable life.

The Transcend 133x 4GB CompactFlash Card is a CompactFlash Type I memory card for compatible DSLR cameras, camcorders and legacy CF-supported devices. It is suited to basic photo storage, older camera systems and specialist equipment requiring CompactFlash media.

Product Description

The Transcend 133x 4GB CompactFlash Card is designed for compatible devices that support CompactFlash Type I memory cards. It is suitable for older DSLR cameras, camcorders, industrial systems and specialist equipment that still use CF storage.

With 4GB capacity, this card is best suited to basic image capture, small file storage, legacy device use and controlled workflows where a lower-capacity CompactFlash card is required. Its 133x performance rating provides practical transfer performance for supported CF devices.

This is a useful option for customers who specifically need smaller-capacity CompactFlash media for older or specialist equipment.

Key Features

• 4GB CompactFlash memory card
• CompactFlash Type I format
• 133x speed rating
• Suitable for compatible DSLR cameras and camcorders
• Useful for older camera systems and specialist CF devices
• Practical option where lower-capacity CF media is required
• Compact removable storage for supported devices

Specifications

Compatibility Note

Please check that your device supports CompactFlash Type I cards before purchase. Transfer speed and recording performance depend on the camera, card reader, file type and usage conditions.

What’s in the Box

• Transcend 133x 4GB CompactFlash Card

Warranty

Limited Warranty

The Transcend 133x 8GB CompactFlash Card is a CompactFlash Type I memory card for compatible DSLR cameras, camcorders and legacy CF-supported devices. It is suited to photo storage, older camera systems and specialist CompactFlash applications.

Product Description

The Transcend 133x 8GB CompactFlash Card is designed for compatible cameras and devices that support CompactFlash Type I storage. It is suitable for older DSLR cameras, camcorders, field equipment and specialist devices that still require CF cards.

With 8GB capacity, this model gives more room than the 4GB version for photos, small video clips, files and device-specific storage needs. Its 133x speed rating makes it a practical option for everyday CompactFlash use on supported devices.

This card should be positioned for customers who specifically need CompactFlash media, not SD or microSD storage.

Key Features

• 8GB CompactFlash memory card
• CompactFlash Type I format
• 133x speed rating
• Suitable for compatible DSLR cameras and camcorders
• Useful for older camera systems and specialist CF devices
• Practical option for photo storage and legacy equipment
• Compact removable storage for supported devices

Specifications

Compatibility Note

Please check that your device supports CompactFlash Type I cards before purchase. Transfer speed and recording performance depend on the camera, card reader, file type and usage conditions.

What’s in the Box

• Transcend 133x 8GB CompactFlash Card

Warranty

Limited Warranty

Transcend 16GB 5600MHz DDR5 Registered ECC DIMM Memory Module TS2GAR80V6E

Compliant with JEDEC standard, registered DIMMs with error correction capability are suitable for embedded servers and workstations.

Specifications

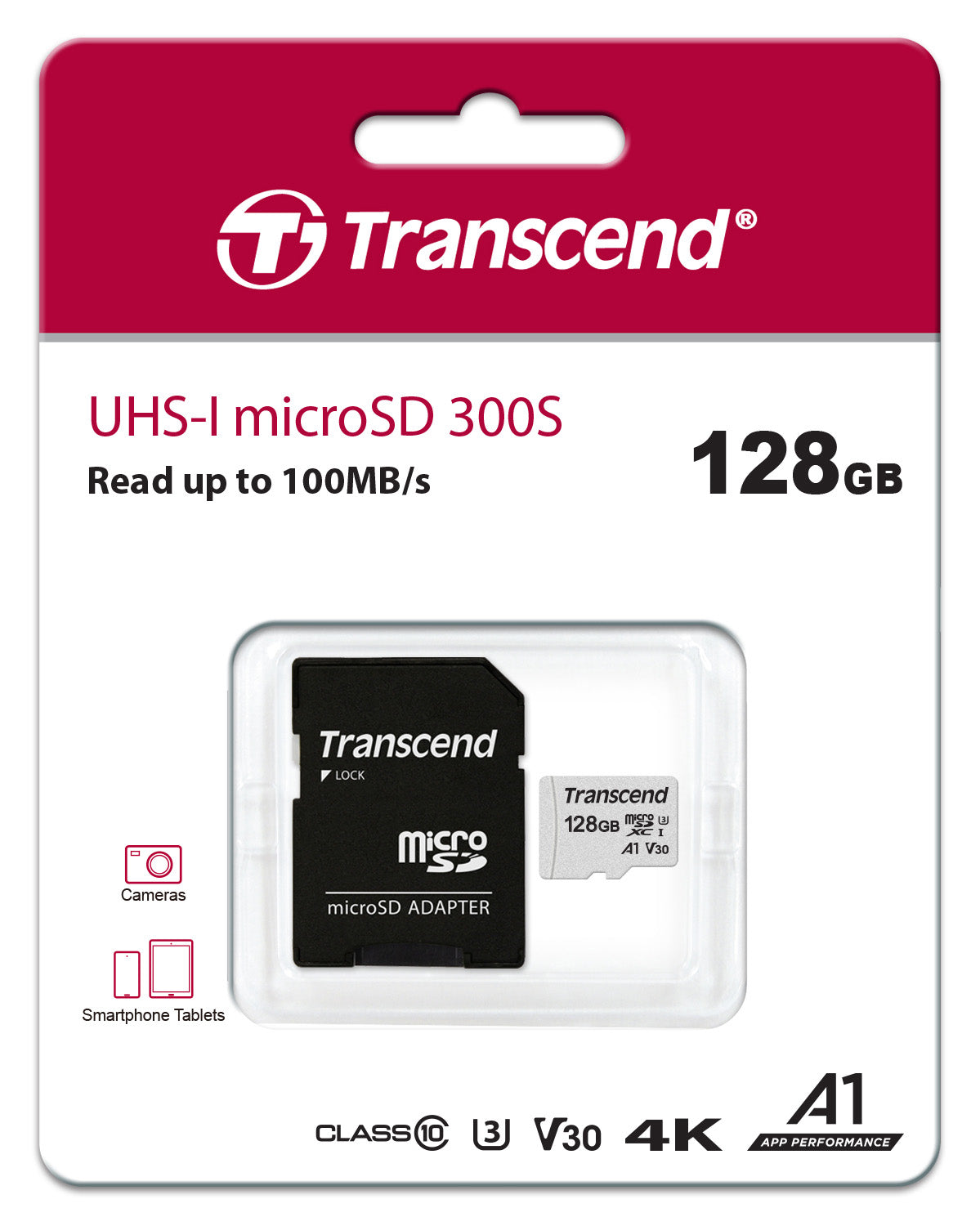

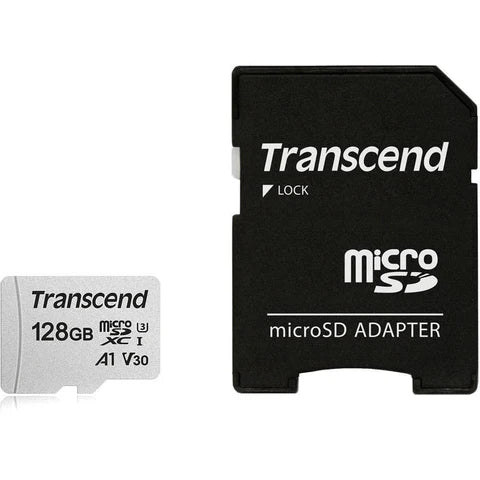

The Transcend 300S 128GB microSDXC Memory Card with Adapter is designed for compatible smartphones, tablets, cameras, dashcams and other microSDXC-supported devices. It supports UHS-I, U3, V30 and A1 performance classes for apps, media and 4K video use.

Product Description

The Transcend 300S 128GB microSDXC Memory Card gives users expanded removable storage for compatible mobile devices, tablets, cameras, dashcams and other microSDXC-supported devices.

With UHS-I, U3, V30 and A1 support, this card is suitable for larger apps, photos, media libraries and 4K video recording on compatible devices. The 128GB capacity gives more space for users who need a practical balance between storage size and price.

The included SD adapter allows the card to be used with compatible SD card slots and card readers.

Key Features

• 128GB microSDXC memory card
• Includes SD adapter
• UHS-I interface
• UHS Speed Class 3
• Video Speed Class V30
• Application Performance Class A1
• Class 10 rating
• Suitable for compatible smartphones, tablets, cameras and dashcams
• Good option for apps, photos, media files and 4K video recording

Specifications

Compatibility Note

Please check that your device supports microSDXC cards before purchase. Full speed and video recording performance depend on the host device, adapter, card reader and usage conditions.

What’s in the Box

• Transcend 300S 128GB microSDXC UHS-I U3 V30 A1 Memory Card
• SD adapter

Warranty

5-Year Limited Warranty

The Transcend 300S 128GB SDXC Memory Card is designed for compatible digital cameras, interchangeable-lens cameras and camcorders. It offers Class 10, UHS-I U1 and V10 performance support for everyday photography, video recording and removable media storage.

Product Description

The Transcend 300S 128GB SDXC Memory Card is a removable storage card for compatible cameras, interchangeable-lens cameras and camcorders that support SDXC memory cards.

With 128GB capacity, this card gives users practical storage space for photos, video clips, media files and everyday camera use. It is listed by Transcend with Class 10, UHS-I U1 and V10 performance classes, making it suitable for general photography and standard video recording workflows on compatible devices.

The 300S range uses 3D NAND flash and is designed for dependable everyday removable storage.

Key Features

• 128GB SDXC memory card
• UHS-I interface
• Class 10 rating
• UHS Speed Class 1
• Video Speed Class V10
• 3D NAND flash
• Up to 100MB/s read speed
• 10,000 insertion/removal cycles
• Operating temperature range from -25°C to 85°C
• Suitable for compatible digital cameras, interchangeable-lens cameras and camcorders
• Supports Transcend RecoveRx software

Specifications

Compatibility Note

Please check that your device supports SDXC memory cards before purchase. Speed may vary depending on host hardware, software, usage and storage capacity.

What’s in the Box

• Transcend 300S 128GB SDXC UHS-I U1 V10 Memory Card

Warranty

5-Year Limited Warranty

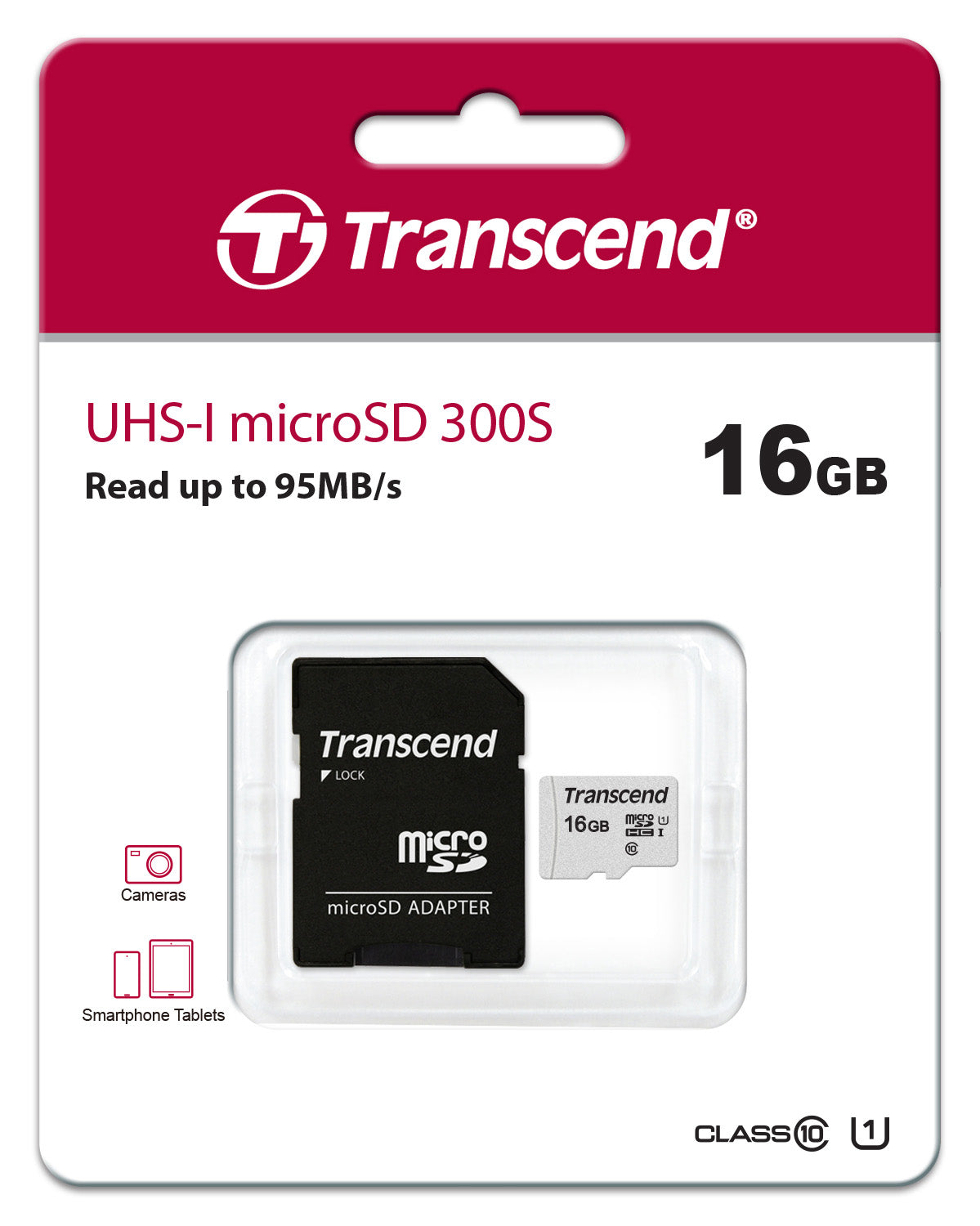

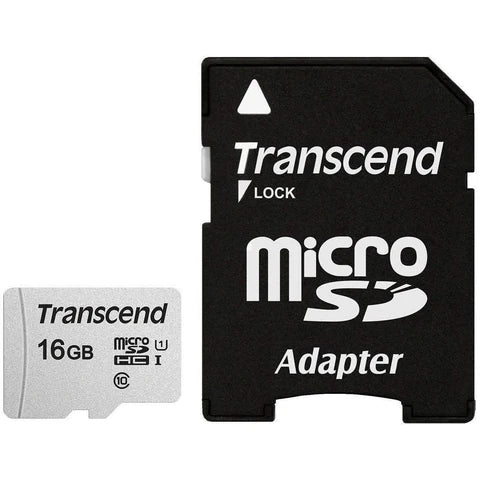

The Transcend 300S 16GB microSDHC Memory Card with Adapter is designed for compatible mobile devices, cameras, tablets and other microSDHC-supported devices. It offers Class 10 and UHS-I U1 performance for everyday storage and file transfers.

Product Description

The Transcend 300S 16GB microSDHC Memory Card gives users compact removable storage for compatible devices. It is suitable for photos, documents, music files, smaller videos and general everyday storage.

With UHS-I U1 and Class 10 support, this card is a practical option for devices that need reliable basic memory card storage. The included SD adapter allows the microSD card to be used with compatible SD card slots and card readers.

This 16GB model is best positioned for customers who need a simple storage card for light everyday use rather than high-capacity video or gaming storage.

Key Features

• 16GB microSDHC memory card
• Includes SD adapter
• UHS-I interface
• UHS Speed Class 1
• Class 10 rating
• Up to 95MB/s read speed
• Up to 45MB/s write speed
• Suitable for compatible mobile devices, cameras and tablets
• Practical everyday removable storage option

Specifications

Compatibility Note

Please check that your device supports microSDHC cards before purchase. Transfer speed may vary depending on the host device, adapter, card reader and usage conditions.

What’s in the Box

• Transcend 300S 16GB microSDHC UHS-I U1 Class 10 Memory Card
• SD adapter

Warranty

5-Year Limited Warranty

The Transcend 300S 16GB SDHC Memory Card is designed for compatible digital cameras, interchangeable-lens cameras and camcorders. It offers Class 10 and UHS-I U1 performance for everyday photography, video clips and removable media storage.

Product Description

The Transcend 300S 16GB SDHC Memory Card is a removable storage card for compatible cameras, interchangeable-lens cameras and camcorders that support SDHC memory cards.

With 16GB capacity, this card is suited to everyday photo storage, video clips and general removable media use. It is listed by Transcend with Class 10 and UHS-I U1 performance support, making it a practical option for standard camera and camcorder workflows.

The 300S 16GB model uses 2D NAND flash and provides dependable everyday storage for compatible host devices.

Key Features

• 16GB SDHC memory card
• UHS-I interface
• Class 10 rating
• UHS Speed Class 1
• 2D NAND flash
• Up to 95MB/s read speed
• Up to 10MB/s write speed
• 10,000 insertion/removal cycles
• Operating temperature range from -25°C to 85°C
• Suitable for compatible digital cameras, interchangeable-lens cameras and camcorders
• Supports Transcend RecoveRx software

Specifications

Compatibility Note

Please check that your device supports SDHC memory cards before purchase. Speed may vary depending on host hardware, software, usage and storage capacity.

What’s in the Box

• Transcend 300S 16GB SDHC UHS-I U1 Class 10 Memory Card

Warranty

5-Year Limited Warranty

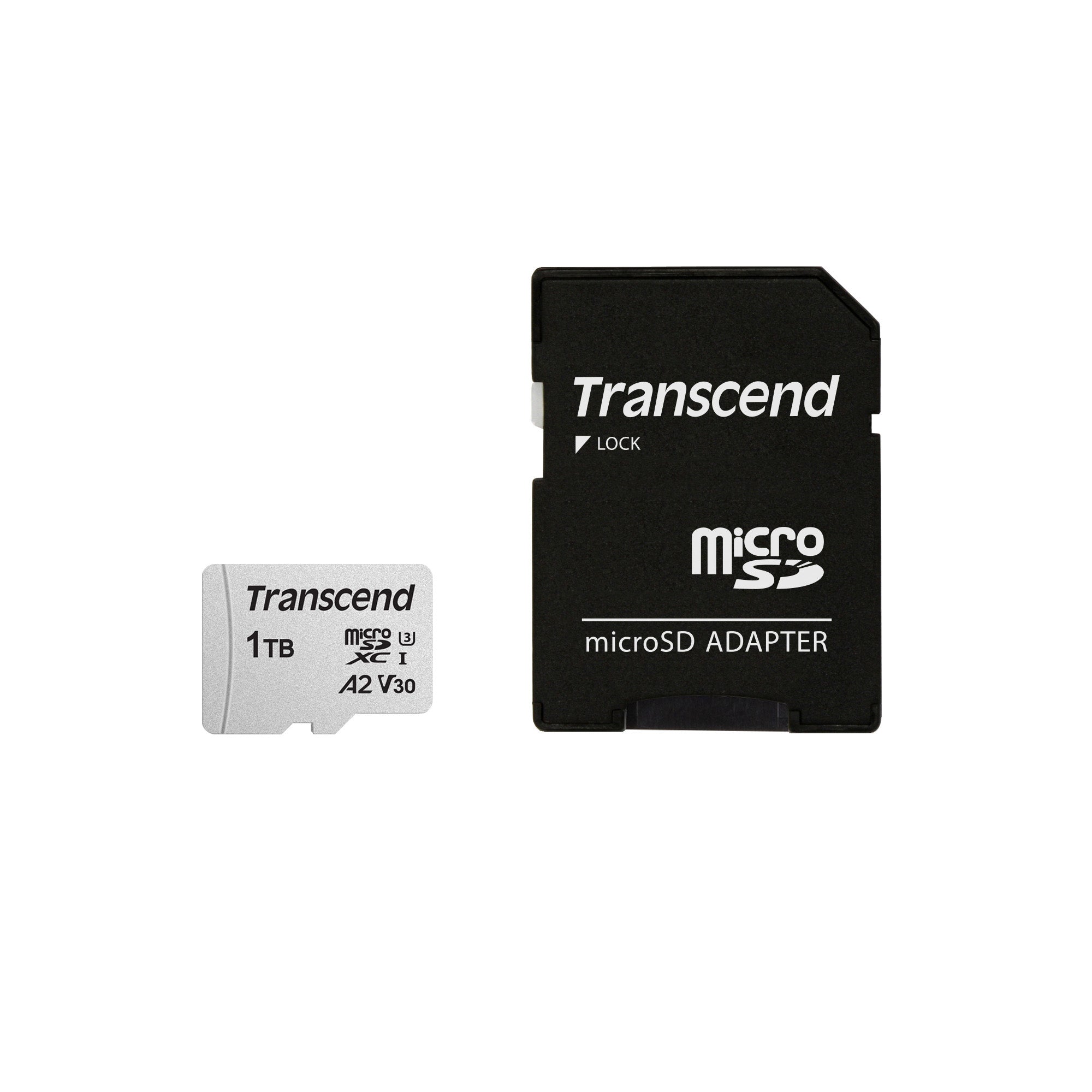

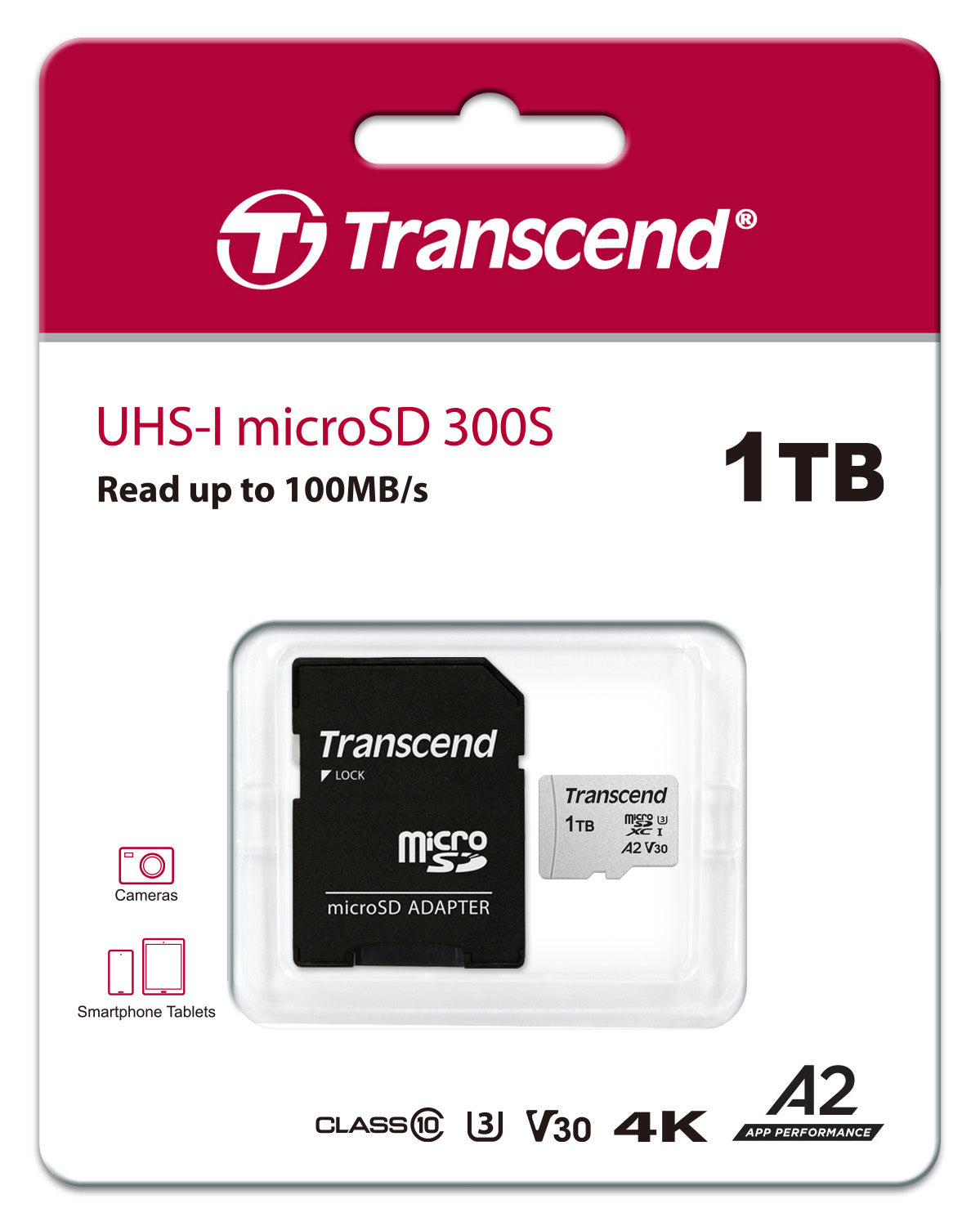

The Transcend 300S 1TB microSDXC Memory Card with Adapter is a high-capacity removable storage card for compatible smartphones, tablets, digital cameras and other microSDXC-supported devices. It supports UHS-I U3, V30 and A2 performance classes for apps, media files and 4K video workflows.

Product Description

The Transcend 300S 1TB microSDXC Memory Card is designed for users who need large-capacity removable storage in a compact microSD format. It is suitable for compatible smartphones, tablets, digital cameras and other devices that support microSDXC cards.

With 1TB capacity, this card gives users extensive space for apps, photos, videos, documents, media files and larger storage libraries. It supports UHS-I U3, V30 and A2 performance classes, making it suitable for 4K video recording, app use and faster file access on compatible devices.

The included SD adapter allows the microSD card to be used with compatible SD card slots and card readers.

Key Features

• 1TB microSDXC memory card
• Includes SD adapter
• UHS-I interface
• UHS Speed Class 3
• Video Speed Class V30
• Application Performance Class A2
• Class 10 rating
• 3D NAND flash
• Up to 100MB/s read speed
• Up to 85MB/s write speed
• 10,000 insertion/removal cycles
• Operating temperature range from -25°C to 85°C
• Suitable for compatible smartphones, tablets, digital cameras and 4K video workflows

Specifications

Compatibility Note

Please check that your device supports microSDXC cards and the 1TB capacity before purchase. Full A2 app performance requires a compatible host device. Speed may vary depending on host hardware, software, usage, storage capacity and file type.

What’s in the Box

• Transcend 300S 1TB microSDXC UHS-I U3 V30 A2 Memory Card
• SD adapter

Warranty

5-Year Limited Warranty

The Transcend 300S 1TB SDXC Memory Card gives compatible cameras and camcorders high-capacity removable storage for photos, video files and large media libraries. It supports UHS-I, U3, V30 and Class 10 performance ratings.

Product Description

The Transcend 300S 1TB SDXC Memory Card is designed for compatible digital cameras, DSLR cameras, mirrorless cameras, camcorders and other SDXC-supported devices.

With 1TB capacity, this card is ideal for users who need a large amount of removable storage for photo sessions, video recording, travel shoots and media projects. Its UHS-I, U3 and V30 ratings support 4K video workflows on compatible devices, while the large capacity helps reduce the need to swap cards as often.

This is the premium capacity option in this SD 300S batch, which is useful because apparently every photo shoot now produces enough files to emotionally damage a laptop.

Key Features

• 1TB SDXC memory card
• UHS-I interface
• UHS Speed Class 3
• Video Speed Class V30
• Class 10 rating
• Up to 100MB/s read speed
• Up to 85MB/s write speed
• Built-in write-protect switch
• Suitable for compatible cameras and camcorders
• Ideal for high-capacity photo and video storage

Specifications

Compatibility Note

Please check that your device supports SDXC memory cards before purchase. Transfer speeds may vary depending on device, card reader and usage conditions.

What’s in the Box

• Transcend 300S 1TB SDXC UHS-I U3 V30 Memory Card

Warranty

5-Year Limited Warranty

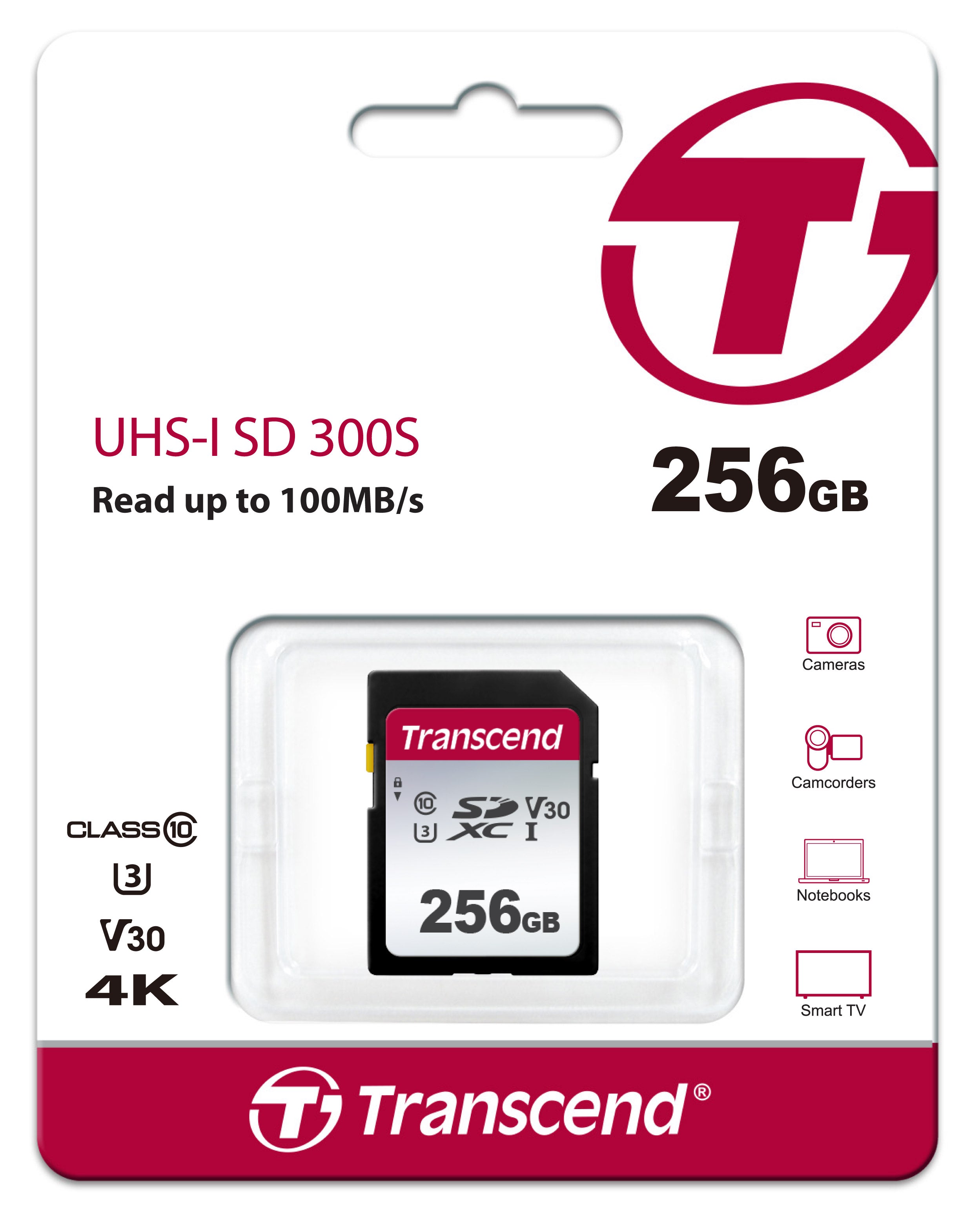

The Transcend 300S 256GB SDXC Memory Card is designed for compatible digital cameras, interchangeable-lens cameras and camcorders. It supports UHS-I U3, V30 and Class 10 performance for photography, Full HD video and 4K Ultra HD video workflows.

Product Description

The Transcend 300S 256GB SDXC Memory Card is a high-capacity removable storage card for compatible digital cameras, interchangeable-lens cameras and camcorders.

With 256GB capacity, this card gives users practical storage space for photos, video files and media projects. It supports UHS-I U3, V30 and Class 10 speed classes, making it suitable for camera and camcorder users who need dependable performance for photo and video recording.

Built with 3D NAND flash, the 300S range is designed for reliable everyday use across photography, media capture and file storage workflows.

Key Features

• 256GB SDXC memory card
• UHS-I interface
• UHS Speed Class 3
• Video Speed Class V30
• Class 10 rating
• 3D NAND flash
• Up to 100MB/s read speed
• Up to 40MB/s write speed
• 10,000 insertion/removal cycles
• Operating temperature range from -25°C to 85°C
• Suitable for compatible digital cameras, interchangeable-lens cameras and camcorders

Specifications

Compatibility Note

Please check that your device supports SDXC memory cards before purchase. Speed may vary depending on host hardware, software, usage and storage capacity.

What’s in the Box

• Transcend 300S 256GB SDXC UHS-I U3 V30 Memory Card

Warranty

5-Year Limited Warranty

The Transcend 300S 32GB microSDHC Memory Card with Adapter is a practical removable storage option for compatible smartphones, tablets, cameras and other microSDHC-supported devices. It supports UHS-I U1 and Class 10 performance.

Product Description

The Transcend 300S 32GB microSDHC Memory Card is designed for everyday storage in compatible microSDHC-supported devices. It is suitable for photos, documents, music, videos, school files, office files and general removable storage.

With UHS-I U1 and Class 10 support, this card gives users dependable everyday performance for file transfers and device storage. The included SD adapter makes it easier to use the card with compatible SD card slots and card readers.

This 32GB model is a useful mainstream option for customers who need more space than entry-level 8GB or 16GB cards without moving into larger microSDXC capacities.

Key Features

• 32GB microSDHC memory card
• Includes SD adapter
• UHS-I interface
• UHS Speed Class 1
• Class 10 rating
• Up to 95MB/s read speed
• Up to 45MB/s write speed
• Suitable for compatible mobile devices, tablets and cameras
• Useful for documents, photos, music, videos and everyday storage

Specifications

Compatibility Note

Please check that your device supports microSDHC cards before purchase. Transfer speed may vary depending on the host device, adapter, card reader and usage conditions.

What’s in the Box

• Transcend 300S 32GB microSDHC UHS-I U1 Class 10 Memory Card
• SD adapter

Warranty

5-Year Limited Warranty

The Transcend 300S 32GB SDHC Memory Card is designed for compatible digital cameras, interchangeable-lens cameras and camcorders. It offers Class 10 and UHS-I U1 performance for everyday photography, video clips and removable media storage.

Product Description

The Transcend 300S 32GB SDHC Memory Card is a removable storage card for compatible cameras, interchangeable-lens cameras and camcorders that support SDHC memory cards.

With 32GB capacity, this card is suited to everyday photo storage, video clips, documents and general removable media use. It is listed by Transcend with Class 10 and UHS-I U1 performance support, making it a practical option for standard camera and camcorder workflows.

The 300S range uses 3D NAND flash on this 32GB model and is designed for dependable everyday storage across compatible host devices.

Key Features

• 32GB SDHC memory card
• UHS-I interface
• Class 10 rating
• UHS Speed Class 1
• 3D NAND flash
• Up to 100MB/s read speed
• Up to 20MB/s write speed
• 10,000 insertion/removal cycles
• Operating temperature range from -25°C to 85°C
• Suitable for compatible digital cameras, interchangeable-lens cameras and camcorders
• Supports Transcend RecoveRx software

Specifications

Compatibility Note

Please check that your device supports SDHC memory cards before purchase. Speed may vary depending on host hardware, software, usage and storage capacity.

What’s in the Box

• Transcend 300S 32GB SDHC UHS-I U1 Class 10 Memory Card

Warranty

5-Year Limited Warranty

The Transcend 300S 512GB microSDXC Memory Card offers high-capacity removable storage for compatible mobile devices, cameras, tablets and other microSDXC-supported devices. It supports UHS-I, U3, V30 and A1 performance classes.

Product Description

The Transcend 300S 512GB microSDXC Memory Card is designed for users who need more removable storage for apps, photos, videos, documents and media files. It is suited to compatible smartphones, tablets, cameras, drones, handheld consoles and other devices that support microSDXC cards.

With 512GB capacity, this card gives users plenty of space for larger media libraries and storage-heavy devices. It supports UHS-I, U3, V30 and A1 speed-class ratings, making it suitable for 4K video capture and everyday mobile storage when used with compatible devices.

The included SD adapter allows the microSD card to be used with compatible SD card slots and card readers.

Key Features

• 512GB microSDXC memory card
• Includes SD adapter
• UHS-I interface
• UHS Speed Class 3
• Video Speed Class V30
• Application Performance Class A1
• Class 10 rating
• Up to 95MB/s read speed
• Up to 40MB/s write speed
• Suitable for mobile storage, media files, cameras, tablets and 4K video use

Specifications

Compatibility Note

Please check that your device supports microSDXC cards before purchase. Transfer speeds may vary depending on device, card reader and usage conditions.

What’s in the Box

• Transcend 300S 512GB microSDXC UHS-I U3 V30 A1 Memory Card
• SD adapter

Warranty

5-Year Limited Warranty

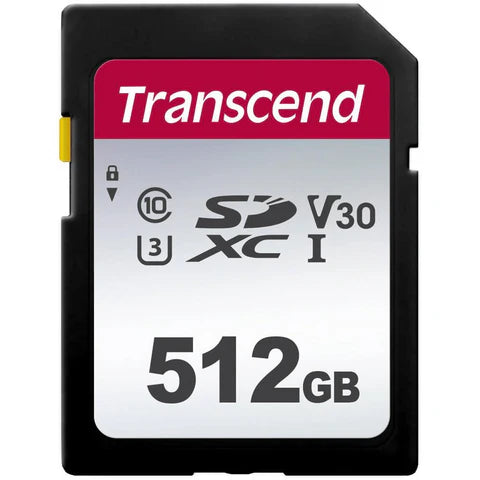

The Transcend 300S 512GB SDXC Memory Card gives compatible cameras and camcorders high-capacity removable storage for photos, videos and everyday media capture. It supports UHS-I, U3, V30 and Class 10 performance ratings.

Product Description

The Transcend 300S 512GB SDXC Memory Card is designed for compatible digital cameras, DSLR cameras, mirrorless cameras, camcorders and other SDXC-supported devices.

With 512GB capacity, this card gives users more room for photos, Full HD video, 4K video on compatible devices and general media storage. Its UHS-I, U3 and V30 ratings make it suitable for everyday photography and video recording where sustained write performance is required.

This is a strong high-capacity SD card option for customers who need more storage without moving into UHS-II professional card pricing.

Key Features

• 512GB SDXC memory card
• UHS-I interface
• UHS Speed Class 3
• Video Speed Class V30
• Class 10 rating
• Up to 100MB/s read speed
• Up to 55MB/s write speed
• Built-in write-protect switch
• Suitable for compatible cameras and camcorders
• Good option for photos, Full HD video, 4K video and media storage

Specifications

Compatibility Note

Please check that your device supports SDXC memory cards before purchase. Transfer speeds may vary depending on device, card reader and usage conditions.

What’s in the Box

• Transcend 300S 512GB SDXC UHS-I U3 V30 Memory Card

Warranty

5-Year Limited Warranty

The Transcend 300S 64GB microSDXC Memory Card with Adapter is designed for compatible smartphones, tablets, cameras and other microSDXC-supported devices. It offers UHS-I U1, Class 10 and A1 support for everyday apps, photos, videos and file storage.

Product Description

The Transcend 300S 64GB microSDXC Memory Card gives users removable storage for compatible mobile devices, tablets, cameras and other microSDXC-supported devices. It is suitable for apps, photos, videos, documents, music and everyday media storage.

With UHS-I U1, Class 10 and A1 support, this card is designed for practical everyday storage and app use on compatible devices. The included SD adapter allows it to be used with compatible SD slots and card readers.

This 64GB model is a strong everyday capacity option for customers who need more space than microSDHC cards while keeping the listing simple and affordable.

Key Features

• 64GB microSDXC memory card
• Includes SD adapter
• UHS-I interface
• UHS Speed Class 1
• Class 10 rating
• Application Performance Class A1
• Up to 95MB/s read speed
• Up to 45MB/s write speed
• Suitable for compatible smartphones, tablets, cameras and media devices
• Practical option for apps, photos, videos, music and documents

Specifications

Compatibility Note

Please check that your device supports microSDXC cards before purchase. Transfer speed may vary depending on the host device, adapter, card reader and usage conditions.

What’s in the Box

• Transcend 300S 64GB microSDXC UHS-I U1 Class 10 A1 Memory Card
• SD adapter

Warranty

5-Year Limited Warranty

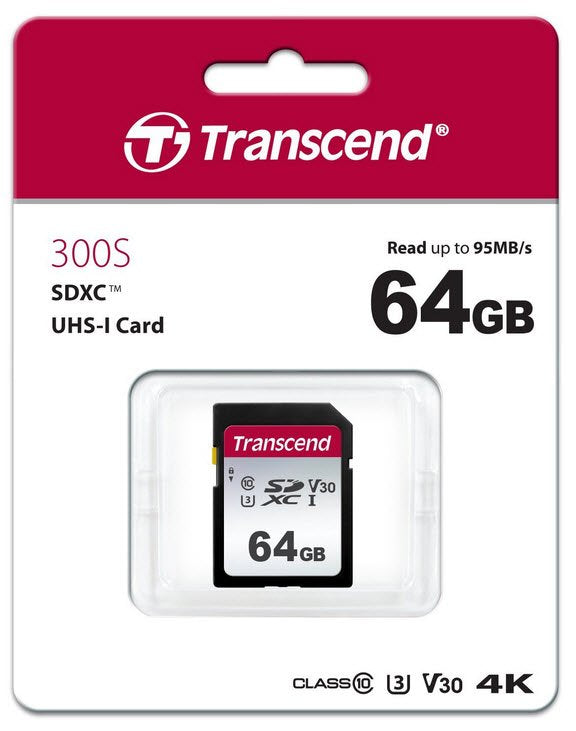

The Transcend 300S 64GB SDXC Memory Card is designed for everyday photography, video recording and general storage in compatible cameras and camcorders. It offers UHS-I performance with U3 and V30 speed-class support.

Product Description

The Transcend 300S 64GB SDXC Memory Card is a practical storage option for compatible digital cameras, camcorders and other SDXC-supported devices. It is suited to everyday photo capture, Full HD video, 4K video on compatible devices and general media storage.

The 300S SD card range supports UHS-I performance and is positioned by Transcend for camera and camcorder use. This 64GB model provides a useful capacity point for customers who need reliable storage without moving into professional UHS-II card pricing.

Key Features

• 64GB SDXC memory card
• UHS-I interface
• UHS Speed Class 3
• Video Speed Class V30
• Class 10 rating
• Up to 100MB/s read speed
• Up to 85MB/s write speed
• Suitable for compatible digital cameras and camcorders
• Good everyday option for photos and video recording

Specifications

Compatibility Note

Please check that your device supports SDXC memory cards before purchase. Transfer speed may vary depending on device, card reader and usage conditions.

What’s in the Box

• Transcend 300S 64GB SDXC UHS-I U3 V30 Memory Card

Warranty

5-Year Limited Warranty

Warranty coverage is subject to Transcend’s official warranty terms and conditions, product usage, proof of purchase and regional support process.

The Transcend TS5600ASE-32G is a 32GB DDR5-5600 unbuffered SO-DIMM memory module for compatible notebooks, embedded systems and compact platforms.

Product Description

The Transcend TS5600ASE-32G is a DDR5-5600 SO-DIMM memory module designed for compatible systems that support DDR5 unbuffered 262-pin SO-DIMM memory.

It operates at 5600MT/s with CL46 latency and 1.1V operating voltage. This standard-temperature module is suited to compatible notebook, embedded and high-end computing systems.

Key Features

• 32GB DDR5 memory module
• Unbuffered SO-DIMM form factor
• 5600MT/s memory speed
• CL46 latency
• 2Rx8 rank organisation
• (2Gx8)x16 component composition
• 1.1V operation
• 262-pin module
• Standard temperature operation
• Limited Lifetime Warranty

Specifications

Compatibility Note

Please check your system memory compatibility before purchase. This module is intended for systems that support DDR5 unbuffered 262-pin SO-DIMM memory. For embedded and industrial applications, compatibility should be confirmed against the host platform requirements.

What’s in the Box

• Transcend 32GB DDR5-5600 SO-DIMM Memory Module

Warranty

Limited Lifetime Warranty

The Transcend 340S 128GB microSDXC Memory Card is a high-performance removable storage card for compatible mobile devices, handheld game consoles, action cameras, drones and other microSDXC-supported devices. It supports UHS-I U3, V30 and A2 performance classes for apps, gaming, media and 4K video use.

Product Description

The Transcend 340S 128GB microSDXC Memory Card is designed for users who need fast removable storage in a compact microSD format. It is suitable for compatible smartphones, tablets, handheld game consoles, action cameras, drones and other devices that support microSDXC cards.

With 128GB capacity, this card gives users practical space for apps, games, photos, videos, documents and media files. It supports UHS-I U3, Class 10, V30 and A2 performance classes, making it suitable for 4K Ultra HD video recording, app use and faster file access on compatible devices.

The 340S range uses 3D NAND flash and is built for stable everyday performance across supported host devices.

Key Features

• 128GB microSDXC memory card
• UHS-I interface
• UHS Speed Class 3
• Class 10 rating
• Video Speed Class V30
• Application Performance Class A2
• 3D NAND flash
• Up to 160MB/s read speed
• Up to 90MB/s write speed
• 10,000 insertion/removal cycles
• Suitable for compatible mobile devices, handheld game consoles, action cameras, drones and 4K video workflows

Specifications

Compatibility Note

Please check that your device supports microSDXC cards before purchase. Full A2 app performance requires a compatible host device. Full advertised read/write performance is achieved only when paired with the Transcend HUB5C card reader with the latest firmware update. Speed may vary depending on host hardware, software, usage and storage capacity.

What’s in the Box

• Transcend 340S 128GB microSDXC UHS-I U3 V30 A2 Memory Card

Warranty

5-Year Limited Warranty

The Transcend 340S 128GB SDXC Memory Card is a high-performance UHS-I card for compatible cameras and camcorders. It offers 128GB capacity, fast transfer speeds and V30 support for 4K video workflows.

Product Description

The Transcend 340S 128GB SDXC Memory Card gives compatible camera users more storage space for photos, video files and creator projects. It is suited to DSLR cameras, mirrorless cameras, camcorders and other SDXC-supported devices.

With UHS-I U3 and V30 speed-class support, the 340S range is designed for 4K Ultra HD video recording and high-speed file transfers. The 128GB capacity makes this model a practical upgrade from 64GB for users who shoot more frequently or work with larger files.

Key Features

• 128GB SDXC memory card
• UHS-I interface
• UHS Speed Class 3
• Video Speed Class V30
• Application Performance Class A2
• Up to 160MB/s read speed
• Up to 90MB/s write speed
• Suitable for compatible cameras and camcorders
• Good option for 4K video recording and creator storage

Specifications

Compatibility Note

Please check that your device supports SDXC memory cards before purchase. Full speed performance depends on compatible host devices and card readers.

What’s in the Box

• Transcend 340S 128GB SDXC UHS-I U3 V30 A2 Memory Card

Warranty

5-Year Limited Warranty

Warranty coverage is subject to Transcend’s official warranty terms and conditions, product usage, proof of purchase and regional support process.

The Transcend 340S 256GB microSDXC Memory Card is a high-performance removable storage card for compatible mobile devices, handheld game consoles, action cameras, drones and other microSDXC-supported devices. It offers UHS-I U3, V30 and A2 performance support for apps, gaming, media and 4K video use.

Product Description

The Transcend 340S 256GB microSDXC Memory Card is designed for users who need fast removable storage in a compact microSD format. It is suitable for compatible smartphones, tablets, handheld game consoles, action cameras, drones and other devices that support microSDXC cards.

With 256GB capacity, this card gives users space for apps, games, photos, videos, documents and media files. It supports UHS-I U3, Class 10, V30 and A2 performance classes, making it suitable for 4K Ultra HD video recording, app use and faster file access on compatible devices.

The 340S range uses 3D NAND flash and is built for stable performance across a wide operating temperature range.

Key Features

• 256GB microSDXC memory card
• UHS-I interface
• UHS Speed Class 3
• Class 10 rating
• Video Speed Class V30
• Application Performance Class A2
• 3D NAND flash
• Up to 160MB/s read speed
• Up to 125MB/s write speed
• 10,000 insertion/removal cycles
• Operating temperature range from -25°C to 85°C
• Suitable for compatible mobile devices, handheld game consoles, action cameras, drones and 4K video workflows

Specifications

Compatibility Note

Please check that your device supports microSDXC cards before purchase. Full A2 app performance requires a compatible host device. Full advertised read/write performance is achieved only when paired with the Transcend HUB5C card reader with the latest firmware update. Speed may vary depending on host hardware, software, usage and storage capacity.

What’s in the Box

• Transcend 340S 256GB microSDXC UHS-I U3 V30 A2 Memory Card

Warranty

5-Year Limited Warranty
