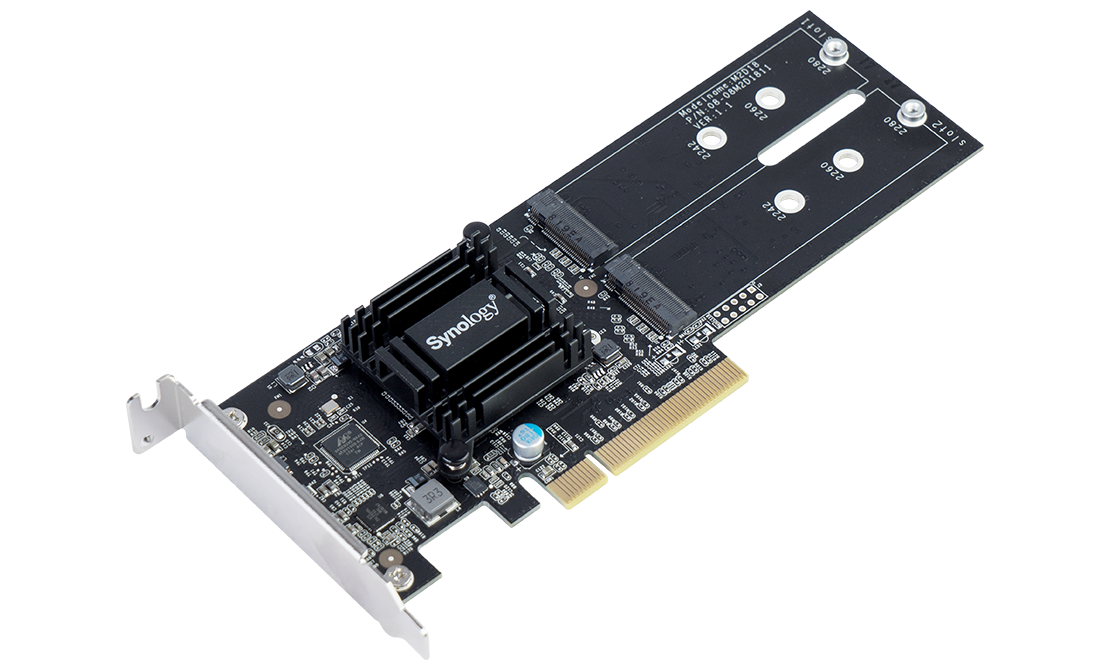

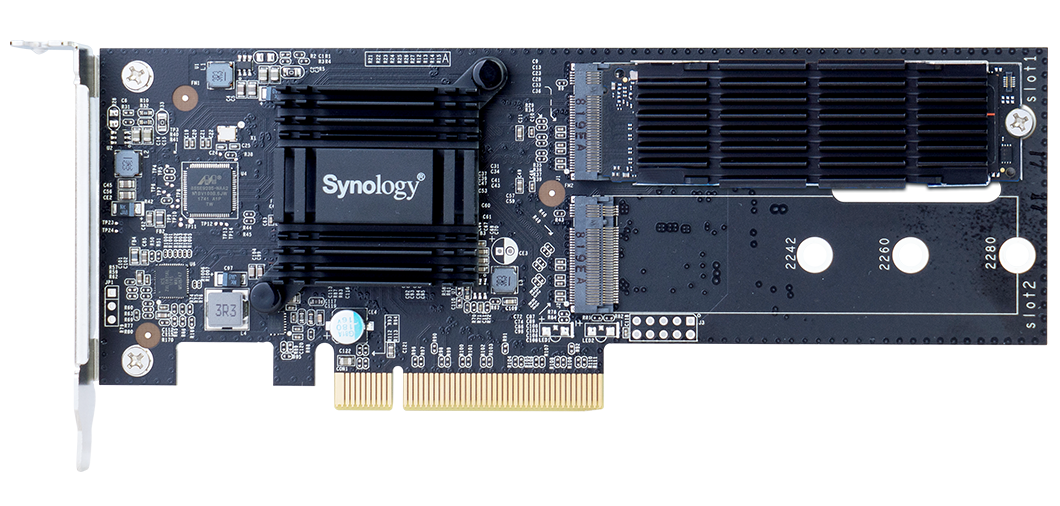

The Synology M2D18 is a dual-slot PCIe adapter card supporting compatible M.2 NVMe and SATA SSDs for read/write caching in selected Synology NAS systems.

Product Description

The Synology M2D18 is designed to improve random I/O performance and reduce latency in compatible Synology NAS systems.

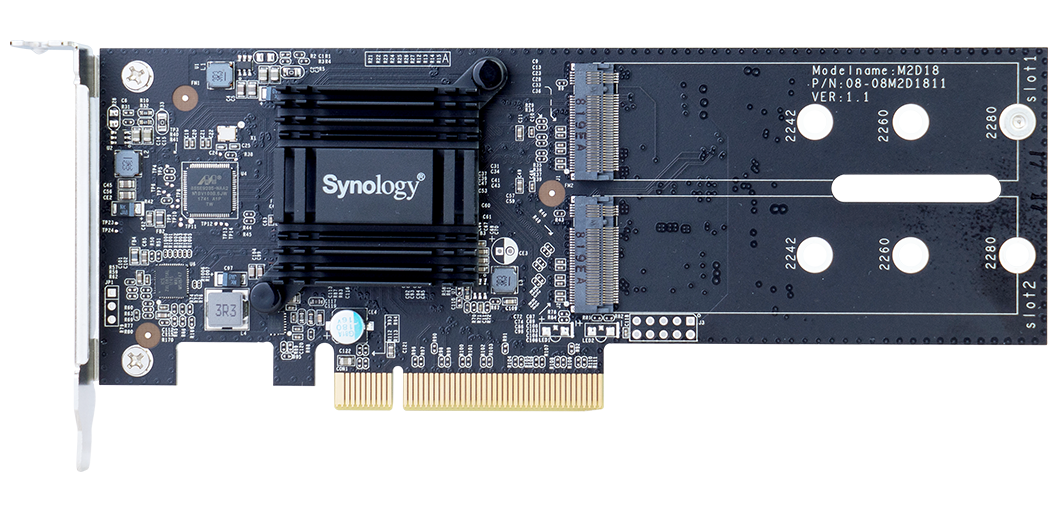

Two M.2 M-key slots support selected NVMe and SATA SSDs in 2280, 2260 and 2242 form factors, depending on the connected NAS model.

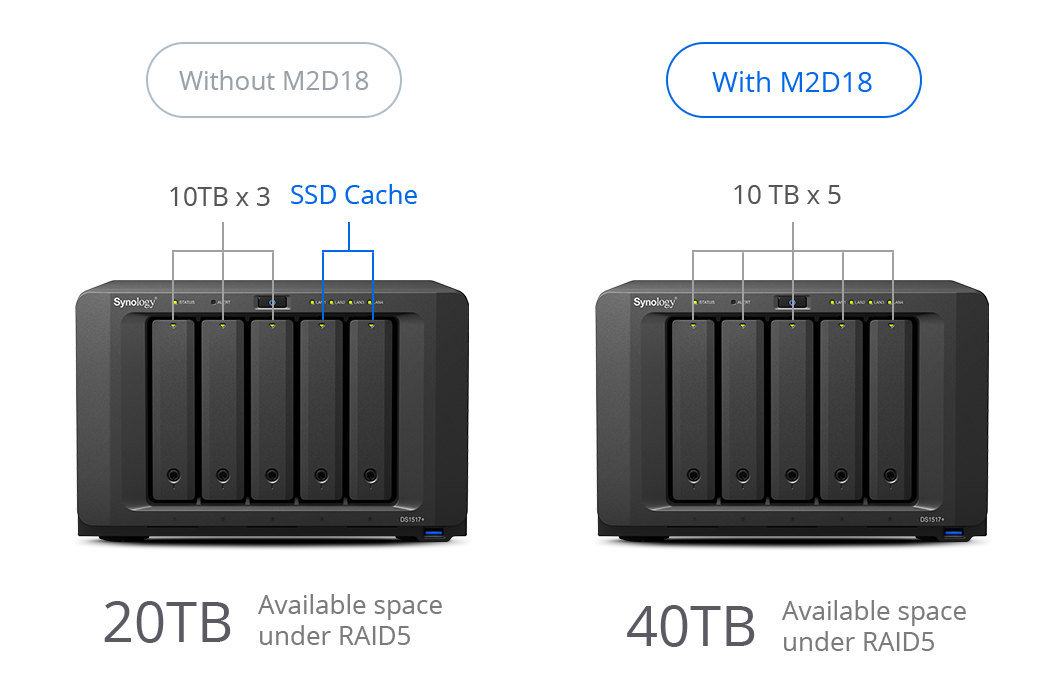

Using dedicated M.2 SSDs for caching allows the main drive bays to remain available for primary data storage. Included heatsinks help manage SSD temperatures during demanding workloads.

M.2 SSDs are not included.

Key Features

• Dual M.2 SSD adapter card
• PCIe 2.0 x8 host interface
• Two M.2 M-key slots
• Supports selected M.2 NVMe SSDs
• Supports selected M.2 SATA SSDs
• Supports 2280, 2260 and 2242 form factors
• Designed for SSD read/write caching
• Helps improve random I/O performance
• Helps reduce latency for selected applications
• Keeps primary NAS drive bays available
• Includes two SSD heatsinks
• Includes low-profile and full-height brackets
• Three-year Synology hardware warranty

Recommended Use Cases

• SSD read/write caching
• Virtualisation workloads
• Frequently accessed business files
• File indexing and searching
• Photo-library indexing
• Multi-user file environments
• Database and application workloads
• Improving random read and write performance

Specifications

Compatibility Note

Confirm that the Synology NAS model, DSM version and intended M.2 SSDs are compatible with the M2D18 before ordering.

Supported SSD interfaces vary by NAS model. Some compatible systems support both NVMe and SATA SSDs, while others support SATA SSDs only.

Synology lists NVMe and SATA support for selected models including:

• RS822RP+ and RS822+
• RS1221RP+ and RS1221+
• RS820RP+ and RS820+
• DS2419+II, DS2419+ and DS1819+
• RS2818RP+, RS2418RP+ and RS2418+
• DS3018xs and DS1618+

Selected older compatible systems support M.2 SATA SSDs only.

The RS822RP+, RS822+, RS1221RP+ and RS1221+ require DSM 7.2-64551 or later before installing the M2D18.

Supported SSD models, interfaces and capacities differ between NAS systems. Check Synology’s current compatibility list before purchasing SSDs.

The included heatsinks are designed for M.2 2280 SSDs. Shut down the NAS and disconnect its cables before installing or removing the adapter card or SSDs.

What’s in the Box

• Synology M2D18 adapter card
• 2 × SSD heatsinks
• 2 × shielding brackets
• Full-height bracket
• 3 × nuts
• 6 × screws

M.2 SSDs are not included.

Warranty

Three-year Synology hardware warranty.

Sustainability

The M2D18 allows compatible Synology NAS systems to add SSD caching without occupying primary storage bays or replacing the host system. Replaceable SSDs can be selected according to workload and endurance requirements.

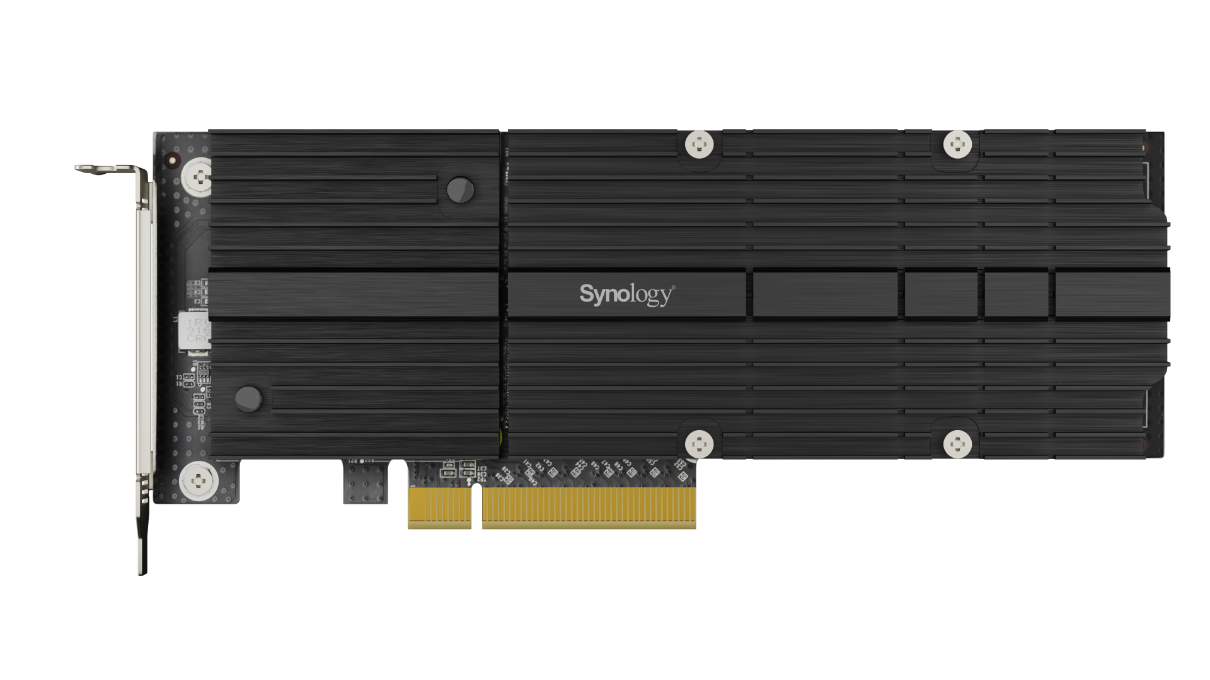

The Synology M2D20 is a dual-slot PCIe adapter card supporting compatible M.2 NVMe SSDs for cache acceleration in selected Synology NAS systems.

Product Description

The Synology M2D20 is designed to improve random I/O performance and responsiveness in compatible Synology NAS systems.

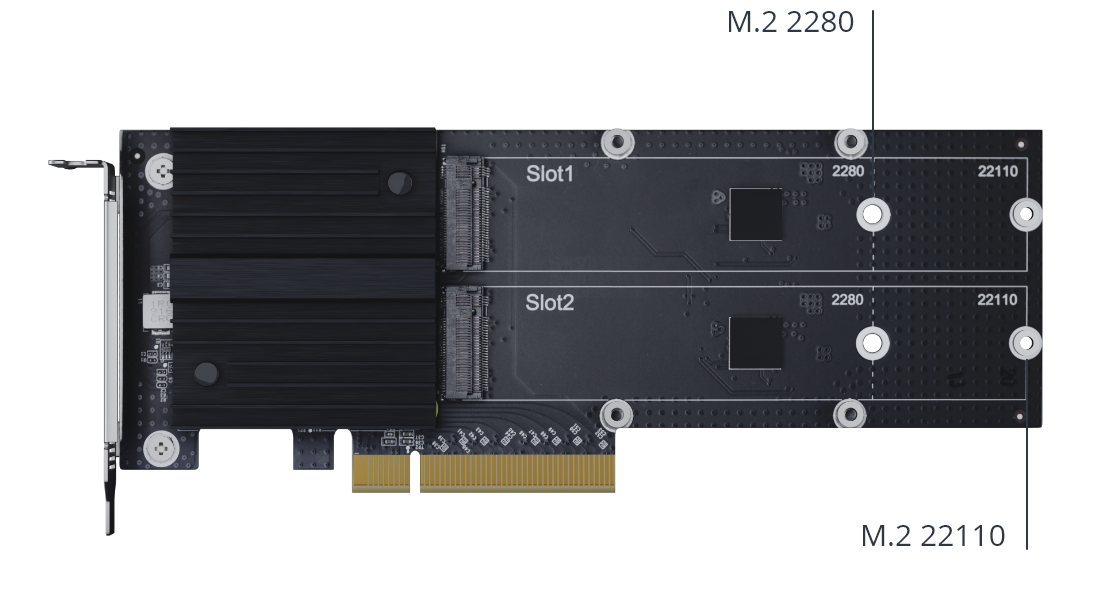

It features two M-key slots supporting compatible M.2 2280 and 22110 NVMe SSDs. Dedicated cache drives allow the main NAS drive bays to remain available for primary data storage.

The M2D20 is suited to latency-sensitive workloads such as photo indexing, file searching and virtualisation.

M.2 NVMe SSDs are not included.

Key Features

• Dual-slot M.2 NVMe SSD adapter card
• PCIe 3.0 x8 host interface
• Two M-key M.2 slots
• Supports M.2 2280 NVMe SSDs
• Supports M.2 22110 NVMe SSDs
• Designed for SSD cache acceleration
• Helps improve random I/O performance
• Helps reduce latency for selected workloads

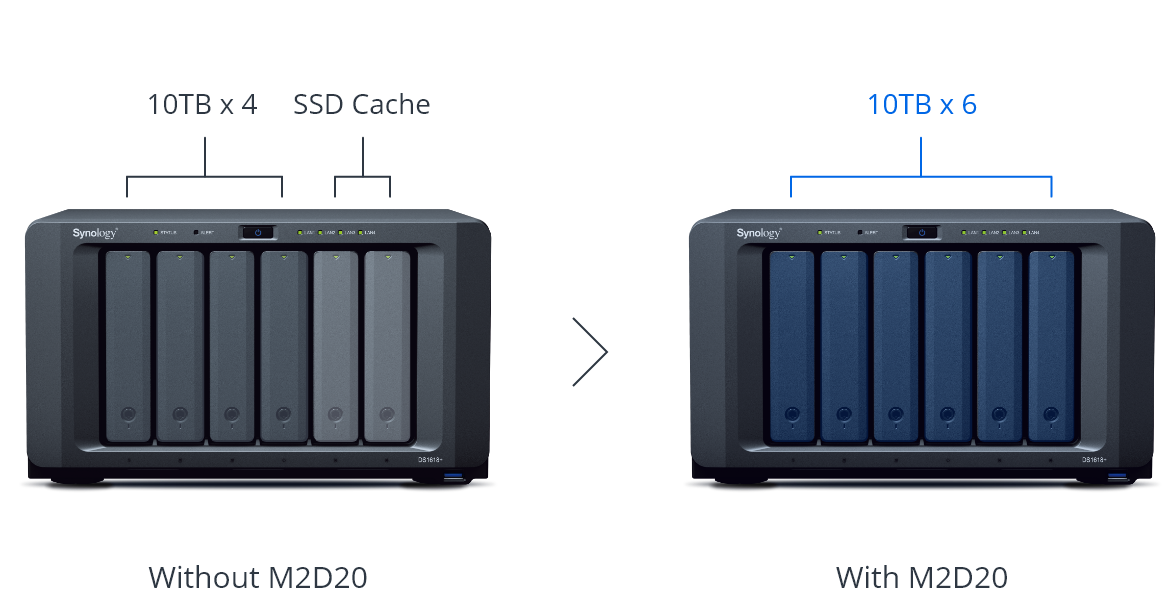

• Keeps primary NAS drive bays available
• Includes a full-width SSD heatsink
• Low-profile bracket pre-installed
• Full-height bracket included
• Five-year Synology hardware warranty

Recommended Use Cases

• SSD cache acceleration
• Virtualisation workloads
• Photo-library indexing
• File searching and indexing
• Frequently accessed business files
• Multi-user storage environments
• Database and application workloads
• Improving random read and write performance

Specifications

Compatibility Note

Confirm that the Synology NAS model, DSM version and intended NVMe SSDs are compatible with the M2D20 before ordering.

Compatible systems include selected Synology models such as:

• RS2825RP+
• RS2423RP+II, RS2423RP+ and RS2423+
• RS822RP+ and RS822+
• RS4021xs+, RS3621xs+ and RS3621RPxs
• RS1221RP+ and RS1221+
• DS3622xs+ and DS2422+
• Selected SA-series and earlier DiskStation and RackStation models

DSM 6.2.3-25426 or later is required for most compatible systems. Selected older models require DSM 7.0.1 or later.

The M2D20 supports PCIe NVMe SSDs only and does not support M.2 SATA SSDs.

Supported SSD models and capacities vary by NAS system. Check Synology’s current compatibility list before purchasing SSDs.

The M2D20 is designed for SSD cache acceleration and should not be assumed to support M.2 storage pools.

Shut down the NAS and disconnect its cables before installing or removing the adapter card or SSDs.

What’s in the Box

• Synology M2D20 adapter card
• Heatsink
• 4 × Rubber pads
• 9 × Thermal pads
• Full-height bracket
• 3 × Screw pillars
• 6 × Screws

M.2 NVMe SSDs are not included.

Warranty

Five-year Synology hardware warranty.

Sustainability

• RoHS compliant
• Adds SSD caching without occupying primary NAS drive bays
• Allows compatible systems to be upgraded without replacing the host NAS
• SSDs can be replaced according to workload and endurance requirements

The Synology RackStation RS1221+ is a compact 8-bay 2U rackmount NAS with an AMD Ryzen processor, expandable ECC memory, four 1GbE ports, PCIe expansion and support for up to 12 drives.

Product Description

The Synology RS1221+ is designed for centralised business storage, backup, collaboration, private-cloud access, virtualisation and surveillance.

It features an AMD Ryzen V1500B quad-core processor, 4GB DDR4 ECC memory expandable to 32GB and eight hot-swappable SATA drive bays.

Four built-in 1GbE ports support Link Aggregation and network failover. The PCIe Gen3 expansion slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and storage adapters.

The RS1221+ delivers sequential performance of up to 2,315MB/s read and 1,147MB/s write under Synology test conditions. Storage capacity can be expanded to 12 drives with an optional RX418 Expansion Unit.

Storage drives, memory upgrades, expansion units, PCIe cards and rack rail kits are not included.

Key Features

• Compact 8-bay 2U rackmount NAS
• AMD Ryzen V1500B processor
• Four CPU cores and eight threads
• 2.2GHz operating frequency
• Hardware encryption engine
• 4GB DDR4 ECC SODIMM memory
• Memory expandable to 32GB
• Eight hot-swappable SATA drive bays
• Supports 3.5-inch and 2.5-inch SATA drives
• Expandable to 12 drives with one RX418
• Four 1GbE RJ-45 network ports
• Link Aggregation and network failover support
• Two USB 3.2 Gen 1 ports
• One eSATA expansion port
• PCIe Gen3 expansion slot
• Supports selected 10GbE and 25GbE network cards
• Supports selected M.2 NVMe adapter cards
• Supports Synology Hybrid RAID
• Supports RAID 0, 1, 5, 6 and 10
• Supports Btrfs and ext4
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Supports up to 40 compatible IP cameras
• Three-year Synology hardware warranty

Recommended Use Cases

• Small and medium business storage
• Centralised file sharing
• Computer and server backup
• Private-cloud file access
• Business collaboration
• Virtual-machine and iSCSI storage
• Snapshot-based data protection
• Creative and media storage
• SSD cache deployments
• IP camera surveillance
• Optional 10GbE or 25GbE networking
• Expandable rackmount storage

Specifications

Compatibility Note

Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS1221+ before ordering.

The RS1221+ supports one optional RX418 Expansion Unit, increasing the total number of supported drive bays from eight to twelve.

When two memory modules are installed, both modules must be identical and use the same model number.

The PCIe slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and M.2 adapters.

The RS1221+ can be mounted directly in a compatible 2-post rack. Four-post installation requires an optional Synology RKM114 or RKS-02 rail kit.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS1221+ main unit
• Accessory pack
• AC power cord
• C13 to C14 power cord
• Quick Installation Guide

Storage drives, memory upgrades, RX418 Expansion Unit, PCIe cards, M.2 SSDs and rack rail kits are not included.

Warranty

Three-year Synology hardware warranty.

Sustainability

• RoHS compliant
• HDD hibernation mode
• Scheduled power-on and power-off support
• Expandable memory, storage and networking may help extend the system’s useful operating life

The Synology RackStation RS1221RP+ is an 8-bay 2U rackmount NAS with an AMD Ryzen processor, expandable ECC memory, redundant power supplies, four 1GbE ports and support for up to 12 drives.

Product Description

The Synology RS1221RP+ is designed for centralised business storage, backup, collaboration, private-cloud access, virtualisation and surveillance.

It features an AMD Ryzen V1500B quad-core processor, 4GB DDR4 ECC memory expandable to 32GB and eight hot-swappable SATA drive bays.

Four built-in 1GbE ports support Link Aggregation and network failover. A PCIe Gen3 expansion slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and storage adapters.

The RS1221RP+ delivers sequential performance of up to 2,315MB/s read and 1,147MB/s write under Synology test conditions. Storage capacity can be expanded to 12 drives with an optional RX418 Expansion Unit.

Redundant power supplies help maintain operation if one power source or power supply fails.

Storage drives, memory upgrades, expansion units, PCIe cards and rack rail kits are not included.

Key Features

• 8-bay 2U rackmount NAS
• AMD Ryzen V1500B processor
• Four CPU cores and eight threads
• 2.2GHz operating frequency
• Hardware encryption engine
• 4GB DDR4 ECC SODIMM memory
• Memory expandable to 32GB
• Eight hot-swappable SATA drive bays
• Supports 3.5-inch and 2.5-inch SATA drives
• Expandable to 12 drives with one RX418
• Four 1GbE RJ-45 network ports
• Link Aggregation and network failover support
• Redundant power supply system
• Two USB 3.2 Gen 1 ports
• One eSATA expansion port
• PCIe Gen3 expansion slot
• Supports selected 10GbE and 25GbE network cards
• Supports selected M.2 NVMe adapter cards
• Supports Synology Hybrid RAID
• Supports RAID 0, 1, 5, 6 and 10
• Supports Btrfs and ext4
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Supports up to 40 compatible IP cameras
• Three-year Synology hardware warranty

Recommended Use Cases

• Small and medium business storage
• Centralised file sharing
• Computer and server backup
• Private-cloud file access
• Business collaboration
• Virtual-machine and iSCSI storage
• Snapshot-based data protection
• High-availability environments
• Creative and media storage
• IP camera surveillance
• Optional 10GbE or 25GbE networking
• Expandable rackmount storage

Specifications

Compatibility Note

Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS1221RP+ before ordering.

The RS1221RP+ supports one optional RX418 Expansion Unit, increasing the total number of supported drive bays from eight to twelve.

When two memory modules are installed, both modules must be identical and use the same model number.

The PCIe slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and M.2 adapters.

Installation in a compatible 4-post rack requires an optional Synology RKS-02 sliding rail kit.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS1221RP+ main unit
• Accessory pack
• 2 × AC power cords
• Quick Installation Guide

Storage drives, memory upgrades, RX418 Expansion Unit, PCIe cards, M.2 SSDs and rack rail kits are not included.

Warranty

Three-year Synology hardware warranty.

Sustainability

• RoHS compliant
• HDD hibernation mode
• Scheduled power-on and power-off support
• Expandable memory, storage and networking may help extend the system’s useful operating life

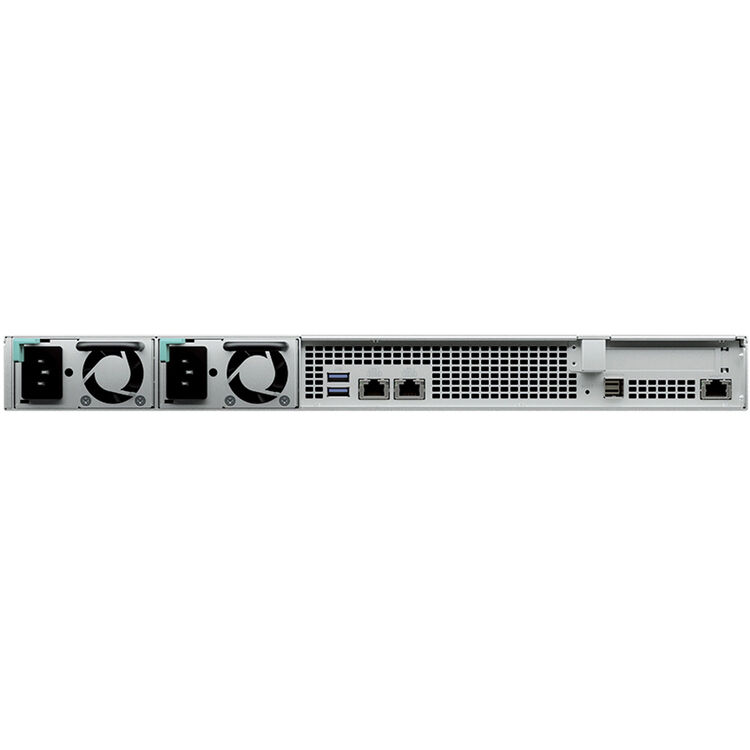

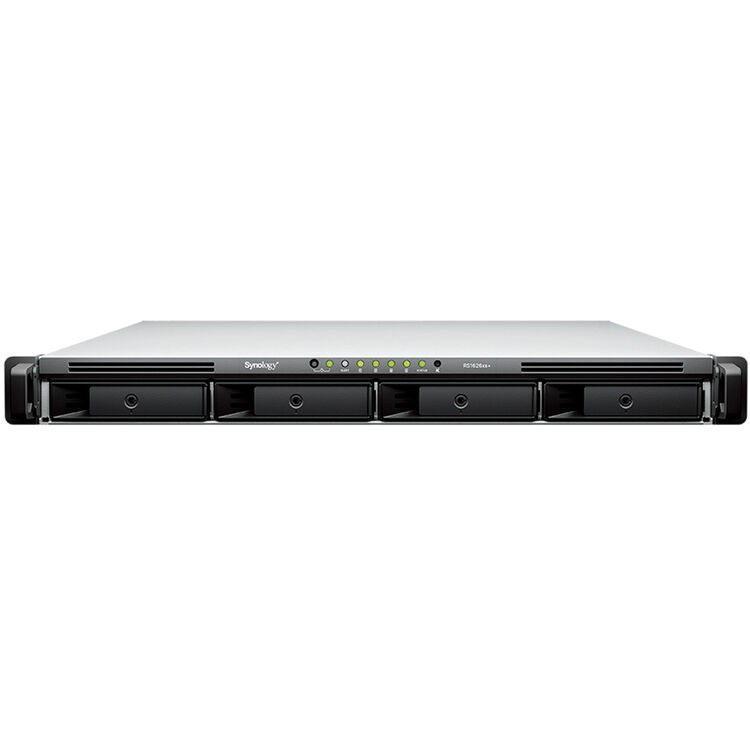

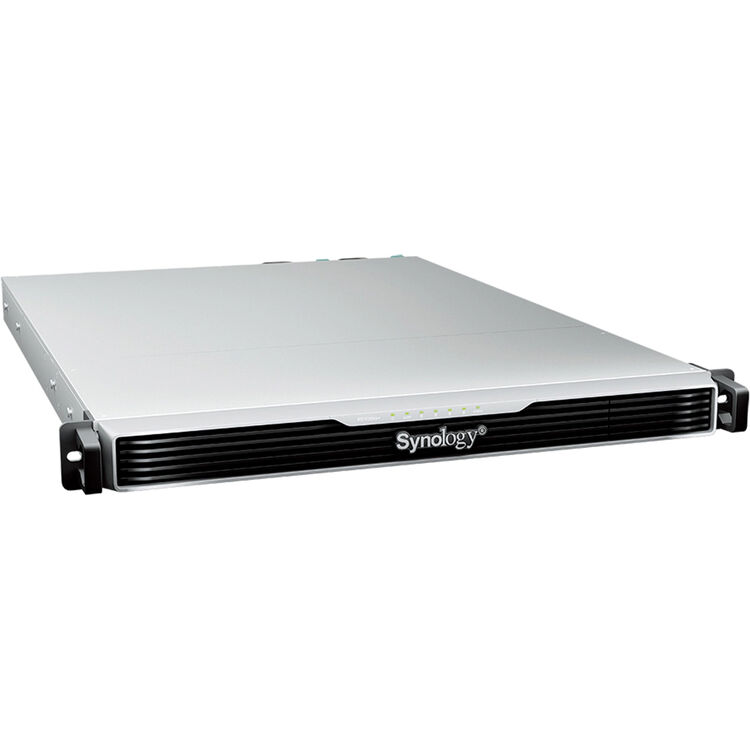

The Synology RackStation RS1626xs+ is a scalable 4-bay 1U enterprise NAS with an Intel Xeon processor, 16GB ECC memory, dual 10GbE, two M.2 NVMe slots and redundant power supplies.

Product Description

The Synology RS1626xs+ is designed for enterprise file storage, business backup, collaboration, virtualisation and surveillance.

It features a six-core Intel Xeon D-1726 processor, 16GB DDR4 ECC memory expandable to 64GB and four hot-swappable SATA drive bays.

Dual 10GbE ports provide high-speed connectivity and network redundancy. Two built-in M.2 NVMe slots support SSD caching, while the PCIe 4.0 expansion slot supports selected network and Fibre Channel adapters.

Storage capacity can be expanded to 16 drives with an optional RX1225RP Expansion Unit.

Storage drives, M.2 SSDs, memory upgrades, expansion units, PCIe cards and rack rails are not included.

Key Features

• Compact 4-bay 1U rackmount NAS
• Intel Xeon D-1726 processor
• Six CPU cores and twelve threads
• 2.9GHz base and up to 3.5GHz turbo frequency
• Hardware encryption engine
• 16GB DDR4 ECC RDIMM memory
• Memory expandable to 64GB
• Four hot-swappable SATA drive bays
• Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Two M.2 2280 NVMe slots
• Supports compatible NVMe SSD caching
• Expandable to 16 drives with one RX1225RP
• Two built-in 10GbE RJ-45 ports
• Dedicated out-of-band management port
• PCIe 4.0 x8 expansion slot
• Supports selected 10GbE and 25GbE network cards
• Supports selected Fibre Channel adapters
• Redundant power supply system
• Supports RAID F1 and RAID 0, 1, 5, 6 and 10
• Supports Btrfs internal volumes
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Supports up to 75 compatible IP cameras
• Five-year Synology hardware warranty

Recommended Use Cases

• Enterprise and departmental file storage
• Branch-office storage
• Server and virtual-machine backup
• Virtualisation and Fibre Channel storage
• Private-cloud collaboration
• High-speed 10GbE environments
• M.2 NVMe SSD caching
• Surveillance recording
• Business continuity and disaster recovery
• Expandable rackmount storage

Specifications

Compatibility Note

Confirm that all storage drives, M.2 SSDs, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS1626xs+ before ordering.

The RS1626xs+ supports one optional RX1225RP Expansion Unit, increasing the total number of drive bays from four to sixteen.

Compatible memory expansion uses Synology D4ER02-16G modules. All installed memory modules must be identical and use the same model number.

The built-in M.2 slots support compatible NVMe SSD caching and do not support hot-swapping.

The PCIe slot supports selected Synology 10GbE and 25GbE network cards and compatible Fibre Channel adapters.

This model supports RAID F1 but does not support Synology Hybrid RAID.

Volumes larger than 108TB require additional memory and a supported storage configuration. A 1PB volume requires 64GB memory and RAID 6.

Installation in a compatible 4-post rack requires an optional Synology RKS-04 sliding rail kit.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS1626xs+ main unit
• Accessory pack
• 2 × C13 to C14 power cords
• Front cover

Storage drives, M.2 SSDs, memory upgrades, RX1225RP Expansion Unit, PCIe cards and rack rails are not included.

Warranty

Five-year Synology hardware warranty.

Sustainability

• RoHS compliant
• HDD hibernation support
• Scheduled power-on and power-off support
• Replaceable system fans and redundant power supplies
• Expandable memory, storage and networking may extend the system’s useful operating life

The Synology RackStation RS2423+ is a scalable 12-bay 2U rackmount NAS with an AMD Ryzen processor, 8GB ECC memory, built-in 10GbE, PCIe expansion and support for up to 24 drives.

Product Description

The Synology RS2423+ is designed for centralised business storage, backup, collaboration, private-cloud access, virtualisation and surveillance.

It features an AMD Ryzen V1780B quad-core processor, 8GB DDR4 ECC memory expandable to 32GB and twelve hot-swappable SATA drive bays.

One built-in 10GbE port and two 1GbE ports provide high-speed connectivity, Link Aggregation and network failover. A PCIe Gen3 expansion slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapters and combined network and storage adapters.

The RS2423+ delivers sequential performance of over 3,500MB/s read and 1,700MB/s write under Synology test conditions. Storage capacity can be expanded to 24 drives with an optional RX1223RP Expansion Unit.

Storage drives, memory upgrades, expansion units, PCIe cards and rack rail kits are not included.

Key Features

• Scalable 12-bay 2U rackmount NAS
• AMD Ryzen V1780B processor
• Four CPU cores and eight threads
• 3.35GHz base and up to 3.6GHz turbo frequency
• Hardware encryption engine
• 8GB DDR4 ECC UDIMM memory
• Memory expandable to 32GB
• Twelve hot-swappable SATA drive bays
• Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Expandable to 24 drives with one RX1223RP
• One built-in 10GbE RJ-45 port
• Two built-in 1GbE RJ-45 ports
• Link Aggregation and network failover support
• Two USB 3.2 Gen 1 ports
• Mini-SAS HD expansion port
• PCIe Gen3 expansion slot
• Supports selected 10GbE and 25GbE network cards
• Supports selected M.2 NVMe adapter cards
• Over 3,500MB/s read and 1,700MB/s write
• Supports Synology Hybrid RAID
• Supports RAID 0, 1, 5, 6 and 10
• Supports Btrfs and ext4
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Supports up to 75 compatible IP cameras
• Three-year Synology hardware warranty

Recommended Use Cases

• Small and medium business storage
• Centralised file sharing
• Computer, server and virtual-machine backup
• Private-cloud file access
• Business collaboration
• Virtualisation and iSCSI storage
• Creative and media storage
• High-speed 10GbE environments
• SSD cache deployments
• IP camera surveillance
• Expandable archive storage
• Business continuity and data protection

Specifications

Compatibility Note

Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS2423+ before ordering.

The RS2423+ supports one optional RX1223RP Expansion Unit, increasing the total number of supported drive bays from twelve to twenty-four.

Compatible memory options include the Synology D4EU02-8G and D4EU02-16G. When two memory modules are installed, both modules must be identical and use the same model number.

The PCIe slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and M.2 adapters.

The RS2423+ does not include built-in M.2 slots. NVMe SSD caching requires a compatible Synology M.2 adapter card or combined network and M.2 adapter.

A maximum single volume size above 108TB requires 32GB of installed memory and a supported storage configuration.

Installation in a compatible 4-post rack requires an optional Synology RKS-02 sliding rail kit.

The RS2423+ includes a single power supply and does not provide the redundant power configuration of the RS2423RP+II.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS2423+ main unit
• Accessory pack
• AC power cord
• Quick Installation Guide

Storage drives, memory upgrades, RX1223RP Expansion Unit, PCIe cards, M.2 SSDs and rack rail kits are not included.

Warranty

Three-year Synology hardware warranty.

Eligible units may qualify for extension to five years with Synology EW202.

Sustainability

• RoHS compliant
• HDD hibernation mode
• Scheduled power-on and power-off support
• Expandable memory, storage and networking may help extend the system’s useful operating life

The Synology RackStation RS2423RP+II is a scalable 12-bay 2U rackmount NAS with an AMD Ryzen processor, 8GB ECC memory, built-in 10GbE, redundant power supplies and expansion support for up to 24 drives.

Product Description

The Synology RS2423RP+II is designed for centralised business storage, backup, collaboration, private-cloud access, virtualisation and surveillance.

It features an AMD Ryzen V1780B quad-core processor, 8GB DDR4 ECC memory expandable to 32GB and twelve hot-swappable SATA drive bays.

One built-in 10GbE port and two 1GbE ports provide high-speed connectivity, Link Aggregation and network failover. A PCIe Gen3 expansion slot supports selected Synology network and M.2 SSD adapter cards.

Storage capacity can be expanded to 24 drives with an optional RX1223RP Expansion Unit. Redundant hot-swappable power supplies help maintain service continuity if one power supply fails.

Storage drives, memory upgrades, expansion units, PCIe cards and rack rail kits are not included.

Key Features

• Scalable 12-bay 2U rackmount NAS
• AMD Ryzen V1780B processor
• Four CPU cores and eight threads
• 3.35GHz base and up to 3.6GHz turbo frequency
• Hardware encryption engine
• 8GB DDR4 ECC UDIMM memory
• Memory expandable to 32GB
• Twelve hot-swappable SATA drive bays
• Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Expandable to 24 drives with one RX1223RP
• One built-in 10GbE RJ-45 port
• Two built-in 1GbE RJ-45 ports
• Link Aggregation and network failover support
• Redundant hot-swappable power supplies
• Two USB 3.2 Gen 1 ports
• Mini-SAS HD expansion port
• PCIe Gen3 expansion slot
• Supports selected 10GbE and 25GbE network cards
• Supports selected M.2 NVMe adapter cards
• Over 3,500MB/s read and 1,700MB/s write
• Supports Synology Hybrid RAID
• Supports RAID 0, 1, 5, 6 and 10
• Supports Btrfs and ext4
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Supports up to 75 compatible IP cameras
• Three-year Synology hardware warranty

Recommended Use Cases

• Small and medium business storage
• Centralised file sharing
• Computer, server and virtual-machine backup
• Private-cloud file access
• Business collaboration
• Virtualisation and iSCSI storage
• Creative and media storage
• High-speed 10GbE environments
• SSD cache deployments
• IP camera surveillance
• Business continuity environments
• Expandable archive storage

Specifications

Compatibility Note

Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS2423RP+II before ordering.

The RS2423RP+II supports one optional RX1223RP Expansion Unit, increasing the total number of supported drive bays from twelve to twenty-four.

Compatible memory options include Synology D4EU02-8G and D4EU02-16G modules. When both memory slots are populated, the modules must be identical and use the same model number.

The PCIe slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and M.2 adapters.

The RS2423RP+II does not include built-in M.2 slots. NVMe SSD caching requires a compatible Synology M.2 adapter card or combined network and M.2 adapter.

A maximum single volume size above 108TB requires 32GB of installed memory and a supported storage configuration.

Installation in a compatible 4-post rack requires an optional Synology RKS-02 sliding rail kit.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS2423RP+II main unit
• Accessory pack
• 2 × AC power cords
• Quick Installation Guide

Storage drives, memory upgrades, RX1223RP Expansion Unit, PCIe cards, M.2 SSDs and rack rail kits are not included.

Warranty

Three-year Synology hardware warranty.

Eligible units may qualify for extension to five years with Synology EW202.

Sustainability

• RoHS compliant
• HDD hibernation mode
• Scheduled power-on and power-off support
• Replaceable power supply modules and system fans
• Expandable memory, storage and networking may help extend the system’s useful operating life

The Synology RackStation RS2825RP+ is a scalable 16-bay 3U rackmount NAS with an AMD Ryzen processor, 8GB ECC memory, built-in 10GbE, redundant power and expansion support for up to 28 drives.

Product Description

The Synology RS2825RP+ is designed for centralised business storage, backup, collaboration, private-cloud access, virtualisation and surveillance.

It features an AMD Ryzen V1780B quad-core processor, 8GB DDR4 ECC memory expandable to 32GB and sixteen hot-swappable SATA drive bays.

One built-in 10GbE port and two 1GbE ports provide high-speed connectivity, network failover and load balancing. A PCIe Gen3 expansion slot supports selected Synology network and M.2 SSD adapter cards.

The RS2825RP+ delivers sequential performance of up to 3,519MB/s read and 1,790MB/s write. Capacity can be expanded to 28 drives with an optional RX1225RP Expansion Unit.

Redundant power supplies help maintain operation if one power supply fails.

Storage drives, memory upgrades, expansion units, PCIe cards, M.2 SSDs and rack rails are not included.

Key Features

• Scalable 16-bay 3U rackmount NAS
• AMD Ryzen V1780B processor
• Four CPU cores and eight threads
• 3.35GHz base and up to 3.6GHz turbo frequency
• Hardware encryption engine
• 8GB DDR4 ECC UDIMM memory
• Memory expandable to 32GB
• Sixteen hot-swappable SATA drive bays
• Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Expandable to 28 drives with one RX1225RP
• One built-in 10GbE RJ-45 port
• Two built-in 1GbE RJ-45 ports
• Network failover and load-balancing support
• Redundant power supply system
• Two USB 3.2 Gen 1 ports
• Mini-SAS HD expansion port
• PCIe Gen3 expansion slot
• Supports selected 10GbE and 25GbE network cards
• Supports selected M.2 NVMe adapter cards
• Up to 3,519MB/s read and 1,790MB/s write
• Supports Synology Hybrid RAID
• Supports RAID 0, 1, 5, 6 and 10
• Supports Btrfs internal volumes
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Supports up to 90 compatible IP cameras
• Three-year Synology hardware warranty

Recommended Use Cases

• Centralised business storage
• Small and medium business environments
• Computer, server and virtual-machine backup
• Private-cloud file access
• Multi-site file synchronisation
• Business collaboration
• Virtualisation and iSCSI storage
• High-speed 10GbE environments
• SSD cache deployments
• IP camera surveillance
• Business continuity and disaster recovery
• Expandable archive storage

Specifications

Compatibility Note

Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS2825RP+ before ordering.

Compatible drives are mandatory for DSM installation and should be selected from Synology’s current compatibility list.

The RS2825RP+ supports one optional RX1225RP Expansion Unit, increasing the total number of drive bays from sixteen to twenty-eight.

Compatible memory upgrades include Synology D4EU02-8G and D4EU02-16G modules. When both memory slots are populated, the modules must be identical and use the same model number.

The PCIe slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and M.2 adapters.

The RS2825RP+ does not include built-in M.2 slots. NVMe SSD caching requires a compatible Synology adapter card and supported M.2 SSDs.

A maximum single volume size above 108TB requires 32GB of installed memory and a supported storage configuration.

Installation in a compatible 4-post rack requires an optional Synology RKS-02 sliding rail kit.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS2825RP+ main unit
• Accessory pack
• 2 × AC power cords

Storage drives, memory upgrades, RX1225RP Expansion Unit, PCIe cards, M.2 SSDs and rack rail kits are not included.

Warranty

Three-year Synology hardware warranty.

Eligible units may qualify for extension to five years with Synology EW202.

Sustainability

• RoHS compliant
• HDD hibernation mode
• Scheduled power-on and power-off support
• Replaceable system fans and power supply modules
• Expandable memory, storage and networking may help extend the system’s useful operating life

The Synology RackStation RS3626xs is a scalable 12-bay 2U enterprise NAS with an Intel Xeon processor, 8GB ECC memory, dual 10GbE networking, redundant power and expansion support for up to 36 drives.

Product Description

The Synology RS3626xs is designed for enterprise file storage, backup, collaboration, virtualisation and surveillance.

It features an Intel Xeon D-1726 six-core processor, 8GB DDR4 ECC memory expandable to 48GB and twelve hot-swappable SATA drive bays.

Dual 10GbE ports provide high-speed connectivity, Link Aggregation and network failover. Two PCIe 4.0 expansion slots support selected Synology network, Fibre Channel and M.2 NVMe adapter cards.

The RS3626xs delivers sequential performance of over 6,300MB/s read and 3,700MB/s write. Storage capacity can be expanded to 36 drives with two optional RX1225RP Expansion Units.

Storage drives, memory upgrades, expansion units, PCIe cards, M.2 SSDs and rack rails are not included.

Key Features

• Enterprise 12-bay 2U rackmount NAS
• Intel Xeon D-1726 processor
• Six CPU cores and twelve threads
• 2.9GHz base and up to 3.5GHz turbo frequency
• Hardware encryption engine
• 8GB DDR4 ECC UDIMM memory
• Memory expandable to 48GB
• Twelve hot-swappable SATA drive bays
• Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Expandable to 36 drives with two RX1225RP units
• Dual built-in 10GbE RJ-45 ports
• Dedicated out-of-band management port
• Two PCIe 4.0 x8 expansion slots
• Supports selected 10GbE and 25GbE network cards
• Supports selected Fibre Channel adapters
• Supports optional M.2 NVMe SSD caching
• Over 6,300MB/s read and 3,700MB/s write
• Redundant power supply system
• Supports RAID F1 and RAID 0, 1, 5, 6 and 10
• Supports Btrfs internal volumes
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Supports up to 90 compatible IP cameras
• Five-year Synology hardware warranty

Recommended Use Cases

• Enterprise file storage
• Server and virtual-machine backup
• Virtualisation and iSCSI storage
• Private-cloud collaboration
• Multi-site file synchronisation
• High-speed 10GbE environments
• Fibre Channel storage
• M.2 NVMe SSD caching
• Surveillance recording
• Business continuity and disaster recovery
• Expandable archive storage
• Large multi-user environments

Specifications

Compatibility Note

Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS3626xs before ordering.

The RS3626xs supports up to two optional RX1225RP Expansion Units, increasing the total number of drive bays from twelve to thirty-six.

Memory expansion uses compatible Synology D4EU02-8G modules. All installed modules must be identical and use the same model number.

The RS3626xs does not include built-in M.2 slots. NVMe SSD caching requires a compatible Synology M2D20 or E10M20-T1 adapter card and supported M.2 SSDs.

The PCIe slots support selected Synology 10GbE and 25GbE network cards, Fibre Channel adapters and M.2 SSD adapter cards.

This model supports RAID F1 but does not support Synology Hybrid RAID.

Volumes larger than 108TB require at least 32GB of installed memory and a supported storage configuration.

Installation in a compatible 4-post rack requires an optional Synology RKS-02 sliding rail kit.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS3626xs main unit
• Accessory pack
• 2 × C13 to C14 power cords
• Front cover

Storage drives, memory upgrades, RX1225RP Expansion Units, PCIe cards, M.2 SSDs and rack rails are not included.

Warranty

Five-year Synology hardware warranty.

Sustainability

• RoHS compliant
• HDD hibernation support
• Scheduled power-on and power-off support
• Replaceable system fans and redundant power supplies
• Expandable memory, storage and networking may extend the system’s useful operating life

The Synology RackStation RS4021xs+ is a 16-bay 3U enterprise NAS with an Intel Xeon eight-core processor, 16GB ECC memory, dual 10GbE networking, redundant power and expansion support for up to 40 drives.

Product Description

The Synology RS4021xs+ is designed for enterprise storage, business backup, virtualisation, collaboration, surveillance and other data-intensive workloads.

It features an Intel Xeon D-1541 eight-core processor, 16GB DDR4 ECC memory expandable to 64GB and sixteen hot-swappable SATA drive bays.

Two built-in 10GbE ports and four 1GbE ports provide high-speed connectivity and network redundancy. Two PCIe Gen3 expansion slots support selected Synology network cards and M.2 NVMe SSD adapter cards.

Storage capacity can be expanded to 40 drives with two optional RX1217 or RX1217RP Expansion Units. Redundant power supplies and replaceable system fans help support service continuity.

Storage drives, memory upgrades, expansion units, PCIe cards, M.2 SSDs and rack rails are not included.

Key Features

• Enterprise 16-bay 3U rackmount NAS
• Intel Xeon D-1541 processor
• Eight CPU cores and sixteen threads
• 2.1GHz base and up to 2.7GHz turbo frequency
• Hardware encryption engine
• 16GB DDR4 ECC UDIMM memory
• Memory expandable to 64GB
• Sixteen hot-swappable SATA drive bays
• Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Expandable to 40 drives with two expansion units
• Two built-in 10GbE RJ-45 ports
• Four built-in 1GbE RJ-45 ports
• Two PCIe Gen3 x8 expansion slots
• Supports selected 10GbE and 25GbE network cards
• Supports selected M.2 NVMe SSD adapter cards
• Two USB 3.2 Gen 1 ports
• Redundant power supply system
• Supports RAID F1 and RAID 0, 1, 5, 6 and 10
• Supports Btrfs and ext4
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Supports up to 285 compatible IP cameras
• Five-year Synology hardware warranty

Recommended Use Cases

• Enterprise file storage
• Large multi-user environments
• Server and virtual-machine backup
• Virtualisation and iSCSI storage
• Private-cloud file access
• Business collaboration
• High-speed 10GbE environments
• M.2 NVMe SSD caching
• Large surveillance deployments
• Business continuity and disaster recovery
• High-capacity archive storage
• Expansion to multi-petabyte storage configurations

Specifications

Compatibility Note

Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS4021xs+ before ordering.

The RS4021xs+ supports up to two Synology RX1217 or RX1217RP Expansion Units, increasing the total number of supported drive bays from sixteen to forty.

Memory can be expanded with compatible Synology D4EC-2666-16G modules. All installed memory modules should be identical and use the same model number.

The PCIe slots support selected Synology network cards, M.2 SSD adapter cards and combined network and M.2 adapters.

The RS4021xs+ does not include built-in M.2 slots. NVMe SSD caching requires a compatible Synology adapter card and supported M.2 SSDs.

This model supports RAID F1 but does not support Synology Hybrid RAID.

Volumes larger than 108TB require additional memory and a supported storage configuration. A 1PB volume requires 64GB memory and RAID 6.

Synology only guarantees full functionality, reliability and performance with drives listed as compatible for this model.

Installation in a compatible 4-post rack requires an optional Synology RKS-02 sliding rail kit.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS4021xs+ main unit
• Accessory pack
• 2 × AC power cords
• Quick Installation Guide

Storage drives, memory upgrades, expansion units, PCIe cards, M.2 SSDs and rack rail kits are not included.

Warranty

Five-year Synology hardware warranty.

Sustainability

• RoHS compliant
• HDD hibernation support
• Scheduled power-on and power-off support
• Replaceable system fans and power supply modules
• Expandable memory, networking and storage may extend the system’s useful operating life

The Synology RackStation RS422+ is a compact 4-bay 1U rackmount NAS with an AMD Ryzen processor, 2GB ECC memory, dual 1GbE networking and optional 10GbE connectivity.

Product Description

The Synology RS422+ is designed for centralised business storage, backup, collaboration, private-cloud access and surveillance in small offices, branch locations and space-limited rack environments.

It features an AMD Ryzen R1600 dual-core processor with four threads, 2GB DDR4 ECC memory and four hot-swappable SATA drive bays.

Dual 1GbE network ports support Link Aggregation and failover. An optional Synology E10G22-T1-Mini module can add multi-gigabit and 10GbE RJ-45 connectivity.

Synology DiskStation Manager provides file sharing, backup, snapshots, synchronisation, collaboration and surveillance tools.

Storage drives, the optional network module and rack rail kits are not included.

Key Features

• Compact 4-bay 1U rackmount NAS
• AMD Ryzen R1600 processor
• Two CPU cores and four threads
• 2.6GHz base and up to 3.1GHz turbo frequency
• Hardware encryption engine
• 2GB DDR4 ECC memory
• Four hot-swappable SATA drive bays
• Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Dual 1GbE RJ-45 network ports
• Network failover and Link Aggregation support
• Optional 10GbE connectivity
• Supports Synology E10G22-T1-Mini
• One USB 3.2 Gen 1 port
• Supports Synology Hybrid RAID
• Supports RAID 0, 1, 5, 6 and 10
• Supports Btrfs and ext4
• Supports Snapshot Replication
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Supports up to 40 compatible IP cameras
• Supports direct 2-post rack mounting
• Three-year Synology hardware warranty

Recommended Use Cases

• Small-business and branch-office storage
• Centralised file sharing
• Computer and server backup
• Private-cloud file access
• Business document collaboration
• Snapshot-based data protection
• Virtualisation and iSCSI storage
• SSD cache deployments
• IP camera surveillance
• Compact 1U rack installations
• Optional 10GbE network environments

Specifications

Compatibility Note

Confirm that all storage drives, network modules and rack accessories are compatible with the Synology RS422+ before ordering.

The RS422+ supports up to four compatible 3.5-inch SATA hard drives or 2.5-inch SATA solid-state drives.

Optional 10GbE connectivity requires the Synology E10G22-T1-Mini Network Upgrade Module and compatible network equipment.

The RS422+ can be mounted directly in a compatible 2-post 19-inch rack. Four-post installation requires an optional Synology RKM114 or RKS-02 rail kit.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS422+ main unit
• Accessory pack
• AC power cord
• Quick Installation Guide

Storage drives, network upgrade module and rack rail kits are not included.

Warranty

Three-year Synology hardware warranty.

Eligible units may qualify for an extension to five years with Synology EW201.

Sustainability

• RoHS compliant
• Scheduled power-on and power-off support
• HDD hibernation mode
• Replaceable drives and optional network upgrades may help extend the system’s useful operating life

The Synology RackStation RS4826xs+ is a scalable 12-bay 2U enterprise NAS with an Intel Xeon processor, 16GB ECC memory, dual 10GbE networking, redundant power and expansion support for up to 48 drives.

Product Description

The Synology RS4826xs+ is designed for enterprise file storage, backup, collaboration, virtualisation and surveillance.

It features an Intel Xeon D-1739 eight-core processor, 16GB DDR4 ECC memory expandable to 96GB and twelve hot-swappable SATA drive bays.

Dual 10GbE ports provide high-speed connectivity, Link Aggregation and network failover. Two PCIe 4.0 expansion slots support selected Synology network, Fibre Channel and M.2 NVMe adapter cards.

The RS4826xs+ delivers sequential performance of over 6,200MB/s read and 3,700MB/s write. Storage capacity can be expanded to 48 drives with three optional RX1225RP Expansion Units.

Storage drives, memory upgrades, expansion units, PCIe cards, M.2 SSDs and rack rails are not included.

Key Features

• Enterprise 12-bay 2U rackmount NAS
• Intel Xeon D-1739 processor
• Eight CPU cores and sixteen threads
• 3.0GHz base and up to 3.5GHz turbo frequency
• Hardware encryption engine
• 16GB DDR4 ECC RDIMM memory
• Memory expandable to 96GB
• Twelve hot-swappable SATA drive bays
• Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Expandable to 48 drives with three RX1225RP units
• Dual built-in 10GbE RJ-45 ports
• Dedicated out-of-band management port
• Two PCIe 4.0 x8 expansion slots
• Supports selected 10GbE and 25GbE network cards
• Supports selected Fibre Channel adapters
• Supports optional M.2 NVMe SSD caching
• Over 6,200MB/s read and 3,700MB/s write
• Redundant power supply system
• Supports RAID F1 and RAID 0, 1, 5, 6 and 10
• Supports Btrfs internal volumes
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Supports up to 125 compatible IP cameras
• Five-year Synology hardware warranty

Recommended Use Cases

• Enterprise file storage
• Server and virtual-machine backup
• Virtualisation and iSCSI storage
• Private-cloud collaboration
• Multi-site file synchronisation
• High-speed 10GbE environments
• Fibre Channel storage
• M.2 NVMe SSD caching
• Large surveillance deployments
• Business continuity and disaster recovery
• Petabyte-scale archive storage
• Large multi-user environments

Specifications

Compatibility Note

Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS4826xs+ before ordering.

The RS4826xs+ supports up to three optional RX1225RP Expansion Units, increasing the total number of drive bays from twelve to forty-eight.

Memory expansion uses compatible Synology D4ER02-16G modules. All installed memory modules must be identical and use the same model number.

The RS4826xs+ does not include built-in M.2 slots. NVMe SSD caching requires a compatible Synology M2D20 or E10M20-T1 adapter card and supported M.2 SSDs.

The PCIe slots support selected Synology 10GbE and 25GbE network cards, Fibre Channel adapters and M.2 SSD adapter cards.

This model supports RAID F1 but does not support Synology Hybrid RAID.

Volumes larger than 108TB require at least 32GB of installed memory. A 1PB volume requires at least 64GB of memory, RAID 6 and a supported storage configuration.

Installation in a compatible 4-post rack requires an optional Synology RKS-02 sliding rail kit.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS4826xs+ main unit
• Accessory pack
• 2 × C13 to C14 power cords
• Front cover

Storage drives, memory upgrades, RX1225RP Expansion Units, PCIe cards, M.2 SSDs and rack rails are not included.

Warranty

Five-year Synology hardware warranty.

Sustainability

• RoHS compliant
• HDD hibernation support
• Scheduled power-on and power-off support
• Replaceable system fans and redundant power supplies
• Expandable memory, storage and networking may extend the system’s useful operating life

The Synology RackStation RS822+ is a scalable 4-bay 1U rackmount NAS with an AMD Ryzen processor, expandable ECC memory, four 1GbE ports, PCIe expansion and support for up to eight drives.

Product Description

The Synology RS822+ is designed for centralised business storage, backup, collaboration, private-cloud access, virtualisation and surveillance.

It features an AMD Ryzen V1500B quad-core processor, 2GB DDR4 ECC memory expandable to 32GB and four hot-swappable SATA drive bays.

Four built-in 1GbE ports support Link Aggregation and network failover. A PCIe Gen3 expansion slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and storage adapters.

Storage capacity can be expanded to eight drives with an optional Synology RX418 Expansion Unit.

Storage drives, memory upgrades, expansion units, PCIe cards and rack rail kits are not included.

Key Features

• Compact 4-bay 1U rackmount NAS
• AMD Ryzen V1500B processor
• Four CPU cores and eight threads
• 2.2GHz operating frequency
• Hardware encryption engine
• 2GB DDR4 ECC SODIMM memory
• Memory expandable to 32GB
• Four hot-swappable SATA drive bays
• Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Expandable to eight drives with one RX418
• Four 1GbE RJ-45 network ports
• Link Aggregation and network failover support
• Two USB 3.2 Gen 1 ports
• One eSATA expansion port
• PCIe Gen3 expansion slot
• Supports selected 10GbE and 25GbE network cards
• Supports selected M.2 NVMe adapter cards
• Supports Synology Hybrid RAID
• Supports RAID 0, 1, 5, 6 and 10
• Supports Btrfs and ext4
• Supports Snapshot Replication
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Three-year Synology hardware warranty

Recommended Use Cases

• Small and medium business storage
• Branch-office storage
• Centralised file sharing
• Computer and server backup
• Private-cloud file access
• Business collaboration
• Virtual-machine and iSCSI storage
• Snapshot-based data protection
• SSD cache deployments
• IP camera surveillance
• Optional 10GbE or 25GbE networking
• Expandable rackmount storage

Specifications

Compatibility Note

Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS822+ before ordering.

The RS822+ supports one optional RX418 Expansion Unit, increasing the total number of supported drive bays from four to eight.

Compatible Synology memory options include selected D4ES02 and D4ES03 modules. When two memory modules are installed, both modules must be identical and use the same model number.

The PCIe slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and M.2 adapters.

Installation in a compatible 4-post rack requires an optional Synology RKM114 or RKS-02 rail kit.

The RS822+ has a single internal power supply and does not provide the redundant power configuration included with the RS822RP+.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS822+ main unit
• Accessory pack
• AC power cord
• Quick Installation Guide

Storage drives, memory upgrades, RX418 Expansion Unit, PCIe cards, M.2 SSDs and rack rail kits are not included.

Warranty

Three-year Synology hardware warranty.

Sustainability

• RoHS compliant
• HDD hibernation mode
• Scheduled power-on and power-off support
• Expandable memory, storage and networking may help extend the system’s useful operating life

The Synology RackStation RS822RP+ is a scalable 4-bay 1U rackmount NAS with an AMD Ryzen processor, expandable ECC memory, redundant power supplies, four 1GbE ports and support for up to eight drives.

Product Description

The Synology RS822RP+ is designed for centralised business storage, backup, collaboration, private-cloud access, virtualisation and surveillance.

It features an AMD Ryzen V1500B quad-core processor, 2GB DDR4 ECC memory expandable to 32GB and four hot-swappable SATA drive bays.

Four built-in 1GbE ports support Link Aggregation and network failover. A PCIe Gen3 expansion slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and storage adapters.

Storage capacity can be expanded to eight drives with an optional Synology RX418 Expansion Unit. Redundant power supplies help maintain operation if one power supply fails.

Storage drives, memory upgrades, expansion units, PCIe cards and rack rail kits are not included.

Key Features

• Compact 4-bay 1U rackmount NAS
• AMD Ryzen V1500B processor
• Four CPU cores and eight threads
• 2.2GHz operating frequency
• Hardware encryption engine
• 2GB DDR4 ECC SODIMM memory
• Memory expandable to 32GB
• Four hot-swappable SATA drive bays
• Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
• Expandable to eight drives with one RX418
• Four 1GbE RJ-45 network ports
• Link Aggregation and network failover support
• Redundant power supply system
• Two USB 3.2 Gen 1 ports
• One eSATA expansion port
• PCIe Gen3 expansion slot
• Supports selected 10GbE and 25GbE network cards
• Supports selected M.2 NVMe adapter cards
• Supports Synology Hybrid RAID
• Supports RAID 0, 1, 5, 6 and 10
• Supports Btrfs and ext4
• Supports Synology High Availability
• Includes two Surveillance Station device licences
• Supports up to 40 compatible IP cameras
• Three-year Synology hardware warranty

Recommended Use Cases

• Small and medium business storage
• Branch-office storage
• Centralised file sharing
• Computer and server backup
• Private-cloud file access
• Business collaboration
• Virtual-machine and iSCSI storage
• Snapshot-based data protection
• High-availability environments
• IP camera surveillance
• Optional 10GbE or 25GbE networking
• Expandable rackmount storage

Specifications

Compatibility Note

Confirm that all storage drives, memory modules, expansion units, PCIe cards and rack accessories are compatible with the Synology RS822RP+ before ordering.

The RS822RP+ supports one optional RX418 Expansion Unit, increasing the total number of supported drive bays from four to eight.

Compatible Synology memory options include selected D4ES02 and D4ES03 modules. When two memory modules are installed, both modules must be identical and use the same model number.

The PCIe slot supports selected Synology 10GbE and 25GbE network cards, M.2 SSD adapter cards and combined network and M.2 adapters.

Installation in a compatible 4-post rack requires an optional Synology RKM114 or RKS-02 rail kit.

Available capacity will be reduced by RAID, formatting, system partitions and file-system data. RAID does not replace an independent backup.

What’s in the Box

• Synology RackStation RS822RP+ main unit
• Accessory pack
• 2 × AC power cords
• Quick Installation Guide

Storage drives, memory upgrades, RX418 Expansion Unit, PCIe cards, M.2 SSDs and rack rail kits are not included.

Warranty

Three-year Synology hardware warranty.

Sustainability

• RoHS compliant
• HDD hibernation mode
• Scheduled power-on and power-off support
• Expandable memory, storage and networking may help extend the system’s useful operating life

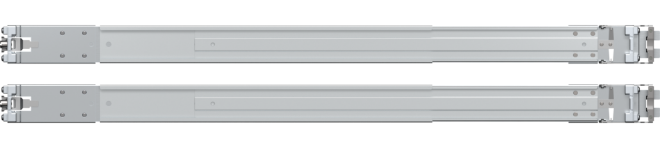

The Synology RKS-02 is a sliding rail kit designed to provide convenient maintenance access for compatible Synology rackmount servers and expansion units.

Product Description

The Synology RKS-02 allows compatible RackStation, FlashStation, SA, UC and expansion systems to slide forward from a supported rack for easier maintenance and hardware access.

It supports rack mounting depths from 610mm to 890mm and is compatible with supported square-hole and round-hole racks.

Compatibility depends on the exact Synology model and rack dimensions.

Key Features

• Official Synology sliding rail kit
• Designed for compatible Synology rackmount systems
• Provides easier maintenance access
• Supports rack depths from 610mm to 890mm
• Supports compatible square-hole racks
• Supports compatible round-hole racks
• Suitable for selected RackStation systems
• Suitable for selected expansion units
• Compatible with selected FlashStation, SA, UC and DP systems
• One-year Synology hardware warranty

Recommended Use Cases

• RackStation server installation
• Rackmount expansion-unit installation
• Data-centre equipment racks
• Business server rooms
• Easier rackmount system maintenance
• Hardware replacement and servicing
• Compatible square-hole racks
• Compatible round-hole racks

Specifications

Compatibility Note

Confirm that both the Synology system and rack are compatible with the RKS-02 before ordering.

Selected compatible models include:

• RS2825RP+ and RX1225RP
• RS2423RP+II, RS2423RP+, RS2423+ and RX1223RP
• RS822RP+, RS822+ and RS422+
• RS4021xs+, RS3621xs+ and RS3621RPxs
• RS1221RP+ and RS1221+
• RS2421RP+, RS2421+ and RS2821RP+
• RX1217, RX1217RP and RX418
• Selected FlashStation, SA, UC, DP and older RackStation systems

The rack must provide:

• Mount-post width of at least 450mm
• Panel width of at least 480mm
• Mounting depth between 610mm and 890mm
• Square mounting holes of at least 9.5 × 9.5mm or round holes of at least 7.1mm

Compatibility should be checked against Synology’s current list before installation.

What’s in the Box

• Synology RKS-02 sliding rail kit
• Mounting hardware
• Quick Installation Guide

Warranty

One-year Synology hardware warranty.

Sustainability

The sliding design provides easier access to compatible rackmount systems for maintenance and component replacement, which may help support longer-term system use.

The Synology RX1223RP is a 12-bay 2U rackmount expansion unit with hot-swappable SATA drive bays, Mini-SAS HD connectivity, redundant power supplies and online storage expansion through Synology DSM.

Product Description

The Synology RX1223RP provides additional storage capacity for compatible Synology RackStation and SA-series systems.

Its 12 hot-swappable drive bays support compatible 3.5-inch SATA hard drives and 2.5-inch SATA solid-state drives.

The expansion unit connects to a compatible host system through Mini-SAS HD and is managed through Synology DiskStation Manager. Existing volumes can be expanded, or additional storage pools and volumes can be created without interrupting supported services.

Redundant power supplies and replaceable system fans help maintain service availability in business environments.

Storage drives and the optional rack rail kit are not included.

Key Features

• 12-bay rackmount storage expansion unit
• 2U rackmount form factor
• Supports compatible Synology host systems
• Supports 3.5-inch SATA hard drives
• Supports 2.5-inch SATA solid-state drives
• Twelve hot-swappable drive bays
• Mini-SAS HD expansion connection
• Online storage expansion through Synology DSM
• Supports additional storage pools and volumes
• Redundant power supply system
• Four replaceable 80mm system fans
• Power operation synchronised with the host system
• Compatible with optional Synology RKS-02 rail kit
• Five-year Synology hardware warranty
• Storage drives sold separately

Recommended Use Cases

• Expanding compatible Synology RackStation storage
• Expanding Synology SA6400 storage
• Business archive storage
• Backup repository expansion
• Surveillance recording capacity
• Media and creative-project storage
• Large business data sets
• Additional storage pools and volumes
• High-capacity rackmount storage
• Environments requiring redundant power

Specifications

Compatibility Note

The RX1223RP is a storage expansion unit and cannot operate as a standalone NAS.

Confirm compatibility with the intended Synology host system before ordering. Synology currently lists the SA6400, RS2423RP+II, RS2423RP+ and RS2423+ as supported models.

The expansion unit connects to its host using the included Mini-SAS HD cable. The USB, eSATA and other expansion connections used by older Synology expansion units are not interchangeable with Mini-SAS HD.

Synology recommends creating storage volumes within the same NAS or expansion unit for better performance instead of spanning one volume across separate devices.

Installation in a compatible 4-post 19-inch rack requires an optional Synology RKS-02 sliding rail kit.

Available storage capacity will be lower than the combined manufacturer-rated drive capacity because of RAID, formatting, system partitions and file-system data.

What’s in the Box

• Synology RX1223RP expansion unit
• Accessory pack
• 2 × AC power cords
• Mini-SAS HD expansion cable
• Quick Installation Guide

Storage drives and the optional RKS-02 rail kit are not included.

Warranty

Five-year Synology hardware warranty.

Sustainability

• RoHS compliant
• HDD hibernation support
• Replaceable system fans and power supply modules
• Storage capacity can be expanded without replacing the compatible host system
• Power operation is synchronised with the connected Synology RackStation

The Synology RX418 is a compact 4-bay 1U rackmount expansion unit designed to add hot-swappable SATA storage capacity to compatible Synology RackStation systems through an eSATA connection.

Product Description

The Synology RX418 is a 4-bay rackmount expansion unit designed to increase the storage capacity of compatible Synology RackStation systems.

It provides four additional drive bays and supports compatible 3.5-inch SATA hard drives, 2.5-inch SATA hard drives and 2.5-inch SATA solid-state drives.

All four drive bays support hot-swapping when permitted by the connected RackStation, storage configuration and Synology DiskStation Manager status.

The RX418 connects to a compatible Synology RackStation through the supplied eSATA expansion cable.

Once connected, drives installed in the RX418 operate as part of the connected Synology storage environment and are managed through Synology DiskStation Manager.

No separate management software is required.

Depending on the connected RackStation model, the RX418 can be used to expand an existing compatible storage pool, create a separate storage pool or provide a dedicated local backup destination.

Selected compatible RackStation models support creating storage volumes across the main NAS and RX418.

For improved performance and easier storage management, Synology recommends creating volumes using drives physically located within the same NAS or expansion unit rather than spanning a volume across both devices.

The Synology RS217 supports volume creation within a single unit only and does not support volumes spanning the RackStation and RX418.

The RX418 is not a standalone NAS.

It does not include a processor, system memory, network interface, independent operating system or standalone DSM installation.

A compatible Synology RackStation is required for operation.

The RX418 supports synchronised power recovery with the connected RackStation.

When the connected RackStation powers on or recovers after a power interruption, the expansion unit can follow the host system’s supported power behaviour.

Its compact 1U rackmount chassis supports direct installation in a compatible 2-post 19-inch rack.

Installation in a compatible 4-post 19-inch rack is supported using a separately sold Synology RKM114 or RKS-02 rail kit.

The RX418 includes a 100W internal power supply and three 40mm system fans.

Storage drives and optional rack rails are not included.

Key Features

• Official Synology rackmount expansion unit
• Four additional SATA drive bays
• Compact 1U rackmount design
• Designed for compatible Synology RackStation systems
• Supports compatible 3.5-inch SATA hard drives
• Supports compatible 2.5-inch SATA hard drives
• Supports compatible 2.5-inch SATA solid-state drives
• Four hot-swappable drive bays
• RAID and storage management through Synology DSM
• One eSATA expansion port
• Supplied eSATA expansion cable
• Can expand compatible RackStation storage capacity
• Can provide a dedicated local backup destination
• Supports selected cross-unit volume configurations
• Supports single-unit volume configurations
• Synchronised power recovery with the connected RackStation
• Supports direct 2-post 19-inch rack mounting
• Supports compatible 4-post 19-inch rack installation
• Compatible with optional Synology RKM114 rail kit
• Compatible with optional Synology RKS-02 sliding rail kit
• 100W internal power supply
• Three 40mm system fans
• Approximately 25.1dB(A) rated noise level
• RoHS compliant
• Three-year limited hardware warranty
• Warranty extension options available where eligible
• Storage drives sold separately
• Rail kits sold separately
• Requires a compatible Synology RackStation

Recommended Use Cases

• Synology RackStation storage expansion
• Business file-storage expansion
• Additional backup storage
• Local backup destinations
• Archive storage
• Surveillance-recording expansion
• Media-library expansion
• Project-file storage
• Business document storage
• Additional RAID capacity
• Branch-office storage
• Rack-based storage environments
• Data-retention storage
• Secondary storage pools
• DSM-managed expansion storage
• Compatible volume expansion
• Storage-capacity growth without replacing the host RackStation
• Compact 2-post rack installations
• Standard 4-post rack installations

Specifications

Compatible Synology Models

The Synology RX418 is compatible only with selected Synology RackStation systems.

The supported storage-volume behaviour depends on the exact connected RackStation model.

Models Supporting Volumes Across Different Units

The following systems support creating compatible volumes across drives installed in the RackStation and RX418.

22 Series

• Synology RS822RP+
• Synology RS822+

21 Series

• Synology RS1221RP+
• Synology RS1221+

20 Series

• Synology RS820RP+
• Synology RS820+

19 Series

• Synology RS1219+
• Synology RS819

18 Series

• Synology RS818RP+
• Synology RS818+

16 Series

• Synology RS816

15 Series

• Synology RS815RP+
• Synology RS815+
• Synology RS815
