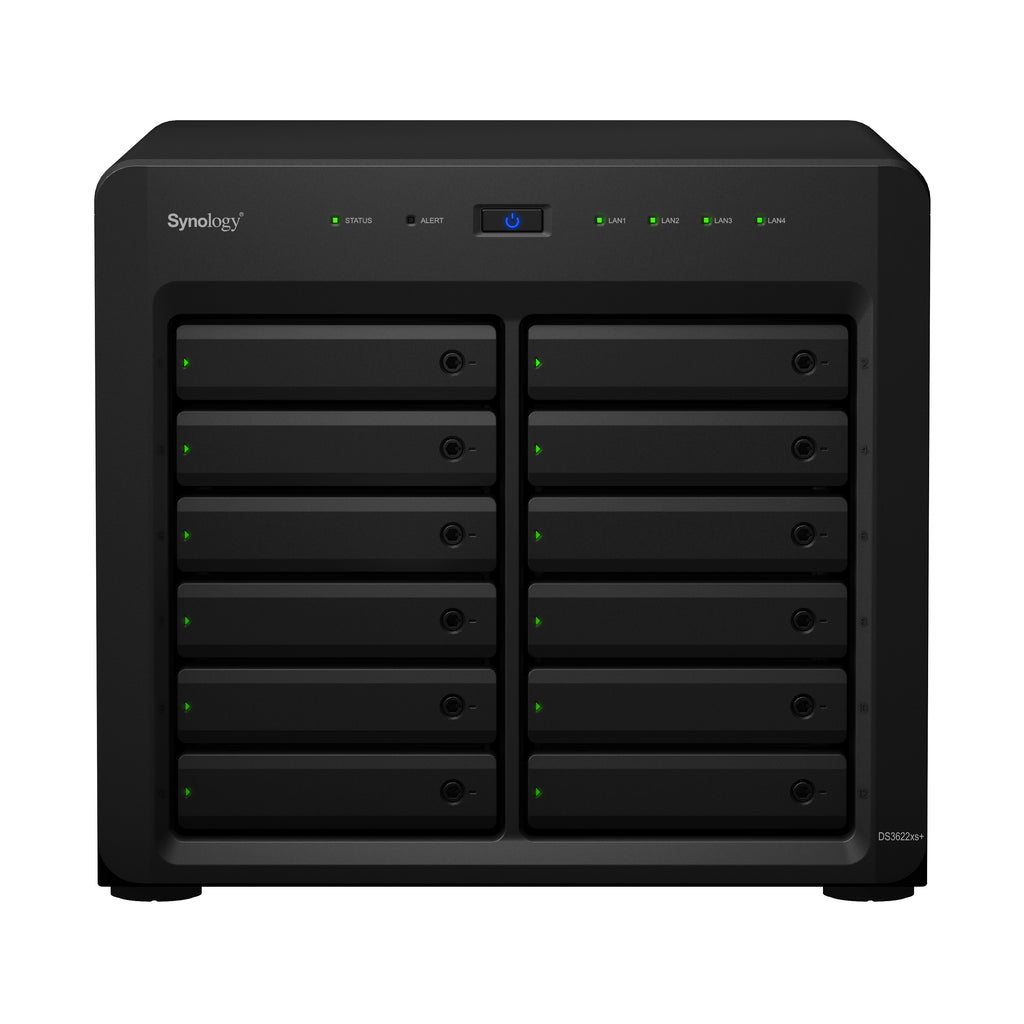

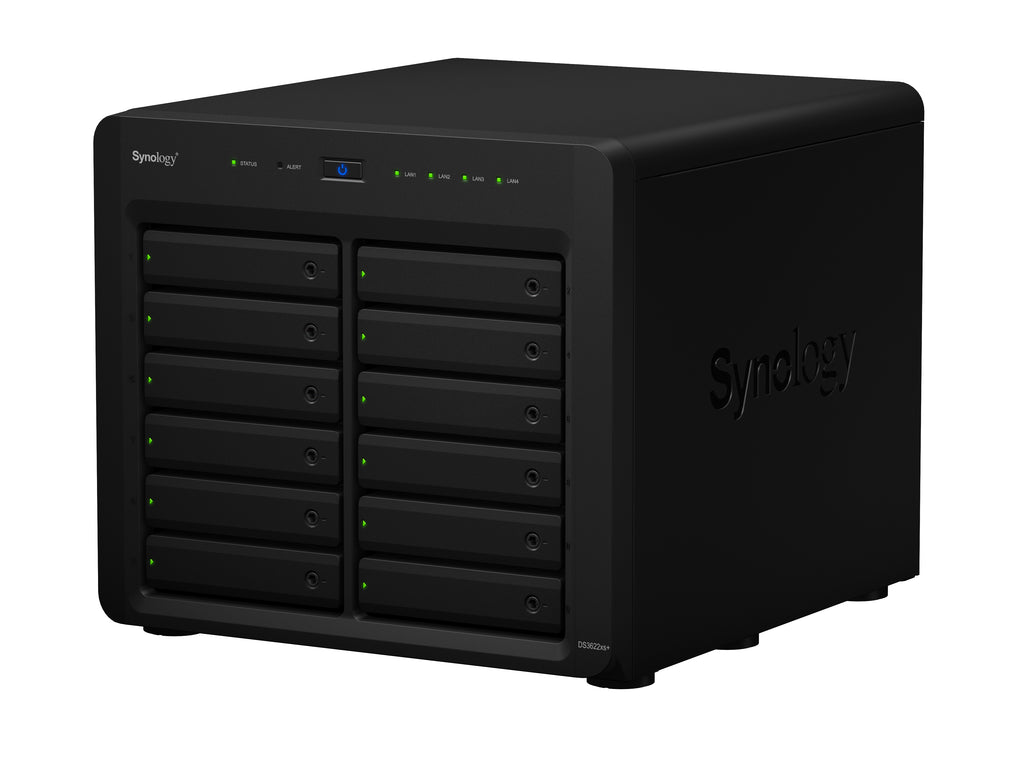

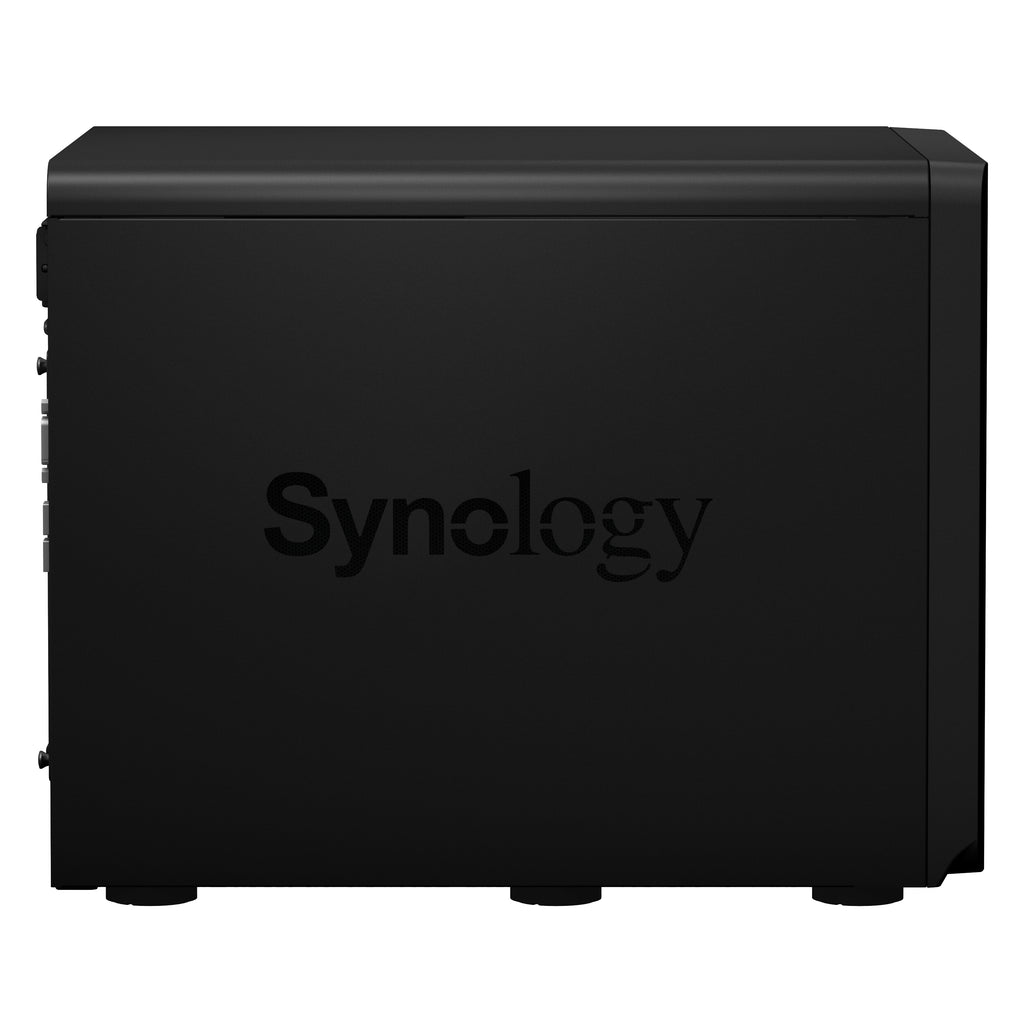

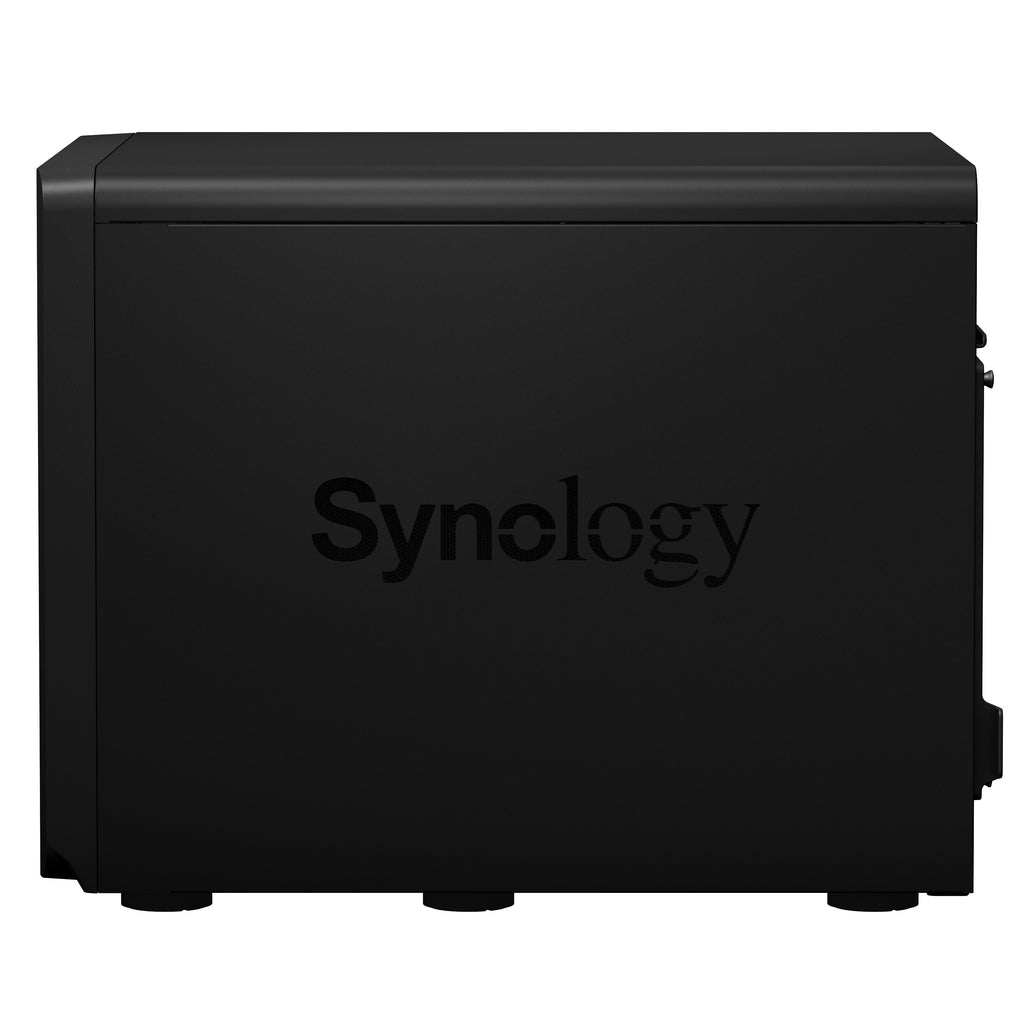

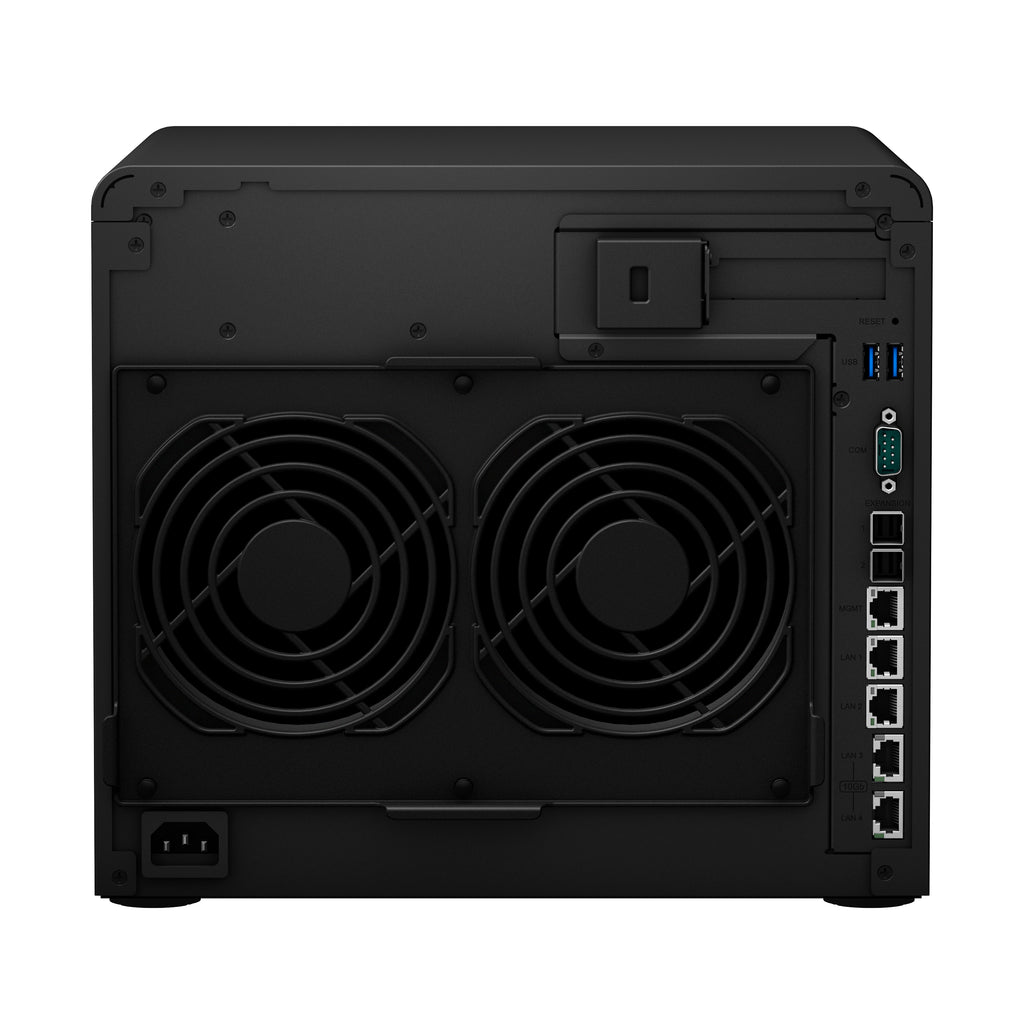

Synology DiskStation DS3622xs+ 12-Bay Desktop NAS

The Synology DiskStation DS3622xs+ is a high-performance 12-bay desktop NAS designed for centralized file storage, backup, virtualization support, surveillance storage, video editing workflows, and scalable business data management.

With an Intel Xeon D-1531 processor, 16GB DDR4 ECC memory, support for up to 48GB memory, 2 x 1GbE LAN ports, 2 x 10GbE LAN ports, 1 x out-of-band management LAN port, 2 x USB 3.2 Gen 1 ports, expansion support up to 36 drive bays with two DX1222 expansion units, and compatibility with 3.5" SATA HDDs, 2.5" SATA HDDs, and 2.5" SATA SSDs, the DS3622xs+ is built for demanding business storage environments.

Product Overview

The Synology DiskStation DS3622xs+ is designed for customers who need a powerful and scalable 12-bay NAS solution for business file storage, backup, surveillance, virtualization, video editing, and high-capacity data workflows.

With twelve drive bays as standard and expansion support for up to thirty-six drive bays when paired with two compatible DX1222 expansion units, the DS3622xs+ provides strong storage flexibility for growing business requirements.

Powered by an Intel Xeon D-1531 6-core processor with 2.2GHz base frequency and 2.7GHz turbo frequency, plus 16GB DDR4 ECC SODIMM memory, the DS3622xs+ supports Synology DSM features for storage management, file services, backup, Synology Drive, Synology Office, Synology Photos, Surveillance Station, Synology High Availability, Virtual Machine Manager, and supported business applications.

Key Features

• 12-bay Synology xs+ Series desktop NAS
• Intel Xeon D-1531 processor
• 6-core CPU
• 2.2GHz base and 2.7GHz turbo CPU frequency
• 16GB DDR4 ECC SODIMM system memory
• Maximum memory capacity of 48GB with compatible memory expansion
• Hardware encryption engine
• Supports 3.5" SATA HDDs
• Supports 2.5" SATA HDDs
• Supports 2.5" SATA SSDs
• Hot-swappable drive support
• Expands up to 36 drive bays with two DX1222 expansion units
• 2 x RJ-45 1GbE LAN ports
• 2 x RJ-45 10GbE LAN ports
• 1 x out-of-band management LAN port
• 2 x USB 3.2 Gen 1 ports
• 2 x expansion ports
• PCIe Gen3 x8 slot with x8 link
• Supports SSD read/write cache
• Supports RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
• Maximum single volume size of 108TB, or up to 200TB with 32GB memory
• 270mm x 300mm x 340mm desktop design
• Backed by a 5-year hardware warranty

Recommended Use Cases

• Business file storage
• Professional file sharing
• Centralized document backup
• Business backup workflows
• Video editing storage
• Surveillance storage
• Virtual machine storage
• Synology Drive file access and synchronization
• Synology Office collaboration
• Synology Photos management
• Synology MailPlus server workflows
• iSCSI and Fibre Channel storage workflows
• Shared folder snapshots
• SSD cache deployments
• Scalable storage expansion with DX1222
• 10GbE or 25GbE network upgrade with compatible network interface card
• High-capacity RAID storage configurations
• Business continuity and data protection workflows

Specifications

• Brand: Synology
• Model: DS3622xs+
• Product Type: 12-Bay xs+ Series Desktop NAS
• CPU Model: Intel Xeon D-1531
• CPU Quantity: 1
• CPU Cores: 6
• CPU Architecture: 64-bit
• CPU Frequency: 2.2GHz base / 2.7GHz turbo
• Hardware Encryption Engine: Yes
• System Memory: 16GB DDR4 ECC SODIMM
• Pre-installed Memory: 16GB, 8GB x 2
• Total Memory Slots: 4
• Maximum Memory Capacity: 48GB
• Drive Bays: 12
• Maximum Drive Bays with Expansion Unit: 36 with DX1222 x2
• Compatible Drive Type: 3.5" SATA HDD
• Compatible Drive Type: 2.5" SATA HDD
• Compatible Drive Type: 2.5" SATA SSD
• Hot Swappable Drive: Yes
• LAN Port: 2 x RJ-45 1GbE
• LAN Port: 2 x RJ-45 10GbE
• Out-of-Band Management LAN Port: 1
• USB Ports: 2 x USB 3.2 Gen 1
• Expansion Ports: 2
• PCIe Expansion: 1 x Gen3 x8 slot with x8 link
• Size: 270mm x 300mm x 340mm
• Weight: 9.8kg
• System Fan: 120mm x 120mm x 25mm x 2
• AC Input Power Voltage: 100V to 240V AC
• Power Frequency: 50/60Hz, Single Phase
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Operating Humidity: 8% to 80% RH
• Storage Humidity: 5% to 95% RH
• Maximum Operating Altitude: 5,000m
• Environment: RoHS Compliant
• Warranty: 5-Year Hardware Warranty

Performance and Reliability Features

• 12-bay xs+ Series NAS designed for demanding business storage workflows
• Intel Xeon D-1531 6-core processor for supported DSM business workloads
• 16GB DDR4 ECC SODIMM memory for enhanced data integrity
• Supports memory expansion up to 48GB using compatible Synology memory
• Hardware encryption engine support
• Supports 3.5" SATA HDDs, 2.5" SATA HDDs, and 2.5" SATA SSDs
• Hot-swappable drive support for easier drive maintenance
• Expansion support up to 36 drive bays with compatible DX1222 expansion units
• Built-in dual 10GbE LAN connectivity for high-speed network storage access
• Dual 1GbE LAN connectivity for additional network flexibility
• Out-of-band management LAN port for dedicated management access
• PCIe Gen3 x8 slot with x8 link for compatible network interface cards or adapter cards
• Supports SSD read/write cache with compatible SSDs and adapter cards
• Supports Btrfs and ext4 file systems on internal drives
• Supports RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
• Supports DSM file services including SMB, AFP, NFS, FTP, WebDAV, and Rsync
• Supports iSCSI and Fibre Channel workflows with compatible hardware
• Supports Synology High Availability
• Supports Synology Drive for file access and synchronization
• Supports Synology Office collaboration workflows
• Supports Synology MailPlus server workflows
• Supports Virtual Machine Manager with recommended virtual machine instances
• Includes 2 default Surveillance Station licenses
• 5-year warranty support

Compatibility Note

Please check that your selected hard drives, SSDs, memory upgrades, adapter cards, network interface cards, and expansion units are compatible with the Synology DS3622xs+ before ordering.

This NAS supports 3.5" SATA HDDs, 2.5" SATA HDDs, and 2.5" SATA SSDs. Storage drives, SSDs, memory upgrades, adapter cards, network interface cards, and expansion units are not included unless specifically stated by the seller.

For memory expansion, please use compatible Synology memory modules for optimum compatibility and reliability.

Before ordering, please confirm:

• Your selected drives are compatible with the Synology DS3622xs+
• Your selected SSDs are compatible with the Synology DS3622xs+
• Your selected memory modules are compatible with the Synology DS3622xs+
• Your selected adapter card or network interface card is compatible with the Synology DS3622xs+
• Your selected expansion units are compatible with the Synology DS3622xs+
• Your required storage capacity matches your intended use
• Your intended RAID, file system, backup, or storage setup
• Your network and device compatibility requirements
• Your intended DSM package and workload requirements
• Whether multiple drives are required for your intended RAID configuration

What’s in the Box

• Synology DS3622xs+ main unit x1
• Accessory pack x1
• AC power cord x1
• RJ-45 LAN cable x2
• Quick installation guide x1
